Tamiya 1990 Land Rover Defender 90 CC-02 1/10 4WD Off-Road RC Kit No ESC 58700-60A

Build a scale recreation of one of Britain's most recognisable four-wheel-drive vehicles with the Tamiya 1990 Land Rover Defender 90. This 1/10-scale RC assembly kit combines the Defender's classic three-door body with Tamiya's rugged CC-02 ladder-frame chassis for realistic trail driving, general off-road use and scale display.

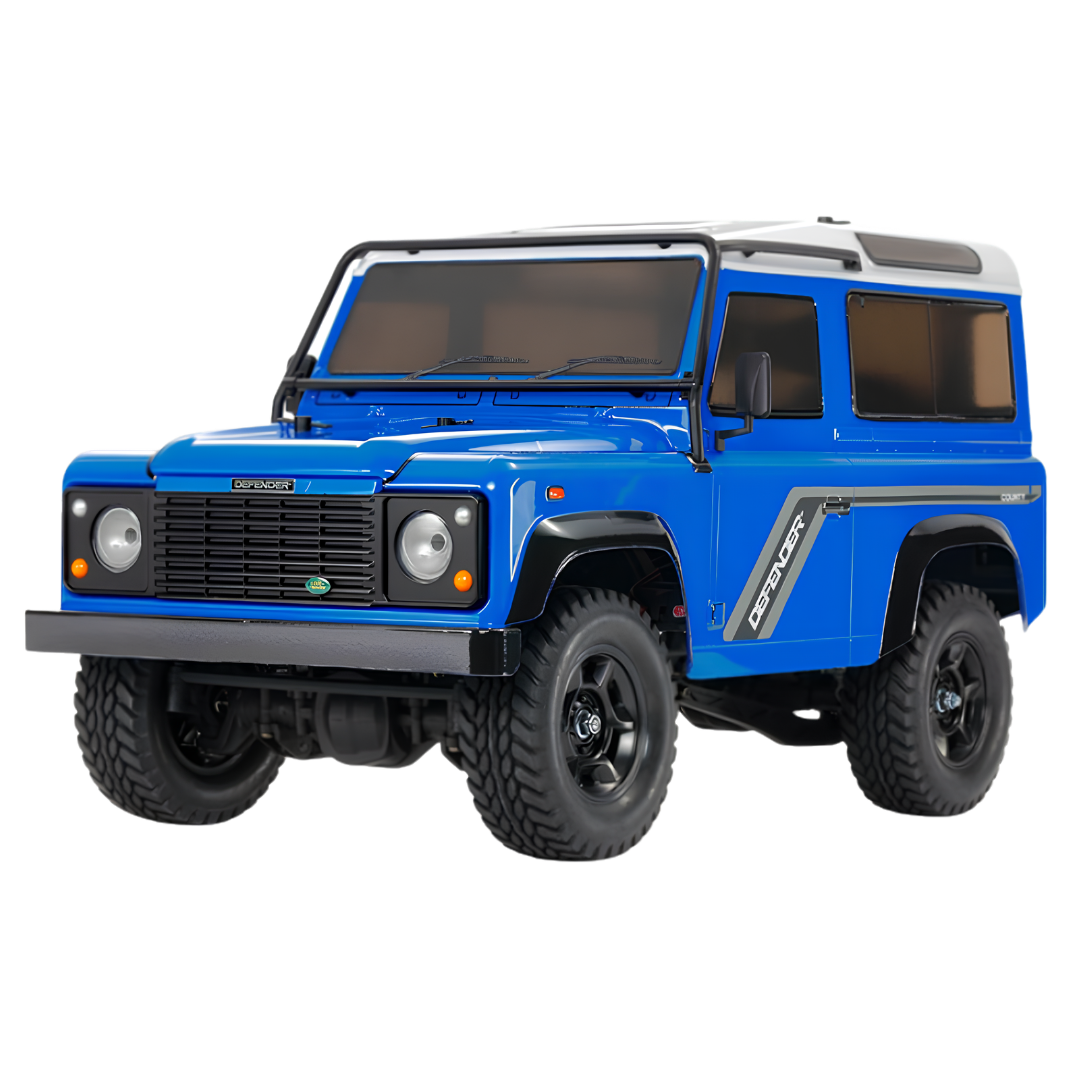

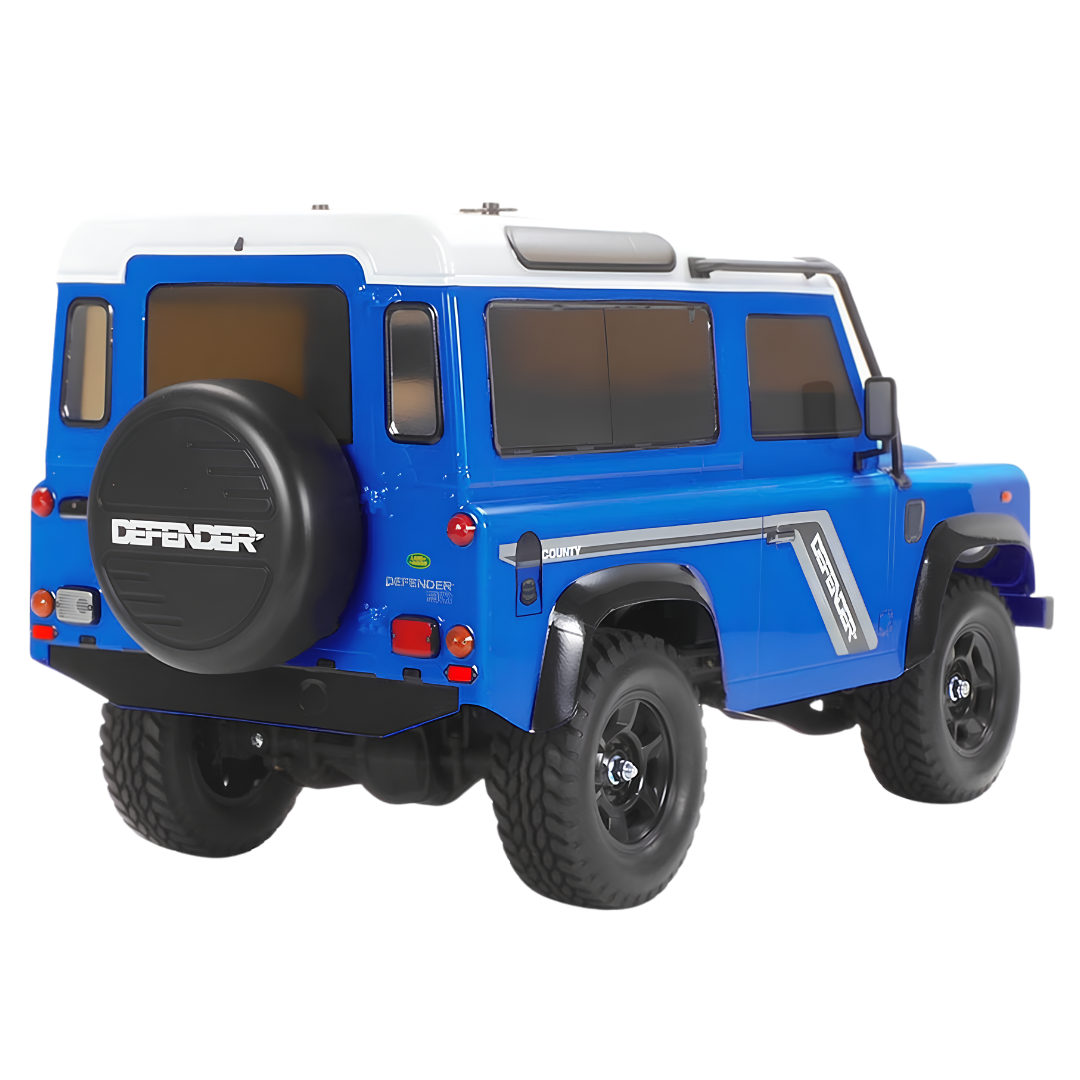

The clear polycarbonate body captures the Defender 90's upright profile and short-wheelbase proportions, while separate moulded components recreate the front grille, mirrors, light housings, spare-wheel cover and distinctive outer roll cage. Front and rear light housings are also designed to accept separately available 5mm LEDs.

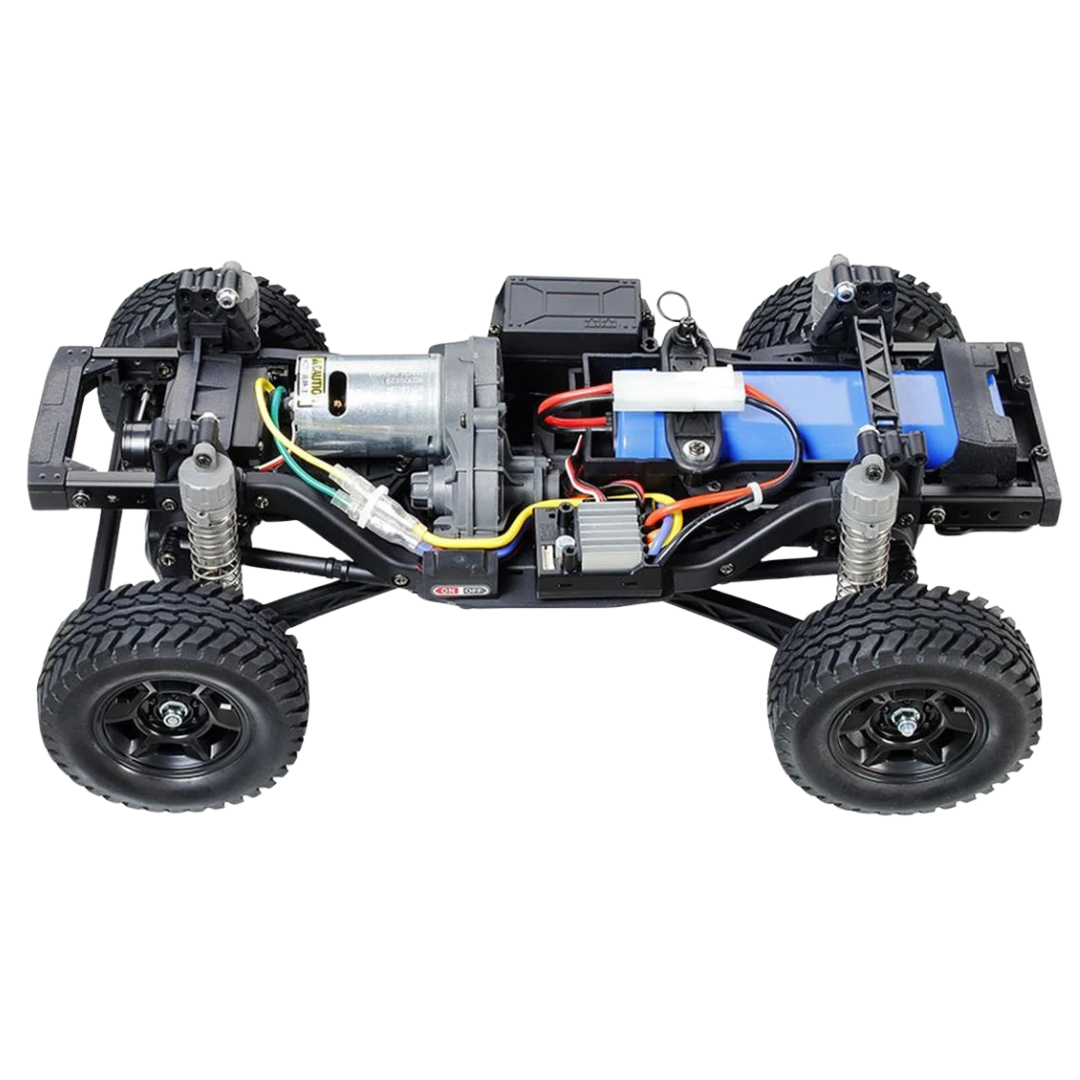

Underneath, the CC-02 uses a longitudinally mounted 540 brushed motor, separate gearbox and transfer case, propeller shafts and front and rear solid axles. Four-link suspension and CVA oil-filled dampers provide controlled axle movement over uneven terrain, while the differential gears can be locked during assembly for additional traction on loose or low-grip surfaces.

Features

• Officially licensed recreation of the 1990 Land Rover Defender 90
• Detailed three-door short-wheelbase body design
• Clear polycarbonate body requires painting and finishing

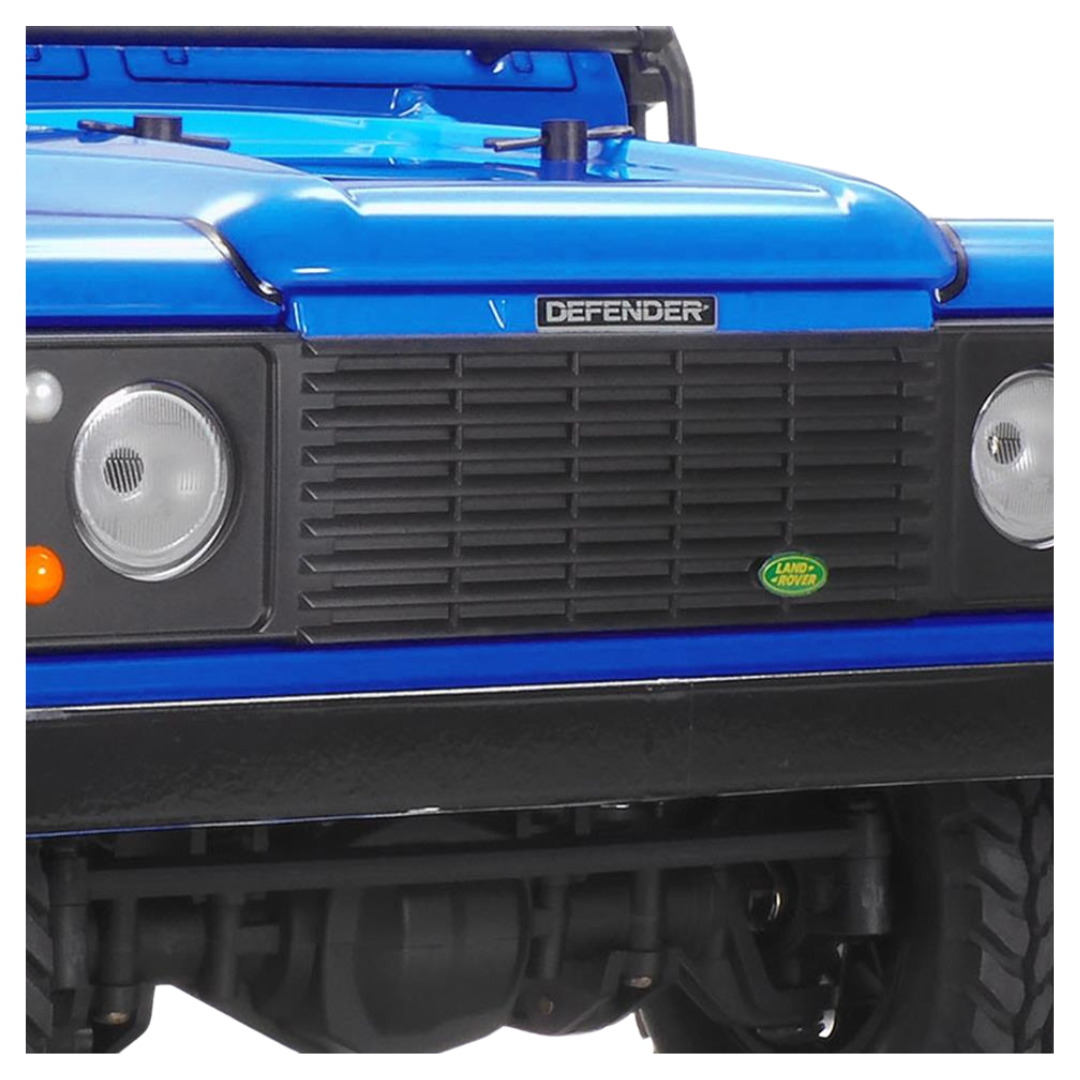

• Separate moulded front grille, mirrors and light housings

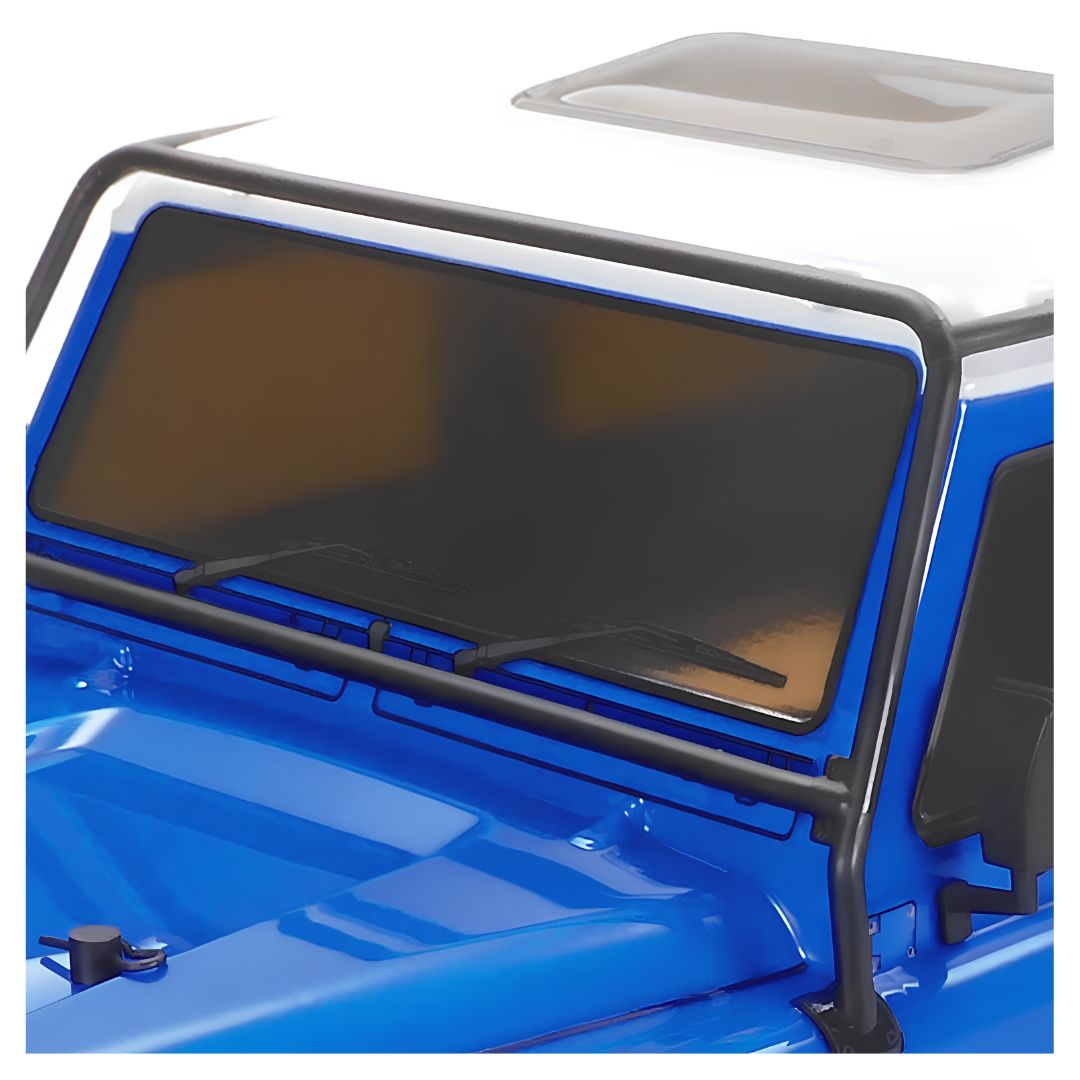

• Separate outer roll-cage components

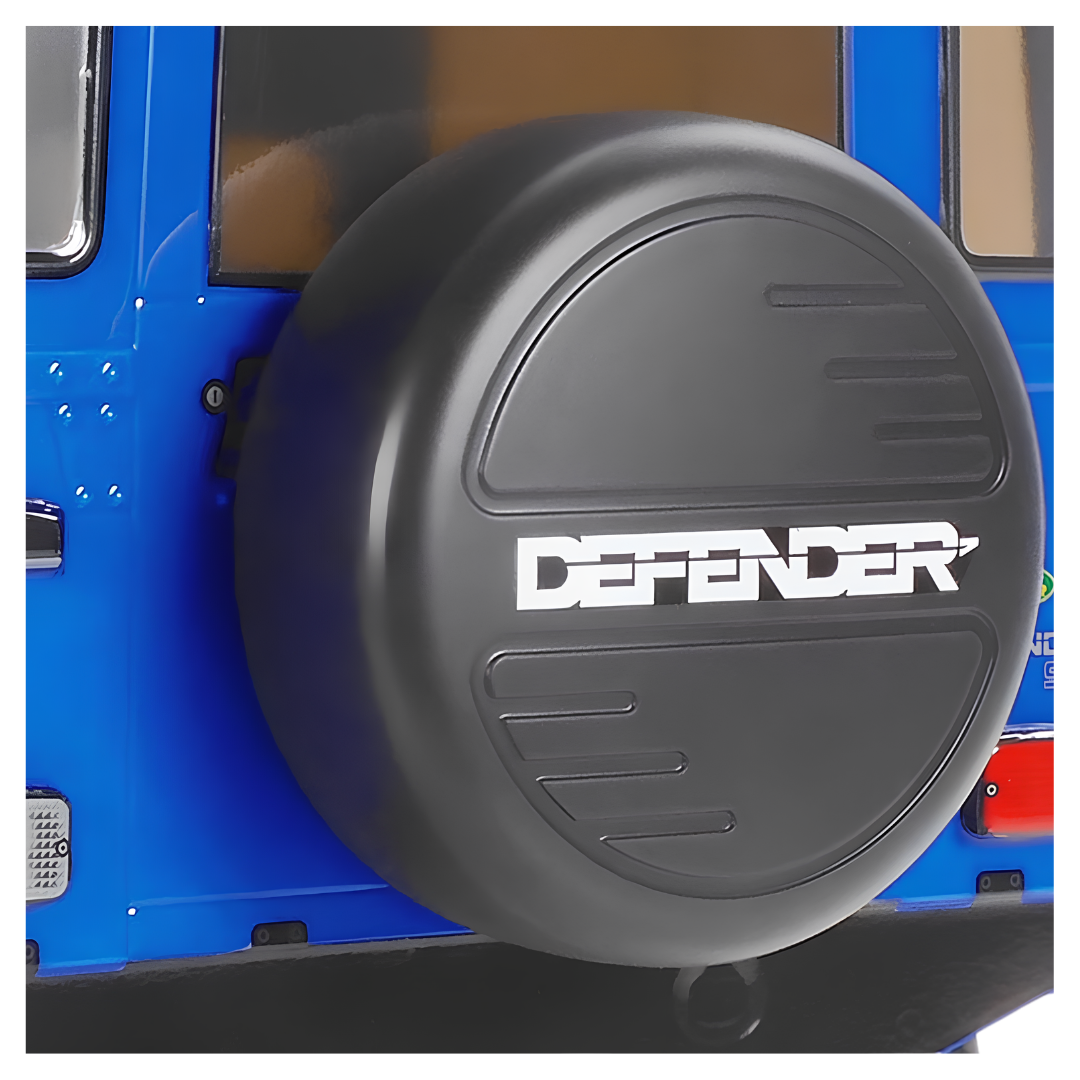

• Separate rear spare-wheel cover with Defender graphic
• Front light housings accept two separately available 5mm LEDs
• Rear light housings accept up to six separately available 5mm LEDs

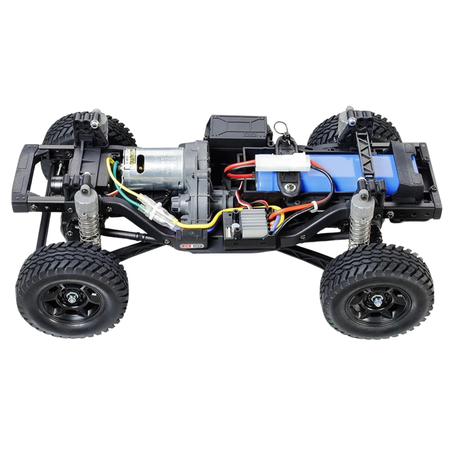

• Rugged CC-02 ladder-frame chassis
• Longitudinally mounted Type 540 brushed motor
• Separate gearbox and transfer-case layout inspired by full-size 4WD vehicles
• Shaft-driven four-wheel-drive system
• Front and rear propeller shafts

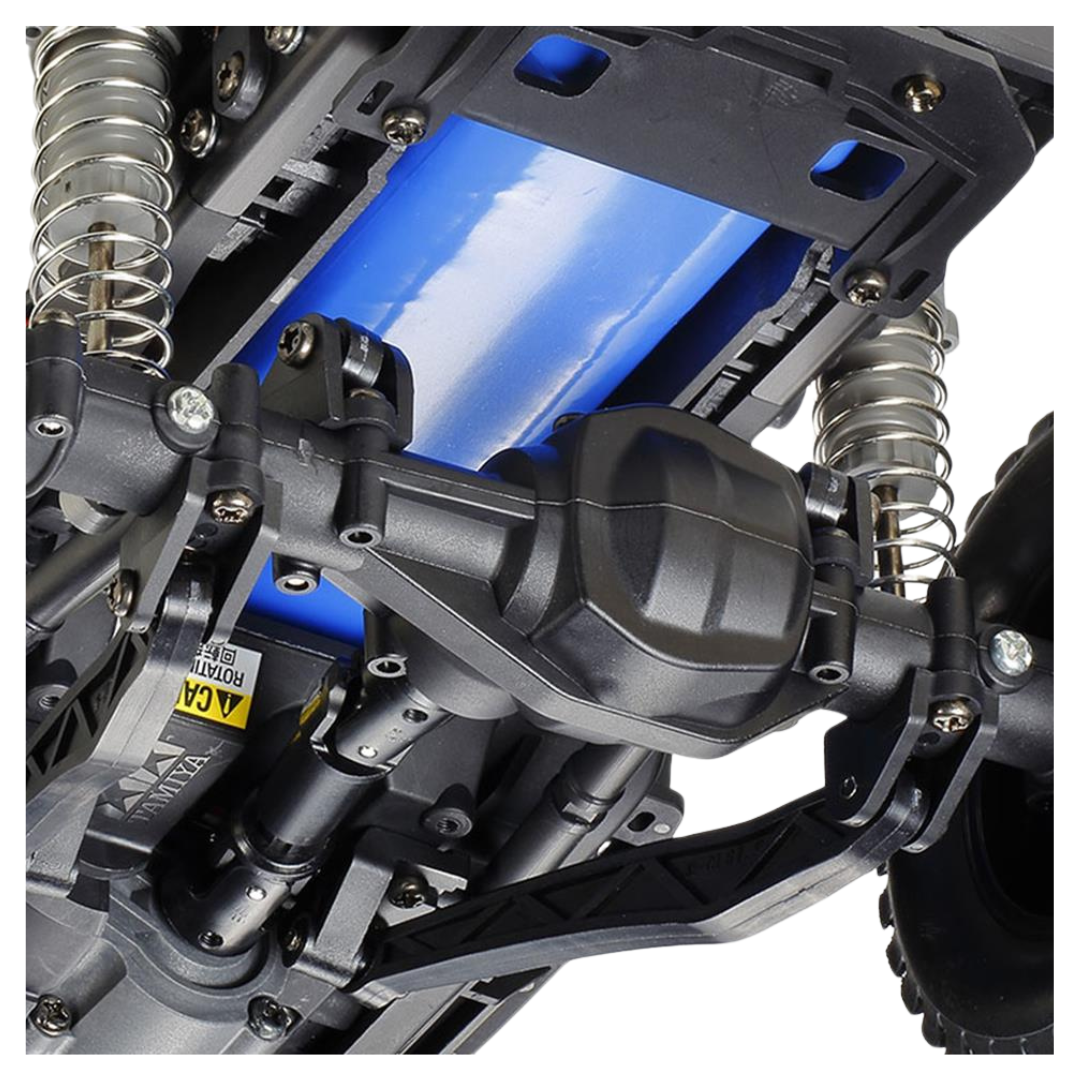

• Front and rear solid axle housings
• Three-bevel front and rear gear differentials
• Differentials can be assembled locked for increased low-grip traction
• Four-link rigid-axle suspension front and rear
• Coil springs with CVA oil-filled dampers

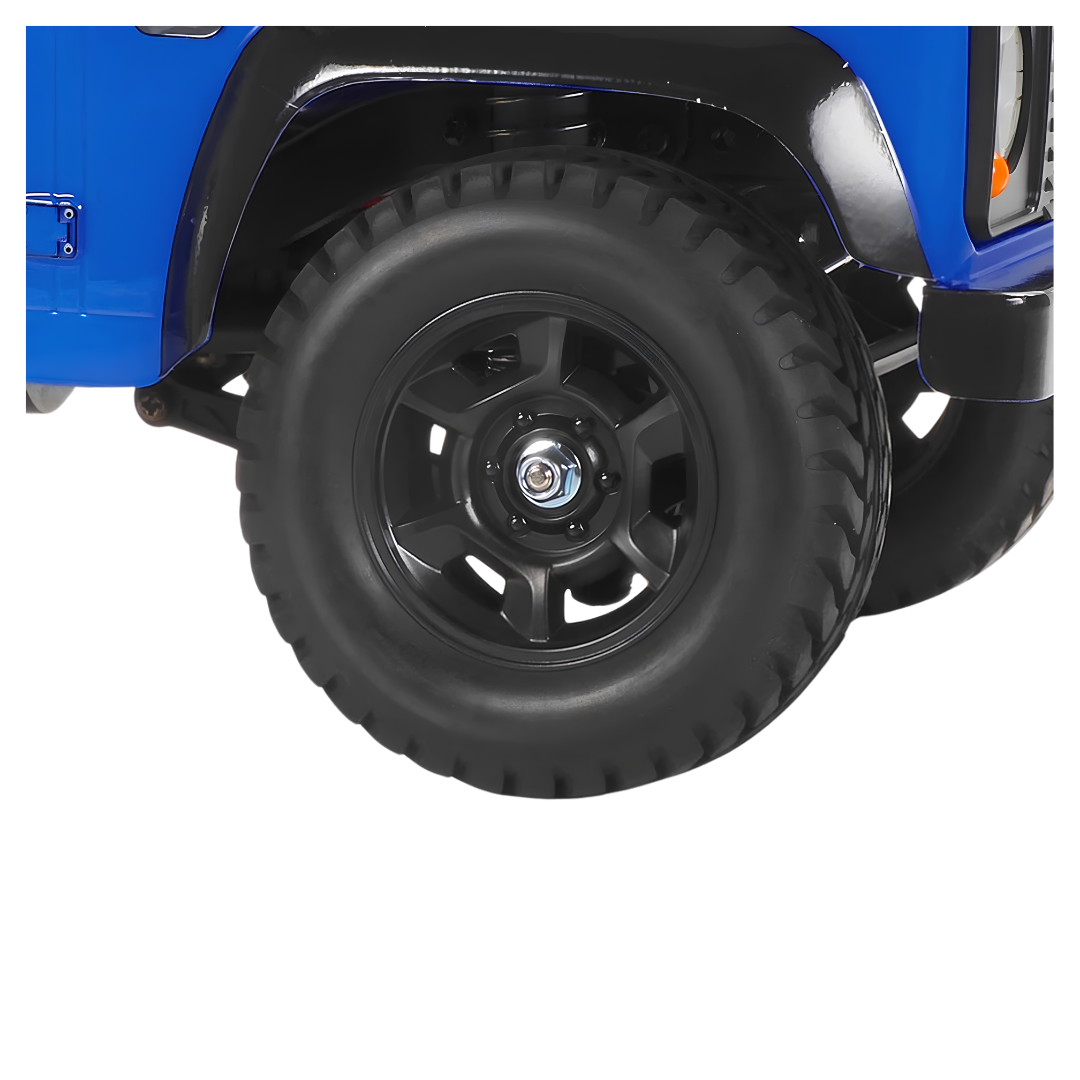

• Black six-spoke ABS wheels
• Grippy block-pattern all-terrain tyres
• Short 242mm wheelbase configuration
• Wide selection of compatible CC-02 replacement and Hop-Up Option parts

Specifications

• Brand: Tamiya
• Model: 1990 Land Rover Defender 90
• Manufacturer Part Number: 58700-60A
• Base Tamiya Item Number: 58700
• Product Type: Electric RC off-road assembly kit
• Scale: 1/10
• Chassis: CC-02
• Wheelbase Configuration: Short
• Drive Type: Shaft-driven four-wheel drive
• Length: 429mm
• Width: 200mm
• Height: 215mm
• Wheelbase: 242mm
• Front Track: 160mm
• Rear Track: 163mm
• Chassis Type: Ladder frame
• Motor Position: Longitudinal, behind the front axle
• Motor: Type 540 brushed motor
• Electronic Speed Controller: Not included
• Transmission: Separate gearbox and transfer case
• Differentials: Front and rear three-bevel gear differentials
• Differential Setup: Open or locked during assembly
• Standard Gear Ratio: 17.33:1 with the supplied 16-tooth pinion
• Suspension: Front and rear four-link rigid axle
• Dampers: CVA oil-filled dampers
• Springs: Coil springs
• Body Material: Clear polycarbonate
• Detail Components: Injection-moulded ABS and polycarbonate-ABS parts
• Wheel Design: Black six-spoke
• Tyre Type: Block-pattern semi-pneumatic all-terrain rubber
• Front Tyre Size: Approximately 33mm wide × 90mm diameter
• Rear Tyre Size: Approximately 33mm wide × 90mm diameter
• Assembly Required: Yes

Compatibility

• Compatible two-channel surface transmitter and receiver systems
• Requires a standard-size steering servo suitable for a 1/10 off-road vehicle
• Requires a brushed ESC suitable for the included Type 540 motor
• Designed for compatible 7.2V NiMH or 7.4V 2S battery packs that fit the CC-02 battery compartment
• Compatible with separately available 5mm LED lighting components
• Compatible with selected Tamiya CC-02 replacement and Hop-Up Option parts
• Compatible with Tamiya 54910 CC-02 Full Ball Bearing Set
• Compatible with selected CC-02 propeller shafts, steering parts, suspension components and motor options

Includes

• 1 × Tamiya 1990 Land Rover Defender 90 RC assembly kit
• 1 × CC-02 ladder-frame chassis component set
• 1 × Clear polycarbonate Defender 90 body
• 1 × Type 540 brushed motor
• 1 × Front and rear drivetrain component set
• 1 × Set of CVA oil-filled dampers
• 1 × Set of black six-spoke wheels
• 1 × Set of block-pattern all-terrain tyres
• Separate grille, mirror, light-housing and roll-cage components
• Rear spare-wheel cover components
• Vehicle sticker sheet
• Window masking sheet
• Assembly hardware
• Illustrated instruction manual

Required to Complete

• Two-channel surface transmitter and compatible receiver
• Standard-size steering servo
• Brushed electronic speed controller suitable for the included 540 motor
• Compatible 7.2V NiMH or 7.4V 2S battery pack
• Compatible battery charger
• AA batteries for the transmitter
• Tamiya PS paint or another paint formulated for polycarbonate bodies
• Detail paint for hard-plastic accessories if desired
• Polycarbonate body scissors and reamer
• Basic RC assembly tools

FAQ

Is the Tamiya Defender 90 ready to run? No. This is an unassembled RC kit. The chassis, suspension, drivetrain, body and electronics require assembly before use.

Does the 58700-60A package include an ESC? No. This Australian-market package is supplied without an electronic speed controller.

Does the kit include a motor? Yes. A Type 540 brushed motor is included.

Which chassis does this model use? It uses the Tamiya CC-02 ladder-frame chassis in its short 242mm wheelbase configuration.

Why do some descriptions mention the CC-01S chassis? The 242mm wheelbase matches the dimensions used by the earlier short-wheelbase CC-01S platform. This kit itself uses the newer CC-02 chassis, not the CC-01.

Is the body pre-painted? No. The Defender body is supplied in clear polycarbonate and requires painting, trimming, drilling and sticker application.

Which paint should I use? Use Tamiya PS-series paint or another paint specifically designed for flexible polycarbonate RC bodies. Paint is normally applied to the inside of the clear shell.

Are the outer roll cage and grille part of the body moulding? No. These details are supplied as separate moulded parts for greater scale definition.

Can lights be installed? Yes. The front light housings accept two 5mm LEDs, while the rear housings can accept up to six 5mm LEDs. LEDs and a suitable lighting controller are sold separately.

Is the CC-02 a rock crawler? The CC-02 is a scale trail and cross-country chassis capable of driving over rocky and uneven terrain. It does not have the extreme articulation, low gearing or specialised geometry of a competition crawler.

Can the differentials be locked? Yes. The front and rear three-bevel differentials can be assembled in a locked configuration. Locked differentials improve traction on loose terrain but increase tyre scrub and the turning radius on high-grip surfaces.

Should I lock both differentials? This depends on the intended use. Locking both can maximise off-road traction, while leaving one or both open can provide smoother steering and better behaviour on firm surfaces. Changing the setup later requires drivetrain disassembly.

Does the kit use independent suspension? No. The CC-02 uses front and rear rigid axles located by four-link suspension, similar in concept to many full-size off-road vehicles.

Does it include oil-filled shocks? Yes. CVA oil-filled dampers are included as standard.

What battery should I use? A compatible 7.2V NiMH or 7.4V 2S pack that fits the battery compartment may be used, provided the selected ESC supports the battery chemistry, voltage and connector.

Can I use a 2S LiPo battery? Yes, when paired with a LiPo-compatible ESC with correctly configured low-voltage protection. Confirm battery dimensions and connector compatibility before ordering.

What type of ESC is required? Use a brushed ESC suitable for a 540-size motor and the selected battery. A crawler-focused brushed ESC can provide smoother low-speed throttle control and a drag-brake function, but confirm motor and voltage compatibility.

Are ball bearings included? The standard kit does not include a complete ball-bearing set. Tamiya's compatible CC-02 full bearing set is a popular upgrade for reducing drivetrain friction.

What are useful first upgrades? Common first upgrades include a full ball-bearing set, steering improvements, stronger propeller shafts and tyres selected for the intended terrain. The standard kit can be assembled and enjoyed before upgrades are added.

Can I install a faster motor? Compatible motor upgrades are available, but higher speed is not always beneficial in a scale trail vehicle. The motor, gearing, ESC and battery must be matched carefully to avoid excess drivetrain load or overheating.

Is it suitable for beginners? The CC-02 is approachable for a patient first-time builder, although it is more involved than a simple buggy or touring-car kit. Careful differential, suspension and body assembly is important.

Is it waterproof? Waterproofing depends on the separately installed electronics. Unless the receiver, servo and ESC are all rated for wet operation, avoid water and thoroughly dry the chassis after damp use.

Important Notes

• This is an unassembled kit and is not ready to run.
• An electronic speed controller is not included.
• A transmitter, receiver, steering servo, battery, charger, transmitter batteries, paint and tools are required separately.
• The body is supplied clear and requires painting, trimming, drilling and decal application.
• Use paint specifically formulated for polycarbonate RC bodies.
• The chassis is CC-02; references to CC-01S describe the equivalent short wheelbase only.
• The differentials can be built open or locked, so choose the setup before completing the axle assemblies.
• Locked differentials can reduce steering performance and increase tyre scrub on sealed surfaces.
• LEDs and lighting-control components are not included.
• Confirm that the selected ESC supports the included motor and chosen battery chemistry.
• Use suitable low-voltage protection with a LiPo battery.
• Apply grease, oil and thread-locking compound only where specified in the instruction manual.
• Do not overtighten screws installed into plastic components.
• Check steering direction, throttle direction, drivetrain operation and wheel rotation before the first run.
• Set the transmitter failsafe before operating the model.
