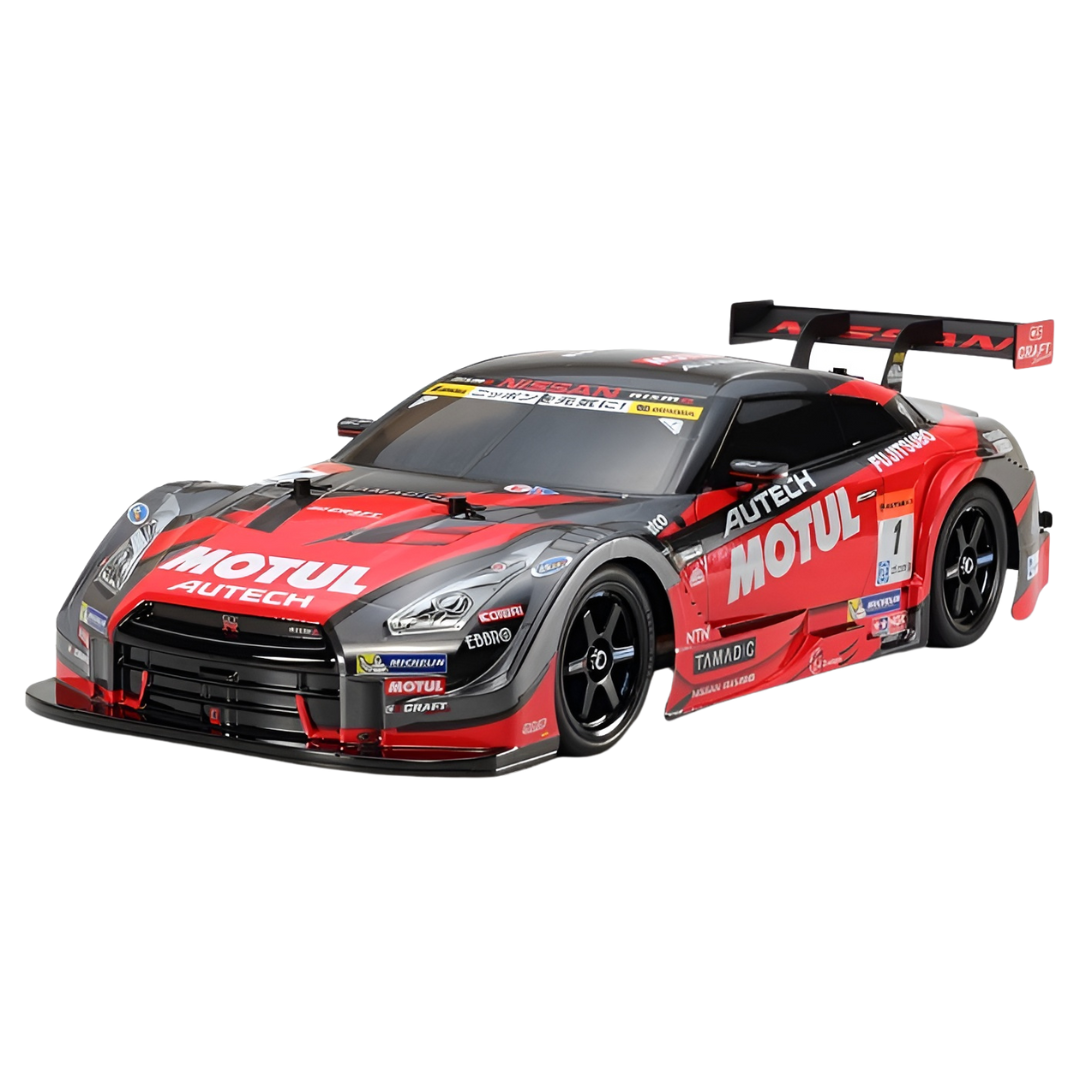

Tamiya Motul Autech GT-R On Road RC Car 1/10 TT-02 Kit 4WD Touring 58625

The Tamiya MOTUL AUTECH GT-R is a 1/10 scale 4WD RC touring car assembly kit based on the TT-02 chassis, combining a detailed recreation of the 2015 SUPER GT GT500 champion with an approachable shaft-driven platform for on-road driving building and display

Features

• 1/10 scale RC assembly kit recreating the 2015 MOTUL AUTECH GT-R GT500 race car
• Detailed polycarbonate body captures the aerodynamic shape of the full-size racing car
• Separate door mirrors suspended rear wing and rear aerodynamic parts
• Dedicated marking stickers reproduce sponsor graphics and red livery sections

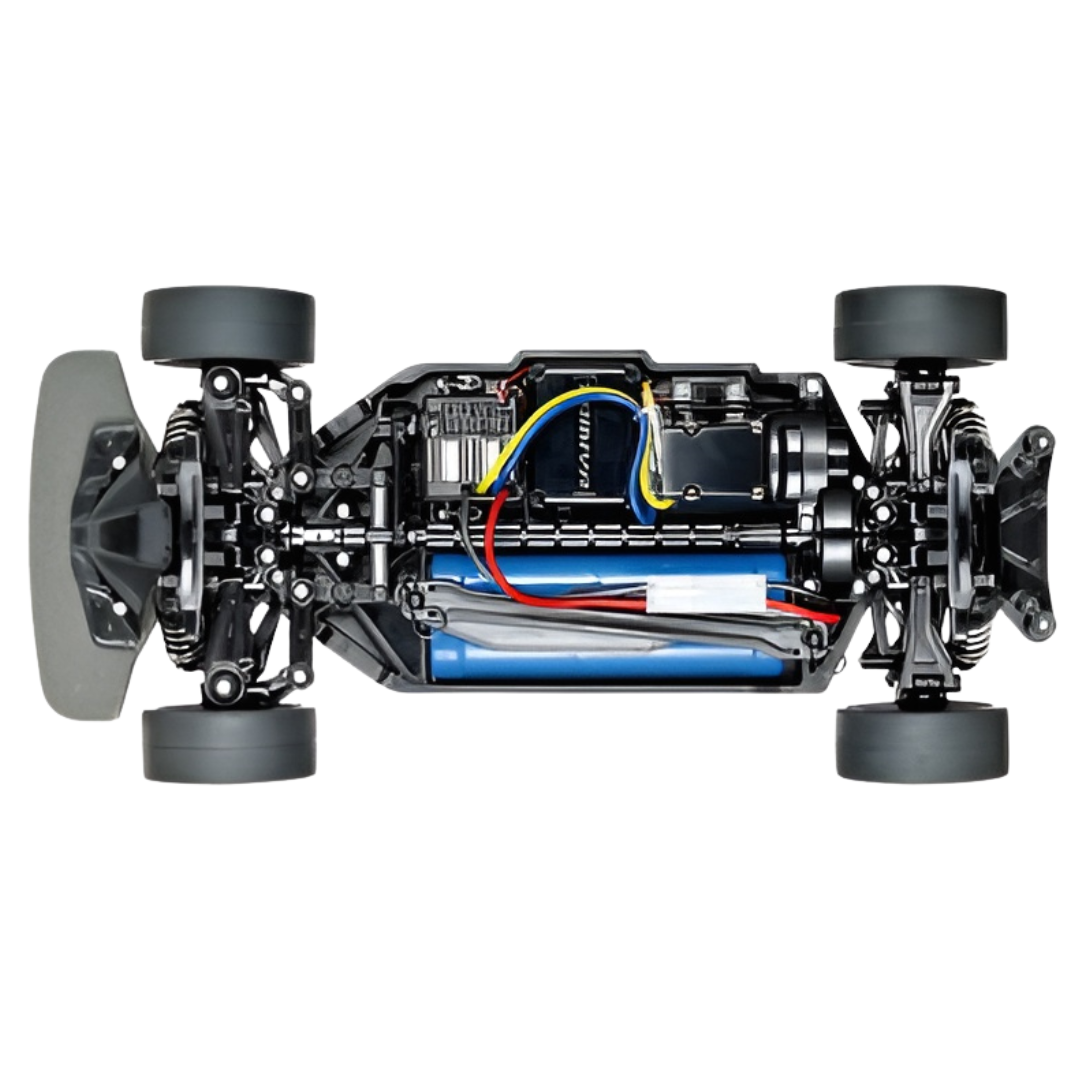

• TT-02 shaft-driven 4WD chassis with longitudinal battery-left motor-right layout
• Identical left and right suspension arms and uprights simplify assembly and servicing
• Front and rear 4-bevel resin gear differentials
• Four-wheel independent double wishbone suspension
• Front and rear friction dampers
• Two wheelbase settings two ground-clearance settings and two tread configurations supported by the TT-02 platform
• Ten possible gear ratios available using compatible optional pinion gears
• Black 6-spoke wheels with racing slick tyres
• Brake disc-style wheel hubs and distinctive front bumper supports
• Type 540 brushed motor included
• Australian 58625-600 package is listed with a Tamiya TBLE-02 electronic speed controller

Specifications

• Brand: Tamiya
• Model: MOTUL AUTECH GT-R
• Chassis: TT-02
• Product Type: RC Touring Car Kit
• Scale: 1/10
• Drive: Shaft-Driven 4WD
• Construction Type: Assembly Kit
• Terrain Use: On-Road
• Length: 472mm
• Width: 188mm
• Height: 124mm
• Wheelbase: 257mm
• Tyre Width: 27mm Front and Rear
• Tyre Diameter: 67mm Front and Rear
• Chassis Material: ABS Plastic
• Body Material: Polycarbonate
• Differentials: Front and Rear 4-Bevel Resin Gear Differentials
• Suspension: Four-Wheel Independent Double Wishbone
• Dampers: Front and Rear Friction Type
• Standard Gear Ratio: 8.27:1
• Optional Gear Ratio Range: 11.38:1 to 7.28:1
• Motor: Type 540 Brushed
• ESC: Tamiya TBLE-02
• Bearings: Plastic Bushings as Standard
• Barcode: 4950344085446
• Manufacturer Part Number: 58625-600

Includes

• 1 x Tamiya MOTUL AUTECH GT-R TT-02 Assembly Kit
• 1 x Polycarbonate MOTUL AUTECH GT-R Body
• 1 x Type 540 Brushed Motor
• 1 x Tamiya TBLE-02 Electronic Speed Controller
• 4 x Black 6-Spoke Wheels
• 4 x Slick Tyres
• Door Mirrors Rear Wing and Aerodynamic Body Parts
• Body and Sponsor Marking Stickers
• Assembly Hardware
• Instruction Manual

Required To Complete

• 1 x Compatible 2-Channel Radio System
• 1 x Steering Servo
• 1 x Suitable 7.2V RC Battery Pack
• 1 x Compatible Battery Charger
• Transmitter Batteries as Required by the Chosen Radio
• Tamiya PS Polycarbonate Paint

FAQ

Is the Tamiya MOTUL AUTECH GT-R 58625-600 ready to run? No, this is an unassembled RC kit that requires building painting and installation of the radio system steering servo battery and charger before driving

Does the Australian 58625-600 package include an ESC? Yes, Australian retailer listings for 58625-600 specify a Tamiya TBLE-02 electronic speed controller even though Tamiya's current global specification for the base 58625 kit lists the ESC separately

What chassis does the MOTUL AUTECH GT-R use? The model uses Tamiya's TT-02 shaft-driven 4WD touring car chassis with a 257mm wheelbase and multiple gearing ride-height tread and wheelbase setup options

Does the body come painted? No, the supplied polycarbonate body requires painting and Tamiya PS series paint is recommended for polycarbonate

Important Notes

• This is an unassembled RC kit and is not supplied ready to run
• The body requires painting before final assembly
• The Australian 58625-600 package configuration differs from Tamiya's current global base-kit specification regarding the ESC
• Confirm the exact ESC supplied with current stock if replacement or motor compatibility is important
