Tamiya Porsche 911 Carrera RSR 2.8 BT-01 1/10 RC Car Kit with White Painted Body 47507

Recreate one of Porsche's most celebrated competition cars with the limited-edition Tamiya Porsche 911 Carrera RSR 2.8. This 1/10 scale RC assembly kit combines the classic wide-body Porsche silhouette with Tamiya's adaptable BT-01 two-wheel-drive chassis.

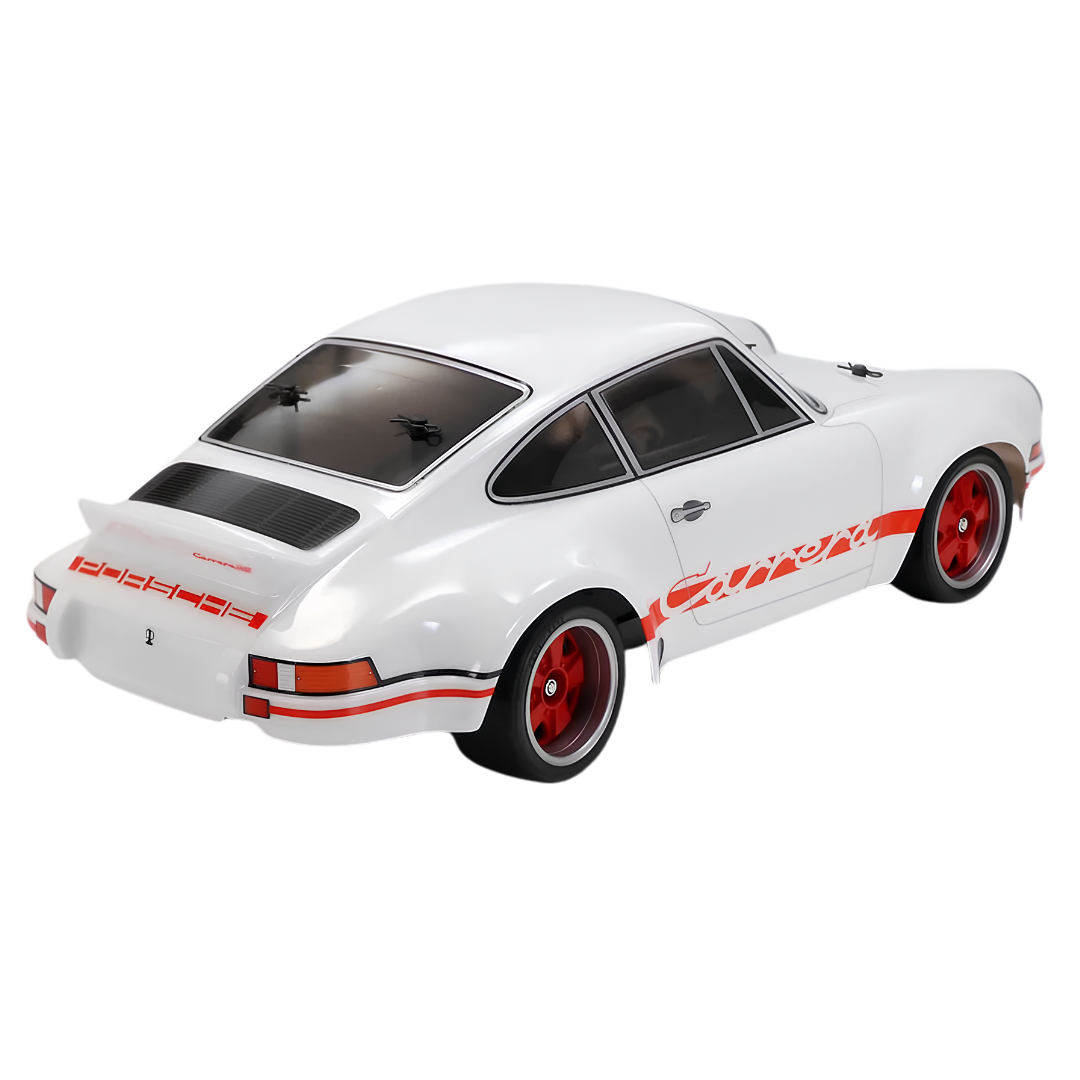

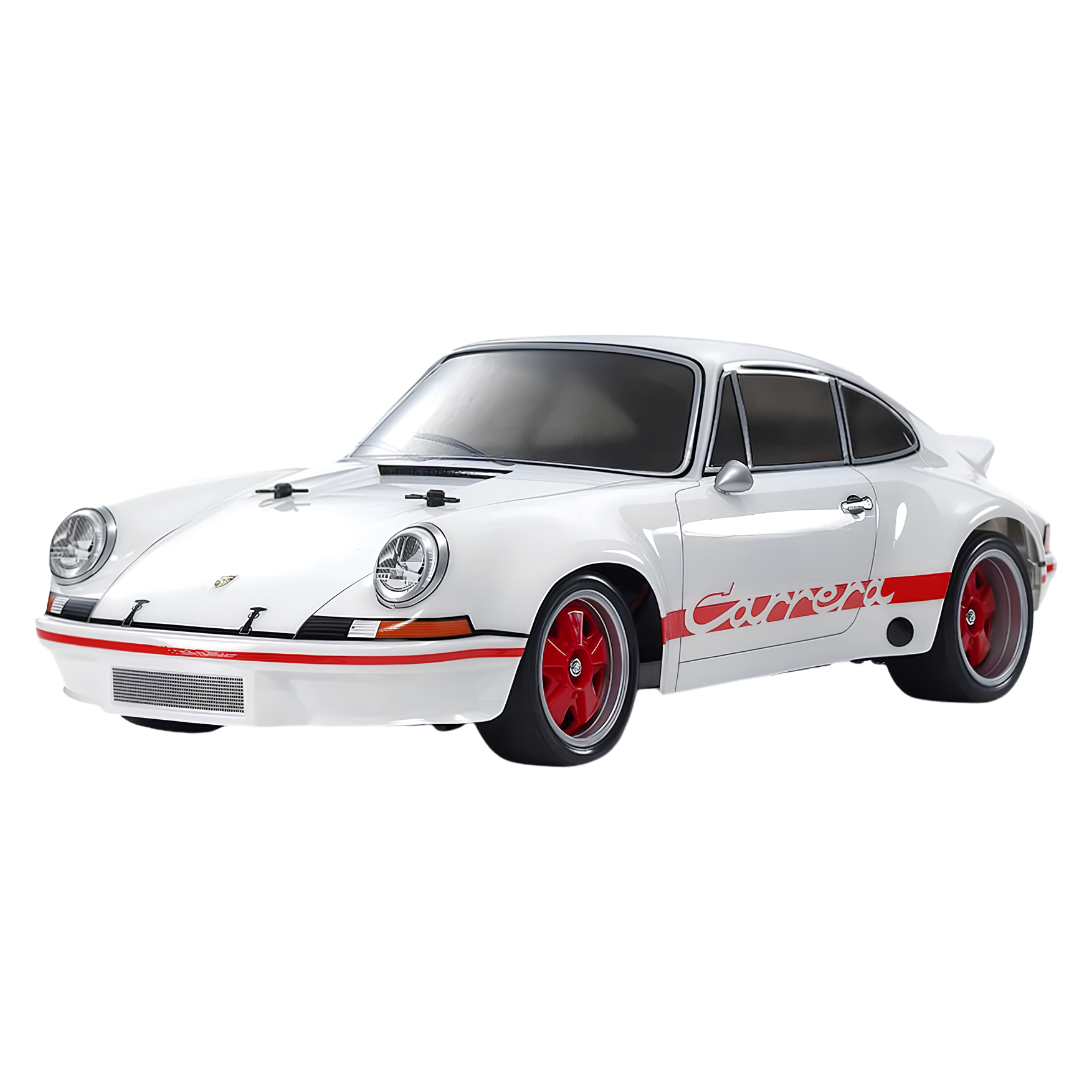

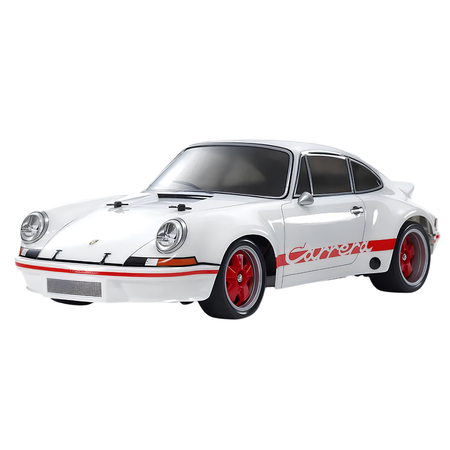

The lightweight polycarbonate body is factory painted in White with Smoke-tinted windows, while the wheel arches are pre-cut and the body-mount holes are pre-drilled. These prepared body features reduce finishing work while retaining the rewarding chassis assembly, detailing and sticker application of a traditional Tamiya kit.

To reflect the layout of the full-size rear-engined Porsche, the BT-01 chassis is assembled in its short-wheelbase, midship rear-motor and rear-wheel-drive configuration. A Type 540 brushed motor and electronic speed controller are included, while a compatible radio system, steering servo, battery and charger are required separately.

Features

• Limited-edition painted-body version of the Porsche 911 Carrera RSR 2.8
• Officially licensed recreation of the iconic 1973 Porsche racing car

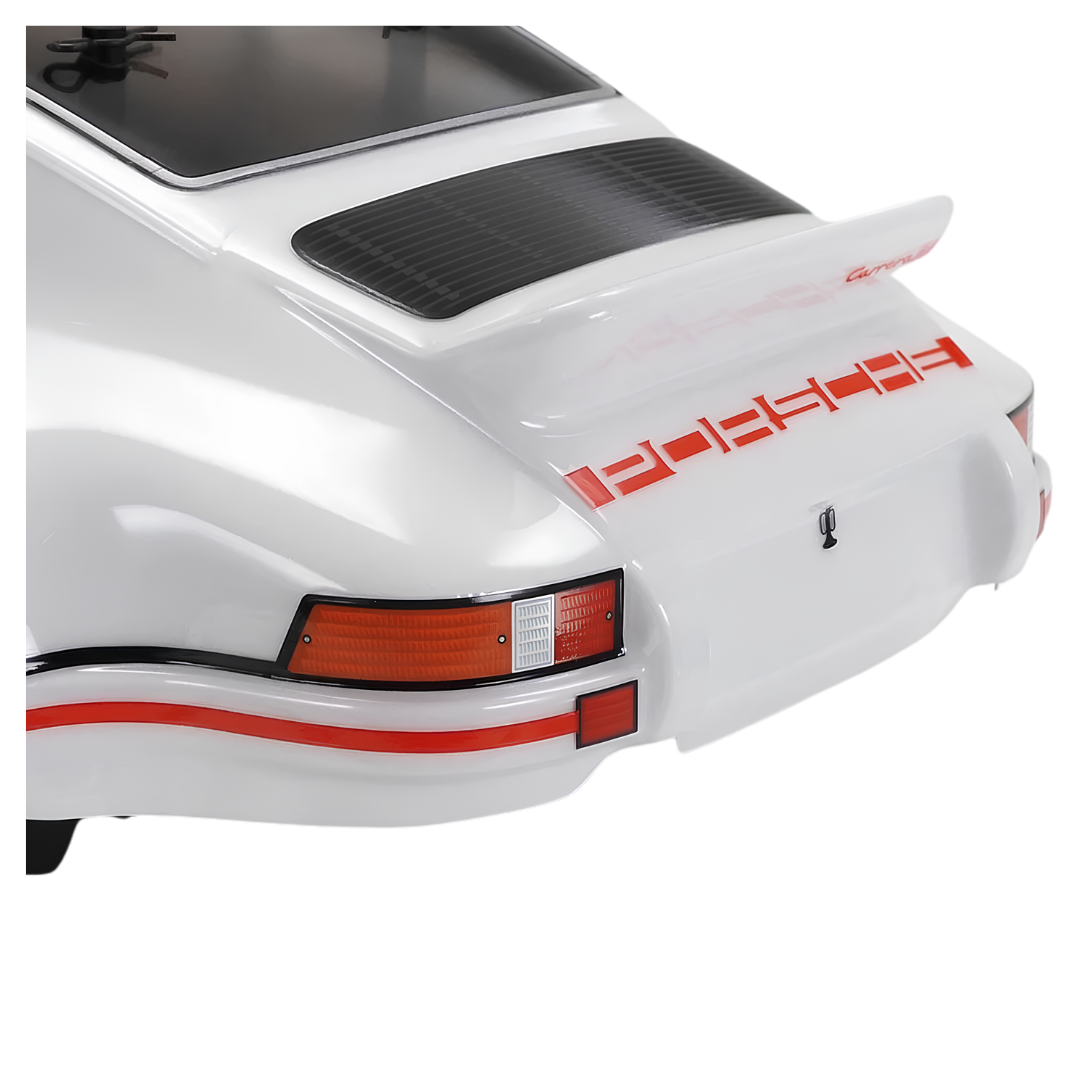

• Lightweight polycarbonate body with moulded ducktail rear spoiler
• Factory painted in Tamiya White PS-1
• Windows factory tinted with Tamiya Smoke PS-31
• Pre-cut wheel arches reduce body preparation
• Pre-drilled body-mount holes simplify final assembly
• Wide front and rear guards recreate the distinctive RSR profile

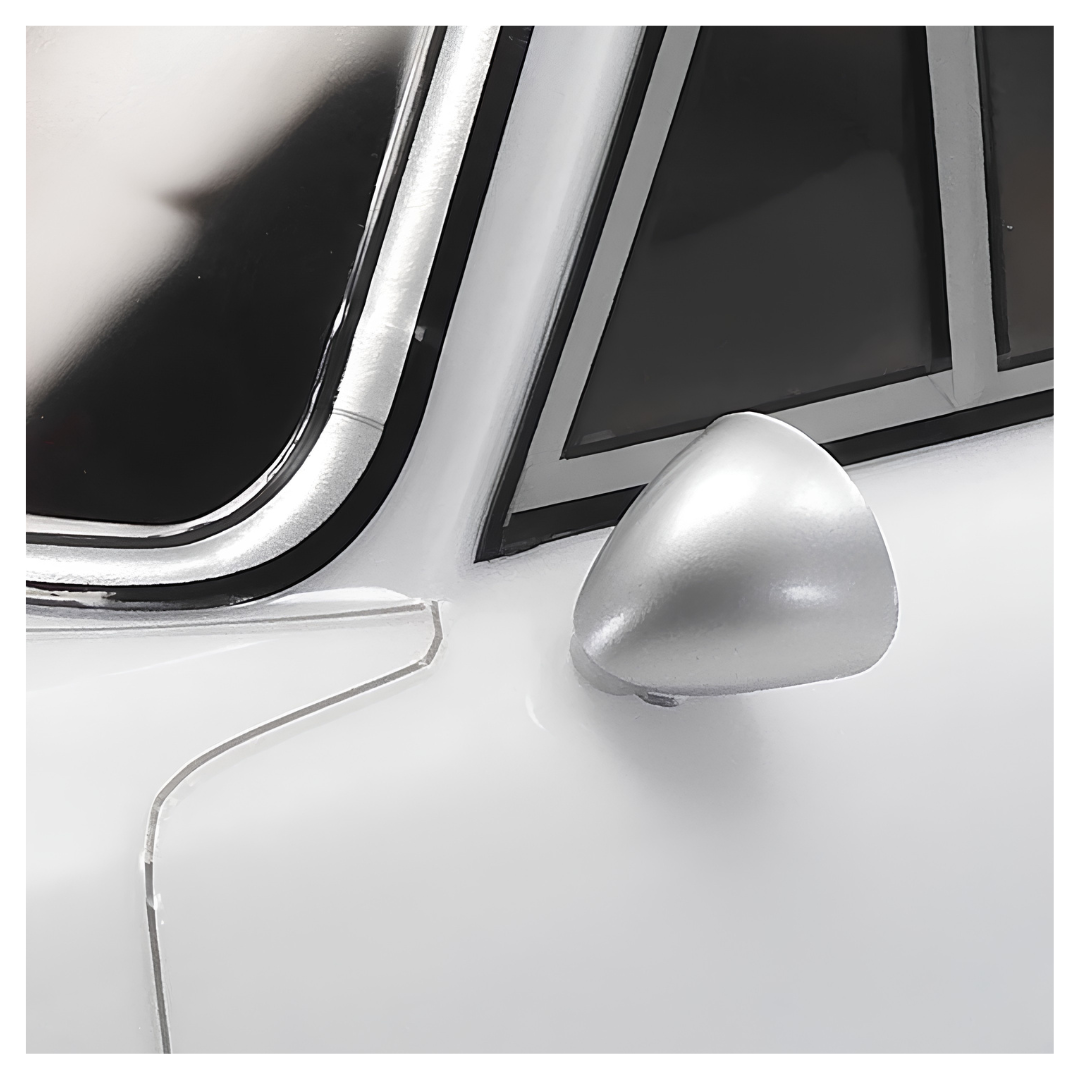

• Separate moulded side-mirror component

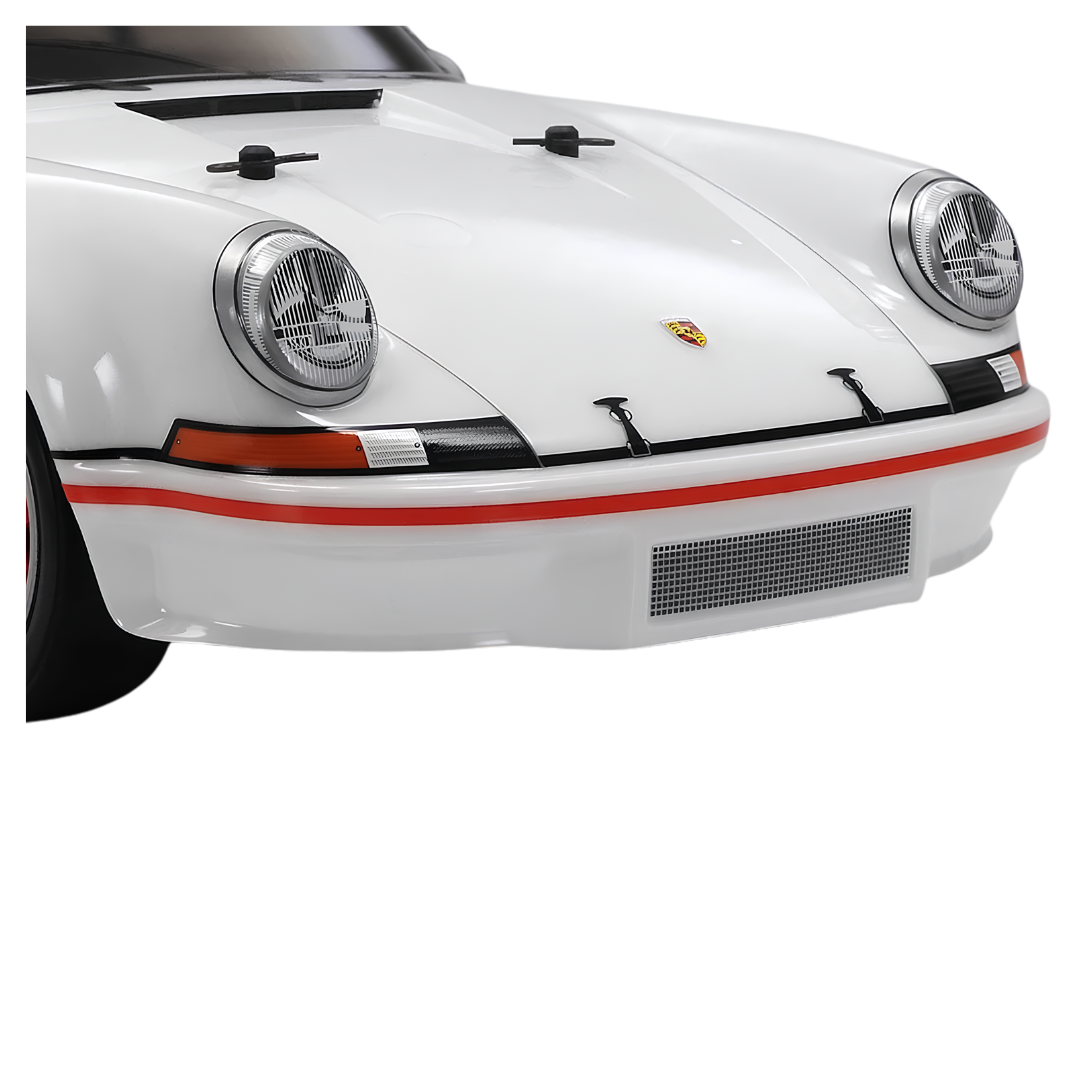

• Detailed sticker set recreates headlights, trim and racing graphics

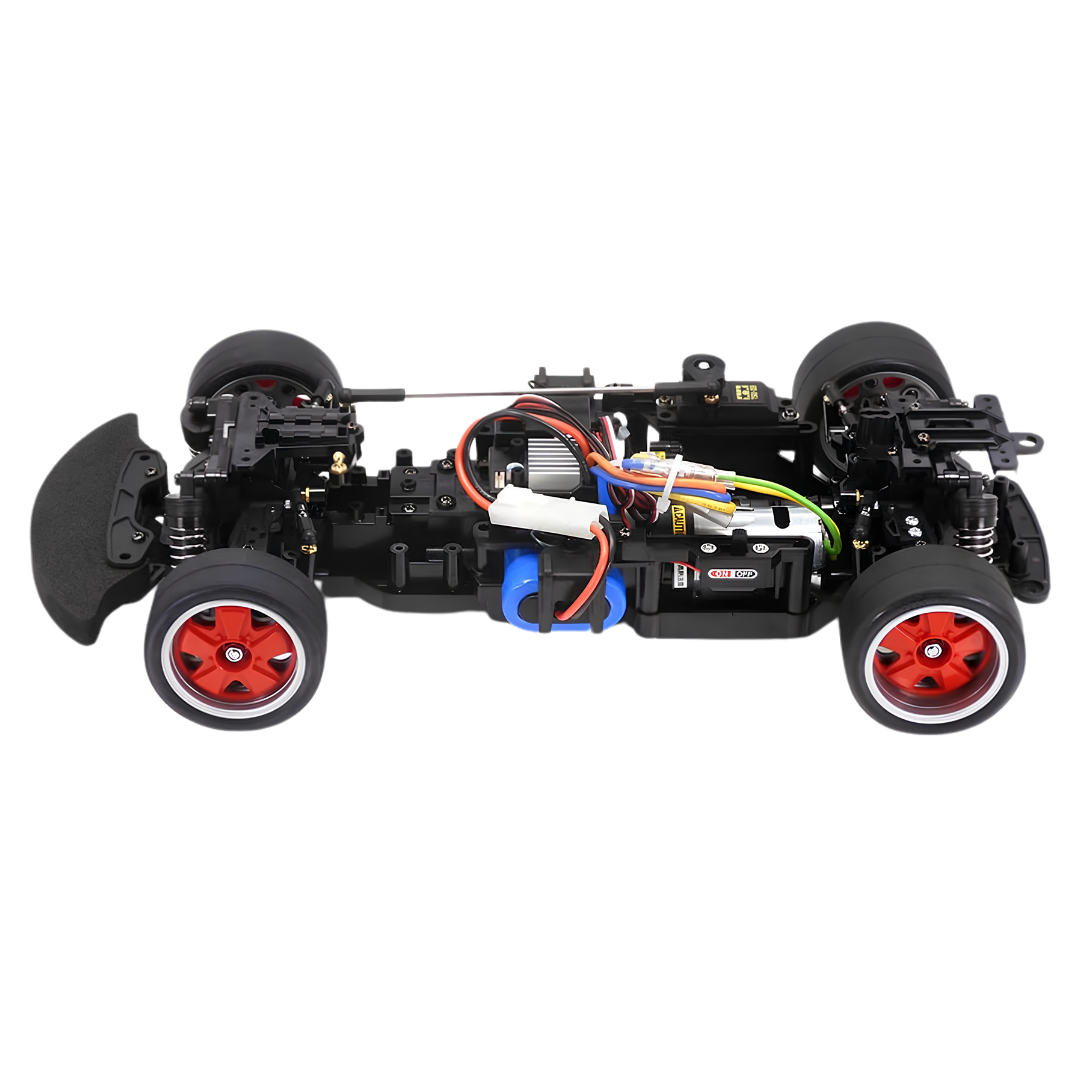

• Versatile BT-01 two-wheel-drive chassis
• Short 251mm wheelbase configuration
• Midship rear-motor and rear-wheel-drive layout
• Four-wheel independent double-wishbone suspension
• Symmetrical suspension arms simplify construction and maintenance
• Front and rear friction dampers with coil springs
• Four-bevel gear differential
• Three-piece steering tie-rod system

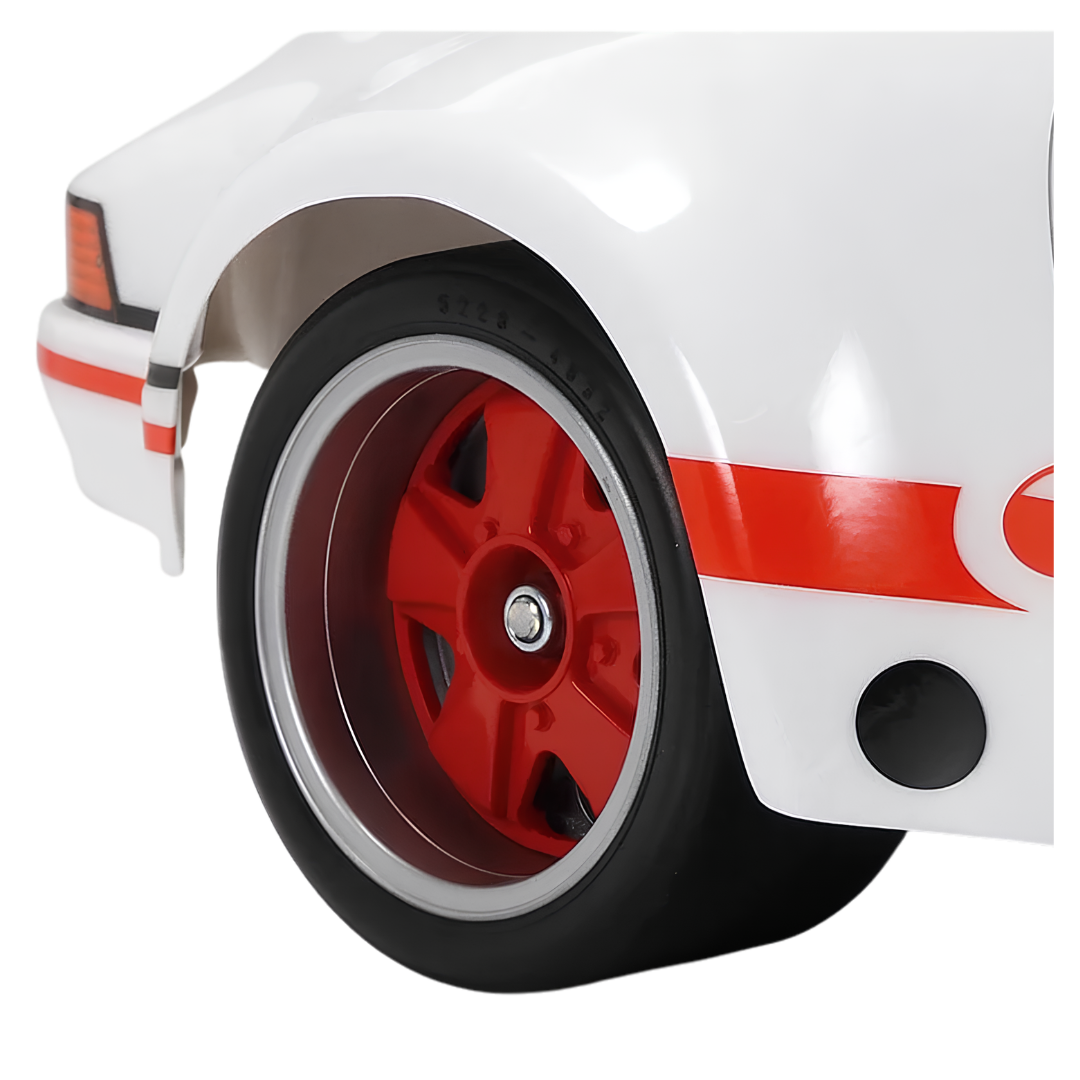

• Silver two-piece wheels with separate red centre caps
• Narrow front and wide rear wheels reproduce the full-size car's staggered appearance
• Front and rear racing slick tyres
• Type 540 brushed motor included
• Electronic speed controller included
• Modular chassis construction assists assembly and servicing
• Compatible with selected Tamiya BT-01 replacement and Hop-Up Option parts

Specifications

• Brand: Tamiya
• Model: Porsche 911 Carrera RSR 2.8
• Manufacturer Part Number: 47507
• Product Type: Electric RC on-road assembly kit
• Edition: Limited Edition White Painted Body
• Scale: 1/10
• Chassis: BT-01
• Drive Type: Two-wheel drive
• Standard Kit Layout: Midship rear motor, rear-wheel drive
• Motor Position: Rear midship
• Length: 457mm
• Width: 204mm
• Height: 138mm
• Wheelbase: 251mm
• Wheelbase Setting: Short
• Front Track: 161mm
• Rear Track: 168mm
• Chassis Type: Bathtub frame
• Motor: Type 540 brushed motor
• Electronic Speed Controller: Included
• Differential: Plastic four-bevel gear differential
• Steering: Three-piece steering tie-rod
• Suspension: Four-wheel independent double wishbone
• Dampers: Front and rear friction dampers
• Standard Gear Ratio: 8.27:1 with the supplied 22-tooth pinion
• Body Material: Polycarbonate
• Body Colour: White
• Window Finish: Smoke tinted
• Body Preparation: Painted with pre-cut wheel arches and pre-drilled body-mount holes
• Wheel Colour: Silver with red centre caps
• Front Tyre: Tamiya 50454 racing slick
• Rear Tyre: Tamiya 50547 racing slick
• Front Tyre Size: Approximately 27mm wide × 67mm diameter
• Rear Tyre Size: Approximately 32mm wide × 67mm diameter
• Tyre Inserts: Not included
• Assembly Required: Yes

Compatibility

• Compatible with two-channel surface transmitter and receiver systems
• Requires a suitable steering servo for the BT-01 chassis
• Designed for compatible 7.2V NiMH or 7.4V 2S battery packs that fit the chassis
• Compatible with selected Tamiya BT-01 replacement and Hop-Up Option parts
• Compatible with selected Tamiya touring-car and M-Chassis wheels and tyres when dimensions and offset are suitable
• The wider BT-01 platform supports front-wheel-drive and rear-wheel-drive configurations when mechanically rebuilt
• Rear-wheel-drive BT-01 configurations can use front-motor or midship rear-motor layouts

Includes

• 1 × Tamiya Porsche 911 Carrera RSR 2.8 RC assembly kit
• 1 × BT-01 two-wheel-drive chassis component set
• 1 × Factory-painted White polycarbonate Porsche body
• 1 × Type 540 brushed motor
• 1 × Electronic speed controller
• 1 × Set of silver two-piece wheels
• 1 × Set of red wheel centre caps
• 2 × Narrow front racing slick tyres
• 2 × Wide rear racing slick tyres
• 1 × Separate side-mirror component
• 1 × Vehicle sticker sheet
• 1 × Assembly hardware set
• 1 × Illustrated instruction manual

Required to Complete

• Two-channel surface transmitter and compatible receiver
• Compatible steering servo
• Compatible 7.2V NiMH or 7.4V 2S battery pack
• Compatible battery charger
• AA batteries for the transmitter
• Basic RC assembly tools
• Polycarbonate scissors or hobby knife for any remaining body trimming
• Body reamer if minor hole adjustment is required
• Paint for small hard-plastic detail parts if desired

FAQ

Is the Tamiya Porsche 911 Carrera RSR 2.8 ready to run? No. This is an assembly kit. The chassis, suspension, drivetrain and electronics must be assembled before the car can be operated.

Is the body already painted? Yes. The polycarbonate body is factory painted White, and the windows are finished with a Smoke tint.

Are the wheel arches already cut? Yes. The main wheel arches are pre-cut and the body-mount holes are pre-drilled. Tamiya still notes that some body finishing, sticker application and final preparation are required.

Are the stickers already applied? No. The body is painted, but the supplied racing graphics, lights and trim stickers must be applied by the builder.

Does the kit include an ESC? Yes. This 47507 package includes an electronic speed controller. The exact ESC model, connector or specification can vary by production batch or regional package.

Does the kit include a motor? Yes. A Type 540 brushed motor is included.

Does it include a transmitter, receiver or steering servo? No. A compatible two-channel radio system and steering servo are required separately.

Is the BT-01 Porsche rear-wheel drive? Yes. The instructions configure this model with a midship rear-mounted motor driving the rear wheels.

Why is the motor described as midship rear mounted? The motor is positioned toward the rear of the chassis, ahead of the rear axle line, helping the BT-01 approximate the drivetrain character of the full-size Porsche while maintaining practical RC chassis packaging.

Can the BT-01 chassis be converted to front-wheel drive? The wider BT-01 platform supports front-wheel-drive and rear-wheel-drive configurations by repositioning the final-drive and steering assemblies. Conversion requires partial chassis disassembly and should be performed according to the Tamiya instructions.

Can it use a front-motor rear-wheel-drive layout? Yes. The BT-01 platform can support an FR layout, although this Porsche is designed to be assembled in its MR configuration.

Can the wheelbase be changed? The BT-01 platform supports two wheelbase settings. This Porsche body requires the short 251mm configuration, and changing the wheelbase would require a body suitable for the alternative setting.

Are the front and rear tyres the same size? No. The Porsche uses narrower front tyres and wider rear tyres to reproduce the staggered appearance of the full-size RSR.

Which tyres are included? Tamiya 50454 racing slick tyres are used at the front, while wider Tamiya 50547 racing slick tyres are used at the rear.

Are foam tyre inserts included? No. The standard kit does not include inner tyre sponges for the front or rear tyres.

Does the kit include oil-filled shocks? No. Friction dampers with coil springs are included. Compatible oil-filled dampers are available separately.

Are ball bearings included? The standard kit uses plastic bushings rather than a complete ball-bearing set. A compatible bearing kit is a useful upgrade for reducing drivetrain friction.

Can I use a 2S LiPo battery? Only use a 2S LiPo battery when the included ESC supports LiPo operation and suitable low-voltage protection is available. Check the ESC instructions, battery dimensions and connector before use.

What battery connector does the ESC use? Connector type can vary by production batch or regional package. Inspect the supplied ESC before purchasing a battery or adaptor.

What are useful first upgrades? Common first upgrades include a full ball-bearing set and oil-filled dampers. Tyres, steering components and drivetrain parts can be selected later according to the intended driving surface.

Is the BT-01 suitable for beginners? Yes. Its modular motor, drivetrain and suspension sections simplify assembly and maintenance. Rear-wheel-drive handling can be more responsive than front-wheel drive, so smooth throttle inputs are recommended.

Where should the Porsche be driven? The supplied slick tyres are best suited to clean, dry and relatively smooth sealed surfaces. Avoid loose gravel, wet roads and rough terrain.

Can it be used for racing? It can be used for club-level and recreational on-road driving where event rules permit. Confirm allowable chassis, motor, gearing, battery and tyre specifications with the organiser.

Is the completed car waterproof? Waterproofing depends on the supplied ESC and separately installed receiver and servo. Unless all electronics are specifically rated for wet operation, avoid water.

Important Notes

• This is an assembly kit and is not ready to run.
• The polycarbonate body is factory painted White with Smoke-tinted windows.
• Wheel arches and body-mount holes are prepared, but some final body finishing may still be required.
• Vehicle graphics, headlights and trim stickers require application.
• A transmitter, receiver, steering servo, battery, charger and transmitter batteries are required separately.
• The kit is designed to be assembled in the 251mm short-wheelbase MR rear-wheel-drive configuration.
• Changing the drivetrain layout requires mechanical disassembly and may affect body compatibility and handling.
• The rear tyres are wider than the front tyres and must be installed in the correct positions.
• Tyre inserts are not supplied.
• Confirm battery dimensions, voltage and connector compatibility before ordering.
• Read the supplied ESC instructions before using a LiPo battery.
• The exact included ESC model or connector may vary between regional packages or production batches.
• Do not overtighten screws installed into plastic components.
• Apply grease only where specified in the Tamiya instruction manual.
• Check steering direction, throttle direction, gear mesh and rear-wheel rotation before the first run.
• Set the transmitter failsafe before operating the model.
