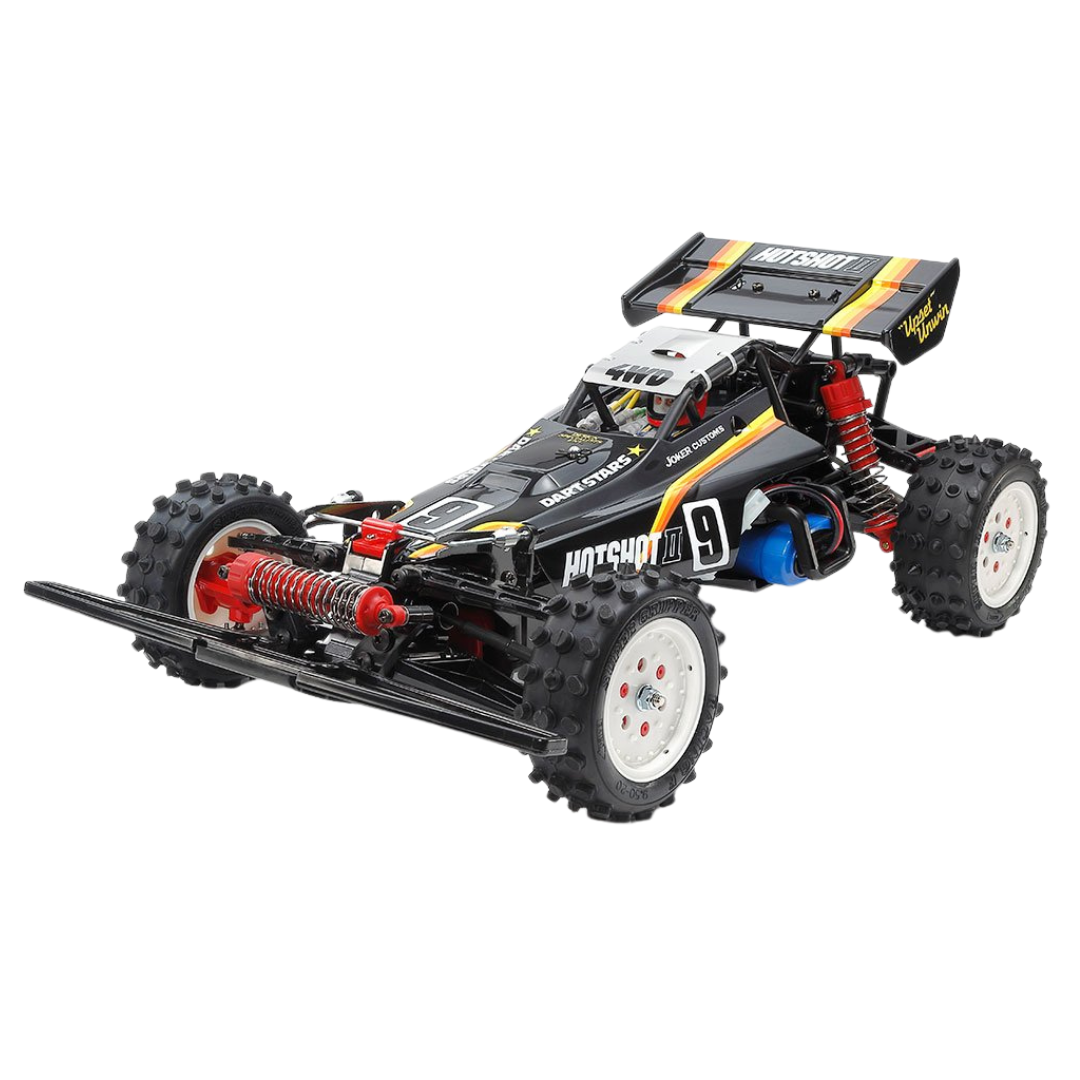

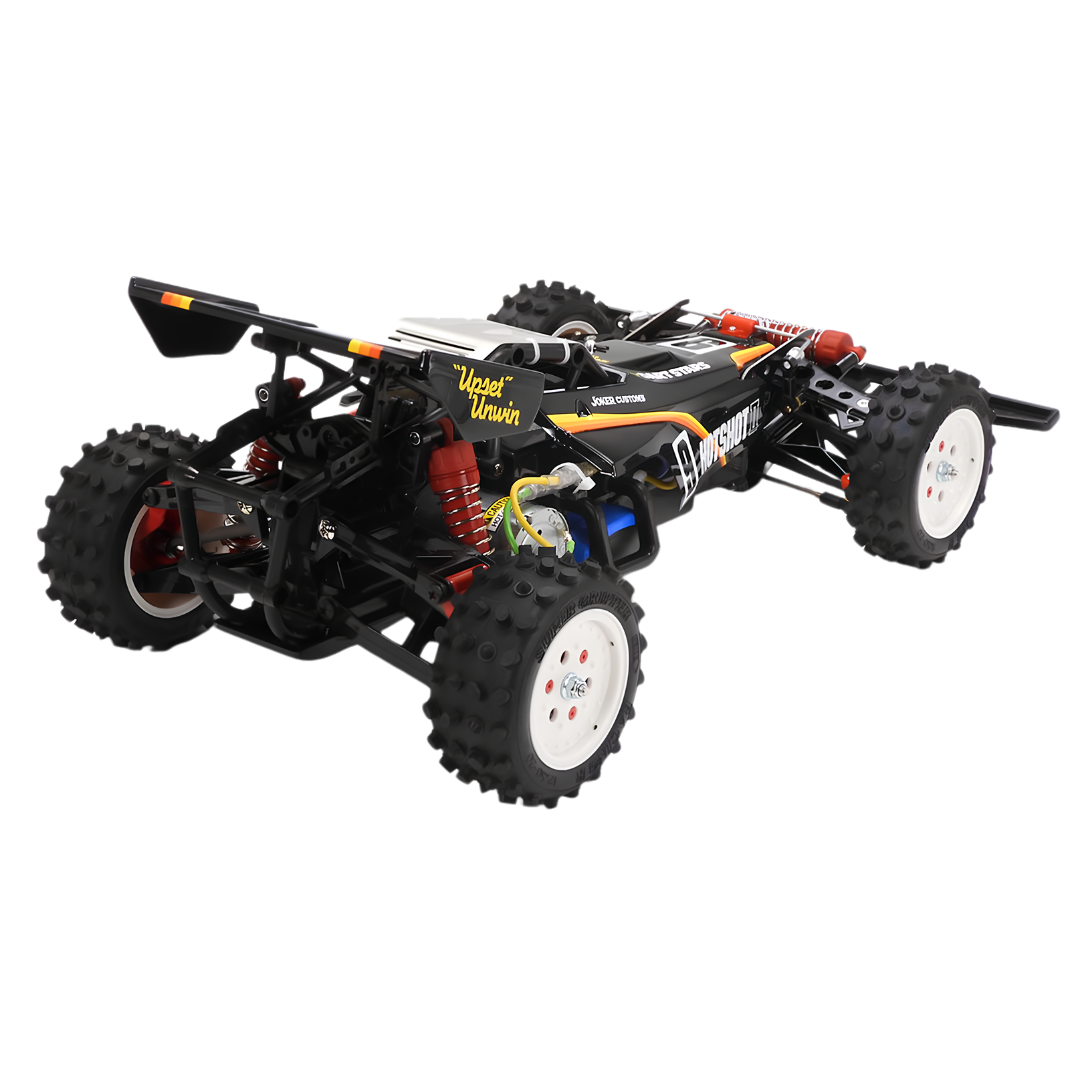

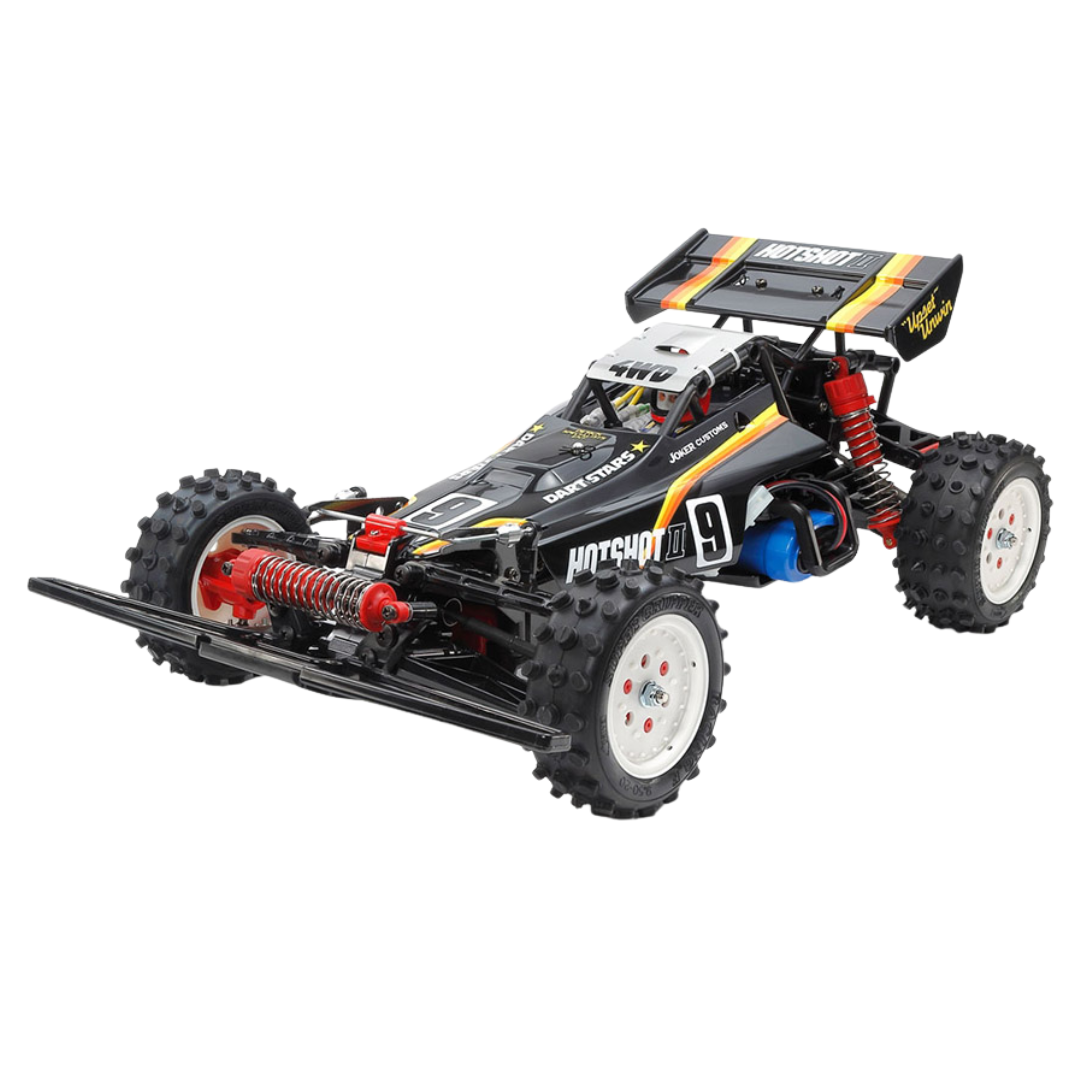

Tamiya Hotshot II 2024 Black 4WD Off-Road Buggy 1/10 RC Kit 58737-60A

The Tamiya Hotshot II 2024 brings back one of Tamiya's most recognisable four-wheel-drive buggies in an updated 1/10 scale assembly kit. Inspired by the original Hotshot II released in 1987, this modern reissue retains the classic wedge-shaped body, lightweight monocoque chassis and distinctive three-damper suspension layout.

The lightweight polycarbonate body and rear wing are supplied pre-cut and factory painted black, reducing preparation time while preserving the original buggy's unmistakable appearance. Updated orange and yellow graphics are supplied as stickers for the builder to apply.

A shaft-driven four-wheel-drive system, sealed front and rear gearboxes and independent double-wishbone suspension give the Hotshot II stable off-road handling. The Australian 58737-60A package also includes a Type 540 brushed motor and compatible brushed electronic speed controller.

Features

• Updated reissue of the classic 1987 Tamiya Hotshot II
• 1/10 scale electric off-road buggy assembly kit
• Shaft-driven four-wheel-drive system
• Sealed front and rear gearboxes help protect the drivetrain from dirt and sand
• Front and rear gear differentials provide smoother cornering
• Four-wheel independent double-wishbone suspension
• Three CVA II oil-filled dampers with one front monoshock and two rear dampers
• Front stabiliser helps control chassis roll

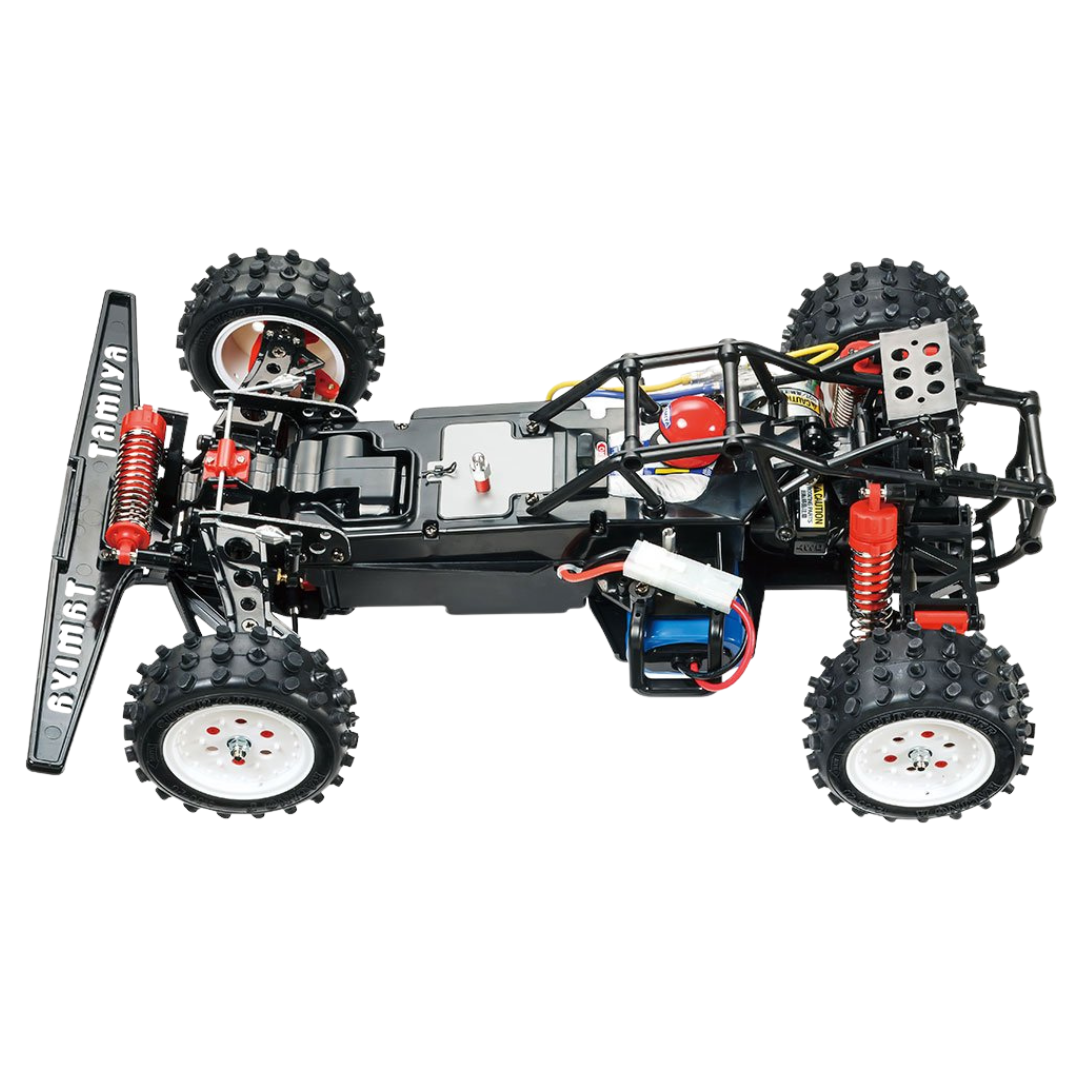

• Durable ABS monocoque chassis
• Reinforced plastic suspension arms and selected chassis components
• Underguard helps protect the underside of the chassis
• Lightweight 0.7mm polycarbonate body and rear wing
• Body and rear wing supplied pre-cut and pre-painted black
• Updated orange and yellow body stickers included
• Metal roof panel with integrated air intake
• Driver figure included for added scale detail

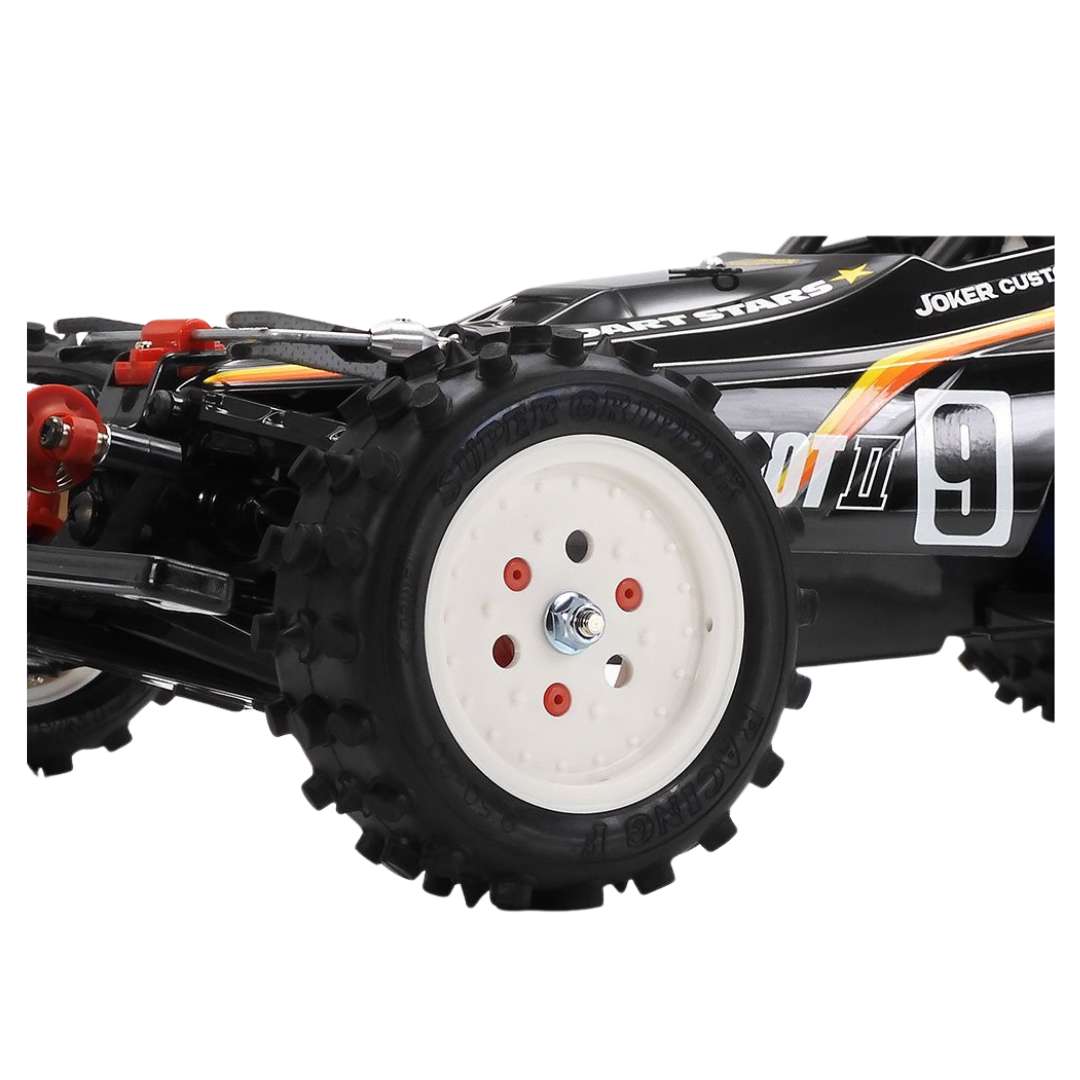

• White dish-style one-piece nylon wheels
• Front and rear semi-pneumatic oval-block off-road tyres
• Includes Type 540 brushed motor
• Includes compatible brushed electronic speed controller

Specifications

• Brand: Tamiya
• Product: Hotshot II 2024
• Manufacturer Part Number: 58737
• Product Code: 58737-60A
• Barcode: 4950344587377
• Product Type: Electric off-road RC assembly kit
• Scale: 1/10
• Drive System: Shaft-driven 4WD
• Chassis: ABS monocoque frame
• Suspension: Four-wheel independent double wishbone
• Dampers: Three CVA II oil-filled dampers

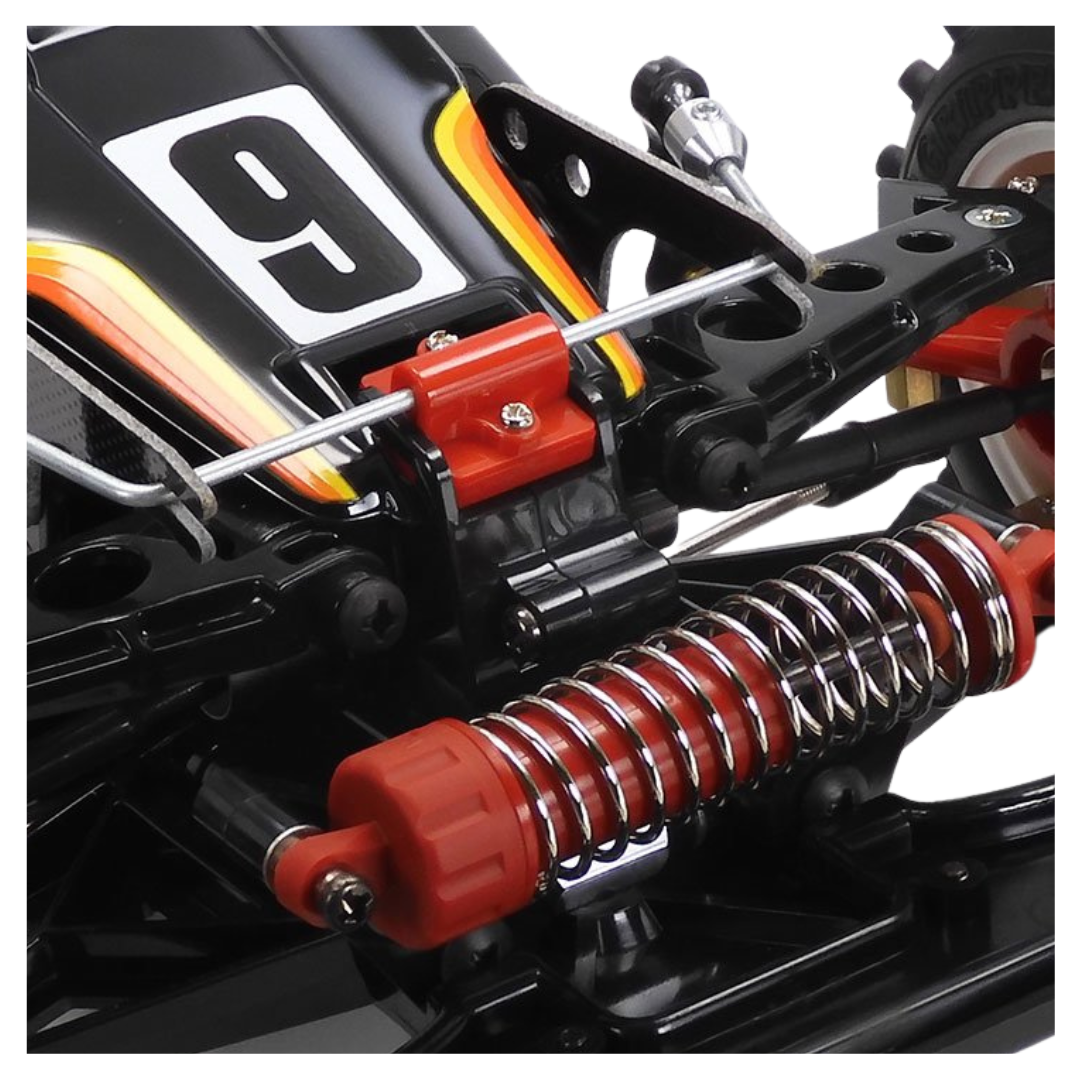

• Front Suspension Layout: Single transverse monoshock with stabiliser

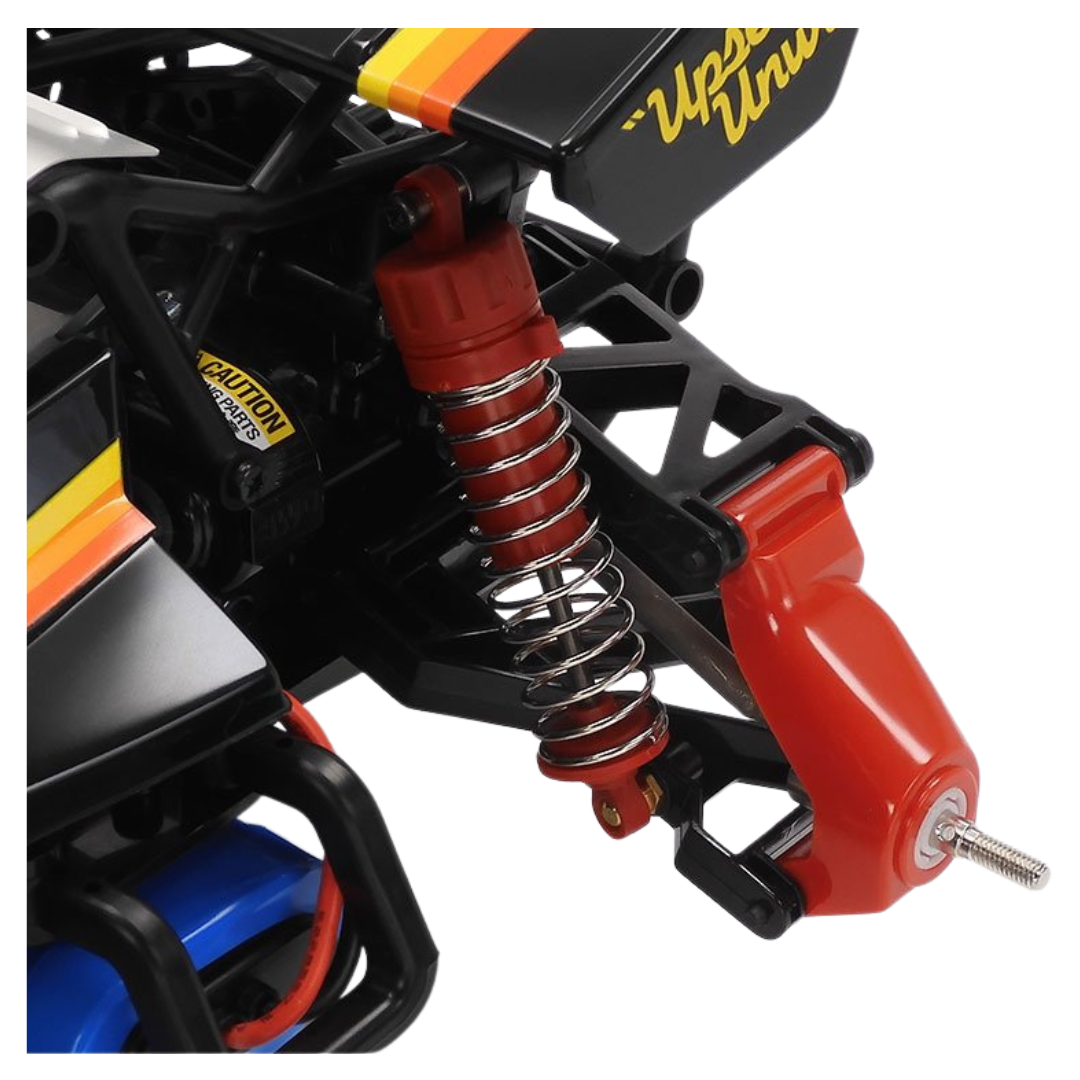

• Rear Suspension Layout: Twin CVA oil dampers
• Differentials: Front and rear three-bevel gear differentials

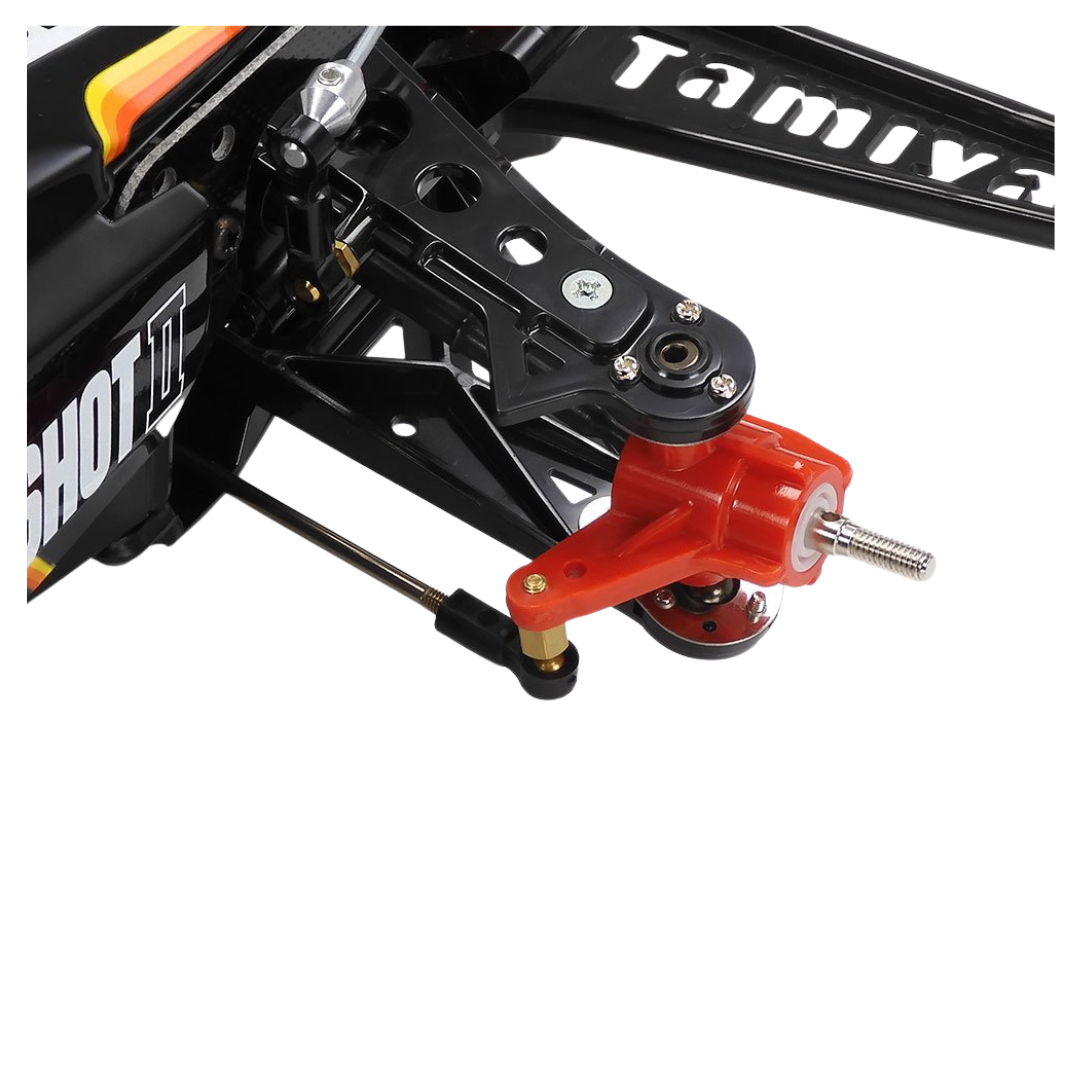

• Steering: Two-piece steering tie-rod system
• Motor: Type 540 brushed motor
• Electronic Speed Controller: Brushed ESC included with 58737-60A package
• Bearings: Plastic bushings
• Selectable Gear Ratios: 10.04:1, 8.70:1, 8.16:1 and 7.68:1
• Body Material: 0.7mm polycarbonate
• Body Finish: Pre-cut and pre-painted black

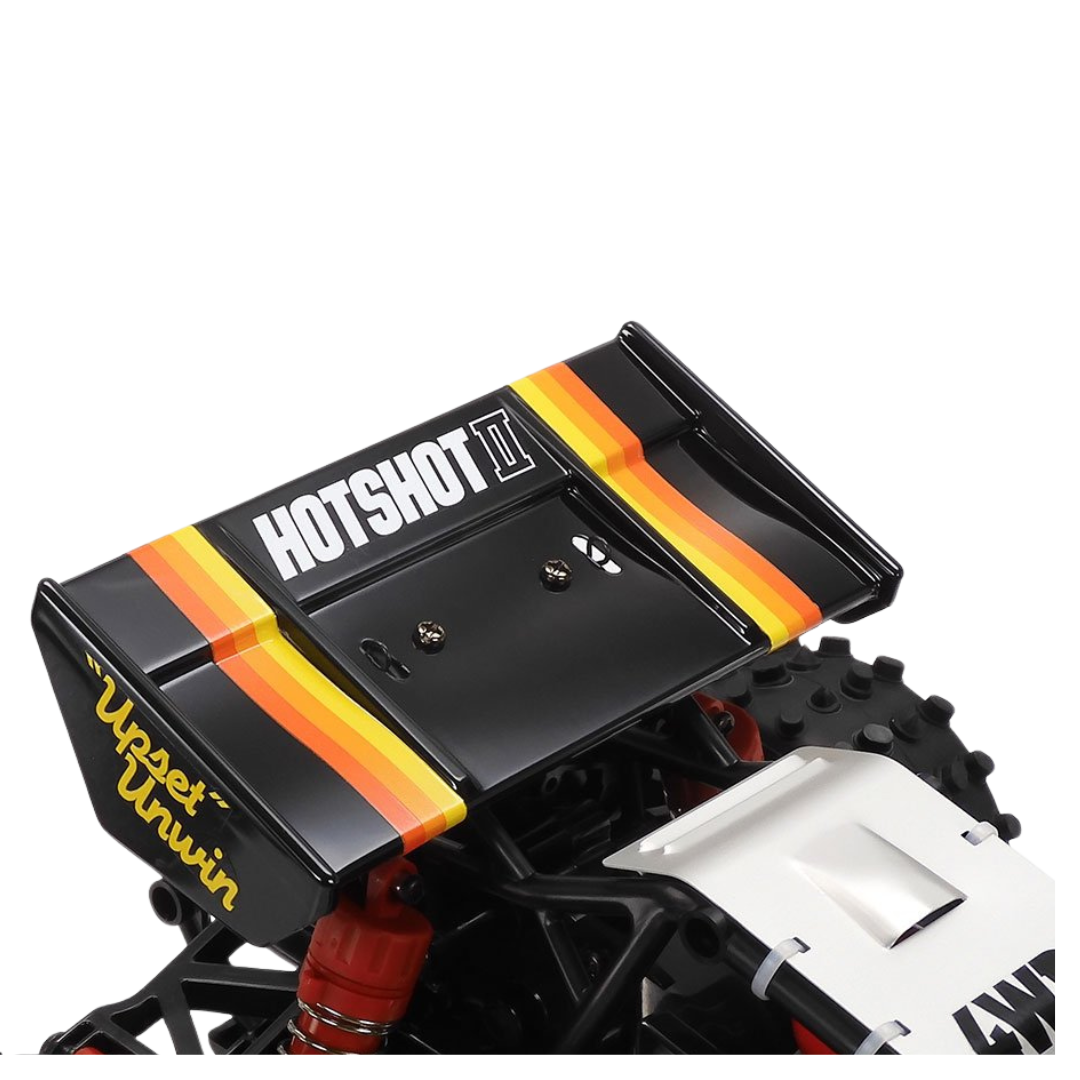

• Rear Wing: Pre-cut and pre-painted black polycarbonate
• Wheelbase: 265mm
• Front Track: 205mm
• Rear Track: 200mm
• Front Tyre Size: 31mm wide × 88mm diameter
• Rear Tyre Size: 38mm wide × 88mm diameter
• Assembled Length: 390mm
• Assembled Width: 235mm
• Assembled Height: 160mm
• Terrain: Off-road
• Assembly Required: Yes

Includes

• 1 × Tamiya Hotshot II 2024 RC assembly kit
• 1 × Pre-cut and pre-painted black polycarbonate body
• 1 × Pre-cut and pre-painted black rear wing
• 1 × Type 540 brushed motor
• 1 × Brushed electronic speed controller
• Three CVA II oil-filled damper assemblies
• White dish-style wheels
• Front and rear oval-block off-road tyres
• Driver figure and metal roof panel
• Updated body stickers
• Assembly hardware and illustrated instructions

Required to Complete

• Compatible 2-channel RC transmitter and receiver
• Compatible steering servo
• Compatible 7.2V battery pack
• Compatible battery charger
• AA batteries for the transmitter
• Tamiya paints for the driver figure and detail parts
• Assembly tools and modelling supplies

FAQ

Is the Tamiya Hotshot II 2024 ready to run? No. This is an assembly kit that requires construction, a radio system, steering servo, battery and charger before use.

Does this 58737-60A package include an ESC? Yes. The Australian-market 58737-60A package is supplied with a brushed ESC and Type 540 brushed motor.

Is the body already painted? Yes. The polycarbonate body and rear wing are supplied pre-cut and factory painted black.

Why is Tamiya PS paint still listed as required? The main body and rear wing do not require painting. Paint is used for the driver figure and any additional detail finishing desired during assembly.

Is this the same as the original 1987 Hotshot II? It closely recreates the original design but is an updated reissue using current production materials, updated stickers and modern electronic compatibility.

How many shock absorbers does it use? The Hotshot II uses three CVA oil-filled dampers: one transverse monoshock at the front and one damper for each rear wheel.

Does it have front and rear differentials? Yes. The sealed front and rear gearboxes each contain a three-bevel gear differential.

Can the gear ratio be changed? Yes. Several gear ratios can be selected using compatible pinion gear combinations. Check the instructions and motor limits before changing the gearing.

Does the kit include ball bearings? No. The standard kit uses plastic bushings. Compatible ball bearings can be installed as an optional upgrade.

Can I use a LiPo battery? Use only a battery that fits the chassis and is compatible with the supplied ESC. Confirm the ESC voltage range, connector type, battery dimensions and low-voltage protection before using a LiPo pack.

Is this suitable for modern competition racing? The Hotshot II is primarily a classic-style recreational and collector buggy. It is best suited to light off-road running, vintage events and general hobby use rather than current high-level competition.

Important Notes

• This is an unassembled RC model kit and is not ready to run.
• The body and rear wing are pre-painted black, but stickers still require application.
• The driver figure and selected detail parts require painting.
• Radio system, receiver, steering servo, battery and charger are sold separately.
• The standard kit uses plastic bushings rather than full ball bearings.
• Confirm battery size, voltage, connector and ESC compatibility before use.
• Use gearing suitable for the installed motor and running conditions.
• Completed models shown in promotional images may include optional equipment or additional painted details.
