Tamiya King Hauler 1/14 Scale Electric RC Tractor Truck Kit 6×4 56301

Build one of Tamiya's most iconic radio control trucks with the King Hauler 1/14 Scale Tractor Truck Kit. Featuring an impressive chrome-laden American conventional truck design, realistic ladder-frame construction and a fully functional three-speed transmission, the King Hauler remains one of the most detailed RC truck kits available.

The robust metal chassis uses a front-mounted 540 brushed motor driving both rear axles through propeller shafts, providing authentic 6×4 drivetrain operation. Metal leaf springs, oil-filled dampers and an extensive collection of scale accessories deliver impressive realism both on display and on the road. Compatible with Tamiya's range of 1/14 scale semi-trailers, the King Hauler is an outstanding platform for scale trucking enthusiasts.

Features

• Highly detailed 1/14 scale American conventional tractor truck
• Heavy-duty metal ladder-frame chassis
• Realistic shaft-driven 6×4 drivetrain
• Front-mounted Type 540 brushed motor

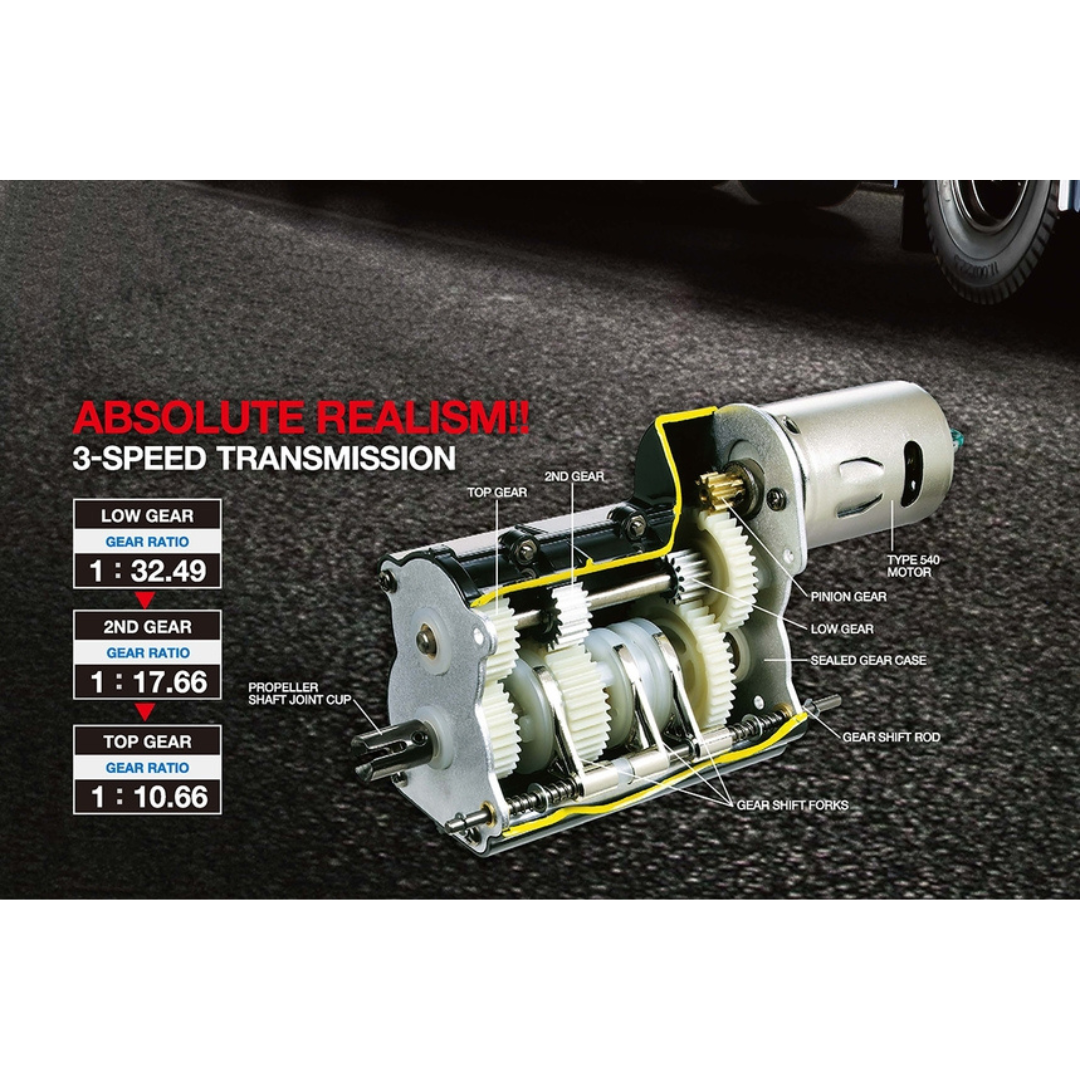

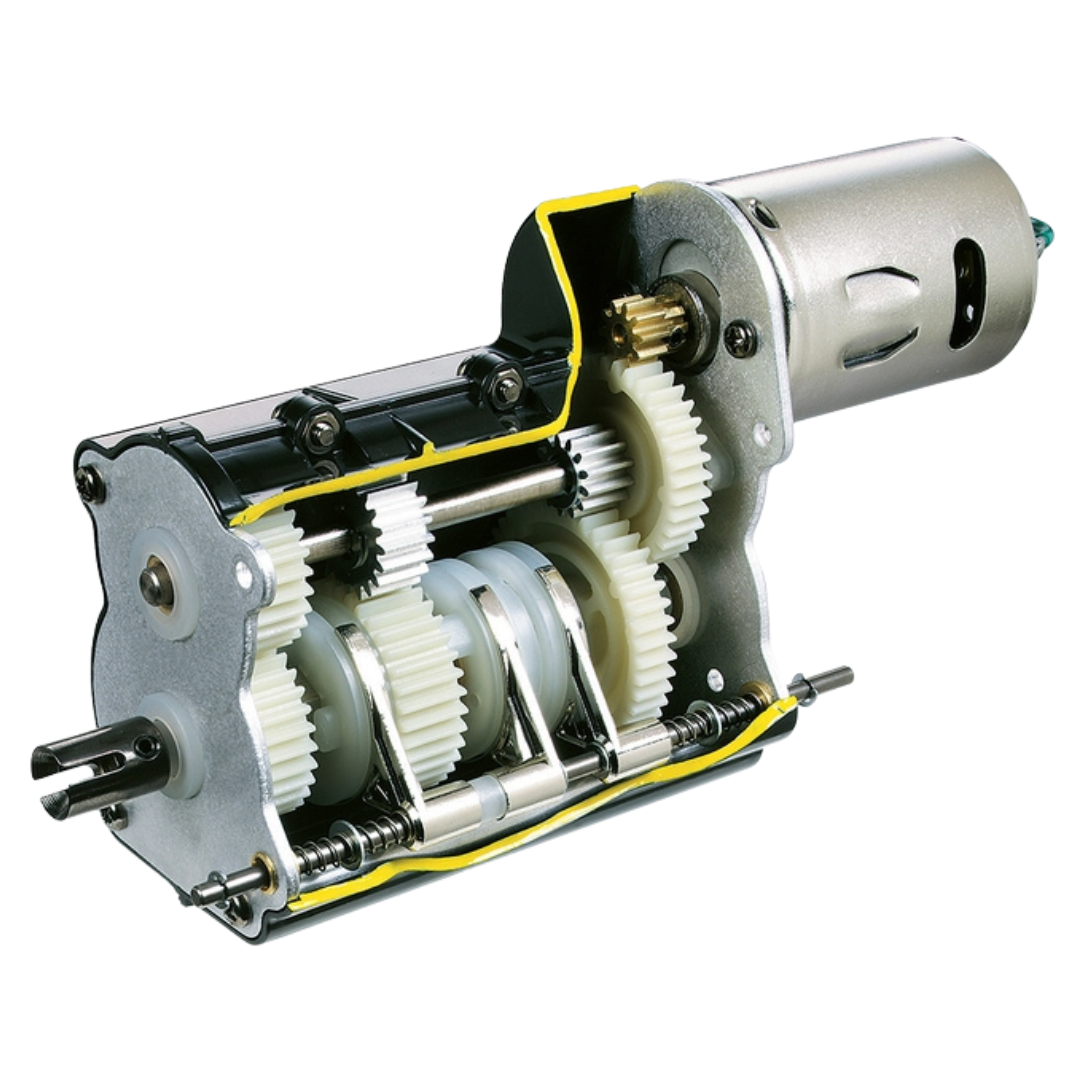

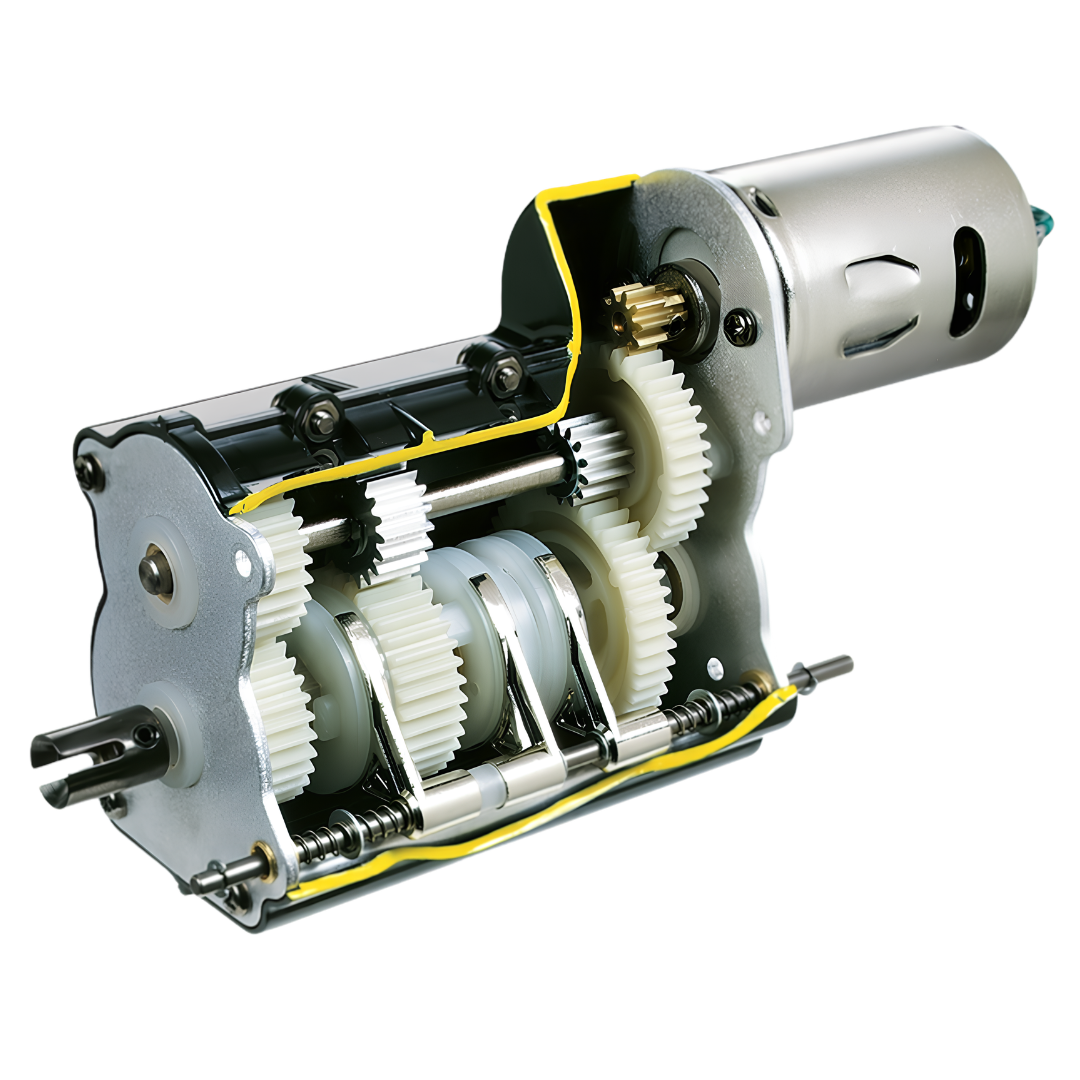

• Three-speed manually shifted transmission with constant-mesh gears
• Selectable low, medium and high gear ratios
• Both rear axles are driven through metal propeller shafts
• Metal leaf-spring suspension front and rear
• Oil-filled shock absorbers improve ride control
• Detailed injection-moulded cab with realistic interior
• Extensive chrome-plated exterior accessories
• Metal grab rails and mirror supports
• Chrome fuel tanks, bumpers, grille, visor, horns and wheel rims
• Chrome dual exhaust stacks
• Scale mud flaps and detailed lighting mounts
• Compatible with Tamiya 1/14 scale semi-trailers
• Supports optional Tamiya Multi-Function Control Unit for realistic lights, engine sounds and vibration

Specifications

• Brand: Tamiya
• Model: King Hauler
• Manufacturer Part Number: 56301
• Scale: 1/14
• Vehicle Type: Tractor truck
• Construction Type: Assembly kit
• Drive Configuration: 6×4
• Drive System: Shaft drive
• Transmission: Three-speed manual gearbox
• Motor: Type 540 brushed motor
• Electronic Speed Controller: Not included
• Overall Length: Approximately 600mm
• Overall Width: Approximately 250mm
• Overall Height: Approximately 255mm
• Wheelbase: Approximately 370mm
• Chassis: Metal ladder frame
• Suspension: Metal leaf springs with oil-filled dampers
• Front Wheels: Steerable
• Rear Axles: Dual driven rear axles
• Bearings: Oilite bushings
• Body Material: Injection-moulded plastic
• Cab Colour: White (unpainted)

Compatibility

• Tamiya 1/14 scale semi-trailers
• Compatible Tamiya fifth-wheel trailer couplings
• Compatible brushed electronic speed controllers
• Tamiya Multi-Function Control Unit MFC-01 (56511) for integrated ESC, lighting, sound and vibration
• Compatible 7.2V NiMH or 7.4V 2S LiPo battery when used with a suitable ESC

Includes

• 1 × Tamiya King Hauler 1/14 tractor truck assembly kit
• 1 × Type 540 brushed motor
• 1 × Injection-moulded white cab and body components
• 1 × Detailed interior
• 10 × Scale wheels and tyres
• Chrome-plated exterior components
• Metal grab rails
• Metal mirror supports
• Metal dual exhaust stacks
• Mud flaps
• Decal sheet
• Assembly hardware
• Illustrated instruction manual

Required to Complete

• 4-channel (or greater) surface radio system
• Steering servo
• Shift servo for the three-speed gearbox
• Brushed electronic speed controller or optional Tamiya MFC-01 (56511)
• Compatible 7.2V NiMH or 7.4V 2S battery pack
• Battery charger
• Tamiya TS paint or equivalent for the hard plastic body
• AA batteries for the transmitter
• Basic modelling and assembly tools

FAQ

Is the King Hauler ready to run? No. This is a comprehensive assembly kit requiring full mechanical and electronic assembly before operation.

Does this kit include an ESC? No. The King Hauler requires either a compatible brushed ESC or the optional Tamiya MFC-01 Multi-Function Control Unit, which combines ESC, realistic engine sounds, lighting and vibration.

What radio do I need? A minimum 4-channel radio system is recommended because separate channels are required for steering, throttle and the three-speed transmission.

Does the truck really have three gears? Yes. The manual three-speed transmission is shifted by a dedicated servo and allows realistic low, medium and high gear selection while driving.

Can it tow trailers? Yes. The King Hauler is designed to work with compatible Tamiya 1/14 scale semi-trailers using the standard fifth-wheel coupling.

What does the Multi-Function Control Unit add? The optional MFC-01 adds electronic speed control together with realistic diesel engine sounds, lighting, indicators, brake lights, reversing lights, air-brake sounds, horn and vibration effects.

Is the body pre-painted? No. The white injection-moulded body requires painting and decal application during assembly.

Which paint should I use? Use paint suitable for hard plastic model parts, such as Tamiya TS spray paint. Polycarbonate PS paints are not suitable for this hard-plastic body.

Can I use a LiPo battery? Yes, provided the selected ESC or Multi-Function Control Unit supports LiPo batteries and has suitable low-voltage protection.

Are ball bearings included? No. The standard kit uses Oilite bushings. Full ball-bearing sets are a popular upgrade that can improve drivetrain efficiency and longevity.

Is this suitable for beginners? The King Hauler is best suited to intermediate and experienced builders due to its size, detailed assembly and multi-servo transmission system. A first-time builder can certainly complete it with patience and by carefully following the instruction manual.

What are the most popular upgrades? Many owners add the MFC-01 control unit, full ball bearings, aluminium suspension upgrades, LED lighting, trailer accessories and custom detailing to enhance realism.

Important Notes

• This is an assembly kit and is not ready to run.
• An electronic speed controller is not included.
• The optional Tamiya MFC-01 (56511) combines ESC, sound, lighting and vibration functions.
• A minimum 4-channel radio system, steering servo and transmission shift servo are required.
• The body is supplied in white plastic and requires painting.
• Use paint intended for hard plastic model parts.
• Battery, charger, transmitter batteries and assembly tools are sold separately.
• Oilite bushings are supplied as standard; ball bearings are available separately.
• Always confirm correct gear selection before driving to avoid transmission damage.
• Check all fasteners after the first few runs as vibration may loosen hardware.
• Adult supervision is recommended for younger builders.
