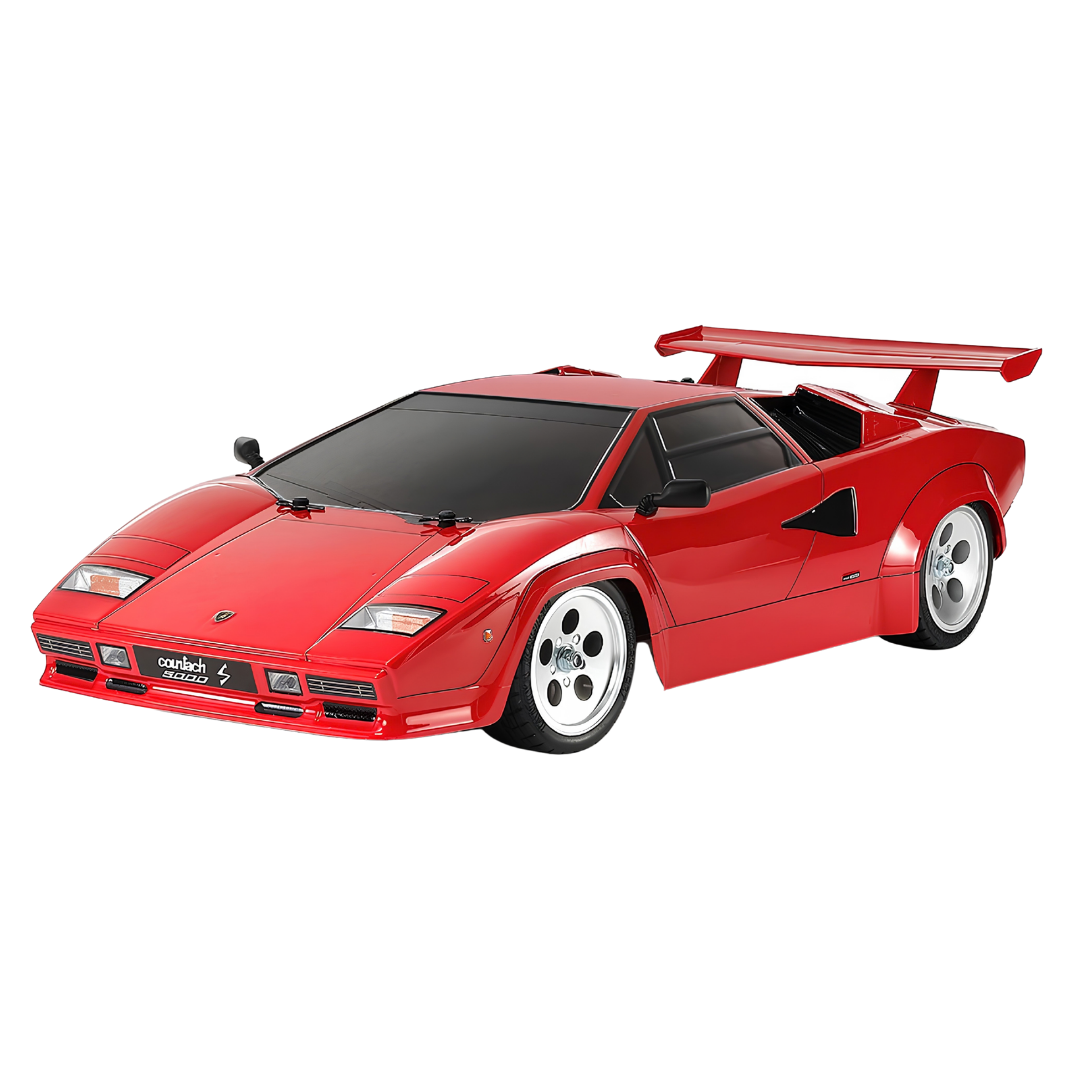

Tamiya Lamborghini Countach 5000S TT-02 1/10 4WD RC Kit 47527-600
Couldn't load pickup availability
The Tamiya Lamborghini Countach 5000S is a limited-edition 1/10 scale electric RC assembly kit combining the iconic supercar body with the adaptable shaft-driven 4WD TT-02 chassis, a 540 brushed motor and HobbyWing THW-1060 ESC for an accessible build with plenty of future tuning potential
Features
- Limited-edition 1/10 scale Lamborghini Countach 5000S RC assembly kit
- 1.0mm thick clear polycarbonate body
- Wheel arches are pre-cut and body mounting holes are pre-drilled
- Separate white plastic side mirrors and rear wing
- Metal-plated light cases add realistic scale detail
- Compatible with separately sold LED lighting
- 5-hole dish wheels with tread-pattern racing radial tyres
- Shaft-driven 4WD TT-02 chassis
- Longitudinal battery and motor layout promotes balanced handling
- Fully independent double-wishbone suspension
- Front and rear gear differentials
- Identical left and right suspension arms and uprights simplify assembly and maintenance
- Easy-access split gearboxes
- Two selectable wheelbase configurations supported by the TT-02 platform
- Two ground-clearance settings
- Two tread-width configurations
- Up to ten gear-ratio options with suitable gearing components
- Brake-disc-style wheel hubs and detailed front bumper supports
- 540-size brushed motor included
- HobbyWing THW-1060 brushed ESC included
- Body stickers and window masking stickers included
Specifications
- Brand: Tamiya
- Model: Lamborghini Countach 5000S
- Product Type: RC On-Road Car Kit
- Scale: 1/10
- Chassis: TT-02
- Assembly Level: Kit
- Drive: Shaft-Driven 4WD
- Power Source: Electric
- Motor: 540-Size Brushed
- ESC: HobbyWing THW-1060 Brushed
- Body Material: 1.0mm Polycarbonate
- Chassis Material: ABS Plastic
- Suspension: Fully Independent Double Wishbone
- Differentials: Gear Type
- Dampers: Friction
- Bearings: Plastic Bushings
- Length: 445mm
- Width: 203mm
- Height: 117mm
- Wheelbase: 257mm
- JAN / GTIN: 4950344475278
- Tamiya Item Number: 47527
- SKU: 47527-600
Includes
- 1 x Tamiya Lamborghini Countach 5000S Polycarbonate Body
- 1 x TT-02 Shaft-Driven 4WD Chassis Kit
- 1 x 540-Size Brushed Motor
- 1 x HobbyWing THW-1060 Brushed ESC
- 5-Hole Dish Wheels
- Tread-Pattern Racing Radial Tyres
- White Plastic Side Mirrors and Rear Wing
- Metal-Plated Light Cases
- Body Sticker Set
- Window Masking Stickers
- Assembly Hardware and Instructions
Required To Complete
- 2-Channel or Greater Radio System with Receiver
- Standard-Size Steering Servo
- Compatible 7.2V to 7.4V Drive Battery
- Compatible Battery Charger
- Tamiya PS Polycarbonate Paint
- Assembly Tools
FAQ
Is the Tamiya Countach 5000S ready to run? No, this is an assembly kit and requires building painting and installation of the radio system steering servo battery and other required equipment
Does the kit include a motor and ESC? Yes, current retailer package data confirms a 540-size brushed motor and HobbyWing THW-1060 brushed ESC are included
Is the body pre-cut? Yes, Tamiya states that the wheel arches are pre-cut and the body mounting holes are already made
Can LED lights be fitted? Yes, the body includes metal-plated light cases designed to accept compatible separately sold LED lighting
What battery does the kit require? Current package specifications call for a compatible 7.2V to 7.4V drive battery with a suitable charger
Does the TT-02 have ball bearings? No, the standard kit uses plastic bushings and ball bearings are a common optional upgrade
Important Notes
- This is an unassembled RC kit and is not ready to run
- Body painting is required and Tamiya PS-series paint should be used on the polycarbonate shell
- Radio receiver steering servo drive battery charger and paint are not included
- LED lighting is optional and sold separately
