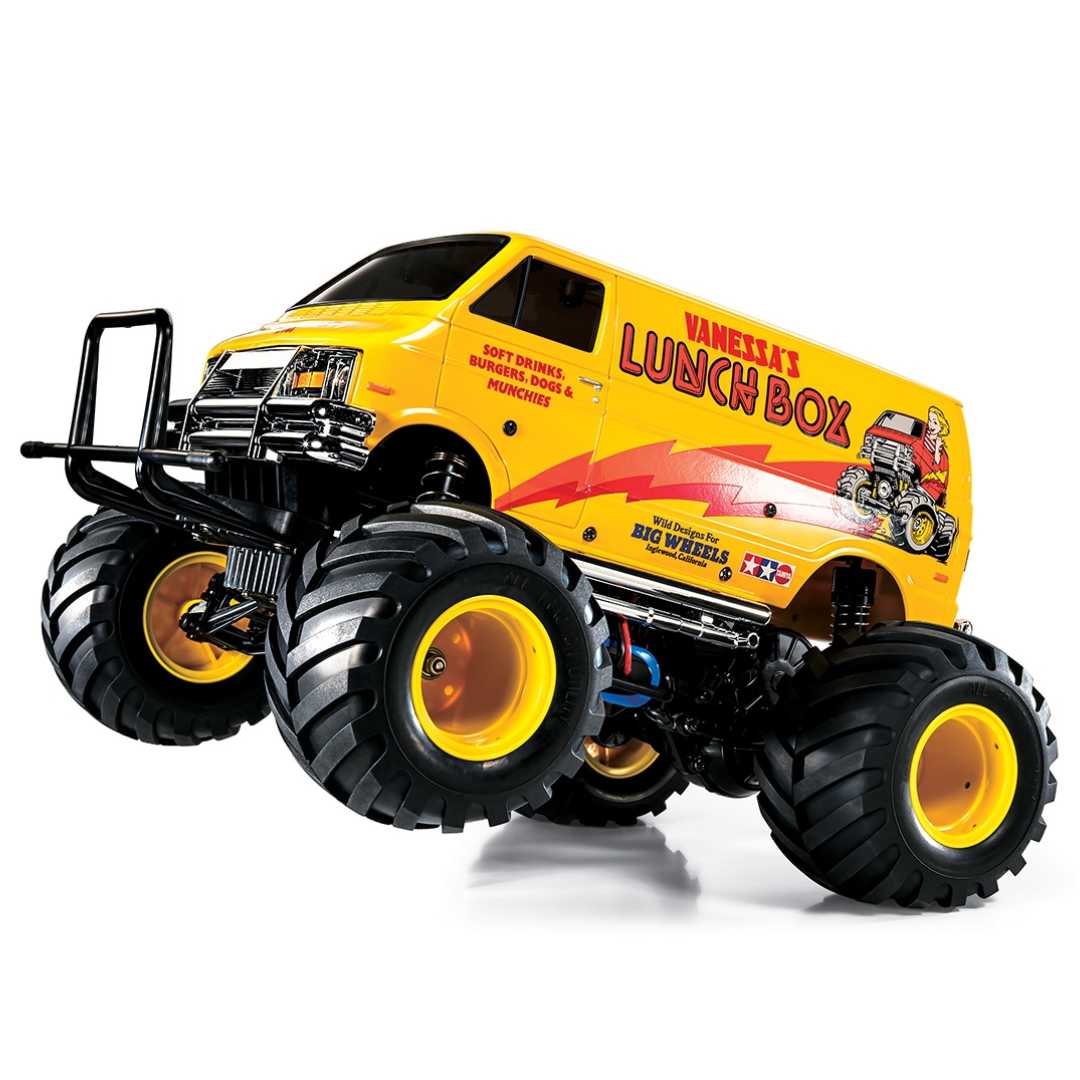

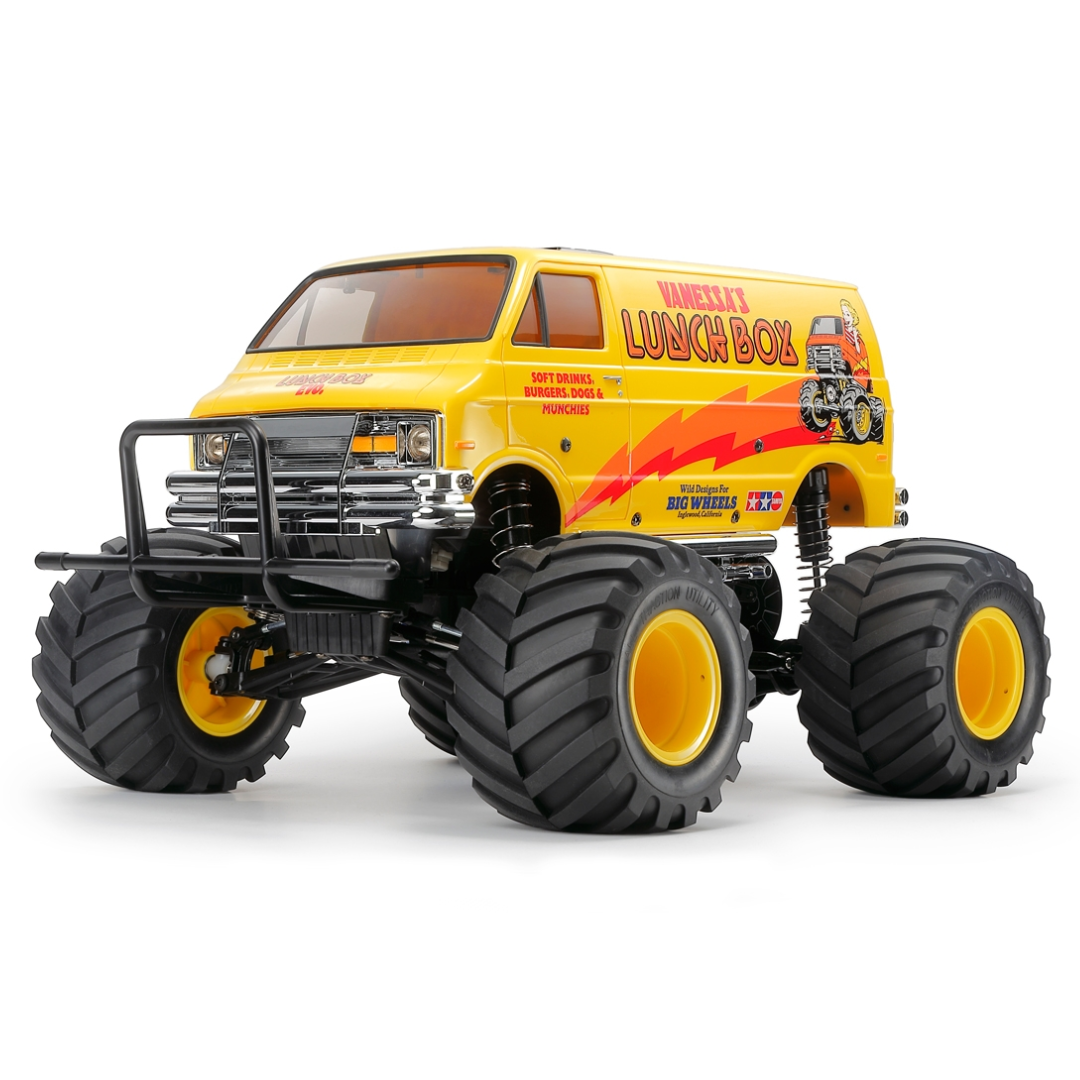

Tamiya Lunch Box EVO RC Monster Truck Kit 1/10 2WD Electric 58755

The Tamiya Lunch Box EVO is a 1/10 scale 2WD electric RC monster truck assembly kit that brings updated handling and suspension performance to an iconic Tamiya design. Inspired by the original 1987 Lunch Box, the EVO retains its distinctive boxy van body and wheelie-friendly character while introducing a longer wheelbase, wider track, double wishbone front suspension and four CVA oil dampers. Complete with a 540 brushed motor, full ball bearings and large off-road tyres, it offers a rewarding classic RC building experience with modernised running gear.

Features

• Classic Lunch Box Styling: Retains the distinctive 1980s custom van design with updated decals and familiar oversized monster truck tyres.
• Updated EVO Chassis: Revised CW-01 platform improves suspension geometry while preserving the original ABS box-frame construction.
• Extended Wheelbase and Track: Wheelbase and track are each increased by 10mm compared with the original Lunch Box to improve stability and controllability.
• Front Double Wishbone Suspension: Independent front suspension improves wheel movement and steering response over uneven surfaces.
• Rear Three-Link Suspension: Rigid rear axle with three-link suspension and stabiliser provides improved axle control.
• Four CVA Oil Dampers: Front and rear oil-filled dampers offer improved suspension damping and control compared with the original friction-damper arrangement.
• Lower Body Mounting Position: Body sits 7mm lower than the original model to help reduce the centre of gravity.
• Front Strut Tower Bar: Reinforces the front chassis structure and supports more consistent suspension operation.
• Revised Steering Linkage: Equal-length steering linkage improves steering geometry and response.
• Full Ball Bearings: Supplied bearing set reduces friction in the standard kit's rotating drivetrain and wheel assemblies.
• Hex Wheel Hub Conversion Parts: Includes conversion components that allow compatible hex-mounted wheels to be fitted when the required additional bearings and modifications are used.
• Durable ABS Hard Body: Yellow moulded plastic van body features revised graphics, chrome-look details and secure screw-mounted construction.
• Large Monster Truck Tyres: Oversized lug-pattern tyres provide traction and the distinctive Lunch Box stance.
• Rear Wheelie Bar: Aluminium wheelie bar with rollers supports the classic front-wheel-lifting driving style on suitable surfaces.
• 540 Brushed Motor Included: Supplied with an electric motor suitable for the standard drivetrain.
• Electronic Speed Controller Included: Supplied with a Hobbywing THW-1060 brushed ESC in the specified kit package.

Specifications

• Brand: Tamiya
• Model: Lunch Box EVO
• Manufacturer Part Number: 58755
• Product Type: RC Monster Truck Assembly Kit
• Scale: 1/10
• Assembly Type: Unassembled Electric RC Kit
• Drivetrain: 2WD Rear-Wheel Drive
• Chassis: CW-01 EVO
• Chassis Material: ABS Plastic
• Body Material: Moulded ABS Plastic
• Body Colour: Yellow
• Overall Length: 390mm
• Overall Width: 295mm
• Overall Height: 220mm
• Wheelbase: 217mm
• Front and Rear Track: 228mm
• Front Suspension: Independent Double Wishbone
• Rear Suspension: Three-Link Rigid Axle with Stabiliser
• Shock Absorbers: Four CVA Oil Dampers
• Differential: Three-Bevel Gear Differential
• Drive Ratio: 14.7:1
• Tyre Type: Lug-Pattern Monster Truck Tyres
• Tyre Diameter: Approximately 115mm
• Wheel Type: Deep-Rim One-Piece Wheels
• Bearings: Full Ball Bearing Set Included
• Motor: 540-Type Brushed Electric Motor
• ESC: Hobbywing THW-1060 Brushed ESC
• ESC Battery Support: 2S–3S LiPo, Subject to Motor and Vehicle Limits
• Radio System: Required Separately
• Steering Servo: Required Separately
• Drive Battery and Charger: Required Separately

Includes

• 1 x Tamiya Lunch Box EVO 1/10 Scale 2WD Monster Truck Assembly Kit
• 1 x Yellow Moulded ABS Van Body and Detail Parts
• 1 x Updated Body Decal Sheet
• 1 x 540-Type Brushed Electric Motor
• 1 x Hobbywing THW-1060 Electronic Speed Controller
• 1 x Full Ball Bearing Set for Standard Kit Assembly
• 4 x CVA Oil Damper Assemblies
• 1 x Set of Wheels and Monster Truck Tyres
• Front and Rear Suspension and Drivetrain Components
• Rear Wheelie Bar Components
• Hex Wheel Hub Conversion Components
• Assembly Hardware and Illustrated Instructions

FAQ

Is the Tamiya Lunch Box EVO ready to run? No. The Lunch Box EVO is an unassembled RC kit. Building, body finishing and installation of the radio equipment are required before driving. A compatible two-channel radio system, steering servo, drive battery and charger must be purchased separately.

What is different about the Lunch Box EVO compared with the original Lunch Box? The EVO introduces front double wishbone suspension, rear three-link suspension, four CVA oil dampers, revised steering and a wider, longer chassis layout. It also has a lower body mounting position and full ball bearings while retaining the classic van styling and rear-wheel-drive configuration.

Does the Lunch Box EVO include an ESC and motor? Yes. The supplied kit configuration includes a 540-type brushed motor and Hobbywing THW-1060 electronic speed controller. Radio equipment, a steering servo, drive battery and charger are still required.

Does the Lunch Box EVO include ball bearings? Yes. The EVO includes full ball bearings for its standard assembly. The optional hex wheel hub conversion may require additional 950-size bearings and modification of the wheel mounting holes.

What paint should be used on the Lunch Box EVO body? The body is moulded from hard ABS plastic rather than clear polycarbonate. Use suitable Tamiya TS spray paint for the required finish and detailing. Tamiya PS paints are intended for polycarbonate bodies and are not the correct default choice for this hard plastic shell.

Important Notes

• This product is an unassembled kit and requires construction before use.
• Requires a compatible two-channel transmitter and receiver, steering servo, drive battery and battery charger.
• Transmitter batteries, suitable tools and Tamiya TS finishing paints are required separately.
• The supplied Hobbywing THW-1060 is a brushed motor ESC. Do not connect it to a brushless motor.
• Although the ESC supports suitable 2S–3S LiPo configurations, battery selection must also respect the supplied motor and drivetrain requirements. A compatible 7.2V NiMH or 7.4V LiPo setup is a conventional starting point.
• Hex wheel hub conversion parts are supplied, but extra bearings and wheel preparation may be required to complete that optional conversion.
• The standard kit includes full ball bearings; additional bearings are associated with optional conversion configurations.
• Use paint designed for hard plastic model bodies, not polycarbonate-only paint.
• Confirm battery connector compatibility, servo dimensions and radio installation requirements before assembly.
• Optional upgrades, aftermarket wheels and additional accessories are sold separately.
