Tamiya M-07R 1/10 FWD RC Limited Edition Chassis Kit 47520
✉️ Notify me when available!
Awesome! You'll be notified when this item is back in stock.
Please enter a valid email address.
Couldn't load pickup availability

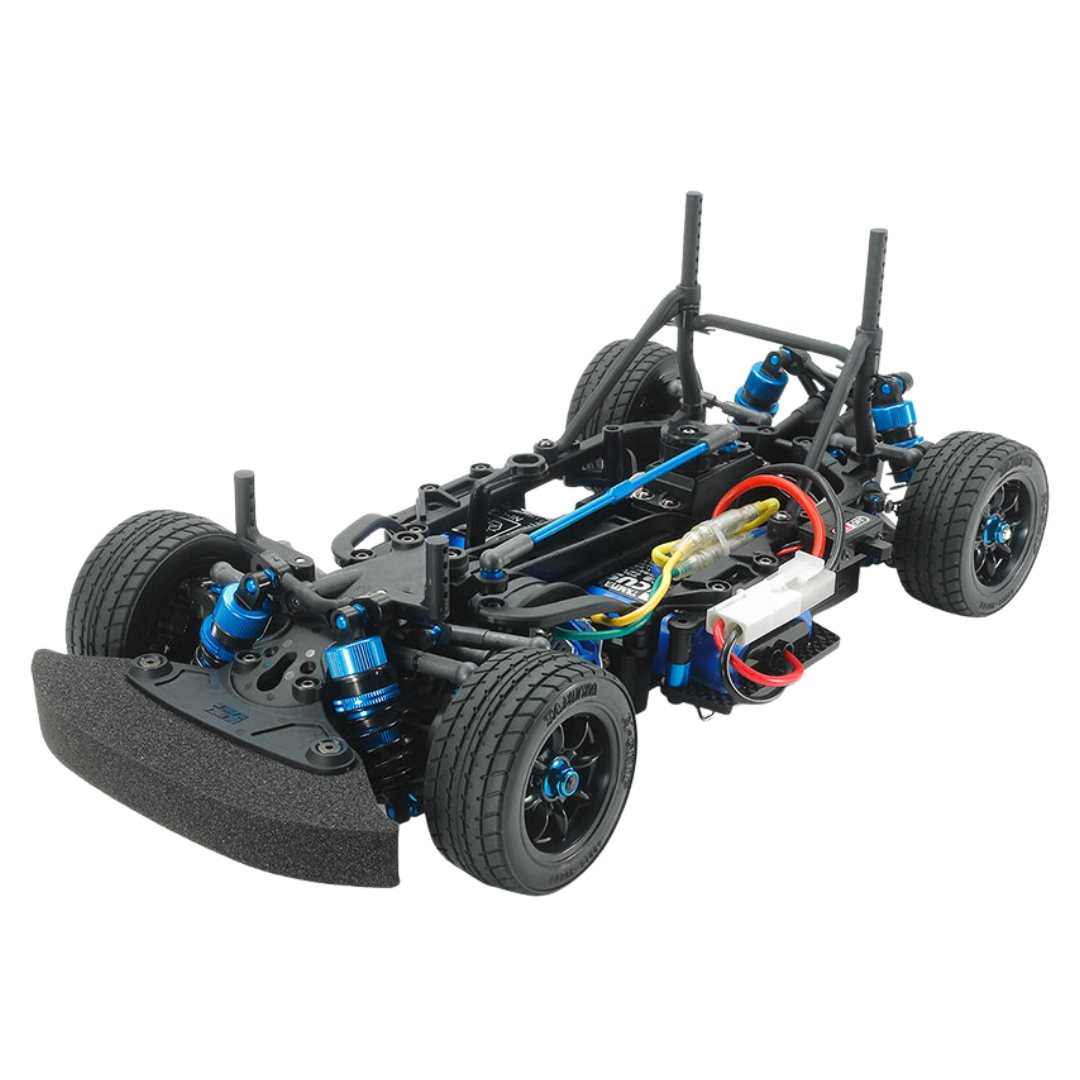

The M-07R is a limited edition front-wheel drive chassis kit built for serious racers. Based on the advanced M-07 Concept platform, this version integrates a range of TRF-selected performance upgrades including a high-traction lower deck, TRF dampers, reinforced suspension parts, and a host of precision aluminium and titanium components. Its design ensures maximum grip and responsiveness, even on low-traction surfaces.
Features

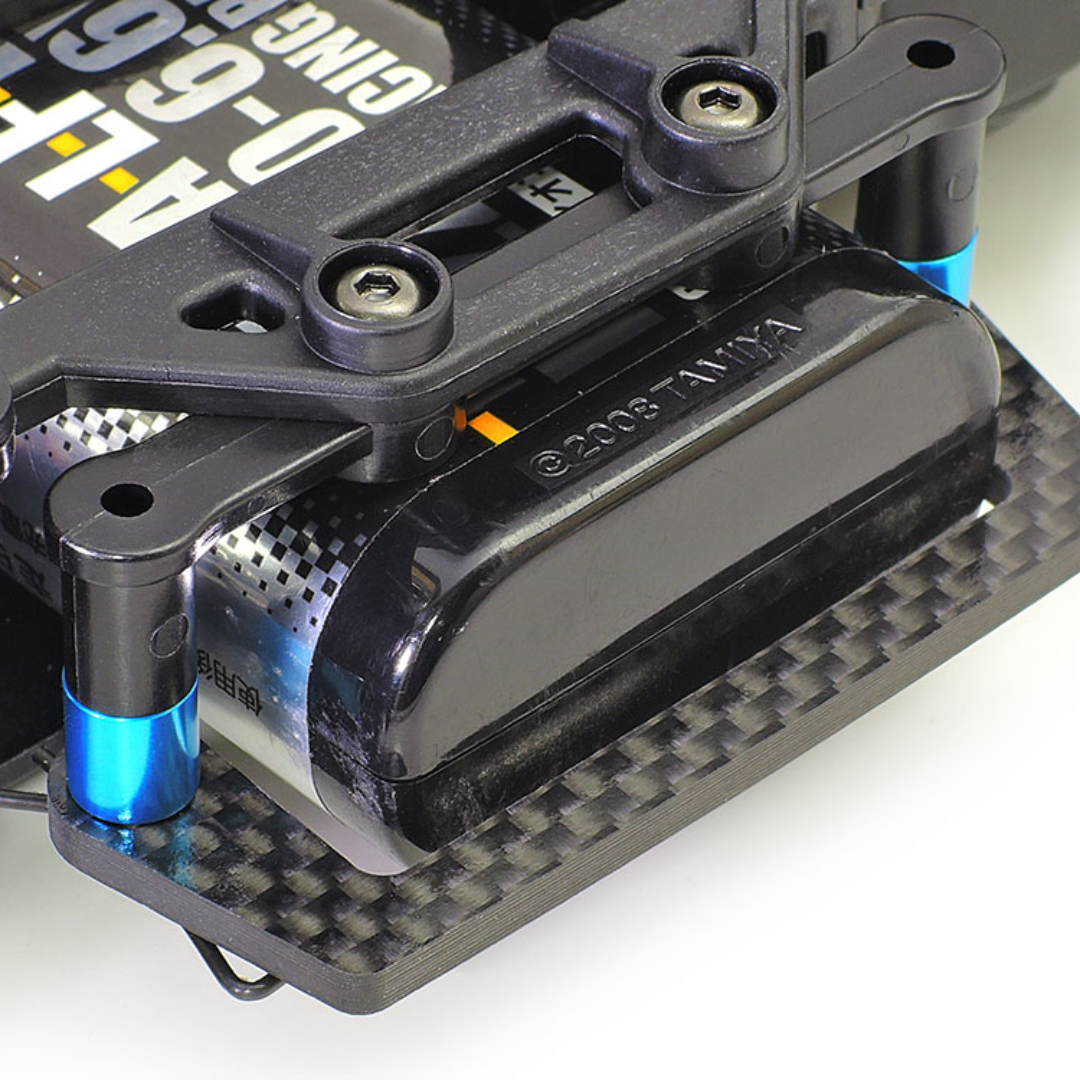

- Carbon fibre battery holder (dedicated component) for lightweight rigidity
- Rear stabilizer enhances cornering control

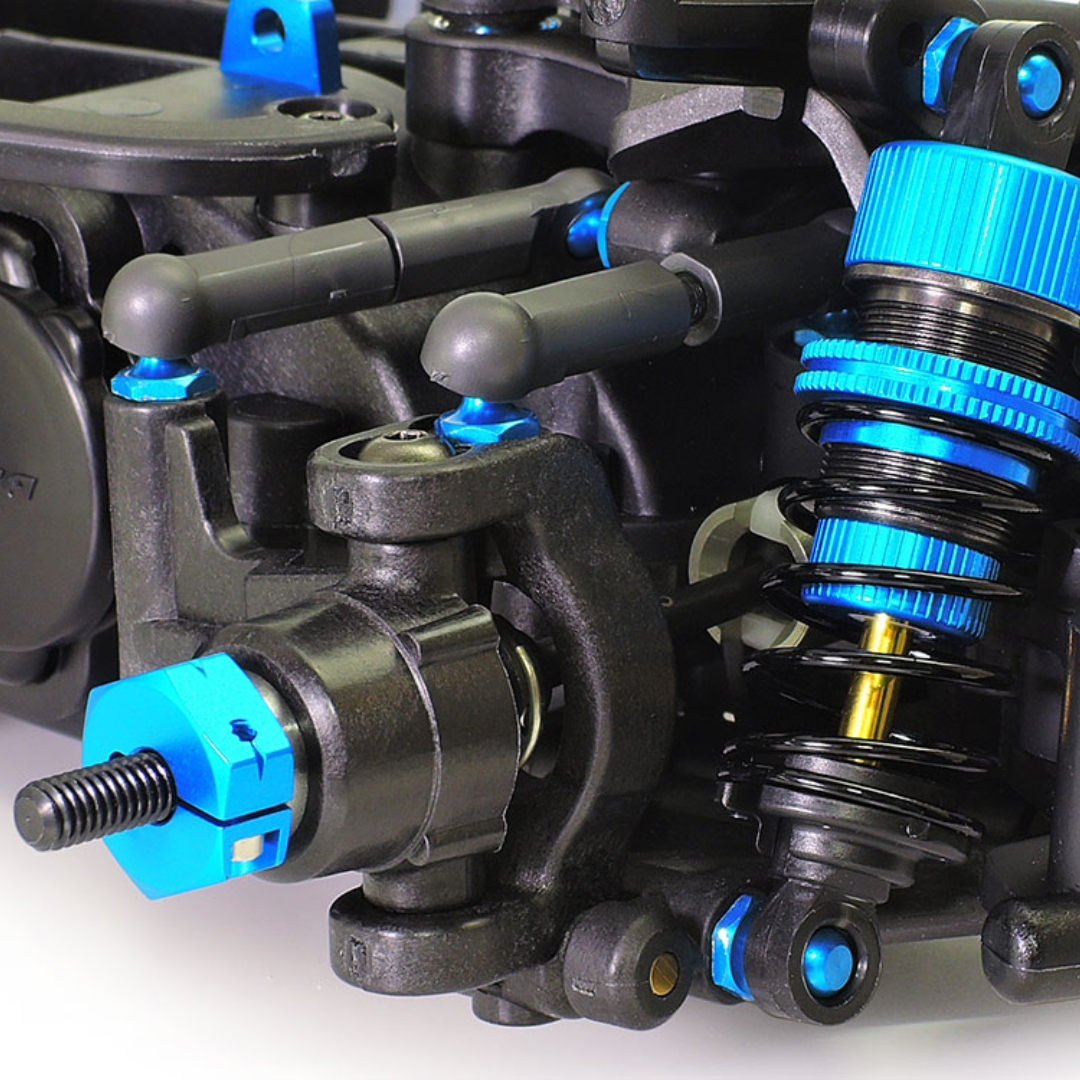

- TRF special dampers with hard black coating for consistent suspension response
- Double-cardan drive shafts (33mm) reduce vibration and improve steering precision
- High-traction lower deck for improved ground contact and stability
- Reinforced C parts (uprights) and D parts (suspension arms) for durability
- 3x106mm aluminium turnbuckle shafts for easy tuning
- Aluminium joint cups and 5mm clamp-type aluminium wheel hubs
- 2.6mm and 46mm titanium-coated shafts for low friction and strength
- 06 module aluminium pinion gear (20T)
- Full ball bearings throughout the drivetrain

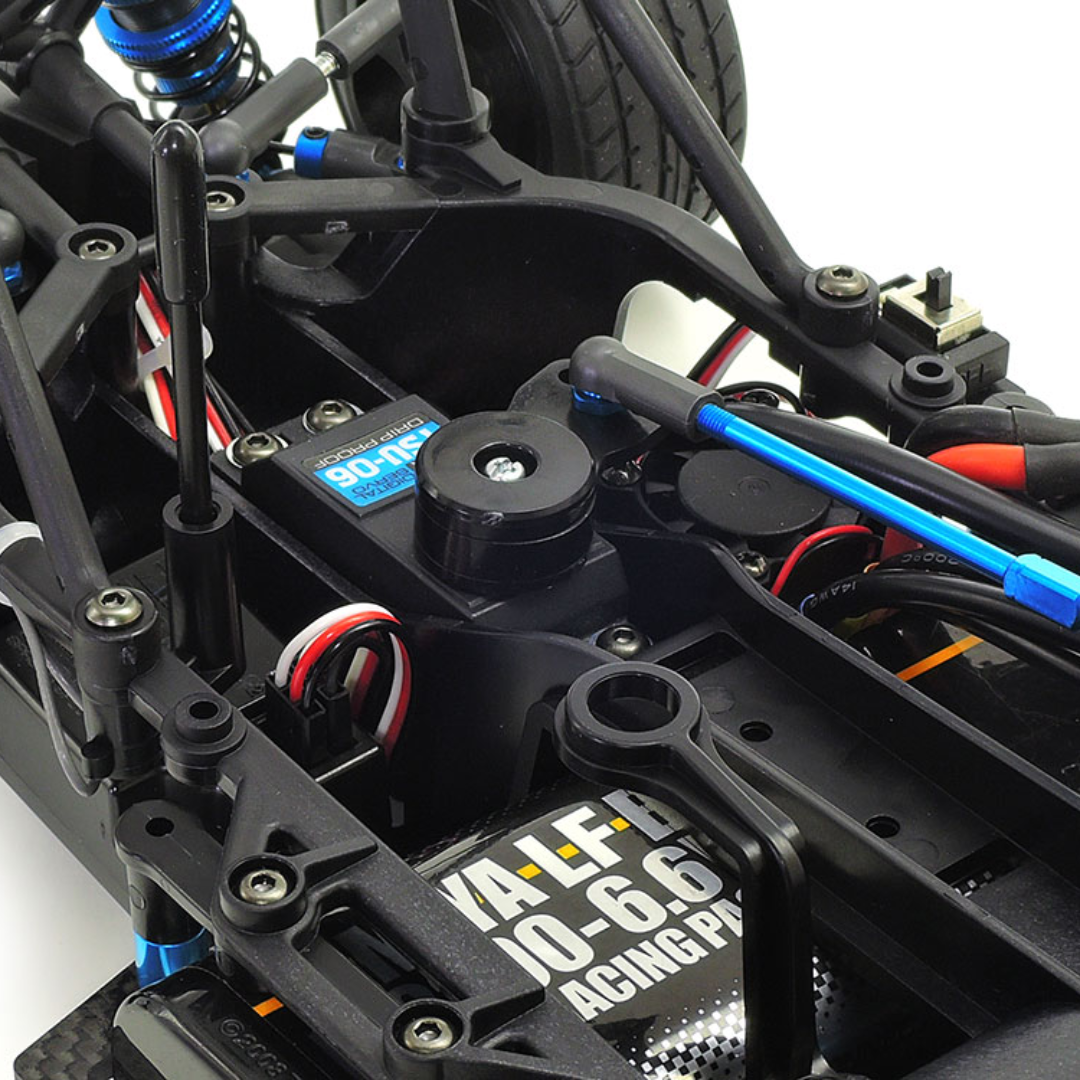

- Hi-torque servo saver (black) included for precise steering control
Specifications
- Length: 332mm (including bumper)
- Width: 164mm
- Wheelbase: Selectable between 225mm or 239mm
- Chassis Frame: Monocoque
- Drive System: Front-wheel drive with front-midship motor layout
- Differential: Oil-filled gear diff
- Suspension: 4-wheel independent double wishbone
- Steering: 3-piece tie-rod system
- Gear Ratio: 5.78:1 with included 20T pinion (range 7.22:1 - 4.81:1 available separately)
Includes
- Assembled M-07R chassis kit with TRF performance parts
- TRF special dampers
- Carbon fibre battery holder
- Reinforced uprights and suspension arms
- Double-cardan drive shafts and aluminium joint cups
- Clamp-type aluminium wheel hubs
- Full ball bearing set
- Hi-torque servo saver
- Instruction manual
Important Notes
- Body, tyres, motor, battery pack, charger, and R/C equipment are sold separately
- This product was previously sold under Item number 84436
- Contact your local Tamiya agent for compatible electronic speed controller (ESC) options
