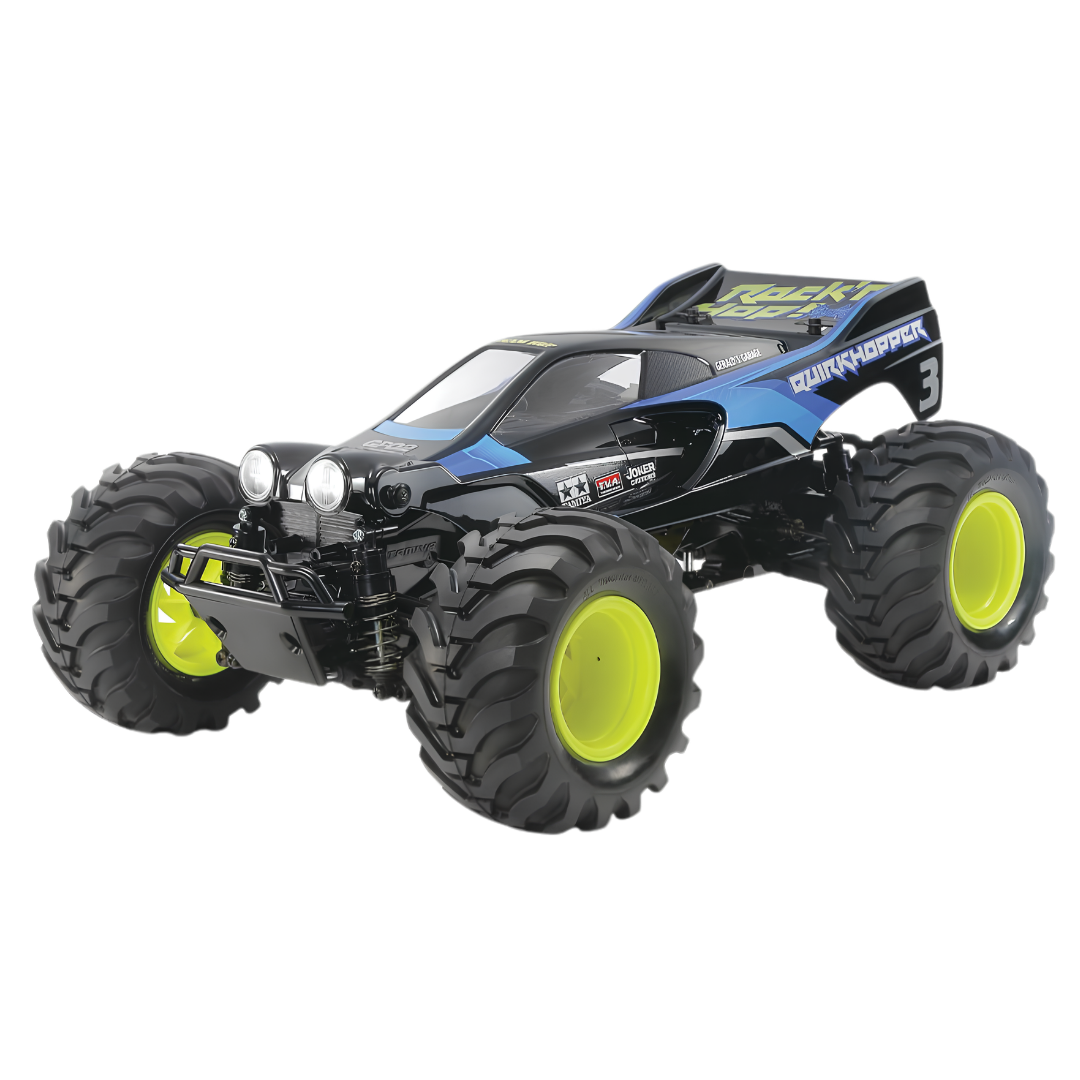

Tamiya Quirkhopper RC Buggy 1/10 4WD Kit GF-02 58756-600

The Tamiya Quirkhopper is a 1/10 scale 4WD RC buggy assembly kit built on the gear-driven GF-02 chassis, combining large 123mm off-road tyres with a distinctive polycarbonate body and stable long-wheelbase layout for recreational off-road driving

Features

• 1/10 scale build-it-yourself RC buggy kit
• GF-02 gear-driven 4WD chassis
• Low centrally mounted motor helps maintain balanced chassis weight distribution
• Lightweight durable monocoque chassis with integrated sealed gearboxes
• Long 267mm wheelbase and wide 222mm tread for stable off-road handling
• Front and rear 3-bevel gear differentials
• Four-wheel independent double wishbone suspension
• Four friction dampers
• Identical-length steering tie-rods
• Motor guard provides additional protection during off-road driving
• Three gear ratio options available using separately sold pinion gears
• 123mm large-diameter semi-pneumatic tyres with off-road lug tread
• Fluorescent yellow one-piece deep-rim wheels
• Lightweight polycarbonate buggy body with separate twin headlights and side air intake parts
• Integrated rear wing design with distinctive body styling
• Dedicated Quirkhopper marking stickers included
• Chassis can be converted to four-wheel steering using additional compatible equipment
• Type 540 brushed motor included
• Australian 58756-600 package includes a Hobbywing QuicRun WP-1060 brushed ESC

Specifications

• Brand: Tamiya
• Model: Quirkhopper
• Chassis: GF-02
• Product Type: RC Buggy Kit
• Scale: 1/10
• Drive: Gear-Driven 4WD
• Assembly Level: Unassembled Kit
• Power Source: Electric
• Length: 400mm
• Width: 280mm
• Height: 175mm
• Wheelbase: 267mm
• Front Tread: 222mm
• Rear Tread: 222mm
• Tyre Width: 60mm Front and Rear
• Tyre Diameter: 123mm Front and Rear
• Chassis Type: Monocoque with Integrated Gearboxes
• Differentials: Front and Rear 3-Bevel Gear Differentials
• Suspension: Four-Wheel Independent Double Wishbone
• Dampers: Friction Type
• Standard Gear Ratio: 18.03:1
• Motor: Type 540 Brushed
• ESC: Hobbywing QuicRun WP-1060 Brushed ESC
• Body Material: Polycarbonate
• Barcode: 4950344587568
• Manufacturer Part Number: 58756-600

Includes

• 1 x Tamiya Quirkhopper GF-02 RC Buggy Assembly Kit
• 1 x Polycarbonate Quirkhopper Body
• 1 x Type 540 Brushed Motor
• 1 x Hobbywing QuicRun WP-1060 Brushed ESC
• 4 x Fluorescent Yellow Wheels
• 4 x 123mm Semi-Pneumatic Off-Road Tyres
• Body Headlight and Air Intake Parts
• Dedicated Body Marking Stickers
• Assembly Hardware
• Instruction Manual

Required To Complete

• 1 x Compatible 2-Channel Radio System
• 1 x Steering Servo
• 1 x Suitable 7.2V to 7.4V RC Battery Pack
• 1 x Compatible Battery Charger
• Transmitter Batteries as Required by the Chosen Radio
• Tamiya PS Polycarbonate Paint

FAQ

Is the Tamiya Quirkhopper ready to run? No, the Quirkhopper is an unassembled RC kit that requires building painting and installation of the required radio equipment servo battery and charger

Does the Tamiya Quirkhopper include an ESC? Yes, Tamiya states that an ESC is included with export versions and the Australian 58756-600 package is supplied with a Hobbywing QuicRun WP-1060 brushed ESC

What type of drivetrain does the Quirkhopper use? The GF-02 chassis uses a fully gear-driven 4WD system with front and rear gear differentials and a centrally mounted Type 540 motor

Can the GF-02 be converted to four-wheel steering? Yes, Tamiya designed the GF-02 chassis to support a four-wheel-steering conversion using additional compatible servo and radio equipment sold separately

Important Notes

• This is an unassembled RC kit and is not supplied ready to run
• The polycarbonate body requires painting before final assembly
• Use Tamiya PS series paint or another paint specifically suitable for polycarbonate
• Radio system steering servo battery charger and transmitter batteries are required separately
