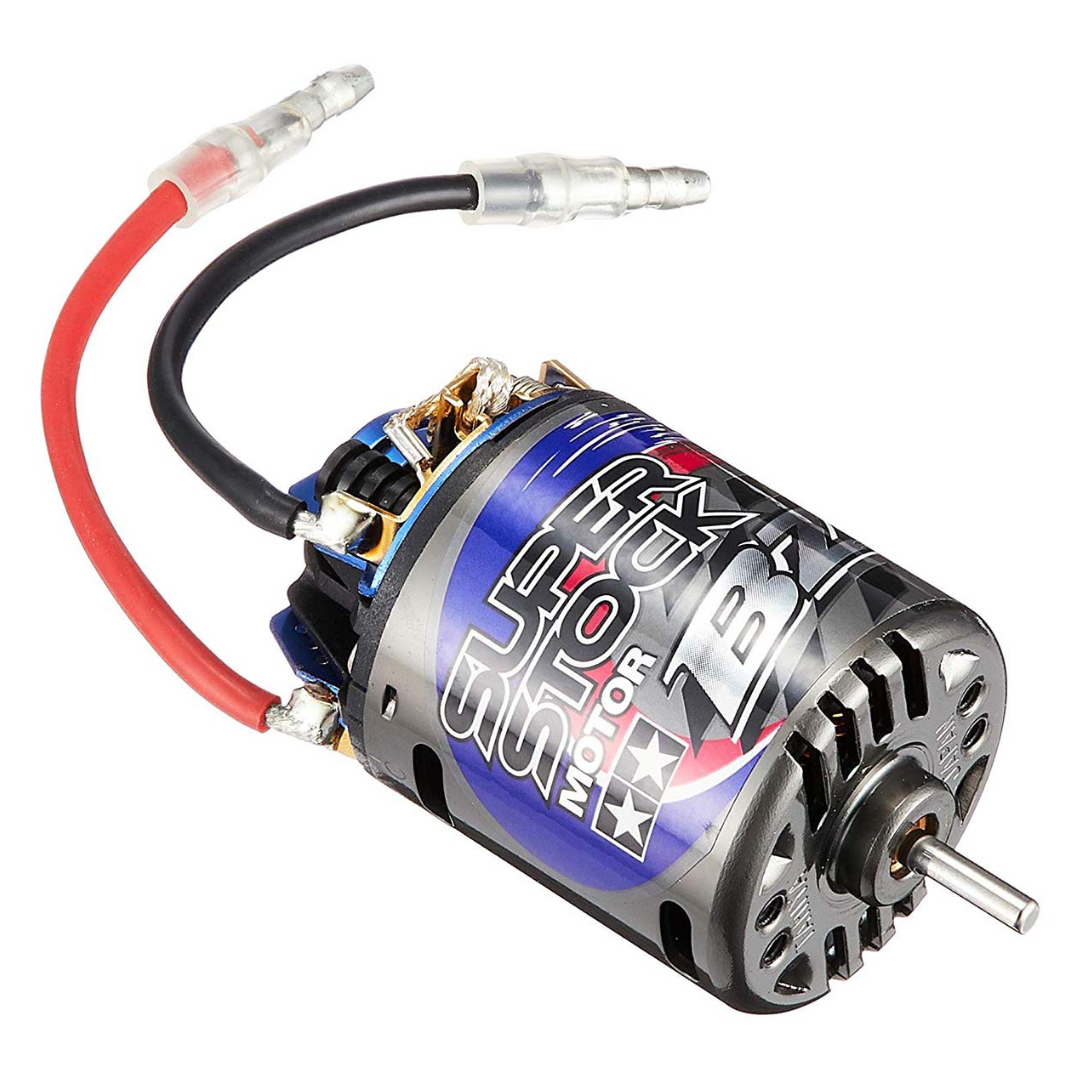

Tamiya Super Stock BZ 540 Brushed High Torque Motor 23T 53930

The Tamiya Super Stock BZ 540 is a 23T brushed RC motor upgrade for electric off-road cars needing stronger torque, improved acceleration and serviceable brushed motor performance.

Designed as a Tamiya Hop-Up Option motor, the Super Stock BZ combines a high-torque 23 turn layout with cooling and electrical interference control features. It is a practical upgrade for suitable brushed RC vehicles where the ESC, gearing and drivetrain are matched to the motor specification.

Features

• High Torque Off-Road Design: Torque characteristics are suited to off-road RC cars needing stronger acceleration
• 23 Turn Brushed Motor: Provides a performance upgrade over many standard silver can brushed motor setups
• 540 Size Fitment: Designed for electric RC vehicles using standard 540 brushed motor mounting
• Brush Damper System: Helps maintain firm brush contact with the commutator for consistent power delivery
• Terminal Heat Sink: Helps manage heat around the motor terminals during performance use
• Chip Type Condenser: Helps reduce electrical interference from the brushed motor
• Sponge Dust Cover: Helps protect the motor from dirt and debris during off-road driving
• Vented Motor Can: Gun metal motor can features side and front ventilation slits for heat dissipation
• Blue Anodised End Bell: Provides a distinctive Tamiya Super Stock BZ appearance
• Serviceable Construction: Can be disassembled for maintenance and standard motor brush replacement

Specifications

• Brand: Tamiya
• Model: Super Stock BZ
• SKU: 53930
• Manufacturer Part Number: 53930
• EAN: 4950344999828
• Product Type: Brushed RC motor upgrade
• Motor Size: 540
• Motor Type: Brushed
• Turns: 23T
• Input Voltage: 7.2V
• No-Load RPM: 26,500rpm at 7.2V
• Maximum Torque: 49mN-m at 7.2V
• Recommended Gear Ratio: 9:1 to 11:1
• Recommended Use: Electric off-road RC cars
• Motor Can Colour: Gun metal
• End Bell Colour: Blue anodised
• Brush Type: Replaceable standard motor brushes

Includes

• 1 x Tamiya Super Stock BZ 540 23T brushed motor
• 1 x Sponge dust protection cover

FAQ

What is the Tamiya Super Stock BZ motor designed for? The Tamiya Super Stock BZ 53930 motor is designed for electric off-road RC cars needing improved torque and brushed motor performance.

How many turns is the Tamiya 53930 motor? The Tamiya Super Stock BZ 53930 is a 23 turn brushed motor.

What gearing should be used with this motor? Tamiya lists the recommended gear ratio range for the Super Stock BZ motor as 9:1 to 11:1.

Can the brushes be replaced? Yes. The Tamiya Super Stock BZ motor is serviceable and can use compatible standard replacement motor brushes.

Important Notes

• Check vehicle, ESC and drivetrain compatibility before installation.
• Tamiya recommends using ball bearings when installing this motor.
• XV-01 series chassis require motor extension cables when using this motor.
• Use the motor within the recommended 9:1 to 11:1 gear ratio range.
• Monitor motor temperature when changing gearing, running on high-grip surfaces or using performance battery setups.
• Regular cleaning and brush maintenance will help maintain consistent brushed motor performance.
