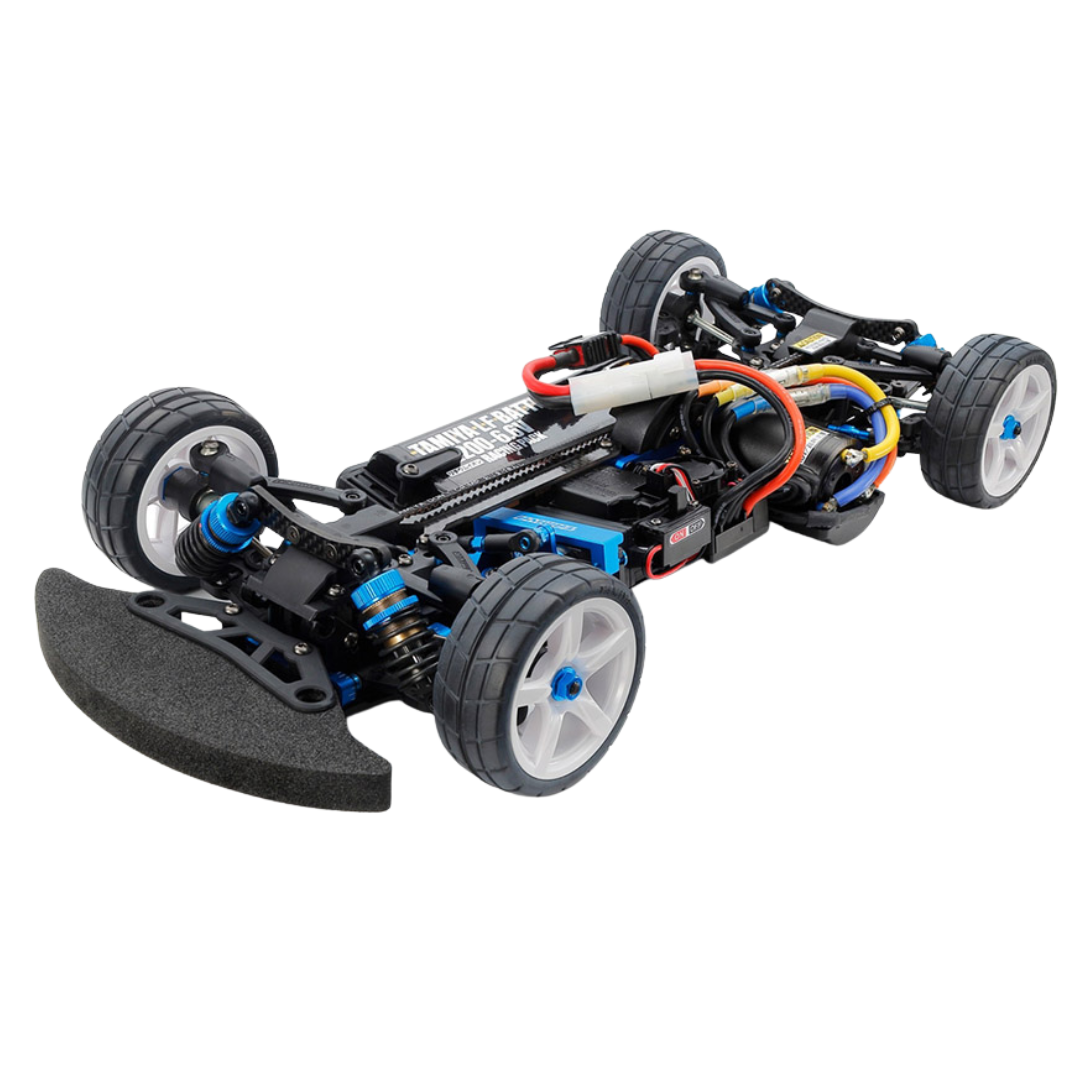

Tamiya TA08R 4WD Touring Car Chassis Kit 1/10 47498-000

The Tamiya TA08R is a limited-edition 1/10 scale competition touring car chassis kit designed for racers wanting a belt-driven 4WD platform with key aluminium, carbon fibre and TRF upgrade parts included from the start.

Based on the TA08 PRO, the TA08R adds a 2.0mm carbon fibre upper deck, aluminium suspension and steering components, carbon fibre damper stays, Super Short Big Bore oil dampers and upgraded drive shafts. The chassis is supplied without a body, motor, electronics, wheels or tyres so the builder can select equipment to suit their preferred racing class and track conditions.

Features

• Limited-edition competition version of the Tamiya TA08 PRO chassis
• Belt-driven four-wheel-drive touring car layout

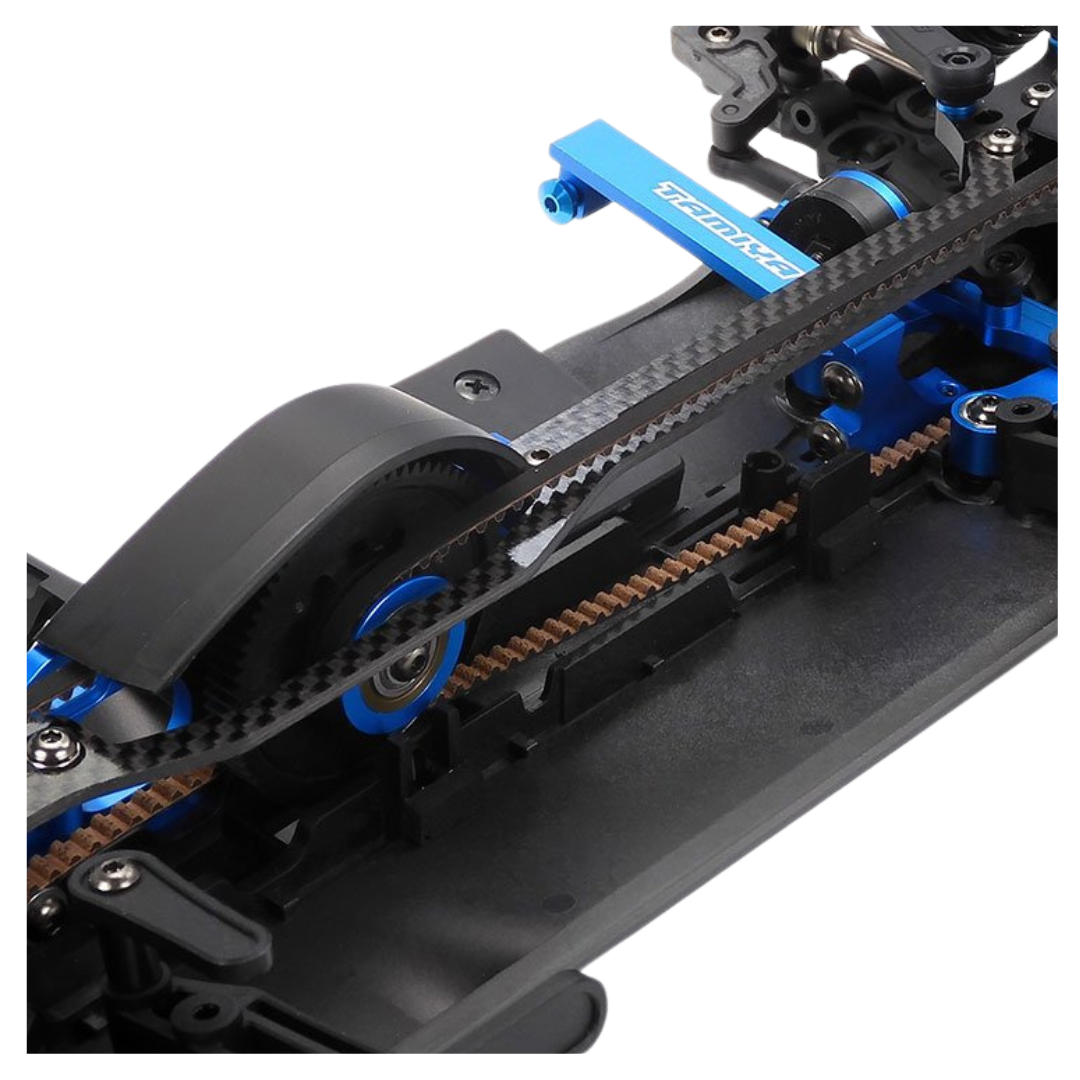

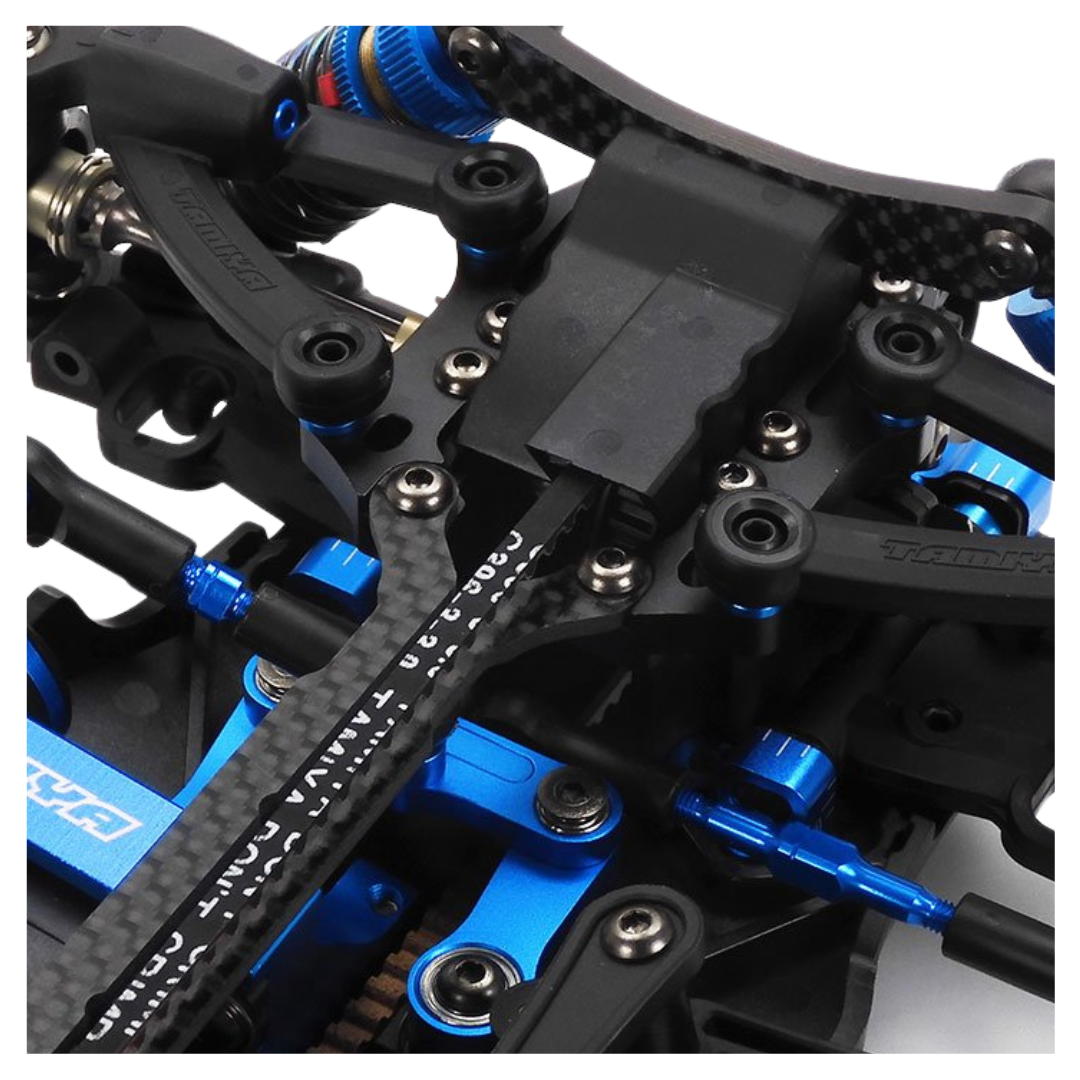

• 2.0mm carbon fibre upper deck connects the front and rear bulkheads
• Rear 630 bearing mounting point allows controlled chassis roll movement
• Aluminium front and rear upper-arm mounts increase suspension mounting rigidity

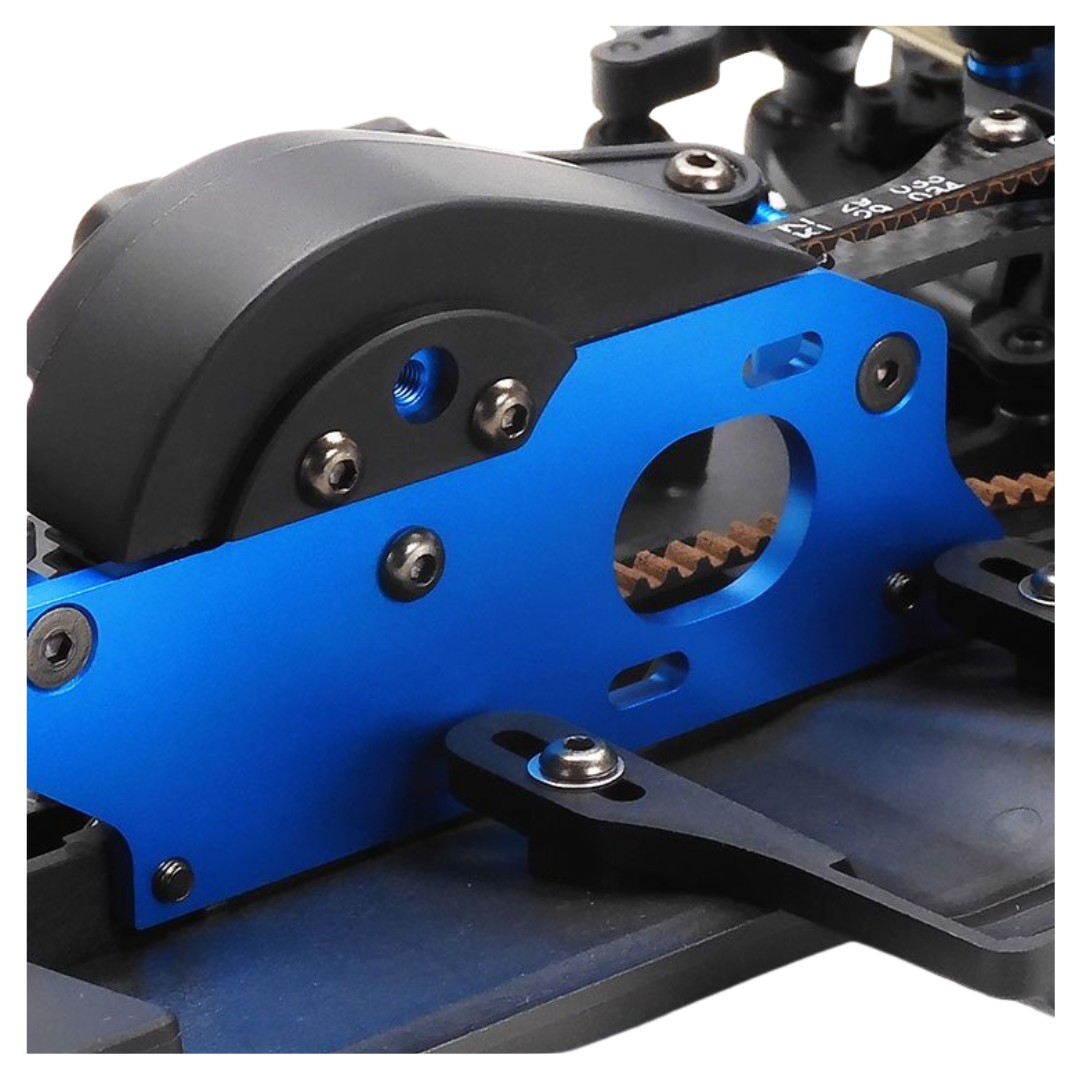

• Aluminium motor mount includes two screw-mounted upper-deck attachment points
• Reinforced lower deck uses additional ribs to control chassis deformation
• Carbon fibre rear body-mount plate with aluminium posts helps reduce body movement
• Front aluminium direct coupling provides immediate front-wheel drive response
• Rear oil-filled gear differential uses aluminium differential joints
• TRF420 centre pulley and 71-tooth spur gear are designed for consistent operation under load

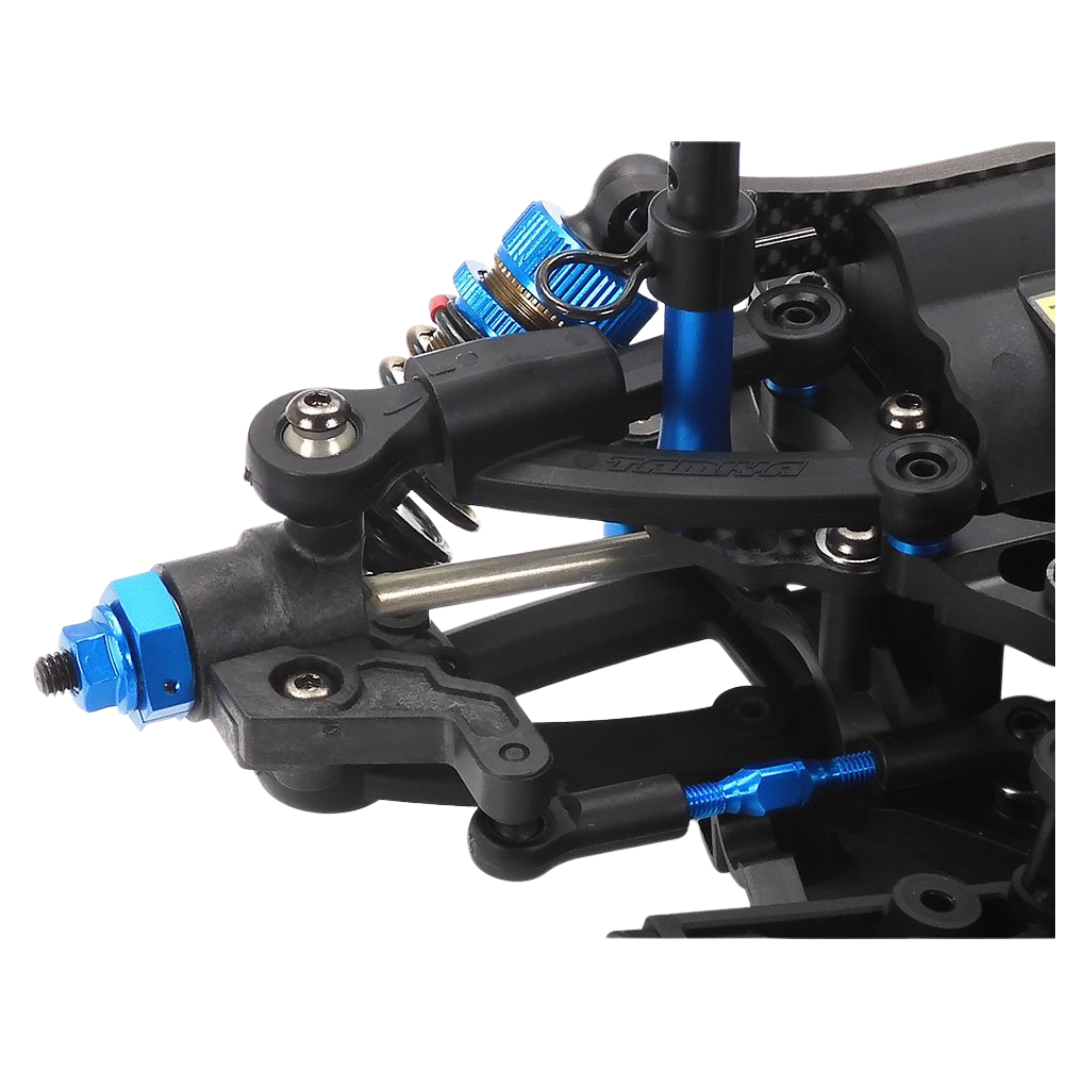

• Front double-cardan drive shafts help reduce steering vibration and wheel chatter
• Lightweight rear universal drive shafts reduce rotating mass
• Aluminium wheel hubs help maintain consistent wheel mounting and tyre contact

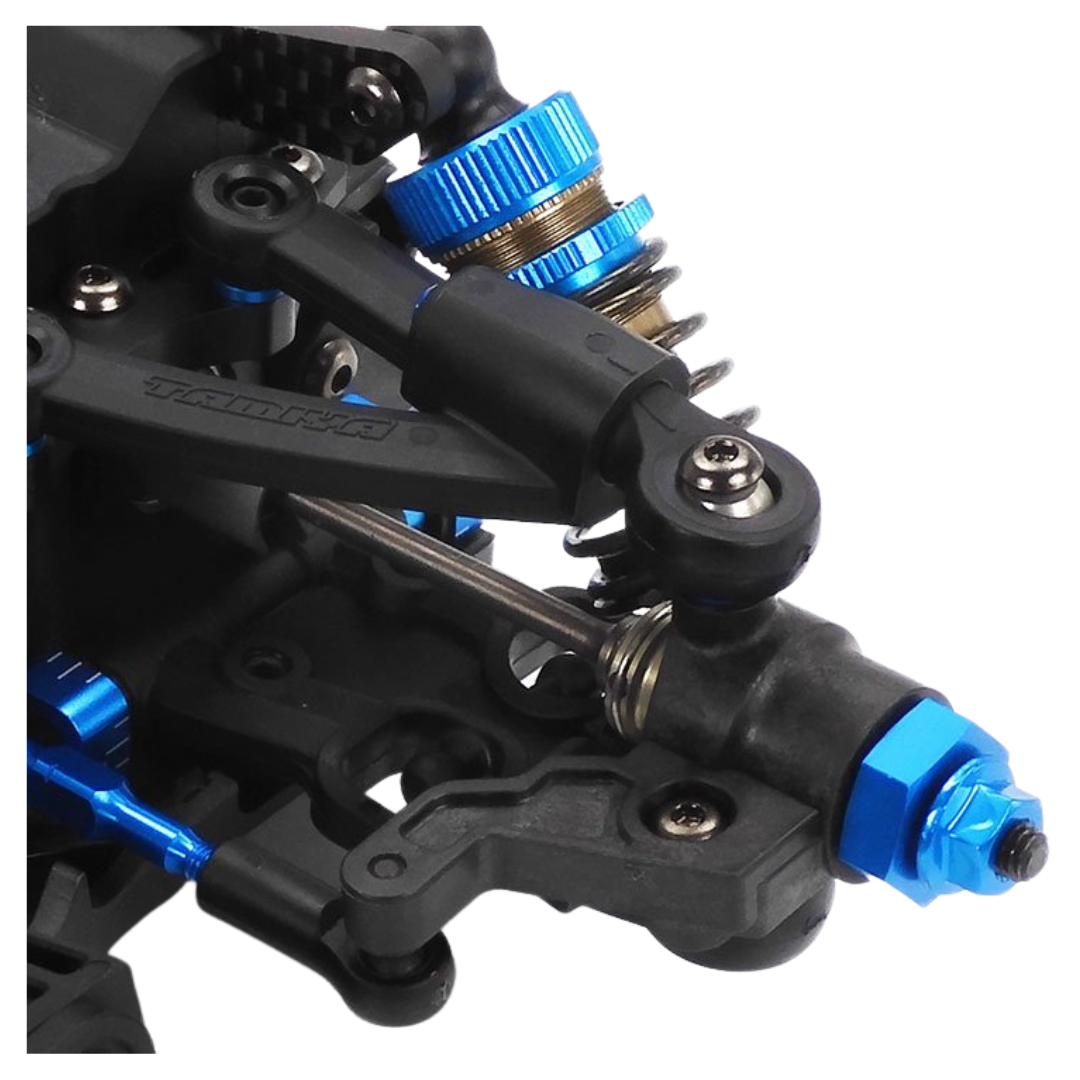

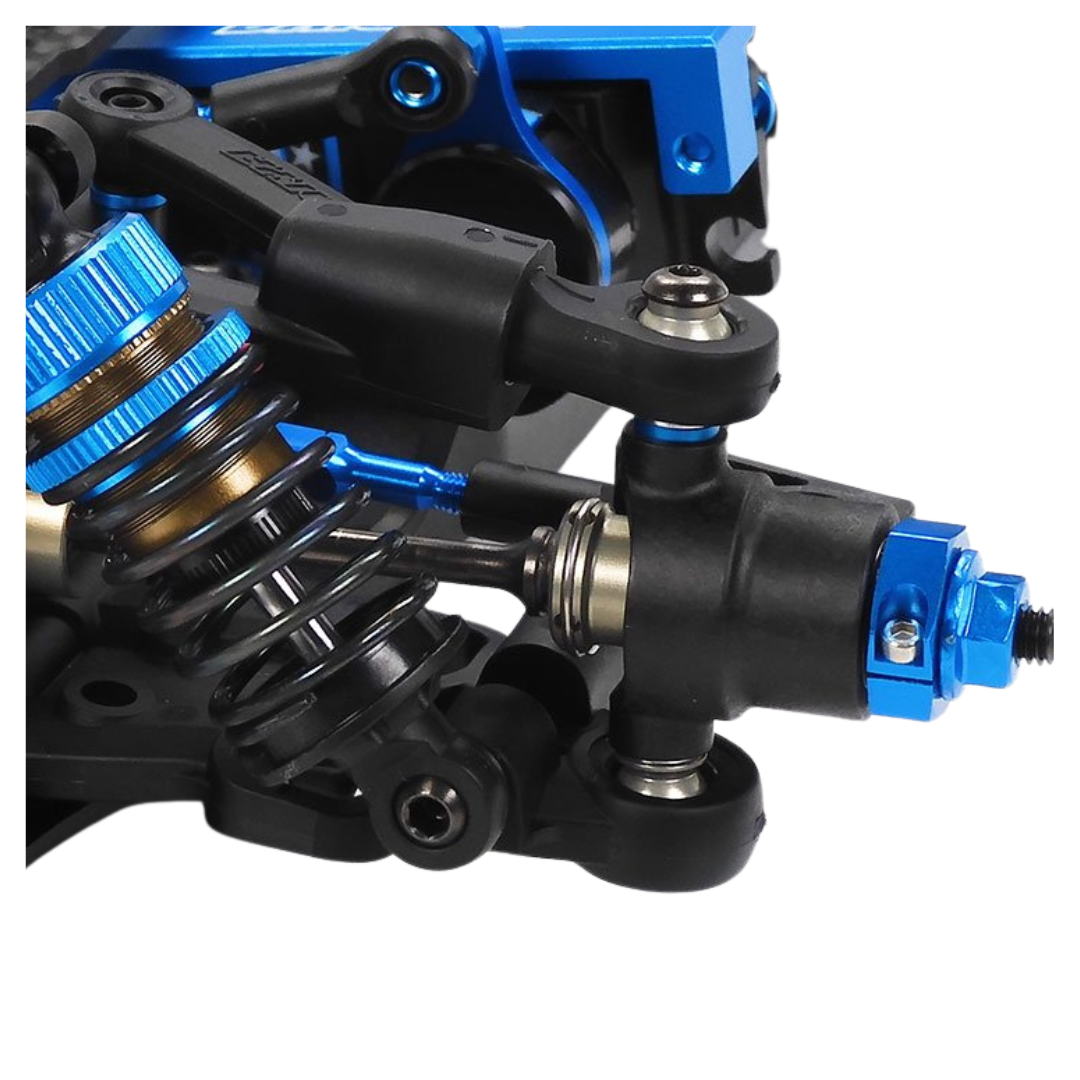

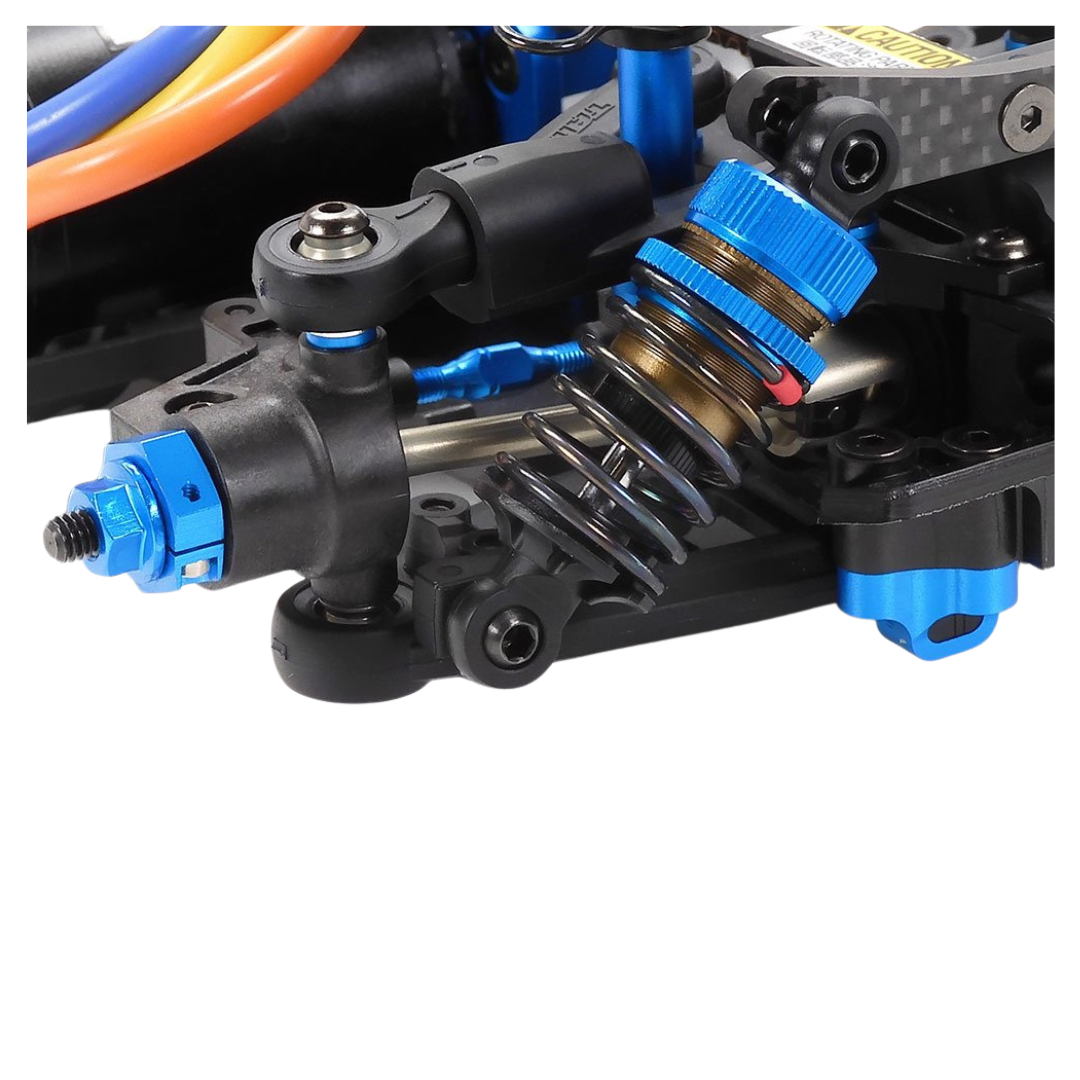

• Super Short Big Bore aluminium oil dampers provide adjustable suspension control
• Carbon fibre front and rear damper stays
• Adjustable aluminium suspension mounts support detailed chassis setup changes
• Full ball-bearing set included
• Convenient carry case included for transport and storage

Specifications

• Brand: Tamiya
• Model: TA08R
• Manufacturer Part Number: 47498
• Product Code: 47498-000
• Barcode: 4950344474981
• Product Type: Competition touring car chassis kit
• Scale: 1/10
• Drive System: Belt-driven 4WD
• Chassis Material: Fibre-reinforced plastic
• Upper Deck: 2.0mm carbon fibre
• Suspension: Four-wheel independent double wishbone
• Dampers: Aluminium Super Short Big Bore oil-filled dampers
• Front Differential: Aluminium direct coupling
• Rear Differential: Oil-filled gear differential with aluminium joints
• Front Drive Shafts: Low-friction double-cardan shafts
• Rear Drive Shafts: Lightweight universal shafts
• Spur Gear: 71-tooth
• Bearings: Full ball-bearing set
• Gear Ratio: Adjustable
• Motor: Sold separately
• Pinion Gear: Sold separately
• Electronic Speed Controller: Sold separately
• Body: Sold separately
• Wheels and Tyres: Sold separately
• Assembly Required: Yes
• Intended Use: On-road touring car racing

Included Upgrade Parts

• 51565 TRF419 Gear Differential Unit Aluminium Differential Joints

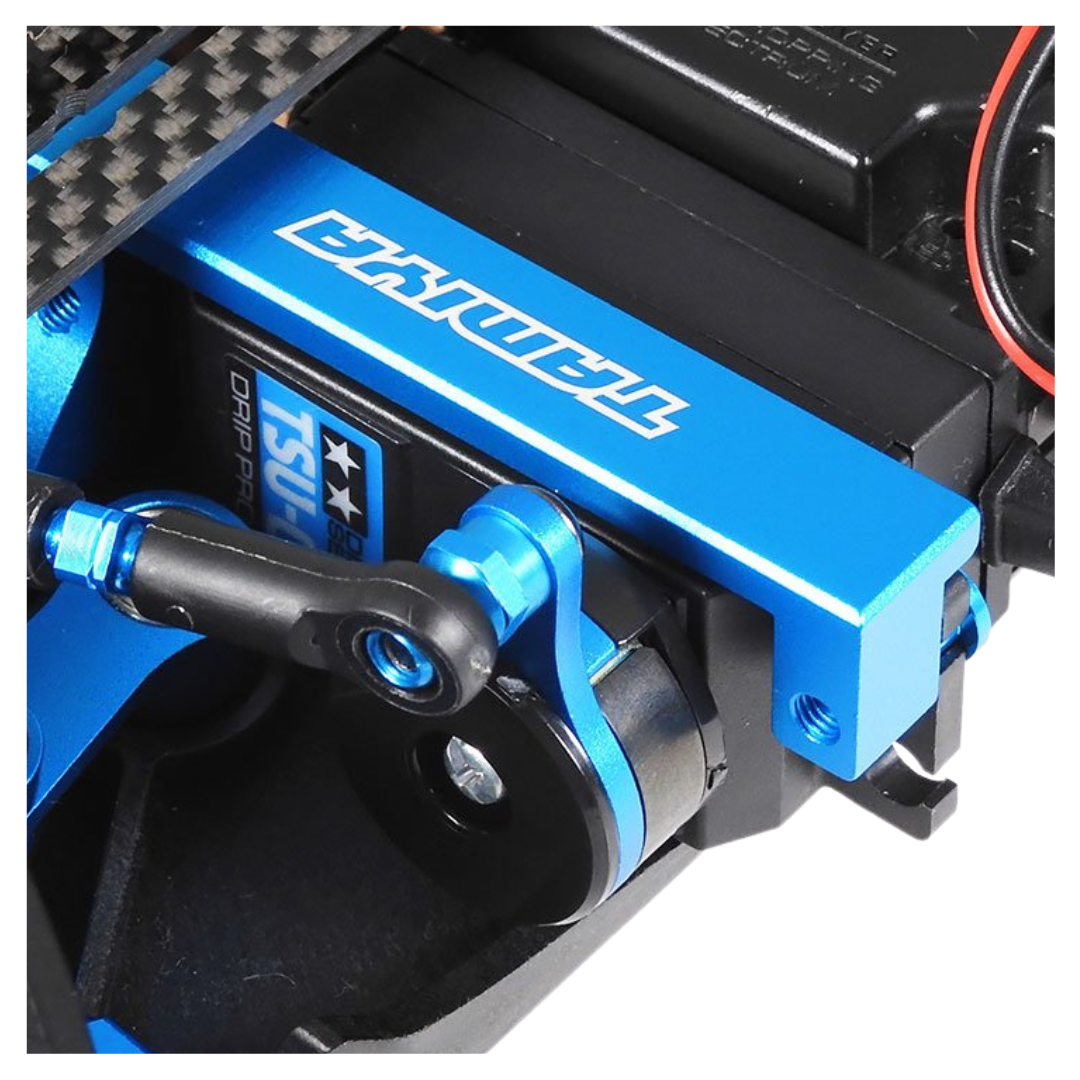

• 22004 TA08 Aluminium Servo Mount
• 22005 TA08 Carbon Damper Stays Front and Rear
• 22016 TA08 Low-Friction King Pin Balls
• 42319 Lightweight Cross Joints for Double-Cardan Joint Shafts
• 42320 Lightweight Joint Casings for Double-Cardan Joint Shafts
• 42346 TRF420 Wheel Axles
• 42351 TRF420 Centre Pulley
• 42357 Cross Joints for Low-Friction Universal Shafts
• 42359 VG 30-Degree Oil Damper O-Rings
• 42361 43mm Drive Shafts for Low-Friction Double-Cardan Shafts
• 42363 TRF420 Double-Cardan Axle Shafts
• 42374 VG 40-Degree Gear Differential O-Rings
• 53823 5mm Clamp-Type Aluminium Wheel Hubs
• 53968 5x5mm Hard Hex-Head Ball Connectors
• 53969 5x8mm Hard Hex-Head Ball Connectors
• 54121 Aluminium Horn for High-Torque Servo Saver
• 54642 Black 4mm Flange Lock Nuts
• 51647 TRF420 Aluminium Front Direct Cups
• 54704 TA07 Aluminium Steering Arm Set
• 54881 Aluminium Adjustable Suspension Mount A
• 54883 Aluminium Adjustable Separate Suspension Mounts XB
• 54884 Aluminium Adjustable Separate Suspension Mounts A
• 54949 TA07 Adjustable Ackerman Set

Includes

• 1 × Tamiya TA08R 1/10 scale touring car chassis kit
• Super Short Big Bore aluminium oil damper components
• Carbon fibre upper deck and damper stays
• Front direct coupling and rear gear differential components
• Full ball-bearing set
• Selected aluminium and TRF upgrade components
• Carry case
• Assembly hardware and illustrated instructions

FAQ

Does the Tamiya TA08R include a motor and ESC? No. The TA08R chassis kit requires a compatible motor, pinion gear and electronic speed controller to be purchased separately.

Does the TA08R include a body, wheels and tyres? No. A compatible 1/10 touring car body, wheels, tyres and tyre inserts are required separately. OZRC recommends checking the racing class rules before selecting these components.

What is the difference between the TA08R and TA08 PRO? The TA08R adds numerous aluminium, carbon fibre and TRF components, including an upper deck, carbon damper stays, upgraded drive shafts, adjustable suspension mounts and Super Short Big Bore dampers.

Is the TA08R suitable for beginners? The TA08R can be assembled by an experienced hobby builder, but its adjustable racing chassis and separately selected electronics make it better suited to intermediate and advanced touring car users.

Important Notes

• This is an unassembled chassis kit and is not ready to run.
• Motor, motor pinion, ESC, radio system, receiver and steering servo are required separately.
• Battery, compatible charger and transmitter batteries are required separately.
• Body shell, body paint, wheels, tyres, inserts and tyre adhesive are not included.
• Select the motor, gearing and ESC to suit the intended racing class and track conditions.
• Check body width, wheelbase and body-mount positioning before purchasing a body shell.
• Professional chassis setup may require additional oils, springs, tools and measuring equipment.
