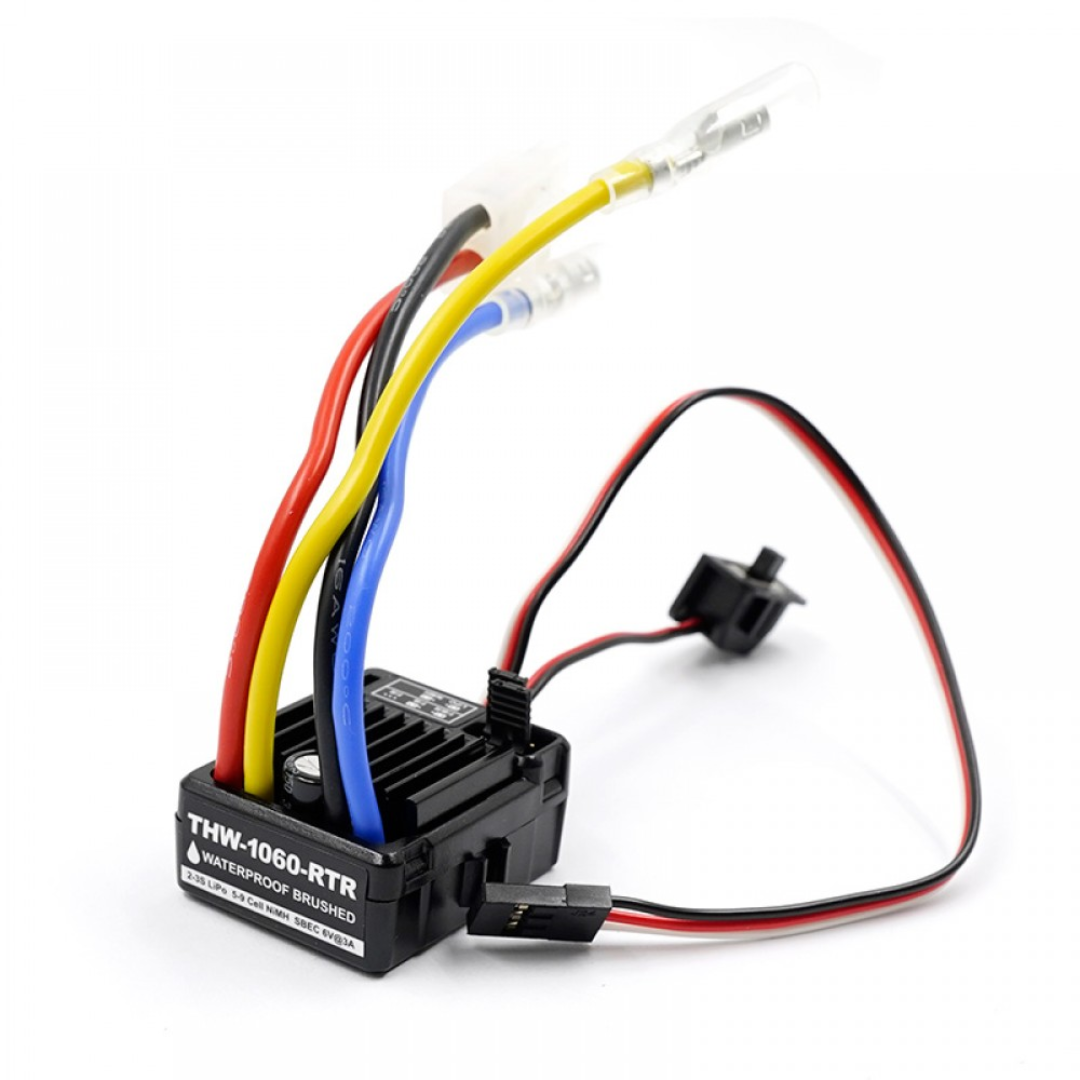

Tamiya THW 1060 Waterproof Brushed 60amps ESC Black for 1/10 RC THW-1060-RTR

This waterproof and dust-proof ESC is designed for use in Tamiya 1/10 scale RC cars with brushed motors. Compact and easy to use, it features multiple built-in protections to ensure safe and reliable performance across a variety of terrain.

Features

• Compatible with brushed motors
• Waterproof and dust-proof housing for all-weather use
• Compact size with built-in capacitor module
• Automatic throttle range calibration
• Multiple protection features including low voltage cut-off, overheat, and throttle signal loss
• Easy programming via jumper pins

Specifications

• Continuous/Burst Current: Forward 60A / 360A, Backward 30A / 180A
• Input Voltage: 2–3S LiPo or 5–9 cell NiMH
• Motor Compatibility: 540 or 550 size motor (≥ 8T for 2S, ≥ 13T for 3S)
• Motor RPM Limit: <45000 @ 7.2V for 2S, <30000 @ 7.2V for 3S
• Built-in BEC: 3A / 6V (switch mode)
• Dimensions: 36 x 30 x 18 mm
• Weight: 40 g

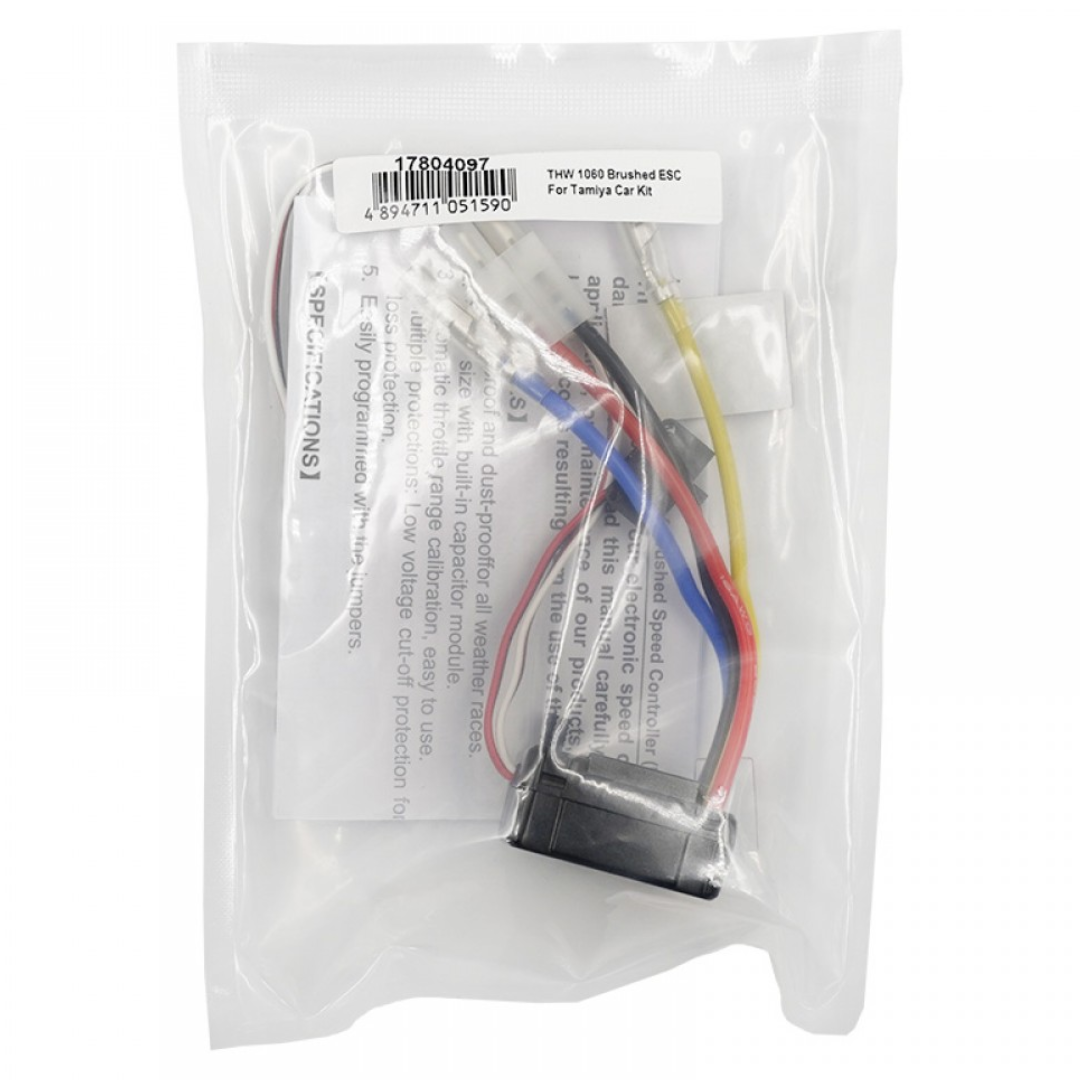

Includes

• Tamiya THW 1060 Waterproof Brushed ESC (1 pc)
