Tamiya Toyota Celica GT-Four ST185 RC 1/10 4WD TT-02 Kit White 47500

The Tamiya Toyota Celica GT-Four ST185 is a 1/10 scale 4WD RC car kit for rally and touring-car enthusiasts wanting a factory-painted body and beginner-friendly TT-02 chassis.

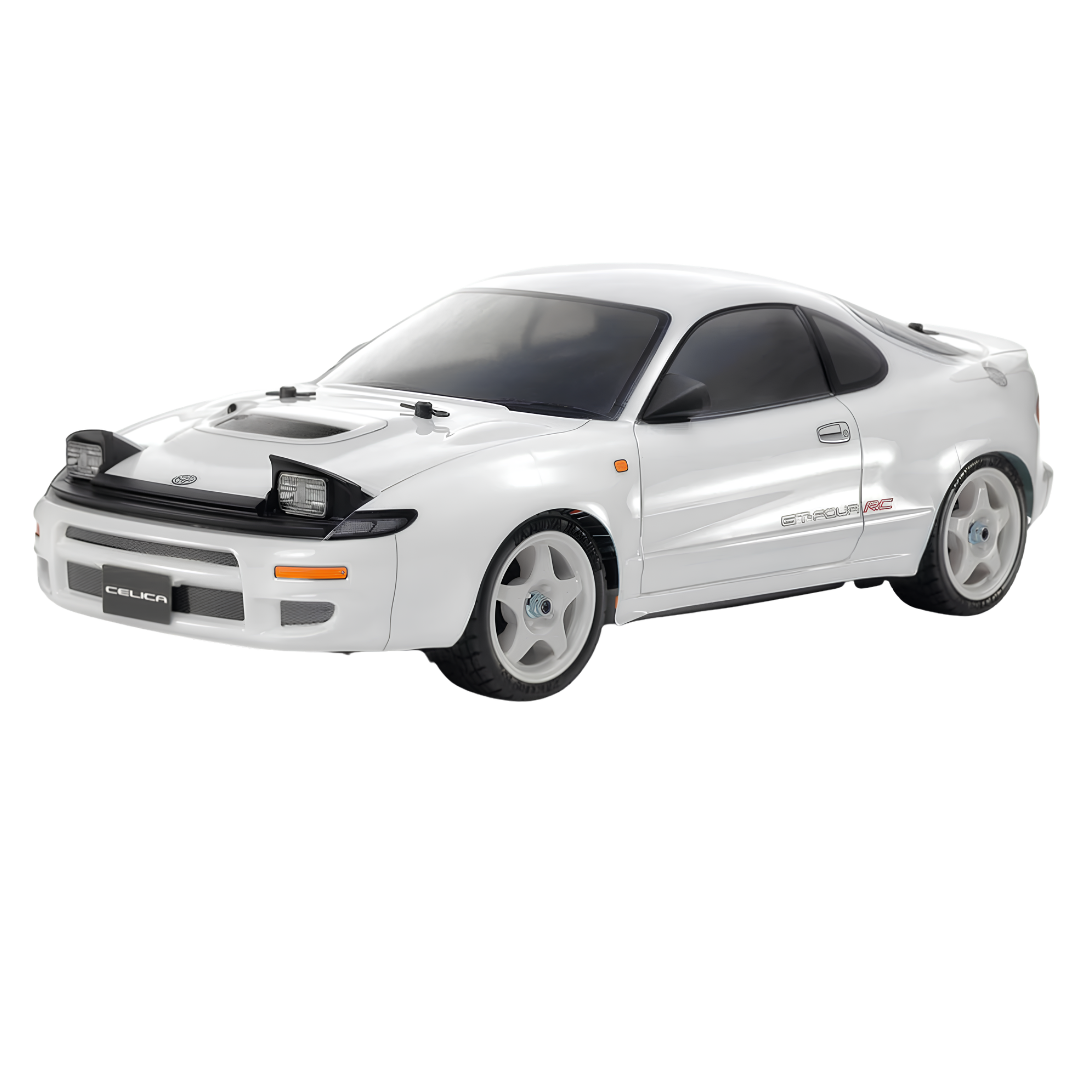

This limited-edition kit recreates Toyota's ST185 Celica GT-Four RC homologation model with a 1.0mm polycarbonate body factory painted White and finished with Smoke-tinted windows. The wheel arches are pre-cut and the body-mount holes are pre-drilled, reducing body preparation while retaining the hands-on experience of assembling the chassis and applying the supplied graphics.

The shaft-driven TT-02 chassis uses a balanced longitudinal layout, enclosed gearboxes and four-wheel independent suspension. A Type 540 brushed motor is included, while the electronic speed controller, radio equipment, steering servo, battery and charger are required separately.

Features

• Licensed Toyota Body: Recreates the Toyota Celica GT-Four RC ST185 homologation model
• Factory-Painted Finish: Polycarbonate body is painted White with Smoke-tinted windows
• Reduced Body Preparation: Wheel arches are pre-cut and body-mount holes are pre-drilled
• TT-02 Chassis: Beginner-friendly design with straightforward assembly and maintenance
• Shaft-Driven 4WD: Delivers power to all four wheels for stable on-road handling
• Balanced Layout: Battery and motor are positioned longitudinally on opposite sides of the chassis
• Enclosed Gearboxes: Front and rear drivetrain components are protected and easy to access
• Independent Suspension: Double-wishbone suspension is used at all four wheels
• Symmetrical Components: Identical left and right suspension arms and uprights simplify assembly
• Scale Wheels and Tyres: Five-spoke wheels are paired with treaded racing radial tyres
• Type 540 Motor: Brushed motor is included for completing the standard drivetrain
• Customisable Platform: TT-02 optional parts allow future suspension, steering and drivetrain upgrades

Specifications

• Brand: Tamiya
• Model: Toyota Celica GT-Four RC ST185
• Manufacturer Part Number: 47500
• Product Type: Electric RC car assembly kit
• Edition: Limited painted-body edition
• Scale: 1/10
• Chassis: TT-02
• Drive Type: Shaft-driven 4WD
• Length: 450mm
• Width: 187mm
• Height: 136mm
• Wheelbase: 257mm
• Body Material: 1.0mm polycarbonate
• Body Colour: White
• Window Finish: Smoke tinted
• Body Preparation: Painted with pre-cut wheel arches and pre-drilled body-mount holes
• Motor: Type 540 brushed motor
• Electronic Speed Controller: Not included
• Standard Gear Ratio: 8.27:1
• Differentials: Front and rear four-bevel gear differentials
• Suspension: Four-wheel independent double wishbone
• Dampers: Front and rear friction dampers
• Steering: Three-piece steering tie-rod
• Wheel Design: Five-spoke
• Tyre Type: Treaded racing radial
• Tyre Diameter: Approximately 67mm
• Assembly Required: Yes

Compatibility

• Compatible with two-channel surface transmitter and receiver systems
• Requires a steering servo suitable for a 1/10 scale touring car
• Requires a brushed ESC suitable for the included Type 540 motor
• Designed for compatible 7.2V NiMH or 7.4V 2S battery packs that fit the TT-02 chassis
• Compatible with selected Tamiya TT-02 replacement and Hop-Up Option parts
• The TT-02 platform supports additional gear ratios with compatible optional pinion gears

Includes

• 1 × Tamiya Toyota Celica GT-Four RC ST185 assembly kit
• 1 × TT-02 shaft-driven 4WD chassis component set
• 1 × Factory-painted White polycarbonate body
• 1 × Type 540 brushed motor
• 1 × Set of five-spoke wheels
• 1 × Set of treaded racing radial tyres
• 1 × Vehicle sticker sheet
• 1 × Window masking sheet for optional refinishing or detailing
• 1 × Assembly hardware set
• 1 × Illustrated instruction manual

FAQ

Is the Toyota Celica body already painted? Yes. The body is factory painted White with Smoke-tinted windows, and the wheel arches and body-mount holes are already prepared.

Does the Australian 47500 kit include an ESC? No. This package requires a compatible brushed electronic speed controller separately. OZRC recommends checking regional kit contents because some overseas packages include different electronics.

Is the Tamiya 47500 ready to run? No. The TT-02 chassis requires assembly, and a radio system, steering servo, ESC, battery, charger and transmitter batteries are required separately.

Can a 2S LiPo battery be used? A compatible 2S LiPo may be used only with an ESC that supports LiPo operation and provides suitable low-voltage protection.

Important Notes

• This is an assembly kit and is not ready to run
• The electronic speed controller is not included with this Australian-market package
• A transmitter, receiver, steering servo, battery, charger and transmitter batteries are required separately
• The body is factory painted, but the supplied stickers still require application
• The body-mount holes and wheel arches are prepared, although minor finishing may be required during assembly
• Confirm that the selected ESC supports the included brushed motor and chosen battery chemistry
• Use correctly configured low-voltage protection when operating a LiPo battery
• The completed model shown in promotional images may include separately purchased electronics
