Tamiya Toyota Supra JZA80 Metallic Blue Painted Body BT-01 1/10 RC Kit 47505-600

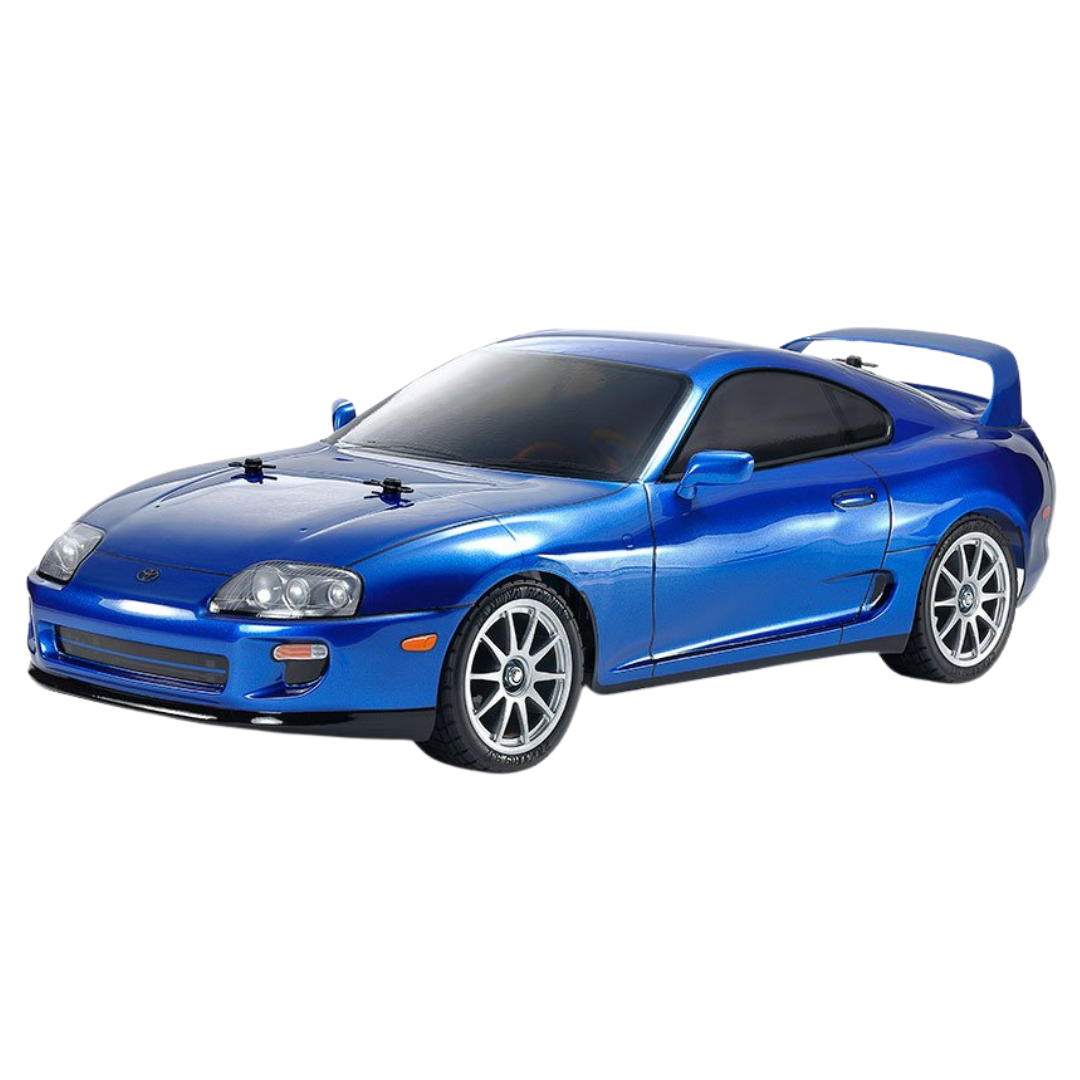

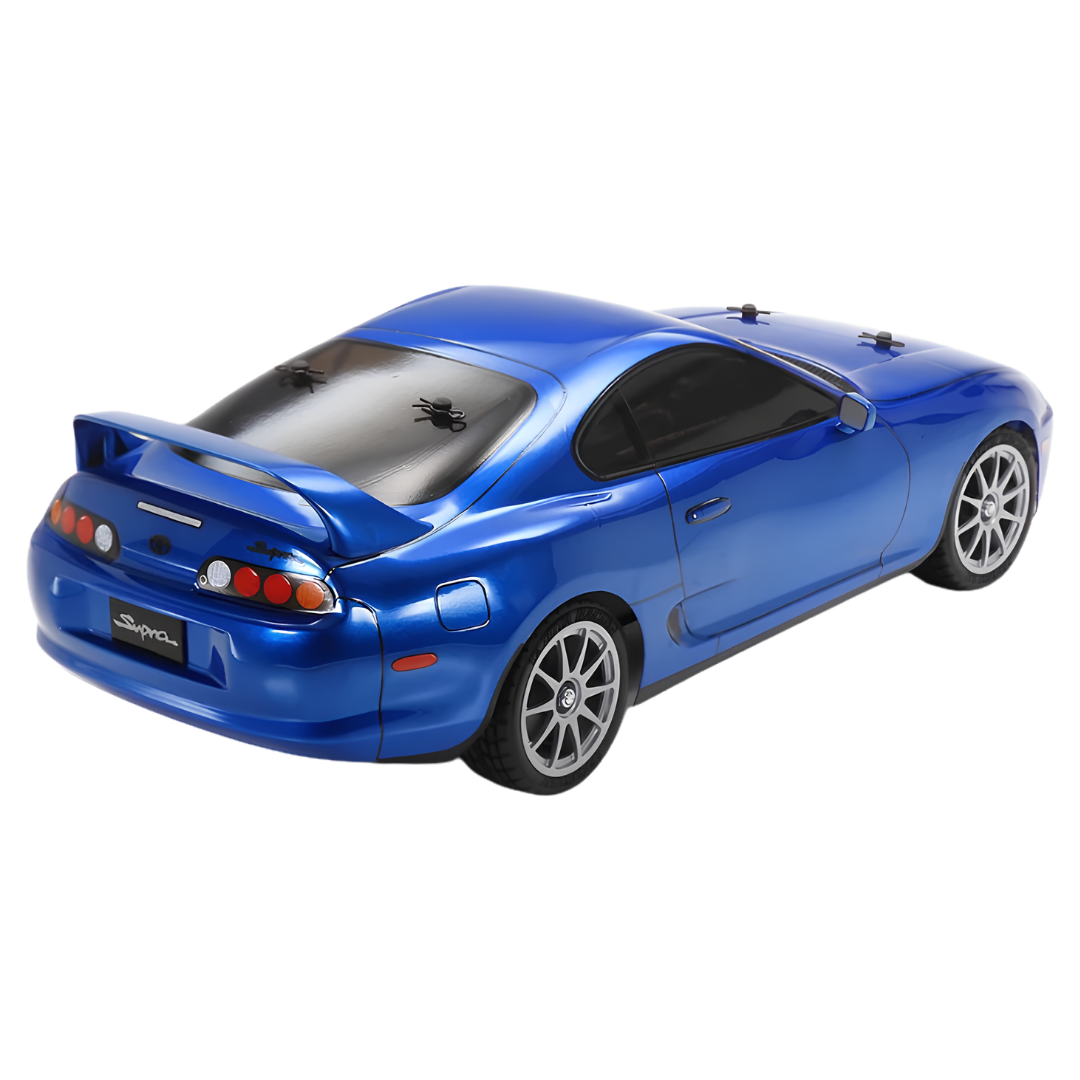

The limited-edition Tamiya Toyota Supra JZA80 recreates the legendary fourth-generation Japanese sports car on the versatile 1/10 scale BT-01 chassis. Its lightweight polycarbonate body is factory painted in Metallic Blue using Tamiya PS-16, with the wheel arches pre-cut and body-mount holes already prepared to make assembly easier for new and experienced RC builders.

The beginner-friendly BT-01 chassis features a modular two-wheel-drive layout that can be configured for front-wheel drive or rear-wheel drive. For the Toyota Supra, the recommended setup is the 257mm-wheelbase mid-motor rear-wheel-drive configuration, while an alternative front-motor rear-wheel-drive layout more closely resembles the drivetrain arrangement of the full-size JZA80 Supra.

Features

• Limited-edition 1/10 scale Toyota Supra JZA80 RC assembly kit
• Factory-painted Metallic Blue polycarbonate body using Tamiya PS-16
• Pre-cut wheel arches reduce body-preparation work
• Pre-made body-mount holes simplify final installation
• Realistically recreates the muscular fourth-generation Toyota Supra body

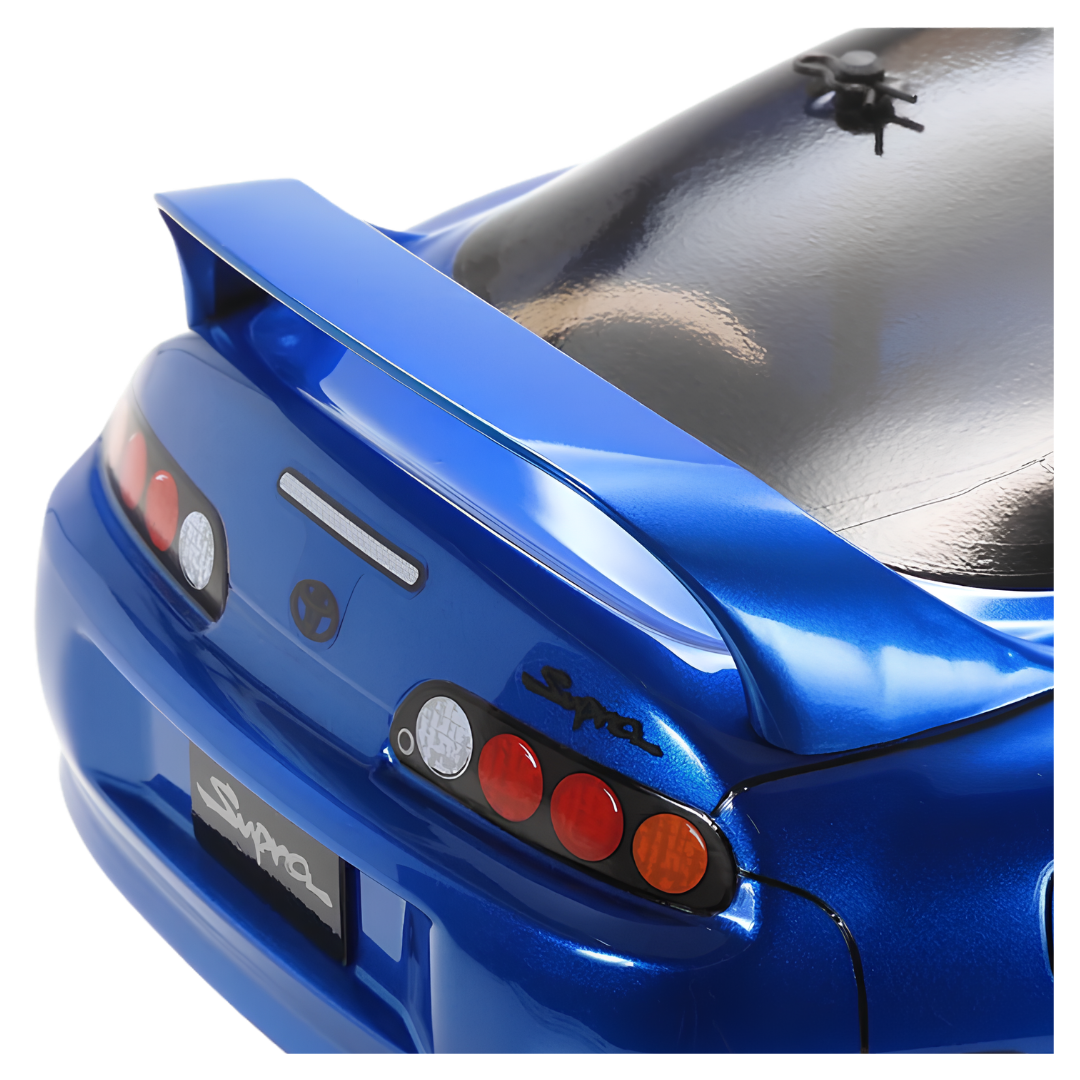

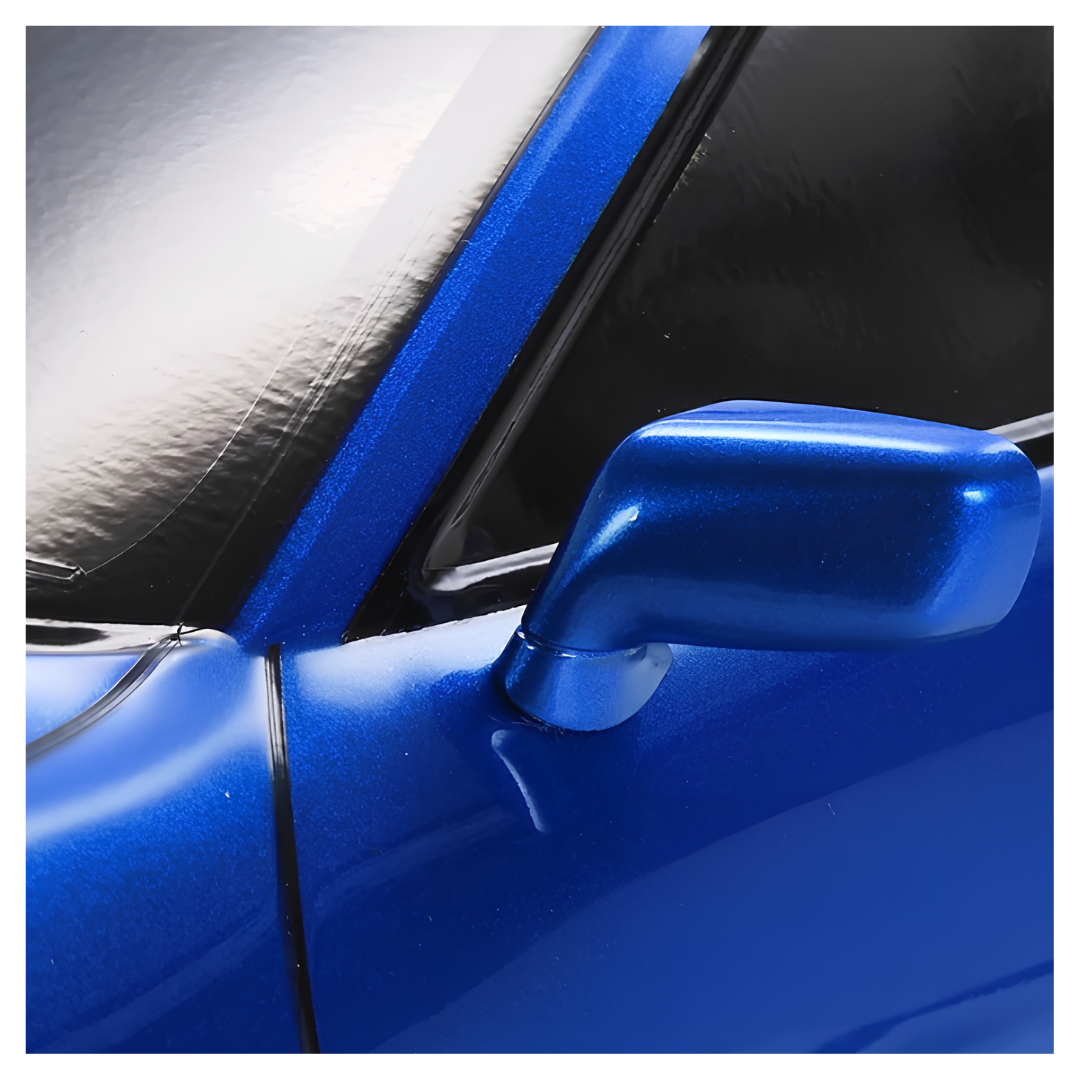

• Separate moulded mirrors, rear wing and light cases add scale detail

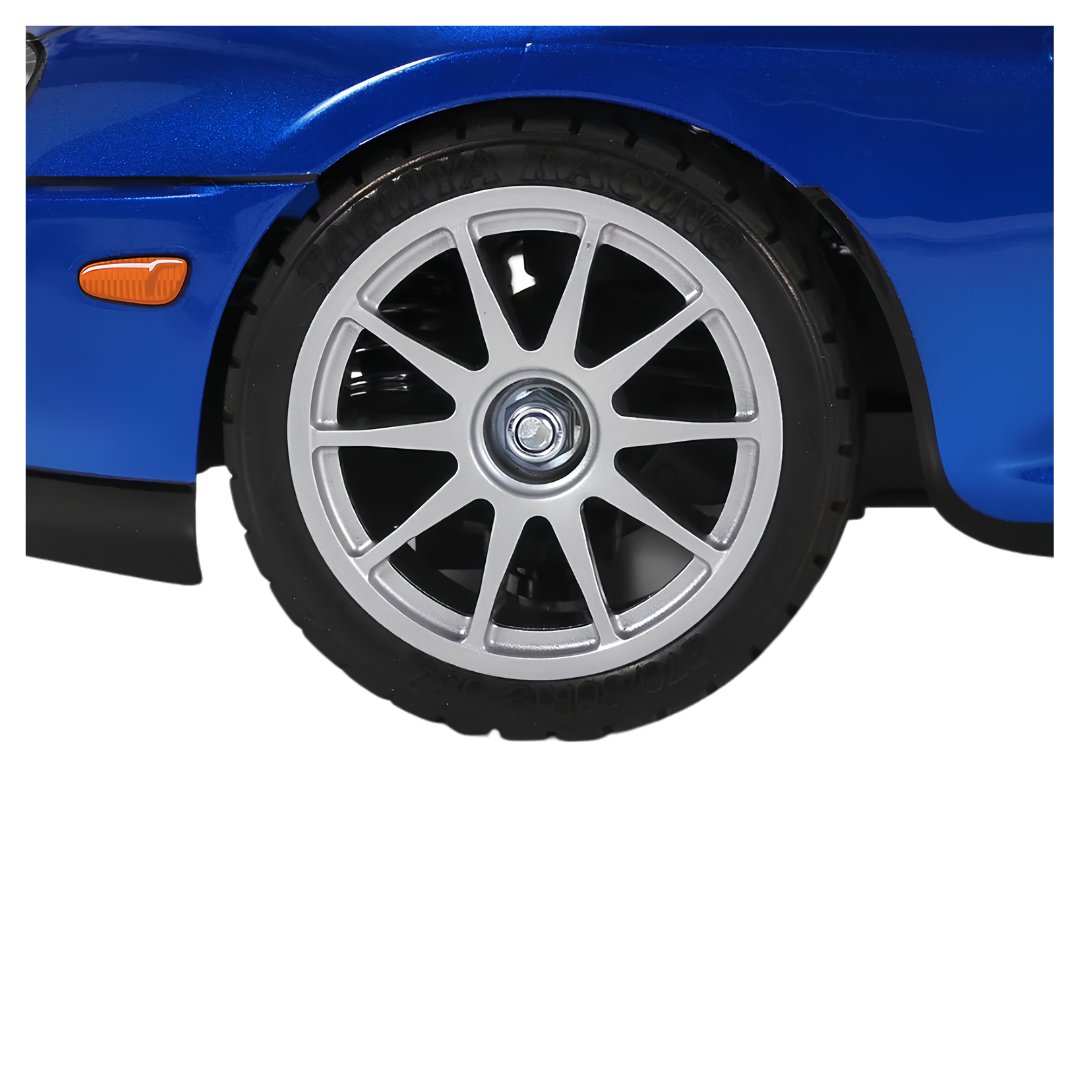

• Silver 10-spoke one-piece wheels
• Racing radial tyres provide a realistic road-car appearance
• Versatile two-wheel-drive BT-01 chassis
• Can be configured for front-wheel drive or rear-wheel drive
• Choice of front-motor or mid-motor rear-wheel-drive layouts
• Two selectable wheelbase lengths support multiple body styles
• Four-wheel independent double-wishbone suspension
• Symmetrical suspension components simplify assembly and maintenance
• Front and rear friction dampers
• Unitised motor mount, final-drive and suspension sections
• Includes a Type 540 brushed motor
• Includes a compatible brushed electronic speed controller

Specifications

• Brand: Tamiya
• Product: Toyota Supra JZA80 Metallic Blue Painted Body
• Chassis: BT-01
• Manufacturer Part Number: 47505
• Product Code: 47505-600
• Barcode: 4950344475056
• Product Type: Electric on-road RC assembly kit
• Scale: 1/10
• Drive System: Two-wheel drive
• Recommended Configuration: Mid-motor rear-wheel drive
• Alternative Configurations: Front-wheel drive, front-motor rear-wheel drive and mid-motor rear-wheel drive
• Standard Wheelbase: 257mm
• Alternative Wheelbase: 251mm
• Chassis Type: Bathtub frame
• Suspension: Four-wheel double wishbone
• Dampers: Friction dampers
• Differential: Plastic four-bevel gear differential
• Steering: Three-piece steering tie-rod system
• Standard Gear Ratio: 8.27:1 with supplied 22-tooth pinion
• Motor: Type 540 brushed motor
• Speed Controller: Brushed ESC included
• Body Material: Lightweight polycarbonate
• Body Colour: Metallic Blue
• Tamiya Paint Colour: PS-16 Metallic Blue
• Wheels: Silver 10-spoke one-piece wheels
• Tyres: Racing radial tyres
• Assembled Length: 457mm
• Assembled Width: 185mm
• Assembled Height: 135mm
• Assembly Required: Yes

Includes

• 1 × Tamiya Toyota Supra JZA80 BT-01 RC assembly kit
• 1 × Metallic Blue pre-painted polycarbonate body
• 1 × Type 540 brushed motor
• 1 × Brushed electronic speed controller
• Silver 10-spoke wheels
• Racing radial tyres
• Separate mirrors, rear wing and light-case components
• Decals, assembly hardware and illustrated instructions

Required to Complete

• Two-channel RC transmitter and receiver
• Compatible steering servo
• Compatible 7.2V NiMH or 7.4V hard-case battery pack
• Compatible battery charger
• AA batteries for the transmitter
• Assembly tools and modelling supplies
• Paint for any unpainted moulded detail parts if desired

FAQ

Is this Toyota Supra ready to run? No. This is an RC assembly kit. The chassis must be built and a radio system, steering servo, battery and charger are required separately.

Is the body already painted? Yes. The polycarbonate body is factory painted in Tamiya PS-16 Metallic Blue.

Are the wheel arches and body holes already prepared? Yes. The wheel arches are pre-cut and the body-mount holes are pre-made, reducing the amount of body preparation required.

Does the kit include a motor and ESC? Yes. A Type 540 brushed motor and compatible brushed electronic speed controller are included.

Is the BT-01 chassis front-wheel drive or rear-wheel drive? The chassis can be assembled in several front- or rear-wheel-drive configurations. The recommended arrangement for this Supra is the 257mm-wheelbase mid-motor rear-wheel-drive setup.

Can the drivetrain layout be changed later? Yes. The modular chassis allows the final-drive units and steering linkage to be rearranged without relocating the centrally mounted battery and RC equipment. Partial chassis disassembly and setup changes are still required.

Which battery should I use? Use a compatible 7.2V NiMH or 7.4V hard-case battery that physically fits the BT-01 battery compartment and is suitable for the supplied ESC connector and specifications.

Are light LEDs included? LED lights are not specified as included. The separate light cases can support a detailed lighting installation using compatible optional components.

Important Notes

• This is an unassembled RC model kit and is not ready to run.
• The main polycarbonate body is pre-painted, but decals and separate detail components require installation.
• Radio equipment, steering servo, battery and charger are sold separately.
• Confirm battery dimensions, connector type and ESC compatibility before use.
• The recommended Supra chassis setup uses the 257mm wheelbase.
• Alternative BT-01 configurations require drivetrain and steering components to be repositioned correctly.
• Completed models shown in promotional images may include separately purchased detailing or accessories.
