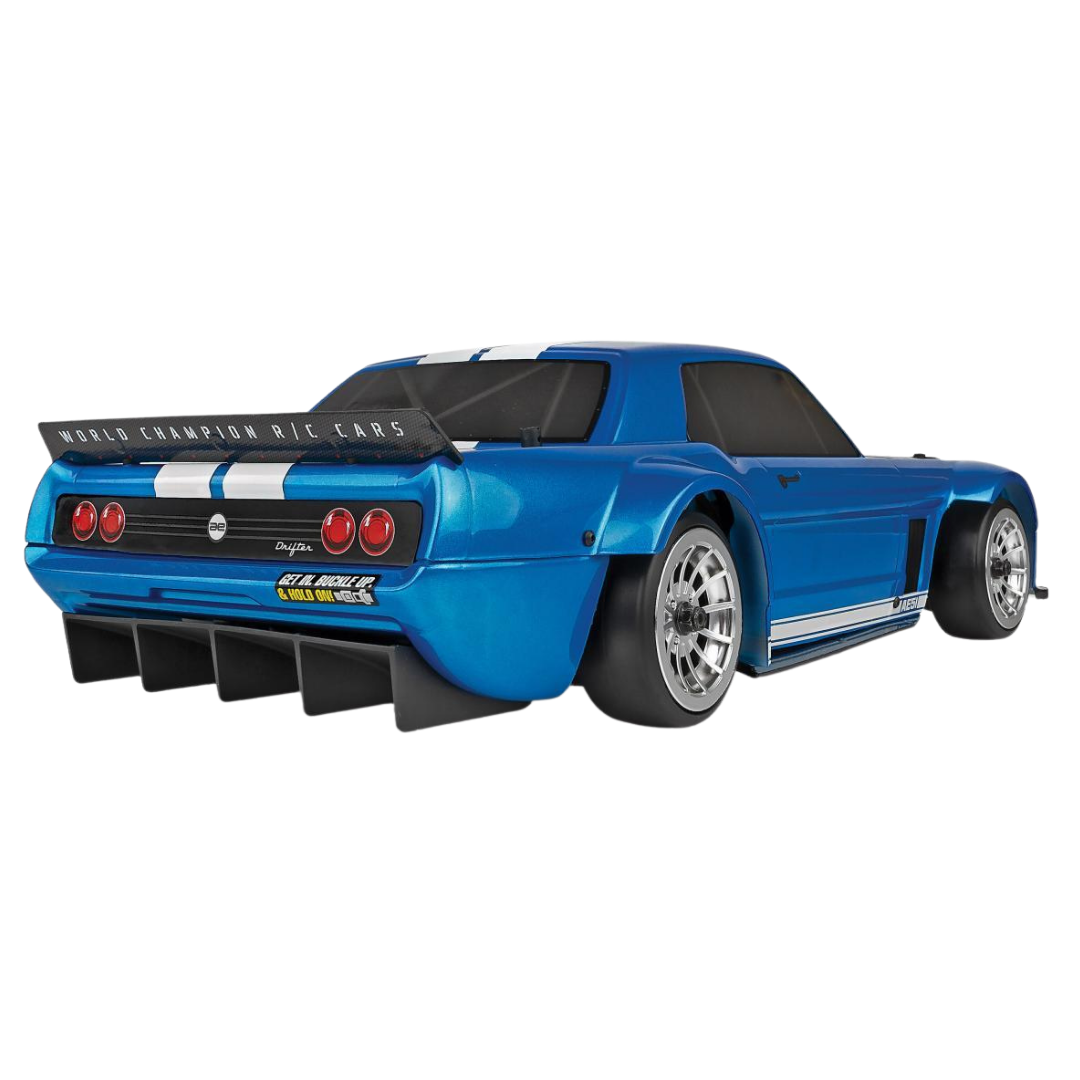

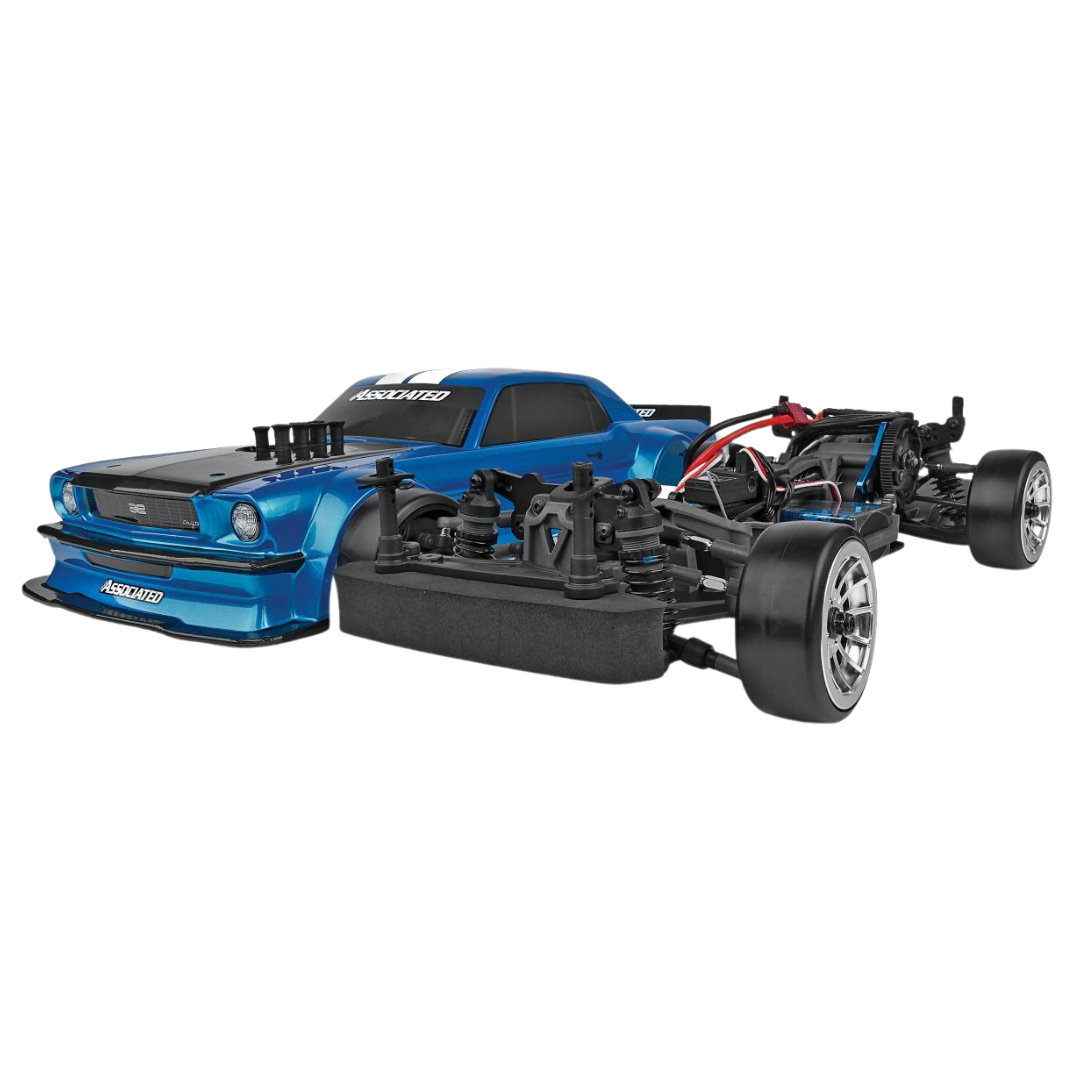

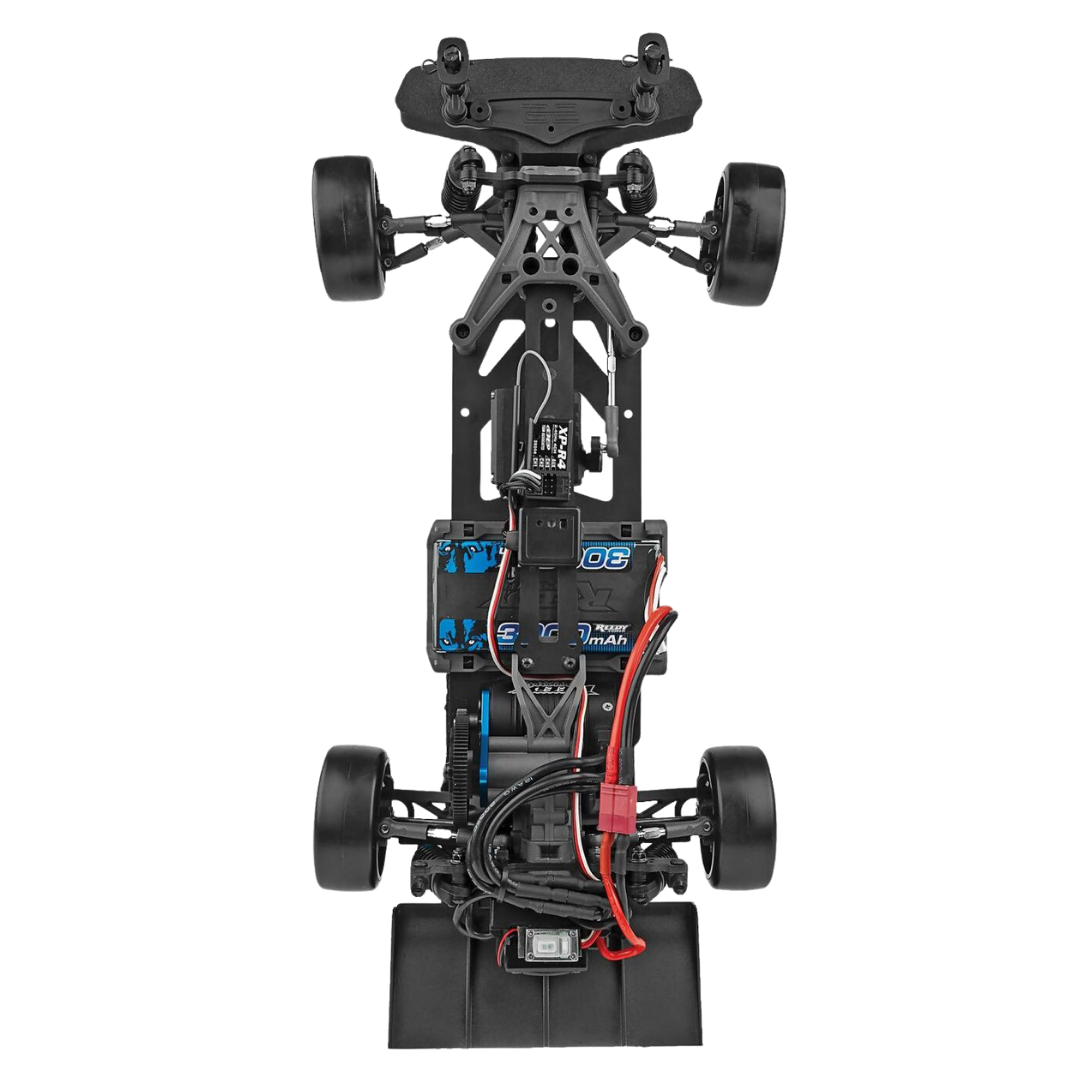

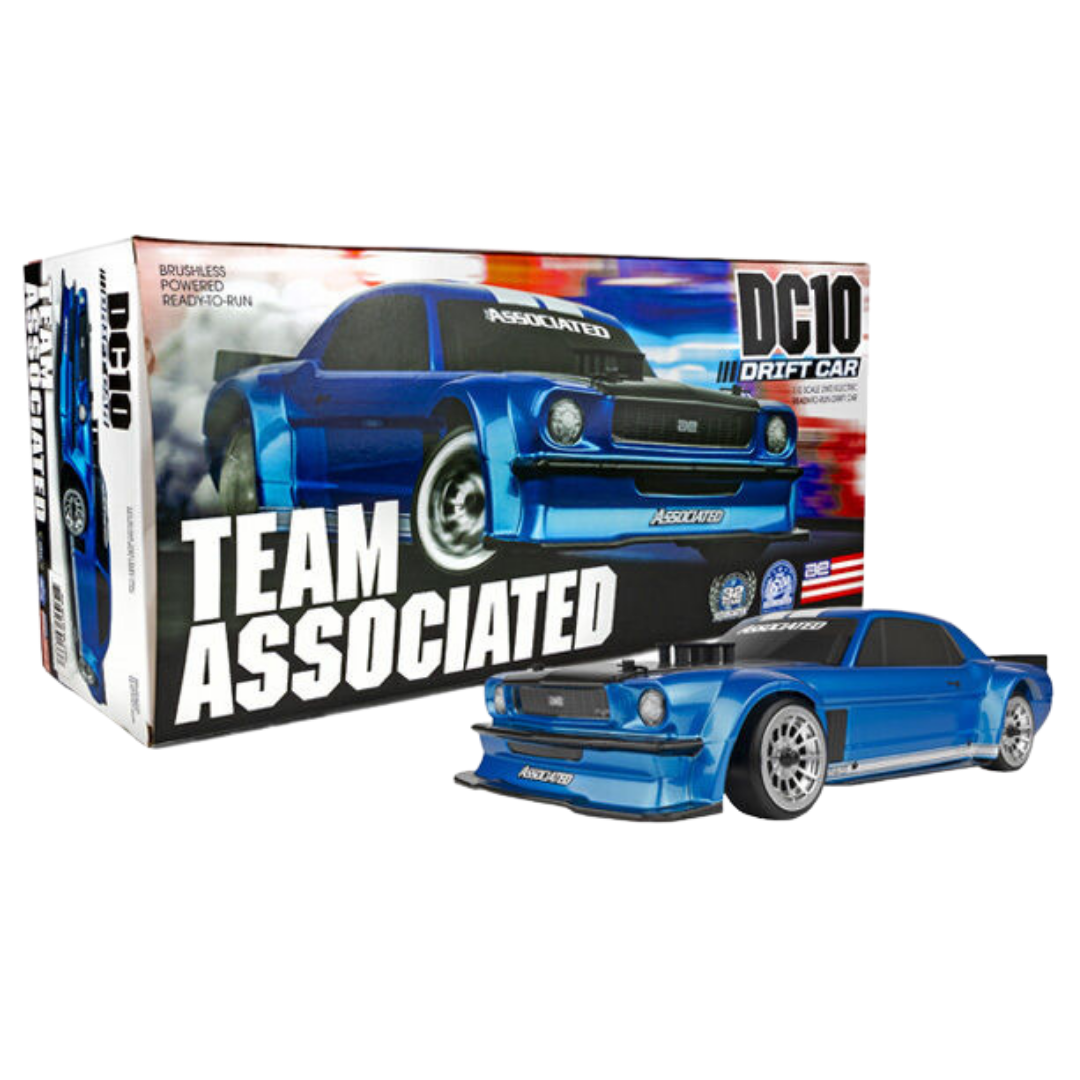

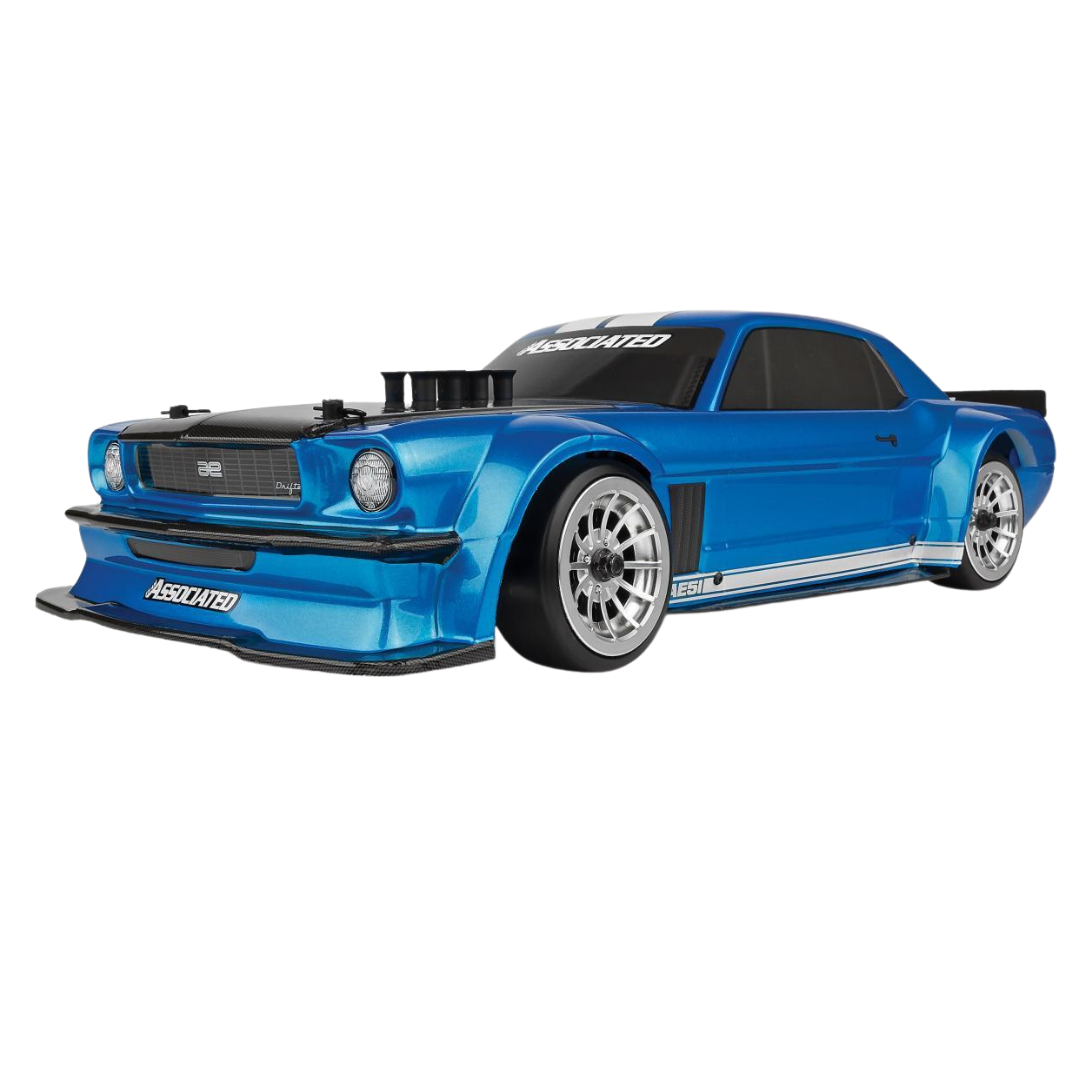

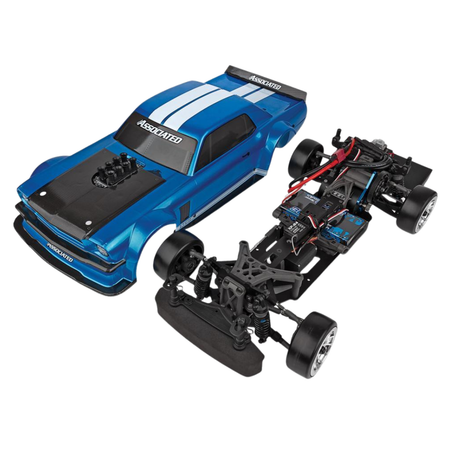

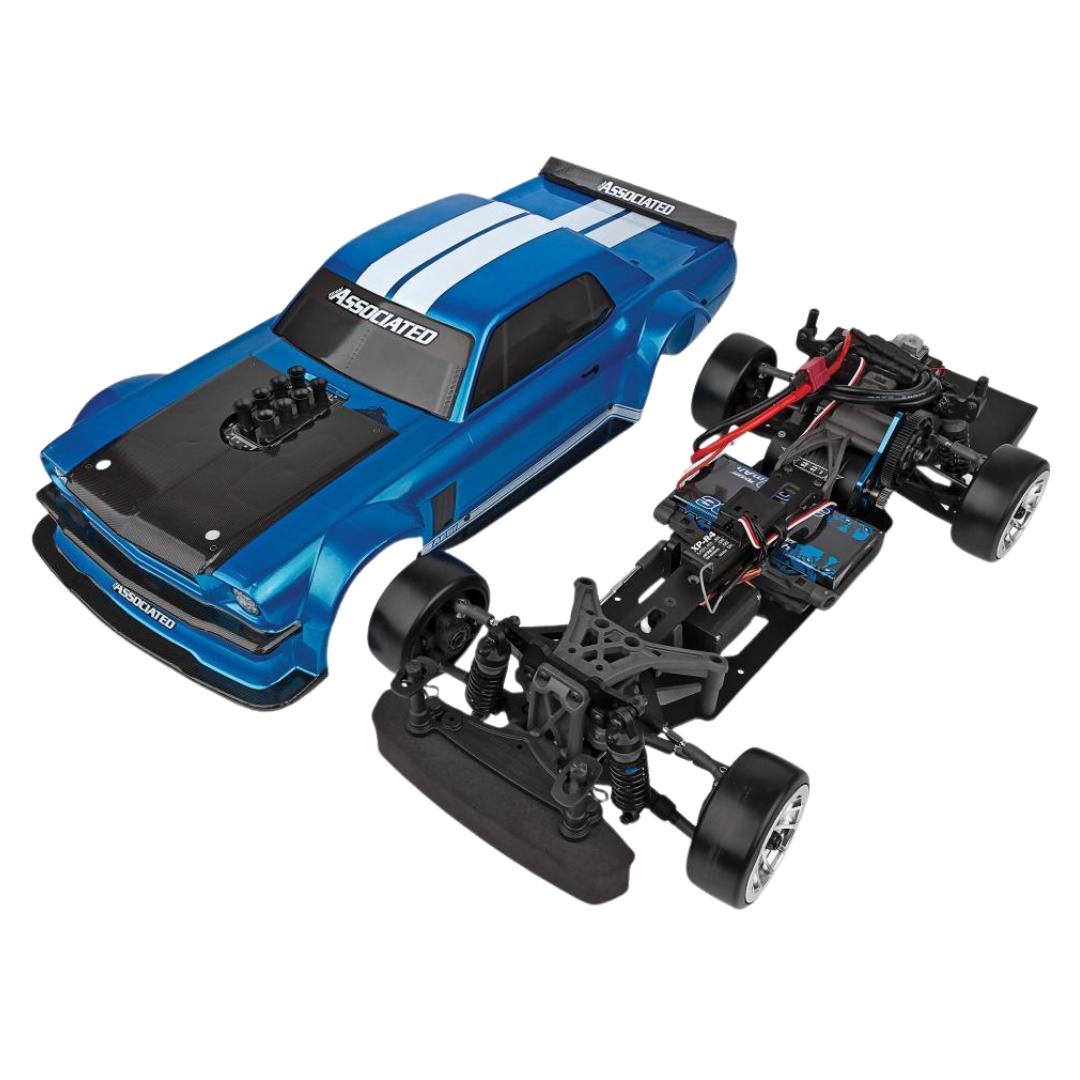

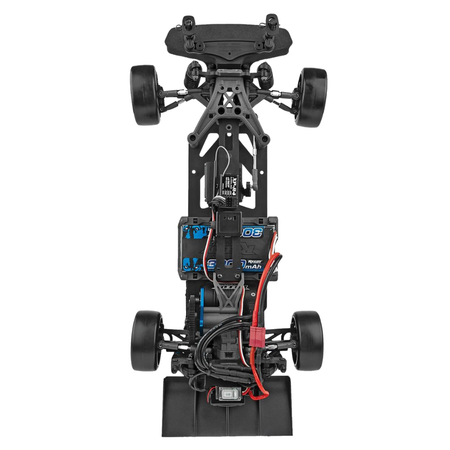

Team Associated DC10 1/10 RWD Brushless RC Drift Car RTR 30133

The Team Associated DC10 is a 1/10 rear-wheel-drive brushless RC drift car supplied Ready-To-Run with a Reedy 3300KV power system adjustable gyro competition drift tyres and extensive chassis tuning options for drivers wanting a complete performance-focused drift platform

Features

• 1/10 scale rear-wheel-drive electric drift car
• 2.5mm G10 main chassis and top plate
• Adjustable battery placement for chassis balance tuning
• Fully tunable Ackermann plates
• Easy camber adjustment
• Adjustable caster and kingpin inclination geometry
• High and low motor mounting options
• Adjustable offset wheel hexes
• Adjustable servo mounting positions
• Adjustable rear anti-squat and toe-in
• Threaded oil-filled fully adjustable shocks
• Precision rubber-sealed ball bearings throughout
• Rear-mounted ESC plate
• Reedy 3300KV brushless motor
• Water-resistant Reedy brushless ESC with T-plug connector and LiPo low-voltage cutoff
• High-speed metal gear Reedy drift servo
• Fully adjustable competition drift gyro
• 2.4GHz 4-channel radio system with digital frequency hopping
• Team Associated competition drift tyres
• Exclusive grey chassis components
• Detailed factory-painted body with body accessories

Specifications

• Brand: Team Associated
• Model: DC10
• Product Type: RC Drift Car
• Scale: 1/10
• Assembly Level: Ready-To-Run
• Power Source: Electric
• Drive: RWD 2WD
• Terrain: On-Road
• Motor: Reedy 3300KV Brushless
• ESC: Reedy Brushless Water-Resistant ESC
• ESC Battery Connector: T-Plug
• Servo: Reedy High-Speed Metal Gear Drift Servo
• Gyro: Fully Adjustable Drift Gyro
• Radio: 2.4GHz 4-Channel
• Wheelbase: 257mm
• Internal Gear Ratio: 2.6:1
• Required Battery: 7.4V to 7.6V 2S Shorty LiPo
• Compatible Battery Height: Standard or Low-Profile Shorty
• UPC: 784695301337
• Part Number: 30133

Includes

• 1 x Team Associated DC10 1/10 RWD RTR Drift Car
• 1 x Reedy 3300KV Brushless Motor Installed
• 1 x Reedy Brushless ESC Installed
• 1 x Reedy Metal Gear Drift Servo Installed
• 1 x Adjustable Drift Gyro Installed
• 1 x 2.4GHz Transmitter and Receiver System
• 4 x Team Associated Competition Drift Tyres and Wheels
• 1 x Factory-Painted Body with Accessories
• 1 x DC10 RTR Instruction Manual

Required To Complete

• 1 x 7.4V to 7.6V 2S LiPo Battery with Shorty Dimensions
• 1 x Compatible LiPo Balance Charger
• 4 x AA Batteries for the Transmitter

FAQ

Is the Team Associated DC10 RTR rear-wheel drive? Yes, the DC10 30133 is a dedicated rear-wheel-drive 2WD drift platform

Does the DC10 RTR include a brushless system? Yes, it comes with a Reedy 3300KV brushless motor and water-resistant Reedy brushless ESC installed

Does the Team Associated DC10 include a drift gyro? Yes, a fully adjustable competition drift gyro is installed as standard equipment

What battery does the DC10 RTR require? Team Associated specifies a 7.4V to 7.6V 2S LiPo battery with shorty dimensions in either standard or low-profile height

Does ASS30133 include the battery and charger? No, the standard 30133 RTR requires a suitable 2S shorty LiPo battery and charger while the separate 30133C combo version includes a Reedy battery and charger

Can the DC10 suspension and weight balance be tuned? Yes, the chassis provides adjustment for camber caster Ackermann KPI battery position motor position servo position rear anti-squat rear toe and wheel hex offset

Important Notes

• Battery charger and four AA transmitter batteries are required separately
• Use a 2S shorty LiPo with dimensions that fit the DC10 battery mounting system
• Check gyro direction steering endpoints and failsafe operation before driving
• The standard ASS30133 should not be confused with the ASS30133C battery and charger combo
