Team Associated RC10 Team Car Gold Edition 1/10 2WD Buggy Kit 6034

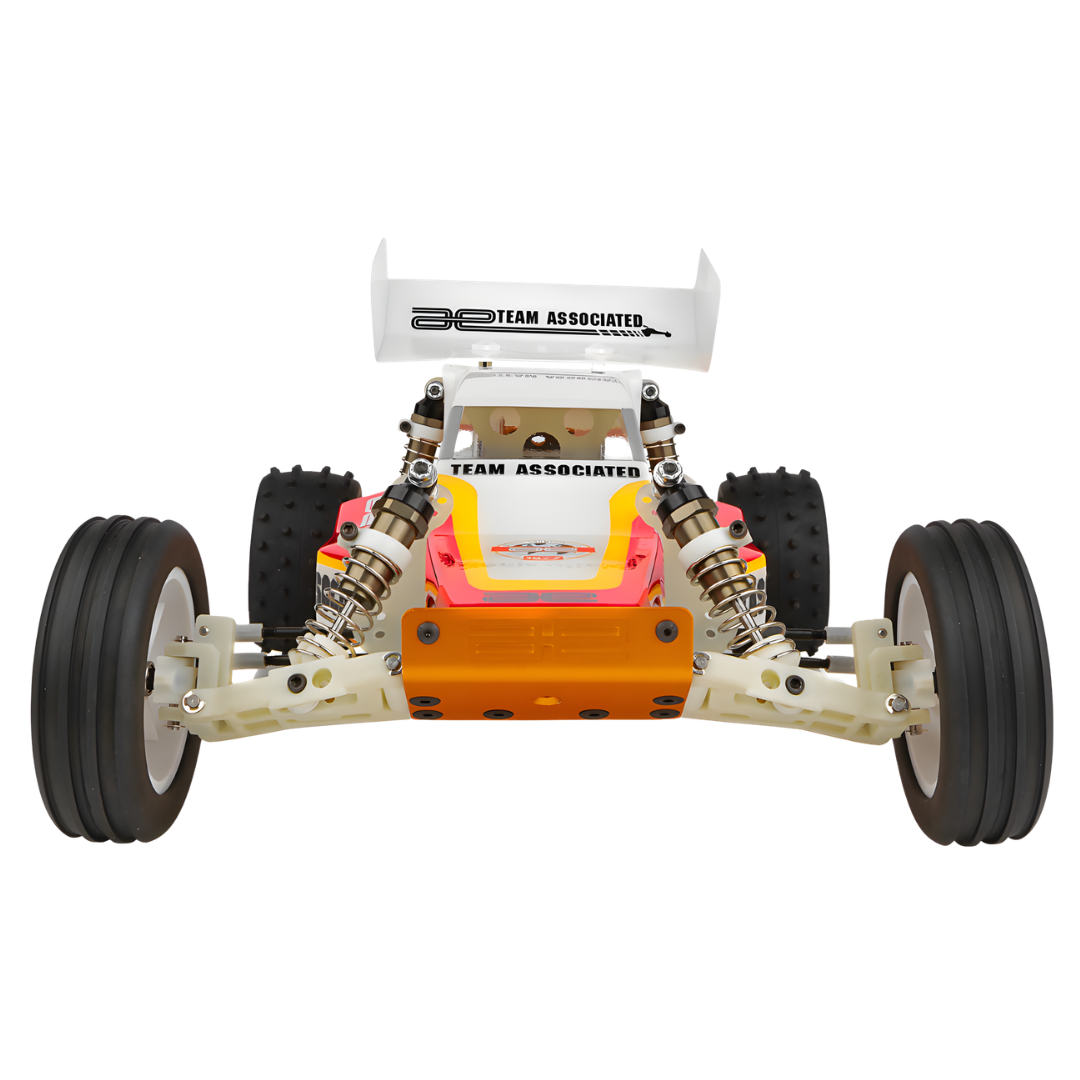

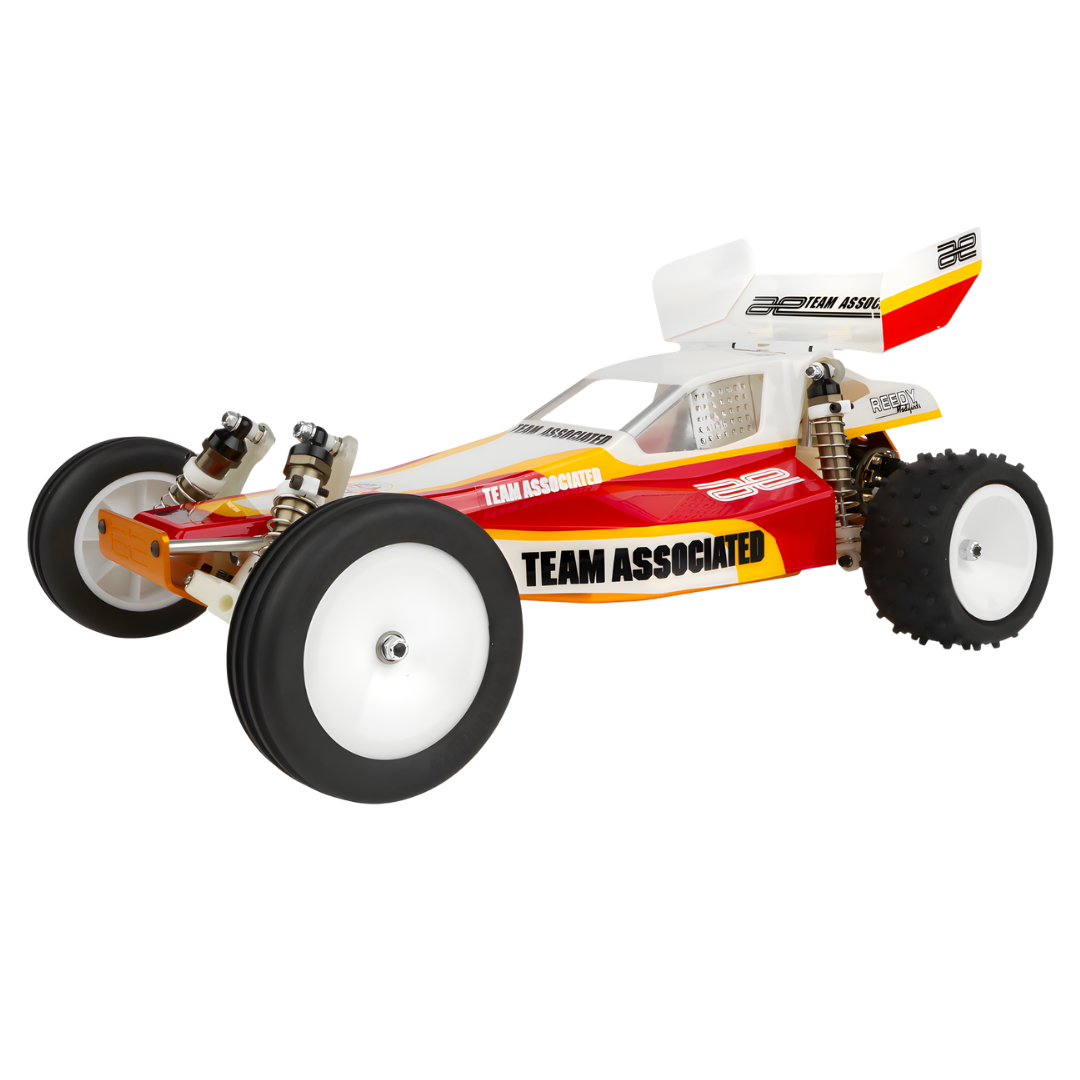

The Team Associated RC10 Team Car Gold Edition is a 1/10 scale 2WD electric off-road buggy kit for hobbyists wanting a faithful replica of the 1990 RC10 Team Car with classic gold chassis styling and race-proven suspension design.

This assembly kit combines a gold anodised aluminium monocoque tub chassis, Stealth A.T.C. transmission, adjustable suspension, ball differential and clear Viper body for builders who want a nostalgic RC10 platform with period-correct competition features.

Features

• Authentic replica of the RC10 Team Car buggy kit originally released in 1990
• Gold anodised laser-etched aluminium monocoque tub chassis gives the kit its classic RC10 appearance
• 2WD off-road buggy platform suits vintage racing, display builds and hobby-grade RC driving
• Wider front arm geometry improves stability and steering response compared with earlier RC10 layouts

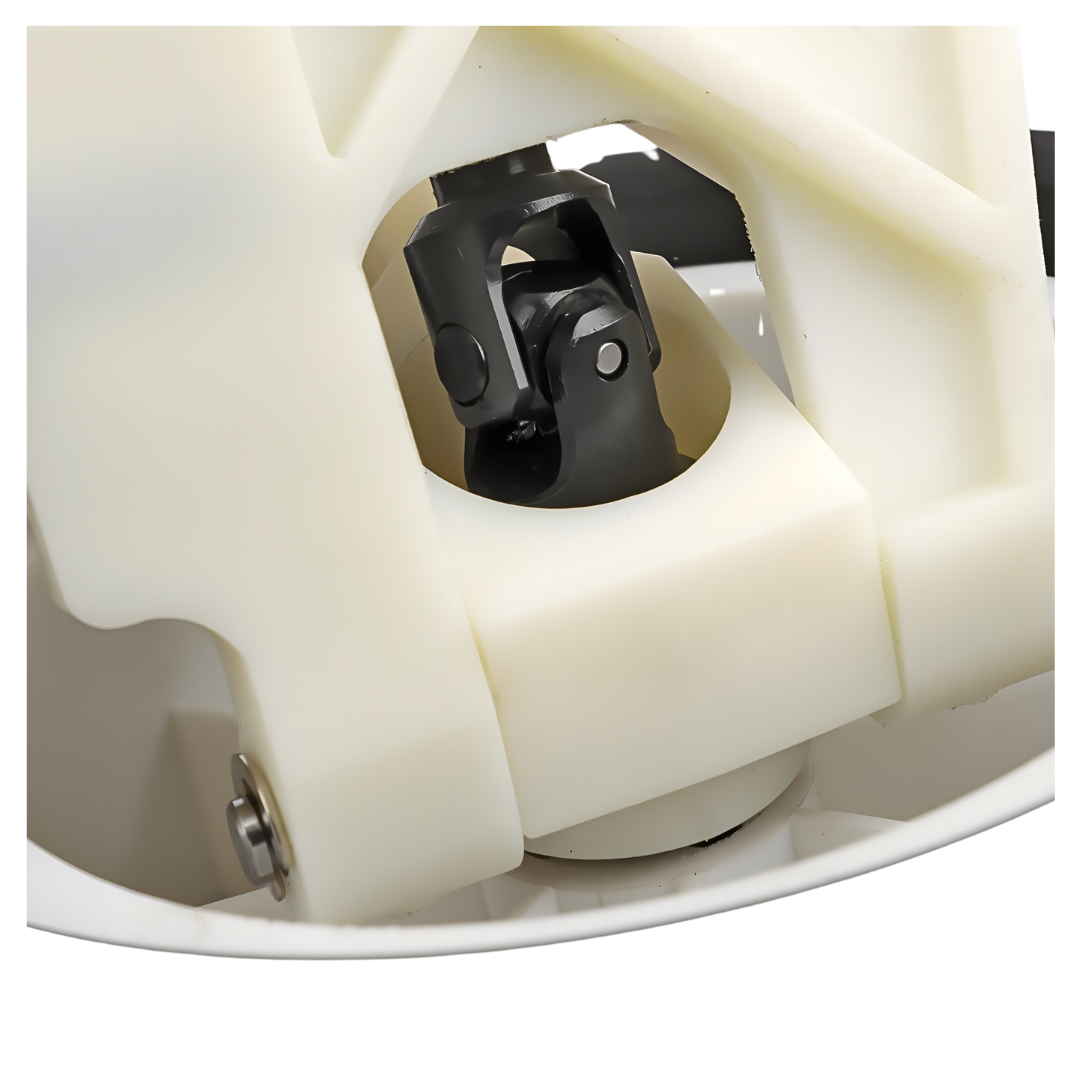

• Hardened universal driveshafts help transfer power reliably through the rear drivetrain

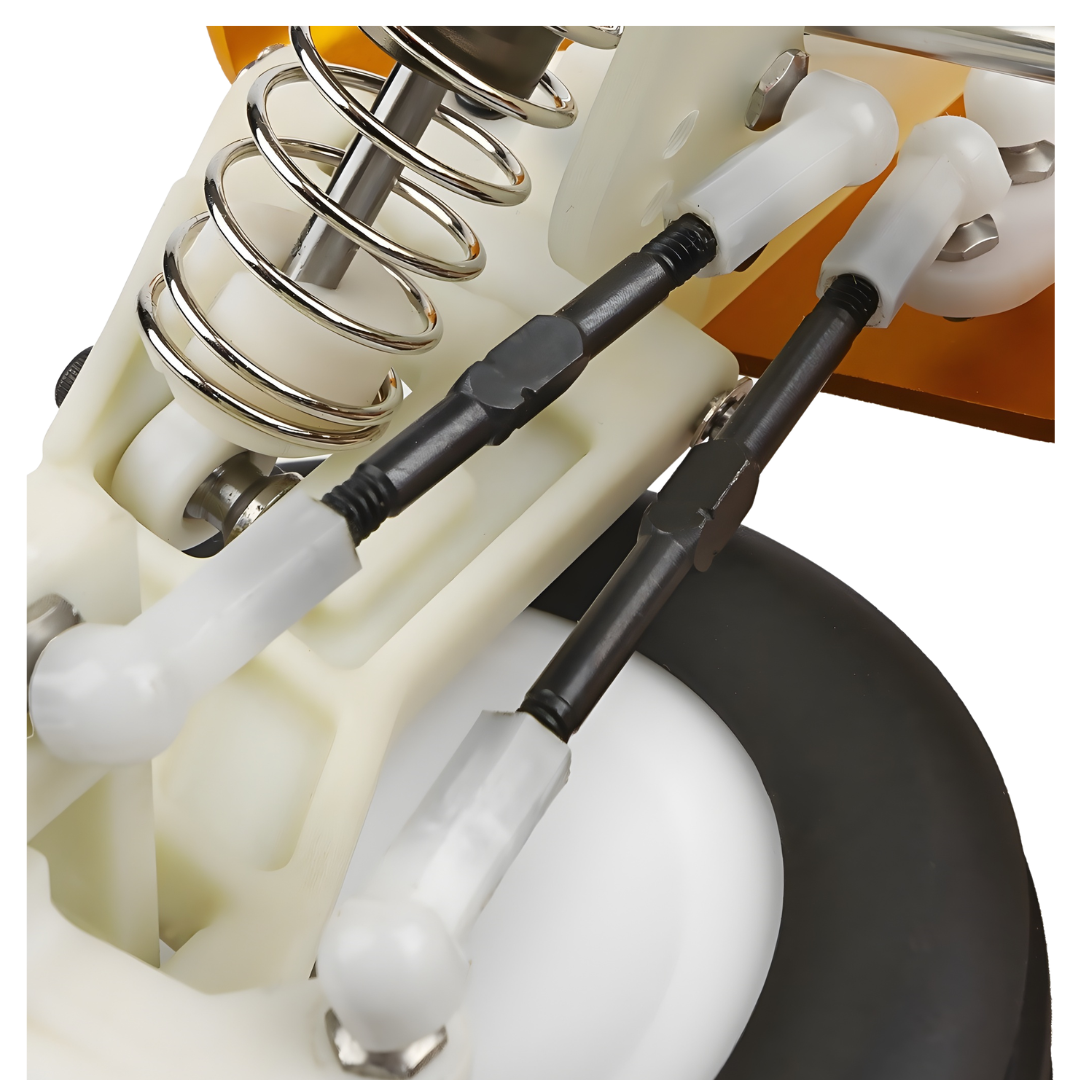

• Fully adjustable four-wheel independent suspension allows camber, toe and ride setup changes
• Long-travel fluid-filled anodised aluminium coil-over shocks help control the buggy over rough surfaces

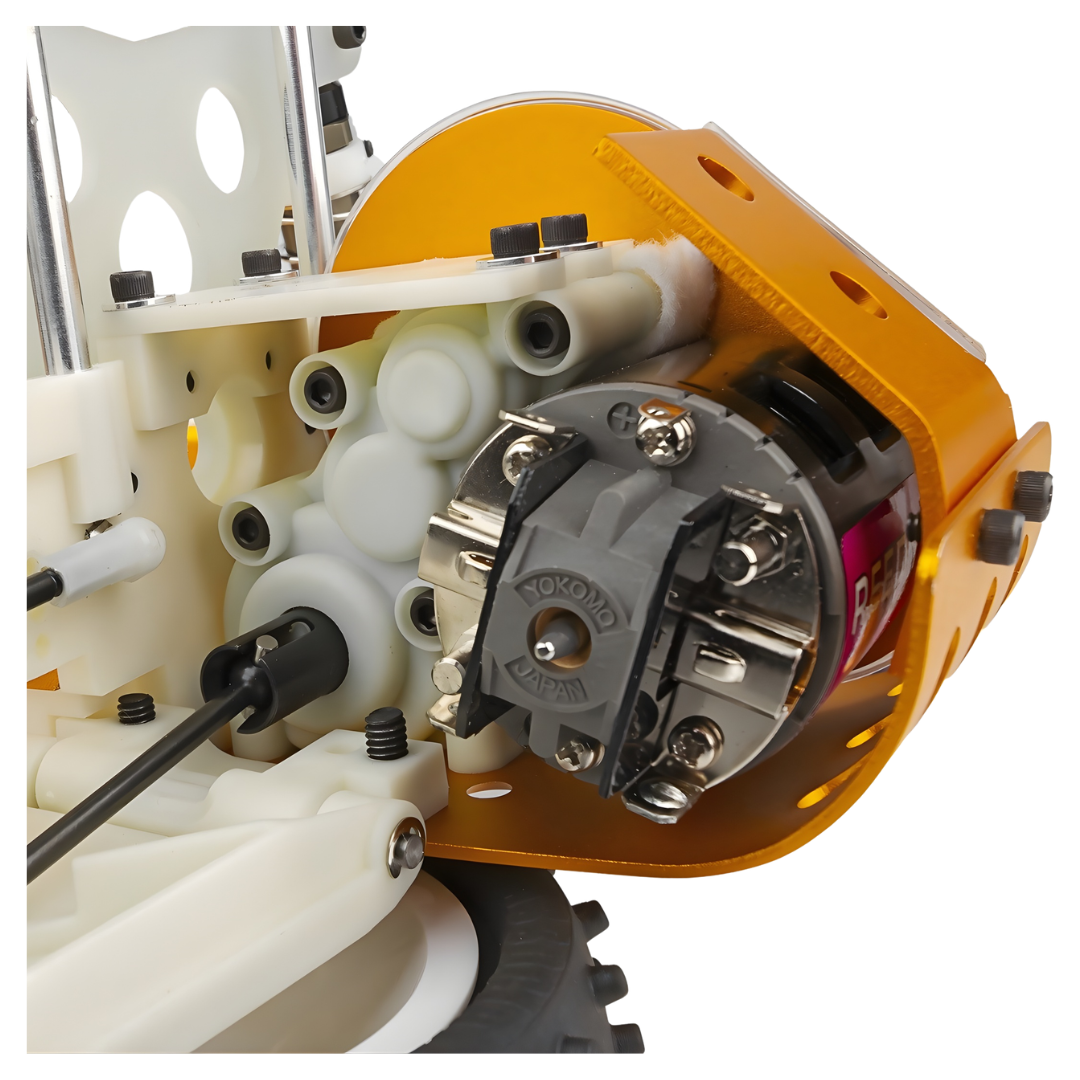

• Sealed 3-gear Stealth A.T.C. transmission provides efficient power transfer with dirt protection
• High-torque ball differential helps maintain consistent rear traction
• Fibreglass shock towers provide period-style suspension support
• Full metal ball bearings are included for smooth drivetrain and wheel operation
• Front and rear tyres with one-piece racing wheels are included
• Clear Viper polycarbonate body and wing allow custom paint and finishing
• Compatible with suitable 6-cell NiMH and 2S LiPo battery packs

Specifications

• Brand: Team Associated
• Model: RC10 Team Car Gold Edition
• SKU / Part Number: ASS6034 / 6034
• Barcode / UPC: 784695060340
• Product Type: Electric off-road buggy kit
• Scale: 1/10
• Drive Type: 2WD
• Power Source: Electric
• Terrain: Off-road
• Body Style: Buggy
• Assembly Level: Kit
• Chassis: Gold anodised aluminium monocoque tub chassis
• Transmission: Sealed 3-gear Stealth A.T.C.
• Internal Gear Ratio: 2.25:1
• Differential Type: High-torque ball differential
• Suspension: Fully adjustable four-wheel independent suspension
• Shock Type: Long-travel fluid-filled anodised aluminium coil-over shocks
• Shock Towers: Fibreglass
• Driveshafts: Hardened universal driveshafts
• Bearings: Full metal ball bearings
• Body: Clear Viper polycarbonate body with wing
• Battery Compatibility: Suitable 6-cell NiMH or 2S LiPo battery pack
• Length: 381mm
• Width: 226.8mm
• Wheelbase: 267.7mm
• Colour: Gold chassis with clear body supplied unpainted

Includes

• 1 x Team Associated RC10 Team Car Gold Edition 1/10 2WD buggy kit
• 1 x Gold anodised aluminium monocoque tub chassis
• 1 x Clear Viper polycarbonate body and wing
• 1 x Set of front and rear tyres
• 1 x Set of one-piece racing wheels
• 1 x Set of hardened universal driveshafts
• 1 x Set of full metal ball bearings
• 1 x Decal sheet
• 1 x Instruction manual

FAQ

Is the Team Associated RC10 Team Car Gold Edition fully assembled? No. The Team Associated RC10 Team Car Gold Edition is supplied as a kit and must be fully assembled before use.

What is required to complete the RC10 Team Car Gold Edition? This kit requires a 2-channel radio system, steering servo, 540-size motor with pinion gear, electronic speed control, suitable battery, compatible charger, polycarbonate paint and assembly tools.

Is the body already painted? No. The Viper polycarbonate body and wing are supplied clear, so they require paint and final finishing before installation.

What battery does this kit suit? The RC10 Team Car Gold Edition is designed to fit suitable 6-cell NiMH and 2S LiPo battery packs.

Important Notes

• Assembly is required before use.
• Radio system, steering servo, motor, ESC, battery, charger, pinion gear, paint and tools are required separately.
• The clear polycarbonate body requires painting and may require trimming or drilling during assembly.
• Use only electronics, gearing and batteries suitable for a 1/10 scale 2WD electric buggy.
• LiPo batteries must be charged, stored and handled using correct LiPo safety procedures.
• Read the instruction manual fully before assembly and check all bags before starting the build.
