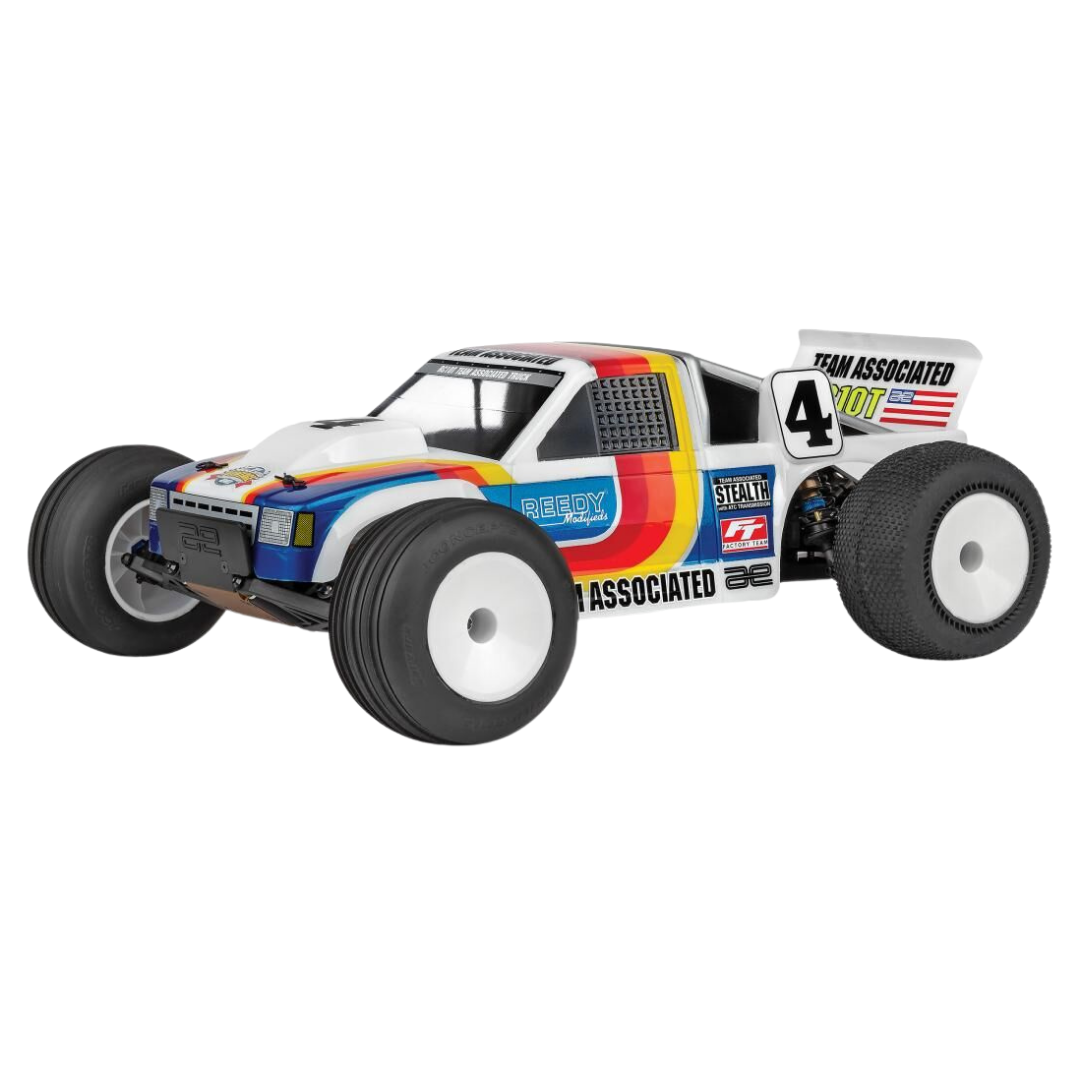

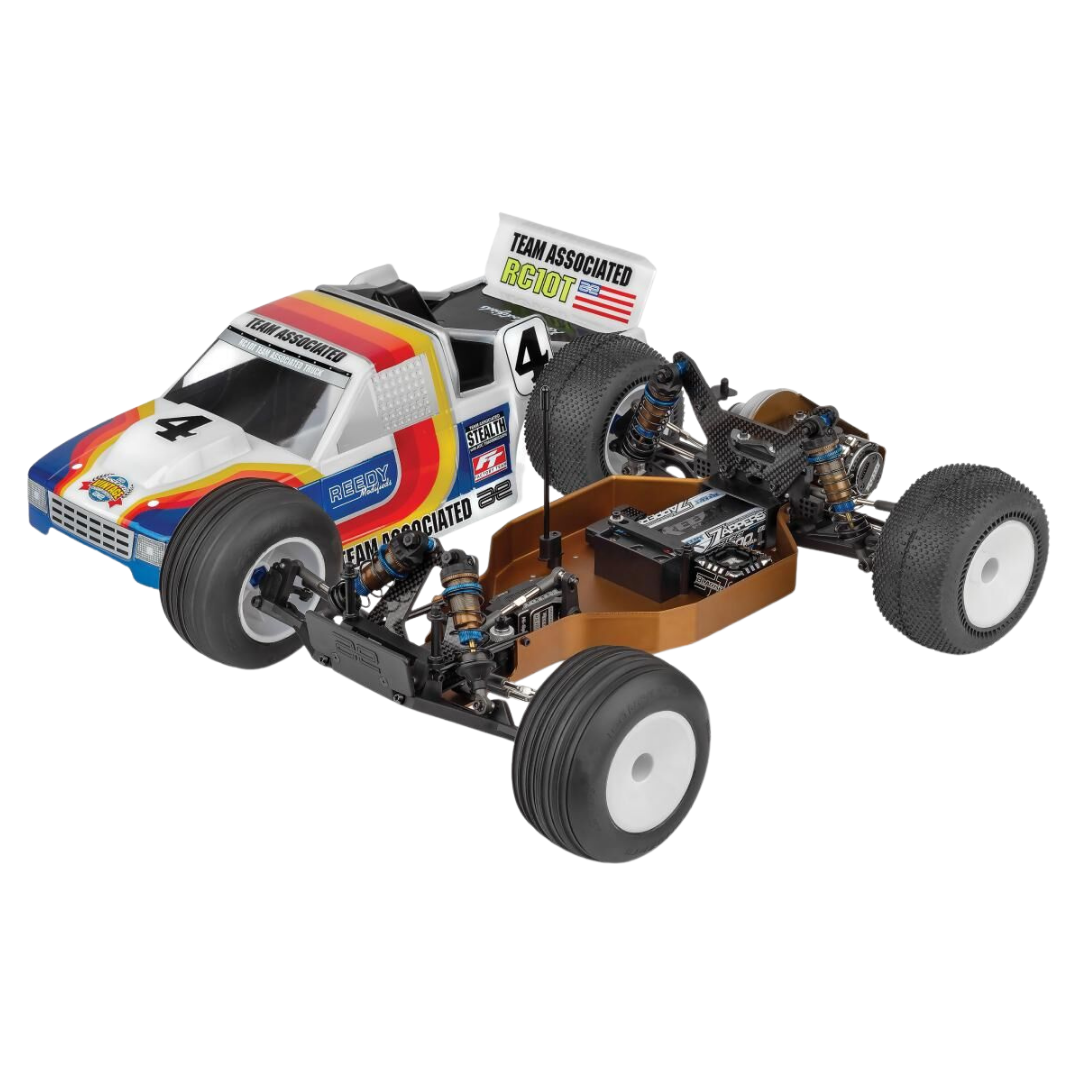

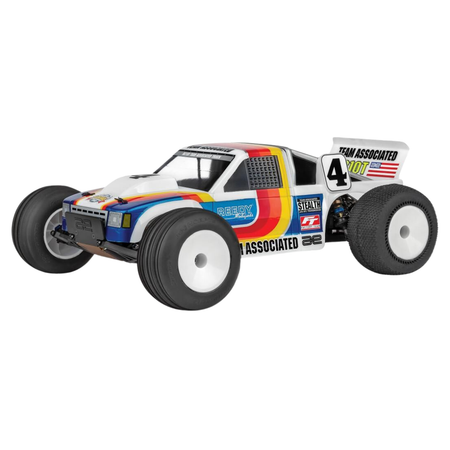

Team Associated RC10T Factory Team RC Stadium Truck 1/10 2WD Kit 7004

The Team Associated RC10T Factory Team is a 1/10 scale 2WD RC stadium truck kit that combines the classic RC10T platform with modern Factory Team racing upgrades including 13mm Kashima-coated big-bore shocks, carbon fibre shock towers, captured hinge pins, 12mm wheel hexes and a bronze-anodised aluminium chassis.

Features

• Factory Team RC10T Configuration: Developed around the setup and upgrades used by Team Associated's AREA 51 Factory Team for modern track conditions

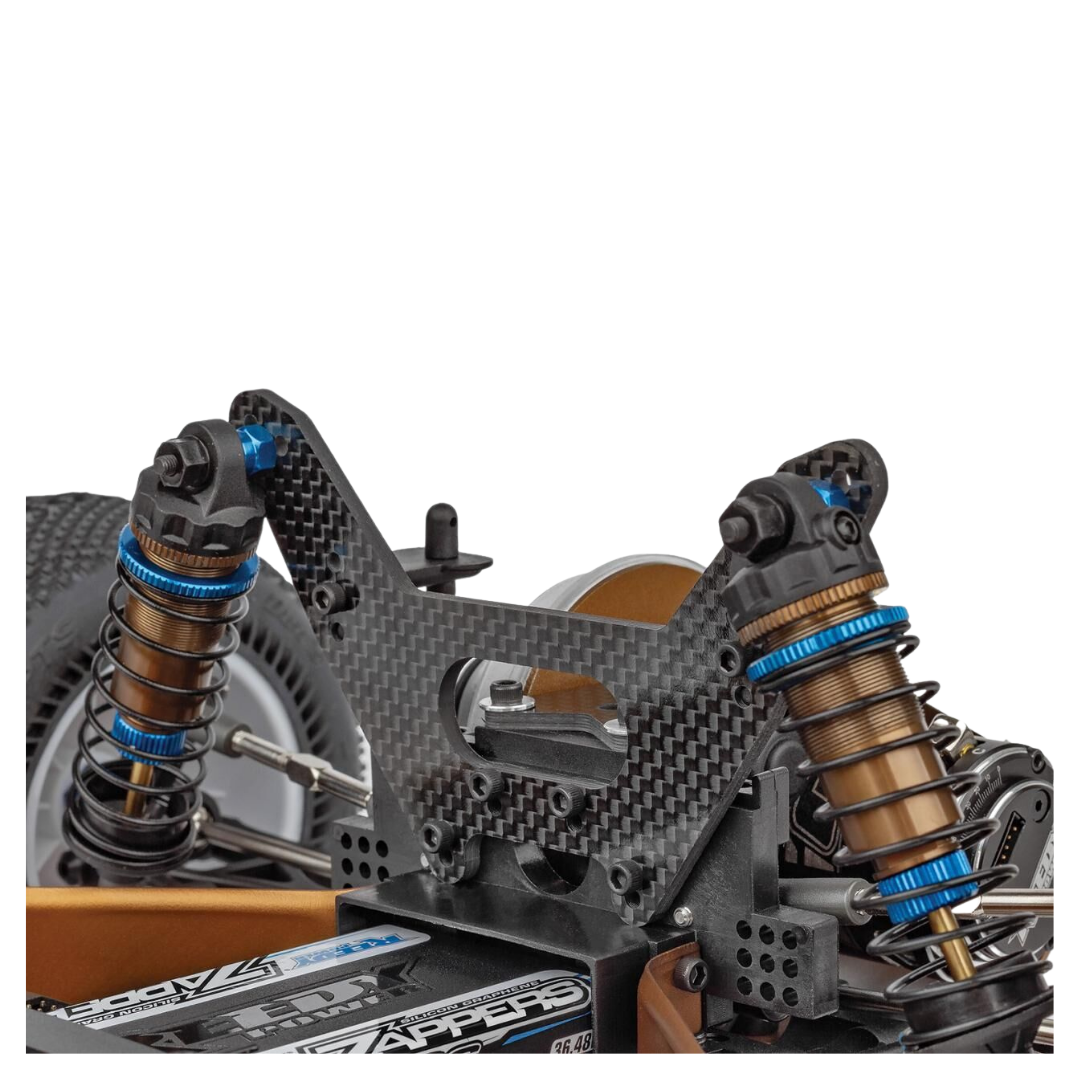

• 13mm Big-Bore Shocks: Factory Team shocks feature Kashima-coated bodies for smooth suspension operation and increased oil capacity

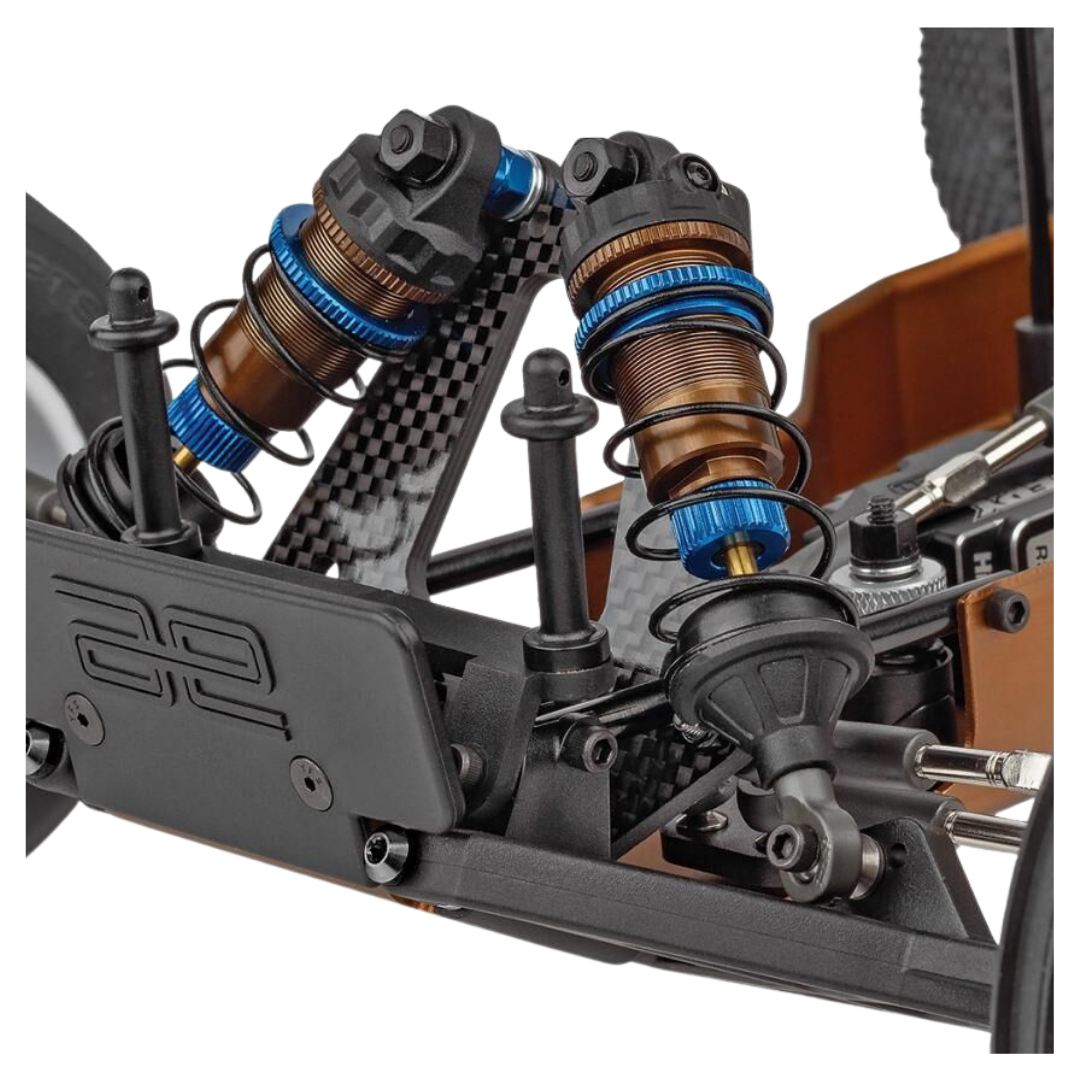

• Carbon Fibre Shock Towers: Factory Team front and rear towers are designed around the larger 13mm shock package

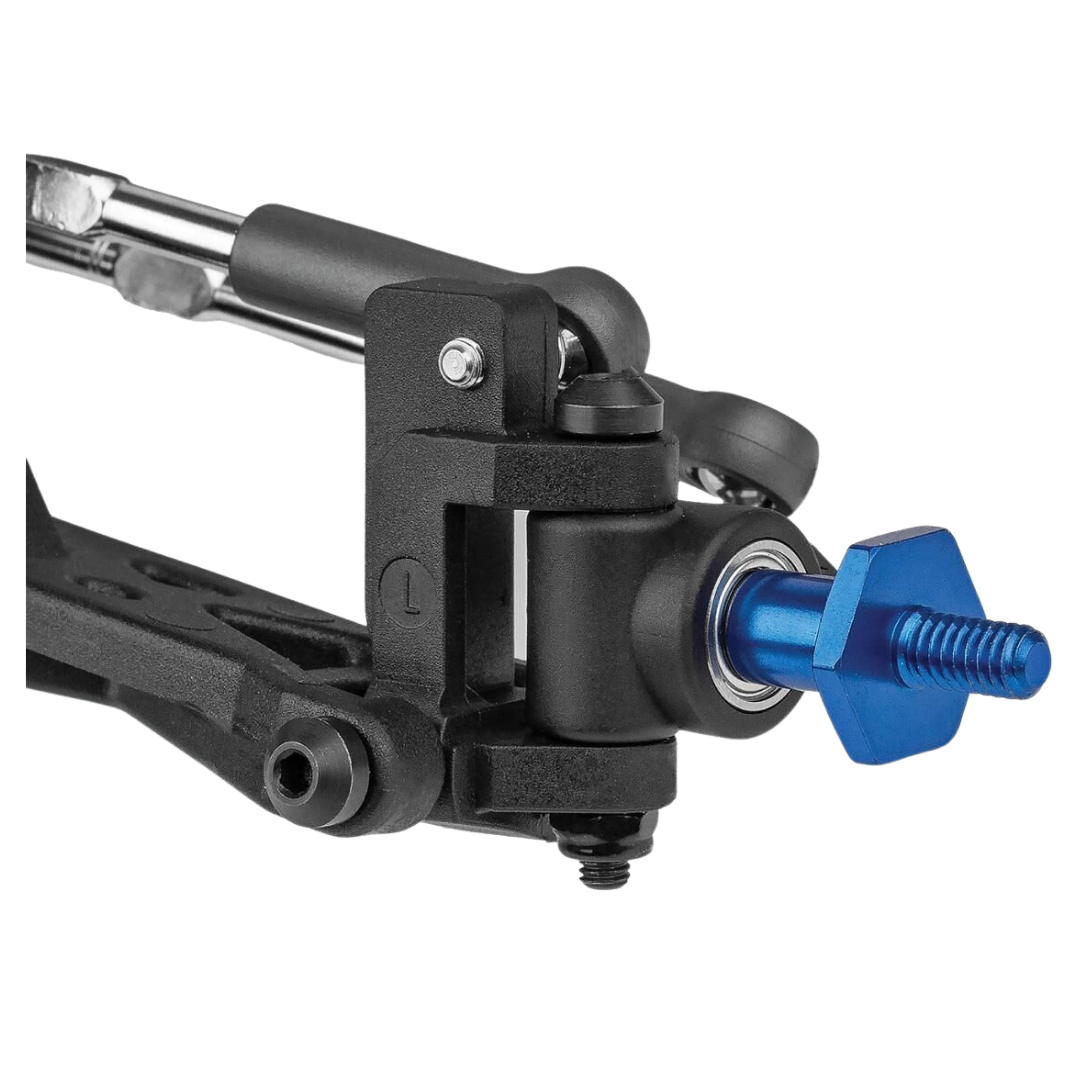

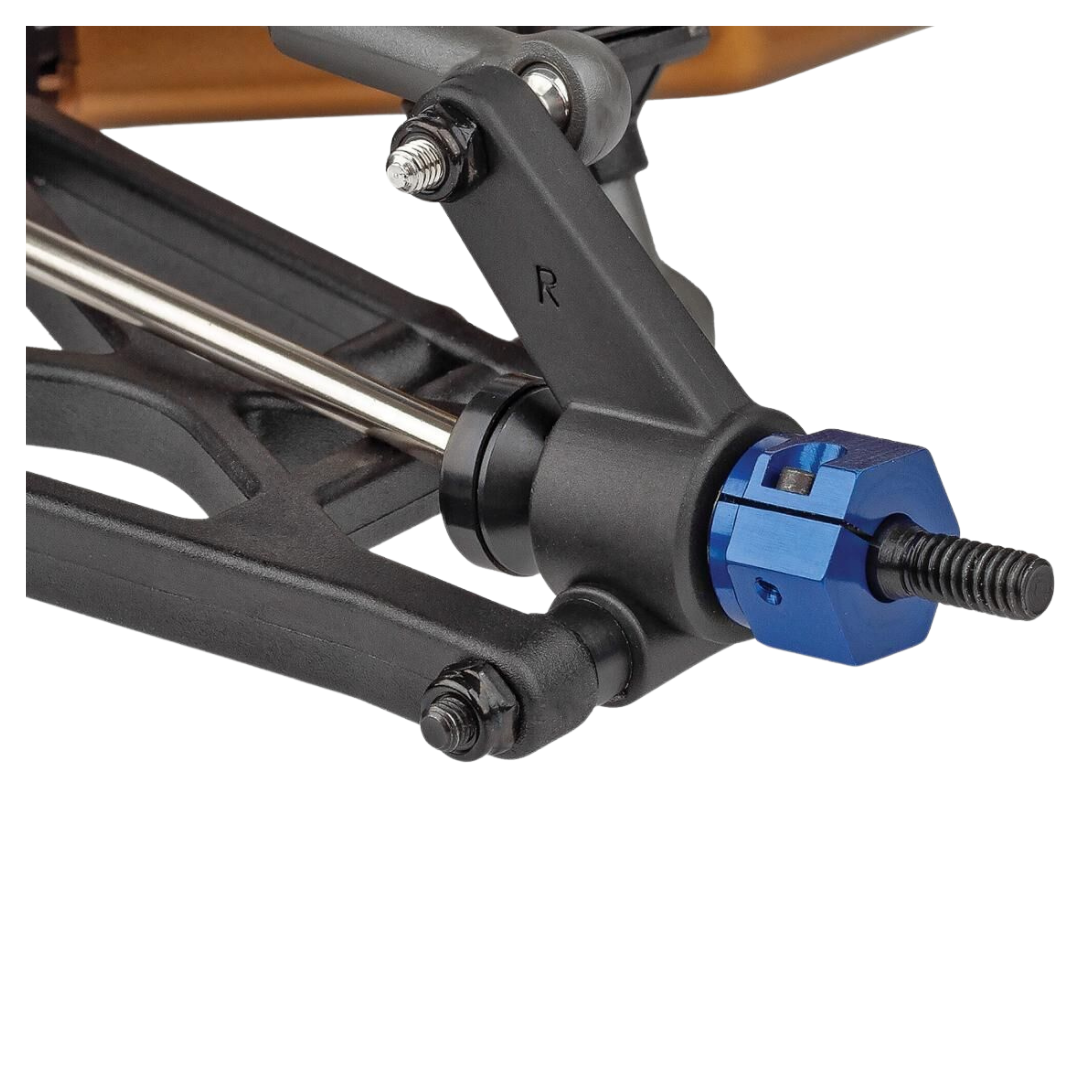

• 12mm Hex Wheel System: Updated front steering blocks, front axles and rear CVAs allow the RC10T to use modern 12mm hex wheels
• T7 Wheels Included: Four 12mm hex Team Associated T7 wheels are supplied with the kit
• Captured Hinge Pins: Factory Team captured hinge pins are used throughout the suspension for secure retention and easier servicing
• RC10 T2 Suspension Arms: T2-style suspension arms provide an updated configuration while retaining classic RC10T architecture
• Heavy-Duty Linkage Hardware: Features metric ball studs, reinforced ball cups and adjustable 3.5mm turnbuckles

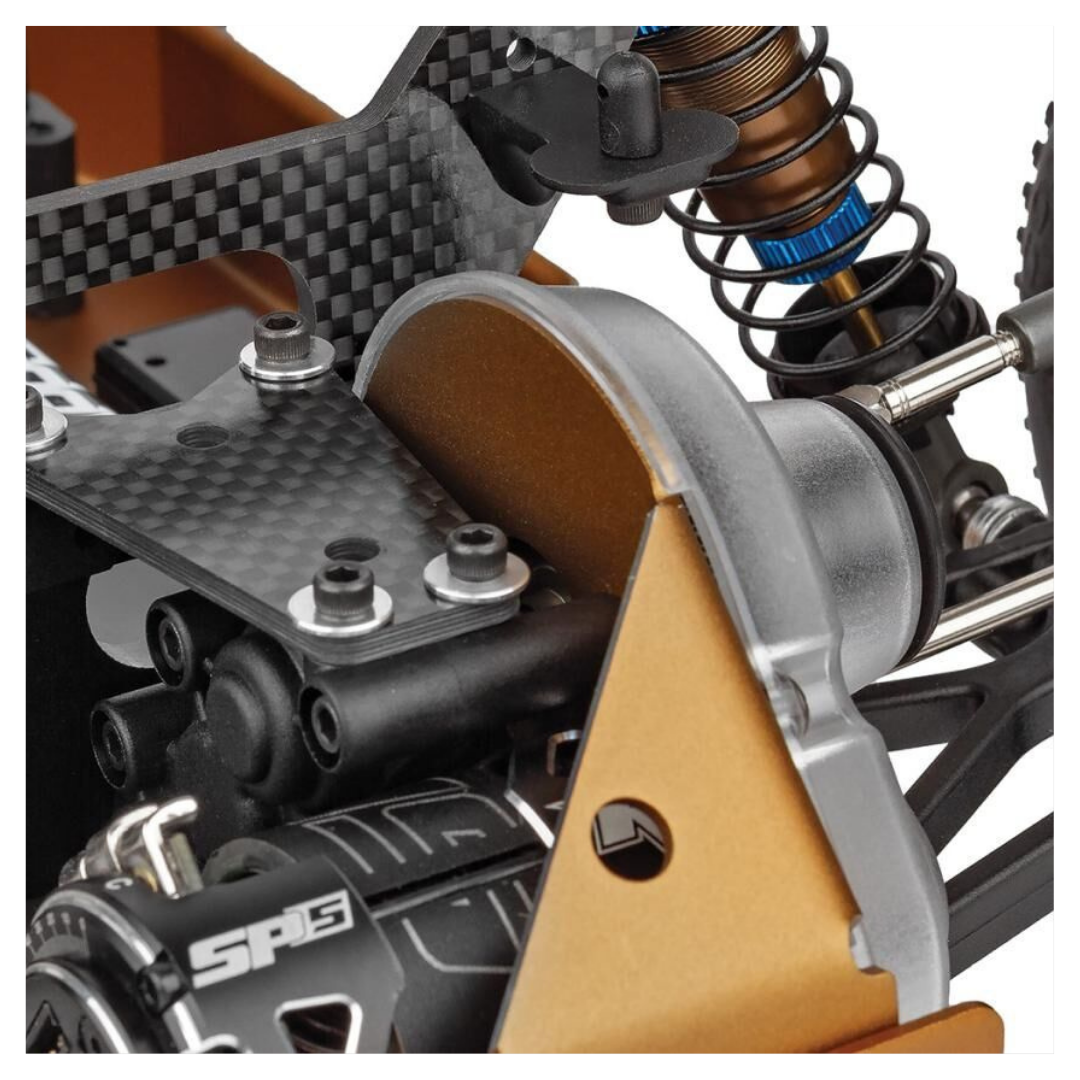

• Carbon Fibre Transmission Brace: Adds rigidity around the transmission assembly
• V2 Slipper System: Updated slipper clutch provides adjustable power delivery through the 2WD drivetrain
• B7 Servo Mount: Includes a modern Team Associated B7-style servo mounting system
• Full Ball Bearings: Complete bearing set provides smooth drivetrain operation

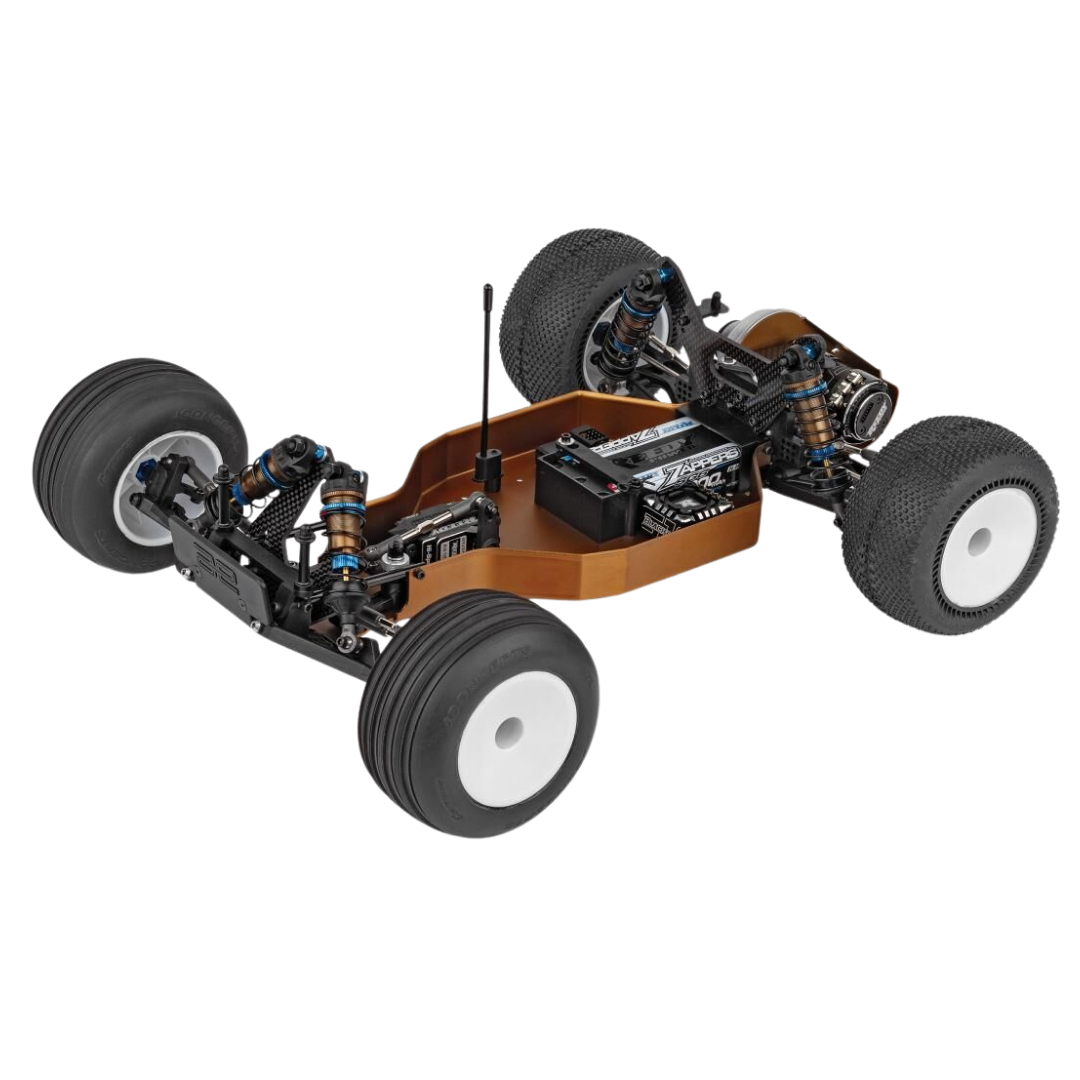

• Bronze-Anodised Components: Chassis, nose plate and motor plate feature an exclusive bronze anodised finish
• All-Black Plastics: Black moulded components give the Factory Team version a distinctive appearance
• Clear RC10T Body and Wing: Supplied ready for the builder's preferred paint and racing design
• Factory Team Decals: Dedicated RC10T Factory Team graphics are included

Specifications

• Brand: Team Associated
• Model: RC10T Factory Team
• Product Type: RC Stadium Truck
• Scale: 1/10
• Build Type: Assembly Kit
• Power Source: Electric
• Drive: 2WD / Rear-Wheel Drive
• Terrain: Off-Road
• Internal Gear Ratio: 2.25:1
• Front and Rear Wheel Mount: 12mm Hex
• Shocks: Factory Team 13mm Big Bore with Kashima-Coated Bodies
• Shock Towers: Carbon Fibre Front and Rear
• Suspension Arms: RC10 T2 Style
• Turnbuckles: 3.5mm Adjustable
• Slipper: V2 Slipper System
• Bearings: Full Ball Bearing Set
• Chassis Finish: Bronze Anodised
• Length: 396.7mm
• Width: 317.5mm
• Wheelbase: 284.5mm
• Weight: Varies Depending on Equipment
• Manufacturer Part Number: 7004
• SKU: ASS7004
• Barcode / UPC: 784695070042

Includes

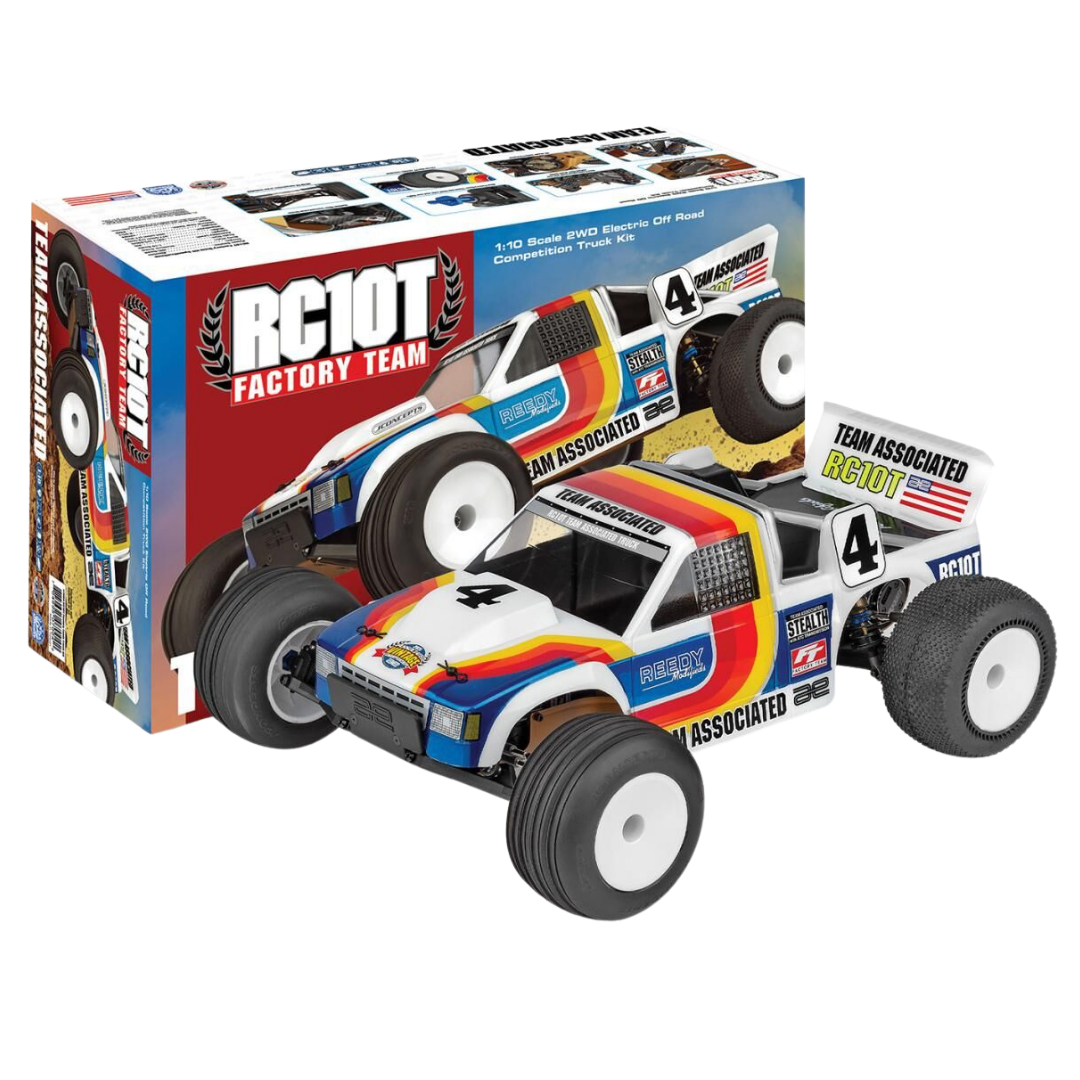

• 1 x Team Associated RC10T Factory Team 1/10 2WD Stadium Truck Kit
• 4 x 12mm Hex T7 Wheels
• 1 x Clear RC10T Body
• 1 x Clear Rear Wing
• 1 x Factory Team RC10T Decal Sheet
• Factory Team 13mm Kashima-Coated Big-Bore Shocks
• Factory Team Carbon Fibre Front and Rear Shock Towers
• Factory Team 12mm Hex Front and Rear Drivetrain Components
• B7 Servo Mount
• Full Ball Bearing Set
• Assembly Manual

Required to Complete

• 540-Size Motor
• Electronic Speed Controller
• Steering Servo
• 2-Channel Transmitter and Receiver
• Suitable Drive Battery
• Compatible Battery Charger
• RC Tyres and Inserts
• Polycarbonate Body Paint
• Assembly Tools

Recommended Electronics

• Servo: Reedy RT2007HD Low-Profile Brushless High-Torque Servo 27172
• Battery: Reedy Stockstar 5800mAh 7.4V 160C Shorty 27612
• ESC: Reedy Blackbox 610R Competition ESC 27016
• Motor: Reedy Sonic 540-SP5 13.5T Brushless Motor 27481
• Charger: Reedy 1416-C2L Dual AC/DC Competition Balance Charger 27203

FAQ

Does the Team Associated RC10T Factory Team 7004 include electronics? No. This is an unassembled competition-style kit. Motor, ESC, steering servo, transmitter, receiver, drive battery and charger are required separately.

Are tyres included with the RC10T Factory Team kit? No. Four 12mm hex T7 wheels are included, but suitable stadium truck tyres and inserts must be purchased separately. This allows racers to choose tyres appropriate for their local dirt, carpet or turf track.

Is a body included? Yes. Retailer package listings for 7004 confirm a clear RC10T body and clear rear wing are supplied. Polycarbonate paint is required separately.

What is different about the Factory Team RC10T compared with a traditional RC10T? The Factory Team version retains the classic RC10T platform while adding modern racing components including 13mm Kashima-coated shocks, carbon fibre shock towers, captured hinge pins, 12mm hex front axles and rear CVAs, T7 wheels, heavy-duty linkages, a carbon fibre transmission brace and V2 slipper system.

Does the RC10T Factory Team use modern 12mm hex wheels? Yes. One of the major updates is a complete 12mm hex wheel system at the front and rear, including new front steering blocks, front axles and rear CVAs.

Can the RC10T Factory Team be raced in a vintage class? That depends on the rules of the individual club or event. Because 7004 incorporates modern Factory Team suspension, drivetrain and wheel-mounting upgrades, OZRC recommends checking the applicable vintage or retro class regulations before entering a sanctioned event.

Important Notes

• This is an unassembled RC kit and is not supplied ready to drive
• Motor, ESC, servo, radio system, battery and charger are required separately
• Tyres and tyre inserts are required separately
• Clear body and rear wing require trimming, preparation and polycarbonate paint as applicable
• Team Associated's recommended electronics are suggestions rather than mandatory components; alternative equipment may be used where dimensions and specifications are compatible
• Check local racing regulations before competing, particularly where vintage-class component restrictions apply
