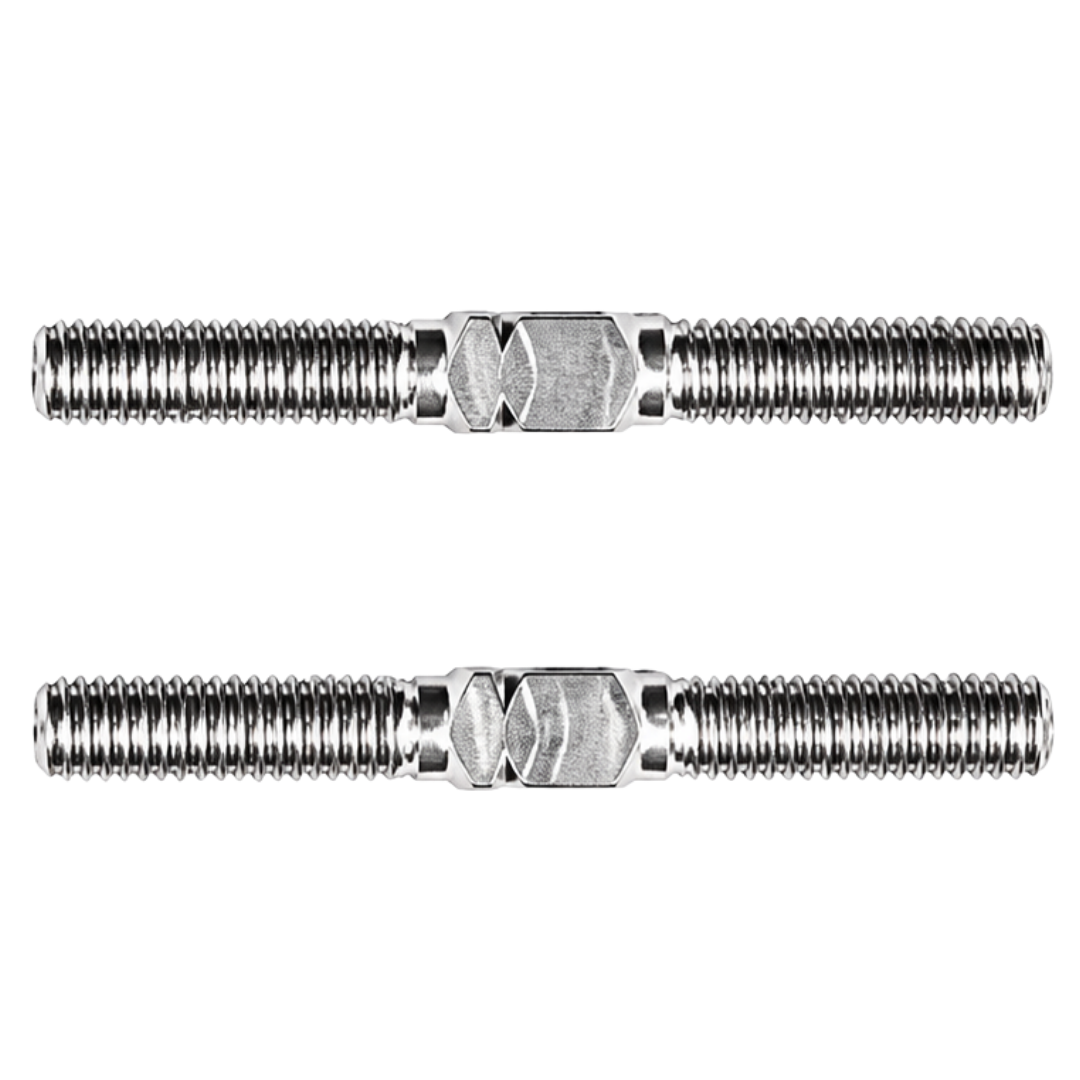

Team Associated RC10TC8 Factory Team Titanium Turnbuckles M3x26mm 32048
Couldn't load pickup availability
The Team Associated RC10TC8 Factory Team M3x26mm Titanium Turnbuckles are lightweight optional linkage components for the RC10TC8 touring car platform, providing a titanium alternative to the standard aluminium turnbuckles for suspension adjustment and race-focused builds
Features
- Genuine Team Associated Factory Team optional part
- Designed for the RC10TC8 1/10 competition touring car platform
- Titanium construction provides a strong and lightweight linkage option
- M3 thread size
- 26 mm turnbuckle length
- Left and right hand threaded design allows adjustment without removing the linkage
- Suitable for suspension linkage and camber adjustment where the 26 mm turnbuckle is specified
- Direct optional replacement for Team Associated 32045 aluminium M3x26 mm turnbuckles
Specifications
- Brand: Team Associated
- Series: Factory Team
- Product Type: Titanium Turnbuckle Set
- Part Number: 32048
- SKU: ASS32048
- Barcode: 784695320482
- Thread Size: M3
- Length: 26 mm
- Material: Titanium
- Vehicle Scale: 1/10
- Primary Platform: RC10TC8
Includes
- Team Associated RC10TC8 Factory Team M3x26 mm titanium turnbuckles
FAQ
What does ASS32048 replace? ASS32048 is the Factory Team titanium alternative to Team Associated part 32045, the standard RC10TC8 M3x26 mm aluminium turnbuckle
Where are the 26 mm turnbuckles used on the RC10TC8? Team Associated shows the 26 mm turnbuckles being used in the suspension upper-link assemblies, including rear camber adjustment on the RC10TC8 Graphite-Spec
How can I identify the left-hand threaded end? Team Associated uses a notch on one end of the turnbuckle to identify the left-hand threaded side, helping maintain the correct orientation during assembly
Are rod ends or ball cups included? Rod ends and ball cups are separate components unless specifically supplied with the turnbuckles, so OZRC recommends retaining or ordering the required RC10TC8 linkage hardware separately
Important Notes
- Ball cups, rod ends and ball studs are not confirmed as included
- Team Associated recommends using black grease on the turnbuckle threads to make ball cup and upper arm installation easier
- Orient the notched end consistently during assembly as it identifies the left-hand thread
- Confirm part number 32048 against your specific RC10TC8 setup before installation
