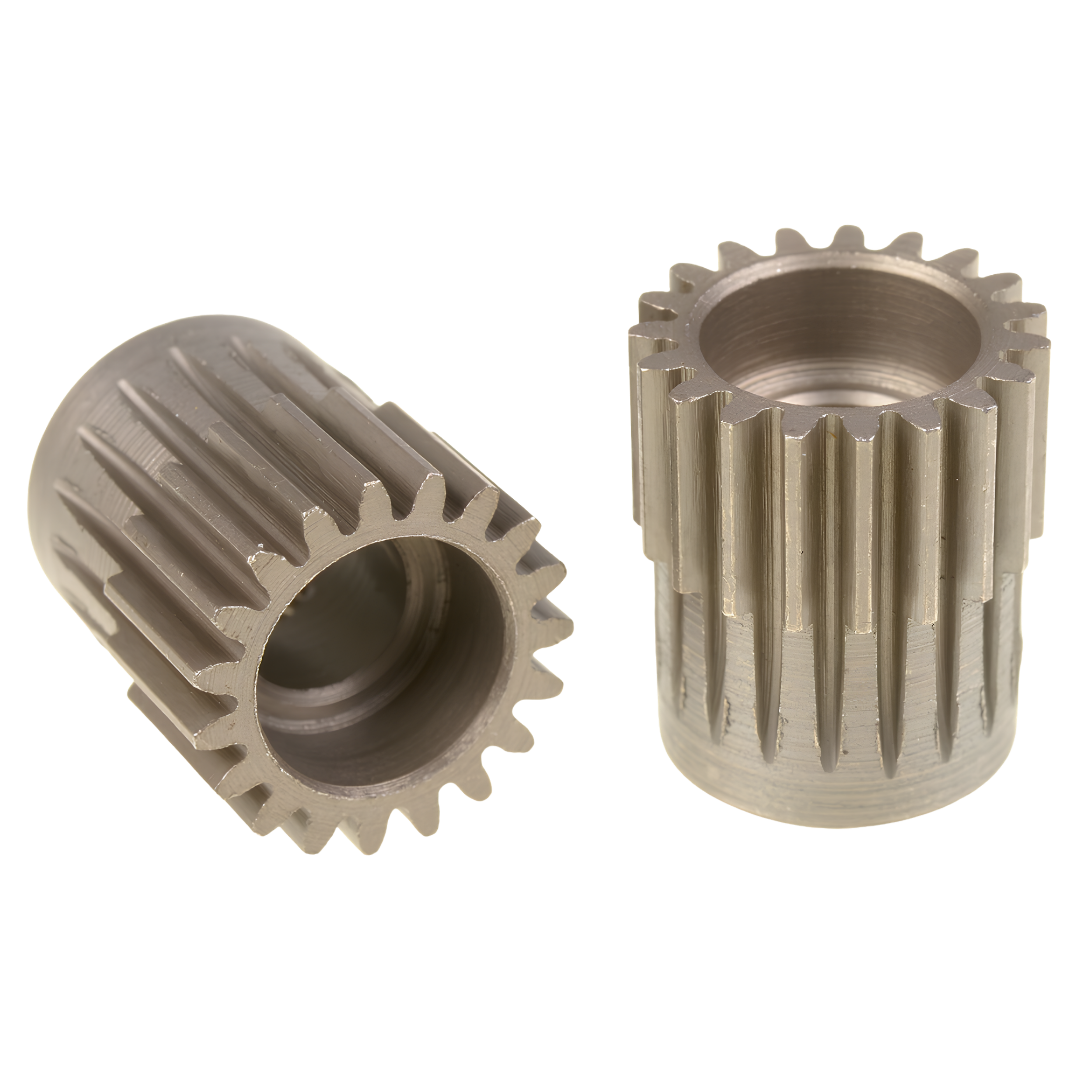

Team Corally 48DP 19T Short Hardened Steel Pinion 5mm C-72419
Couldn't load pickup availability
The Team Corally C-72419 is a short-format 19-tooth 48DP motor pinion machined from hardened steel for compatible RC vehicles using a 5mm motor shaft and 48DP spur gear, providing a durable and precisely manufactured gearing option for drivetrain setup and maintenance.
Features
- Special Hardened Steel: Designed for strength, durability and resistance to drivetrain wear
- CNC-Cut Teeth: Precision-machined tooth profile provides accurate shape and concentric running
- 19-Tooth Configuration: Allows drivetrain gearing to be tuned to suit the vehicle, motor and intended use
- 48DP Gear Pitch: Designed to mesh with compatible 48 diametral pitch spur gears
- 5mm Motor Shaft Bore: Made for motors using a 5mm diameter output shaft
- Short Format: Compact 13mm overall gear length suits installations requiring a shorter pinion design
- Tooth Count Marking: Pinion is marked with its tooth count for quick identification
- Made in Europe: Manufactured to Team Corally's specified gear tolerances
Specifications
- Brand: Team Corally
- Product Type: Motor Pinion Gear
- Gear Pitch: 48DP
- Tooth Count: 19T
- Version: Short
- Material: Hardened Steel
- Motor Shaft Diameter: 5mm
- Gear Length: 13mm
- Teeth Width: 6.2mm
- Grub Screw Hex Size: 2.0mm
- Manufacturing: CNC-Cut Teeth
- Country / Region of Manufacture: Europe
- Manufacturer Part Number: C-72419
- Barcode / EAN: 8718057180348
Includes
- 1 x Team Corally 19T 48DP Short Hardened Steel Pinion Gear
- 1 x Pinion Retaining Grub Screw
FAQ
Will Team Corally C-72419 fit my RC car? It can be used where the vehicle requires a 48DP pinion, the motor has a 5mm shaft and there is sufficient clearance for the 13mm short-format gear. OZRC recommends confirming all three specifications before ordering.
Can a 48DP pinion be used with a 32DP or Mod 1 spur gear? No. The pinion and spur gear must use the same gear pitch. C-72419 is specifically a 48DP pinion and should be paired with a compatible 48DP spur gear.
What effect does changing to a 19T pinion have? The result depends on the existing pinion and spur gear. Compared with a smaller pinion, a 19T gear generally produces taller gearing, while compared with a larger pinion it produces shorter gearing. Motor and ESC temperatures should be checked after any gearing change.
What tool is required for the grub screw? Team Corally specifies a 2.0mm hex key for the pinion retaining screw.
Important Notes
- Requires a compatible 5mm motor shaft
- Use only with a compatible 48DP spur gear
- Check available motor-mount and spur-gear clearance for the 13mm short-format pinion
- Set the correct pinion-to-spur gear mesh before operating the vehicle
- Monitor motor and ESC temperatures after changing gearing
