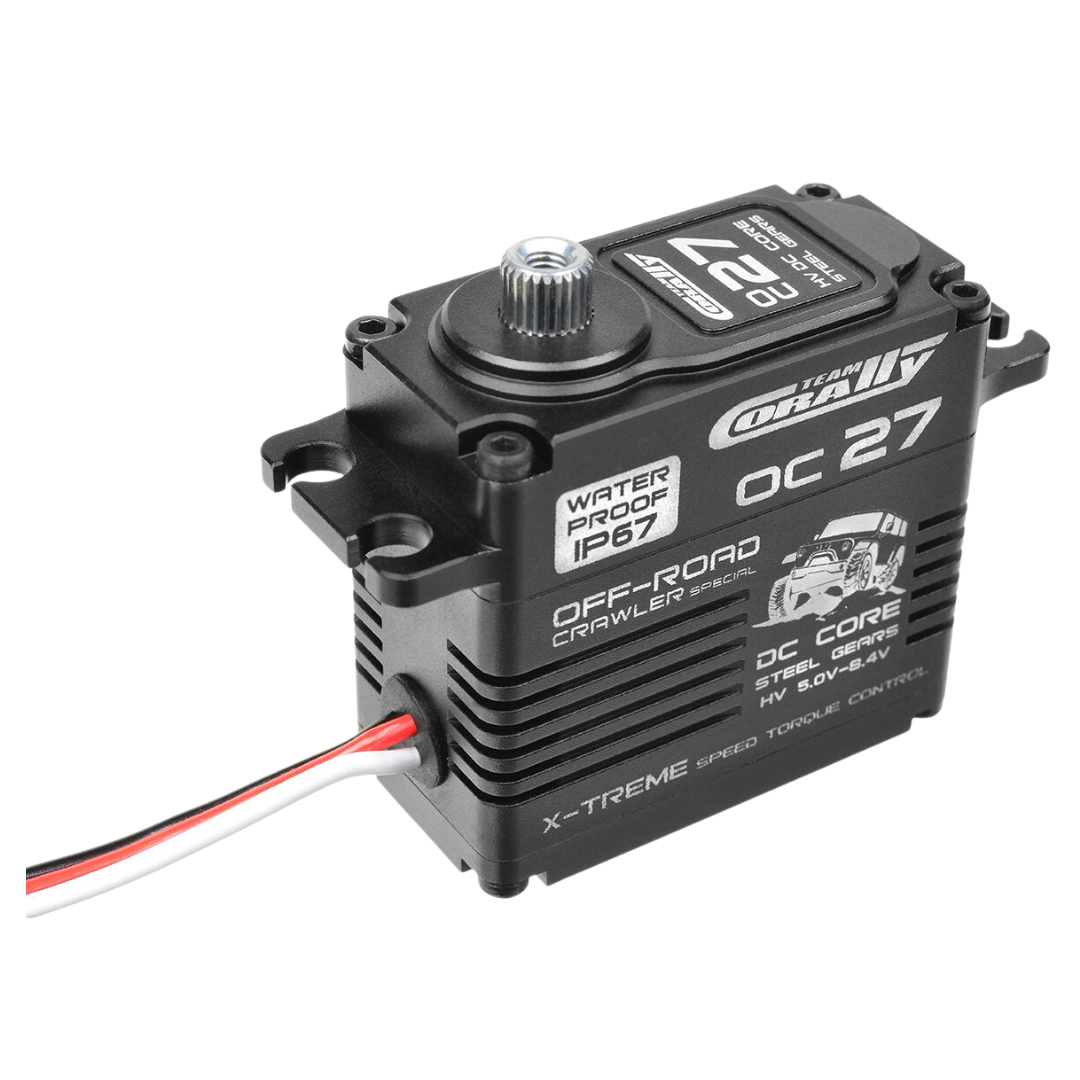

Team Corally OC-27 HV Digital Servo IP67 Alloy Case C-52015

The Team Corally OC-27 HV is a standard-size high-voltage digital RC servo designed for demanding bashing, crawling and off-road applications, combining up to 27.3kg/cm of torque with steel gears, an IP67 protection rating and a full CNC-machined alloy case.

Features

• High-Voltage Digital Servo: Operates across a 5.0V to 8.4V voltage range for use with compatible high-voltage RC electronics
• Up to 27.3kg/cm Torque: Delivers increasing torque as operating voltage rises, reaching 27.3kg/cm at 8.4V
• Fast Steering Response: Achieves a speed of 0.11 sec/60° at 8.4V
• Full CNC-Machined Alloy Case: Aluminium housing provides a rigid and durable enclosure for demanding RC use
• Steel Gears: Metal drivetrain components provide durability under high steering loads
• Ball Bearing Construction: Ball-raced design supports smooth and consistent servo operation
• Core DC Motor: Uses a DC core motor for dependable steering response and torque
• IP67 Protection: Designed with an IP67 waterproof protection rating for demanding off-road conditions
• 25T Output Spline: Uses a standard 25-tooth 6.0mm output spline for compatible servo horns
• Standard Servo Size: Suitable for RC vehicles designed around a standard-size steering servo

Specifications

• Brand: Team Corally
• Model: OC-27 HV
• Product Type: Digital RC Servo
• Servo Size: Standard
• Technology: Digital HV
• Operating Voltage: 5.0V to 8.4V
• Motor: Core DC Motor
• Gears: Steel
• Bearings: Ball Bearing
• Case: CNC-Machined Aluminium
• Protection Rating: IP67
• Output Spline: 25T / 6.0mm
• Positioning: VR Potentiometer Direct Drive
• Connector: JR Universal
• Speed at 6.0V: 0.15 sec/60°
• Speed at 7.4V: 0.13 sec/60°
• Speed at 8.4V: 0.11 sec/60°
• Torque at 6.0V: 17.7kg/cm
• Torque at 7.4V: 23.6kg/cm
• Torque at 8.4V: 27.3kg/cm
• Dimensions: 40.4 x 20.4 x 36.7mm
• Weight: 75g
• Manufacturer Part Number: C-52015
• Barcode / EAN: 8718057194062

Includes

• 1 x Team Corally OC-27 HV Digital Servo

FAQ

How much torque does the Team Corally OC-27 HV produce? The OC-27 HV produces 17.7kg/cm at 6.0V, 23.6kg/cm at 7.4V and up to 27.3kg/cm at 8.4V.

Can the Team Corally OC-27 HV run directly at 8.4V? Yes. The OC-27 HV is a high-voltage digital servo rated for operation up to 8.4V, provided the receiver, ESC or external BEC supplying the servo is also suitable for the selected voltage.

What servo horn fits the Team Corally OC-27 HV? The OC-27 HV uses a 25T 6.0mm output spline, so a compatible 25-tooth servo horn is required.

Is the Team Corally OC-27 HV compatible with Sanwa SSR mode? No. The OC-27 HV is not listed as compatible with Sanwa SSR mode, so a compatible standard radio response mode should be used.

Important Notes

• Ensure the receiver, ESC BEC or external BEC is capable of supplying the selected servo voltage and sufficient current
• A minimum 5A BEC is recommended by specialist retailers, with 10A recommended for additional current capacity
• The servo is not compatible with Sanwa SSR mode
• Check the vehicle mounting dimensions and 25T spline requirement before installation
