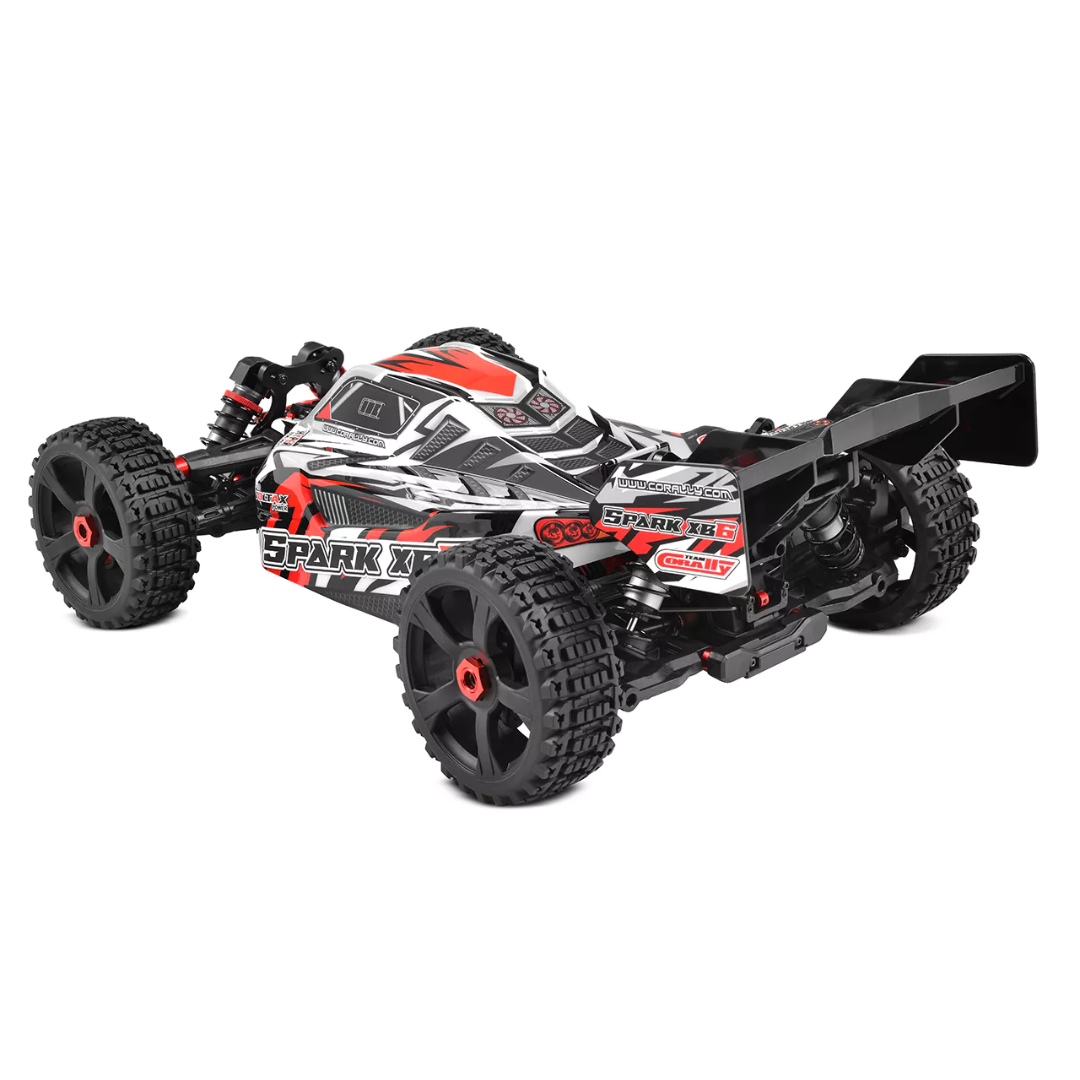

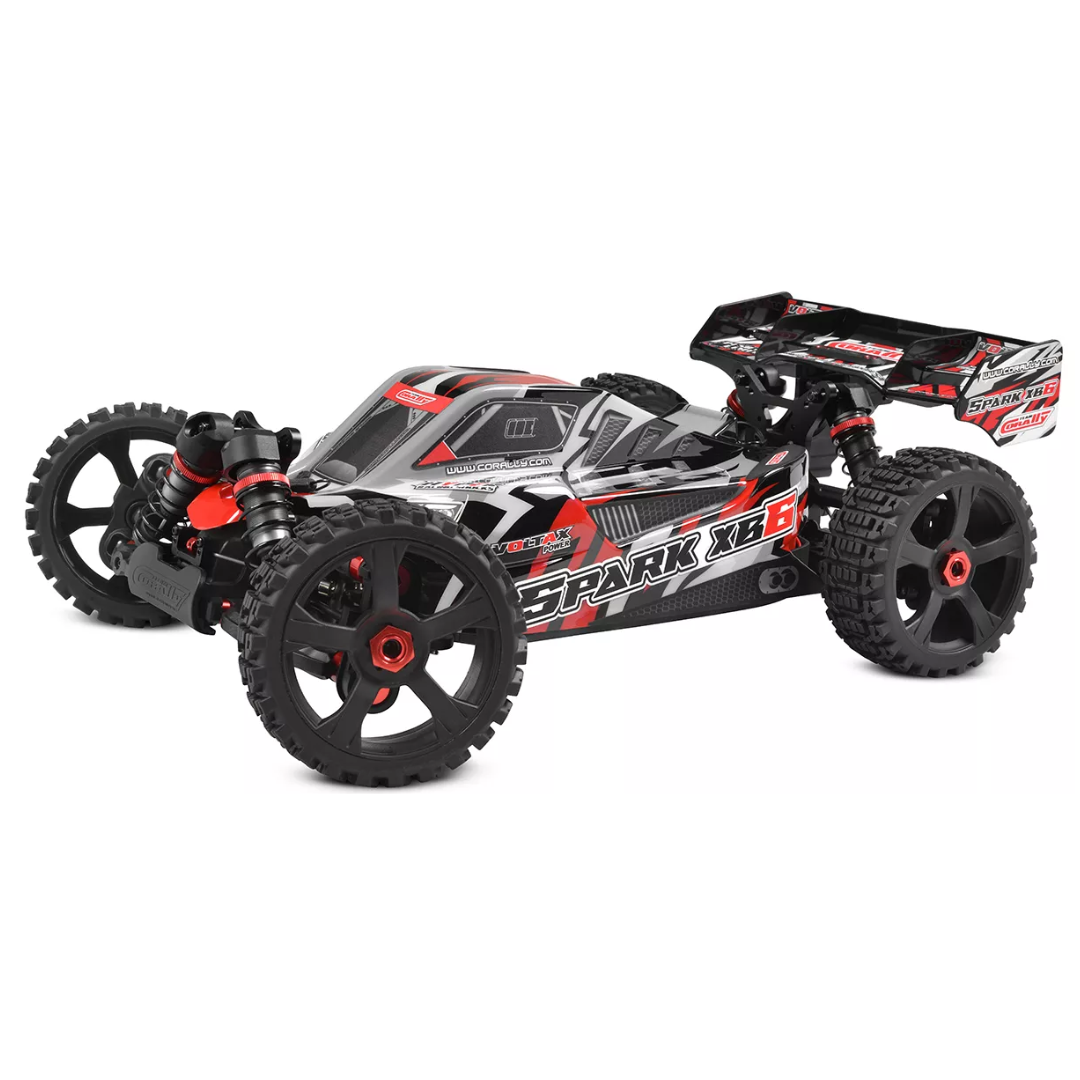

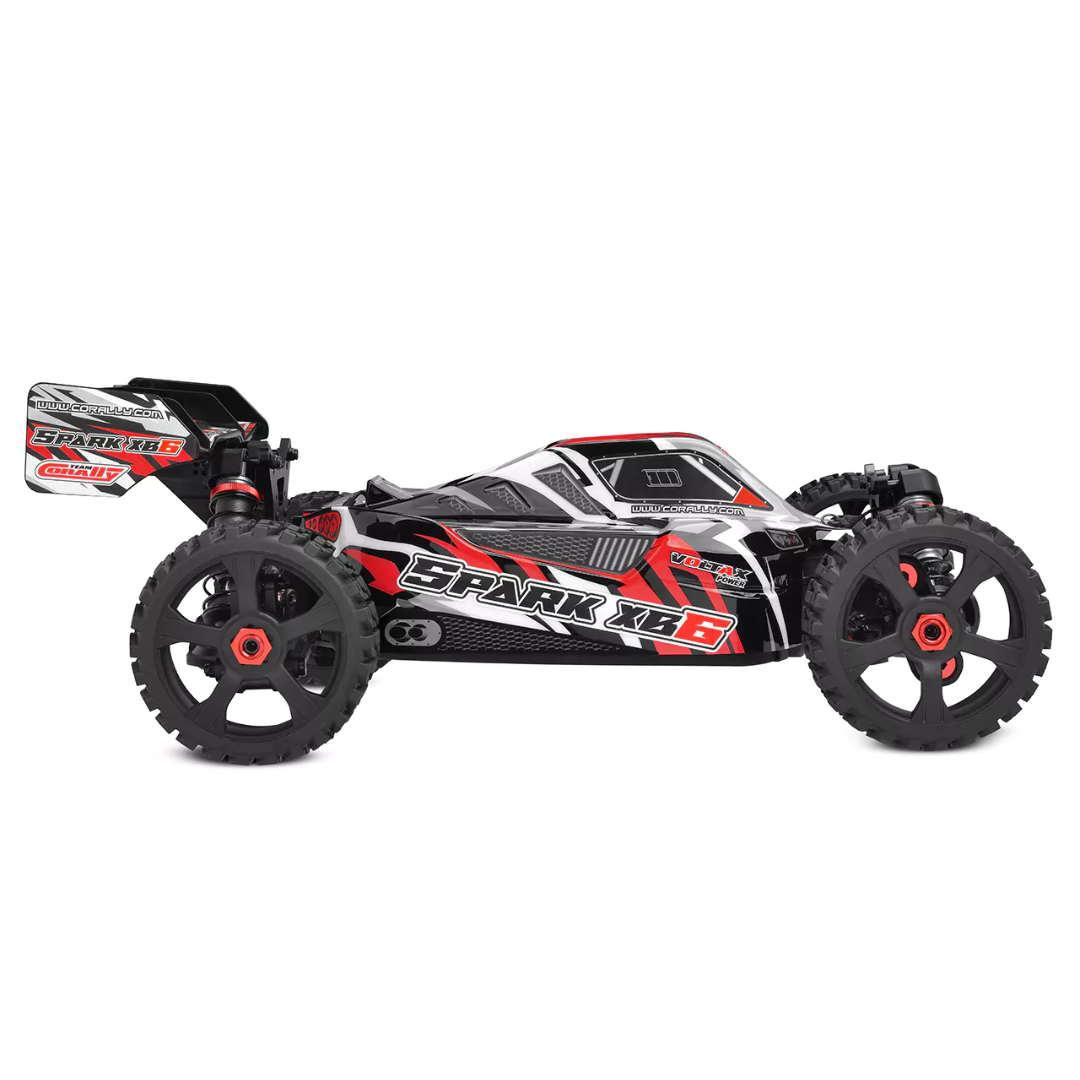

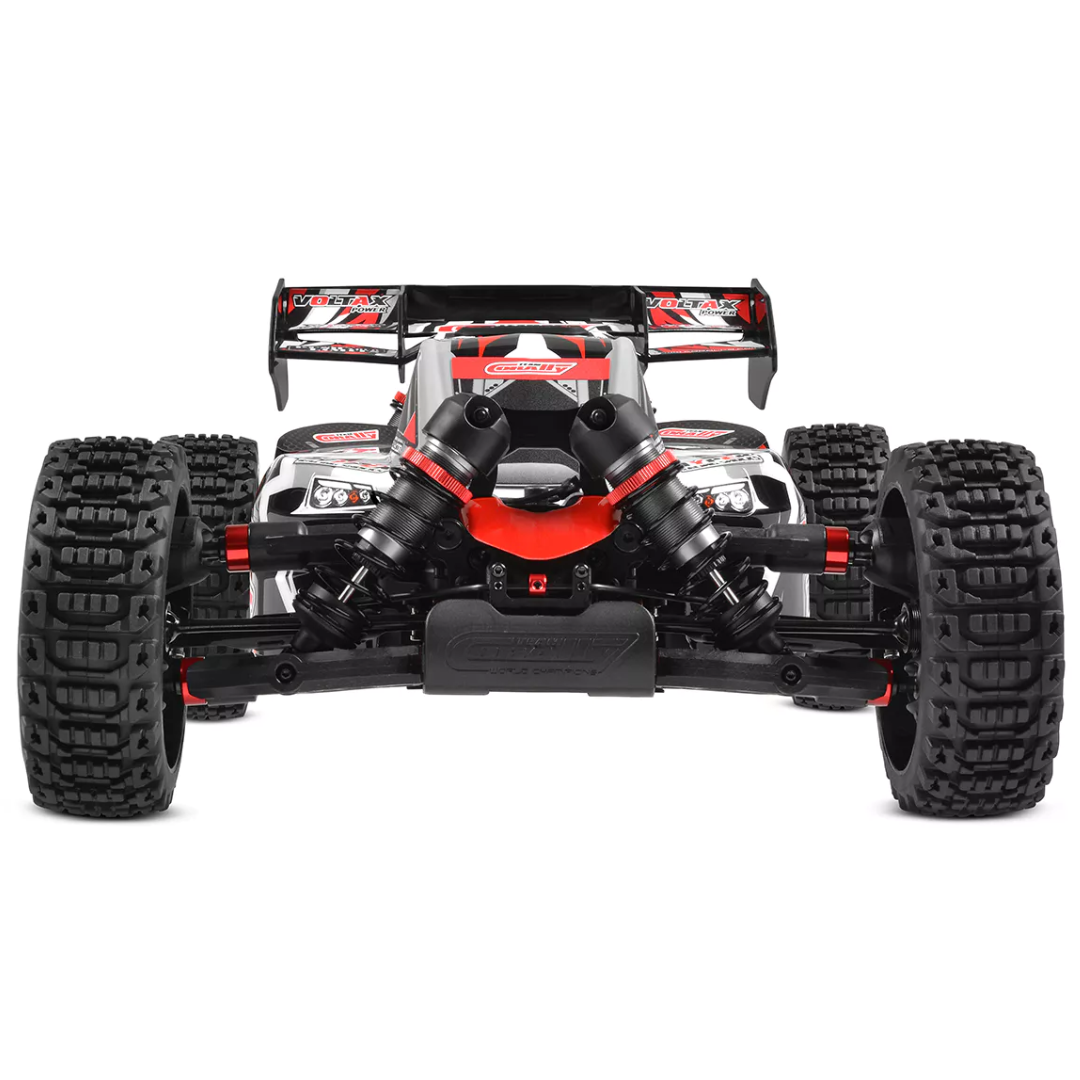

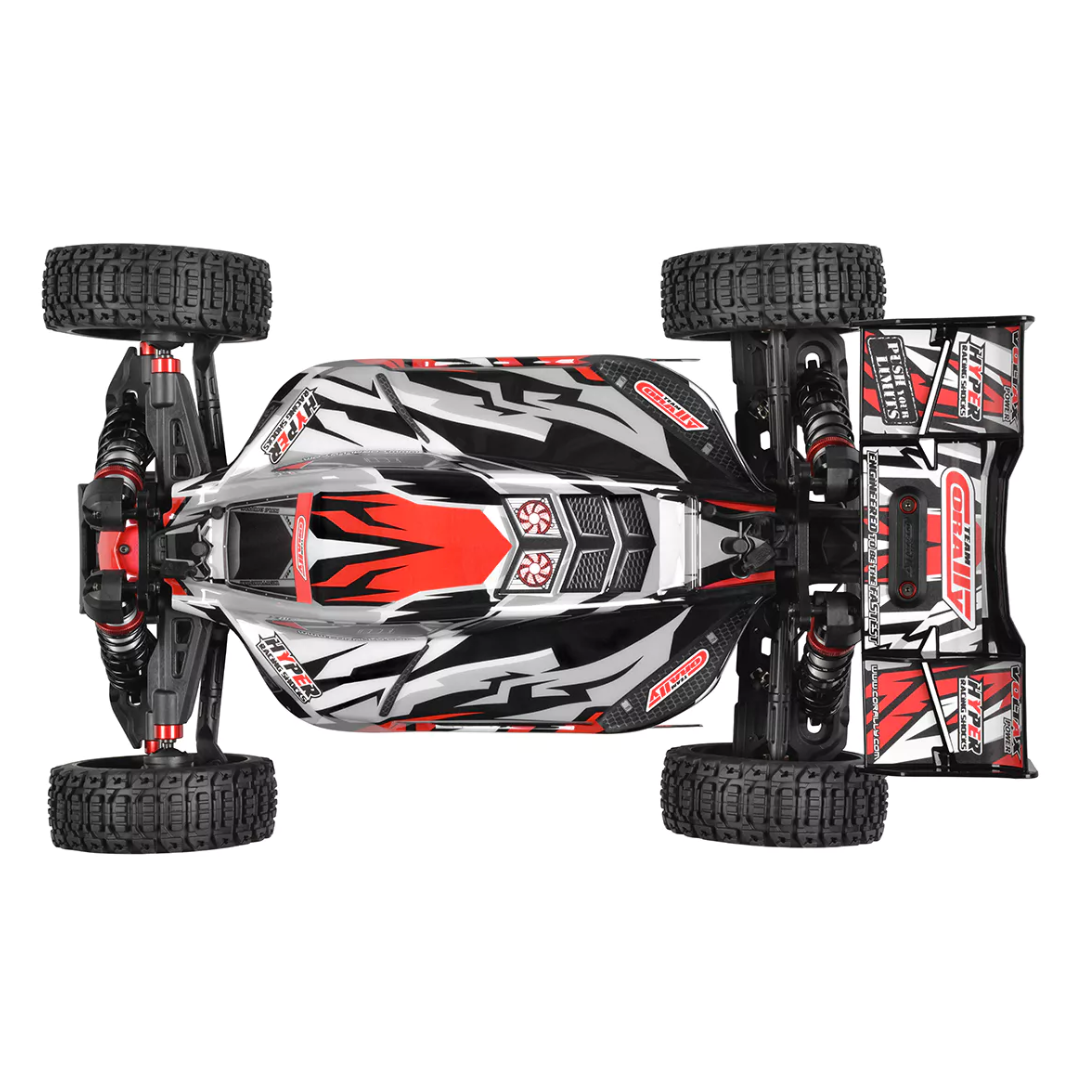

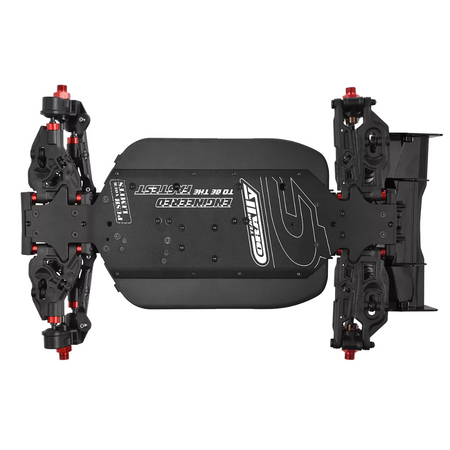

Team Corally SPARK XB-6 RTR Brushless 6S Red 1/8 Scale Buggy C-00285-R

The Team Corally Spark XB-6 is the first true 1/8 scale bash buggy built from the ground up for durability, performance, and hardcore off-road action. Packed with high-end electronics and rugged components, this 6S-capable brushless beast delivers thrilling top speeds, precise control, and unmatched reliability over rough terrain.

Features

• Brushless Team Corally Kuron 2050kV 4-pole motor (4–6S compatible)
• Torox 185A ESC with LiPo protection and performance tuning
• CRHV-7225 HV metal-gear steering servo with 25Kg torque
• CT2R ergonomic 2.4GHz transmitter with adjustable features
• Oil-filled 16mm aluminium Big Bore shocks with locking perches
• Three sealed metal differentials with silicone oil
• 46T hardened steel central gear with aluminium motor mount
• Independent front pivot ball and rear wishbone suspension
• 5mm CNC aluminium shock towers front and rear
• Reinforced high downforce wing and chassis support
• Pre-glued high-speed buggy tyres on nylon rims
• Heavy-duty front bumper and composite side guards
• XL adjustable battery tray fits common LiPo packs

Specifications

• Scale: 1/8
• Drive: 4WD shaft driven
• Motor: Brushless Kuron 2050kV
• ESC: Torox 185 (4–6S compatible)
• Radio: CT2R 2.4GHz
• Servo: 25Kg CRHV-7225 metal gear
• Length: 495mm
• Height: 175mm
• Wheelbase: 327mm
• Track Width (Front/Rear): 308mm
• Ground Clearance: 58mm
• Weight (No Battery): 3650g
• Battery Tray: 161x51x49mm
• Top Speed: Up to 110km/h

Suspension and Drivetrain

• Front Suspension: Independent pivot ball
• Rear Suspension: Independent double wishbone
• Differentials: 3 sealed gear differentials
• Shock Type: Oil-filled aluminium coilovers
• Shock Length: Front 107mm / Rear 129mm
• Bearings: Full set, rubber sealed
• Gear Pitch: MOD 1.0
• Spur Gear: 46T steel
• Pinion Gear: 13T steel
• Drive Ratio (Internal/Overall): 3.31 / 11.71

Wheels and Tyres

• Tyre Diameter: 116mm
• Tyre Width: 43mm
• Rim Diameter: 90mm
• Rim Width: 42mm
• Wheel Hex: 17mm aluminium

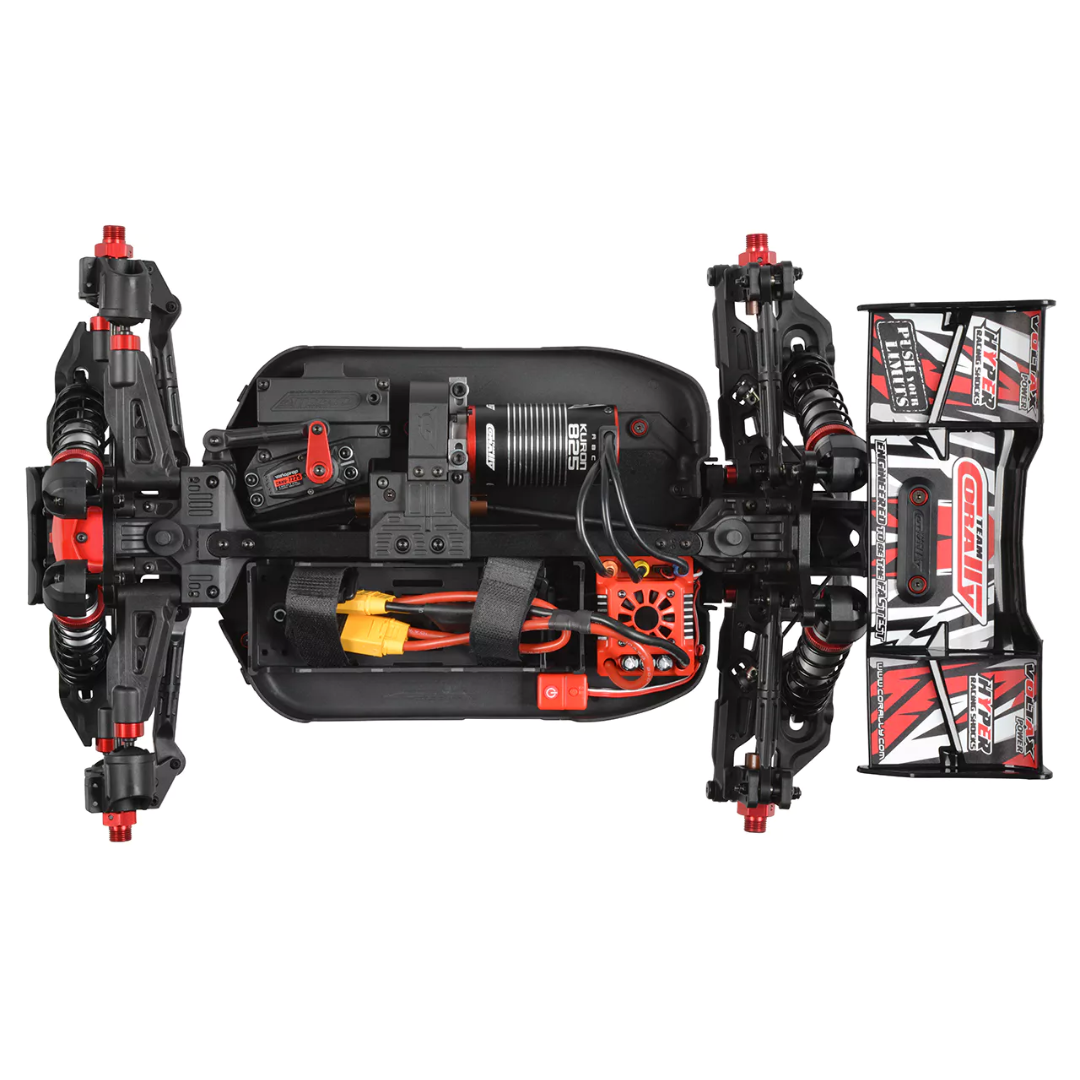

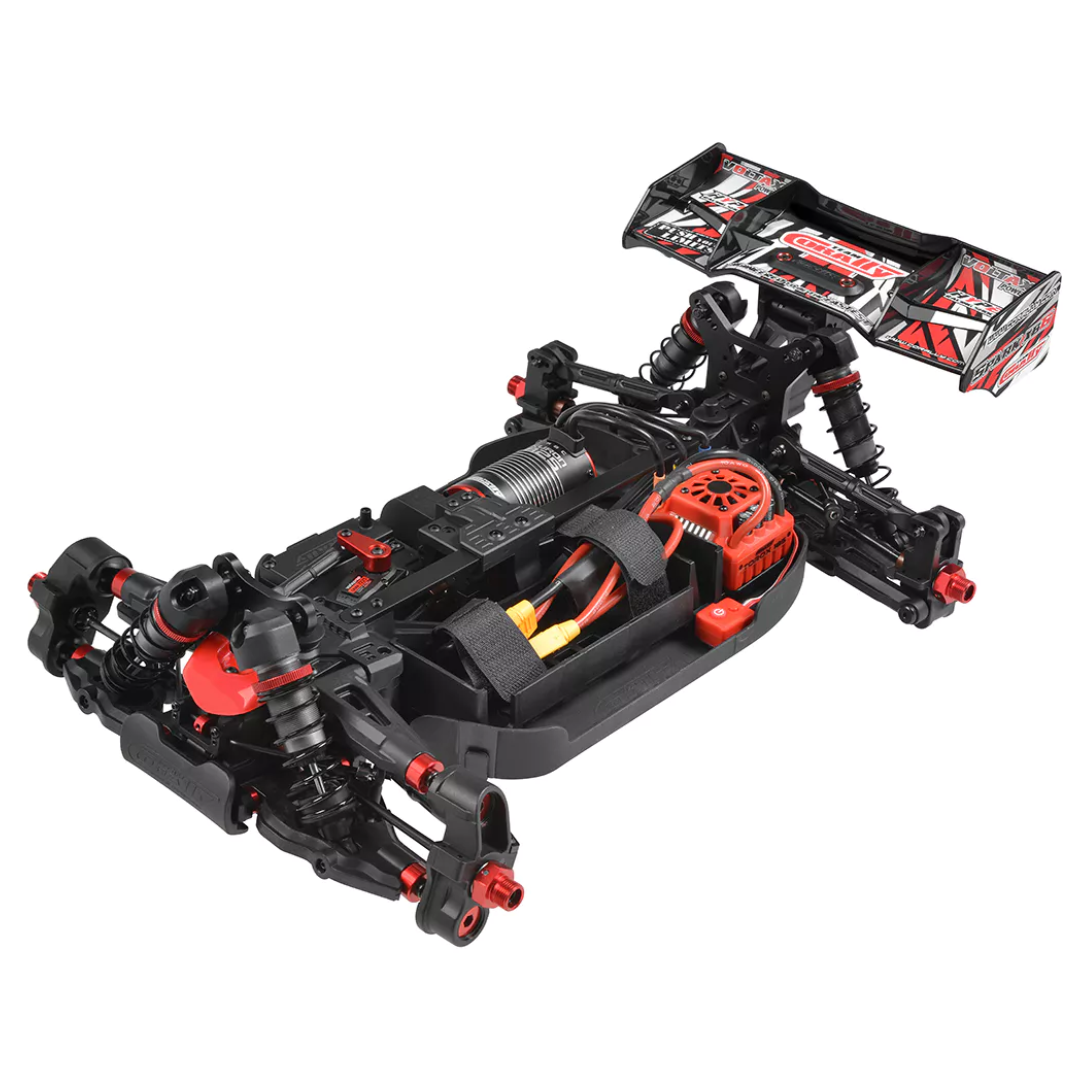

Materials and Construction

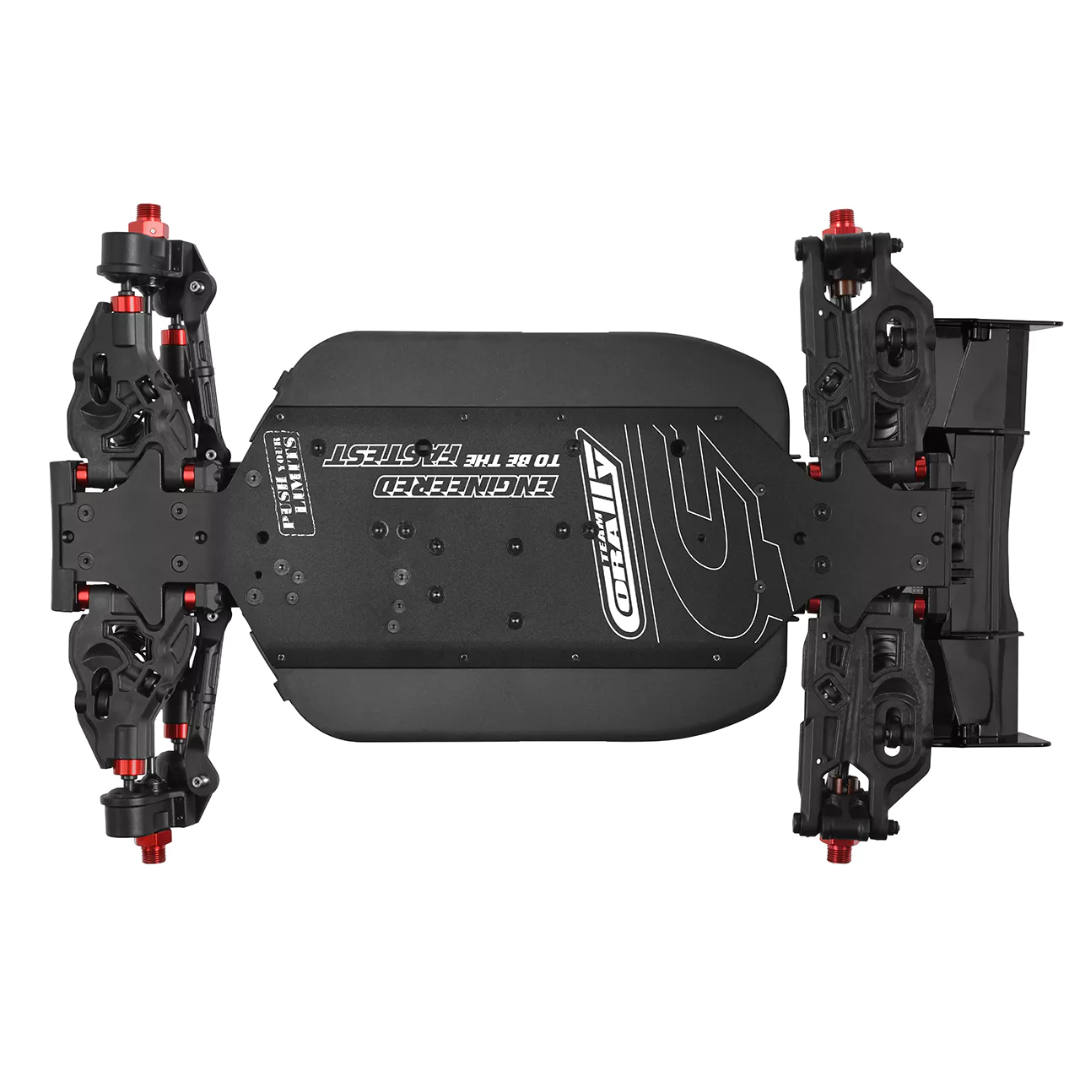

• Chassis: 3mm 6061-T6 aluminium
• Shock Towers: 5mm CNC aluminium
• Body: Pre-painted and decaled polycarbonate
• Drive Components: Hardened steel and racing S2 spring steel
• Reinforcements: Aluminium chassis braces and central plate

Includes

• 1x Team Corally SPARK XB-6 RTR Red
• 1x Kuron 2050kV brushless motor (installed)
• 1x Torox 185A ESC (installed)
• 1x CRHV-7225 steering servo (installed)
• 1x CT2R 2.4GHz transmitter
• Pre-glued buggy tyres and printed body

Important Notes

• Battery and charger not included – sold separately
• Recommended for users aged 14 and up
