Team Associated RC10T Cliff Lett RC Stadium Truck Kit 1/10 2WD 7003

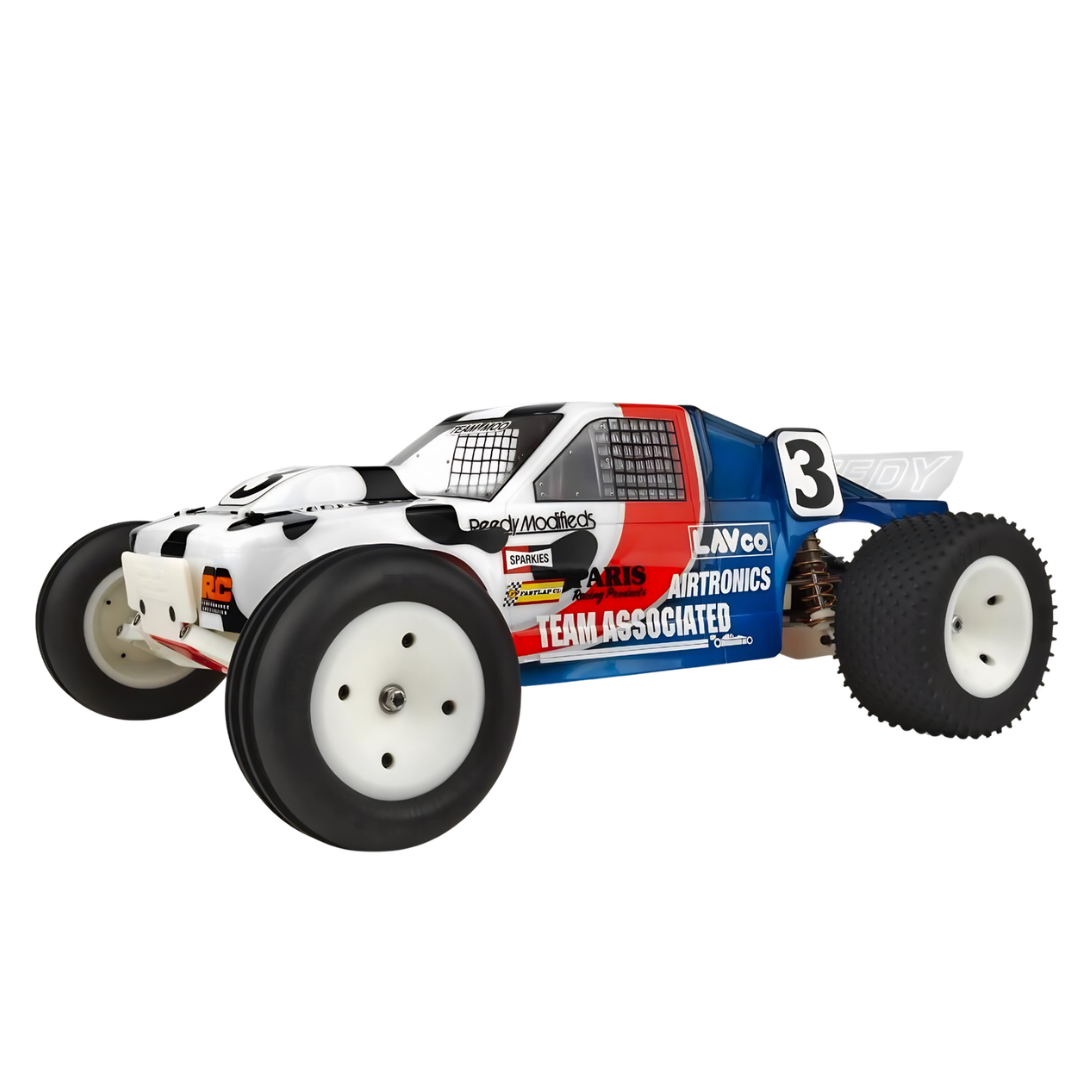

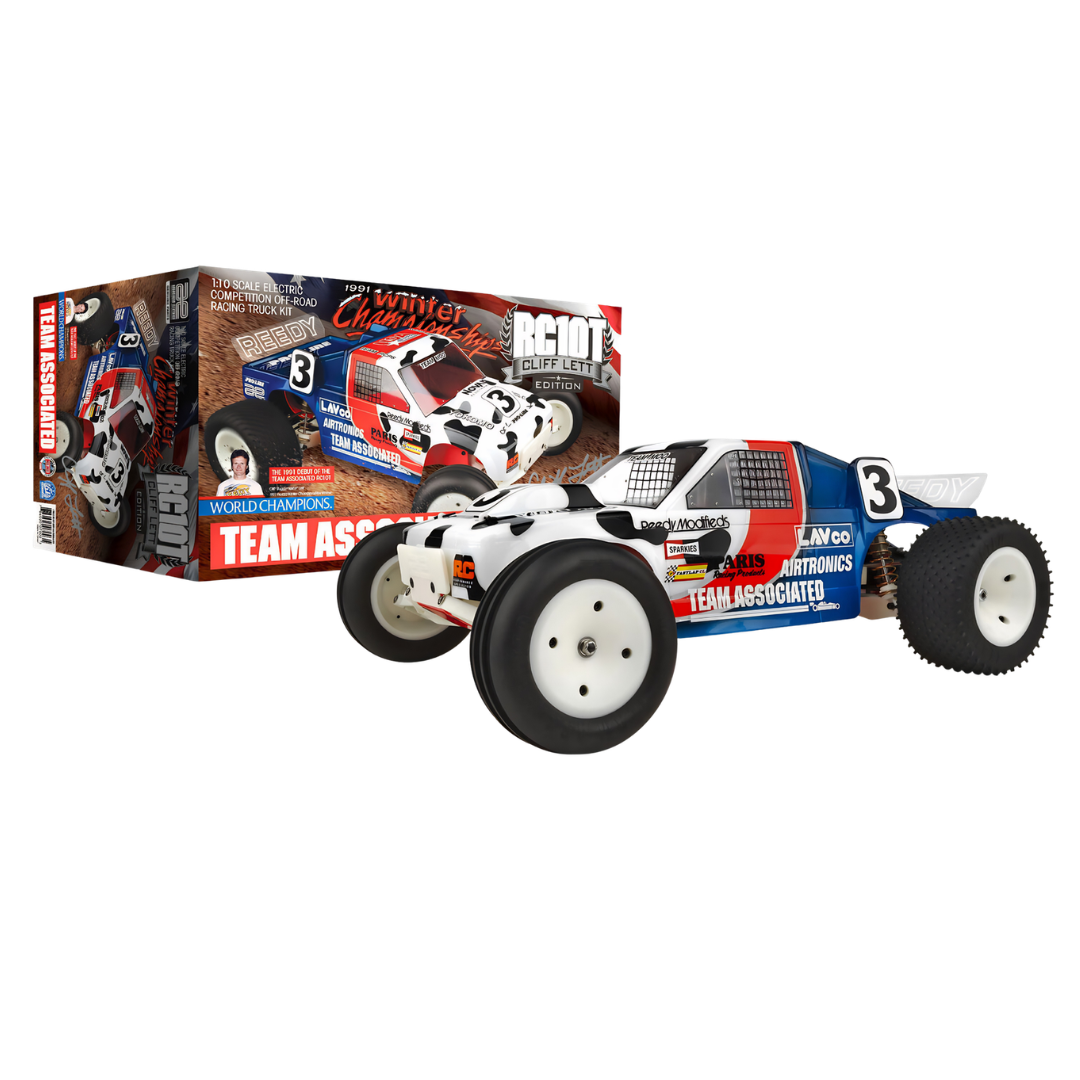

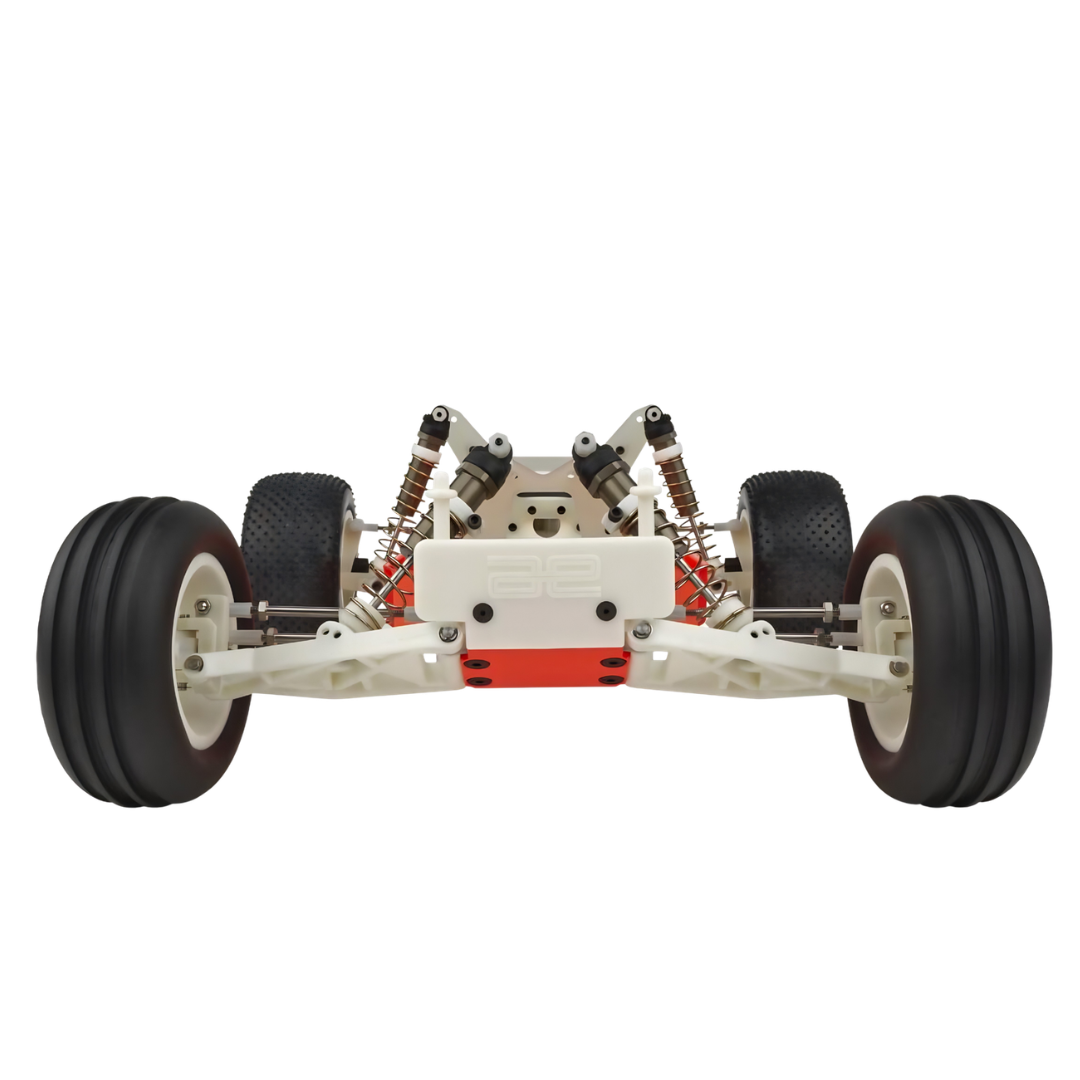

The Team Associated RC10T Cliff Lett Edition is a 1/10 scale 2WD electric stadium truck assembly kit celebrating one of the most distinctive vehicles in vintage RC racing. Inspired by Cliff Lett's championship-winning RC10T from the 1991 Florida Winter Championships, this special edition features a neon red 6061-T6 aluminium chassis, sealed Stealth A.T.C. transmission, titanium turnbuckles and authentic Team Moo graphics. With fully adjustable independent suspension, oil-filled racing shocks and full ball bearings, it offers a detailed build for classic RC enthusiasts, collectors and drivers.

Features

• Cliff Lett Championship Replica: Recreates the distinctive RC10T design associated with Team Associated's first- and second-place finishes at the 1991 Florida Winter Championships.

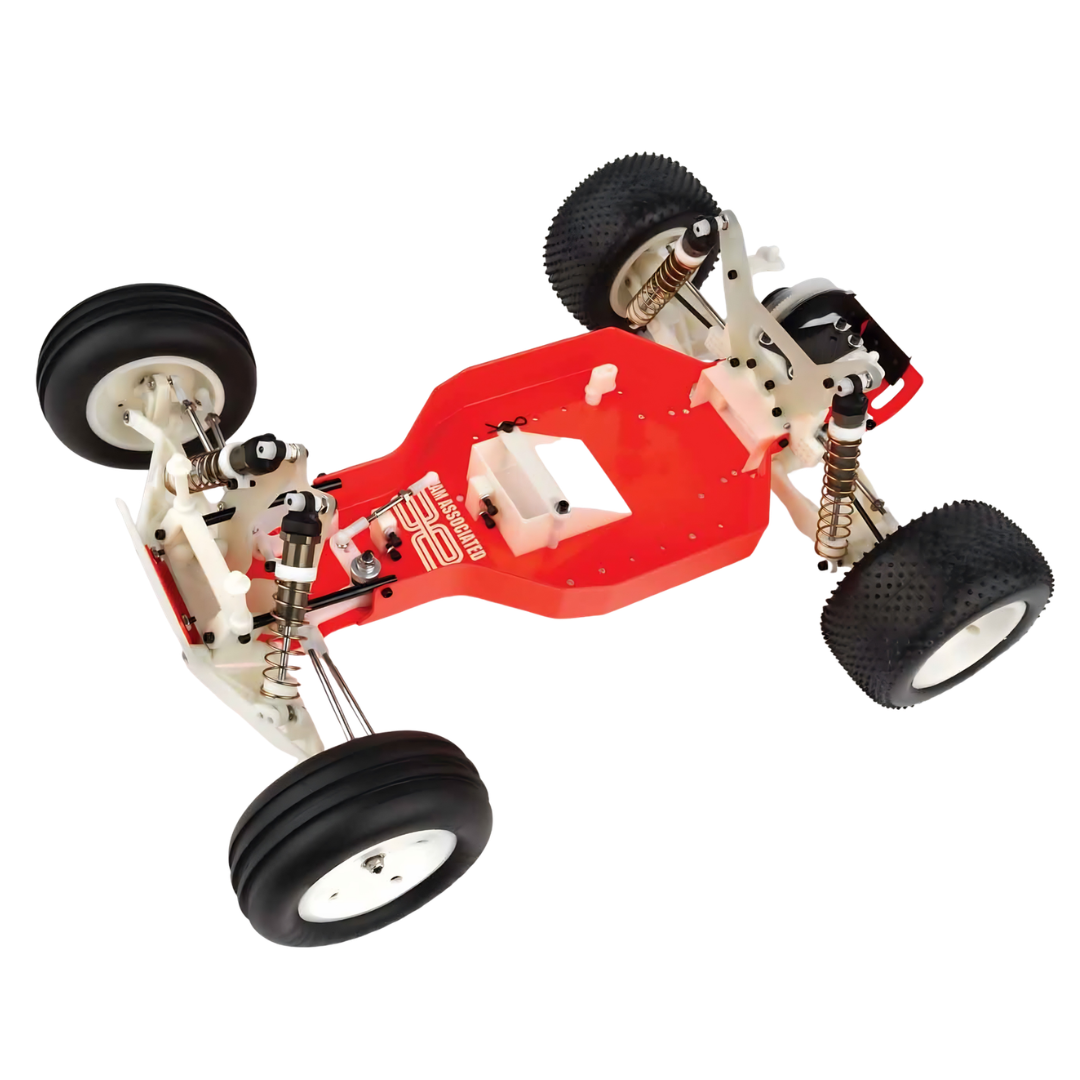

• Neon Red Aluminium Chassis: 6061-T6 aluminium monocoque tub and nose plate feature the signature neon red powder-coated finish.
• Stealth A.T.C. Transmission: Sealed three-gear gearbox provides efficient rear-wheel-drive power transfer.
• High-Torque Ball Differential: Adjustable differential assembly helps deliver controlled traction and smooth cornering.
• Adjustable Slipper Clutch: Allows drivetrain slip characteristics to be tuned for different surfaces and driving conditions.

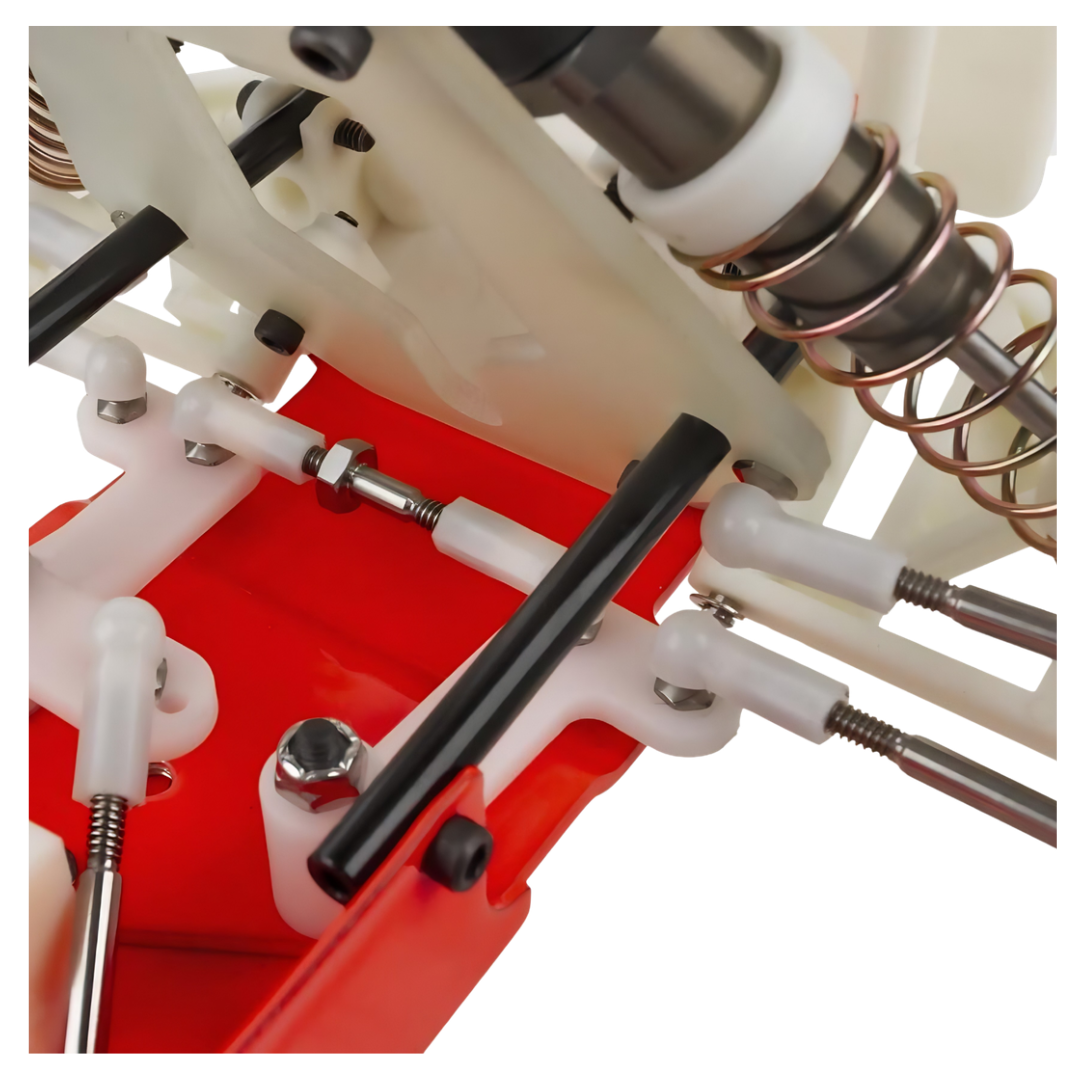

• Factory Team Titanium Turnbuckles: RCPS-style titanium turnbuckles offer durable and precise suspension adjustments.
• Carbon Fibre Transmission Brace: Reinforces the transmission assembly for improved structural rigidity.
• Four-Wheel Independent Suspension: Fully adjustable suspension with long travel supports off-road handling and setup flexibility.
• Hard-Anodised Racing Shocks: Oil-filled shock absorbers feature hard-anodised bodies, bleeder caps and white nylon shock cap locknuts.
• Heavy-Duty Fibreglass Shock Towers: Strong suspension mounting components support the truck's long-travel design.
• Full Ball Bearing Set: Precision bearings reduce drivetrain friction and support smooth operation.
• Heavy-Duty Servo Saver: Protects steering components from impacts during off-road driving.
• Classic Three-Piece Racing Wheels: Narrow front and wide rear modular wheels reproduce the distinctive original stadium truck configuration.
• Replica Off-Road Tyres: Includes narrow ribbed front tyres and wide mini-pin rear tyres for an authentic vintage racing appearance.
• Black Anodised Hardware Details: Features black nose tubes and a lightweight cut motor plate.
• Clear Polycarbonate Body: Supplied with a clear stadium truck body and rear wing for custom painting and finishing.

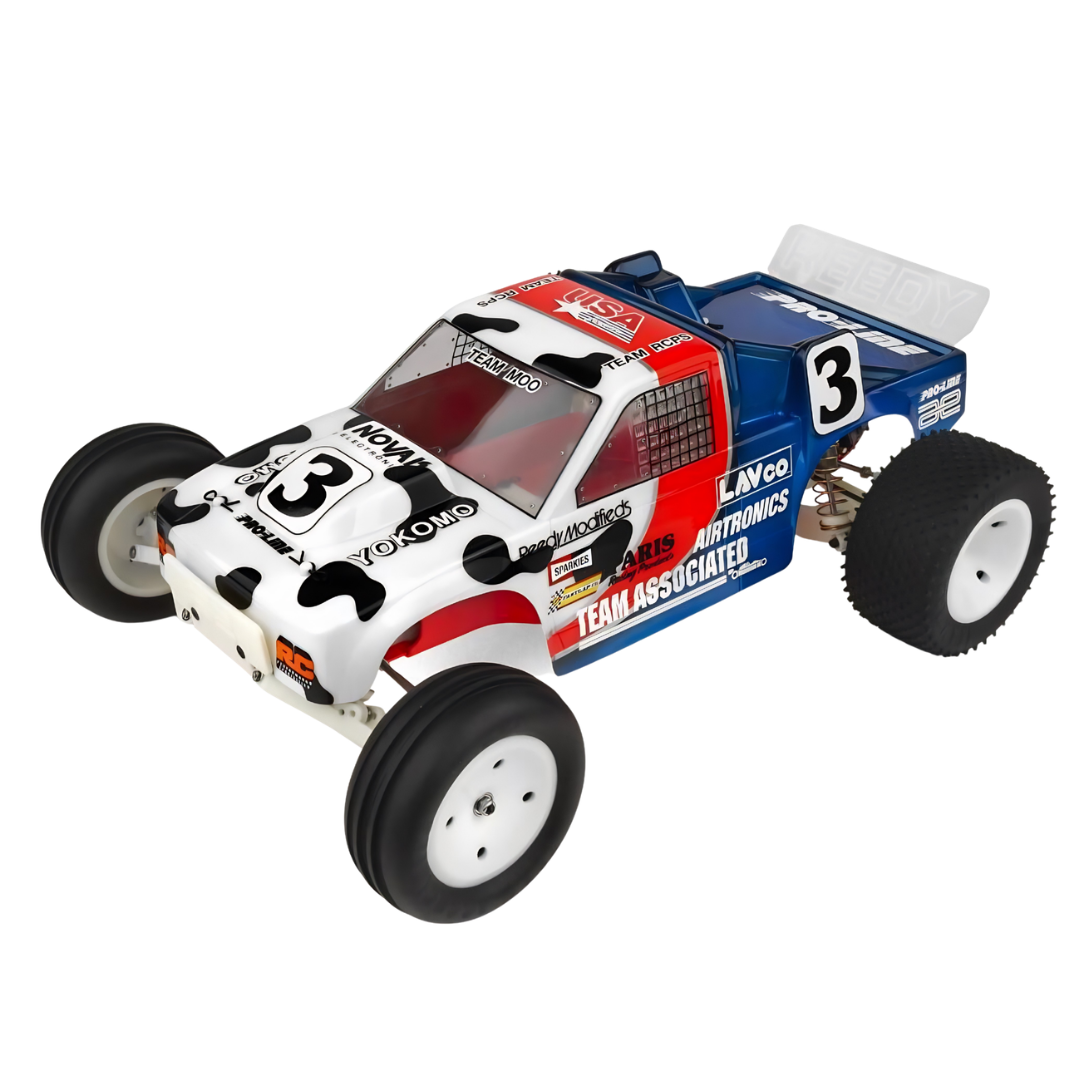

• Authentic Team Moo Decals: Includes Cliff Lett-inspired racing graphics to recreate the truck's recognisable competition appearance.

Specifications

• Brand: Team Associated
• Model: RC10T Cliff Lett Edition
• Manufacturer Part Number: 7003
• SKU: ASS7003
• Barcode: 784695070035
• Product Type: RC Stadium Truck Assembly Kit
• Scale: 1/10
• Assembly Type: Unassembled Kit
• Power Type: Electric
• Drivetrain: 2WD Rear-Wheel Drive
• Terrain Category: Off-Road

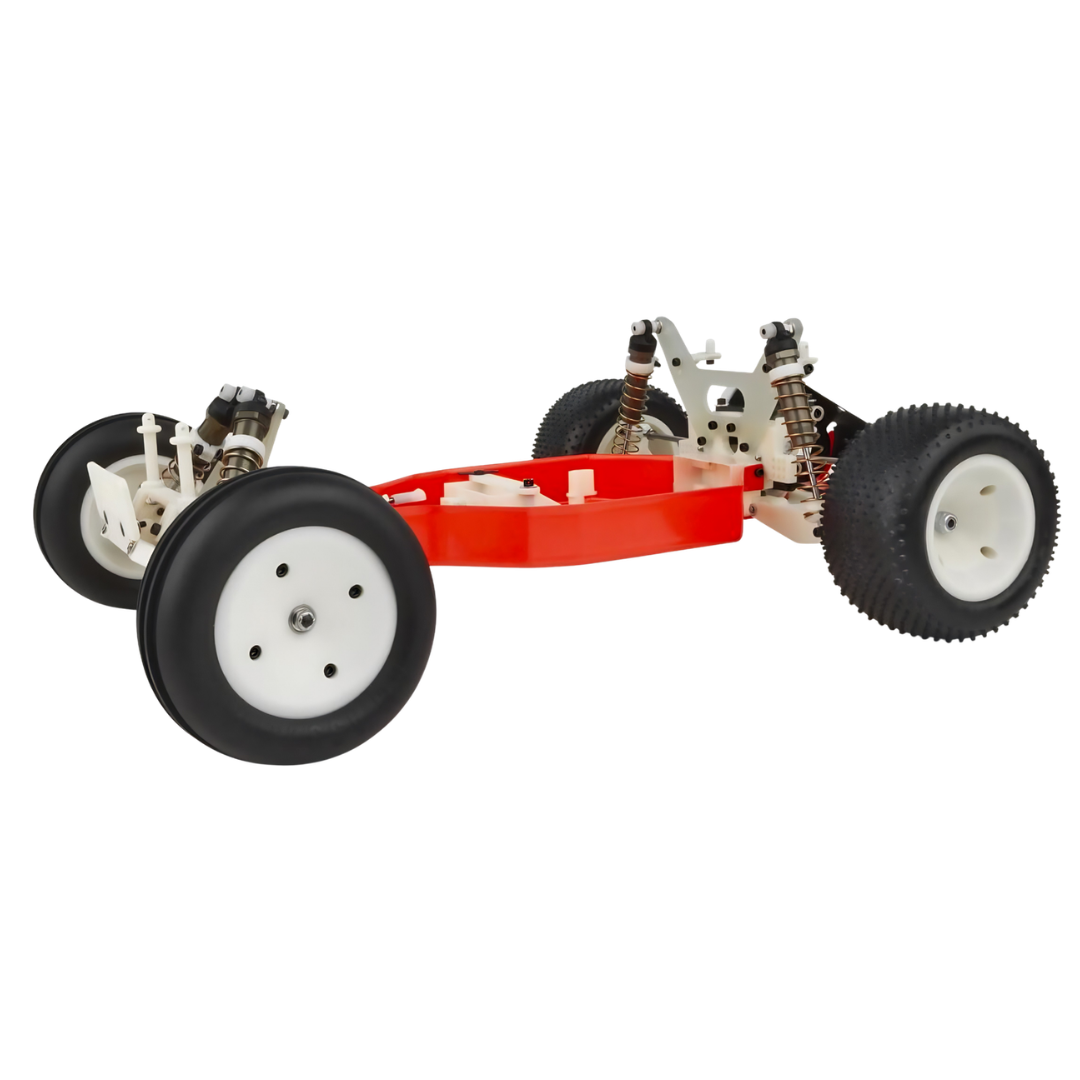

• Chassis: 6061-T6 Aluminium Monocoque Tub
• Chassis Finish: Neon Red Powder Coating
• Overall Length: 396.7mm
• Overall Width: 317.5mm
• Wheelbase: 284.5mm
• Internal Gear Ratio: 2.25:1
• Transmission: Sealed Three-Gear Stealth A.T.C.
• Differential: High-Torque Ball Differential
• Slipper Clutch: Adjustable
• Suspension: Fully Adjustable Four-Wheel Independent
• Shock Absorbers: Hard-Anodised Oil-Filled Racing Shocks with Bleeder Caps
• Shock Towers: Heavy-Duty Fibreglass
• Transmission Brace: Carbon Fibre
• Turnbuckles: Factory Team Titanium RCPS Style
• Bearings: Full Precision Ball Bearing Set
• Steering: Heavy-Duty Servo Saver
• Wheels: Three-Piece Modular Racing Wheels
• Front Tyres: Narrow Ribbed
• Rear Tyres: Wide Mini-Pin
• Body: Clear Polycarbonate Stadium Truck Body

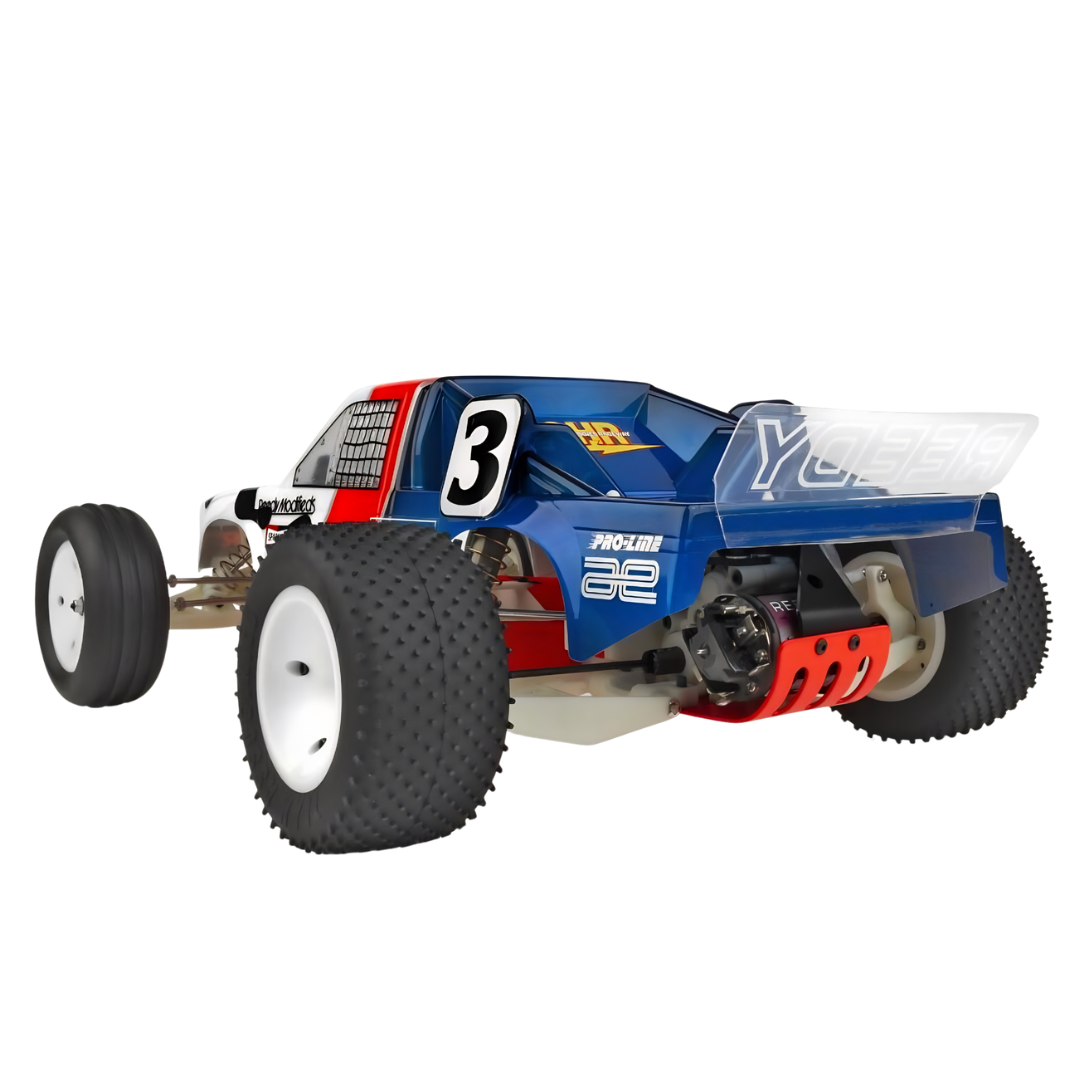

• Rear Wing: Included
• Compatible Battery Types: 6-Cell NiMH or 2S LiPo with Suitable Electronics
• Motor: 540-Size Electric Motor Required Separately
• Electronic Speed Controller: Required Separately
• Radio System and Steering Servo: Required Separately

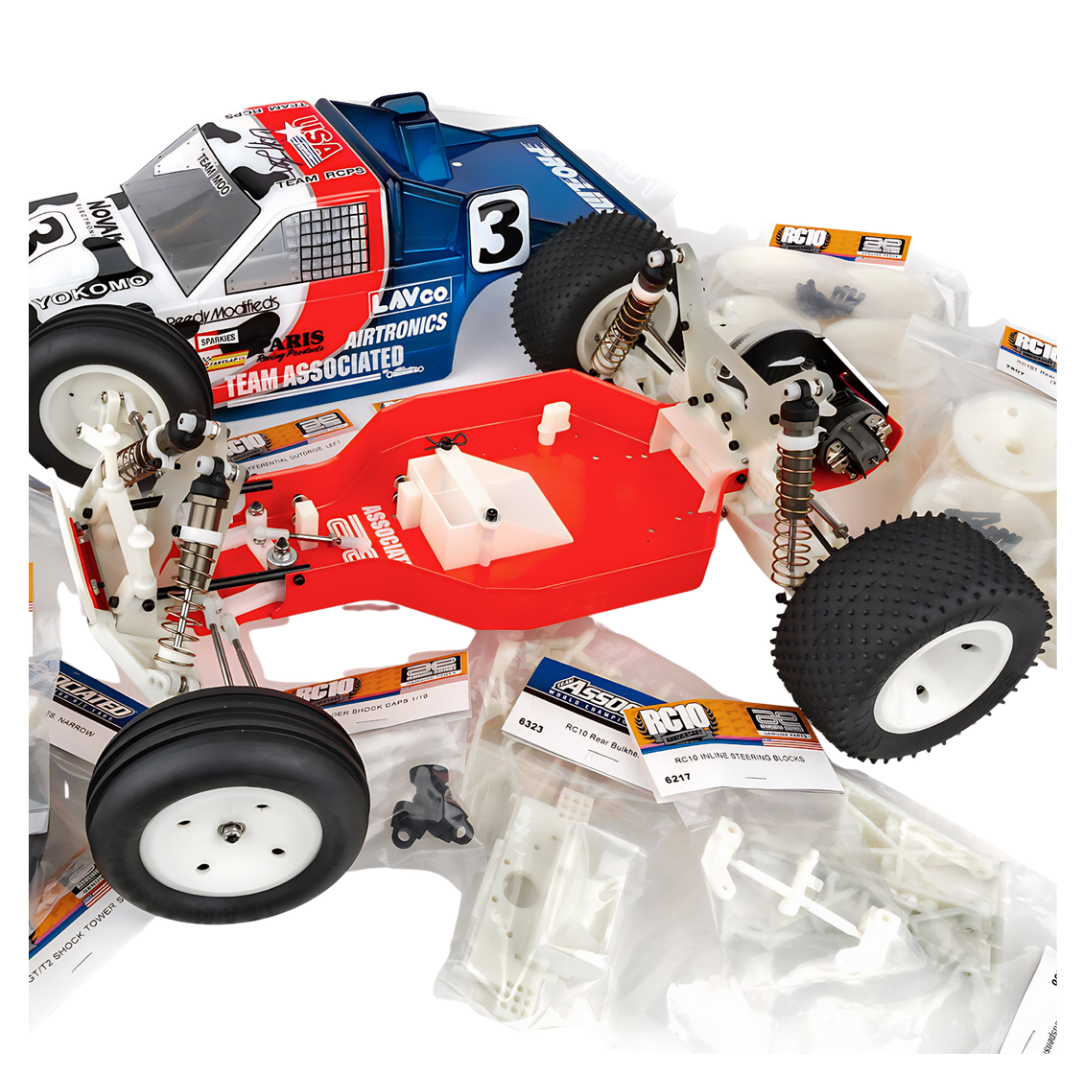

Includes

• 1 x Team Associated RC10T Cliff Lett Edition 1/10 Stadium Truck Assembly Kit
• 1 x Neon Red Powder-Coated Aluminium Tub Chassis and Nose Plate
• 1 x Clear Polycarbonate Stadium Truck Body
• 1 x Clear Rear Wing
• 1 x Authentic Team Moo / Cliff Lett Decal Sheet
• 1 x Set of Narrow Front and Wide Rear Three-Piece Racing Wheels
• 1 x Set of Ribbed Front and Mini-Pin Rear Tyres
• 1 x Stealth A.T.C. Transmission Assembly Components
• 1 x High-Torque Ball Differential and Adjustable Slipper Clutch Components
• 1 x Full Precision Ball Bearing Set
• 4 x Racing Shock Absorber Assemblies
• 1 x Carbon Fibre Transmission Brace
• 1 x Set of Factory Team Titanium Turnbuckles
• Suspension, Steering and Assembly Hardware
• Illustrated Assembly Instructions

FAQ

Is the Team Associated RC10T Cliff Lett Edition ready to run? No. This is an unassembled RC stadium truck kit. It requires construction, body painting and installation of the necessary electronics before driving.

What makes the Cliff Lett Edition different from the regular RC10T Classic? The Cliff Lett Edition recreates the championship-era truck with a neon red aluminium chassis, Factory Team titanium turnbuckles, black anodised components, carbon fibre transmission brace, narrow front tyres and authentic Team Moo graphics. It also features the Stealth A.T.C. transmission, racing shocks and full ball bearings.

Does the RC10T Cliff Lett Edition include a motor and ESC? No. A compatible 540-size electric motor and electronic speed controller must be purchased separately. The kit also requires a suitable radio system, steering servo, drive battery and charger.

Can the RC10T Cliff Lett Edition use a 2S LiPo battery? Yes. Team Associated lists compatibility with 2S LiPo or six-cell NiMH battery packs. The motor and ESC must support the selected battery chemistry and voltage.

Does the kit include the narrow front tyres and three-piece wheels? Yes. The manufacturer lists narrow ribbed front tyres, wide mini-pin rear tyres and matching three-piece racing wheels as part of the Cliff Lett Edition kit.

Important Notes

• This product is an unassembled RC kit and requires full construction before use.
• A compatible 540-size electric motor, brushed or brushless ESC, two-channel transmitter, receiver and steering servo are required separately.
• A suitable six-cell NiMH or 2S LiPo drive battery and compatible charger are also required.
• A motor pinion gear must be selected to suit the motor, gearing requirements and transmission pitch.
• Polycarbonate-compatible paint, tyre adhesive and hobby tools are required for completion.
• Additional building supplies may include thread-locking compound and suitable shock and differential lubricants as specified in the assembly manual.
• The clear body requires trimming, painting and decal application.
• Figures and promotional photographs may show painted bodies or electronic equipment not included in the unassembled kit.
• The three-piece racing wheels and replica tyres are included according to Team Associated's published kit features.
• Follow the manufacturer's instructions for transmission setup, differential adjustment, suspension assembly and electronics installation.
