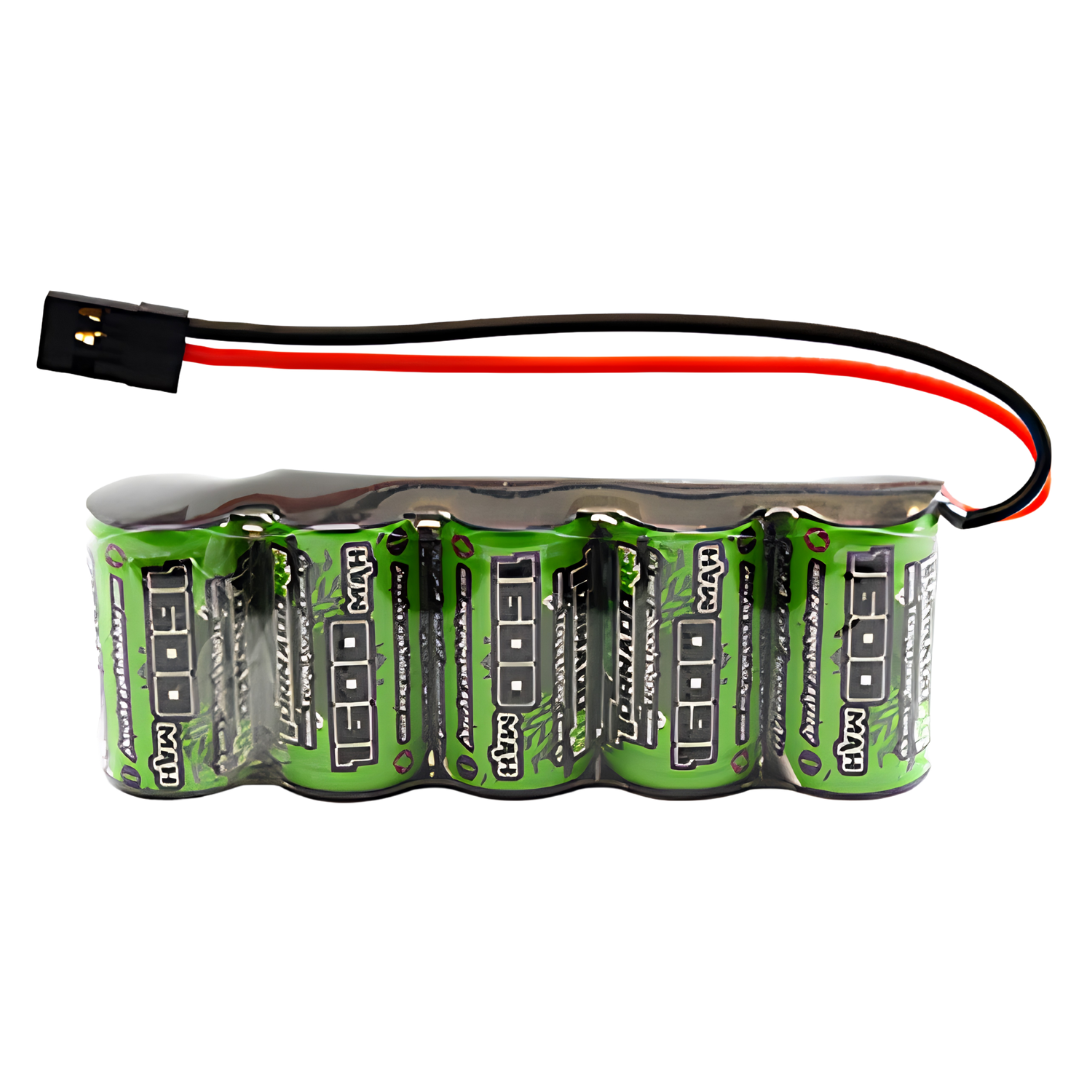

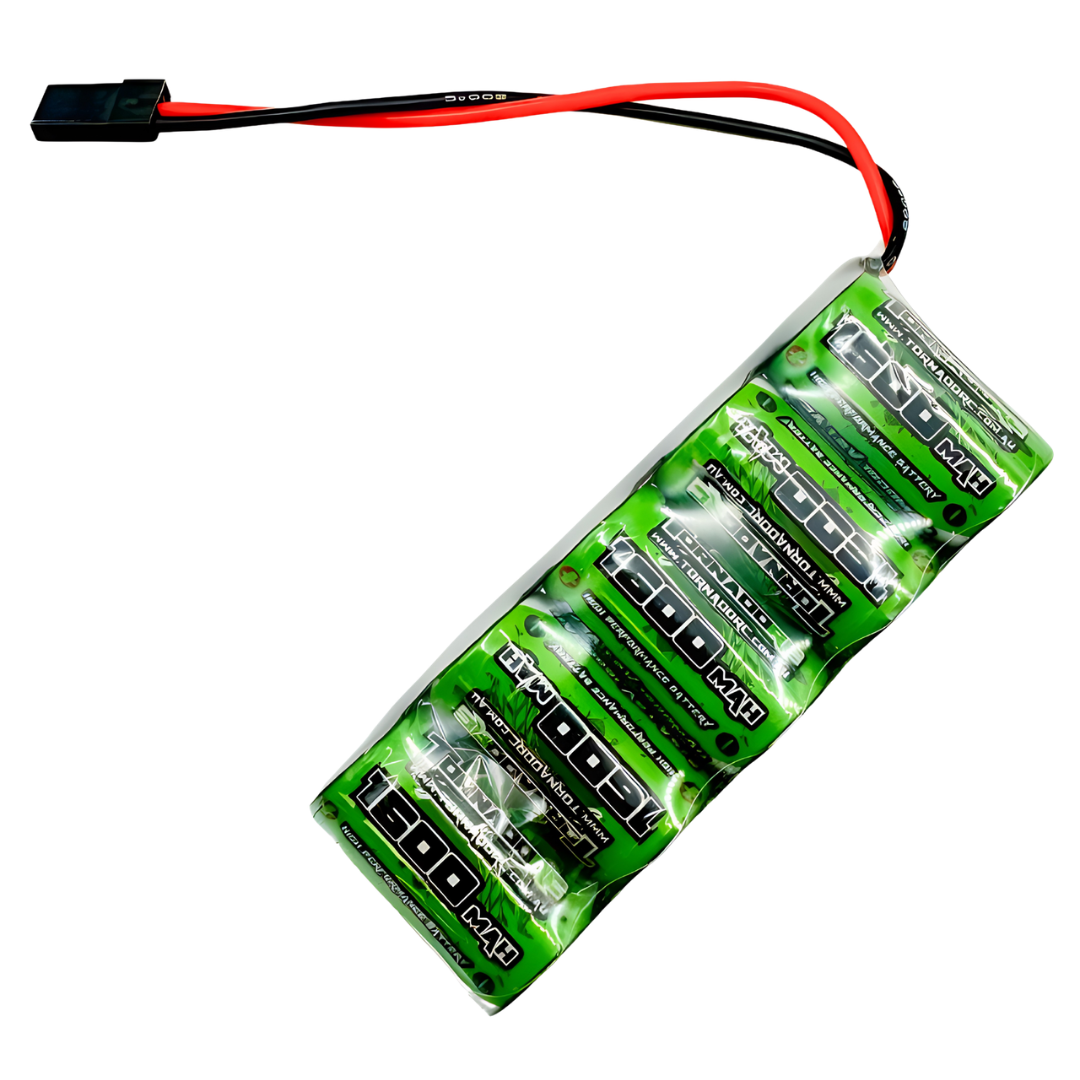

Tornado RC 1600mAh 6V NiMH Flat Receiver Battery Pack TRC-1600F

The Tornado RC TRC-1600F is a rechargeable 1600mAh 6.0V NiMH receiver battery pack designed to power compatible RC receivers and steering or throttle servos. Its five-cell flat configuration provides a practical power source for nitro and petrol RC vehicles, boats and other models requiring a separate 6V receiver battery. The compact soft-case construction makes it suitable for installation in compatible receiver battery compartments.

Features

• 1600mAh Capacity: Provides rechargeable power for compatible RC receiver and servo systems.
• 6.0V Nominal Output: Five NiMH cells deliver the nominal voltage required by many traditional RC radio systems.
• Rechargeable NiMH Chemistry: Suitable for repeated charging with a compatible NiMH battery charger.
• Flat Pack Configuration: Compact rectangular layout suits vehicle battery compartments designed for flat receiver packs.
• Five-Cell Construction: Uses five 1.2V nominal NiMH cells connected in series.
• Soft-Case Design: Protective pack covering keeps the cells together in a compact assembly.
• Receiver Battery Application: Provides a separate power supply for compatible receivers and servos without relying on a drive motor battery.
• Compact Dimensions: Approximately 84 x 30 x 17mm for installation in suitable RC battery compartments.
• Practical Maintenance Spare: Useful as a replacement or additional receiver battery for compatible RC vehicles.

Specifications

• Brand: Tornado RC
• Manufacturer Part Number: TRC-1600F
• SKU: TRC-1600F
• Barcode: 9316201662239
• Product Type: RC Receiver Battery Pack
• Battery Chemistry: Nickel-Metal Hydride (NiMH)
• Nominal Voltage: 6.0V
• Capacity: 1600mAh
• Cell Count: 5
• Nominal Cell Voltage: 1.2V
• Battery Configuration: Flat
• Battery Construction: Soft Case
• Approximate Length: 84mm
• Approximate Width: 30mm
• Approximate Height: 17mm
• Approximate Weight: 100g
• Lead Position: Side Exit
• Connector: Receiver-Type Connector; Verify Plug Style Before Installation
• Charging Requirement: Compatible NiMH Battery Charger
• Primary Application: RC Receiver and Servo Power Supply
• Quantity: 1 Battery Pack

Includes

• 1 x Tornado RC 1600mAh 6.0V Flat NiMH Receiver Battery Pack TRC-1600F

FAQ

What is the Tornado RC TRC-1600F battery used for? The TRC-1600F supplies power to compatible RC receivers and servos. It is suitable for models requiring a separate 6.0V receiver battery, including selected nitro and petrol RC vehicles.

Will this battery fit my RC car or truck? Check that your vehicle requires a 6.0V NiMH receiver pack and has enough space for the approximately 84 x 30 x 17mm flat battery. The connector must also match the receiver switch harness or charging arrangement.

What is the difference between the flat and hump receiver packs? The TRC-1600F has a flat five-cell layout, while the TRC-1600H uses a hump configuration. Both are 1600mAh 6.0V NiMH receiver packs, but their shapes suit different battery compartments.

Can this NiMH battery be charged with a LiPo charger? Only if the charger has a dedicated NiMH charging mode that supports five-cell packs. Never charge this battery using a LiPo charging program.

Is this a suitable replacement for a 7.4V LiPo receiver pack? Not automatically. This battery has a nominal voltage of 6.0V and uses NiMH chemistry. Check the vehicle's receiver, servo requirements and charging system before changing battery types.

Important Notes

• Confirm receiver voltage requirements, connector polarity and available installation space before purchasing.
• This is a receiver battery pack, not a general-purpose high-current drive battery.
• Use a compatible NiMH charger and follow the charger's recommended settings.
• Never use LiPo, LiFe or lithium-ion charging modes for this NiMH battery.
• Do not short-circuit, puncture, crush or expose the pack to excessive heat.
• Check the battery for damage, unusual heat or swelling before charging or use.
• Do not leave the battery unattended while charging.
• The exact connector style should be checked against the supplied product or packaging before installation.
• Battery charger, receiver, servo, vehicle and mounting accessories are not included.
