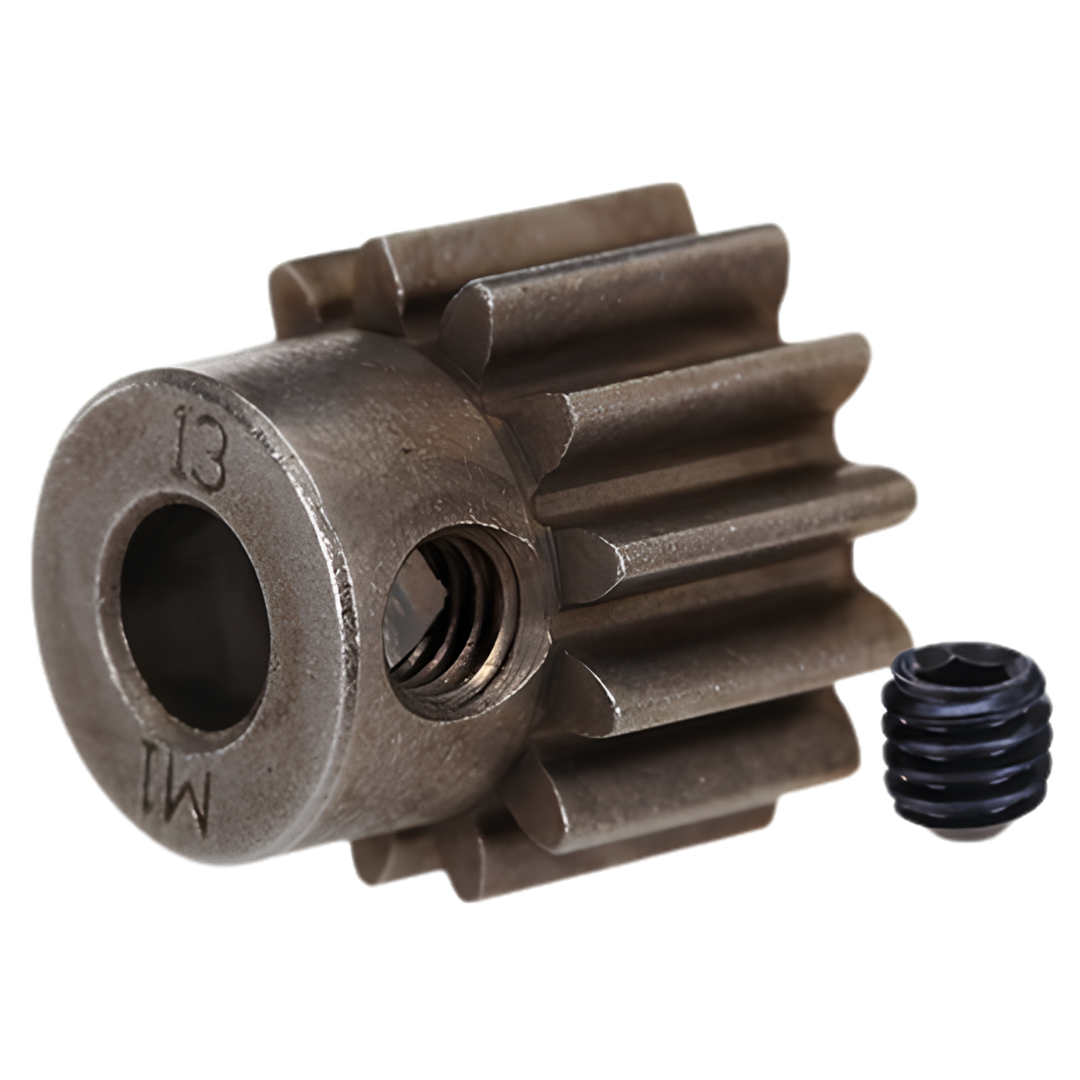

Traxxas 13T Steel RC Pinion Gear 1.0 Mod 5mm Bore X-Maxx XRT 6486X

The Traxxas 6486X is a genuine 13-tooth steel RC motor pinion gear with 1.0 Mod tooth pitch and a 5mm bore. Designed for use with compatible steel spur gears, it provides a gearing option for Traxxas X-Maxx, XRT and other supported RC vehicles when adjusting acceleration, wheel torque and top-speed characteristics.

Features

• 13-Tooth Pinion Gear: Provides a gearing option for compatible Traxxas drivetrains requiring a 13T motor pinion.
• 1.0 Mod Tooth Pitch: Designed to mesh with suitable 1.0 metric pitch steel spur gears.
• 5mm Motor Shaft Bore: Fits compatible electric RC motors with a 5mm output shaft.
• Steel Construction: Durable metal gear designed for use with compatible steel spur gears.
• Gearing Adjustment: Allows drivers to fine-tune the balance between acceleration, wheel torque and potential top speed.
• Set Screw Included: Supplied with a grub screw for securing the pinion to a compatible motor shaft.
• Genuine Traxxas Part: Original Traxxas replacement and optional gearing component.
• Traxxas Vehicle Applications: Listed for selected X-Maxx, XRT and E-Revo VXL Brushless models, subject to the vehicle's gearing configuration.

Specifications

• Brand: Traxxas
• Manufacturer Part Number: 6486X
• SKU: 6486X
• Product Type: RC Motor Pinion Gear
• Gear Tooth Count: 13T
• Gear Pitch: 1.0 Mod
• Motor Shaft Bore: 5mm
• Material: Steel
• Compatible Spur Gear Material: Steel
• Mounting Method: Set Screw
• Quantity: 1 Pinion Gear
• Manufacturer-Listed Applications: Selected Traxxas X-Maxx, XRT and E-Revo VXL Brushless Vehicles
• Application: Replacement and Optional RC Drivetrain Gearing

Includes

• 1 x Traxxas 13T 1.0 Mod Pinion Gear with 5mm Bore
• 1 x Pinion Gear Set Screw

FAQ

Will the Traxxas 6486X fit a 5mm motor shaft? Yes. The pinion has a 5mm bore and is designed for compatible motors with a 5mm output shaft. The vehicle must also use a suitable 1.0 Mod steel spur gear and have sufficient adjustment for correct gear mesh.

Can the Traxxas 6486X be used with a plastic spur gear? No. Traxxas specifies this pinion for use with steel spur gears only. OZRC recommends following the vehicle's official gearing recommendations rather than pairing it with an unsupported plastic spur gear.

Will a 13T pinion increase acceleration or top speed? Compared with a larger pinion on the same spur gear, a 13T pinion generally provides lower gearing, improving wheel torque and acceleration while reducing theoretical top speed. Actual performance depends on the complete drivetrain, motor and battery setup.

Does this pinion fit every Traxxas X-Maxx or XRT? Traxxas lists 6486X for selected X-Maxx and XRT models. However, compatibility depends on the vehicle version, motor shaft, spur gear and available gear mesh adjustment. Check the model-specific parts list and gearing chart before installation.

Important Notes

• Designed for use with compatible 1.0 Mod steel spur gears only.
• Requires a compatible 5mm motor shaft. It will not directly fit a different shaft diameter.
• Check the vehicle manual for supported pinion and spur combinations before installation.
• Set the gear mesh correctly. Excessively tight or loose meshing can cause premature gear wear or drivetrain damage.
• Secure the included set screw against the motor shaft flat where applicable and follow the motor manufacturer's installation recommendations.
• Changing the pinion size affects vehicle performance and motor load. Check motor and ESC temperatures after gearing changes.
• This package contains one pinion gear and one set screw. Spur gear, motor and installation tools are not included.
