Traxxas TRX-4 2021 Ford Bronco Trail RTR 1/10 4WD RC Rock Crawler Red 92076-4

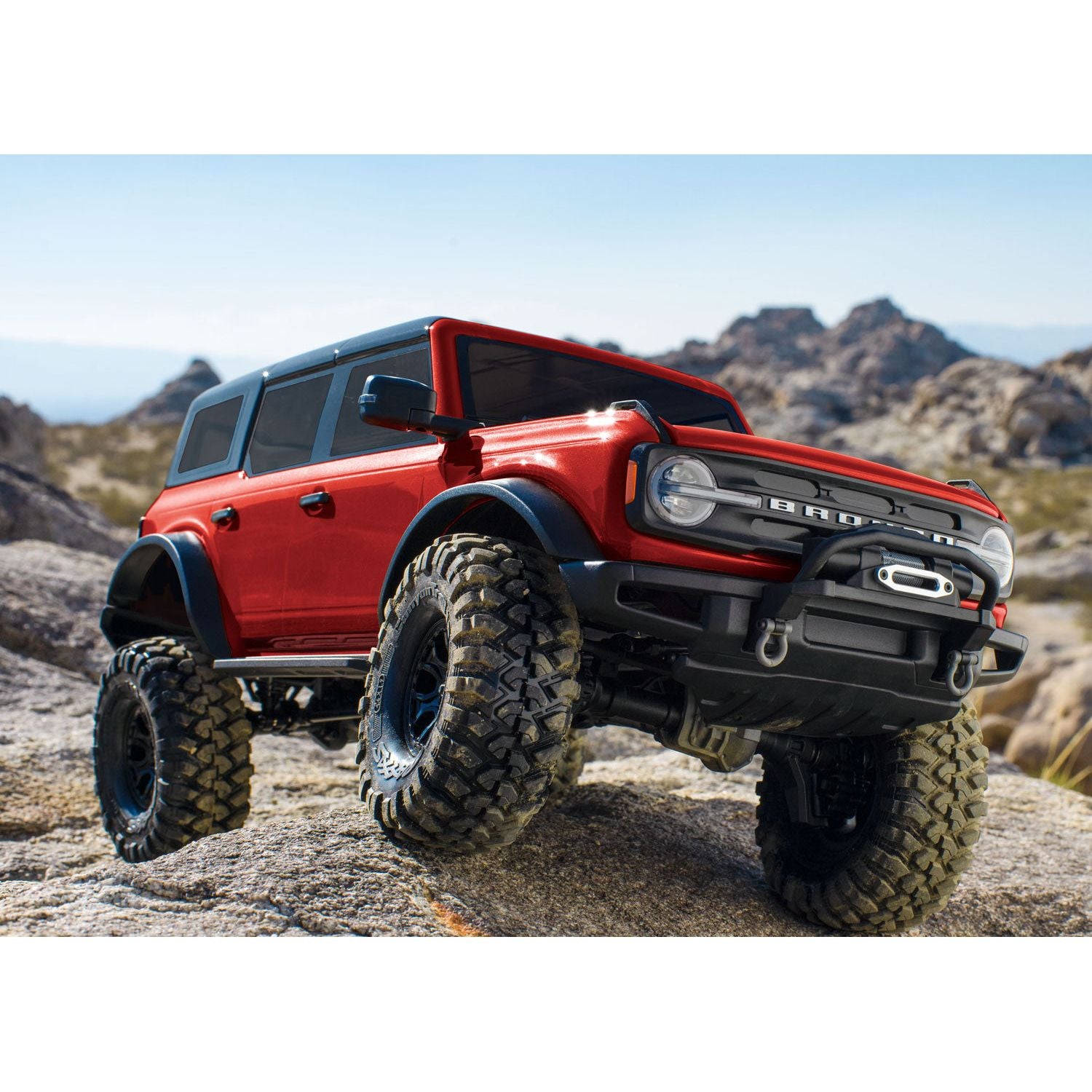

Take on technical climbs, rocky trails and muddy tracks with the Traxxas TRX-4 2021 Ford Bronco. This ready-to-run 1/10 scale RC trail truck combines an officially licensed Bronco body with the proven capability of the full-feature TRX-4 platform.

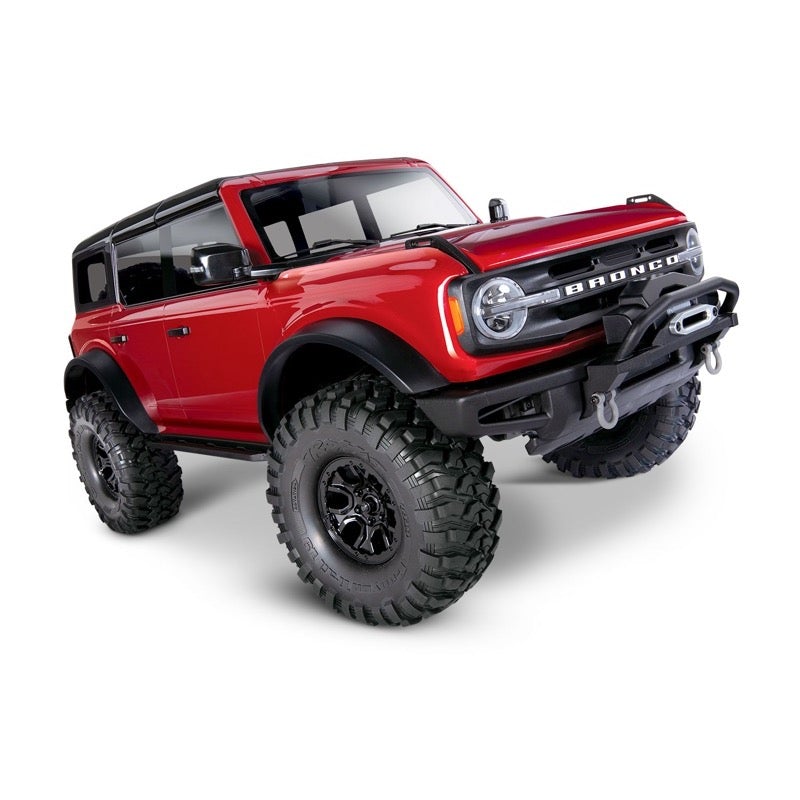

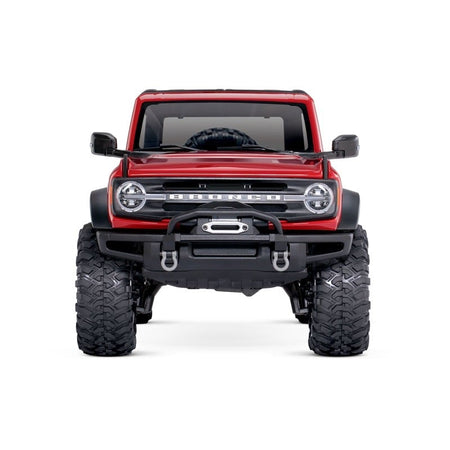

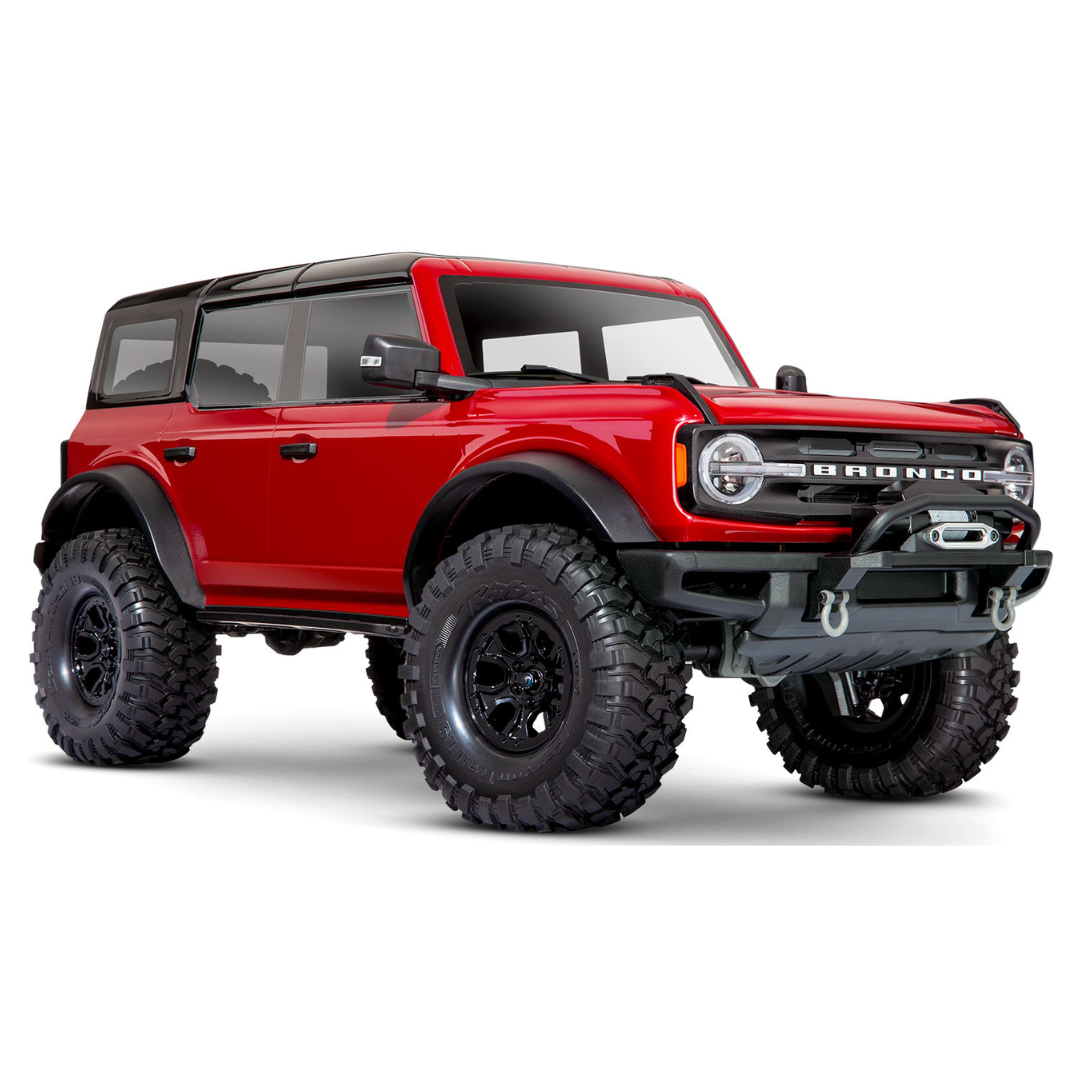

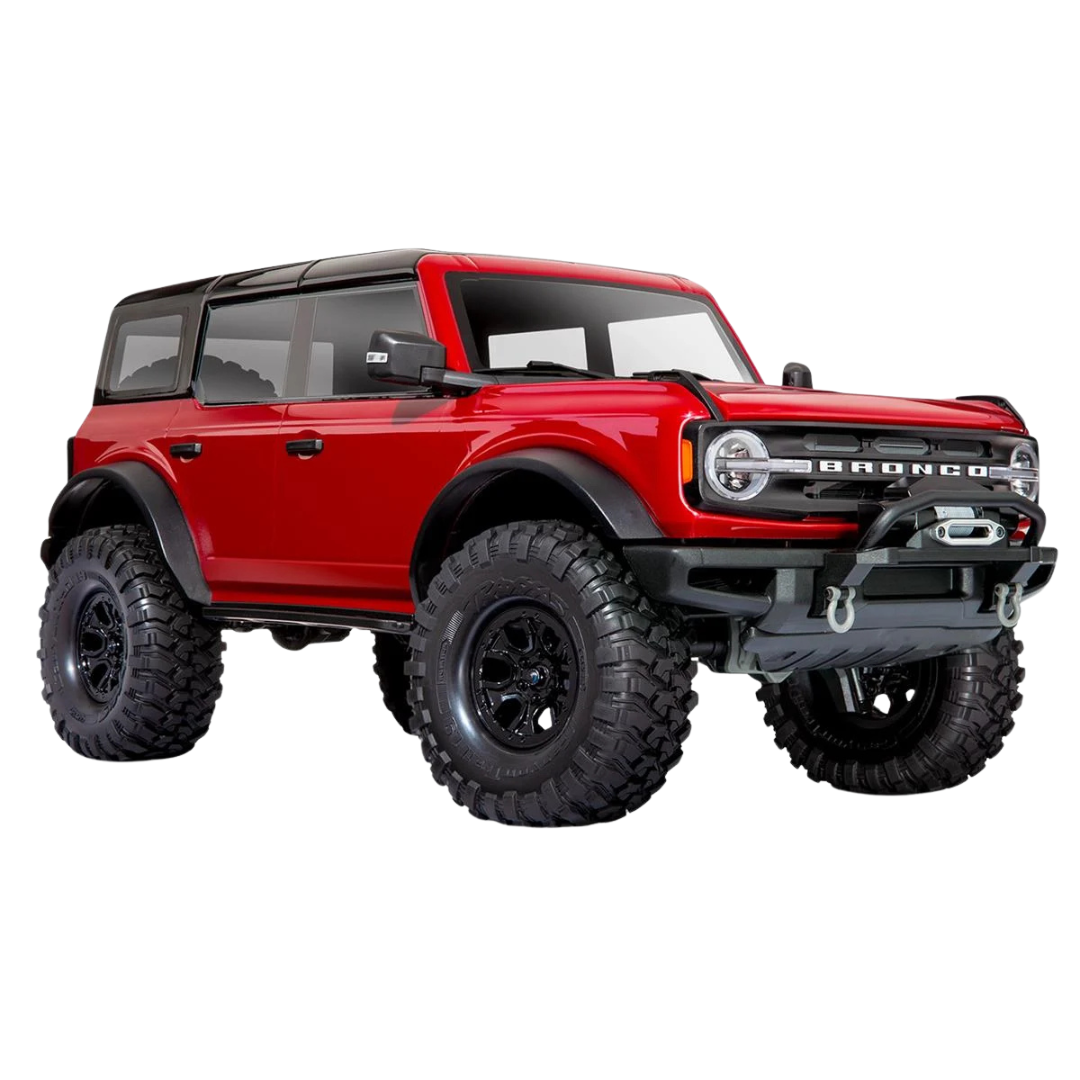

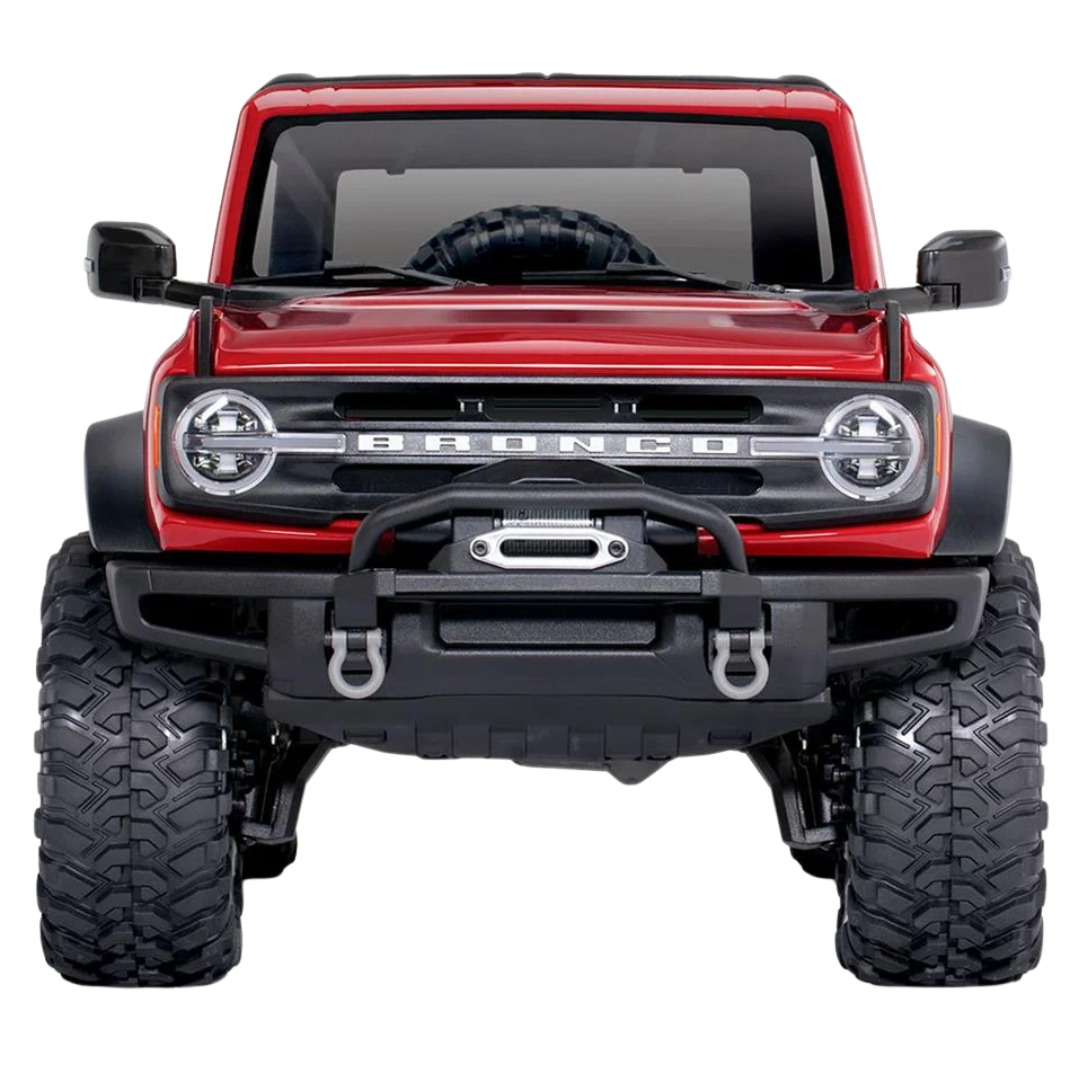

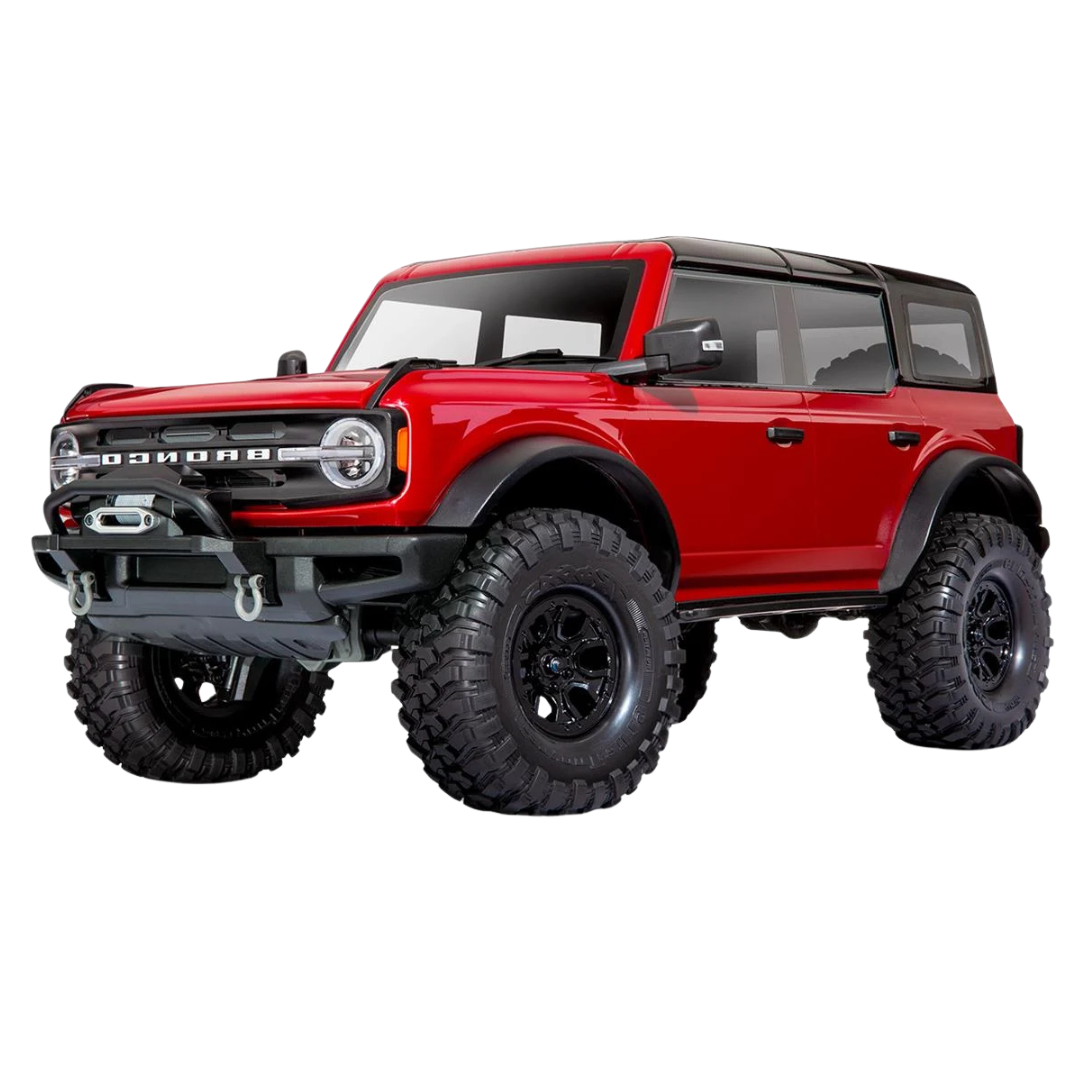

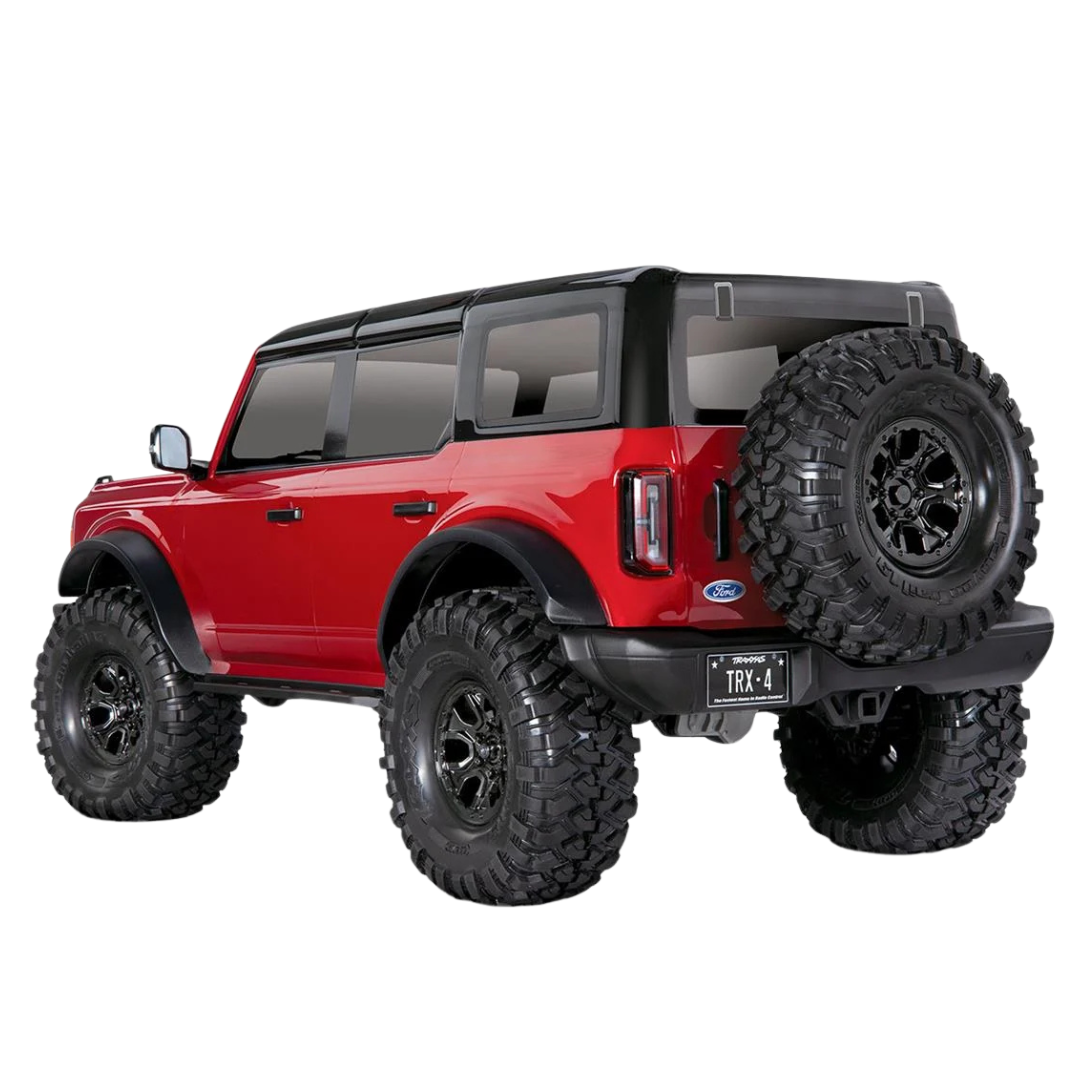

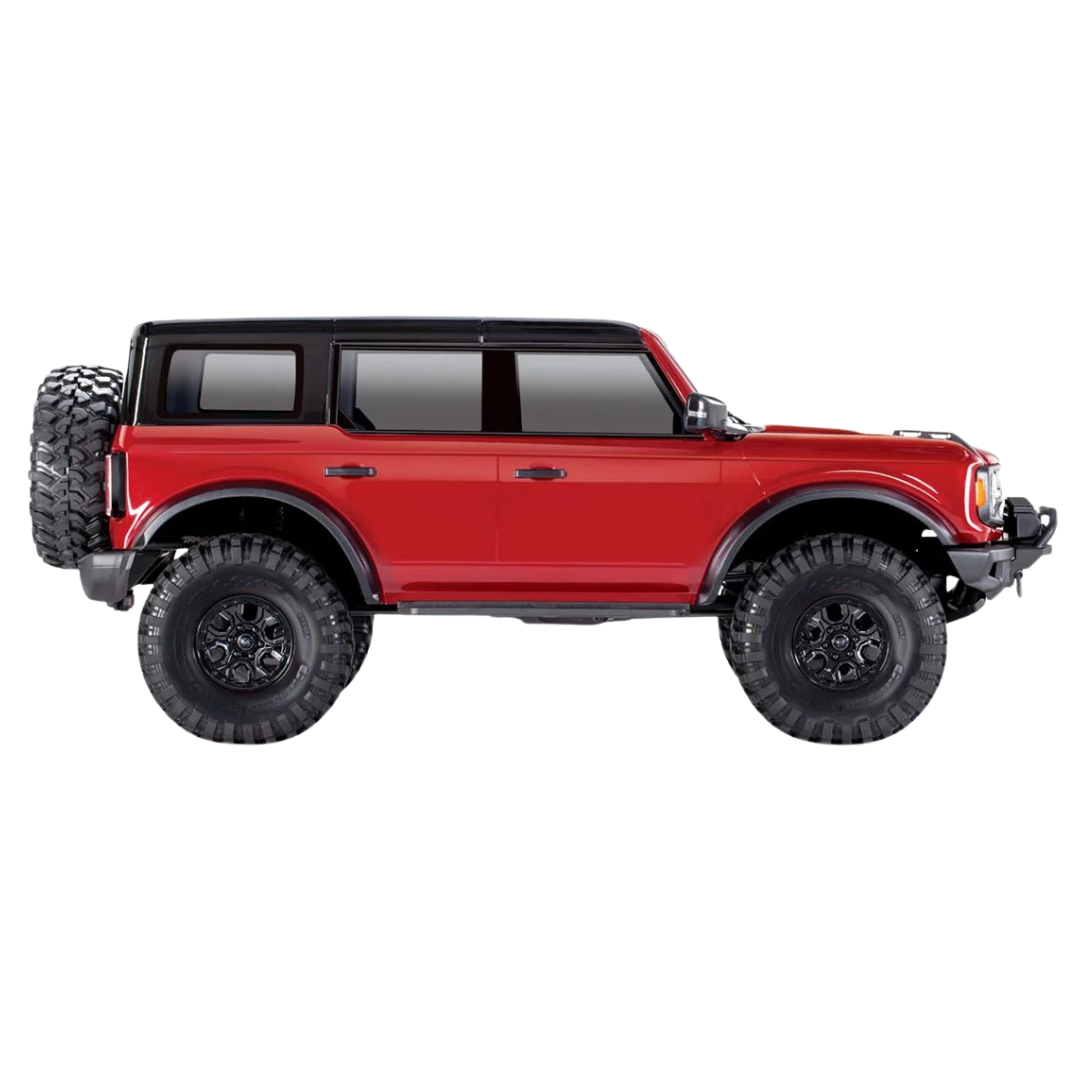

The highly detailed red Bronco body features a concealed clipless mounting system, clear windows, moulded scale accessories and replica black wheels. Underneath, the steel ladder-frame chassis uses portal axles, remotely locking front and rear differentials and a transmitter-operated two-speed transmission for adaptable performance across changing terrain.

A waterproof XL-5 HV electronic speed controller and Titan 550 21-turn brushed motor provide smooth low-speed control and dependable trail power. The included TQi four-channel radio operates the steering, throttle, transmission and differential locks, while cruise control helps maintain a steady pace during longer trail sessions.

Features

• Officially licensed 2021 Ford Bronco body
• Red body with contrasting black roof, guards and exterior trim
• Concealed clipless body-mounting system
• Clear windows and detailed moulded exterior accessories
• Replica black 2021 Ford Bronco wheels

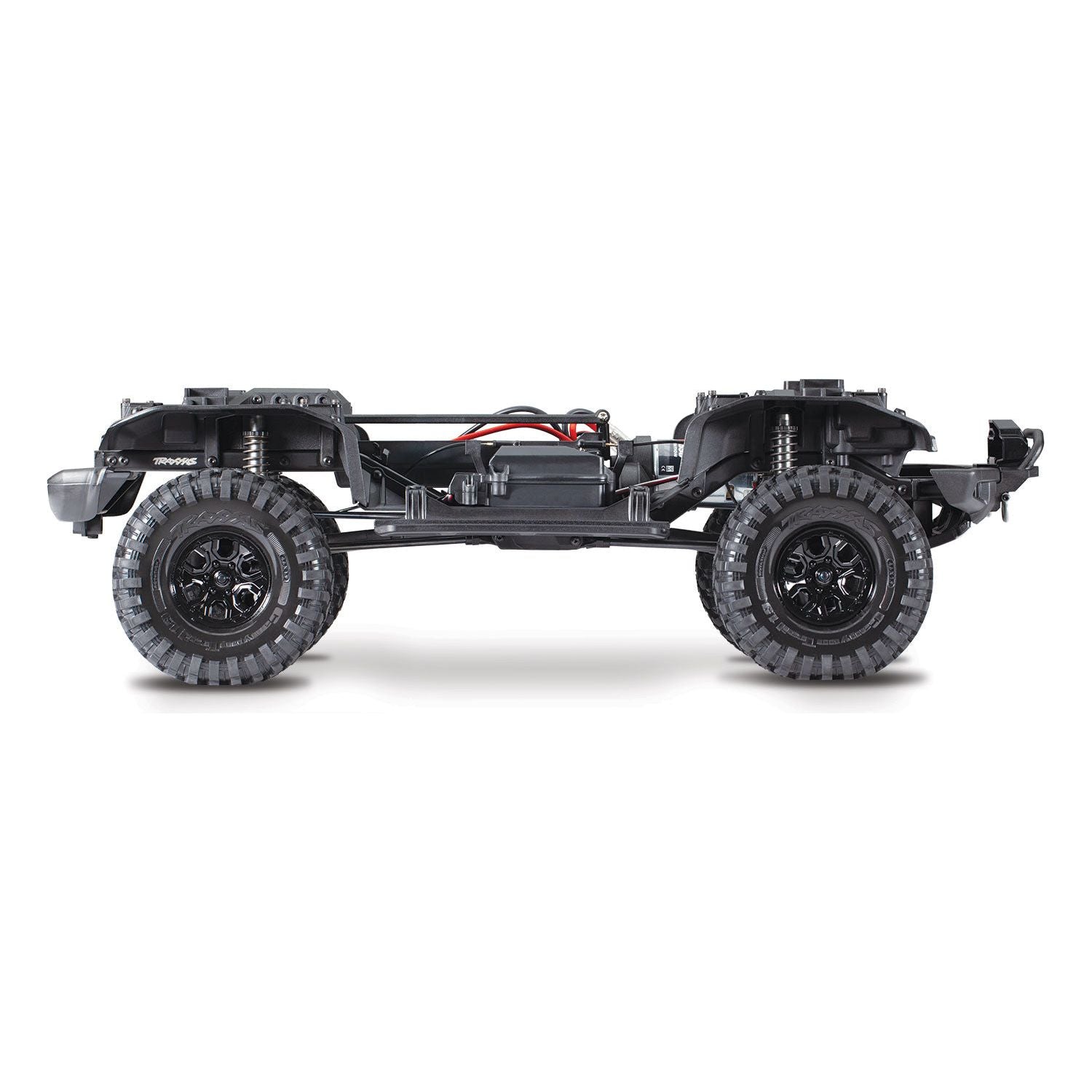

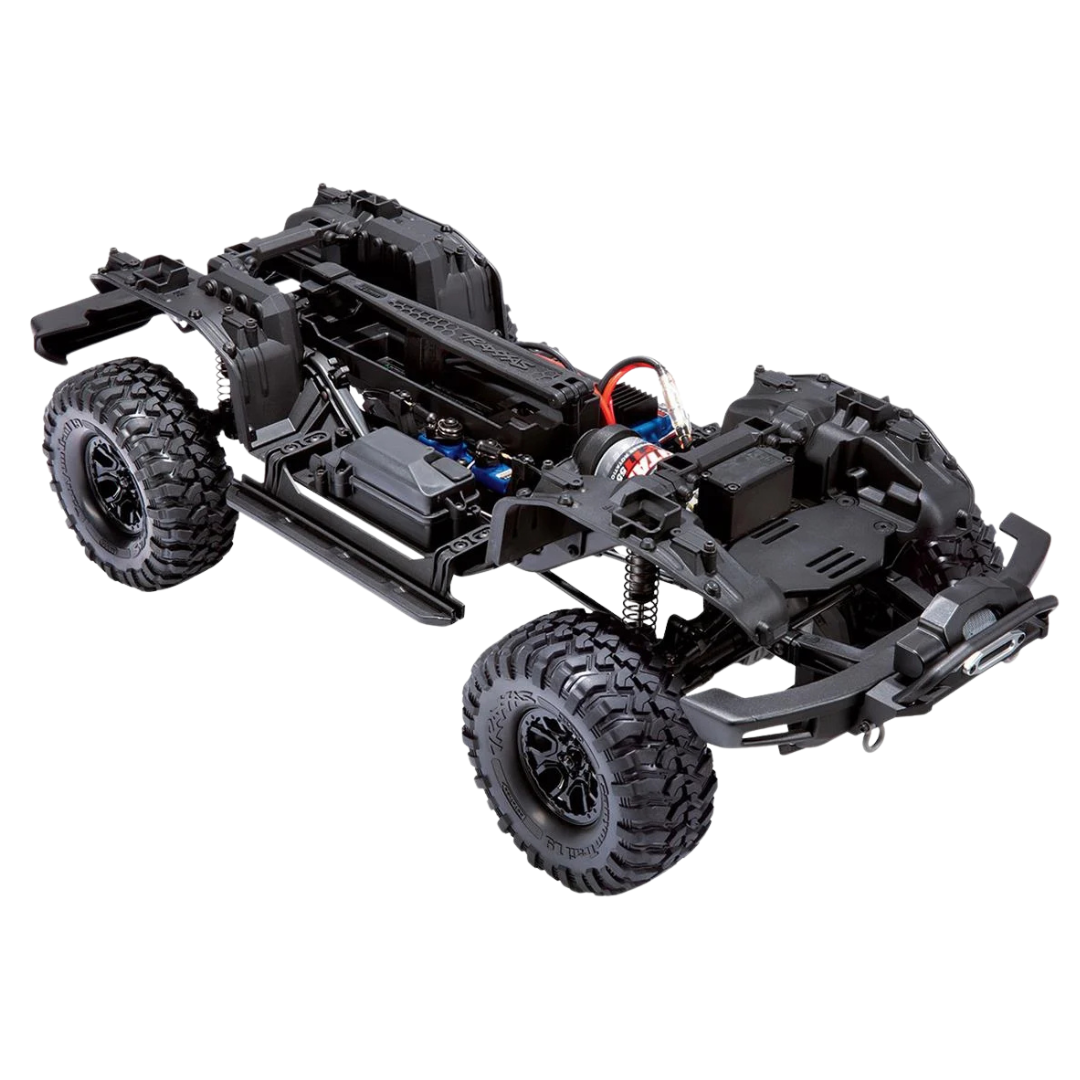

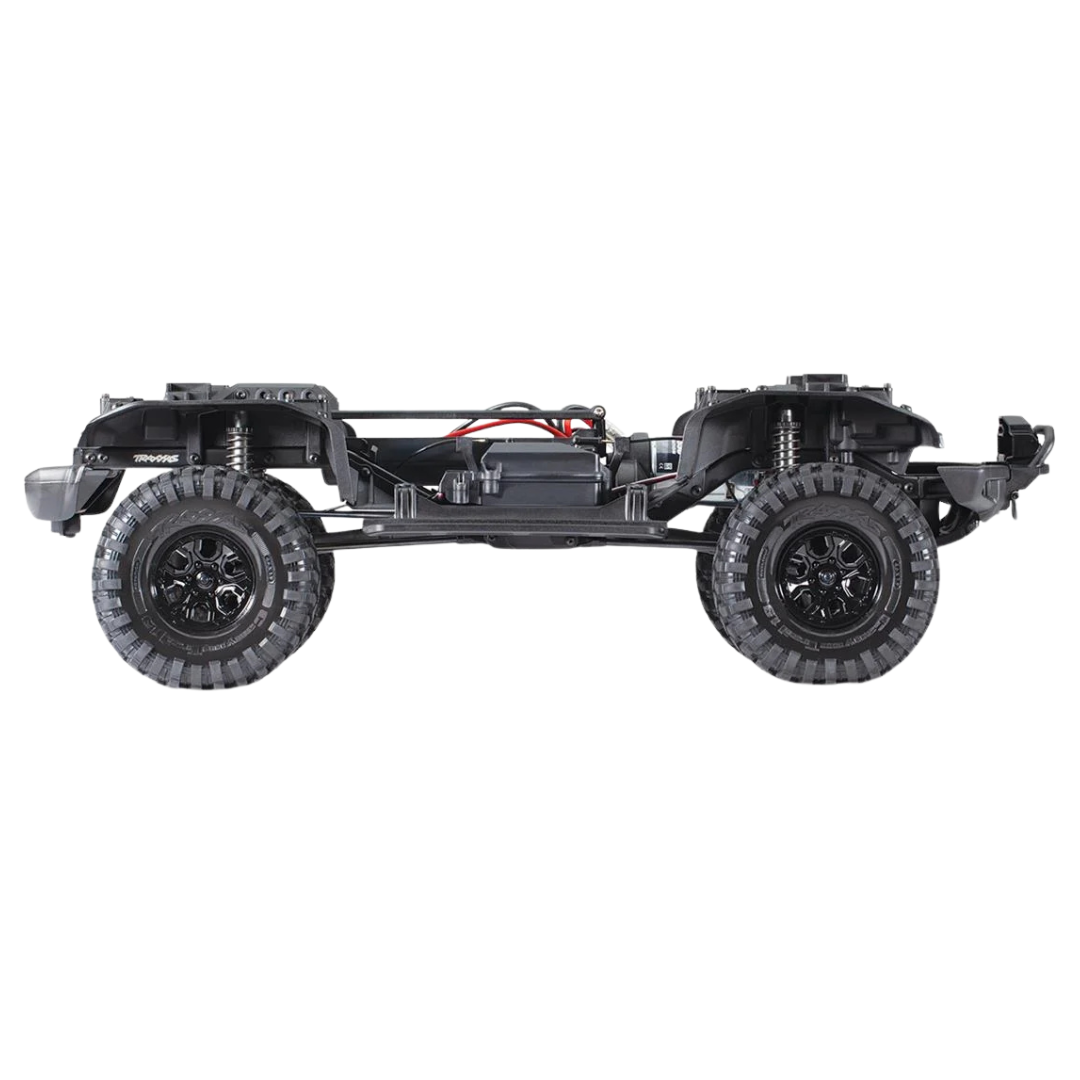

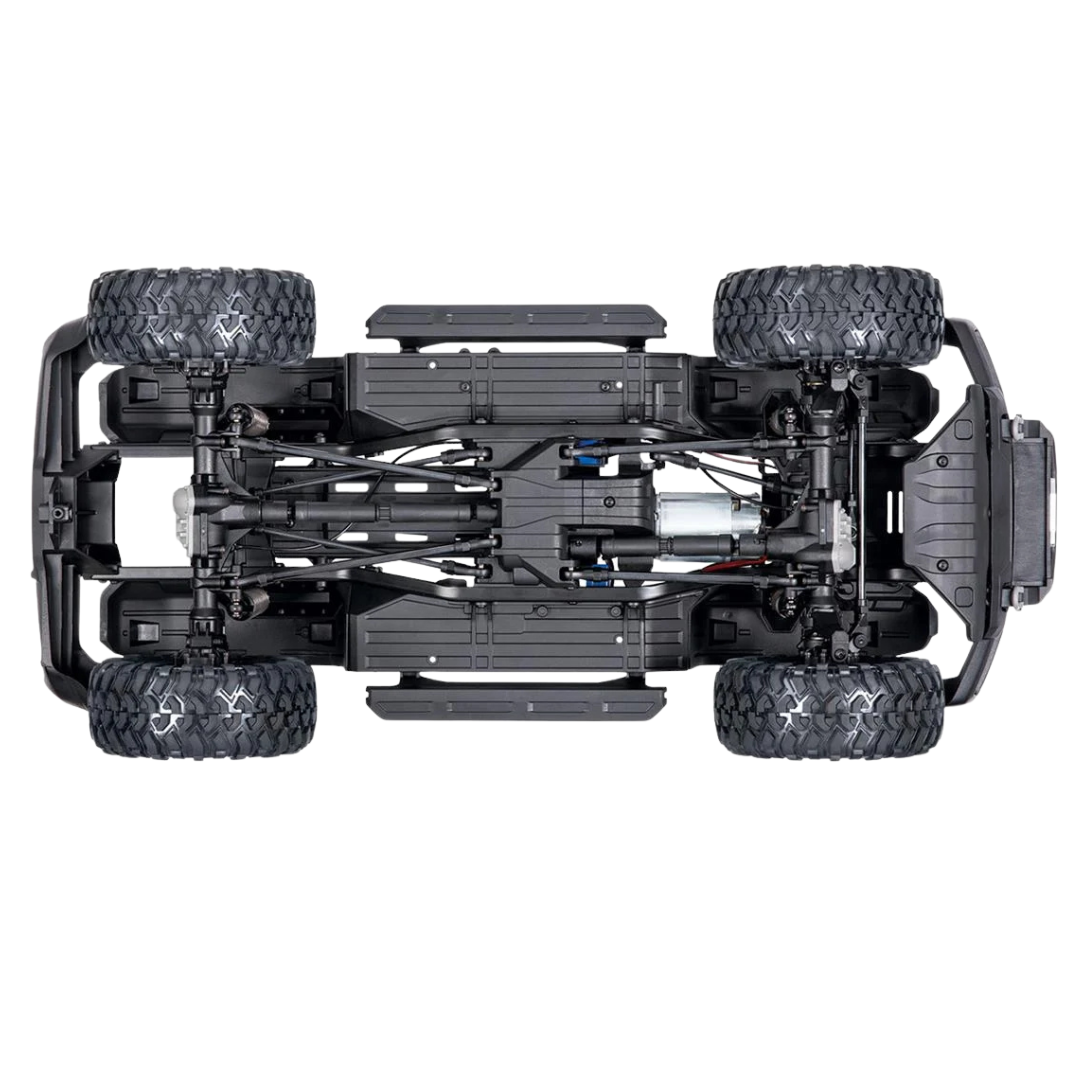

• Full-feature Traxxas TRX-4 steel ladder-frame chassis
• Full-time shaft-driven four-wheel drive
• Portal axles increase centre ground clearance
• Portal reduction gears reduce drivetrain torque twist
• Remote-locking front and rear T-Lock differentials
• Cable-actuated steel differential locking mechanisms
• Transmitter-operated two-speed high and low transmission
• Steel transfer-case gears
• Steel front CV driveshafts
• Hardened-steel rear axle shafts
• Heavy-duty 6mm wheel stub axles
• Metal suspension links with heavy-duty rod ends

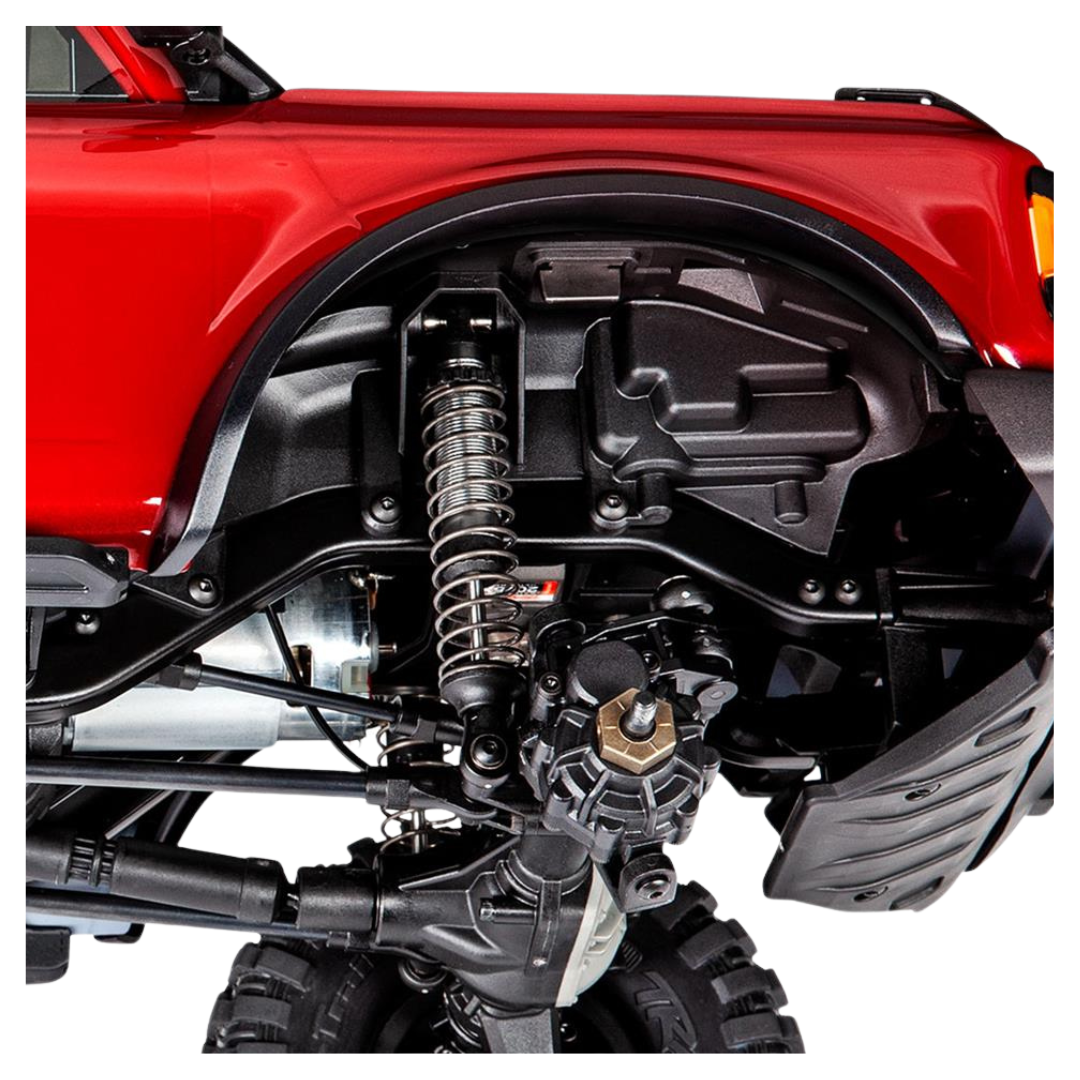

• Aluminium-bodied GTS oil-filled coilover shocks
• Four-link front and rear solid-axle suspension
• Trail-tuned XL-5 HV waterproof brushed electronic speed controller
• Titan 550 21T reverse-rotation brushed motor
• Internal motor cooling fan
• 2075X waterproof digital metal-gear steering servo
• Separate waterproof micro servos operate the transmission and differential locks
• TQi 2.4GHz four-channel transmitter and receiver
• Adjustable Traxxas Stability Management
• Transmitter-operated cruise control for steady trail speeds
• Selectable Trail and Crawl ESC driving profiles
• Compatible with 4-cell to 7-cell NiMH batteries
• Compatible with 2S and 3S LiPo batteries
• Dual-fit battery tray accommodates a wide range of battery sizes
• Sealed ball bearings throughout the drivetrain
• Rust-resistant black-oxide hex hardware
• Soft-compound Canyon Trail 1.9-inch tyres with foam inserts
• 12mm steel wheel hexes
• Ready for compatible Traxxas Pro Scale LED lighting upgrades

Specifications

• Brand: Traxxas
• Model: TRX-4 2021 Ford Bronco
• Manufacturer Part Number: 92076-4
• Colour: Red
• Product Type: Electric RC trail truck and rock crawler
• Assembly Level: Ready to run
• Scale: 1/10
• Drive System: Full-time shaft-driven 4WD
• Chassis: Steel ladder frame
• Body: Officially licensed clipless 2021 Ford Bronco body
• Overall Length: 584mm
• Chassis Length: 549mm
• Overall Width: 249mm
• Front Track: 249mm
• Rear Track: 249mm
• Overall Height: 239mm
• Wheelbase: 324mm
• Centre Ground Clearance: 80mm
• Approximate Weight: 2.91kg without battery
• Approach Angle: 52 degrees
• Departure Angle: 49 degrees
• Breakover Angle: 58 degrees
• Transmission: Two-speed high and low range
• Transmission Control: Remote shifting from the transmitter
• Differentials: Remote-locking front and rear T-Lock differentials
• Axle Type: Portal solid axles
• Motor: Titan 550 21T reverse-rotation brushed motor
• Electronic Speed Controller: Traxxas XL-5 HV waterproof brushed ESC
• Battery Compatibility: 4-cell to 7-cell NiMH or 2S to 3S LiPo
• Battery Connector: Traxxas High-Current iD connector
• LiPo Low-Voltage Detection: Yes
• Radio System: TQi 2.4GHz four-channel transmitter and receiver
• Steering Servo: Traxxas 2075X waterproof digital metal-gear servo
• Transmission Servo: Waterproof micro servo
• Differential-Lock Servos: Two waterproof micro servos
• Suspension: Front and rear four-link solid axle
• Shocks: 90mm aluminium GTS oil-filled coilover shocks
• Wheel Diameter: 1.9 inches
• Wheel Size: Approximately 49mm × 26mm
• Tyre Type: Canyon Trail 1.9-inch soft-compound trail tyre
• Tyre Size: Approximately 118mm × 48mm
• Wheel Hex: 12mm
• Gear Pitch: 32 pitch
• Bearings: Sealed ball bearings

Compatibility

• Traxxas 4-cell to 7-cell NiMH batteries with a compatible Traxxas connector
• Traxxas 2S and 3S LiPo batteries that fit the TRX-4 battery tray
• Traxxas EZ-Peak and EZ-Peak Live iD battery chargers
• Traxxas Link Wireless Module for compatible mobile-device telemetry and radio adjustment
• Traxxas Pro Scale LED Light Set for the 2021 Ford Bronco
• Compatible TRX-4 bumpers, winches, racks and scale accessories
• Compatible 1.9-inch crawler wheels using 12mm hexes and suitable offset
• Compatible TRX-4 suspension, steering and drivetrain upgrades

Includes

• 1 × Traxxas TRX-4 2021 Ford Bronco RTR trail truck in red
• 1 × Officially licensed clipless Ford Bronco body
• 1 × Titan 550 21T reverse-rotation brushed motor
• 1 × XL-5 HV waterproof electronic speed controller
• 1 × TQi 2.4GHz four-channel transmitter
• 1 × TQi receiver with Traxxas Stability Management
• 1 × 2075X waterproof digital metal-gear steering servo
• 1 × Installed waterproof transmission-shift servo
• 2 × Installed waterproof differential-locking servos
• 1 × Set of black replica Bronco wheels
• 1 × Set of Canyon Trail 1.9-inch tyres with foam inserts
• Maintenance tools
• Product documentation

Required to Complete

• Compatible 4-cell to 7-cell NiMH or 2S to 3S LiPo drive battery
• Compatible NiMH or LiPo battery charger
• 4 × AA batteries for the transmitter

FAQ

Is the Traxxas TRX-4 Bronco ready to run? Yes. The truck is fully assembled with the motor, ESC, receiver and servos installed. A suitable drive battery, charger and four AA transmitter batteries are required before use.

Does the 92076-4 include a battery and charger? No. Neither the drive battery nor charger is included.

What battery can the TRX-4 Bronco use? The XL-5 HV ESC supports compatible 4-cell to 7-cell NiMH packs and 2S or 3S LiPo packs. The battery must fit securely in the tray and use a compatible Traxxas connector.

Is 2S or 3S LiPo better for trail driving? A 2S LiPo provides smoother throttle response and manageable wheel speed for relaxed trail driving. A 3S LiPo provides more speed and stronger power delivery but requires greater throttle control on technical terrain.

Can a NiMH battery be used? Yes. The XL-5 HV supports compatible 4-cell to 7-cell NiMH battery packs. Ensure the ESC is set to NiMH mode before operation.

Does it use a brushed or brushless motor? The standard truck uses a Titan 550 21-turn brushed motor and an XL-5 HV brushed electronic speed controller.

What is a reverse-rotation motor? The Titan motor is timed to rotate in the direction required by the TRX-4 drivetrain. When replacing the motor, use a compatible reverse-rotation unit or follow the motor manufacturer's timing instructions.

Can the transmission be shifted while driving? Yes. High and low range can be selected from the transmitter. Reduce throttle and drivetrain load before shifting to help the gears engage cleanly.

Can the front and rear differentials be locked separately? Yes. The T-Lock system allows the truck to run with the differentials open, with the front locked, or with both front and rear locked.

When should the differentials be unlocked? Open differentials provide smoother steering and a tighter turning circle on firm ground. Locking the differentials increases traction on loose, steep or uneven terrain.

What are portal axles? Portal axles position the axle housings above the wheel centres and use reduction gears at the hubs. This increases ground clearance while also reducing torque load through the rest of the drivetrain.

Does the transmitter include cruise control? Yes. The TQi transmitter's multi-function control can maintain a selected trail speed, allowing the driver to concentrate on steering.

Does the truck include Traxxas Stability Management? Yes. TSM assistance can be adjusted from the transmitter to suit the surface and driving style.

Is the Bronco body clipless? Yes. A concealed latch system secures the body without visible body clips. The body can be removed for battery access and maintenance.

Is the TRX-4 Bronco waterproof? The installed ESC, receiver box and servos are designed for operation in wet conditions. The truck must still be cleaned, dried and lubricated after exposure to water, mud or salt.

Can it be completely submerged? No. Waterproof electronics do not make the complete vehicle maintenance-free or suitable for prolonged submersion. Avoid deep water that may enter the tyres, transmission, axle housings or receiver box.

Are the tyres glued to the wheels? The standard Canyon Trail tyres are factory mounted. Inspect the tyre beads periodically, particularly after wet driving or high-load crawling.

Can aftermarket 1.9-inch wheels be fitted? Many 1.9-inch crawler wheels using 12mm hexes can fit, but offset, internal clearance, tyre diameter and portal-hub clearance must be checked before purchase.

Does it include LED lights? A full operational lighting system is not included as standard. A compatible Traxxas Pro Scale LED kit is available separately.

Is the TRX-4 suitable for beginners? Yes. It arrives assembled and the included driving aids make it accessible to new drivers. Beginners should start in low range with open differentials and use smooth throttle inputs.

Is this a competition rock crawler? The TRX-4 is primarily a scale trail truck and recreational crawler. It offers strong technical-terrain capability but is heavier and more scale-focused than a purpose-built competition crawler.

What maintenance is required after driving in mud or water? Remove the battery, clean the chassis, dry the bearings and metal components, inspect the receiver box and apply suitable lubricant or corrosion protection where required.

Why is a servo humming after locking a differential? Continuous loud humming may indicate that the shift cable or servo linkage is binding. Stop using the function and inspect the cable adjustment to avoid damaging the micro servo.

Important Notes

• The drive battery, battery charger and four AA transmitter batteries are not included.
• Confirm battery dimensions, connector type and voltage before ordering.
• The XL-5 HV ESC must be set to the correct NiMH or LiPo battery mode.
• Low-voltage detection must be enabled whenever a LiPo battery is used.
• Never charge a LiPo battery using a NiMH charging program.
• Use a compatible balance charger and follow the battery manufacturer's charging limits.
• Never charge a damaged, swollen, hot or punctured LiPo battery.
• Charge batteries on a non-flammable surface and do not leave them unattended.
• Reduce throttle load before shifting between high and low range.
• Do not manually force the transmission or differential-locking mechanisms.
• Check the transmission and differential servos for smooth operation without binding.
• Waterproof electronics still require cleaning and maintenance after wet use.
• Dry and lubricate bearings, fasteners and metal drivetrain parts after exposure to water.
• Avoid salt water because it can rapidly corrode bearings, hardware and electrical connections.
• Optional batteries, chargers, lights and accessories shown in promotional images are sold separately.
