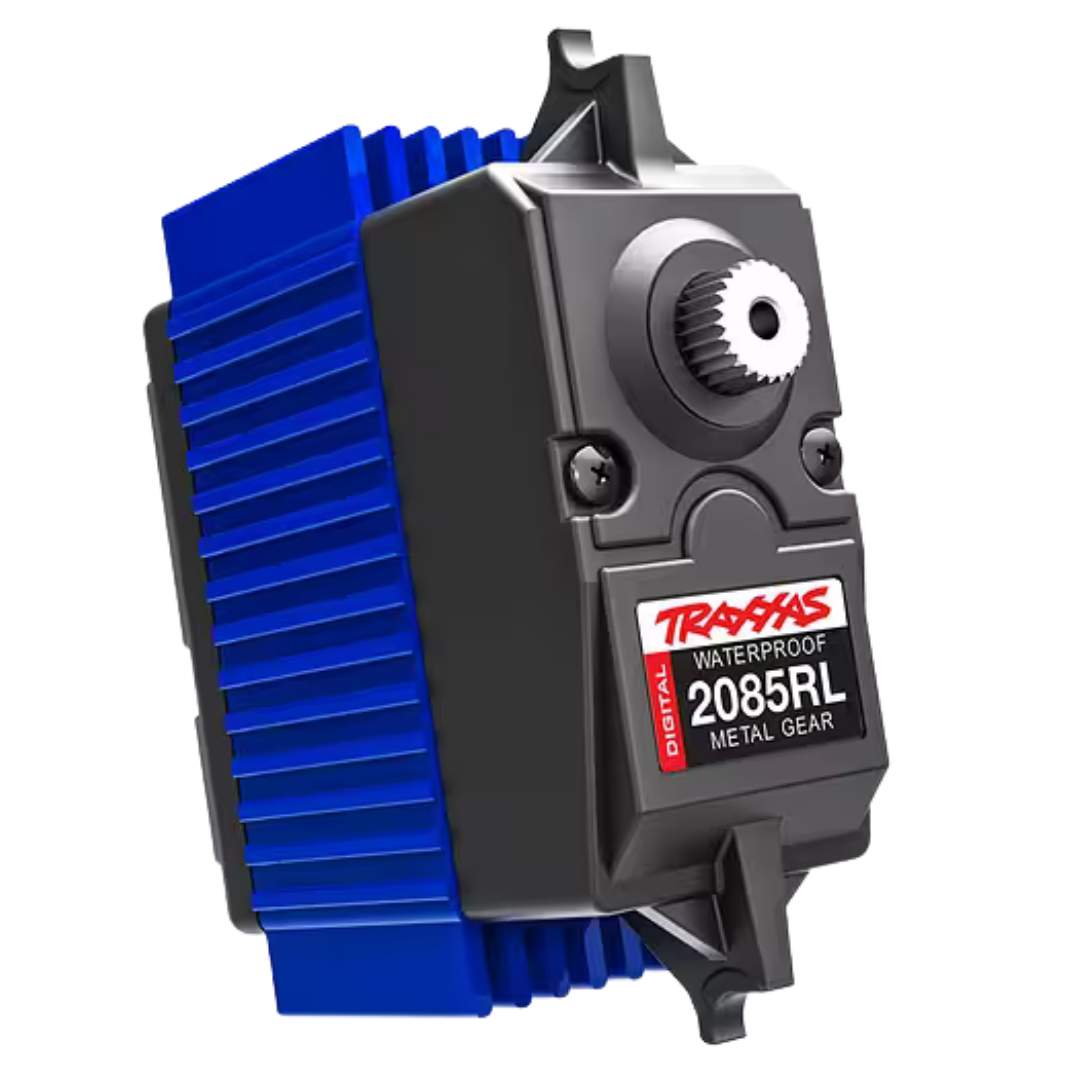

Traxxas Maxx Ultra-High-Torque 46kg 6V Waterproof Metal Gear Digital Servo Blue 2085RL

Upgrade your Traxxas RC truck's steering performance with the genuine Traxxas 2085RL Maxx Ultra-High-Torque Waterproof Metal Gear Digital Servo. Engineered for demanding large-scale RC applications, this powerful steering servo delivers approximately 46kg-cm (650 oz-in) of torque at 6V, providing the steering authority needed for oversized tyres, challenging terrain and aggressive off-road driving.

The Traxxas 2085RL combines a full steel gear drivetrain with precision ball bearings and a blue anodised aluminium centre case featuring cooling fins. Its robust construction is designed to withstand the steering loads generated by heavy RC trucks, while its waterproof housing supports operation in suitable wet and muddy conditions.

With a fast 0.13-second transit time per 60 degrees at 6V, the 2085RL delivers a combination of high torque and responsive steering. It is compatible with Traxxas Stability Management (TSM) when installed in a properly configured compatible vehicle.

Designed for Traxxas Maxx-size servo mounting systems, the 2085RL is suitable for selected Maxx, Maxx Slash, X-Maxx, XRT and other compatible X-Series vehicles. It is not a direct-fit replacement for a standard-size servo mount.

Key Features

• Genuine Traxxas High-Torque Servo: Manufacturer part number 2085RL
• 46kg-Class Steering Torque: Approximately 46kg-cm / 650 oz-in at 6V
• High-Speed Digital Control: 0.13 seconds per 60 degrees at 6V
• Full Steel Gear Drivetrain: Built for high steering loads and improved durability
• Precision Ball Bearings: Support smooth, accurate servo operation
• Waterproof Construction: Designed for demanding off-road driving conditions
• Blue Anodised Aluminium Centre Case: Finned design for heat dissipation
• Maxx-Size Servo Format: Designed for compatible Traxxas Maxx servo mounting systems
• Large-Tyre Steering Authority: Suitable for heavy RC trucks with oversized tyres
• TSM Compatibility: Works with Traxxas Stability Management on appropriately equipped vehicles
• Steering Upgrade Option: Suitable for selected Maxx, Maxx Slash, X-Maxx and XRT models
• Genuine Replacement Application: Listed for selected Ultimate-series Traxxas vehicles

High-Torque Steering Performance

The Traxxas 2085RL delivers approximately 650 oz-in of torque at 6V, making it suitable for demanding steering applications on large-scale Traxxas trucks. This additional torque helps turn large tyres under load, including during slow-speed manoeuvring and off-road driving.

Its digital electronics provide a specified transit speed of 0.13 seconds per 60 degrees at 6V, delivering responsive steering when correctly installed and powered.

Steel Gears and Aluminium Construction

Full steel gears are designed to handle demanding steering loads, while ball bearings support the internal drivetrain. The blue anodised aluminium centre housing features cooling fins that assist heat dissipation during operation.

The servo is built around Traxxas' larger Maxx-size mounting format and requires the correct vehicle-specific mounting hardware.

Specifications

• Brand: Traxxas
• Manufacturer Part Number: 2085RL
• Retailer SKU: TRA2085RL
• Barcode / UPC: 020334001924
• Product Type: RC Steering Servo
• Servo Technology: Digital
• Servo Motor: Brushless
• Torque at 6V: Approximately 46kg-cm / 650 oz-in
• Transit Speed at 6V: 0.13 sec/60 Degrees
• Gear Material: Full Steel
• Bearings: Ball Bearings
• Waterproof: Yes
• Case Construction: Aluminium Centre Section with Composite End Sections
• Case Finish: Blue Anodised Aluminium
• Servo Spline: 25-Tooth
• Servo Mounting: Traxxas Maxx-Size Mount Required
• Compatible Stabilisation System: Traxxas Stability Management (TSM)
• Quantity: 1 Servo
• Assembly: Pre-Assembled

Vehicle Compatibility

• Traxxas Maxx - 89086-4
• Traxxas Maxx Ultimate - 89087-4
• Traxxas Maxx Slash - 102076-4
• Traxxas X-Maxx - 77096-4
• Traxxas X-Maxx Ultimate - 77097-4
• Traxxas XRT - 78086-4
• Traxxas XRT Ultimate - 78097-4
• Traxxas Funco Pro Scale Sand Car - 109076-4
• Traxxas X-Monster Chassis - 77036-4

Compatibility is based on published Traxxas and specialist retailer application listings. Fitment requires the appropriate Maxx-size servo mount, steering horn, linkage and receiver power configuration. Confirm the exact vehicle model and revision before installation.

Includes

• 1 x Traxxas 2085RL Maxx Ultra-High-Torque Waterproof Digital Metal Gear Servo - Blue

Required To Complete

• Compatible Traxxas Maxx-Size Servo Mount
• Compatible Steering Horn and Steering Linkage
• Compatible Receiver and Suitable 6V Servo Power Supply
• Appropriate Servo Saver Components and Installation Hardware
• Suitable Installation Tools

Frequently Asked Questions

What is the Traxxas 2085RL? It is a genuine Traxxas Maxx-size, ultra-high-torque digital steering servo with full steel gears, ball bearings and waterproof construction.

How much torque does the Traxxas 2085RL produce? Traxxas specifies 650 oz-in of torque at 6V, approximately 46kg-cm.

How fast is the Traxxas 2085RL? Its specified transit speed is 0.13 seconds per 60 degrees at 6V.

Is the 2085RL waterproof? Yes. Traxxas describes the servo as waterproof. Normal cleaning, drying and maintenance are still recommended after wet use.

Does the 2085RL have metal gears? Yes. It uses a full steel gear drivetrain.

Does the servo use ball bearings? Yes. Ball bearings support precision and smooth operation.

Is the servo case aluminium? The servo features a blue anodised aluminium centre housing with cooling fins and composite end sections.

Is the Traxxas 2085RL brushless? Hobbies Direct lists a brushless servo motor for this model.

Does the 2085RL fit the Traxxas Maxx? Yes. It is designed for the compatible Maxx-size servo mounting system.

Does it fit the Maxx Slash? Yes. Specialist retailers list it as a steering upgrade for the Traxxas Maxx Slash.

Is it compatible with the X-Maxx? Yes. The 2085RL is listed for compatible Traxxas X-Maxx vehicles, including the X-Maxx Ultimate.

Will it fit the Traxxas XRT? Yes. The 2085RL is listed for the XRT and XRT Ultimate.

Does it fit standard servo mounts? No. Traxxas specifies a Maxx-size servo mount. It is not a direct-fit standard-size servo replacement.

Is the 2085RL compatible with Traxxas TSM? Yes. It can operate with Traxxas Stability Management when installed in a compatible, correctly configured system.

Is the 2085RL an upgrade over the standard 2085 servo? Yes. It offers full steel gears and a high-torque, high-speed specification intended for demanding steering applications.

Is the 2085RL the same as the 2085L? No. They are separate Traxxas part numbers. The 2085RL is the 650 oz-in metal-gear high-torque/high-speed servo.

Does the servo include a horn? A servo horn is not confirmed in the standard retailer package listing. Check your existing steering hardware and obtain compatible parts if required.

Does the servo include a servo saver spring? Traxxas' broader 2085RL product description mentions a stiffer servo saver spring and steel steering linkage, but retailer package contents vary. Confirm the exact supplied hardware with the seller.

Can I use a higher voltage than 6V? Do not assume higher-voltage compatibility from the published 6V performance figures. Confirm the approved operating voltage before connecting the servo.

Why might steering remain weak after upgrading? Check receiver power, steering linkage binding, servo saver adjustment, tyre load and steering travel settings. Even a high-torque servo can perform poorly when the steering system is incorrectly configured.

Important Notes

• This listing is for Traxxas 2085RL / TRA2085RL
• Includes one high-torque digital steering servo
• Designed for compatible Traxxas Maxx-size servo mounts
• Will not directly fit standard-size servo mounts
• Confirm vehicle compatibility, steering horn and linkage requirements before purchasing
• 650 oz-in torque and 0.13 sec/60-degree speed are specified at 6V
• Do not assume higher-voltage compatibility without manufacturer confirmation
• Additional servo saver, linkage or mounting hardware may be required
• Disconnect vehicle power before installation
• Centre the servo and check steering direction and travel before driving
• Inspect steering linkages and servo saver for binding
• Waterproof construction does not make the complete RC vehicle suitable for submersion
• Follow the applicable Traxxas vehicle instructions for installation and maintenance
