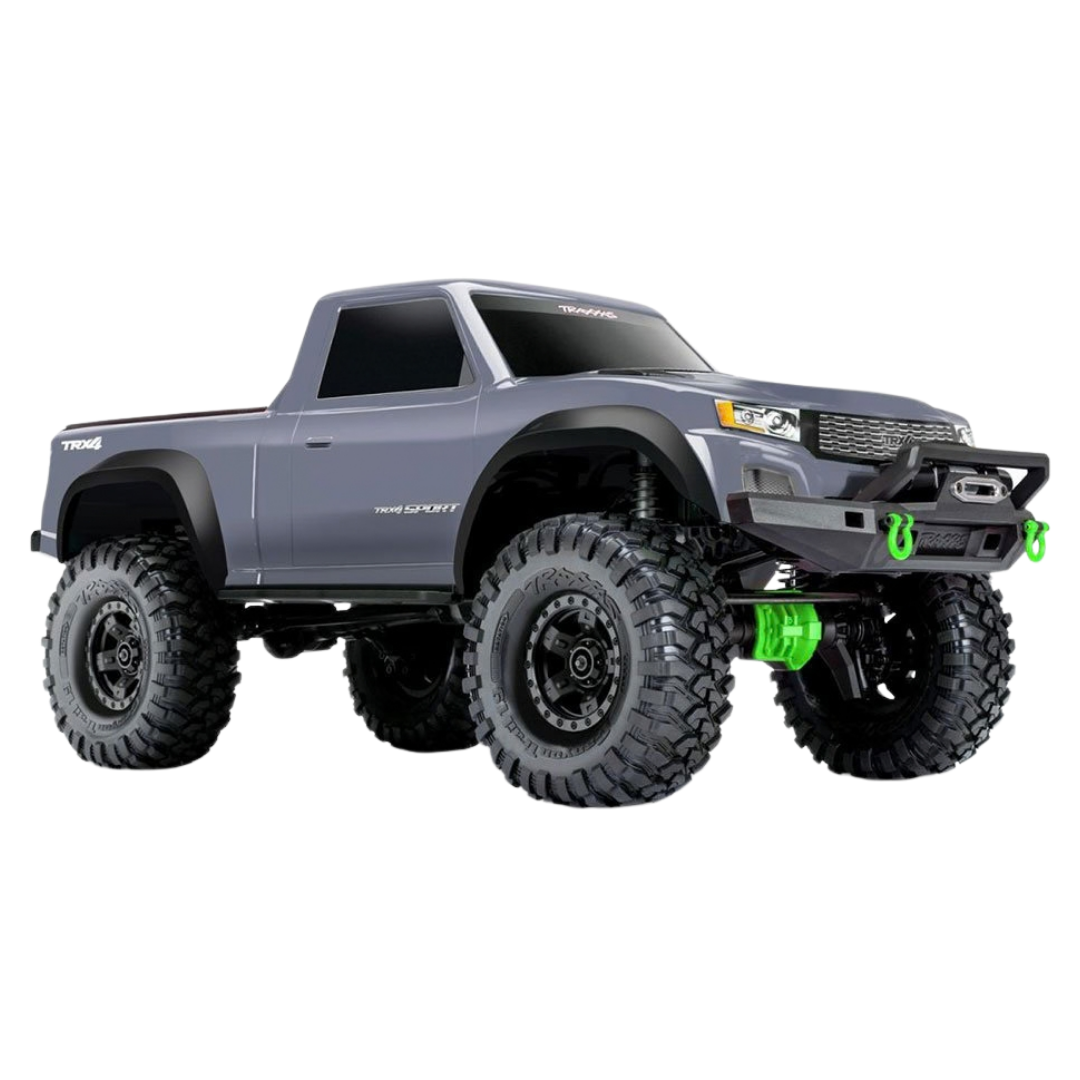

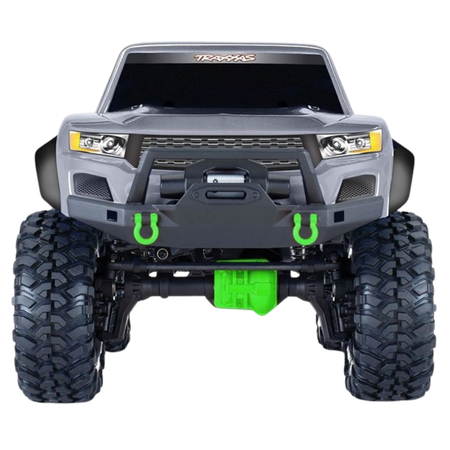

Traxxas TRX-4 Sport RC 1/10 4WD RTR Trail Truck Grey 82224-4GRAY

The Traxxas TRX-4 Sport Grey 82224-4GRAY is a ready-to-run 1/10 scale 4WD RC trail truck designed for rock crawling, technical climbs and outdoor trail driving. With high-clearance portal axles, a Titan 550 brushed motor, waterproof XL-5 HV electronic speed control and a lightweight clipless pickup body, the TRX-4 Sport delivers capable crawling performance in a straightforward, upgrade-friendly platform.

Features

• Ready-to-Run 4WD Trail Truck: Factory assembled with installed electronics, painted grey body and TQ 2.4GHz radio system
• High-Clearance Portal Axles: Raise the axle housings for improved clearance over rocks, roots and uneven terrain
• Clipless Pickup Body: Lightweight grey truck body with hidden latches for secure mounting and convenient chassis access
• Titan 550 Brushed Motor: 21-turn reverse-rotation motor designed for controllable low-speed trail driving
• Waterproof XL-5 HV ESC: Trail-tuned electronic speed controller compatible with supported NiMH and LiPo battery configurations
• Locked Front and Rear Axles: Differential spools provide consistent traction when crawling over difficult obstacles
• Single-Speed Transmission: Steel gears provide a simple, durable drivetrain without a remote shifting mechanism
• Steel Ladder Frame: Rigid chassis construction supports realistic truck handling and durability
• Canyon Trail Tyres: Traxxas crawler tyres designed for grip on mixed trail surfaces
• Sealed Ball Bearings: Help support smooth drivetrain operation and reduce exposure to dirt and debris
• 12mm Wheel Hexes: Standard wheel mounting format for compatible crawler wheels
• Upgrade-Friendly TRX-4 Platform: Compatible with a range of model-specific Traxxas TRX-4 Sport accessories and upgrades

Specifications

• Brand: Traxxas
• Model: TRX-4 Sport
• Colour: Grey
• Scale: 1/10
• Vehicle Type: RC Trail Truck / Rock Crawler
• Assembly: Ready-to-Run (RTR)
• Drivetrain: 4WD
• Chassis: Steel Ladder Frame
• Axles: Portal Axles
• Motor: Titan 550 21T Reverse-Rotation Brushed
• Electronic Speed Control: Waterproof XL-5 HV
• Battery Compatibility: 6–7 Cell NiMH or 2S–3S LiPo
• Transmission: Single-Speed with Steel Gears
• Front Axle: Locked Spool
• Rear Axle: Locked Spool
• Gear Pitch: 32 Pitch
• Radio System: Traxxas TQ 2.4GHz Two-Channel
• Wheel Hex: 12mm
• Tyres: Traxxas Canyon Trail
• Body: Clipless Lightweight Pickup Truck
• Length: 557mm
• Width: 249mm
• Height: 241mm
• Wheelbase: 312mm
• Ground Clearance: 80mm
• Weight: Approx. 2.63kg
• Skill Level: 1
• Product Code: 82224-4GRAY
• Barcode: 020334052483

Includes

• 1 x Traxxas TRX-4 Sport 1/10 4WD Trail Truck in Grey
• 1 x Factory-Installed Titan 550 Brushed Motor
• 1 x Factory-Installed Waterproof XL-5 HV ESC
• 1 x Traxxas TQ 2.4GHz Two-Channel Transmitter
• 1 x Factory-Installed Radio Receiver and Steering Electronics
• 1 x Grey Clipless Pickup Truck Body
• 1 x Instruction Manual

Required To Complete

• 1 x Compatible 6–7 Cell NiMH or 2S–3S LiPo Battery
• 1 x Compatible Battery Charger
• 4 x AA Alkaline Batteries for the Transmitter

FAQ

Is the Traxxas TRX-4 Sport ready to run out of the box? The TRX-4 Sport arrives factory assembled with motor, ESC, radio system and body installed. A compatible drive battery, charger and four AA transmitter batteries are required before driving.

What batteries can the TRX-4 Sport use? The XL-5 HV speed controller supports compatible 6–7 cell NiMH or 2S–3S LiPo batteries. Select a pack with the correct connector and physical dimensions, and use the appropriate ESC battery mode.

Does the TRX-4 Sport have portal axles? Yes. Portal axles increase ground clearance beneath the axle housings, helping the truck negotiate rocks, roots and other trail obstacles.

Does the TRX-4 Sport have locking differentials? The Sport uses permanently locked front and rear axle spools rather than remotely selectable locking differentials. This provides continuous traction for technical crawling.

Does the TRX-4 Sport have a two-speed transmission? No. The TRX-4 Sport comes with a single-speed steel-gear transmission designed for simple, reliable trail and crawling operation.

How does the clipless body work? Hidden body latches hold the pickup body in place without visible body clips. The body can be released for battery changes and chassis access.

Is the TRX-4 Sport suitable for beginners? Yes. Traxxas rates the TRX-4 Sport at Skill Level 1. Its controllable brushed power system and trail-oriented drivetrain make it approachable for drivers learning RC crawling.

Can I fit aftermarket 1.9-inch crawler wheels and tyres? The TRX-4 Sport uses 12mm wheel hexes and is compatible with suitably sized crawler wheels. Confirm wheel offset, inner wheel clearance, tyre diameter and body clearance before fitting alternative wheels or tyres.

Are the electronics waterproof? The TRX-4 Sport is equipped with waterproof-rated electronics for operation in wet trail conditions. Waterproof electronics do not make the entire vehicle maintenance-free, so clean and dry the truck after wet or muddy use.

Important Notes

• Drive battery, charger and four AA transmitter batteries are not included
• Confirm battery size, connector compatibility and charger suitability before purchasing
• Set the ESC to the correct battery mode, including LiPo low-voltage detection when using LiPo batteries
• The Sport uses permanently locked axle spools and a single-speed transmission, not remotely operated differential locks or a factory two-speed gearbox
• Clean, inspect and dry the vehicle after running through water, mud or sand
