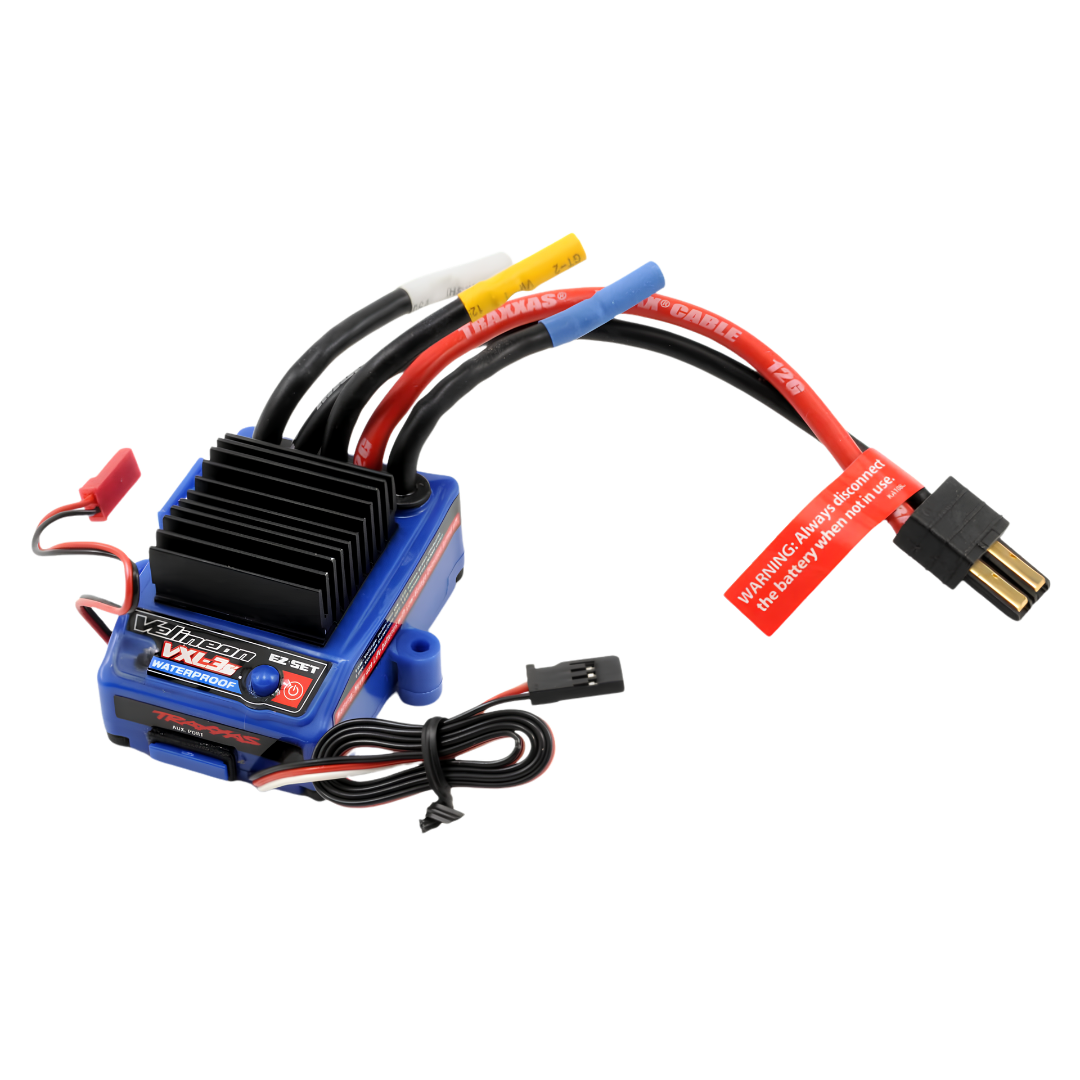

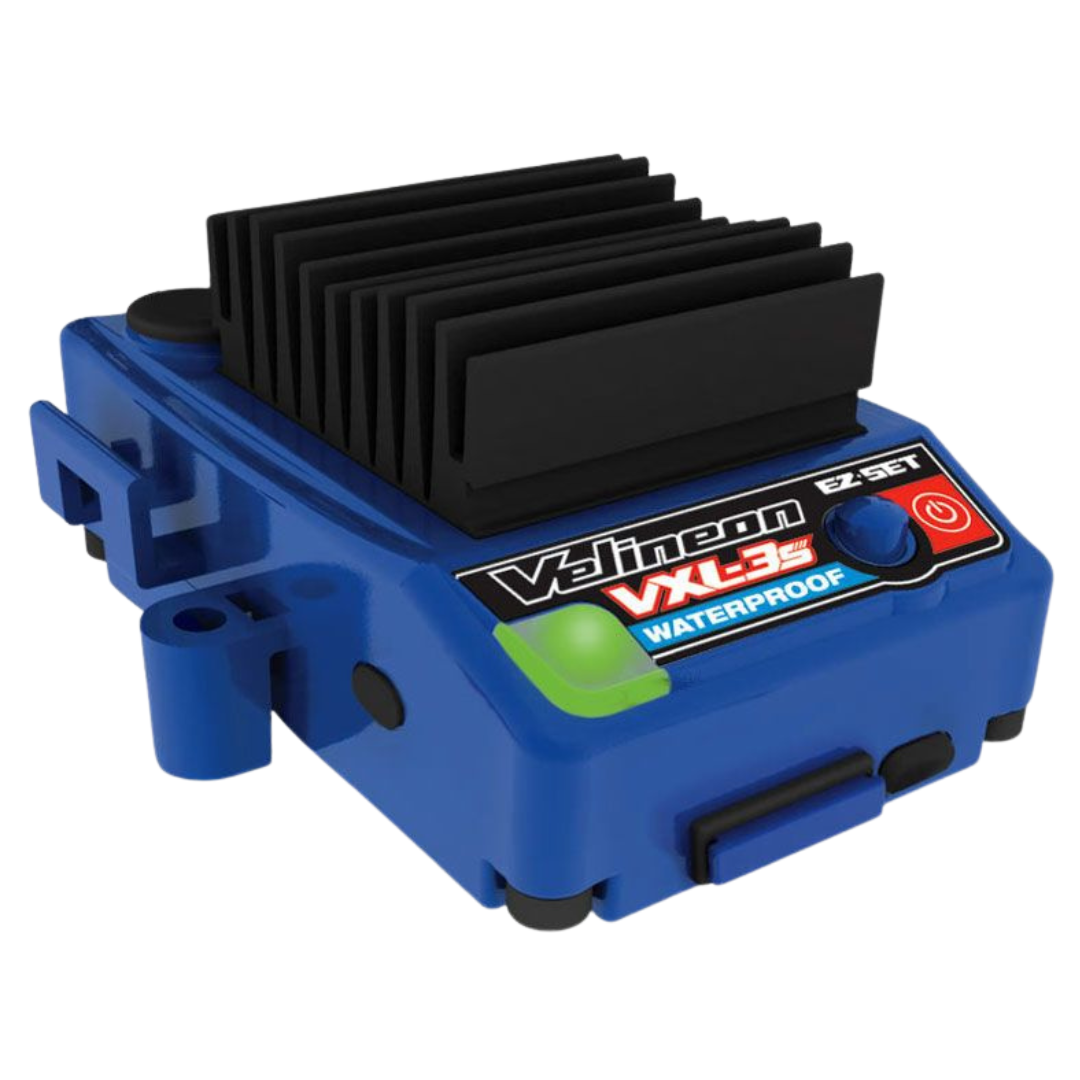

Traxxas VXL-3s Waterproof Electronic Speed Control 3355X

The Traxxas VXL-3s Electronic Speed Control is a genuine replacement waterproof ESC designed for Traxxas Velineon brushless-powered vehicles. Engineered to deliver smooth throttle response and reliable high-current performance, the VXL-3s supports 2S and 3S LiPo batteries as well as 4–9 cell NiMH packs. Featuring Traxxas' simple EZ-Set® one-button programming, selectable drive profiles and Low-Voltage Detection for LiPo batteries, it is an ideal replacement or upgrade for compatible Traxxas models.

Features

• Genuine Traxxas VXL-3s waterproof electronic speed control
• Compatible with sensorless brushless motors
• Supports 2S–3S LiPo and 4–9 cell NiMH battery packs
• Waterproof design for all-weather driving*
• EZ-Set® one-button programming for simple operation
• Selectable Sport, Race and Training drive profiles
• Built-in Low-Voltage Detection protects LiPo batteries
• Two-stage thermal shutdown protection for improved reliability
• High-current Traxxas connector and 12-gauge wiring fitted
• Direct replacement for compatible Traxxas VXL-equipped vehicles

Specifications

• Brand: Traxxas
• Manufacturer Part Number: 3355X
• Barcode: 020334335593
• Product Type: Brushless Electronic Speed Control (ESC)
• Waterproof: Yes*
• Input Voltage: 4.8–11.1V (4–9 Cell NiMH or 2S–3S LiPo)
• Motor Compatibility: Sensorless Brushless
• Continuous Current: 200A
• Peak Current: 320A
• BEC Output: 6.0V DC
• Battery Connector: Traxxas High-Current Connector
• Motor Connectors: 3.5mm Bullet Connectors
• Programming: EZ-Set® with Sport, Race and Training Modes

Includes

• 1 × Traxxas VXL-3s Waterproof Electronic Speed Control

FAQ

Which batteries are compatible? The VXL-3s supports 4–9 cell NiMH batteries and 2S or 3S LiPo battery packs with built-in Low-Voltage Detection for safe LiPo operation.

Is this ESC waterproof? Yes. The VXL-3s is designed for all-weather operation, including wet grass, mud and puddles. However, it should be cleaned and dried after use, and prolonged submersion or exposure to corrosive conditions should be avoided.

What drive modes are available? The ESC features Sport Mode (Forward/Brake/Reverse), Race Mode (Forward/Brake) and Training Mode, which limits power to approximately 50% for beginner drivers.

Can I use this with any brushless motor? It is designed for sensorless brushless motors and is the factory ESC used with Traxxas Velineon brushless systems. Always ensure your motor and gearing are suitable for your battery voltage and vehicle.

Does it include Low-Voltage Detection? Yes. Built-in Low-Voltage Detection protects LiPo batteries from over-discharge by reducing power and eventually shutting down the motor when the battery reaches its minimum safe voltage.

Important Notes

• Compatible with sensorless brushless motors only.
• Enable Low-Voltage Detection whenever using LiPo batteries.
• Ensure adequate gearing and cooling when operating on 3S LiPo.
• Always calibrate the ESC after installation for correct throttle operation.
• Although waterproof, inspect and dry the electronics after wet running to maximise service life.
• Check all connectors before operating the vehicle.
• Follow Traxxas installation and programming instructions.
• Keep out of reach of children and follow all safety instructions.
