Traxxas X-Maxx 8S RC Monster Truck 1/6 4WD RTR Green 77096-4

The Traxxas X-Maxx 8S is a large-scale 4WD brushless RC monster truck designed for high-speed off-road driving, jumping and heavy-duty recreational bashing.

The updated X-Maxx uses factory-fitted belted Sledgehammer tyres to reduce tyre expansion and provide more predictable handling at high speed. Its reinforced green clipless body, rigid composite chassis, all-metal drivetrain and oversized GTX shocks are designed to handle rough terrain and repeated hard landings.

The VXL-8s brushless power system combines a Velineon 1200XL motor with a waterproof VXL-8s electronic speed controller. Two matching 4S LiPo batteries are required for full 8S operation, while two matching 3S batteries can be used for reduced 6S performance.

Features

• 8S Brushless Power System: VXL-8s ESC and Velineon 1200XL motor provide strong acceleration and high-speed performance
• Belted Sledgehammer Tyres: Internal reinforcement reduces tyre ballooning and improves stability at speed
• Full-Time 4WD: Shaft-driven drivetrain distributes power to all four wheels
• Torque-Biasing Centre Drive: Manages front-to-rear power distribution during acceleration and cornering
• All-Metal Drivetrain: Metal gears and heavy-duty constant-velocity driveshafts support high-power operation
• Rigid Composite Chassis: Modular construction provides strength and simplifies access for maintenance
• Clipless Green Body: Reinforced body removes quickly without conventional body clips
• Internal Body Cage: Supports the body and reduces flex during impacts and rollovers
• Protective Skids: Roof and rear skid sections protect common impact areas
• GTX Aluminium Shocks: Oversized oil-filled shocks provide controlled long-travel suspension movement
• Double-Shear Suspension Mounting: Critical suspension points are supported on both sides for added strength
• Machined Aluminium Centre Driveshaft: Provides a strong connection through the central drivetrain
• Machined Aluminium Stub Axles: Support the large 24mm splined wheel hexes
• Motor Cooling System: Aluminium heatsink and dual fans help manage motor temperature
• ESC Cooling Fan: Active cooling helps the VXL-8s ESC manage heat during demanding use
• Traxxas Stability Management: Adjustable assistance helps maintain directional control on loose surfaces
• TQi Radio System: Included 2.4GHz transmitter provides reliable control and TSM adjustment
• Telemetry Capability: Supports compatible Traxxas Link equipment for displaying vehicle data
• Self-Righting Function: Can assist with returning the truck to its wheels on suitable surfaces
• Waterproof Electronics: Installed ESC, receiver box and steering servo are designed for wet-condition operation
• Integrated Wheelie Bar: Helps control wheelies during hard acceleration
• Sealed Bearings: Bearings in exposed locations help protect the drivetrain from dirt and moisture
• Ready-to-Run Assembly: Motor, ESC, radio equipment, servo, wheels and tyres are installed

Specifications

• Brand: Traxxas
• Model: X-Maxx 8S Belted
• Manufacturer Part Number: 77096-4
• Green Colour SKU: 77096-4-GRN
• Colour: Green
• Product Type: RC Monster Truck
• Retail Scale Classification: 1/6
• Assembly Level: Ready to run
• Drive System: Full-time shaft-driven 4WD
• Power Source: Electric brushless
• Length: 779mm
• Width: 540mm
• Height: Approximately 350mm
• Wheelbase: 480mm
• Ground Clearance: 102mm
• Approximate Weight: 8.66kg without batteries
• Motor: Traxxas Velineon 1200XL brushless motor
• Motor Rating: 1275kV
• Electronic Speed Controller: Traxxas VXL-8s waterproof brushless ESC
• Input Voltage: 6S to 8S LiPo
• Full-Power Battery Setup: 2 × matching 4S LiPo batteries
• Alternative Battery Setup: 2 × matching 3S LiPo batteries
• Battery Connectors: Dual Traxxas High-Current iD connectors
• Radio System: TQi 2.4GHz transmitter and receiver
• Driving Assistance: Traxxas Stability Management
• Suspension: Four-wheel independent long-travel suspension
• Shocks: Aluminium-bodied GTX oil-filled coilover shocks
• Centre Drive: Torque-Biasing Centre Drive
• Tyres: Belted Sledgehammer all-terrain tyres
• Approximate Tyre Diameter: 200mm
• Wheel Hex: 24mm splined
• Standard Belted-Tyre Gearing: 15-tooth pinion and 54-tooth spur
• Optional Speed Gearing: 18-tooth pinion and 46-tooth spur
• Advertised Maximum Speed: Over 80km/h on 8S with optional speed gearing

Includes

• 1 × Traxxas X-Maxx 8S Belted RTR RC monster truck in green
• 1 × Green pre-painted clipless body
• 1 × Installed Velineon 1200XL brushless motor
• 1 × Installed VXL-8s waterproof brushless ESC
• 1 × Installed waterproof steering servo

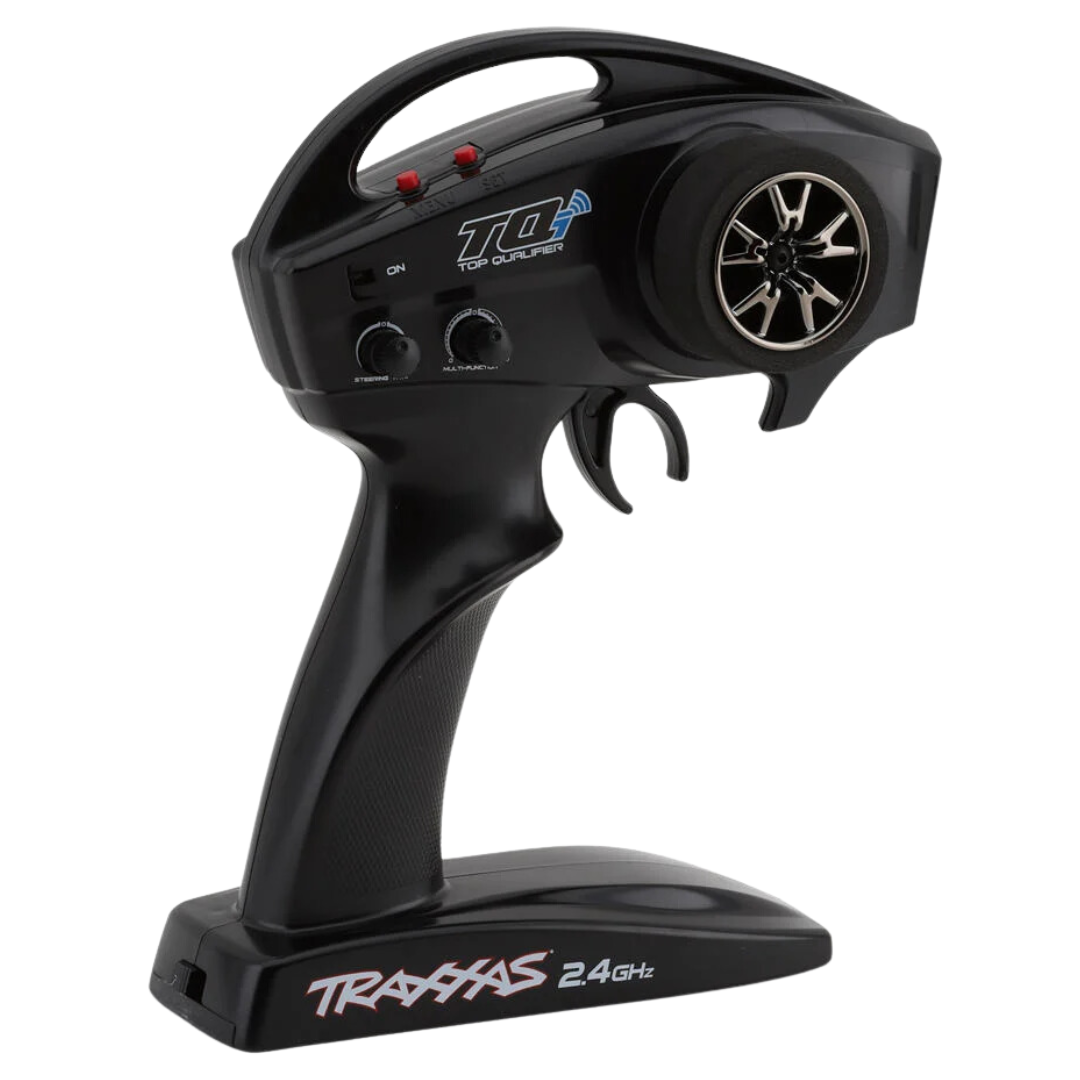

• 1 × TQi 2.4GHz transmitter
• 1 × TQi receiver with Traxxas Stability Management
• 4 × Factory-mounted belted Sledgehammer tyres and wheels
• 1 × Installed wheelie bar

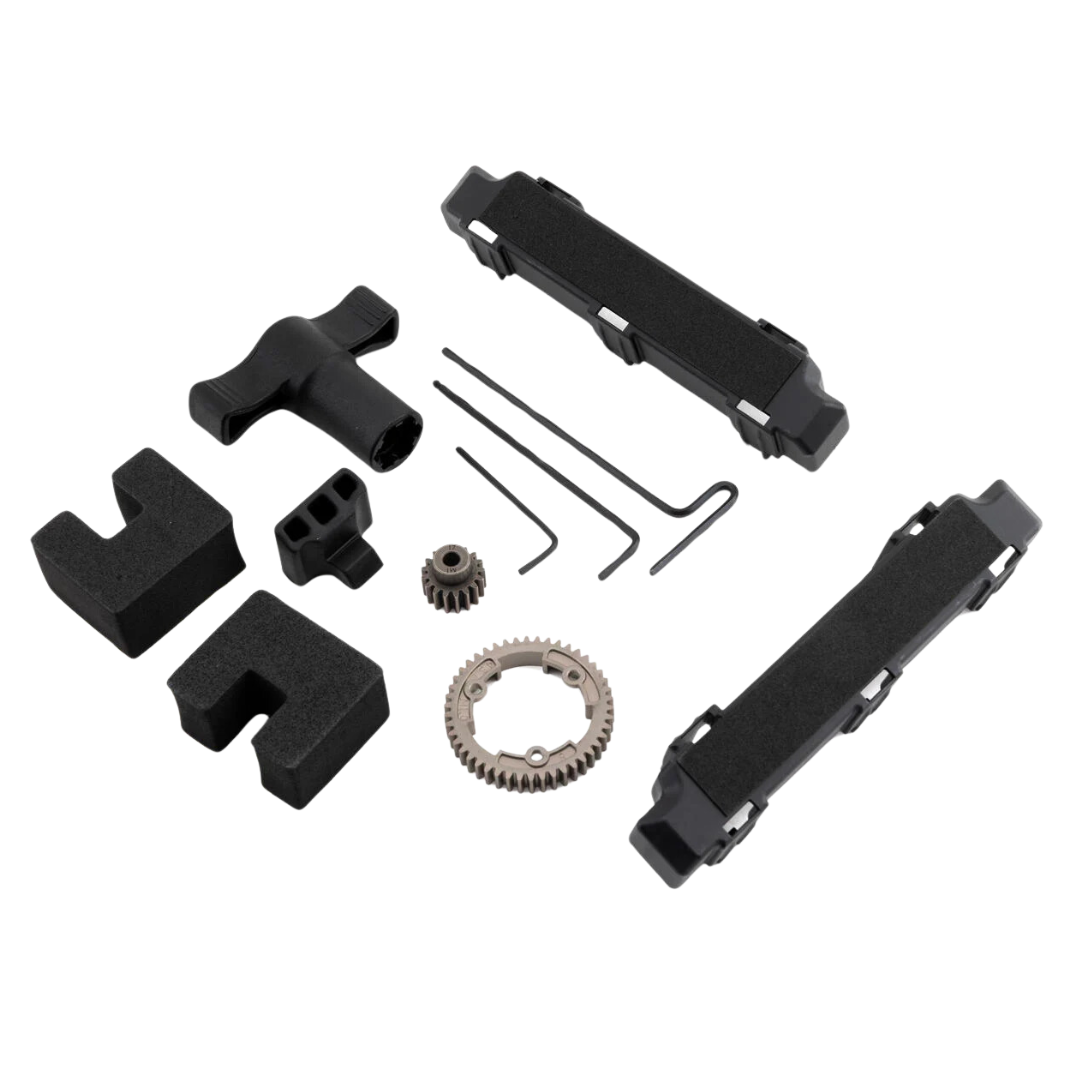

• Optional high-speed pinion and spur gears
• Maintenance tools
• Product documentation

Required to Complete

• 2 × Matching Traxxas 4S LiPo batteries for full 8S operation
• Alternatively 2 × matching Traxxas 3S LiPo batteries for 6S operation
• Compatible LiPo balance charger
• 4 × AA batteries for the transmitter

FAQ

Does the Traxxas X-Maxx include batteries and a charger? No. Two matching LiPo batteries, a compatible balance charger and four AA transmitter batteries are required separately.

Can the X-Maxx operate on 6S? Yes. Two matching 3S LiPo batteries provide 6S operation, while two matching 4S batteries are required for full 8S performance.

How does the X-Maxx reach over 80km/h? The advertised 80km/h-plus speed requires two suitable 4S LiPo batteries, the included optional speed gearing and a firm open running surface.

What is the benefit of belted tyres? Belted Sledgehammer tyres resist excessive expansion at high speed, providing a more consistent tyre diameter and improved straight-line stability.

Important Notes

• The drive batteries, charger and four AA transmitter batteries are not included.
• Use two matching batteries with the same cell count, capacity, condition and charge level.
• Never combine 3S and 4S batteries or packs with different specifications.
• Both ESC battery connectors must be connected before operating the truck.
• Use a LiPo balance charger that supports the selected battery cell count.
• Never charge a damaged, swollen, punctured or excessively hot LiPo battery.
• Charge LiPo batteries on a non-flammable surface and never leave them unattended.
• The optional high-speed gearing is intended for controlled speed runs on firm surfaces.
• Standard gearing is better suited to grass, rough terrain, jumping and repeated acceleration.
• Monitor motor and ESC temperatures when using 8S power, tall gearing or driving in warm conditions.
• Belted tyres provide less mid-air pitch adjustment than flexible non-belted tyres.
• Inspect the tyres, wheel nuts and drivetrain before every high-speed session.
• The X-Maxx weighs more than 8kg without batteries and requires a large clear operating area.
• Operate away from people, animals, roads, parked vehicles and fragile property.
• Waterproof electronics still require cleaning and drying after water or mud exposure.
• Avoid salt water because it can rapidly corrode bearings, hardware and electrical connections.
