Traxxas X-Maxx 8S RC Monster Truck 1/6 4WD RTR Orange 77096-4

The Traxxas X-Maxx 8S is a large-scale 4WD brushless RC monster truck designed for high-speed off-road driving and heavy-duty bashing, with belted tyres providing more stable handling at speed.

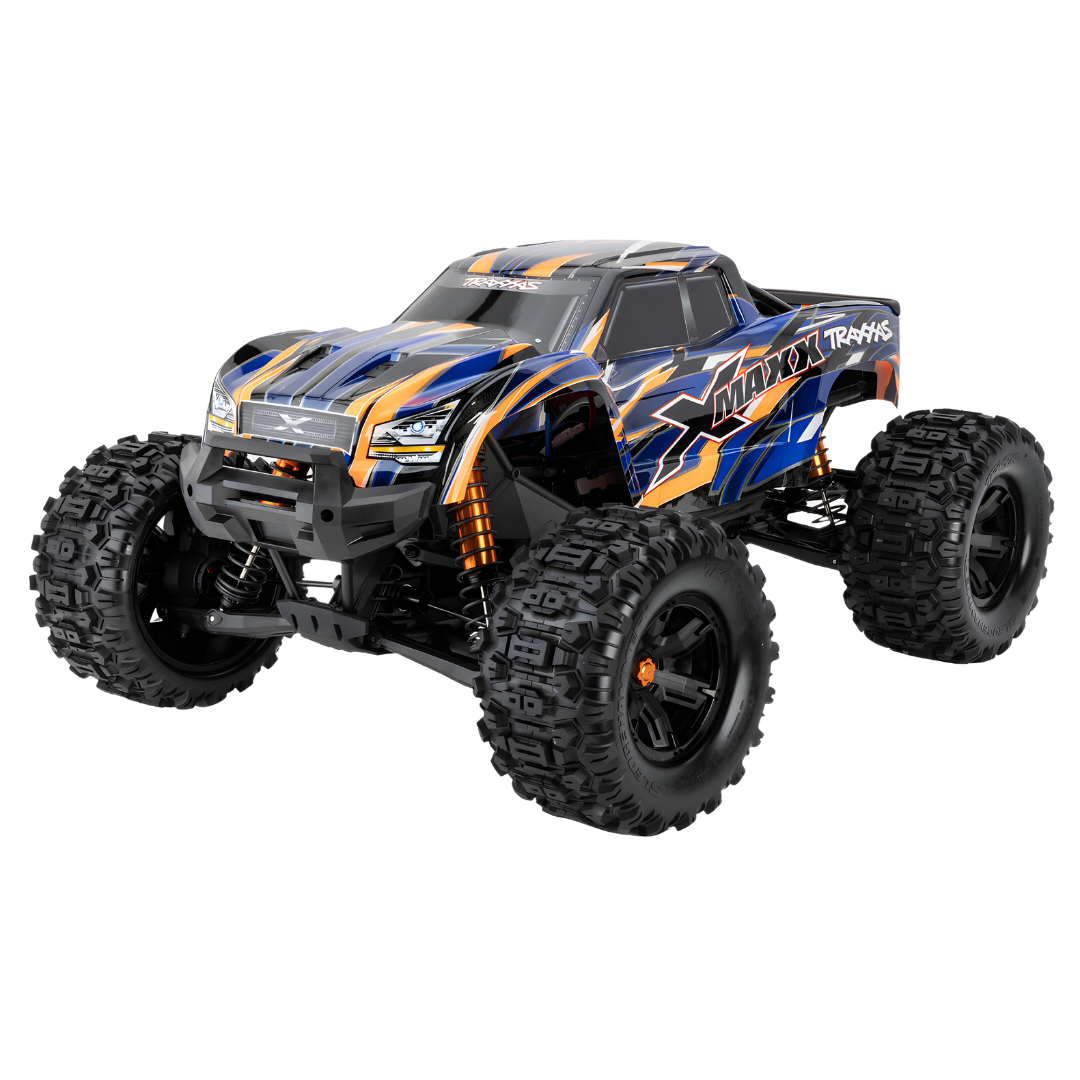

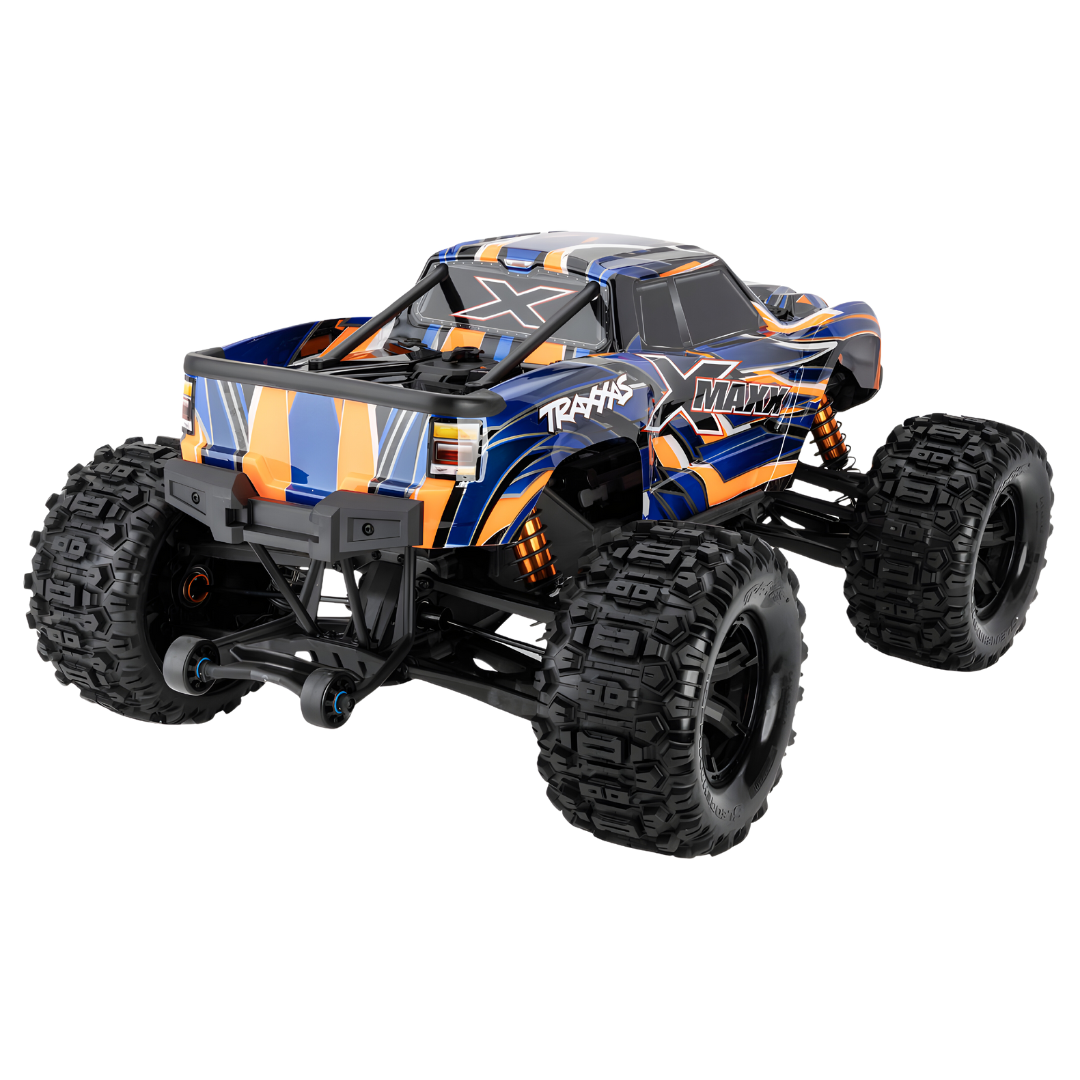

The reinforced orange clipless body uses an internal support cage, protective skids and chassis-mounted nerf bars to help withstand rollovers and side impacts. Oversized GTX aluminium shocks and long-travel independent suspension provide controlled damping across jumps, ruts and rough terrain.

The Velineon VXL-8s power system combines a waterproof electronic speed controller with a 1200XL 1275kV brushless motor. Two matching 4S LiPo batteries are required for full 8S performance, while two matching 3S LiPo batteries can be used for 6S operation.

Features

• VXL-8s Brushless System: Delivers high-output 6S or 8S performance
• Velineon 1200XL Motor: Four-pole 1275kV brushless motor designed for the X-Maxx drivetrain
• Belted Sledgehammer Tyres: Internal belts reduce tyre expansion and improve high-speed stability
• Full-Time 4WD: Shaft-driven system distributes power to all four wheels
• Torque-Biasing Centre Drive: Controls front-to-rear power distribution under acceleration
• Heavy-Duty Drivetrain: Uses metal gears and steel constant-velocity driveshafts

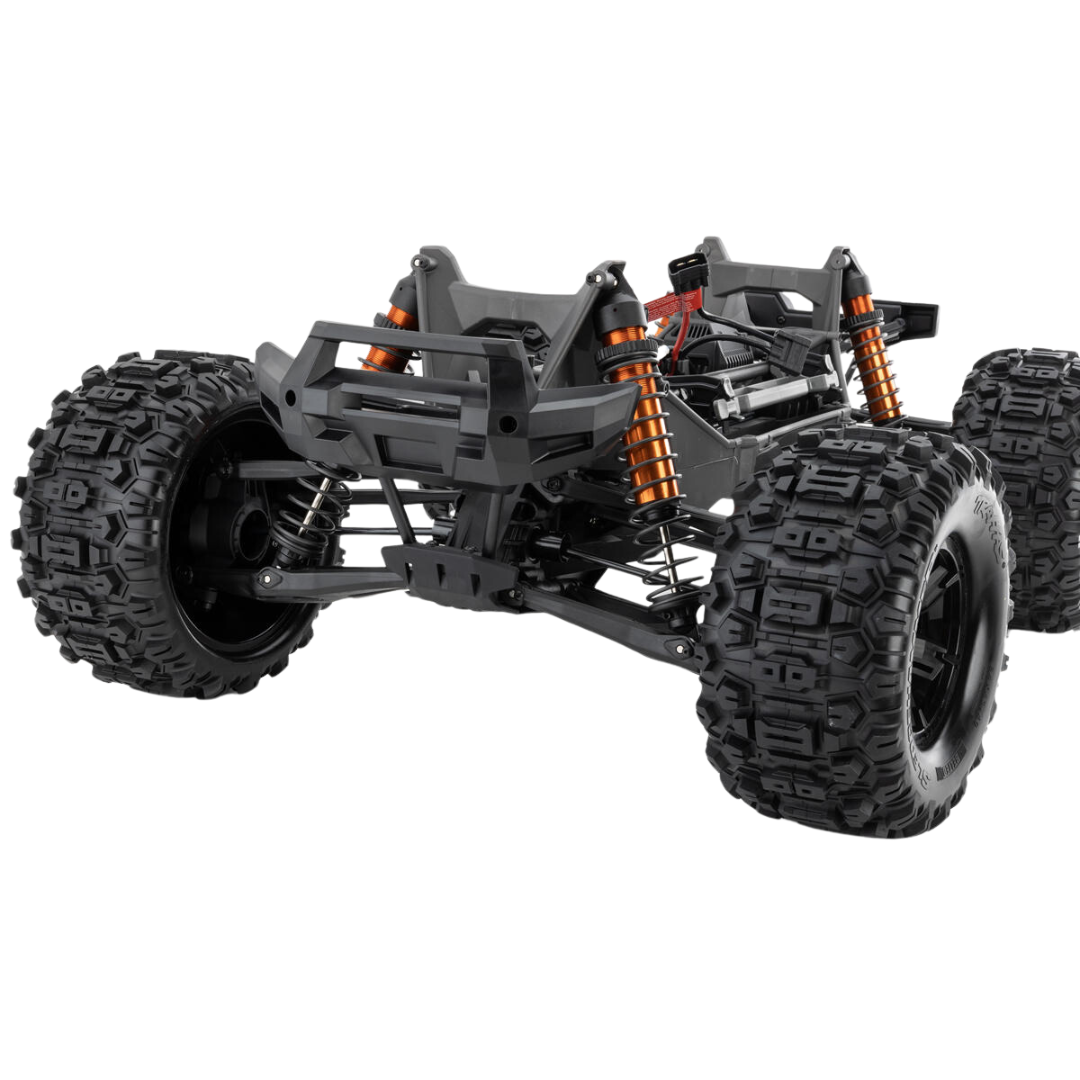

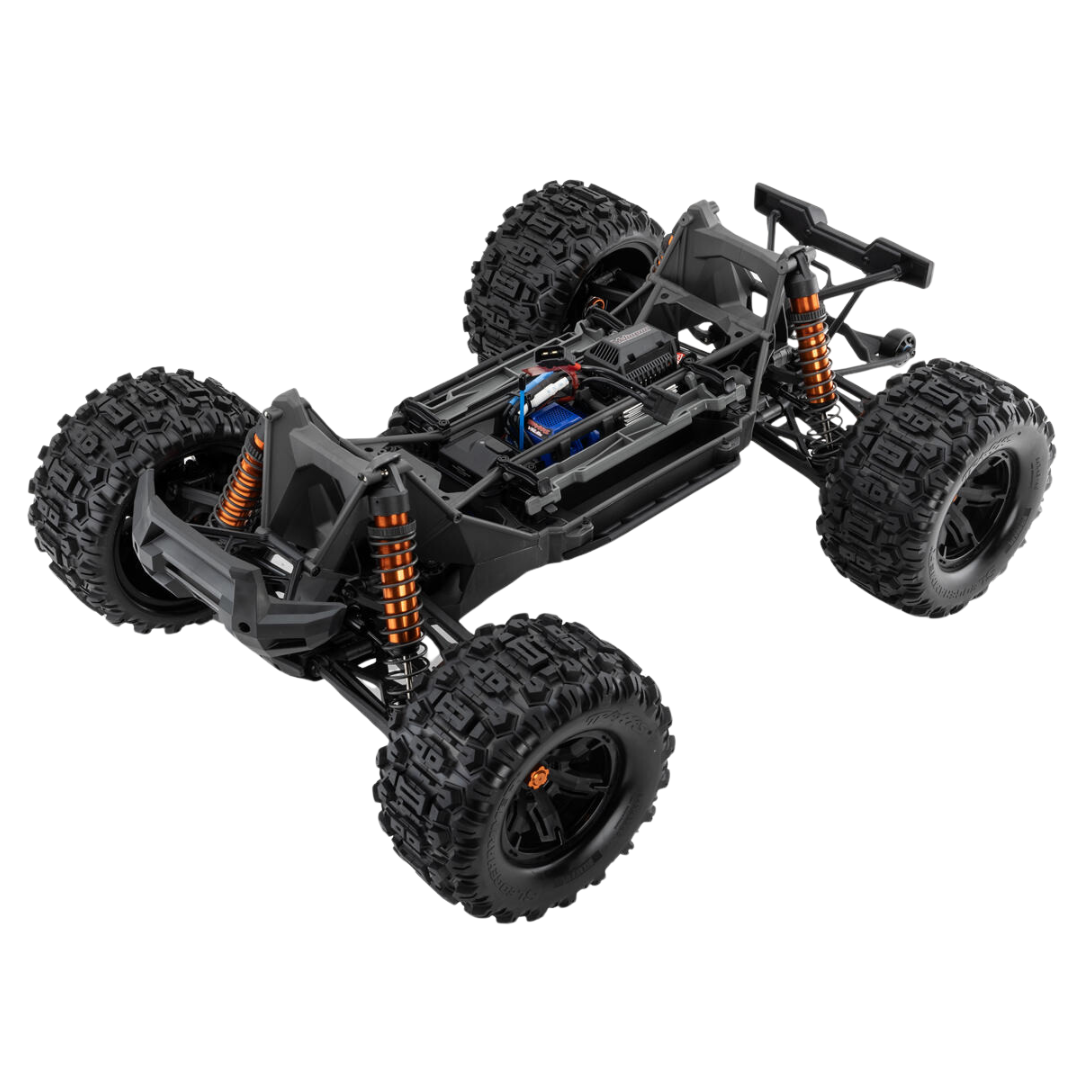

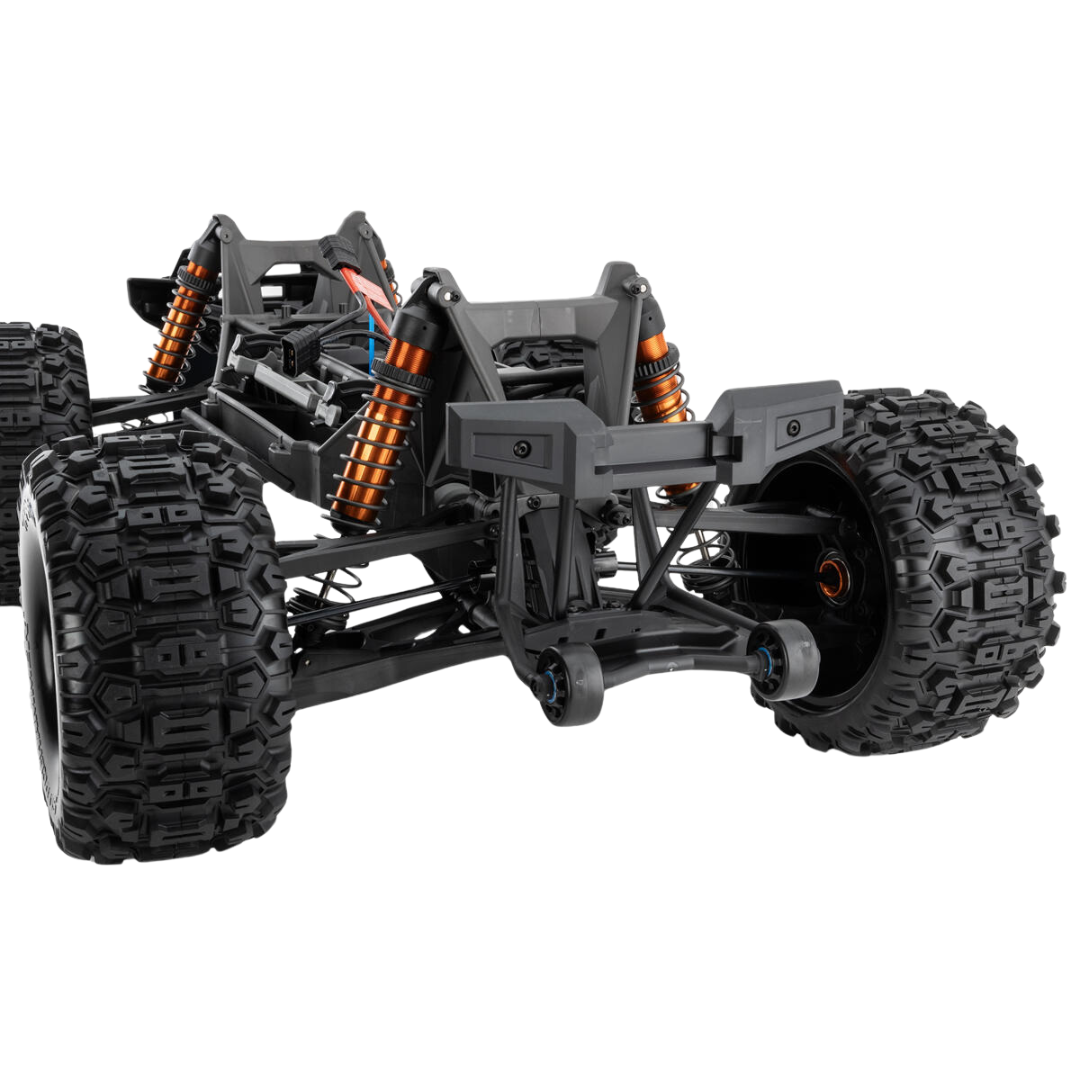

• Rigid Composite Chassis: Modular construction provides strength and easier servicing
• Clipless Orange Body: Removes without conventional body pins
• Internal Body Cage: Reinforces the body during impacts and rollovers
• Protective Body Skids: Shield common contact areas during inverted slides
• GTX Aluminium Shocks: Oversized oil-filled dampers manage long suspension travel
• Double-Shear Suspension Mounts: Support critical suspension points from both sides
• Motor Cooling System: Aluminium heatsink and dual fans help manage motor temperature
• ESC Cooling Fan: Provides active cooling for the VXL-8s speed controller
• Traxxas Stability Management: Adjustable assistance helps maintain directional control

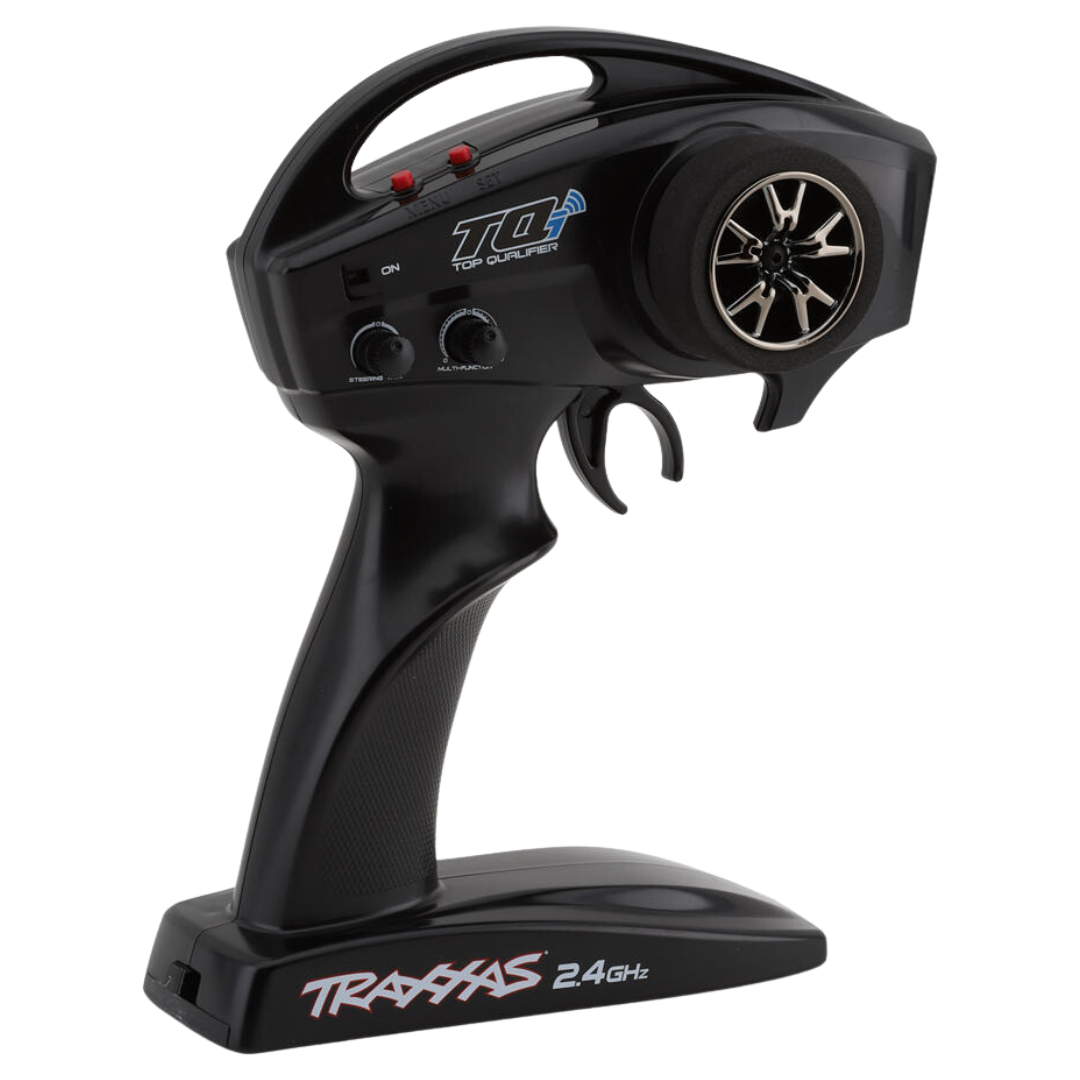

• TQi Radio System: Included 2.4GHz transmitter controls the truck and TSM setting
• Self-Righting Function: Can help return the truck to its wheels on suitable surfaces
• Integrated Wheelie Bar: Helps manage hard acceleration on high-grip surfaces
• Waterproof Electronics: Installed electronics are designed for wet-condition operation
• Ready-to-Run Assembly: Motor, ESC, radio system, steering servo and tyres are installed

Specifications

• Brand: Traxxas
• Model: X-Maxx 8S Belted
• Manufacturer Part Number: 77096-4
• Orange Colour SKU: 77096-4-ORNG
• UPC: 020334035417
• Colour: Orange
• Product Type: RC Monster Truck
• Scale: 1/6
• Assembly Level: Ready to run
• Drive System: Full-time shaft-driven 4WD
• Power Source: Electric brushless
• Length: 779mm
• Width: 540mm
• Height: 350mm
• Wheelbase: 480mm
• Ground Clearance: 102mm
• Approximate Weight: 8.66kg without batteries
• Motor: Velineon 1200XL four-pole brushless motor
• Motor Rating: 1275kV
• Electronic Speed Controller: VXL-8s waterproof brushless ESC
• Input Voltage: 6S to 8S LiPo
• Full-Power Battery Setup: 2 × matching 4S LiPo batteries
• Alternative Battery Setup: 2 × matching 3S LiPo batteries
• Battery Connectors: Dual Traxxas High-Current iD connectors
• Radio System: TQi 2.4GHz transmitter and receiver
• Driving Assistance: Traxxas Stability Management
• Centre Drive: Torque-Biasing Centre Drive
• Suspension: Four-wheel independent long-travel suspension
• Shocks: Aluminium-bodied GTX oil-filled coilover shocks
• Tyres: Belted Sledgehammer all-terrain tyres
• Approximate Tyre Diameter: 200mm
• Wheel Hex: 24mm splined
• Standard Belted-Tyre Gearing: 15-tooth pinion and 54-tooth spur
• Optional Speed Gearing: 18-tooth pinion and 46-tooth spur
• Advertised Maximum Speed: Over 80km/h on 8S with optional speed gearing

Includes

• 1 × Traxxas X-Maxx 8S Belted RTR RC monster truck in orange
• 1 × Orange pre-painted clipless body
• 1 × Installed Velineon 1200XL brushless motor
• 1 × Installed VXL-8s waterproof brushless ESC
• 1 × Installed waterproof steering servo
• 1 × TQi 2.4GHz transmitter
• 1 × TQi receiver with Traxxas Stability Management
• 4 × Factory-mounted belted Sledgehammer tyres and wheels
• 1 × Installed wheelie bar

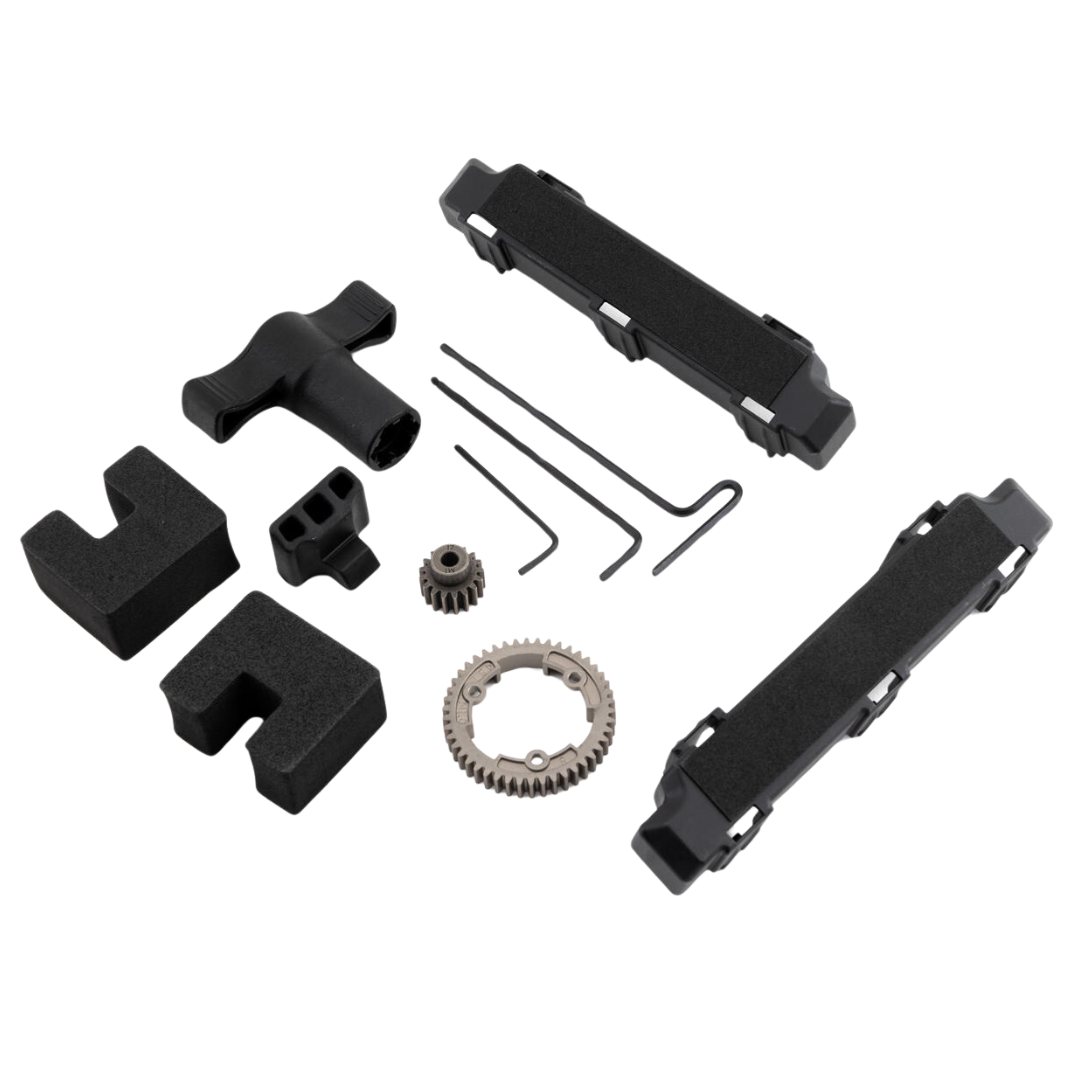

• Optional high-speed pinion and spur gears
• Maintenance tools
• Product documentation

Required to Complete

• 2 × Matching Traxxas 4S LiPo batteries for full 8S operation
• Alternatively 2 × matching Traxxas 3S LiPo batteries for 6S operation
• Compatible LiPo balance charger
• 4 × AA batteries for the transmitter

FAQ

Does the Traxxas X-Maxx include batteries and a charger? No. Two matching LiPo batteries, a compatible balance charger and four AA transmitter batteries are required separately.

Can the X-Maxx operate on 6S? Yes. Two matching 3S LiPo batteries provide 6S operation, while two matching 4S packs are required for full 8S performance.

How does the X-Maxx reach over 80km/h? The advertised speed requires two suitable 4S LiPo batteries, the included optional speed gearing and a firm open running surface.

What is the benefit of the belted tyres? The internal tyre belts reduce ballooning at high speed, providing a more consistent tyre diameter and more predictable handling.

Important Notes

• The drive batteries, charger and four AA transmitter batteries are not included.
• Use two matching batteries with the same cell count, capacity, condition and charge level.
• Never combine 3S and 4S batteries or packs with different specifications.
• Both ESC battery connectors must be connected before operating the truck.
• Use a LiPo balance charger suitable for the selected battery cell count.
• Never charge or use a swollen, damaged, punctured or excessively hot LiPo battery.
• Charge LiPo batteries on a non-flammable surface and never leave them unattended.
• The optional speed gearing is intended for controlled high-speed running on firm surfaces.
• Standard gearing is better suited to grass, rough terrain, jumping and repeated acceleration.
• Monitor motor and ESC temperatures when using 8S power or driving in warm conditions.
• Inspect the tyres, wheel nuts and drivetrain before each high-speed session.
• The X-Maxx weighs more than 8kg without batteries and requires a large clear operating area.
• Operate away from people, animals, roads, parked vehicles and fragile property.
• Waterproof electronics still require cleaning and drying after wet or muddy use.
• Avoid salt water because it can rapidly corrode bearings, hardware and electrical connections.
