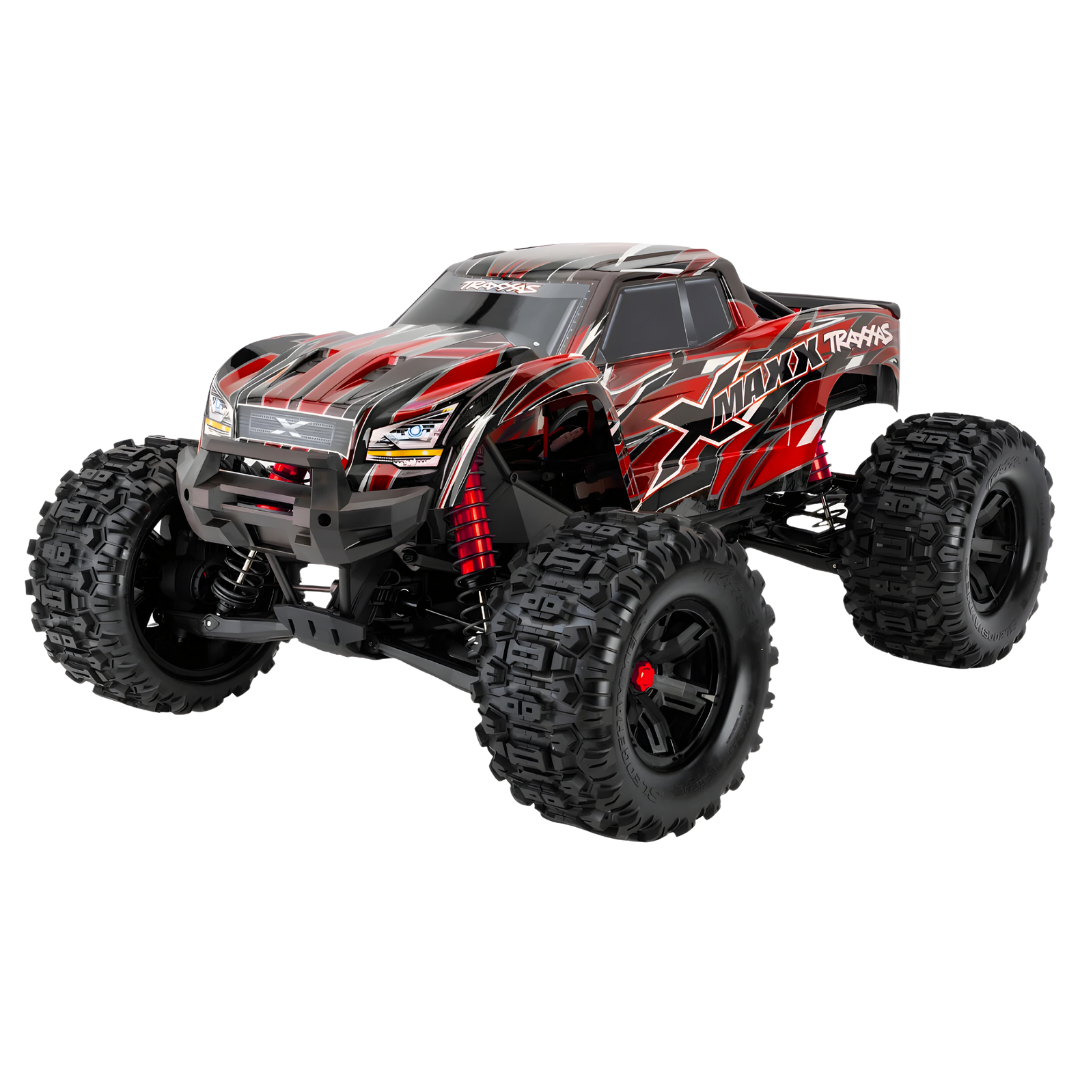

Traxxas X-Maxx 8S RC Monster Truck 1/6 4WD RTR Red 77096-4

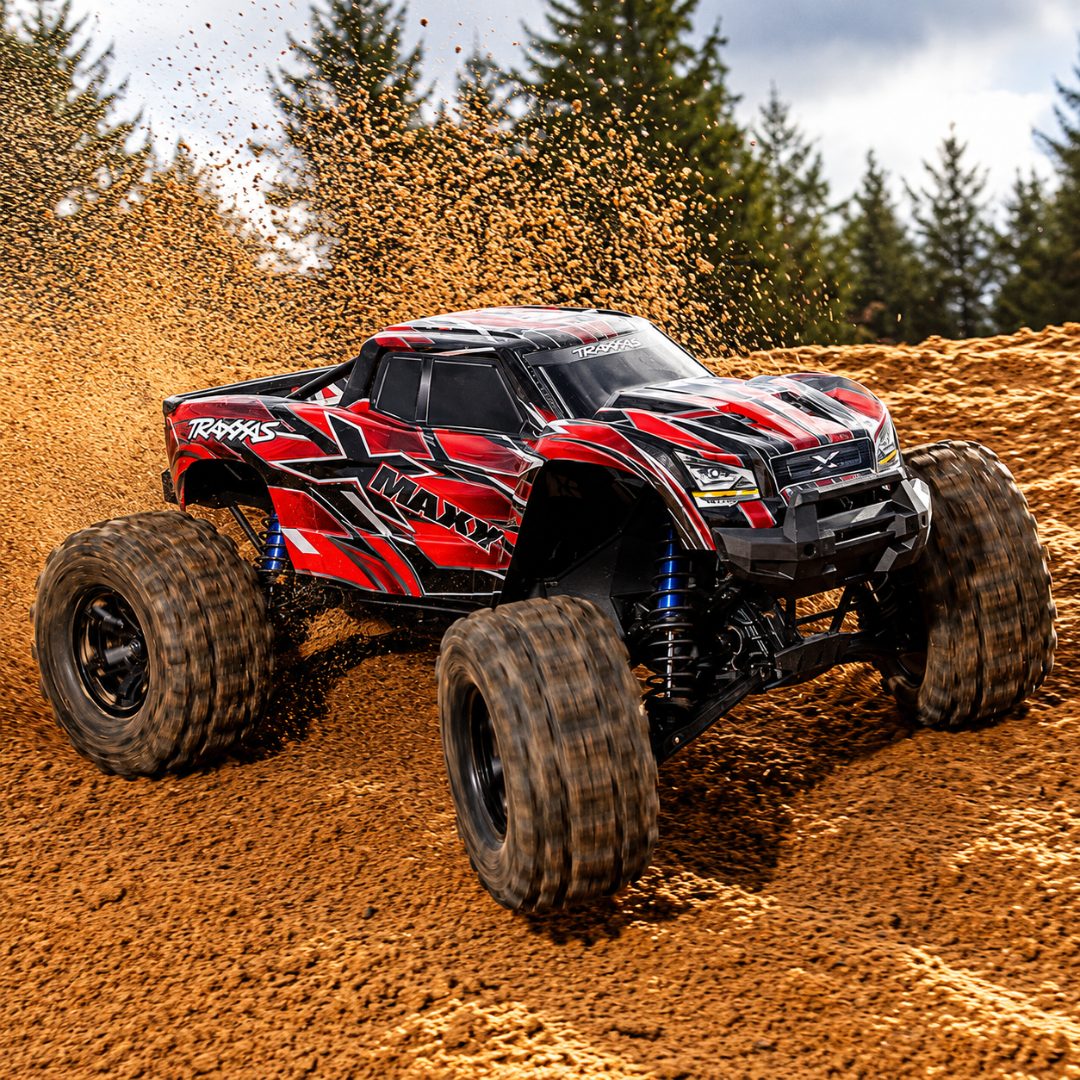

Experience massive brushless power and extreme durability with the 2024 Traxxas X-Maxx 8S. Designed for serious off-road driving, this ready-to-run monster truck combines the proven Velineon 8S brushless system with factory-fitted belted Sledgehammer tyres, delivering explosive acceleration, outstanding stability and exceptional strength across almost any terrain.

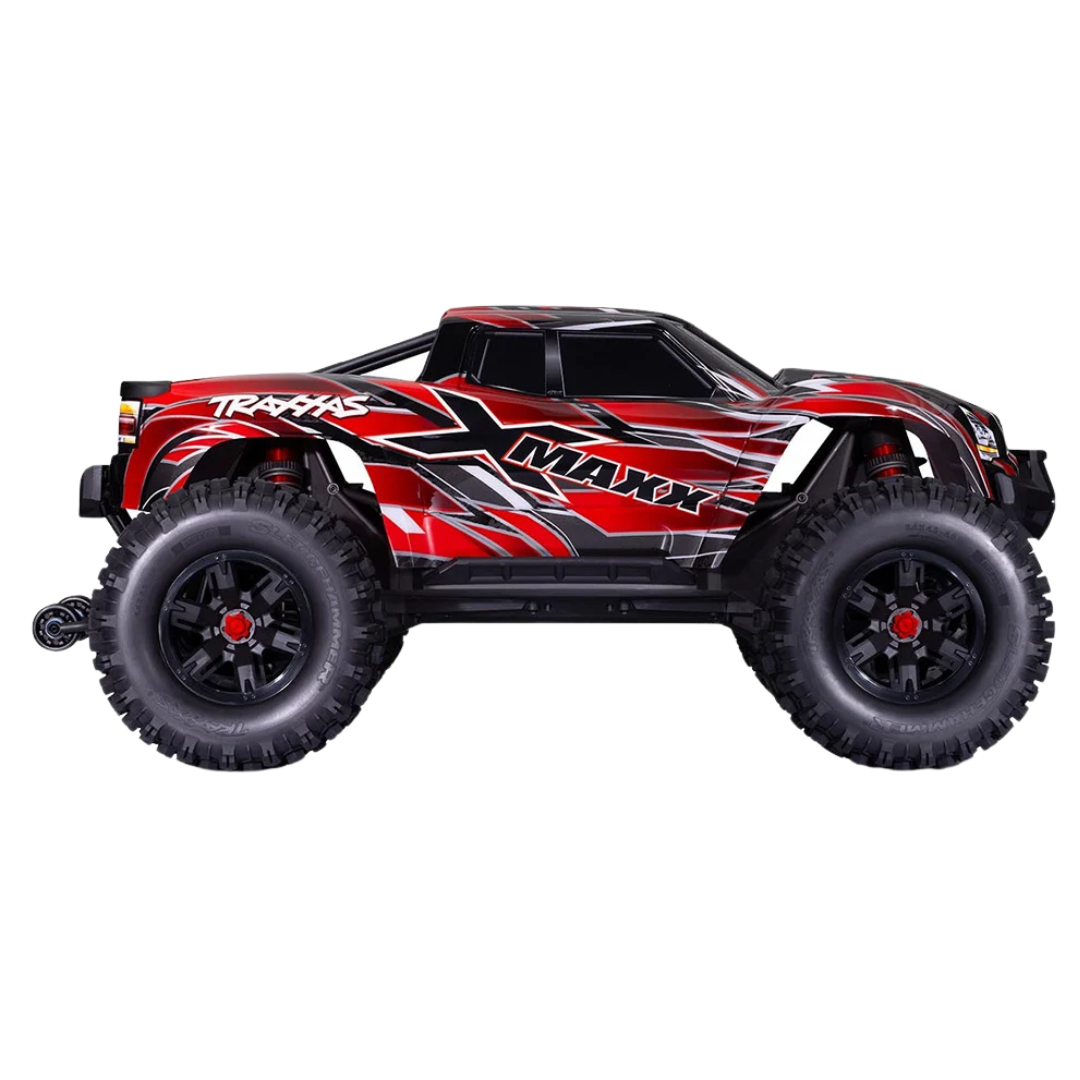

The reinforced red clipless body features an internal support cage, integrated roof and tail skids and heavy-duty nerf bars to withstand hard landings and aggressive bashing. Beneath the body, the modular composite chassis, all-metal drivetrain and oversized GTX aluminium shocks are engineered to absorb punishment while remaining easy to service.

Powered by the waterproof Velineon VXL-8s electronic speed controller and Velineon 1200XL 1275kV brushless motor, the X-Maxx is capable of speeds exceeding 80km/h when fitted with the included optional high-speed gearing and powered by two compatible 4S LiPo batteries.

Features

• 2024 Updated X-Maxx with factory-installed belted Sledgehammer tyres
• Large-scale 1/6 ready-to-run brushless monster truck

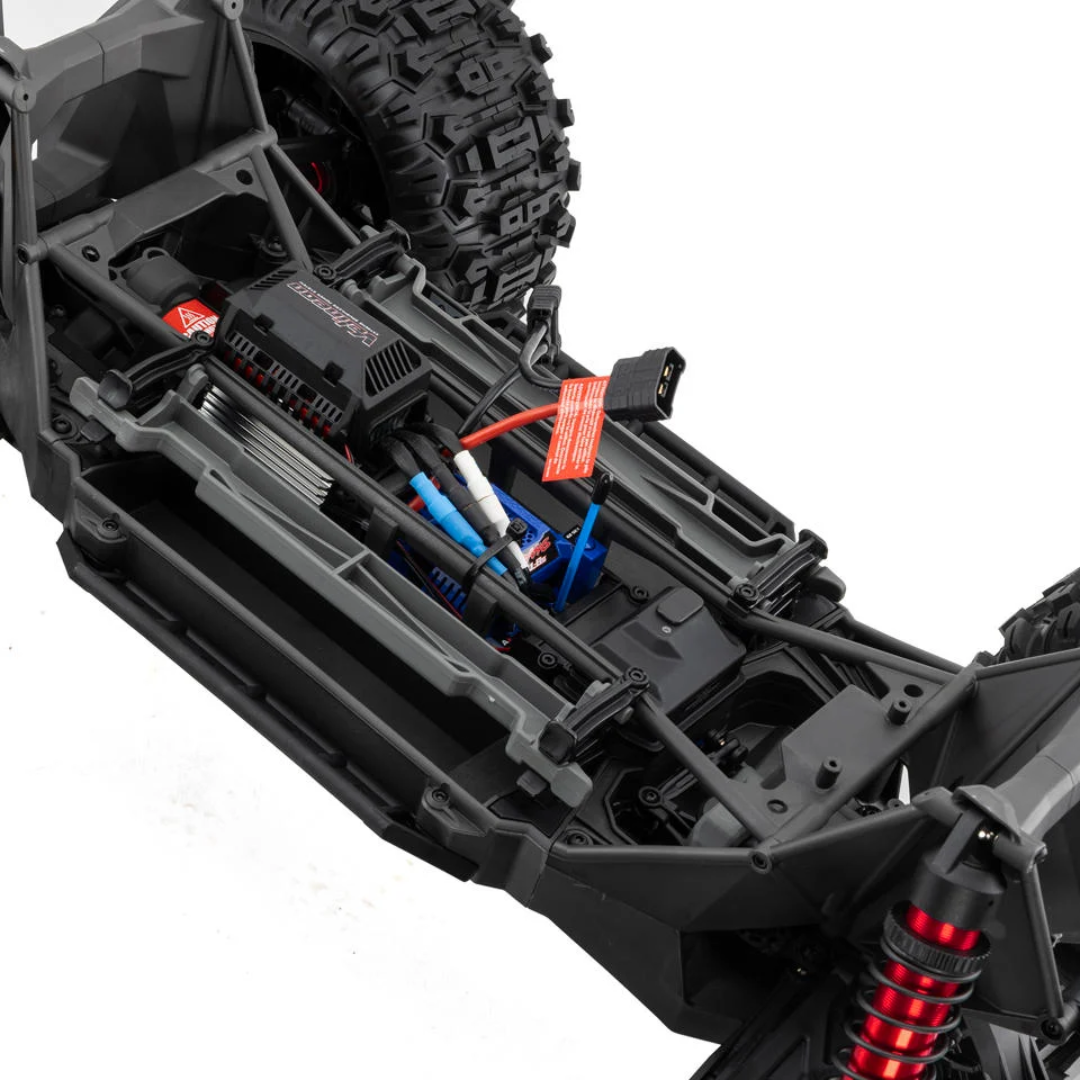

• Velineon VXL-8s waterproof brushless electronic speed controller
• Velineon 1200XL 1275kV four-pole brushless motor
• Compatible with dual 3S or dual 4S LiPo batteries
• Over 80km/h capability using optional speed gearing and dual 4S LiPo batteries
• Factory-fitted belted Sledgehammer tyres reduce tyre ballooning
• Large dual-diameter wheels provide excellent off-road traction

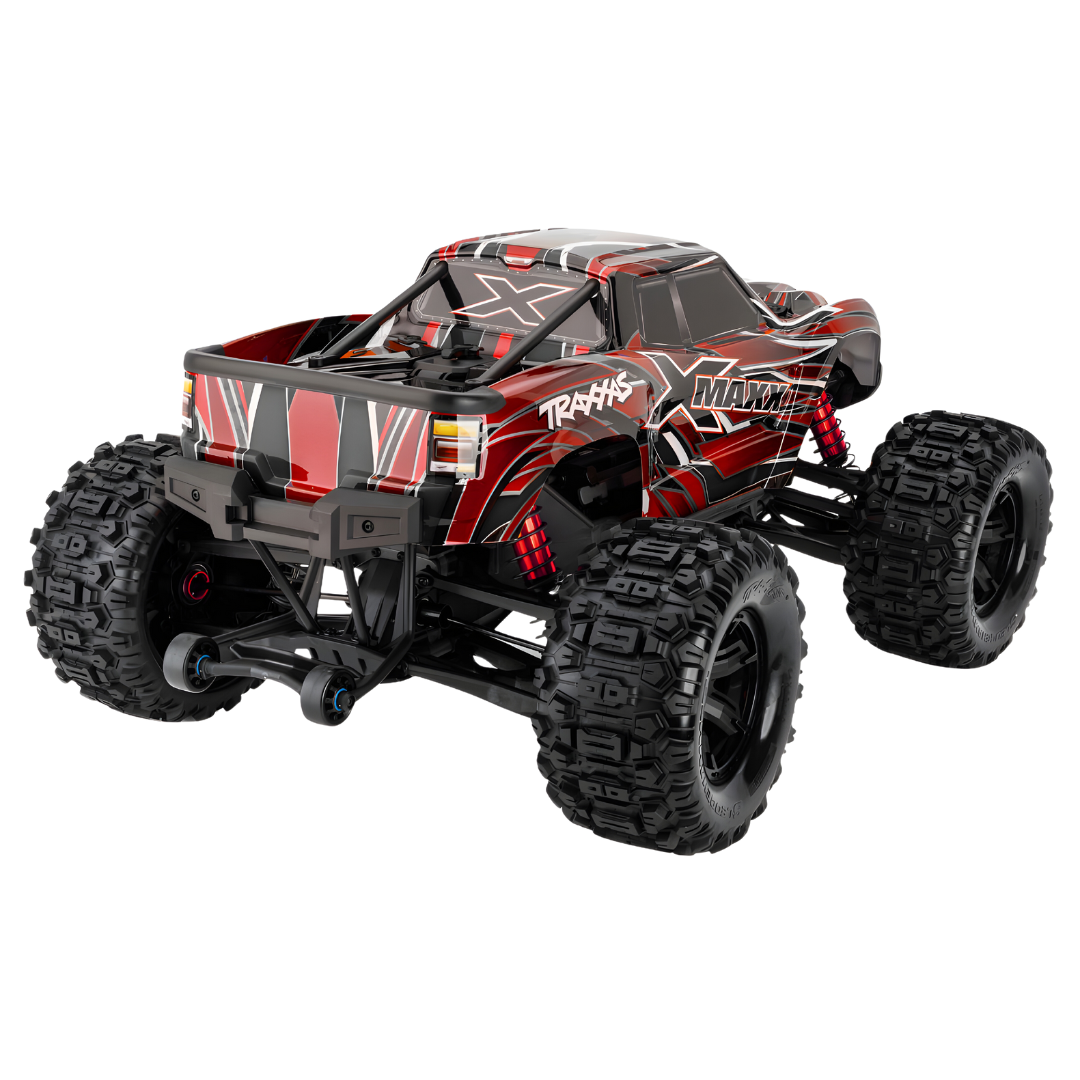

• Clipless reinforced ProGraphix body
• Internal body support cage reduces flex during impacts
• Integrated roof and rear skids protect the body during rollovers
• Heavy-duty chassis-mounted nerf bars provide side-impact protection

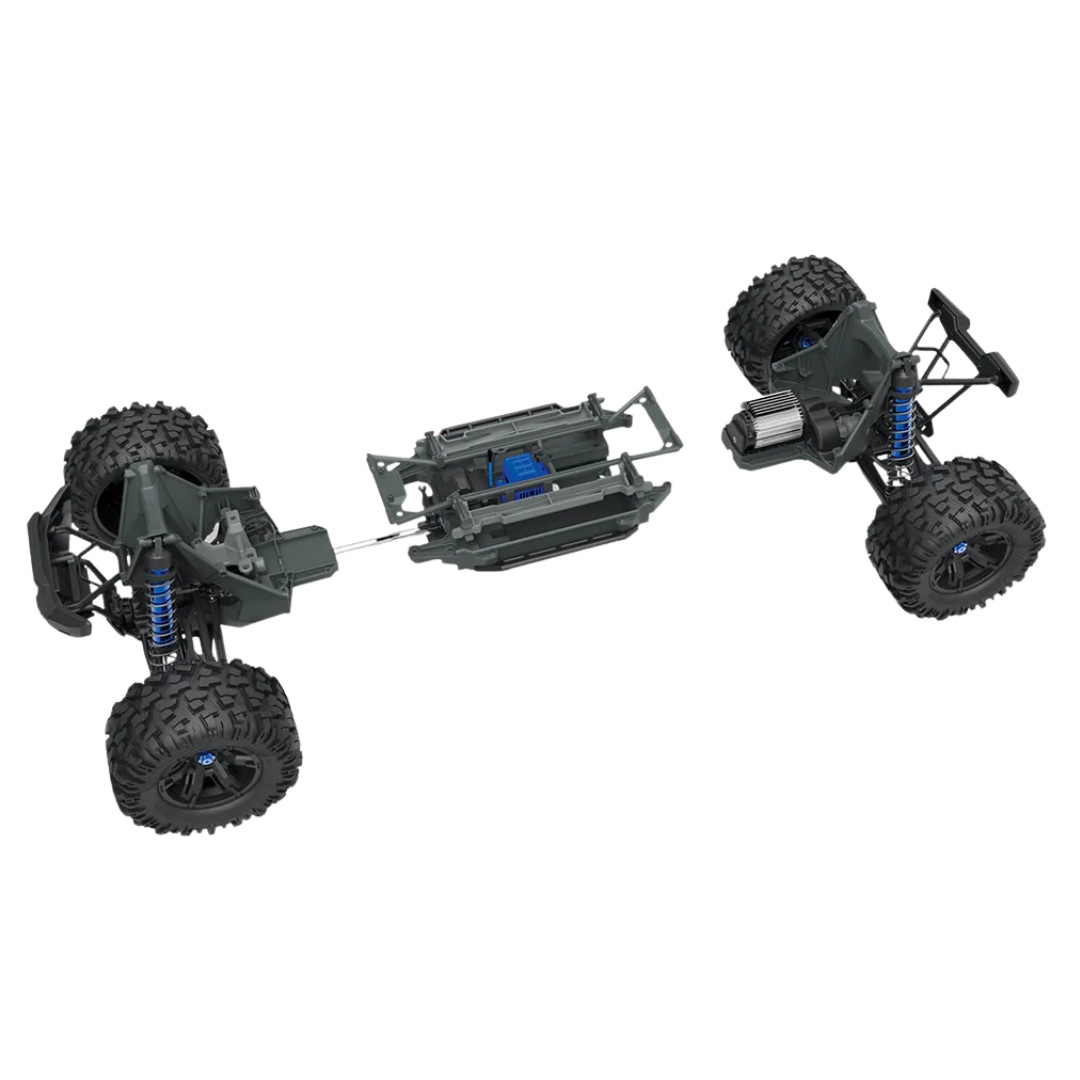

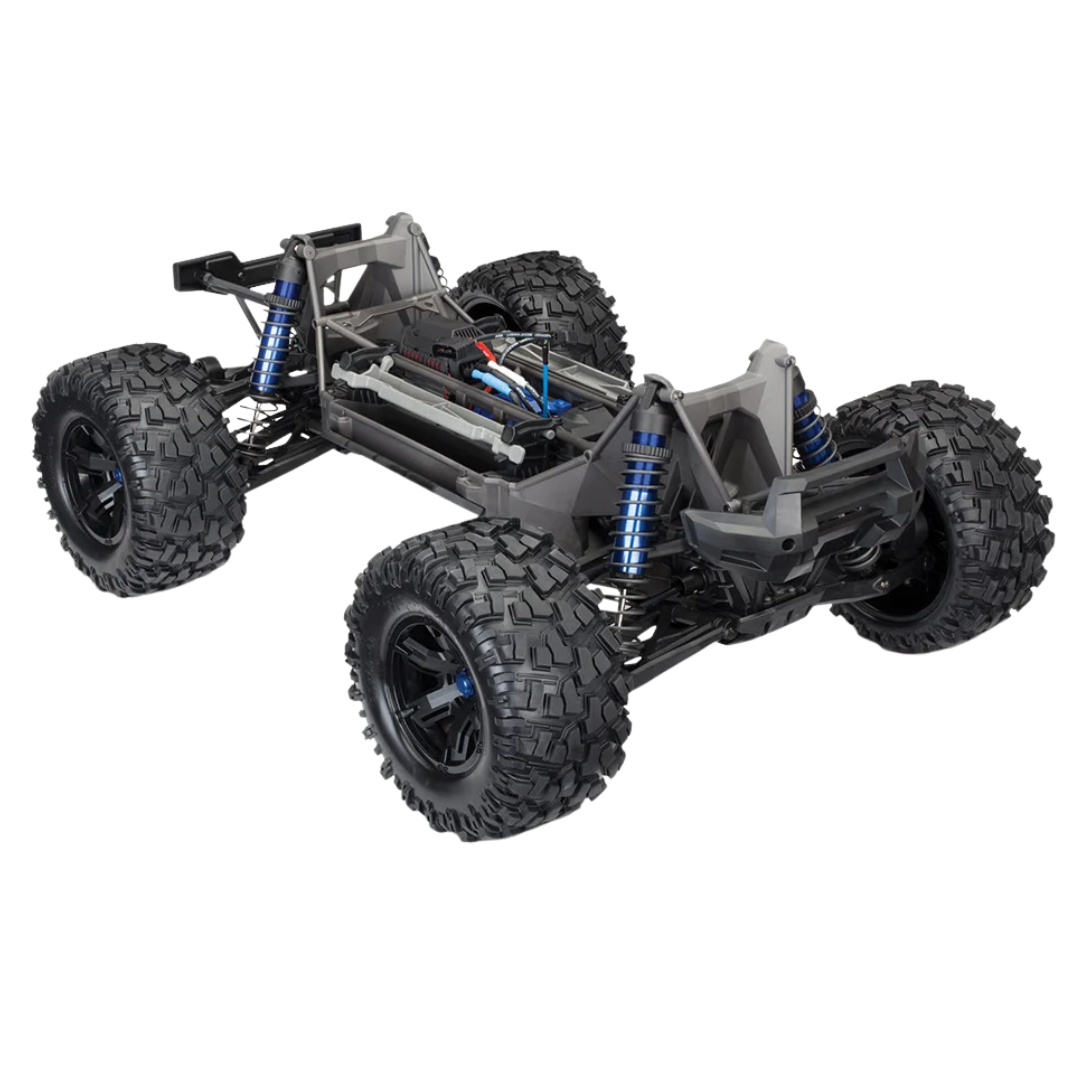

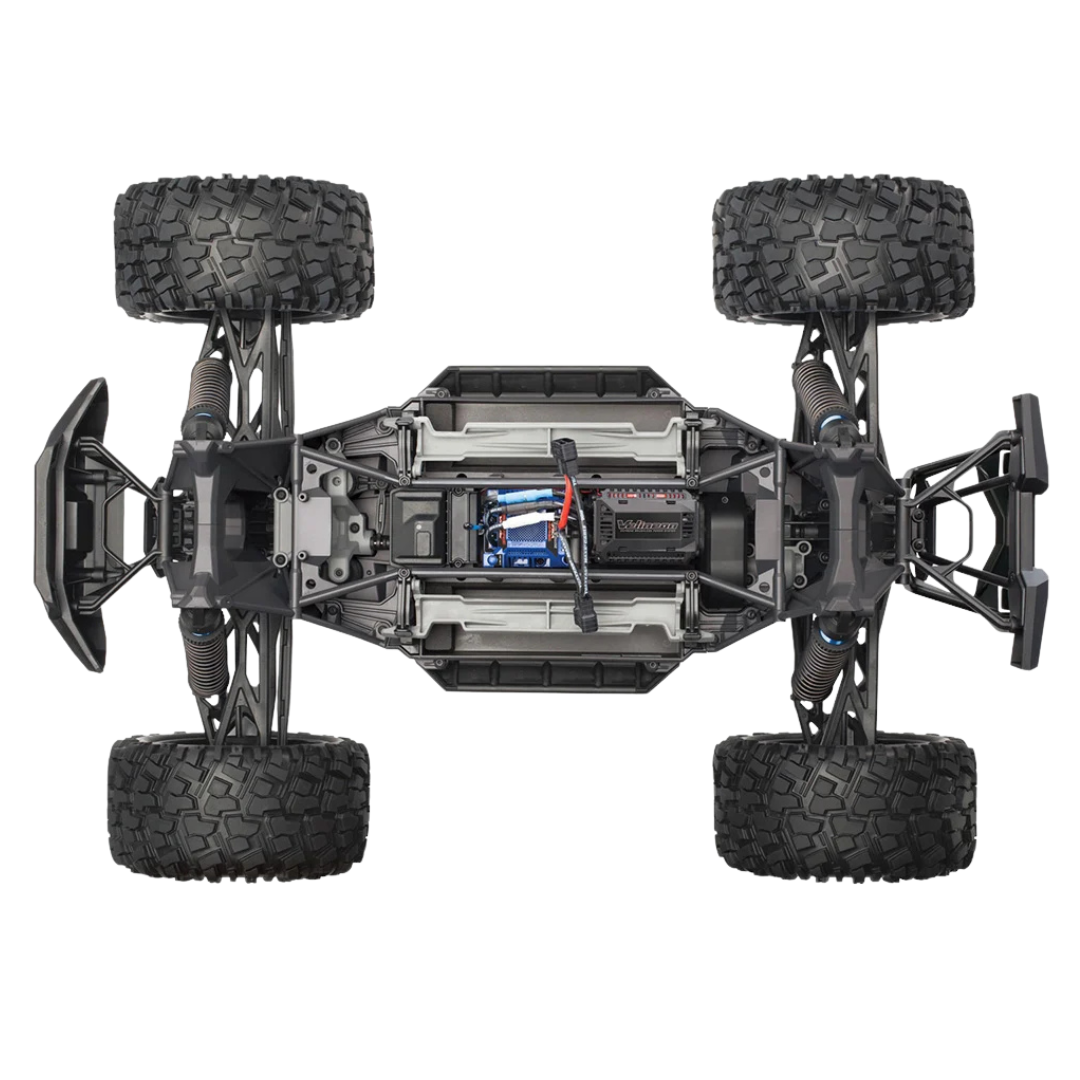

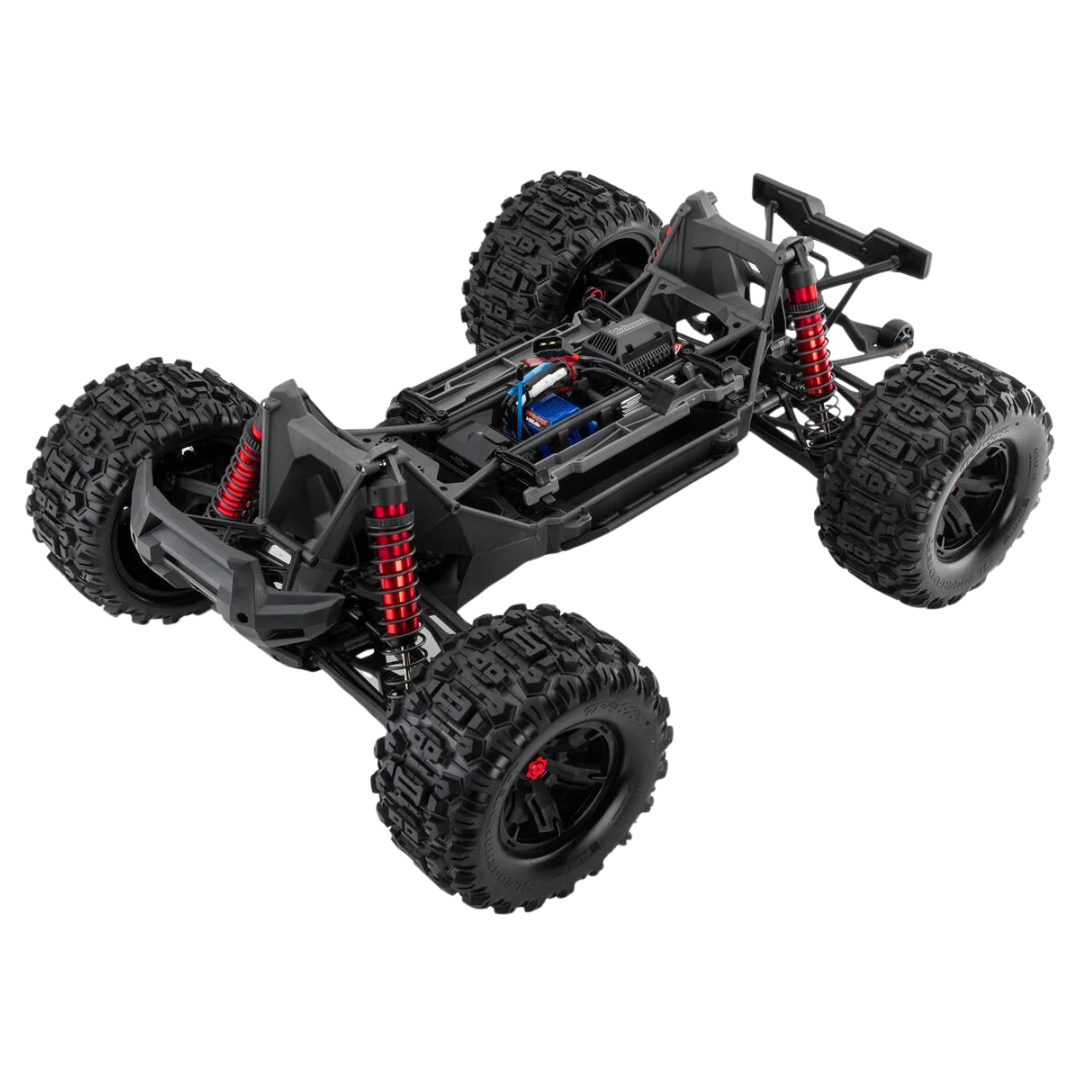

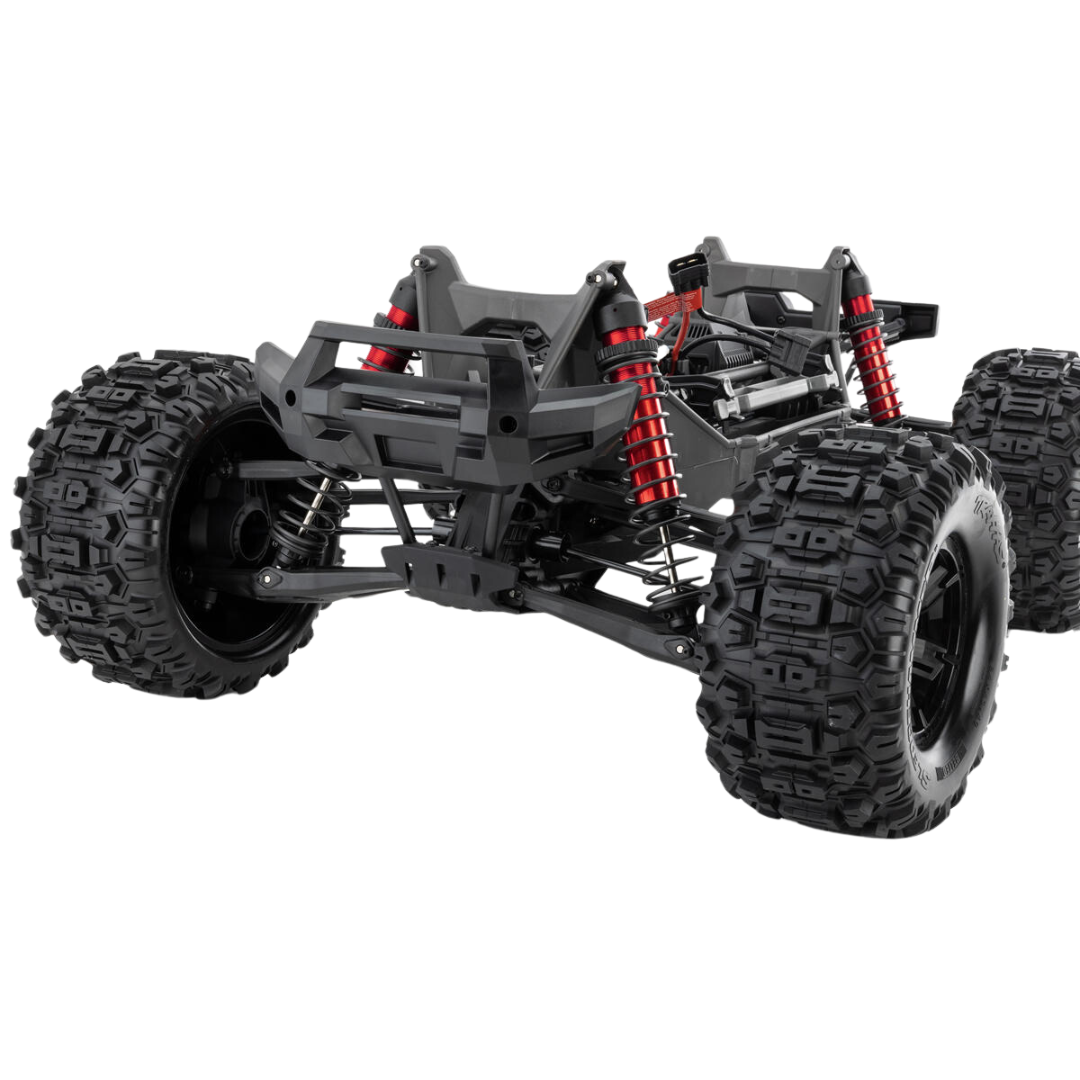

• Rigid modular composite chassis simplifies servicing
• Full-time shaft-driven four-wheel drive
• Heavy-duty all-metal drivetrain
• Steel constant-velocity driveshafts throughout
• Torque-Biasing Centre Drive improves power delivery and drivetrain durability
• Machined aluminium centre driveshaft
• Machined aluminium wheel stub axles

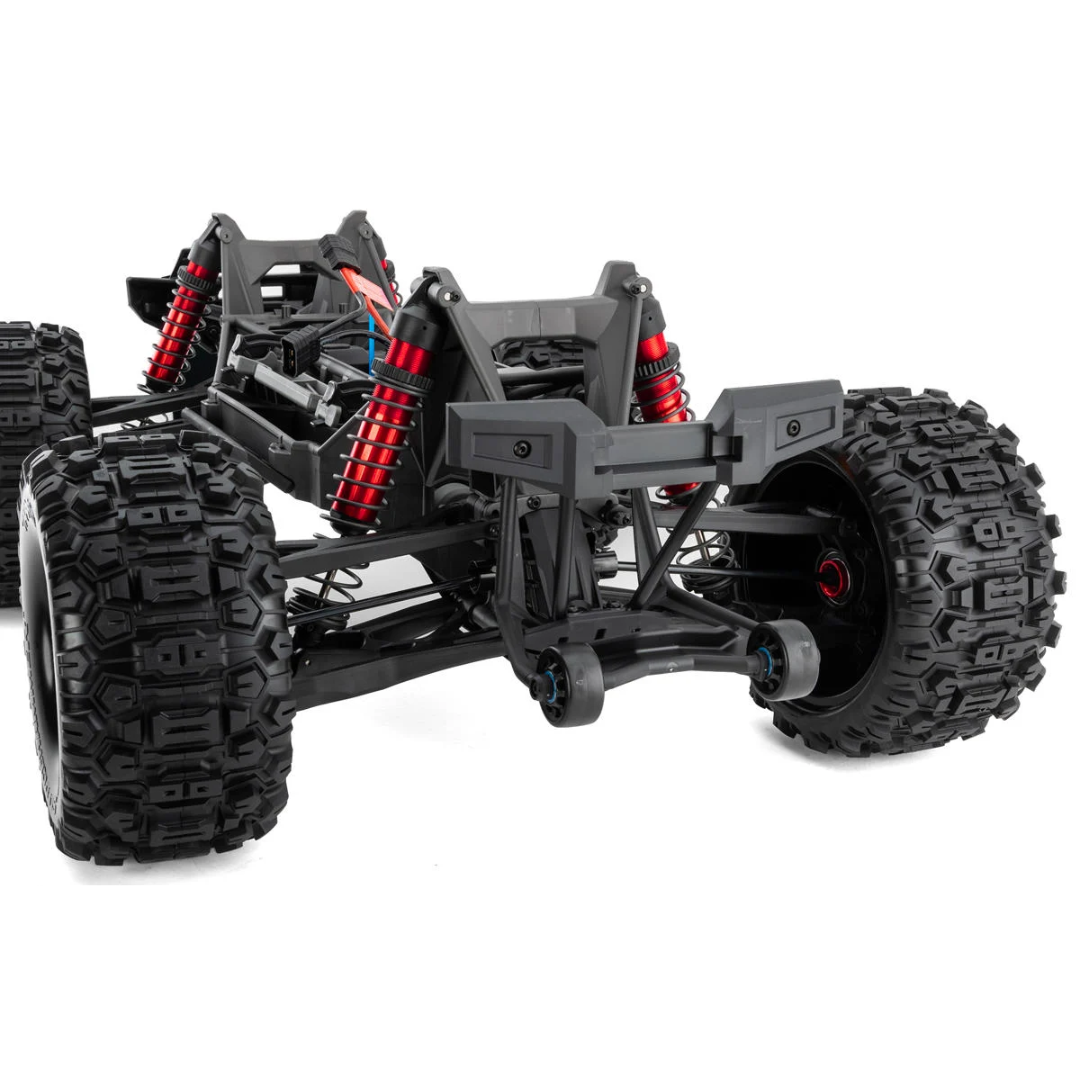

• Oversized aluminium-bodied GTX oil-filled shocks
• Long-travel independent suspension
• Double-shear suspension mounting points increase durability
• Aluminium motor heatsink with dual cooling fans
• ESC cooling fan improves thermal performance

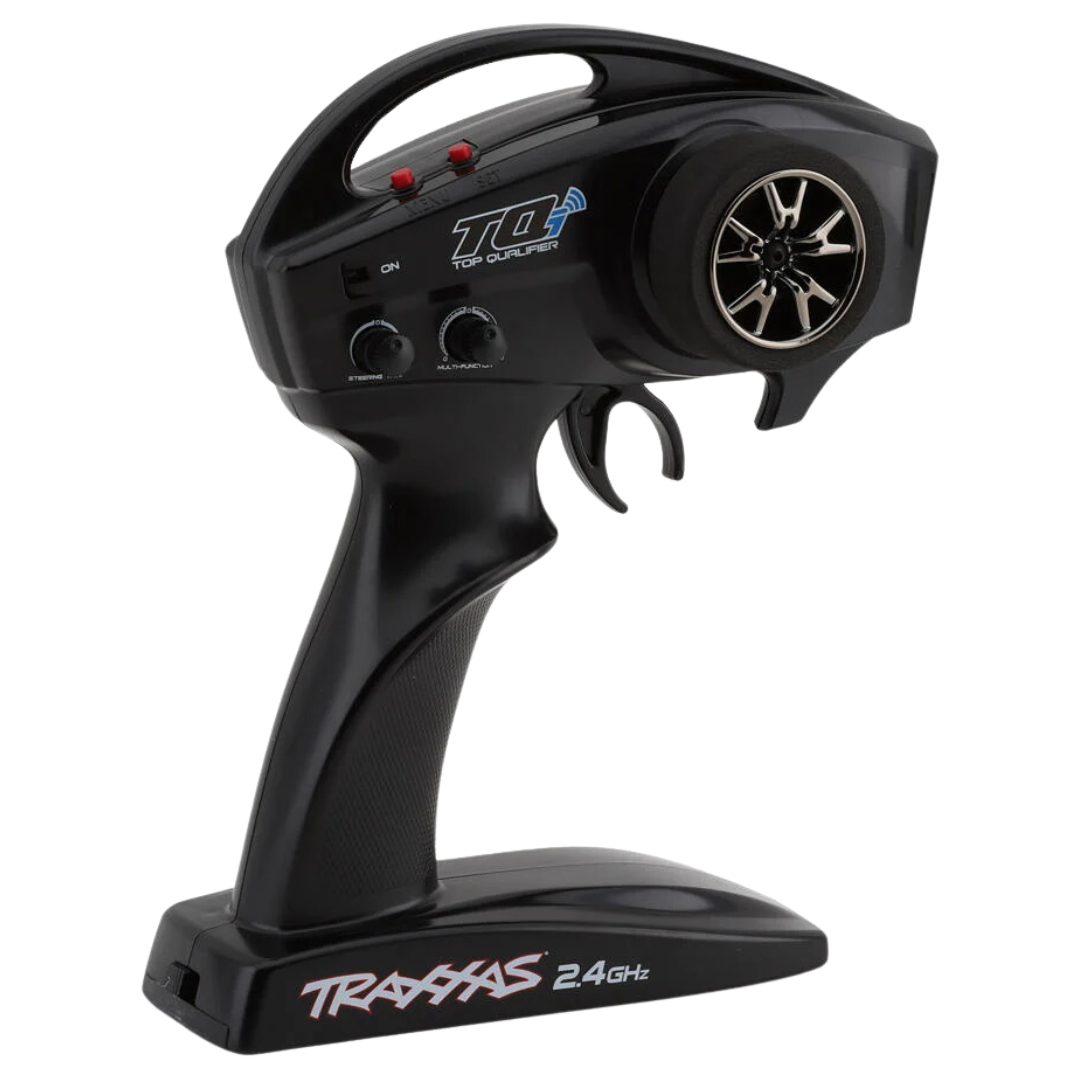

• TQi 2.4GHz high-output radio system
• Traxxas Stability Management (TSM)
• Traxxas Link telemetry compatible
• Self-righting function
• Waterproof electronics for wet-condition driving
• Integrated wheelie bar
• 24mm splined wheel hexes
• Large sealed bearings for improved durability
• Fully assembled and ready to run

Specifications

• Brand: Traxxas
• Model: X-Maxx 8S Belted
• Manufacturer Part Number: 77096-4
• Colour Variant: Red (77096-4-RED)
• Product Type: Electric RC Monster Truck
• Scale: 1/6
• Assembly Level: Ready-To-Run
• Drive System: Shaft-driven 4WD
• Power Source: Electric Brushless
• Motor: Velineon 1200XL Brushless Motor
• Motor Rating: 1275kV
• Electronic Speed Controller: VXL-8s Waterproof ESC
• Battery Compatibility: Dual 3S or Dual 4S LiPo
• Maximum Input Voltage: 8S (29.6V)
• Battery Connectors: Dual Traxxas High-Current iD Connectors
• Radio System: TQi 2.4GHz
• Traxxas Stability Management: Yes
• Telemetry Ready: Yes
• Length: 779mm
• Width: 540mm
• Height: 350mm
• Wheelbase: 480mm
• Ground Clearance: 102mm
• Approximate Weight: 8.66kg (without batteries)
• Tyres: Belted Sledgehammer
• Wheel Hex: 24mm Splined
• Suspension: Independent Long Travel
• Shock Type: Aluminium GTX Oil-Filled Coilovers
• Centre Drive: Torque-Biasing Centre Drive
• Standard Gearing: 15T Pinion / 54T Spur
• Optional High-Speed Gearing: 18T Pinion / 46T Spur
• Advertised Maximum Speed: Over 80km/h using dual 4S LiPo batteries and optional gearing

Compatibility

• Requires 2 × matching Traxxas 4S LiPo batteries for maximum 8S performance
• Compatible with 2 × matching Traxxas 3S LiPo batteries for 6S operation
• Compatible with Traxxas EZ-Peak and EZ-Peak Live LiPo chargers
• Compatible with Traxxas Link Wireless Module
• Compatible with genuine Traxxas X-Maxx replacement and performance parts
• Compatible with 24mm splined X-Maxx wheels and tyres

Includes

• 1 × Traxxas X-Maxx 8S RTR Monster Truck
• 1 × Reinforced Red Clipless Body
• 1 × Velineon VXL-8s Waterproof Brushless ESC
• 1 × Velineon 1200XL Brushless Motor
• 1 × Waterproof Steering Servo
• 1 × TQi 2.4GHz Radio System
• 1 × Receiver with Traxxas Stability Management
• 4 × Factory-installed Belted Sledgehammer Tyres

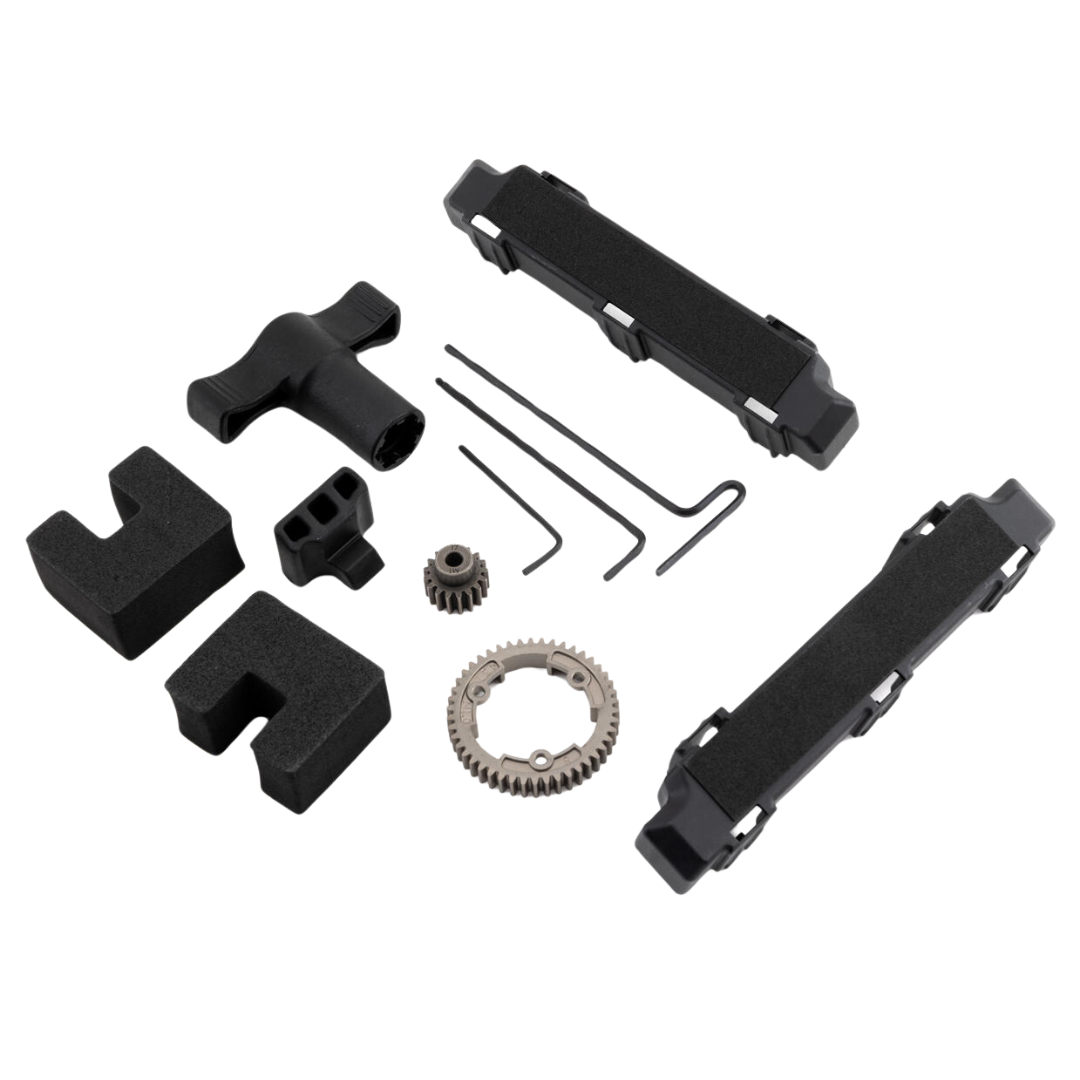

• Optional High-Speed Gearing Set
• Maintenance Tools
• Instruction Manual

Required to Complete

• 2 × Matching Traxxas 4S LiPo batteries for full 8S performance
• Compatible LiPo balance charger
• 4 × AA batteries for the transmitter

FAQ

Does the X-Maxx include batteries or a charger?
No. Two matching LiPo batteries, a compatible charger and four AA transmitter batteries are required separately.

Can it run on 6S?
Yes. Two matching 3S LiPo batteries provide 6S operation, while two matching 4S packs unlock the truck's full 8S performance.

How fast is the X-Maxx?
Traxxas rates the X-Maxx at over 80km/h (50+mph) when using two compatible 4S LiPo batteries together with the included optional high-speed gearing.

Why are belted tyres better?
The internal reinforcement reduces tyre ballooning at high speed, resulting in more consistent handling, improved steering precision and greater stability.

Is the X-Maxx waterproof?
The installed electronics are waterproof for wet-condition driving, however the vehicle should always be cleaned, dried and maintained after exposure to water or mud.

Is the X-Maxx suitable for beginners?
While supplied fully assembled, the X-Maxx is an extremely large and powerful RC vehicle. New drivers should begin with reduced throttle settings and operate in a large open area.

Important Notes

• Drive batteries, charger and transmitter AA batteries are not included.
• Use only two matching LiPo batteries of identical voltage, capacity, age and discharge rating.
• Never mix 3S and 4S batteries.
• Always use a quality LiPo balance charger.
• Never charge LiPo batteries unattended.
• Do not use damaged, swollen or punctured LiPo batteries.
• Enable the correct battery settings before operating the vehicle.
• The advertised maximum speed requires dual 4S LiPo batteries and the included optional high-speed gearing.
• High-speed gearing is intended for speed runs on smooth surfaces and will increase motor and ESC temperatures.
• Standard gearing is recommended for general bashing, grass and rough terrain.
• Monitor motor and ESC temperatures during extended operation.
• Belted tyres provide less tyre expansion and therefore less in-air rotational control than conventional tyres.
• Inspect tyres, wheel nuts and drivetrain components before each run.
• The X-Maxx weighs over 8kg without batteries and should only be operated in large open areas away from people, animals and traffic.
• Waterproof electronics still require cleaning and lubrication after wet use.
• Avoid driving in salt water as it can rapidly corrode bearings, hardware and electrical components.
