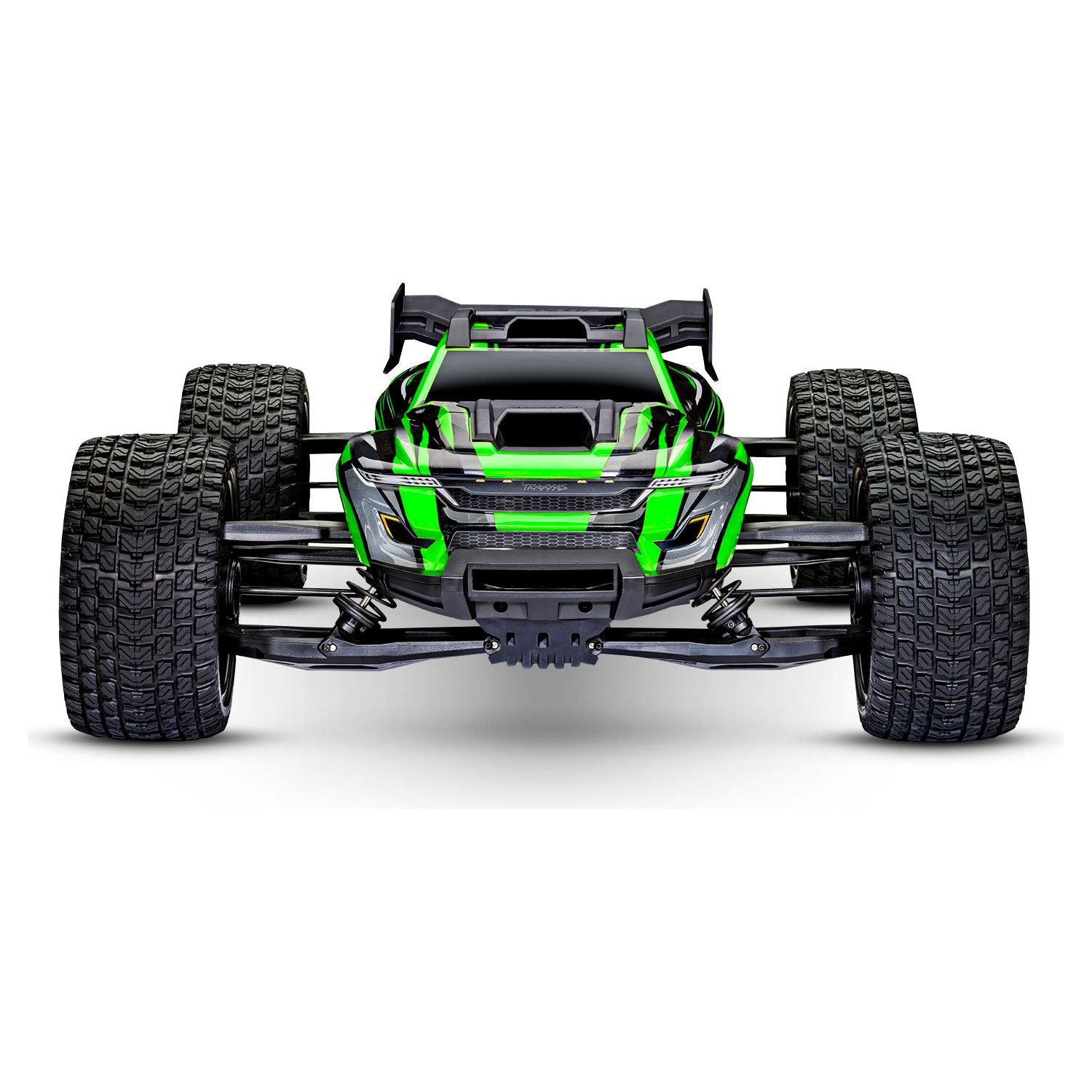

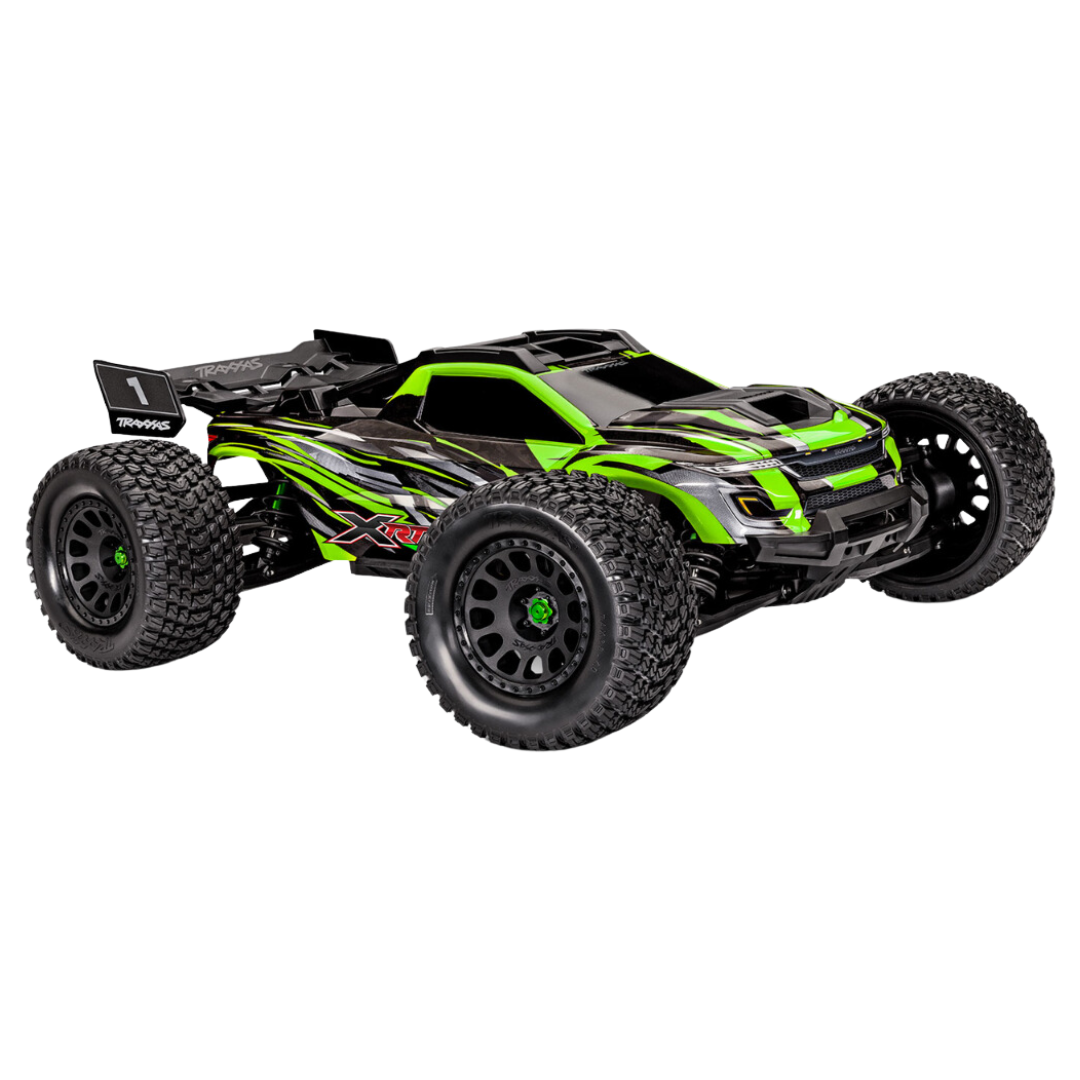

Traxxas XRT 8S Brushless Electric X-Truck RTR RC Truggy 1/6 (Green) 78086-4

The Traxxas XRT is a large-scale 1/6 brushless 4WD RC X-Truck designed for experienced drivers wanting high-speed handling, wide-track stability and durable off-road performance.

The XRT combines a low-centre-of-gravity chassis with the Velineon VXL-8s power system, an ultra-wide stance and a low-profile clipless body. This performance-focused layout provides more responsive cornering and greater high-speed stability than a conventional tall monster truck while retaining a heavy-duty driveline suitable for large-scale bashing.

The factory-installed Velineon 1200XL brushless motor and VXL-8s electronic speed controller operate with two matching 3S or two matching 4S LiPo batteries. Two 3S batteries provide reduced 6S performance, while two 4S batteries unlock the complete 8S system and the vehicle’s maximum advertised performance.

Features

• 8S Brushless Power System: The Velineon VXL-8s ESC and 1200XL motor provide strong acceleration for large-scale off-road driving
• Dual Battery Operation: Runs on two matching 3S LiPo batteries for reduced performance or two matching 4S batteries for full 8S power
• 60+ MPH Potential: Capable of speeds above approximately 96km/h with two suitable 4S LiPo batteries and the included optional gearing

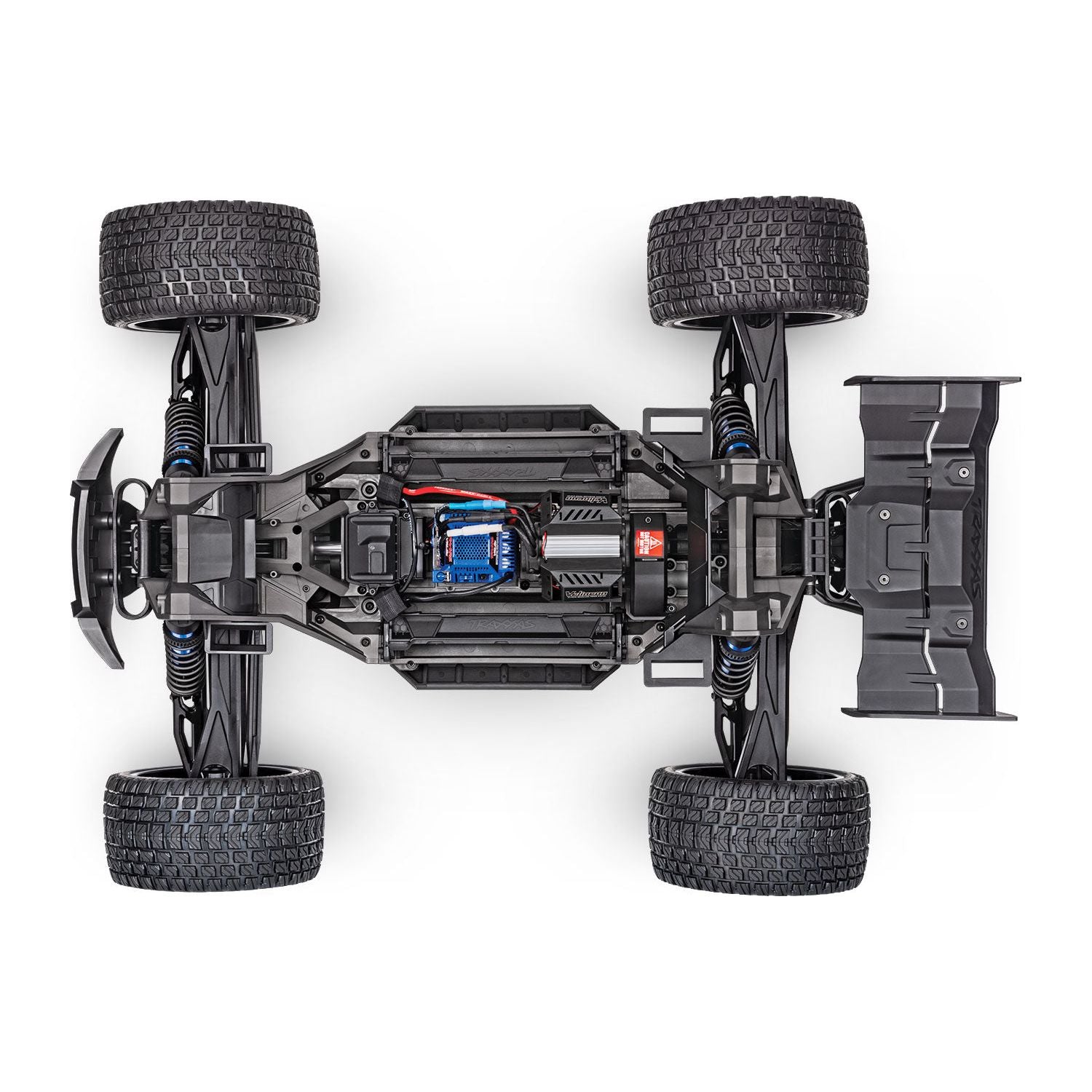

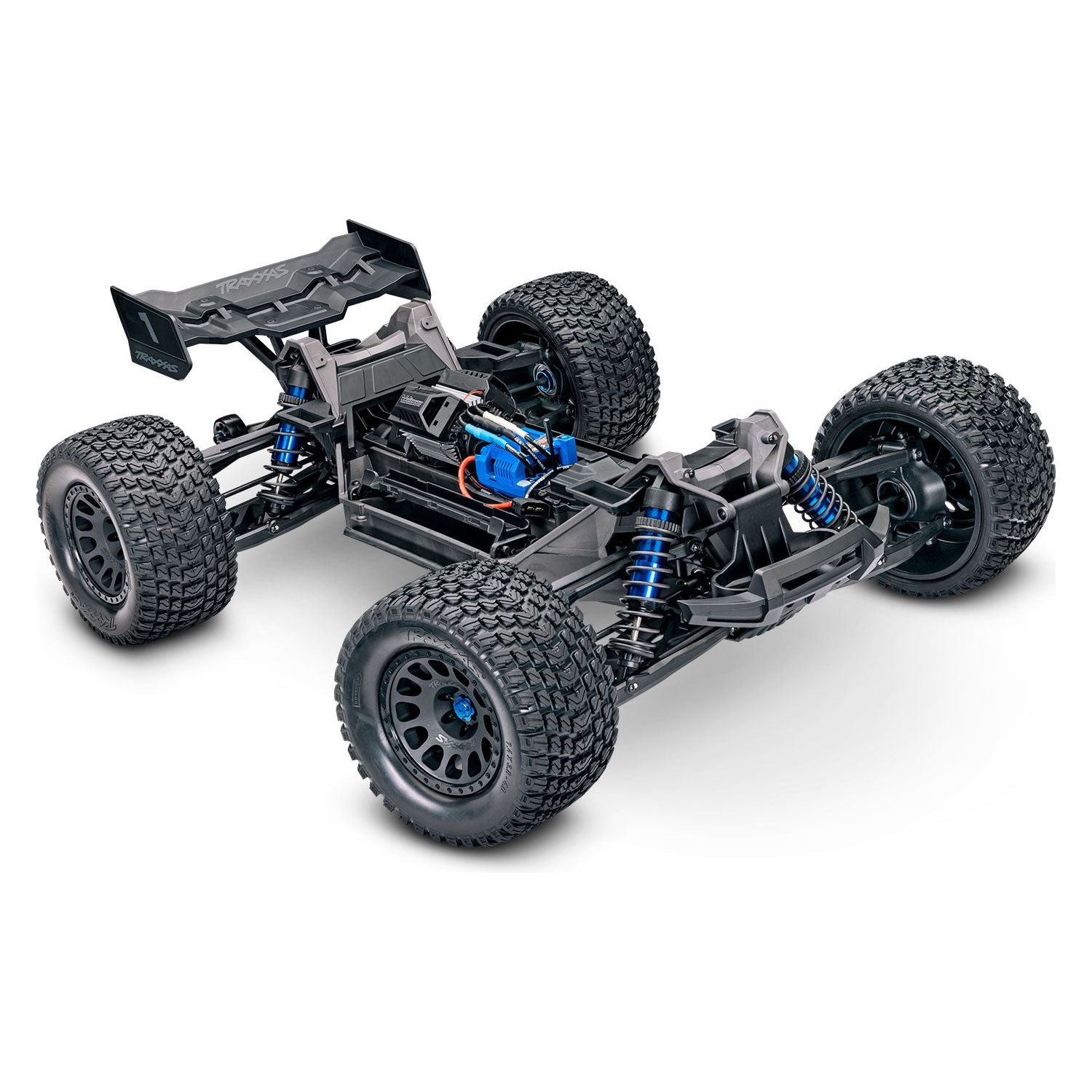

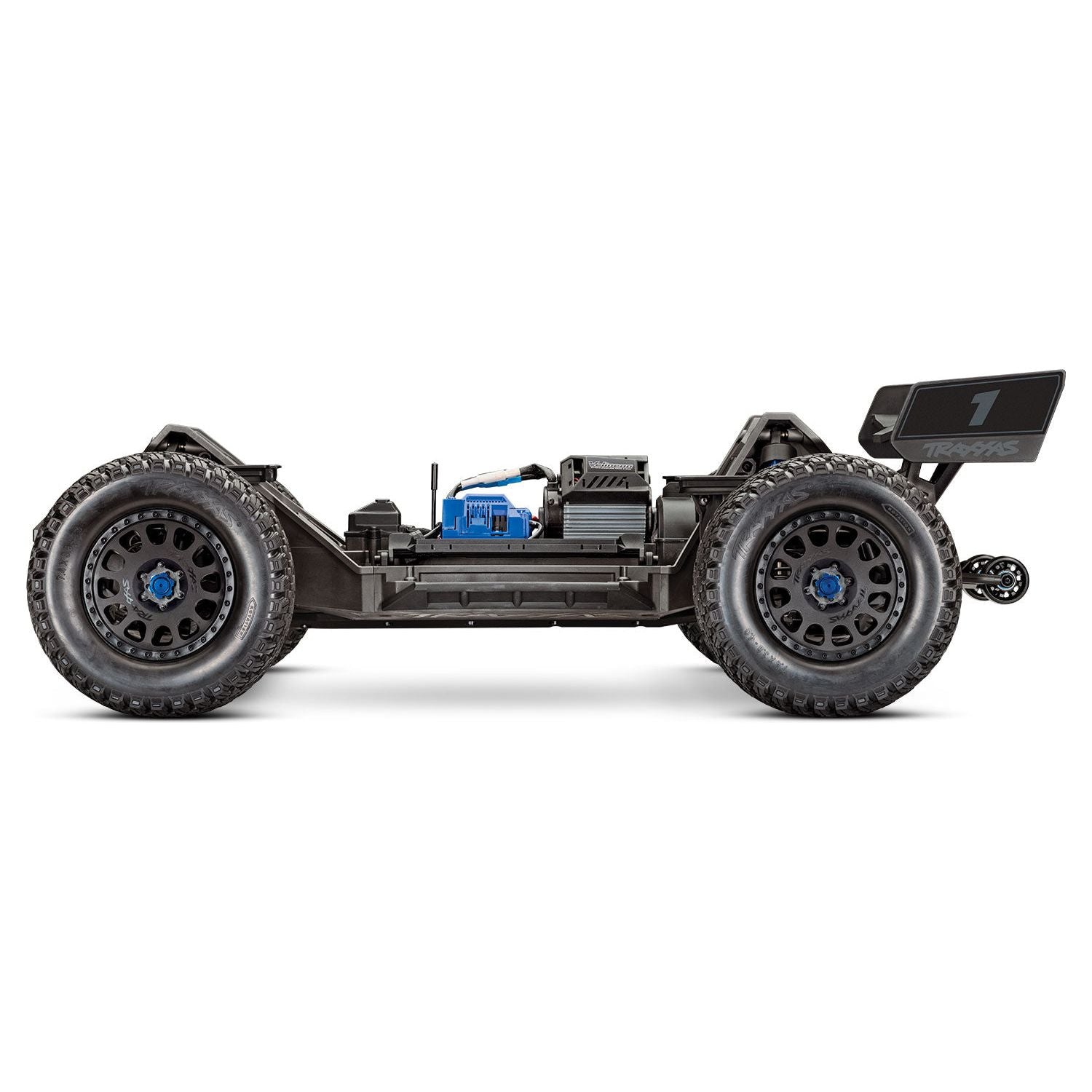

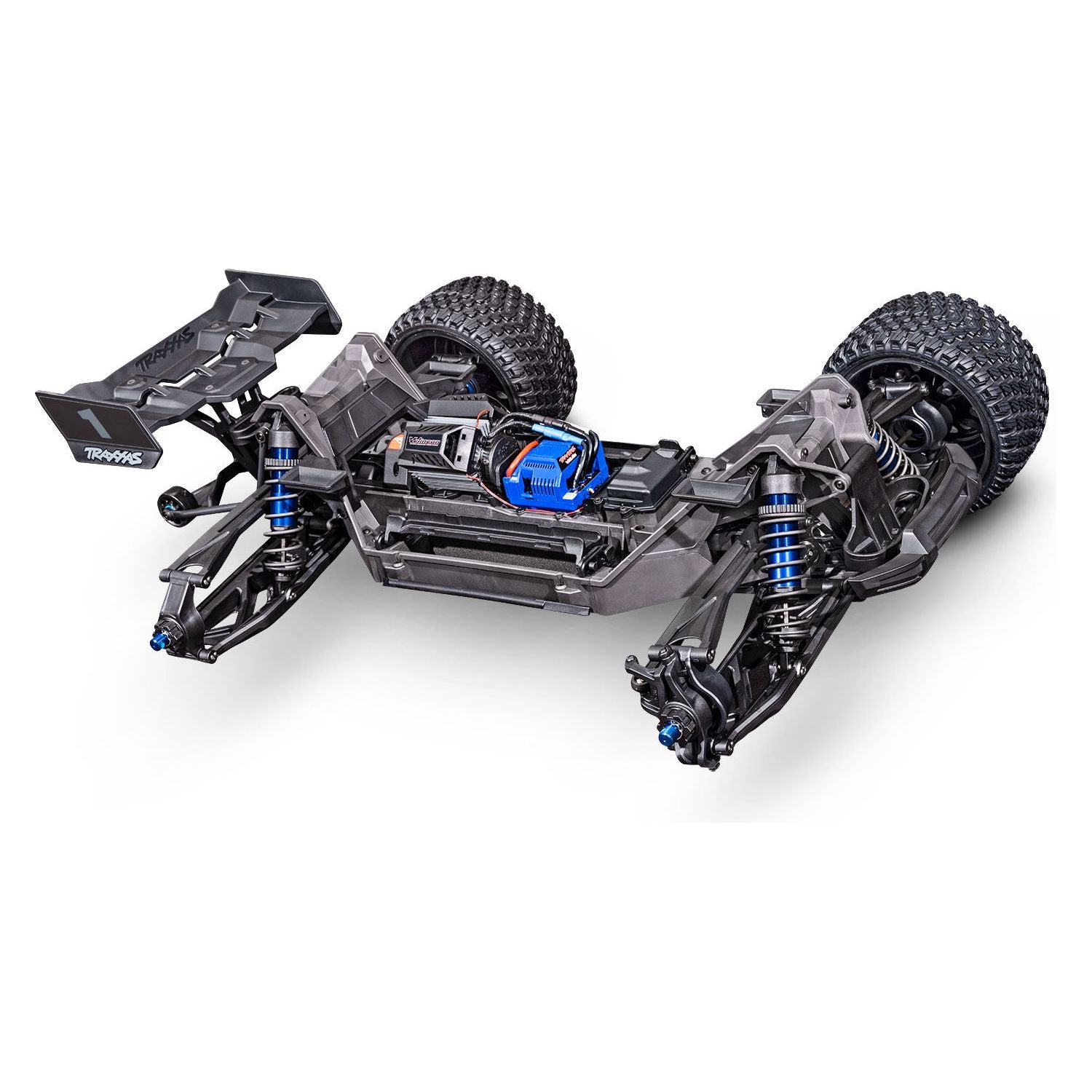

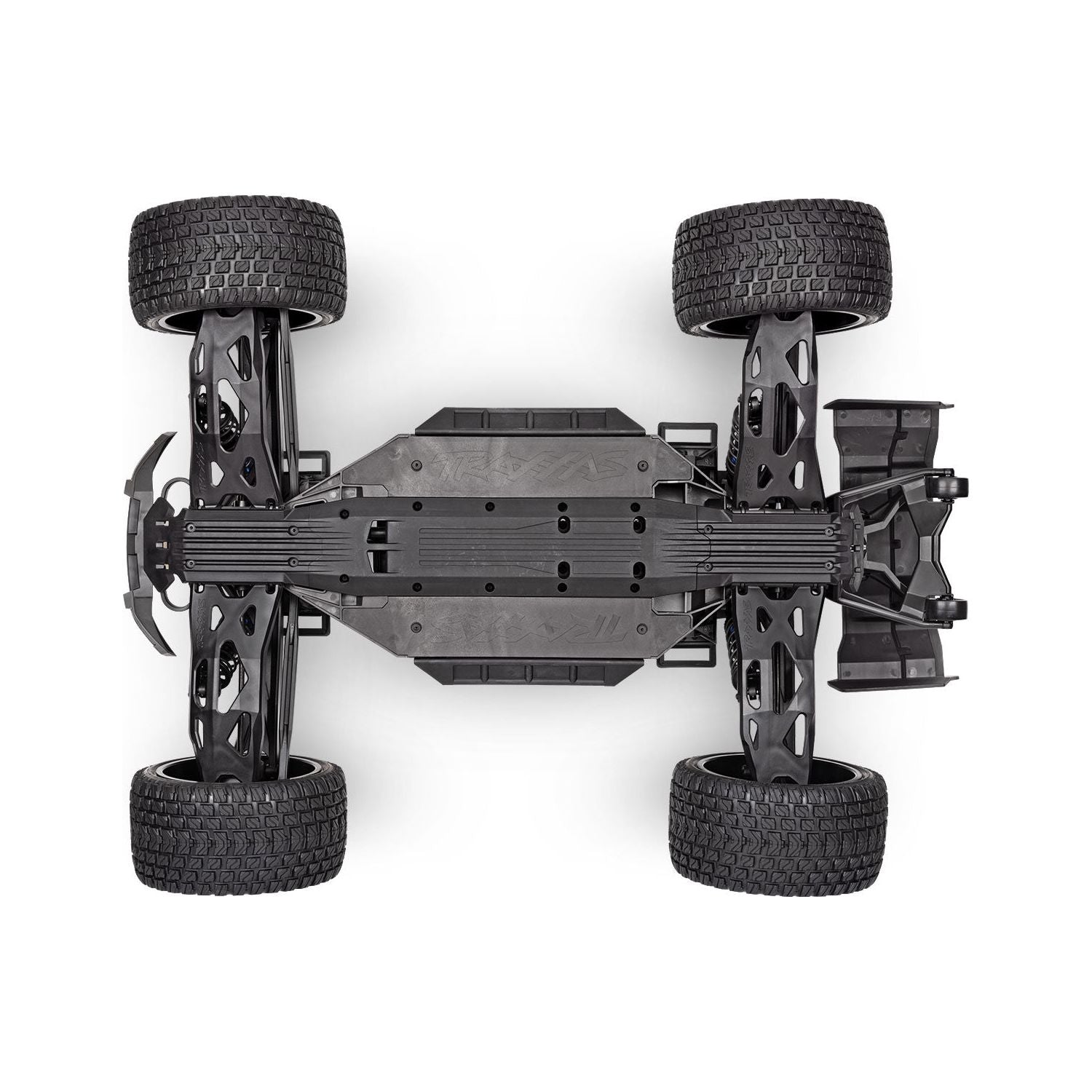

• Low-Centre-of-Gravity Chassis: Positions major components low in the chassis to improve cornering and high-speed stability
• Ultra-Wide Stance: The 595mm overall width provides a stable footprint for fast driving across open terrain
• Heavy-Duty 4WD Drivetrain: Shaft-driven four-wheel drive distributes power to all four wheels
• Steel Four-Gear Differentials: Hardened steel differential components support demanding brushless operation
• Limited-Slip Differentials: Sealed front and rear differentials help manage traction under acceleration
• Steel Driveshafts: Heavy-duty steel shafts transfer power through the driveline
• Extruded Aluminium Centre Shaft: Provides a strong connection between the front and rear drivetrains
• Module 1.0 Gearing: Large spur and pinion teeth are designed for the loads produced by the 8S power system
• Velineon 1200XL Motor: The 1275kV sensorless brushless motor includes a heatsink and dual cooling-fan shrouds
• VXL-8s Electronic Speed Controller: Waterproof forward and reverse ESC with integrated cooling fan and thermal protection
• TQi 2.4GHz Radio System: Provides precise control and supports optional Traxxas Link functionality
• Traxxas Stability Management: TSM provides adjustable steering assistance on loose or slippery surfaces
• High-Torque Steering Servo: The waterproof digital servo is mounted low in the chassis for protection and improved weight distribution
• Clipless Body Mounting: The body installs and removes without conventional body clips
• Internal Body Cage: Supports the body shell and helps reduce flex during impacts
• External Body Skids: Protect high-contact areas of the body during rollovers and sliding impacts
• GTX Aluminium Shocks: Large oil-filled shocks provide controlled damping over rough terrain and jumps
• Adjustable Suspension: Suspension settings can be tuned to suit different terrain and driving styles
• Gravix Belted Tyres: Low-profile belted tyres resist expansion at high speed and provide predictable handling
• 24mm Splined Wheel Hexes: Large wheel hexes provide secure wheel mounting under high drivetrain loads

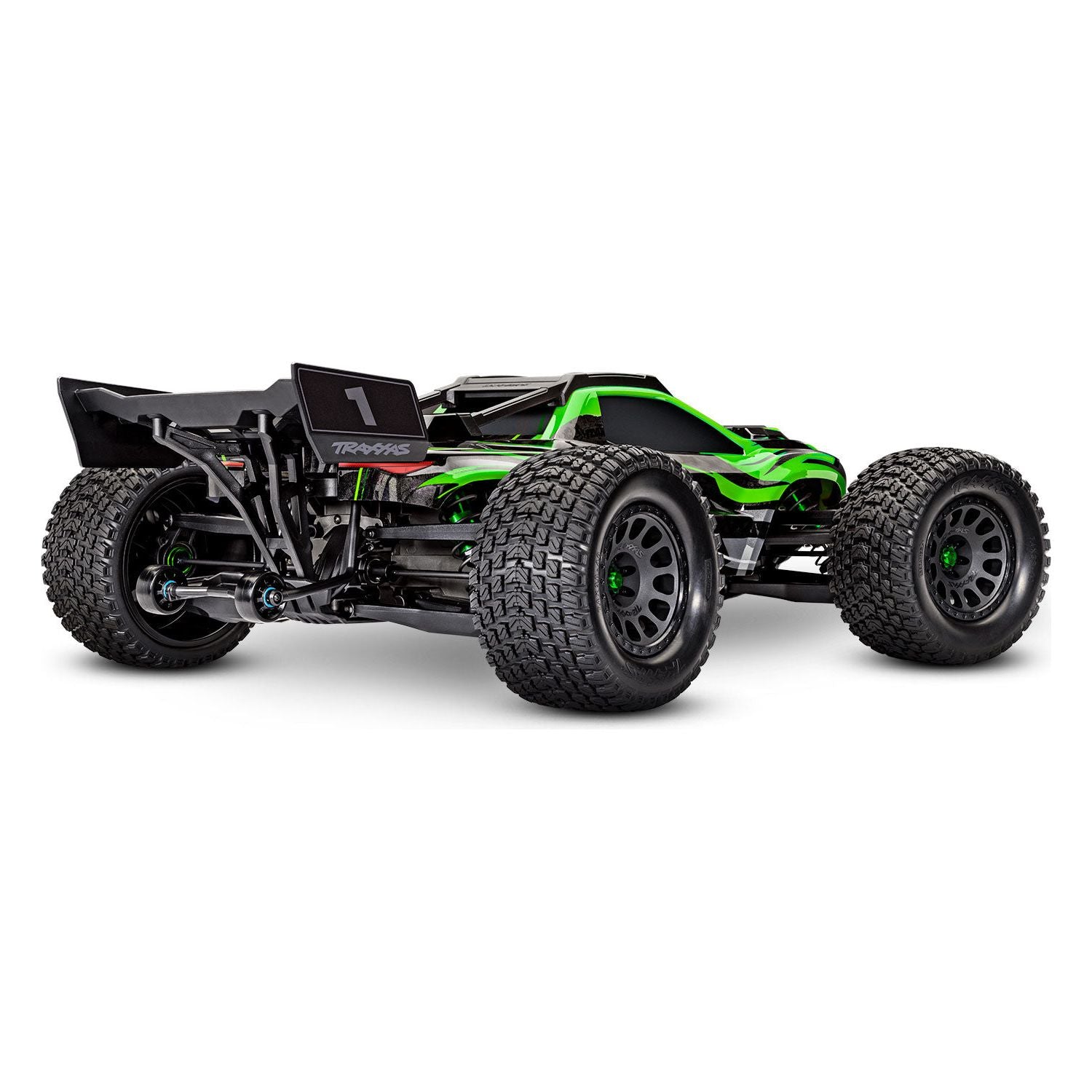

• Integrated Rear Wing: Adds rear stability and completes the race-inspired X-Truck profile

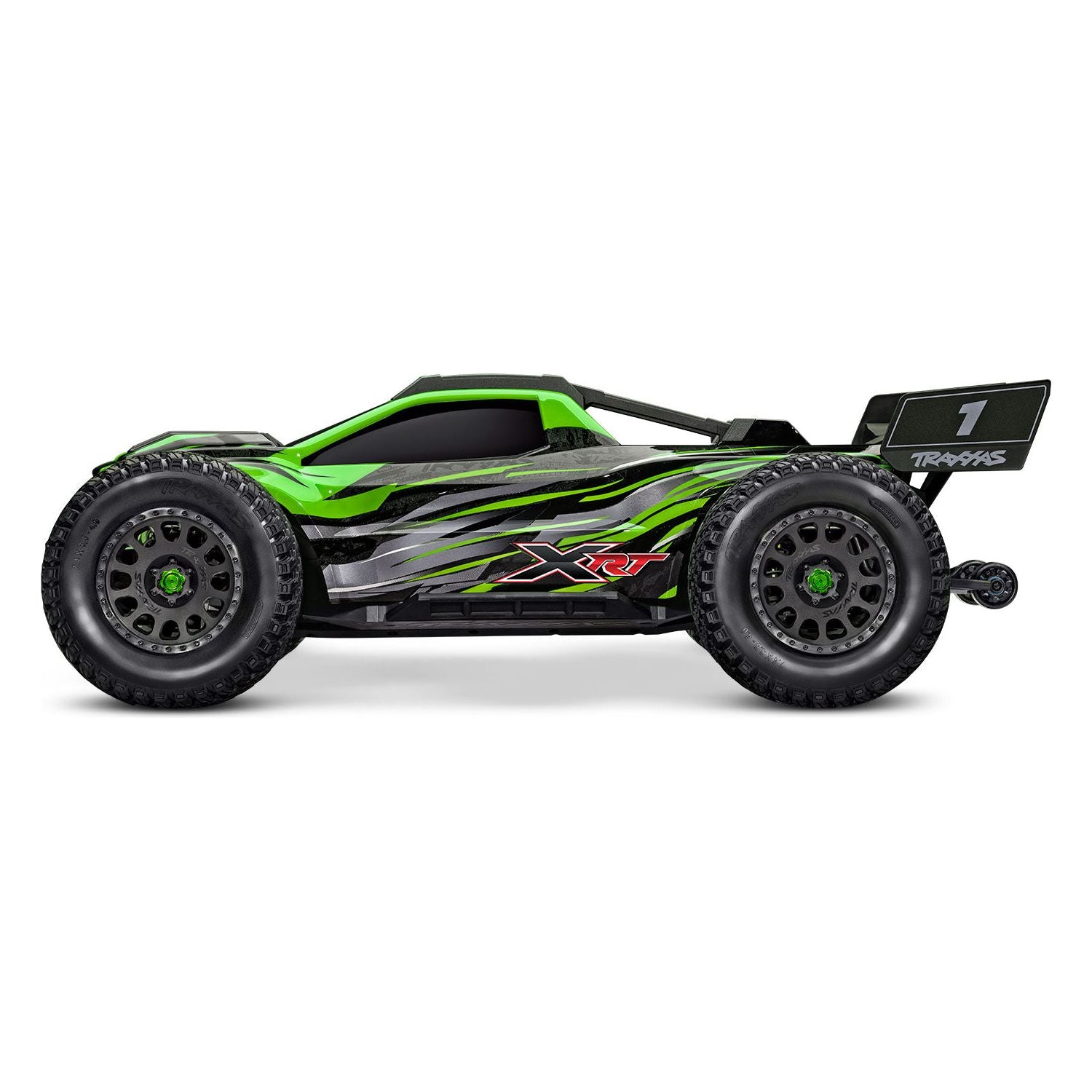

• Green Factory-Finished Body: Supplied painted, decaled and ready for use
• Fully Assembled RTR Format: Motor, ESC, radio receiver and steering servo are installed at the factory

Specifications

• Brand: Traxxas
• Model: XRT
• Manufacturer Part Number: 78086-4GRN
• Base Model Number: 78086-4
• Colour: Green
• Product Type: RC X-Truck
• Scale: 1/6
• Completion Level: Ready to run
• Recommended Skill Level: 5
• Power Source: Electric brushless
• Drive System: Shaft-driven four-wheel drive
• Motor: Velineon 1200XL sensorless brushless motor
• Motor Rating: 1275kV
• Motor Cooling: Heatsink with dual cooling-fan shrouds
• Electronic Speed Controller: Velineon VXL-8s waterproof brushless ESC
• Battery Configuration: Two matching LiPo batteries
• Supported Battery Input: Dual 3S or dual 4S LiPo
• Maximum System Voltage: 8S LiPo
• Battery Connectors: Traxxas High-Current connectors
• Battery Compartment Size: 186mm × 51mm × 44mm each
• Radio System: Traxxas TQi 2.4GHz transmitter
• Receiver: TQi receiver with Traxxas Stability Management
• Steering Assistance: Adjustable Traxxas Stability Management
• Steering Servo: Traxxas 2085 waterproof digital high-torque servo
• Servo Torque: 365oz-in at 6.0V
• Servo Speed: 0.17 seconds per 60 degrees at 6.0V
• Transmission: Single speed
• Standard Pinion and Spur Gearing: 20-tooth pinion and 50-tooth spur
• Overall Drive Ratio: 20.6:1 with standard gearing
• Gear Pitch: Module 1.0
• Differential Type: Sealed hardened-steel bevel limited-slip differentials
• Chassis Structure: Composite nylon tub
• Centre Driveshaft: Extruded aluminium
• Suspension: Independent suspension
• Shock Type: Oil-filled aluminium GTX shocks
• Tyres: Traxxas Gravix belted tyres
• Wheel Hexes: 24mm splined
• Body Mounting: Clipless retention system
• Length Including Wing: 798mm
• Width: 595mm
• Wheelbase: 480mm
• Centre Ground Clearance: 49mm
• Height at Full Suspension Droop: Approximately 308mm
• Weight Without Body or Batteries: Approximately 8.94kg
• Weight with Body and Without Batteries: Approximately 9.54kg
• Running Weight with Two Batteries: Approximately 10.83kg depending on battery selection
• Maximum Advertised Speed: Over 96km/h with dual 4S batteries and optional gearing

Compatibility

• Compatible with two matching 3S LiPo batteries for 6S operation and reduced performance
• Compatible with two matching 4S LiPo batteries for full 8S operation
• Each battery must fit within a 186mm × 51mm × 44mm compartment
• Batteries must use compatible Traxxas High-Current connectors
• OZRC recommends using two batteries of the same brand, capacity, voltage, discharge rating, age and state of charge
• Compatible with suitable Traxxas EZ-Peak iD chargers and other correctly rated LiPo balance chargers
• Compatible with the optional Traxxas Link Wireless Module for supported transmitter adjustments and telemetry functions
• Compatible with genuine Traxxas XRT 78086-series replacement parts and accessories
• Replacement bodies must be designed for the standard XRT clipless body retention system
• Replacement wheels must use compatible 24mm splined hexes and provide suitable chassis clearance

Includes

• 1 × Traxxas XRT 1/6 4WD brushless RC X-Truck in green
• 1 × Installed Velineon VXL-8s electronic speed controller
• 1 × Installed Velineon 1200XL 1275kV brushless motor
• 1 × Installed Traxxas 2085 waterproof digital steering servo
• 1 × Installed TQi receiver with Traxxas Stability Management
• 1 × Traxxas TQi 2.4GHz transmitter
• 1 × Optional high-speed gearing set
• Factory-installed green clipless body
• Factory-mounted Gravix belted tyres and wheels
• Basic maintenance tools
• Instruction manual

Required to Complete

• 2 × Matching 3S LiPo batteries for reduced 6S performance or 2 × matching 4S LiPo batteries for full 8S performance
• 1 × Compatible dual-output or suitable LiPo balance charger
• 4 × AA batteries for the TQi transmitter
• 1 × Suitable LiPo charging bag or other fire-resistant charging container

FAQ

Does the Traxxas XRT include batteries and a charger? No. The XRT requires two matching 3S or two matching 4S LiPo batteries, a compatible balance charger and four AA transmitter batteries.

Can the XRT run on two 3S batteries? Yes. Two matching 3S LiPo batteries operate the XRT on 6S for reduced speed and acceleration. Two matching 4S batteries are required for full 8S performance.

What is required for the advertised 60+mph speed? The 60+mph claim requires two suitable 4S LiPo batteries, the included optional gearing and appropriate running conditions. Optional gearing increases heat and is intended for controlled high-speed use rather than continuous off-road driving.

Is the Traxxas XRT suitable for beginners? The XRT is a large and heavy Skill Level 5 vehicle capable of very high speed. OZRC recommends it for experienced operators with a large, controlled driving area rather than as a first RC vehicle.

Important Notes

• The drive batteries, battery charger and four AA transmitter batteries are not included.
• Always use two matching batteries with the same voltage, capacity, discharge rating, age and state of charge.
• Never mix a 3S battery with a 4S battery.
• Never combine batteries with substantially different capacities, condition or charge levels.
• Both batteries must fit within the individual 186mm × 51mm × 44mm battery compartments.
• The 60+mph speed claim requires two suitable 4S batteries and the included optional gearing.
• Optional high-speed gearing increases motor and ESC temperature and is not intended for continuous stop-start driving, grass or repeated acceleration.
• Monitor motor, ESC and battery temperatures whenever optional gearing is installed.
• Return to the standard gearing if the power system repeatedly activates thermal protection.
• Never charge LiPo batteries unattended.
• Charge each LiPo battery with a compatible balance charger on a non-flammable surface.
• Use a LiPo charging bag or another suitable fire-resistant charging container.
• Do not use or charge a swollen, punctured, damaged or excessively hot LiPo battery.
• Allow the batteries, motor and ESC to cool before charging or beginning another demanding run.
• Waterproof electronics do not make the vehicle suitable for submersion.
• Clean, inspect and dry the vehicle after wet, dusty or muddy operation.
• Avoid salt water because it can rapidly corrode bearings, hardware and electrical connections.
• Check the wheel nuts, tyres, steering, suspension and driveline before every high-speed session.
• The XRT weighs more than 10kg when fitted with batteries and requires a large operating area away from people, animals, roads, vehicles and fragile property.
