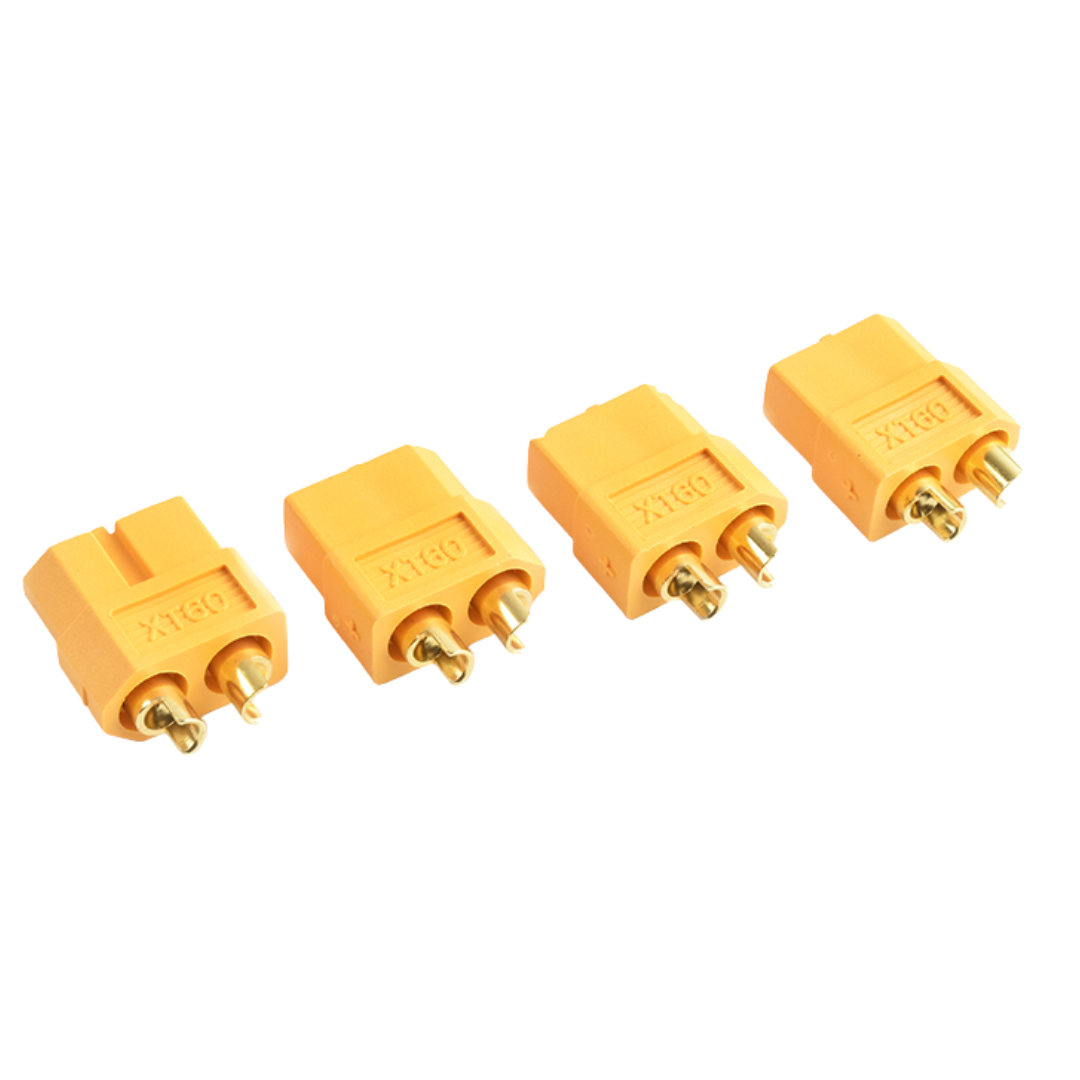

TRC XT60 Female Plug Connector 4pcs TRC-0105F

The TRC XT60 Female Plug Connector set includes four XT60 connectors with female bullet contacts and male housings, designed for RC battery, ESC and custom wiring applications requiring a secure high-current power connection

Features

• XT60 connector format for common RC power applications
• Female bullet contacts housed in the male-style XT60 body
• Suitable for battery, ESC, charger lead and custom wiring projects
• Polarised housing helps prevent accidental reverse connection
• High-temperature nylon-style housing commonly used in XT60 connector systems
• Suitable for soldered installation onto compatible power wiring
• Useful for repairs, replacements and custom RC electrical setups
• Supplied as a four-piece pack

Specifications

• Brand: TRC
• Product Type: XT60 Power Connector
• Part Number: TRC-0105F
• Connector Type: XT60
• Contact Gender: Female Bullet
• Housing Type: Male Housing
• Installation Type: Solder
• Quantity: 4 connectors

Includes

• 4 x TRC XT60 female bullet connectors with male housing

FAQ

Is TRC-0105F the battery-side or ESC-side XT60 connector? XT60 gender is normally identified by the metal contacts rather than the plastic housing, so TRC-0105F uses female bullet contacts even though the outer housing is commonly described as the male housing

Do the connectors come with wires attached? No, TRC-0105F is supplied as bare XT60 connectors for soldering onto suitable RC power wiring

How many connectors are included? The TRC-0105F package contains four XT60 female bullet connectors with male housings

Important Notes

• Wires and heat-shrink tubing are not confirmed as included
• Soldering is required for installation
• Check connector polarity carefully before applying power
• Use wire gauge and soldering equipment appropriate for the expected current load
