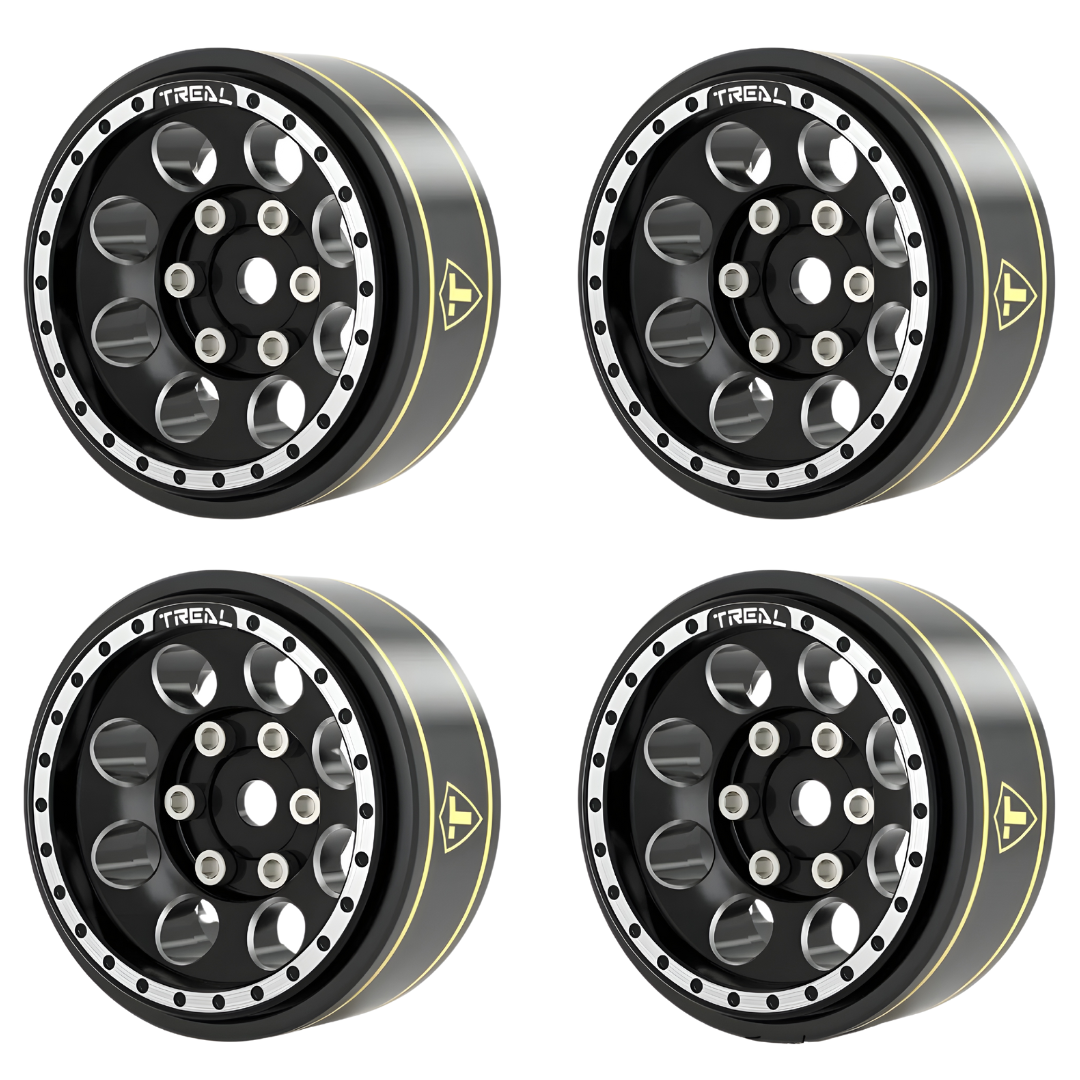

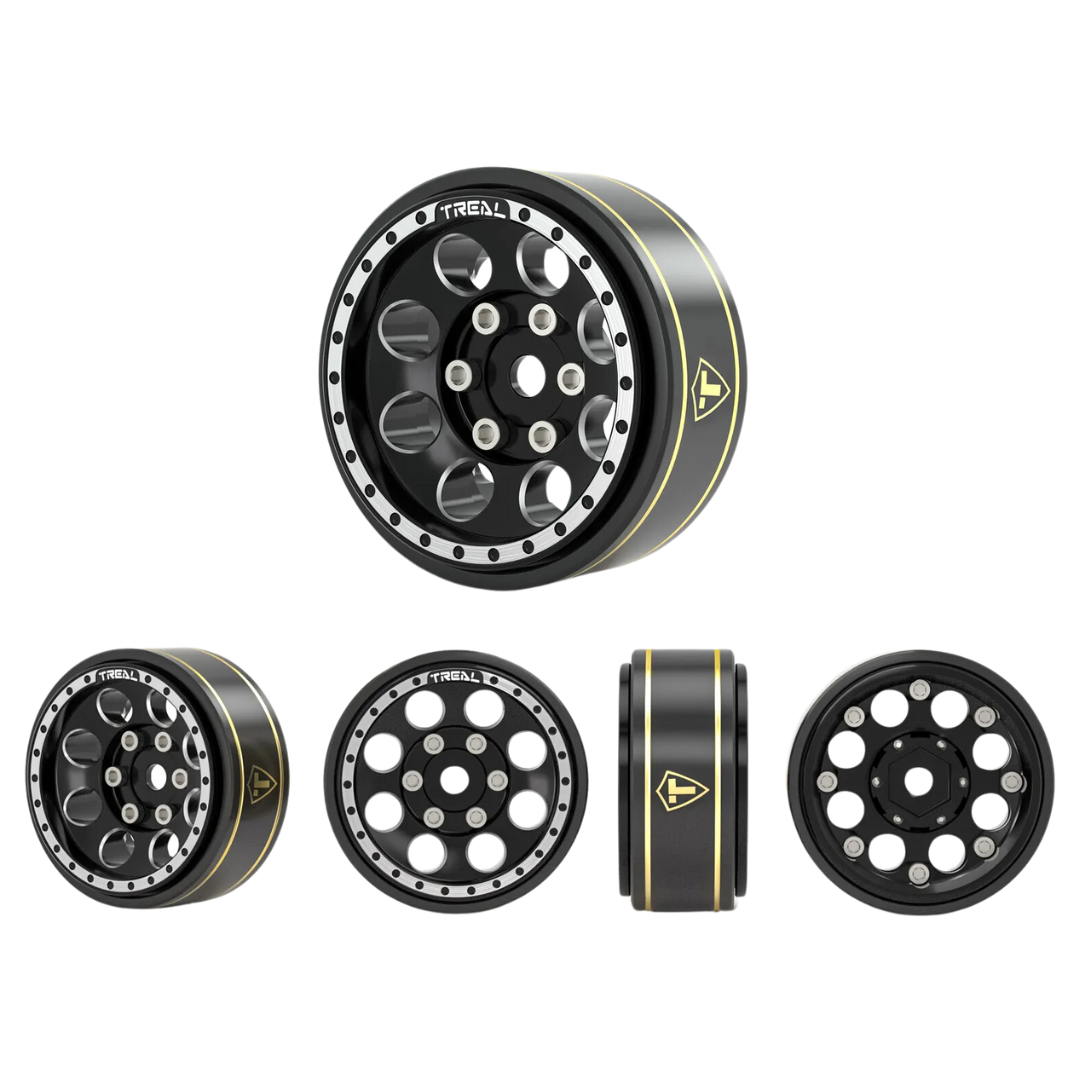

Treal Type A 1.0 Beadlock Wheels 1/24 SCX24 Black 4pce

The Treal Type A 1.0 Beadlock Wheels are a black 4-piece wheel set for Axial SCX24 and compatible 1/24 crawlers using 7mm hex fitment, suited to adding beadlock tyre mounting, scale styling and low-mounted brass wheel weight.

These Type A crawler wheels use CNC-machined aluminium rims with black-coated brass rings to add weight near the axles. The beadlock design holds compatible 1.0 crawler tyres without glue, making them a practical upgrade for SCX24 trail and rock crawling builds.

Features

• Type A Wheel Design: Classic crawler wheel style for scale 1/24 builds
• 1.0 Inch Beadlock Size: Designed for compatible 1.0 inch RC crawler tyres
• Beadlock Construction: Mechanically clamps compatible tyres without tyre glue
• CNC-Machined Aluminium Rims: Durable machined wheel construction for micro crawler use
• Black-Coated Brass Rings: Adds low-mounted wheel weight to help improve traction and stability
• 7mm Hex Fitment: Suits compatible 1/24 crawler axles using 7mm hex hubs
• RC4WD 1.0 Tyre Compatibility: Listed by Treal as able to fit RC4WD 1.0 tyres
• Hardened Steel Screws: Supplied with hardened steel screws for long-term wheel assembly durability
• 4-Wheel Set: Includes four wheels for a complete micro crawler wheel upgrade

Specifications

• Brand: Treal
• Model: Type A
• Product Type: RC crawler beadlock wheel set
• Scale: 1/24
• Wheel Size: 1.0 inch
• Colour: Black
• Wheel Type: Beadlock
• Wheel Construction: CNC-machined aluminium
• Ring Material: Black-coated brass
• Outer Diameter: 31 mm
• Width: 15 mm
• Hex Hub: 7 mm
• Axle Through Hole Diameter: 3 mm
• Weight: Approximately 27.3 g per wheel, fully assembled
• Compatible Platform: Axial SCX24 and compatible 1/24 crawlers using 7mm hex fitment
• Compatible Tyres: RC4WD 1.0 tyres, manufacturer listed
• Quantity: 4 wheels

Includes

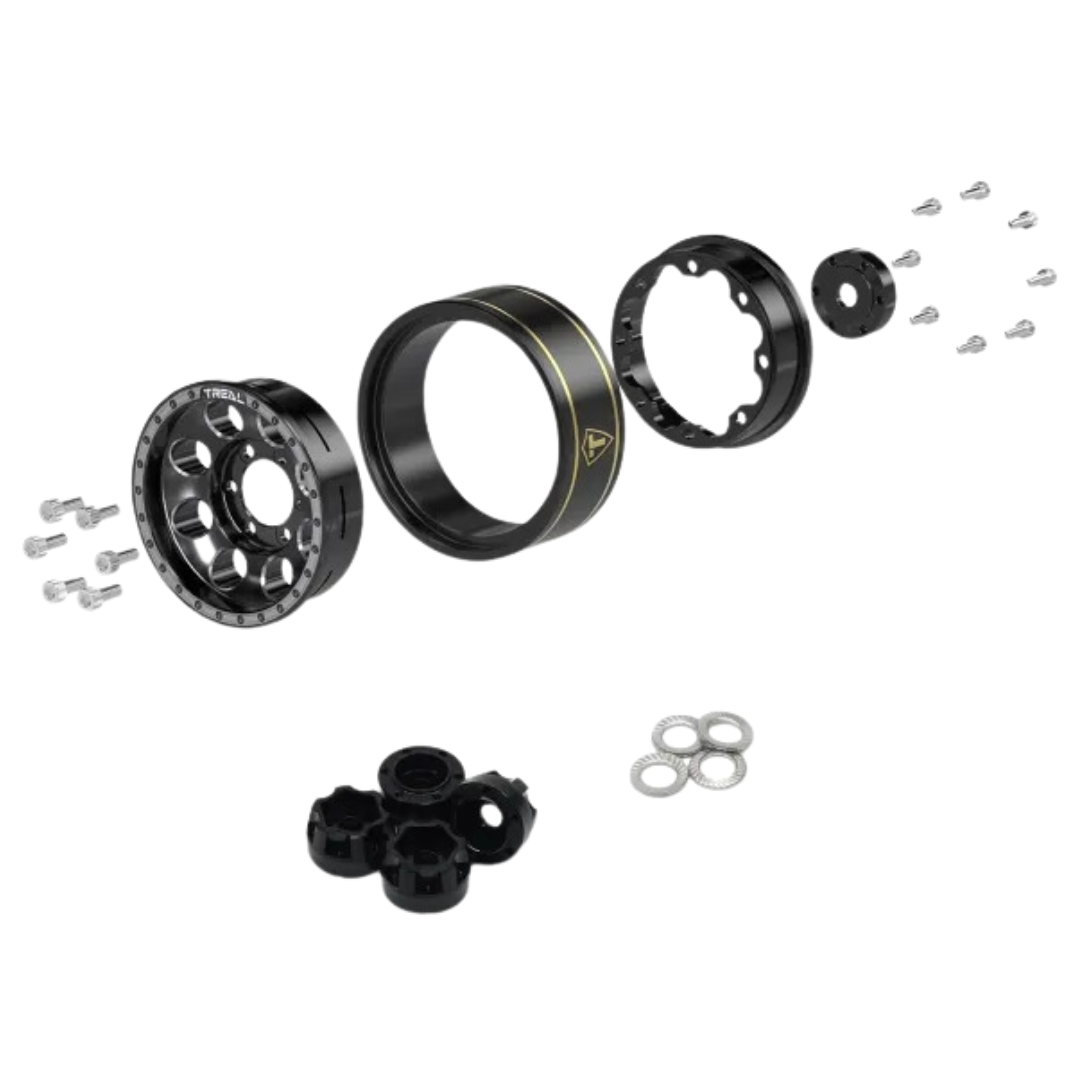

• 4 x Treal Type A 1.0 black aluminium beadlock wheels with brass rings assembled
• 1 x Mounting hardware set

FAQ

Do these wheels fit the Axial SCX24? Yes. The Treal Type A 1.0 beadlock wheels are listed for the Axial SCX24 1/24 crawler platform.

Are tyres included? No. This listing includes the wheels with brass rings and mounting hardware only. Tyres and foams are required separately.

Do these wheels need tyre glue? No. These are beadlock wheels, so compatible tyres are clamped mechanically instead of being glued.

Why use brass rings in micro crawler wheels? Brass rings add low-mounted wheel weight, which can help improve tyre contact and crawling stability on technical terrain.

Important Notes

• Not compatible with Pro-Line 1.0 Hyrax tyres.
• For TRX4M stock tyres, use Treal beadlock rings P/N X004BR0VUD.
• Check tyre bead compatibility, 7mm hex fitment, axle clearance and body clearance before ordering.
• Beadlock wheels require careful assembly so the tyre bead seats evenly.
• Added wheel weight may increase load on steering servos, axles and drivetrain parts.
• Use threadlock where appropriate for metal-to-metal screws, avoiding contact with plastic parts.
• RC crawler, tyres, foams, tools and other accessories are not included unless shown separately.
