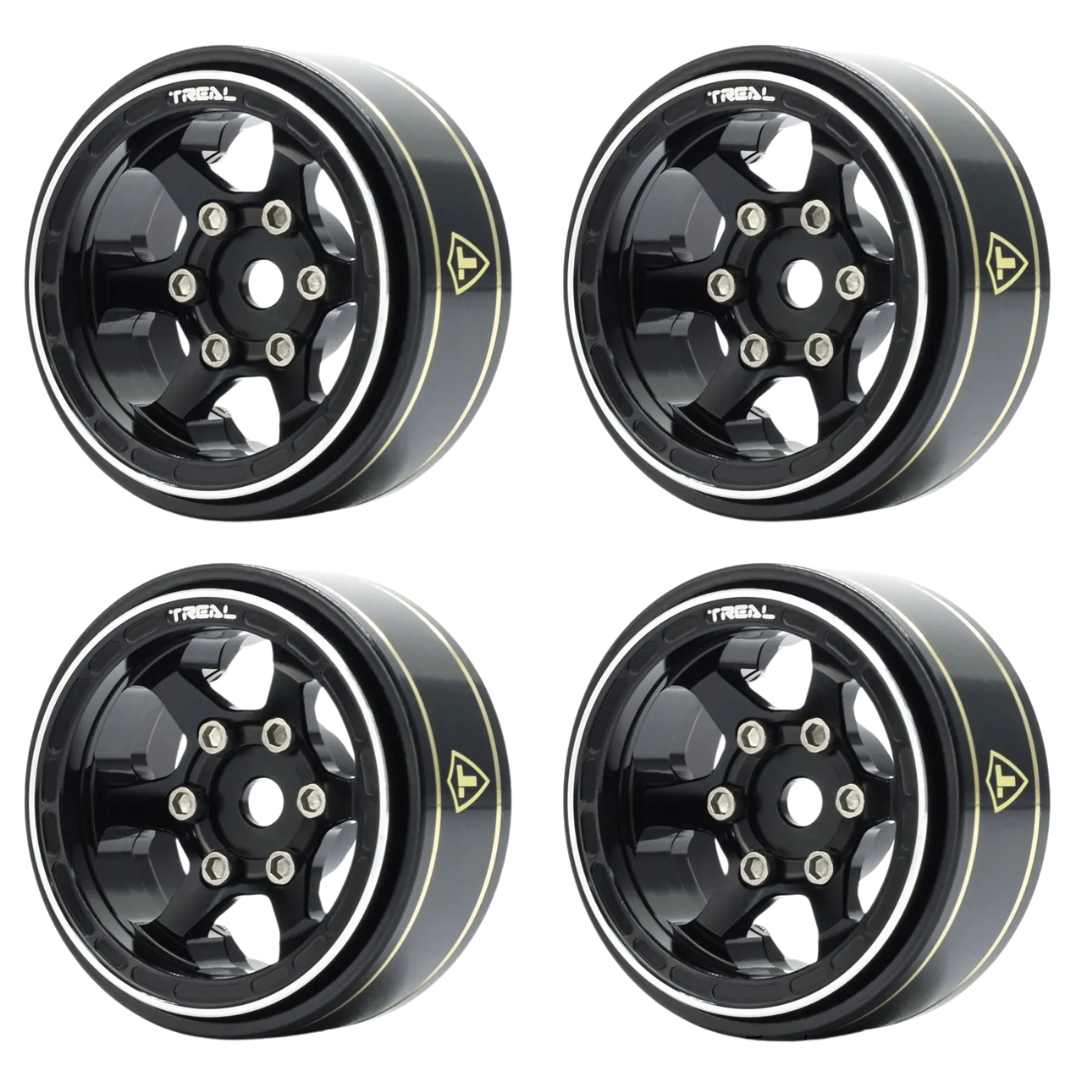

Treal Type D 1.0 Six Spoke Beadlock Wheels 1/24 SCX24 Black 4pce

The Treal Type D 1.0 Six Spoke Beadlock Wheels are a black 4-piece wheel set for 1/24 Axial SCX24 crawlers, suited to adding beadlock tyre mounting, scale styling and low-mounted wheel weight.

These concave six-spoke crawler wheels use CNC-machined 6061 aluminium rims with black-coated brass rings to add useful weight at the axles. The removable 7mm hex adaptor and included +3mm extended hubs provide fitment and offset flexibility for compatible SCX24 builds.

Features

• Type D Concave Six-Spoke Design: Provides a realistic scale crawler appearance for SCX24 builds
• 1.0 Inch Beadlock Wheel Size: Designed for compatible 1.0 inch RC crawler tyres
• Beadlock Construction: Mechanically clamps compatible tyres without tyre glue
• CNC-Machined 6061 Aluminium Rims: Strong machined wheel construction for micro crawler use
• Black-Coated Brass Rings: Adds low-mounted wheel weight to help improve traction and stability
• 7mm Hex Fitment: Uses a removable 7mm hex adaptor for offset adjustment options
• +3mm Extended Hubs Included: Supports a wider stance and custom setup tuning on compatible builds
• SCX24 Compatibility: Suits Axial SCX24 Bronco, Gladiator, C10 and Deadbolt models
• 4-Wheel Set: Includes four wheels for a complete micro crawler wheel upgrade

Specifications

• Brand: Treal
• Model: Type D Concave Six Spoke
• Product Type: RC crawler beadlock wheel set
• Scale: 1/24
• Wheel Size: 1.0 inch
• Colour: Black
• Wheel Type: Beadlock
• Wheel Construction: CNC-machined 6061 aluminium
• Ring Material: Black-coated brass

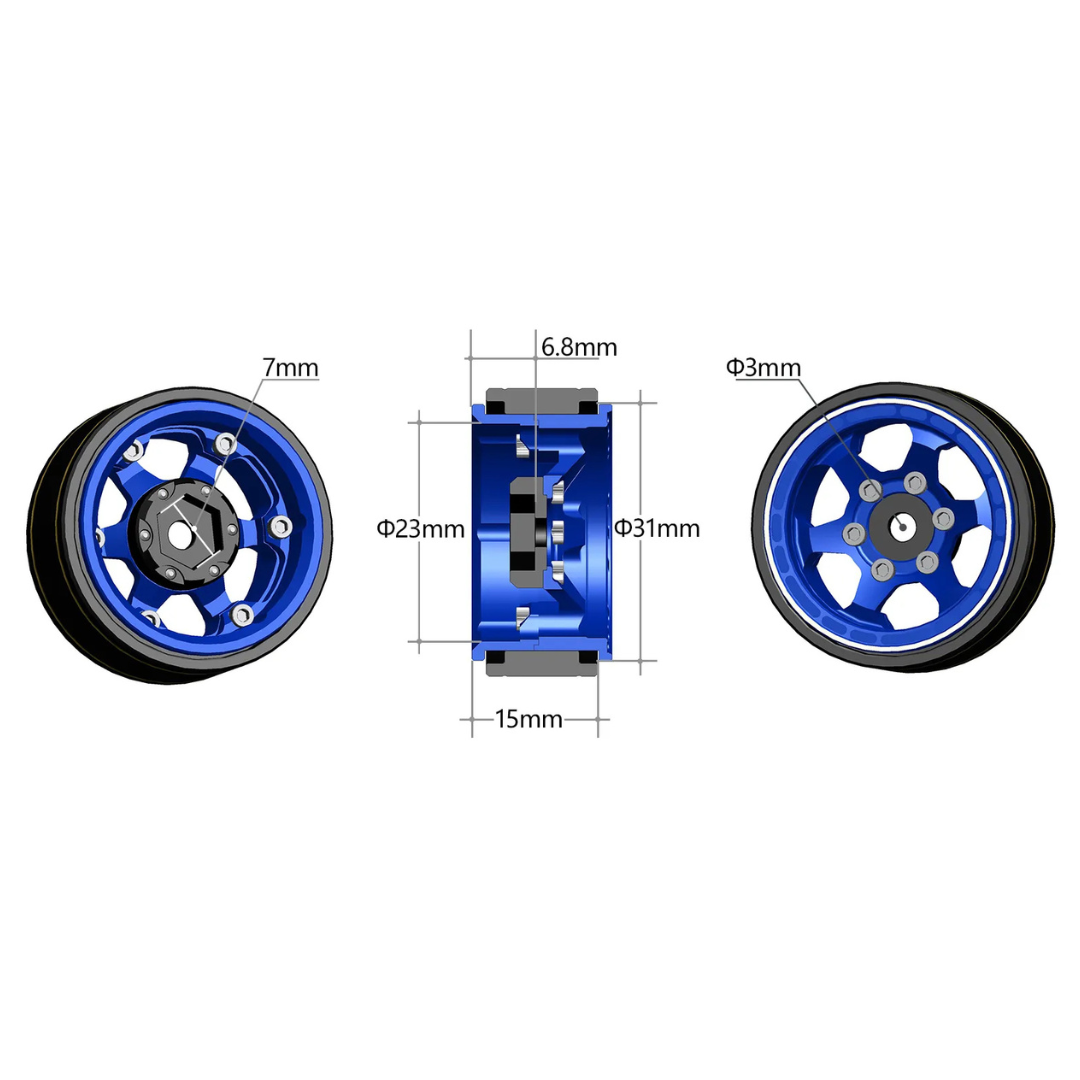

• Outer Diameter: 31 mm
• Width: 15 mm
• Hex Hub: 7 mm
• Axle Through Hole Diameter: 3 mm
• Weight: Approximately 26.6 g per wheel, fully assembled
• Screw Size: M1.4 x 4
• Compatible Models: Axial SCX24 Bronco, Gladiator, C10 and Deadbolt
• Quantity: 4 wheels

Includes

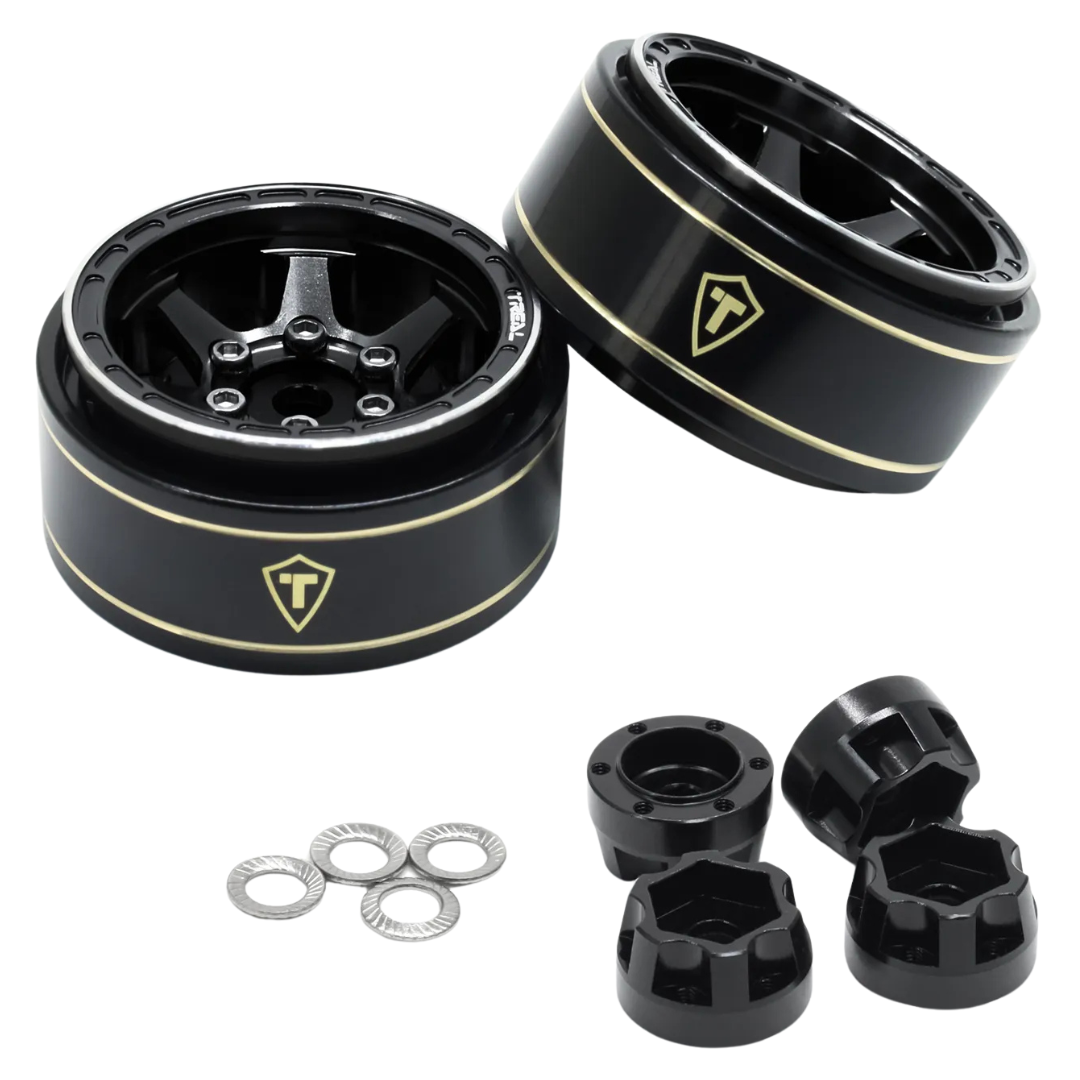

• 4 x Treal Type D 1.0 black aluminium beadlock wheel rims with brass rings assembled
• 4 x +3 mm extended wheel hubs
• 1 x Mounting hardware set

FAQ

Do these wheels fit the Axial SCX24? Yes. The Treal Type D 1.0 beadlock wheels are listed to suit Axial SCX24 Bronco, Gladiator, C10 and Deadbolt models.

Are tyres included? No. This listing includes the wheels, brass rings, +3mm extended hubs and mounting hardware only. Tyres and foams are required separately.

Do these wheels fit Pro-Line 1.0 Hyrax tyres? No. Treal lists these wheels as not compatible with Pro-Line 1.0 Hyrax tyres.

Why use brass rings in crawler wheels? Brass rings add low-mounted wheel weight, which can help improve tyre contact and stability during slow technical crawling.

Important Notes

• Not compatible with Pro-Line 1.0 Hyrax tyres.
• For TRX4M stock tyres, Treal notes that special beadlock rings P/N X004BR0VUD are required.
• Check tyre bead compatibility, hex size, axle clearance and body clearance before ordering.
• Beadlock wheels require careful assembly so the tyre bead seats evenly.
• Added wheel weight may increase load on steering servos, axles and drivetrain parts.
• Use threadlock where appropriate for metal-to-metal screws, avoiding contact with plastic parts.
• RC crawler, tyres, foams, tools and other accessories are not included unless shown separately.
