Vanquish URB Jimmy's 4x4 Moonbuggy RC Rock Crawler Kit 1/10 4WS VPS09029A

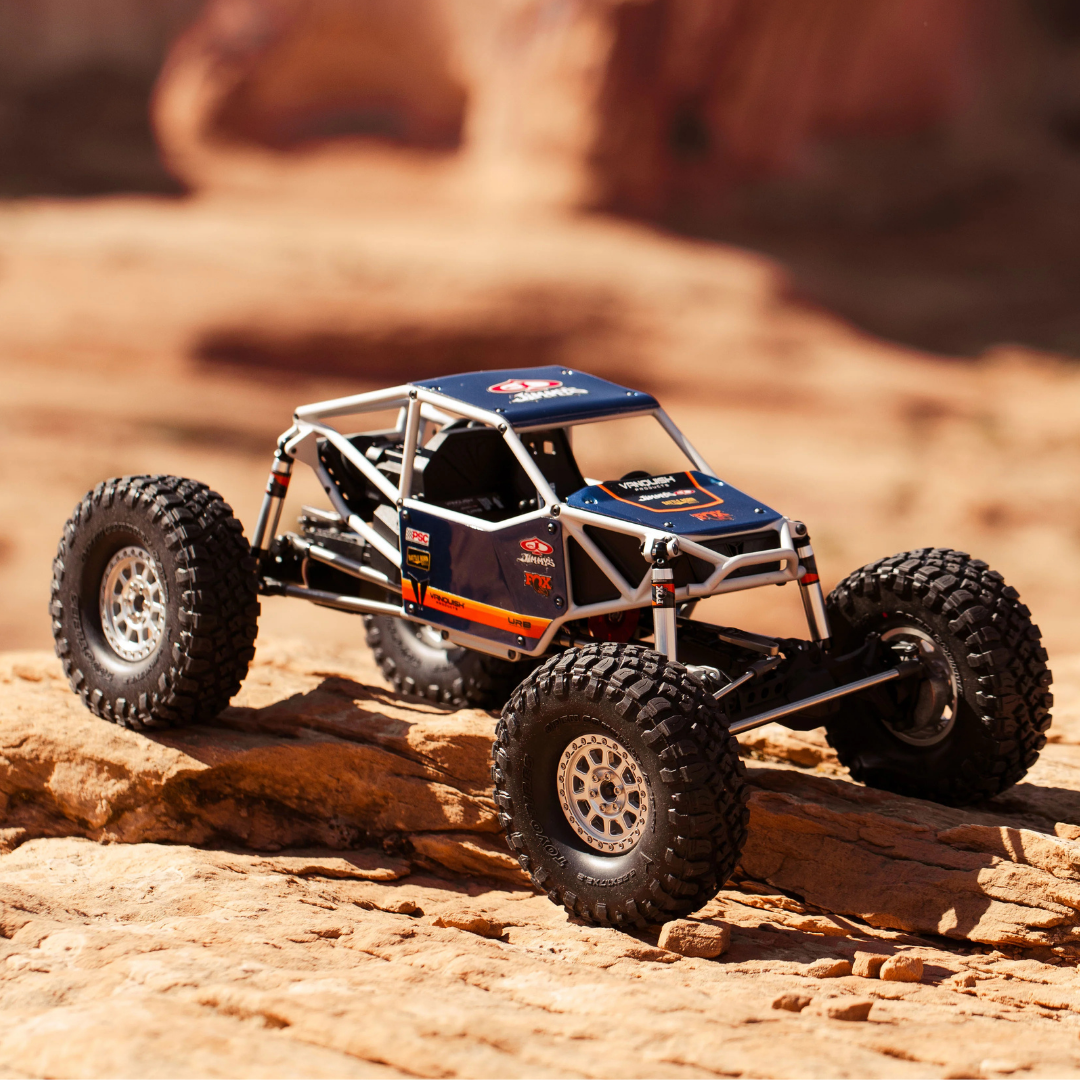

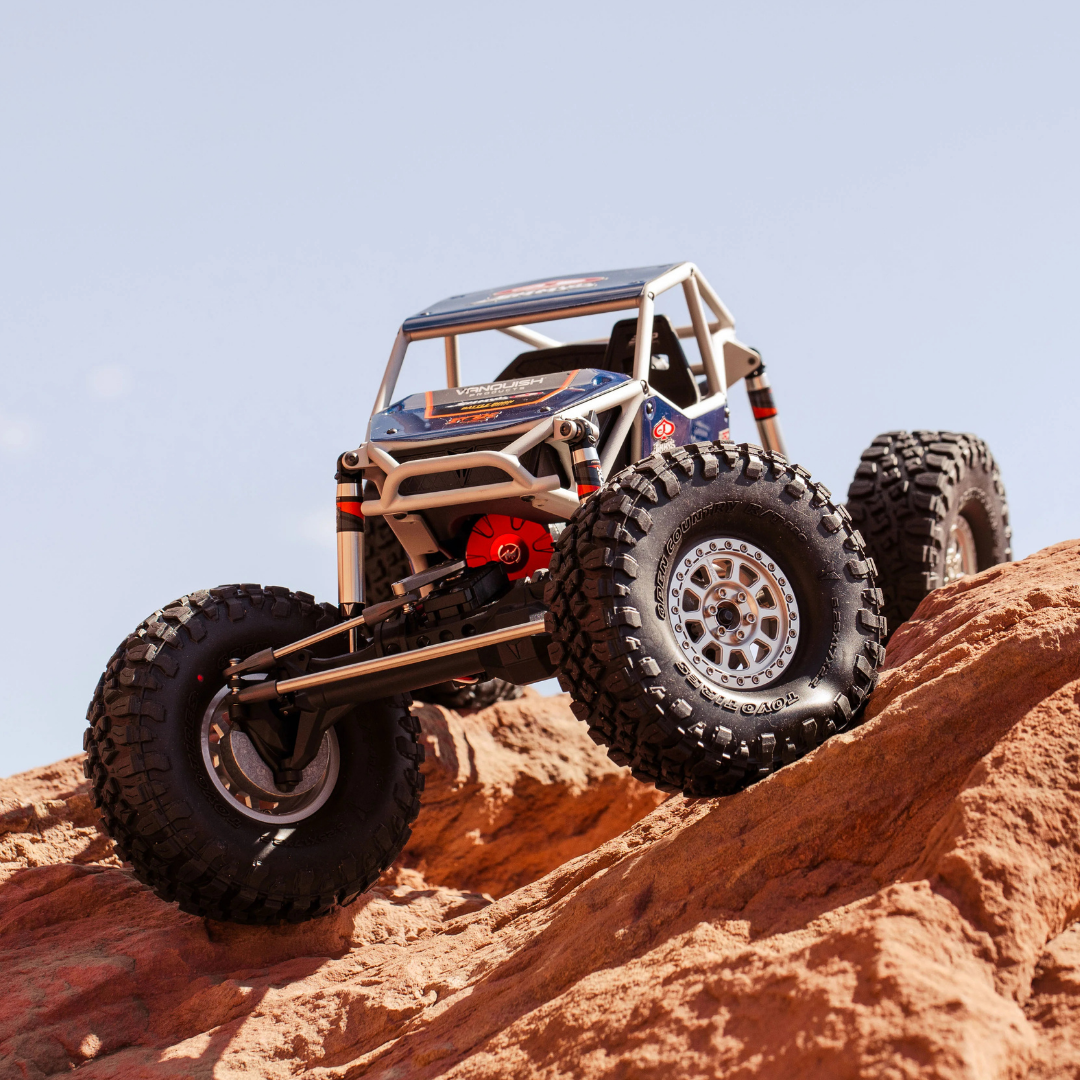

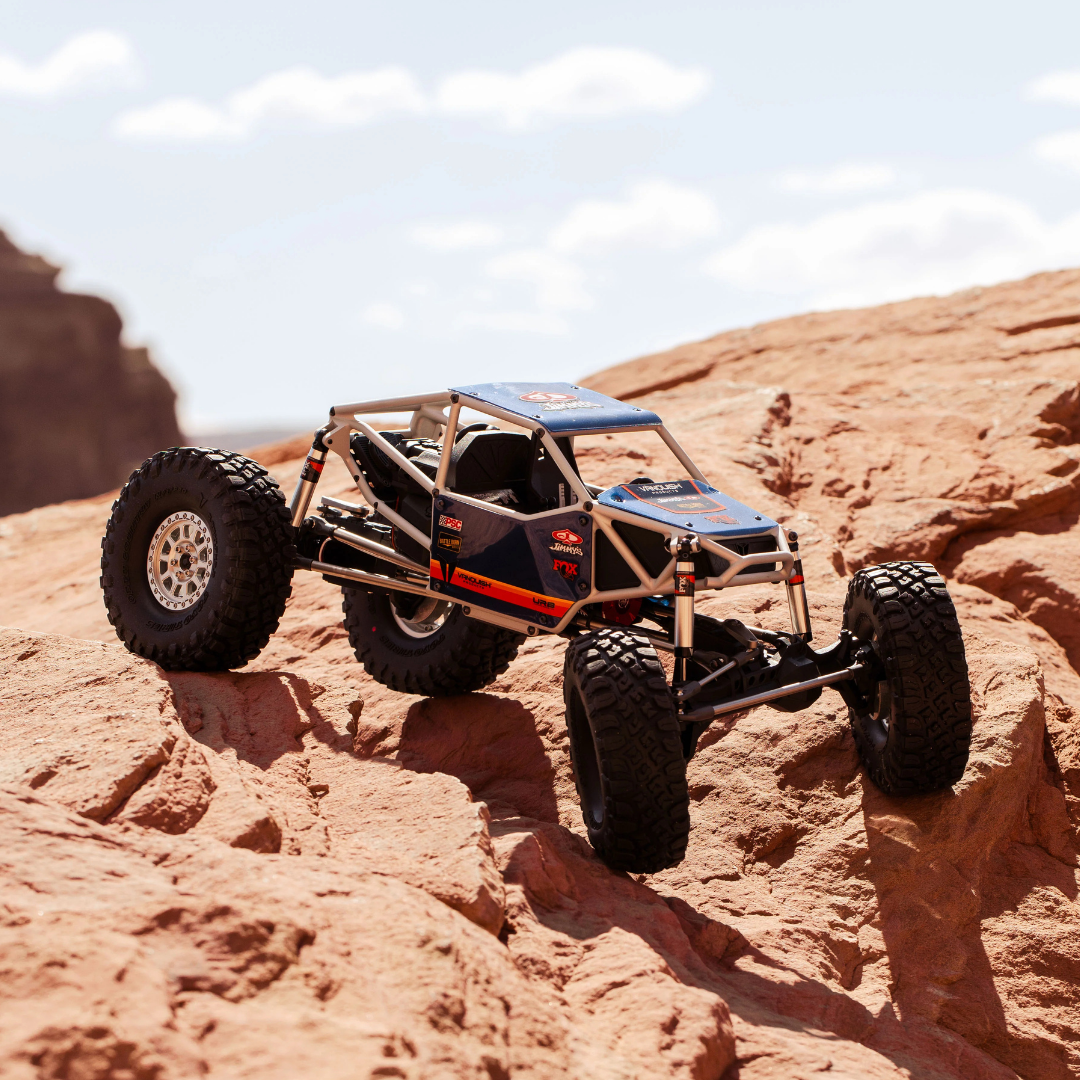

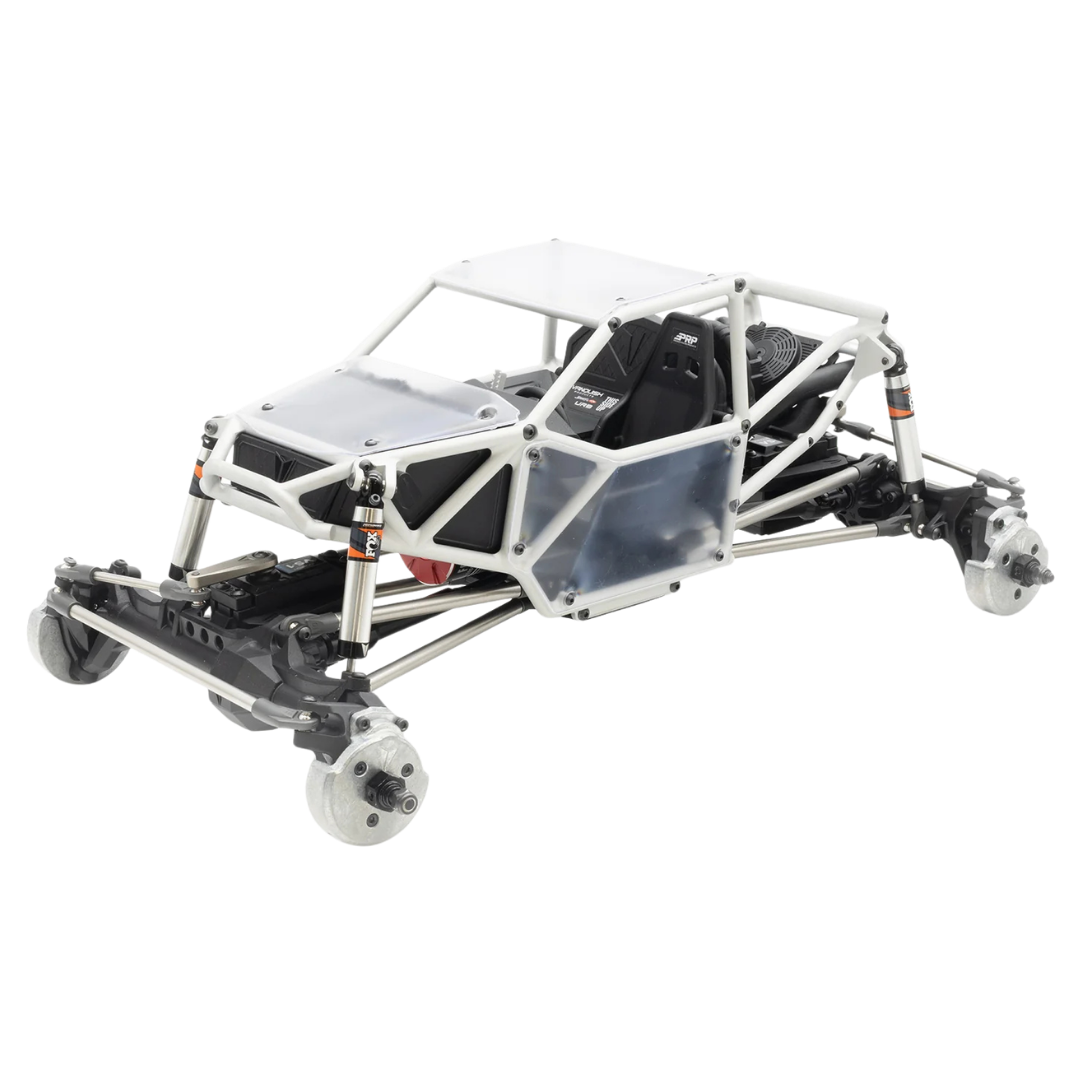

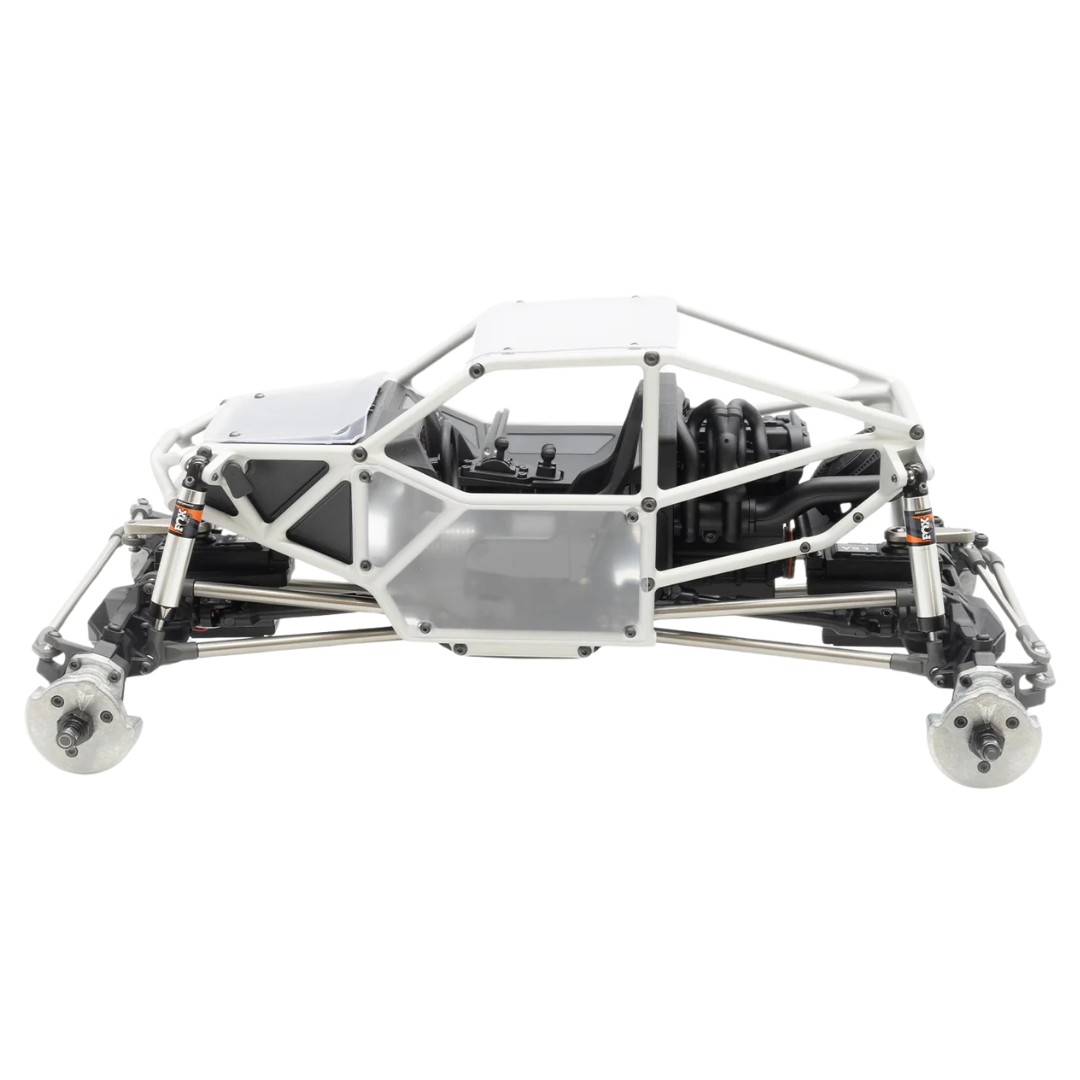

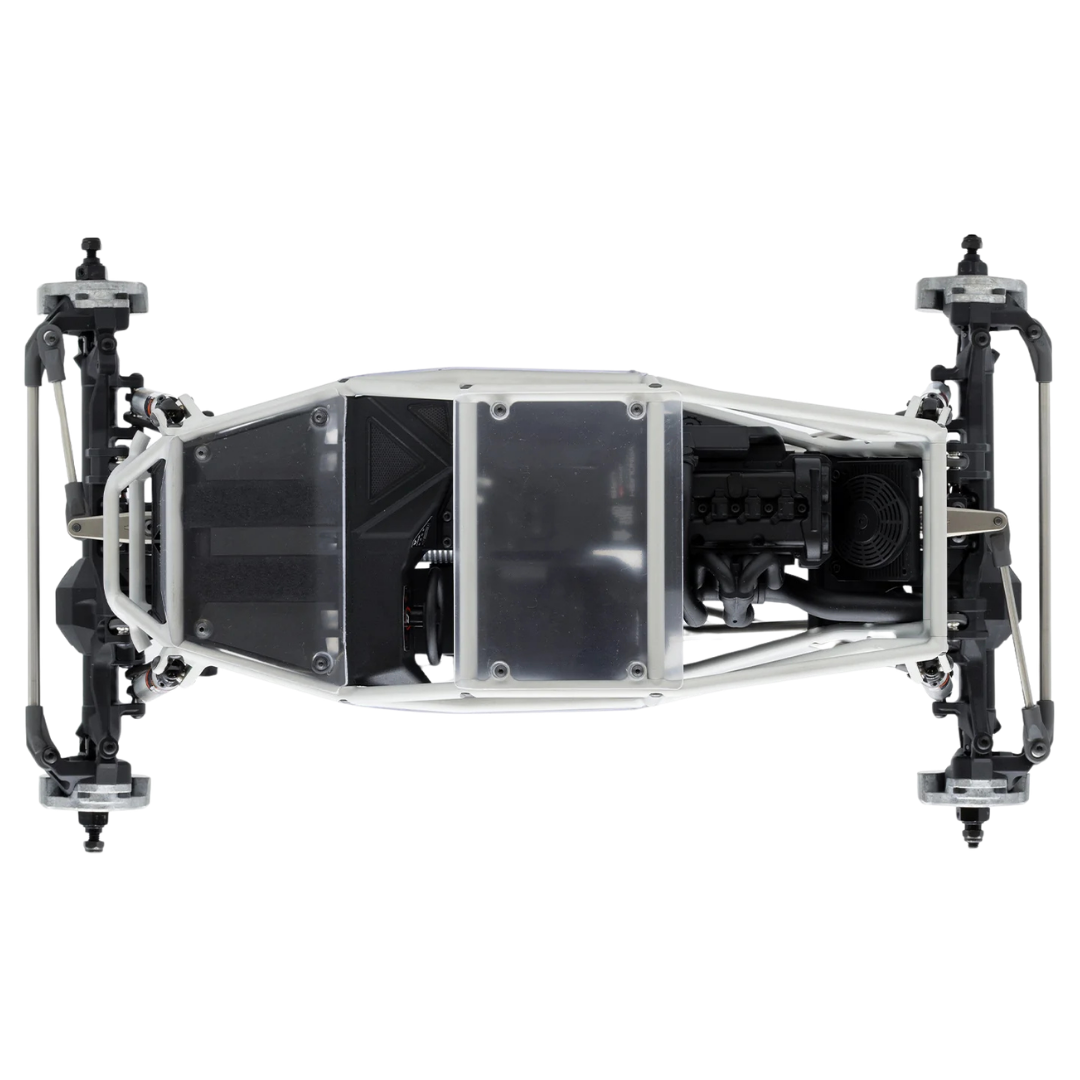

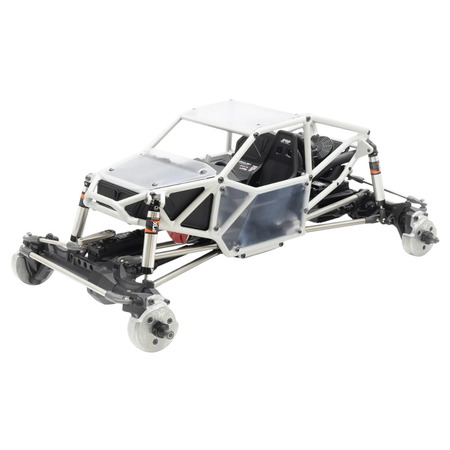

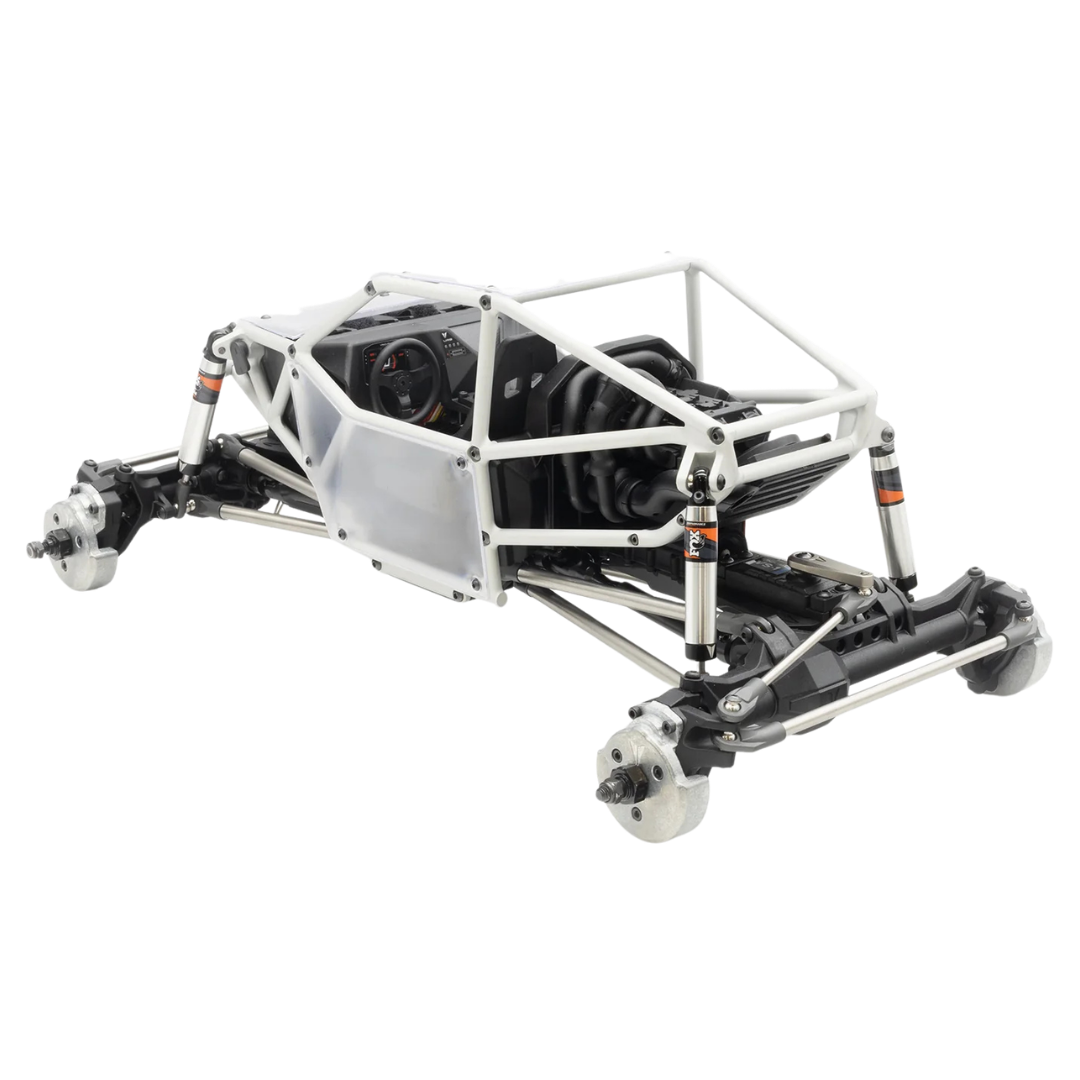

The Vanquish URB Jimmy's 4x4 Moonbuggy is a 1/10 scale four-wheel-steering RC rock buggy kit designed for technical crawling and buggy trails, combining a CNC-machined aluminium Jimmy's 4x4 cage with wide portal axles, integrated dig and a purpose-built crawler drivetrain.

Developed around the Vanquish URB Unlimited Rock Buggy platform, the Moonbuggy brings the proportions and construction style of a custom Jimmy's 4x4 fabrication into an unassembled scale crawler kit. Its 339 mm wheelbase, wide F10W axle layout and front-to-rear gearing provide a specialised platform for builders wanting high steering capability and controlled performance across steep, uneven terrain.

Features

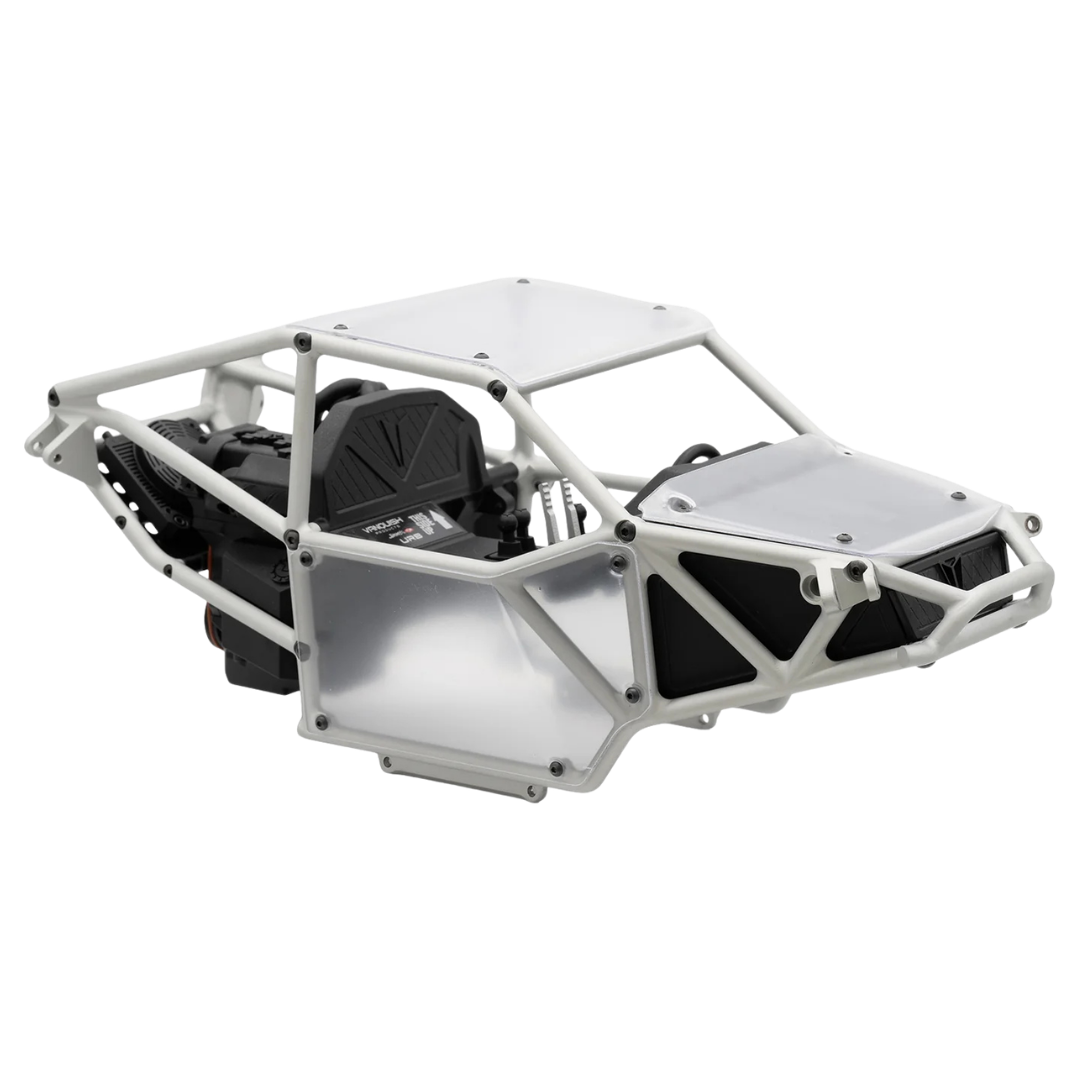

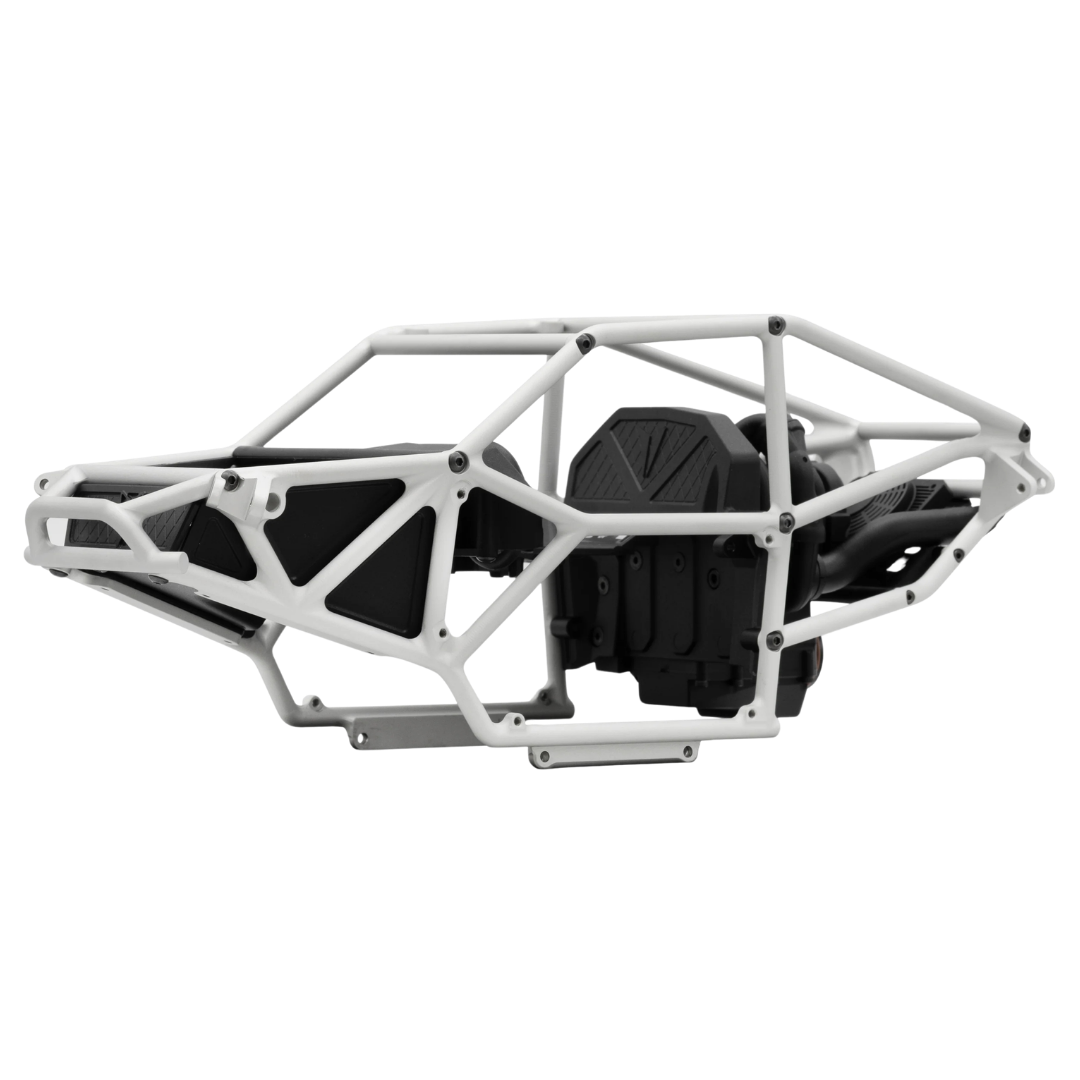

• Officially Licensed Jimmy's 4x4 Cage: CNC-machined aluminium cage recreates the distinctive construction of the full-size Jimmy's 4x4 Moon Buggy
• URB Platform: Unlimited Rock Buggy chassis layout developed for technical buggy lines, crawling and trail use
• Four-Wheel Steering Design: Front and rear steering capability provides increased manoeuvrability when navigating tight rock sections and technical obstacles

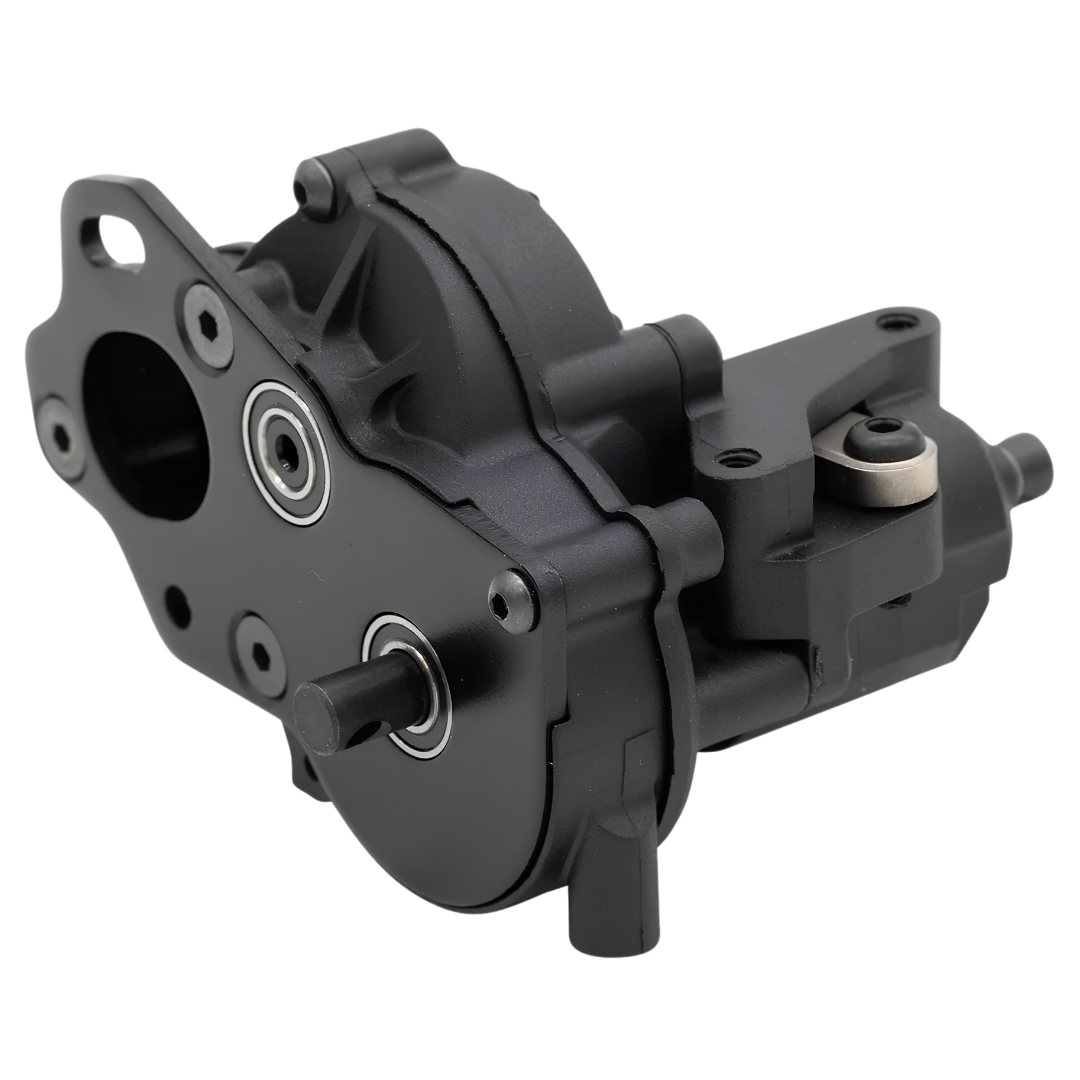

• LFD Transmission: Compact transmission uses precision-machined hardened 48P gears and hardened steel shafts for a durable crawler drivetrain
• Integrated Dig: Allows the rear drivetrain to be disengaged for tighter manoeuvres and additional control on technical terrain when fitted with the required dig servo

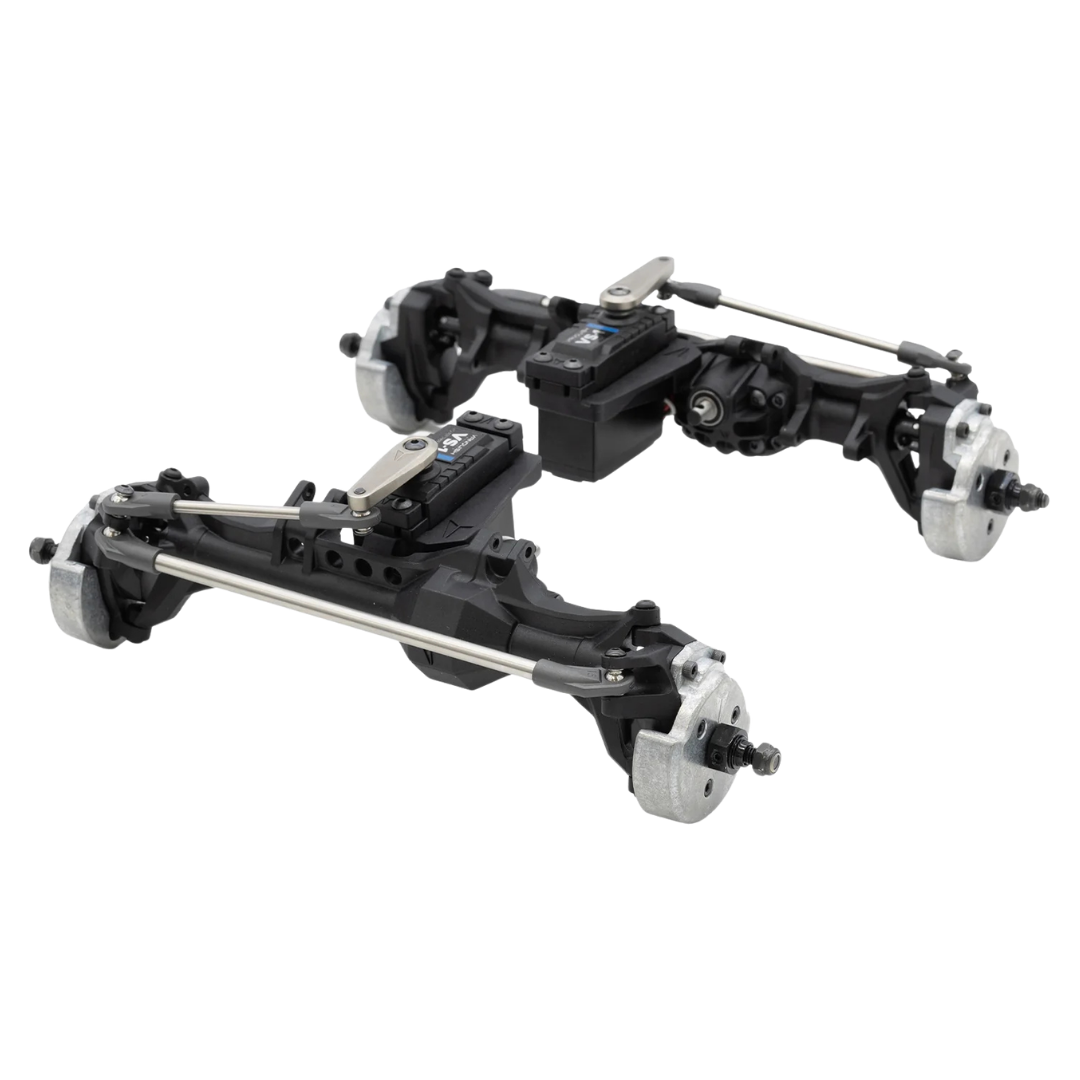

• F10W Portal Axles: Wide axle platform is 15.5 mm wider than standard Vanquish F10 Portal axles for increased track width and stability
• Offset Differential Housings: Front and rear driver-side offset pumpkin design helps optimise ground clearance and steering geometry
• 9.6% Final Overdrive: Different front and rear axle ratios create front overdrive to assist climbing and turning performance

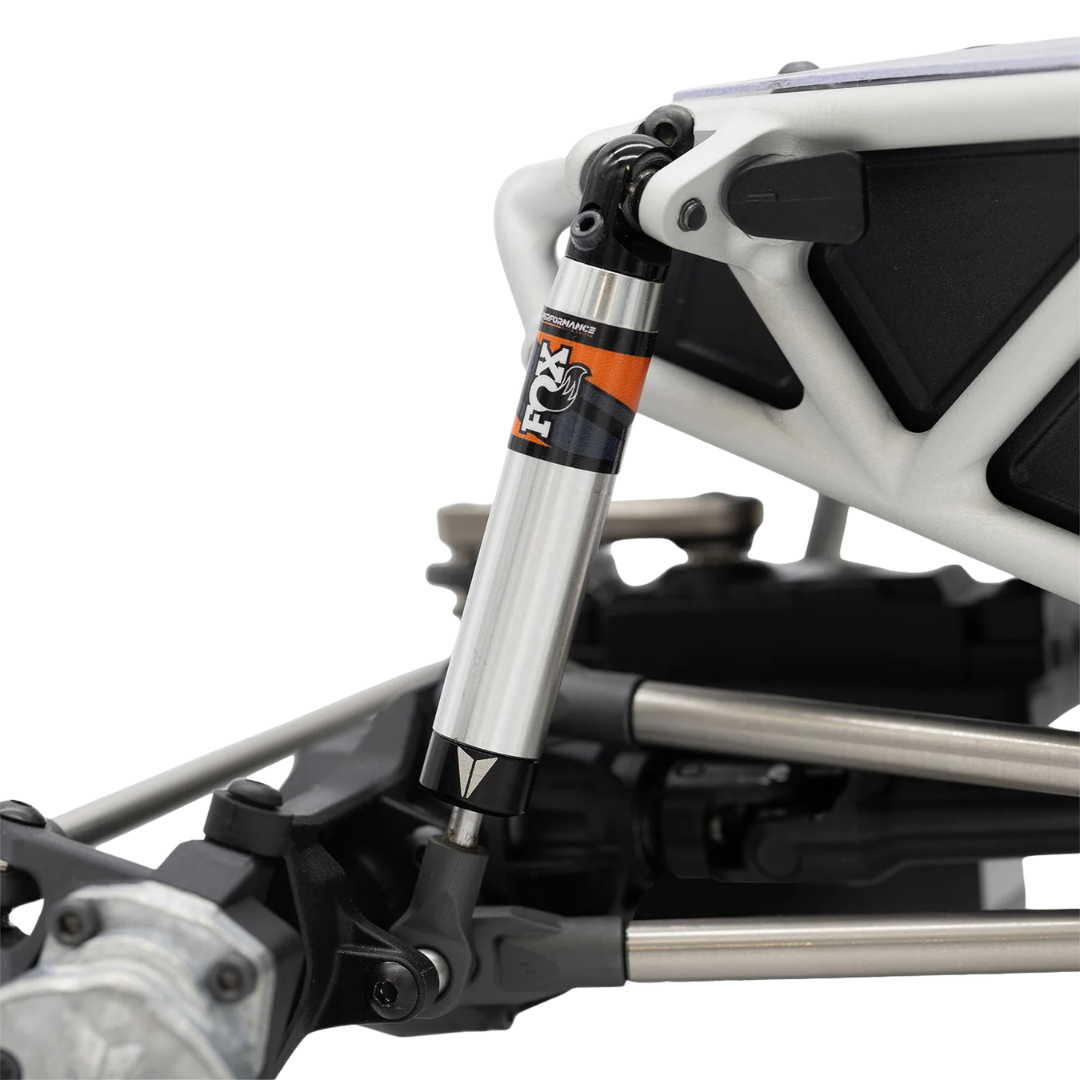

• FOX Licensed S8I Shocks: 110 mm oil-filled scale crawler shocks use dual internal springs with precision pistons and seals

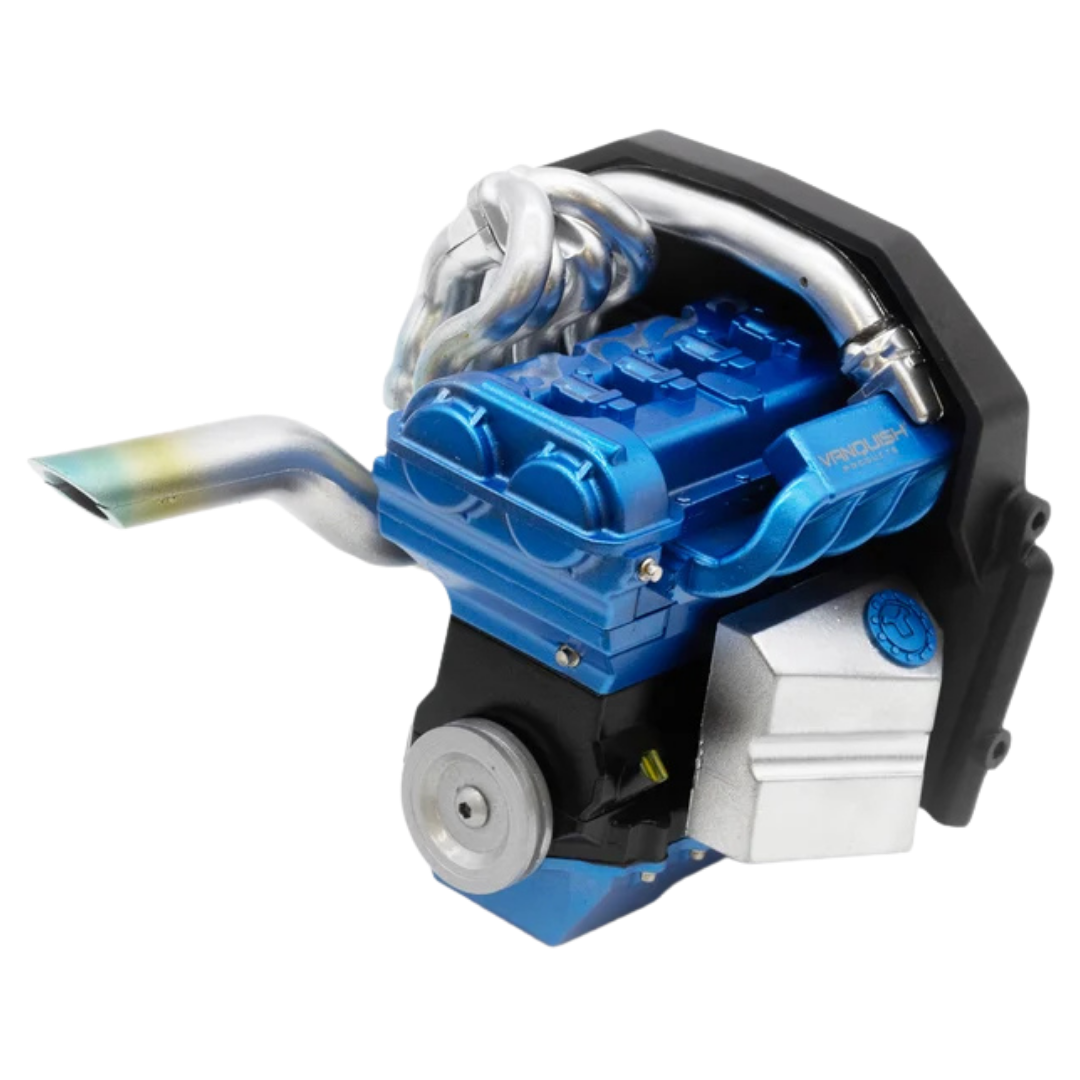

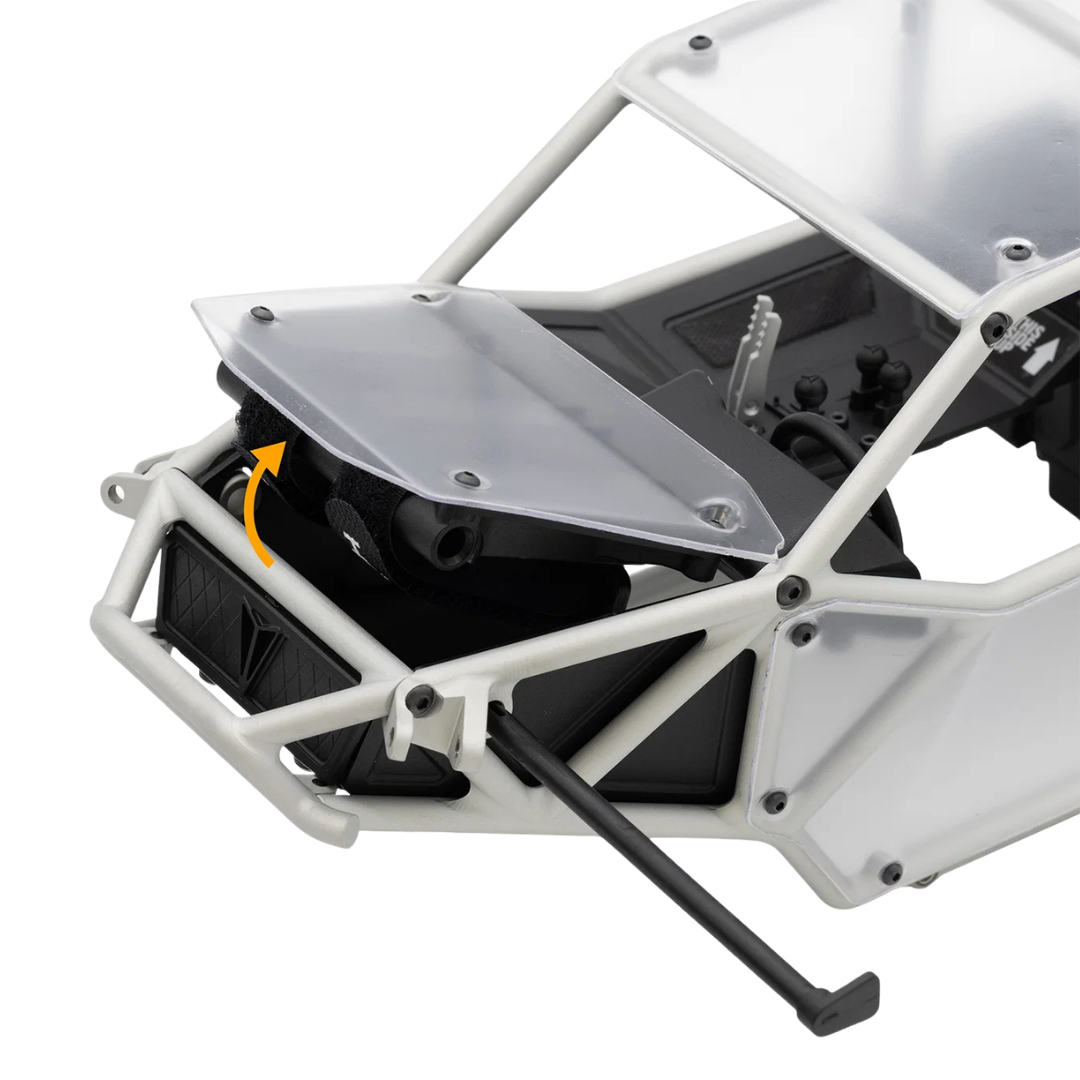

• Scale Interior Details: Includes a detailed engine and cabin interior ready for painting and customisation
• Builder-Oriented Kit: Supplied unassembled for hobbyists wanting to select their own motor, ESC, radio equipment, servos, wheels, tyres and battery

Specifications

• Brand: Vanquish Products
• Model: URB Jimmy's 4x4 Moonbuggy
• Manufacturer Part Number: VPS09029A
• Product Type: RC rock buggy kit
• Scale: 1/10
• Build Type: Unassembled kit
• Steering: Four-wheel steering 4WS
• Wheelbase: 339 mm (13.3 in)
• Overall Width: 215.5 mm (8.4 in) hex to hex
• Front Axle Ratio: 5.25:1
• Rear Axle Ratio: 5.78:1
• Final Overdrive: 9.6%
• Axles: Vanquish F10W wide portal axles
• Transmission: Vanquish LFD with integrated dig
• Transmission Gearing: Hardened 48P gears
• Transmission Shafts: Hardened steel
• Shock Length: 110 mm eye to eye
• Shock Type: FOX licensed S8I oil-filled scale rock crawler shocks with dual internal springs
• Cage Material: CNC-machined aluminium
• Required Wheel Size: 2.2 inch
• Motor Compatibility: Standard-length 540 motor
• Wheel Compatibility: Vanquish Products wheels or SLW hub-compatible wheels required

Includes

• Vanquish URB Jimmy's 4x4 Moonbuggy unassembled kit
• Officially licensed Jimmy's 4x4 CNC-machined aluminium cage
• LFD transmission with integrated dig system
• Front and rear F10W portal axle assemblies
• FOX licensed S8I 110 mm scale crawler shocks
• Detailed scale engine
• Cabin interior components
• 25T steering servo horn
• 25T dig servo horn

FAQ

Is the Vanquish URB Jimmy's 4x4 Moonbuggy ready to run? No. VPS09029A is an unassembled 1/10 scale RC kit that requires assembly plus paint, wheels, tyres, electronics and a battery before it can be driven.

Does the URB Jimmy's Moonbuggy have four-wheel steering? The URB platform is designed for 4WS with steering at both the front and rear axles. Suitable steering servos and radio equipment are required separately to operate the system.

Does the LFD transmission include dig? Yes. The LFD transmission incorporates a dig mechanism that can disengage the rear drivetrain, but a compatible low-profile servo is required separately to operate it.

What wheels fit the VPS09029A Moonbuggy? The kit requires 2.2 inch wheels that use the Vanquish Products or SLW hub system. OZRC recommends confirming wheel and hub compatibility before completing the build.

Important Notes

• This product is supplied as an unassembled kit and requires tools and assembly
• Paint is required separately
• 2.2 inch tyres are not included
• 2.2 inch Vanquish Products or SLW hub-compatible wheels are not included
• Transmitter and receiver are not included
• Standard-length 540 motor is not included
• Steering servos required for the 4WS system are not included
• Low-profile dig servo is not included
• ESC is not included
• Battery is not included

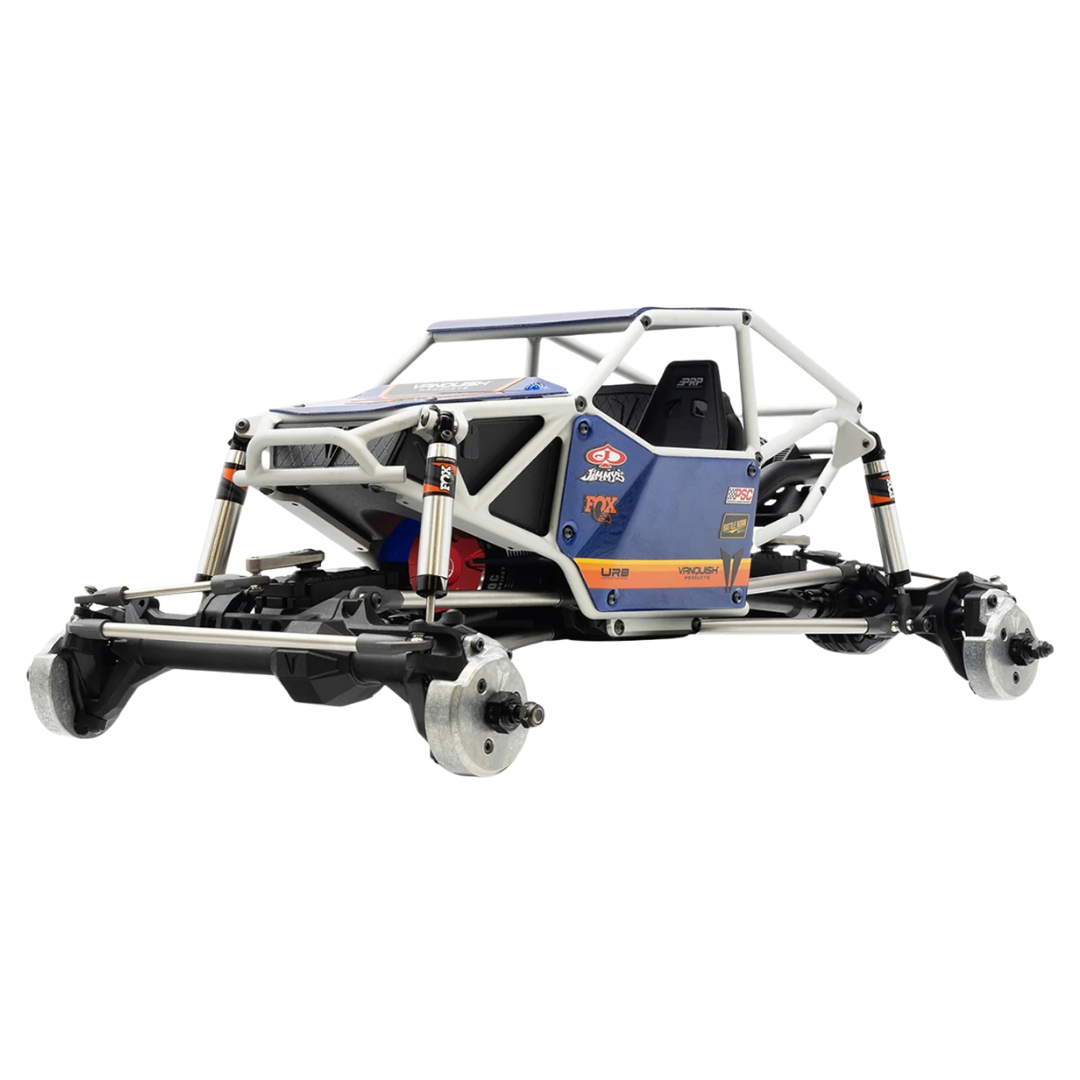

• Completed vehicle images may show wheels, tyres, electronics, paint or other accessories fitted for demonstration purposes only
