ARRMA Steering Parts Set D Suits 1/16 Mini Kraton 3S ARA-2708

The ARRMA ARA-2708 Steering Parts Set D is a genuine replacement steering assembly for the 1/16 Mini Kraton 3S, providing the bellcranks, Ackermann plate, servo link, pivot hardware and screws needed to replace worn or damaged factory steering components.

Features

• Genuine ARRMA Replacement Part: Designed to replace the factory steering components on compatible Mini Kraton models
• Complete Steering Parts Set: Includes left and right bellcranks, Ackermann plate, steering servo link and associated hardware
• Composite Construction: Strong composite components provide durability for demanding RC use
• Precision Manufactured: Designed for consistent steering operation and direct replacement fitment
• Factory Fitment: Official standard replacement part for compatible 1/16 ARRMA Mini Kraton 3S models
• Repair Solution: Useful for rebuilding steering components affected by wear, impact damage or excessive play

Specifications

• Brand: ARRMA
• Product Type: Steering parts set
• ARRMA Part Description: Steering Parts Set D: MINI
• Material: Composite
• Part Type: Chassis / steering parts
• Compatible Model: ARRMA 1/16 Mini Kraton 3S DSC 4X4 RTR
• Compatible Model Number: ARA2508
• Compatible Model Number: ARA2508S
• Manufacturer Part Number: ARA-2708
• SKU: ARA-2708
• GTIN / EAN: 5052127052993

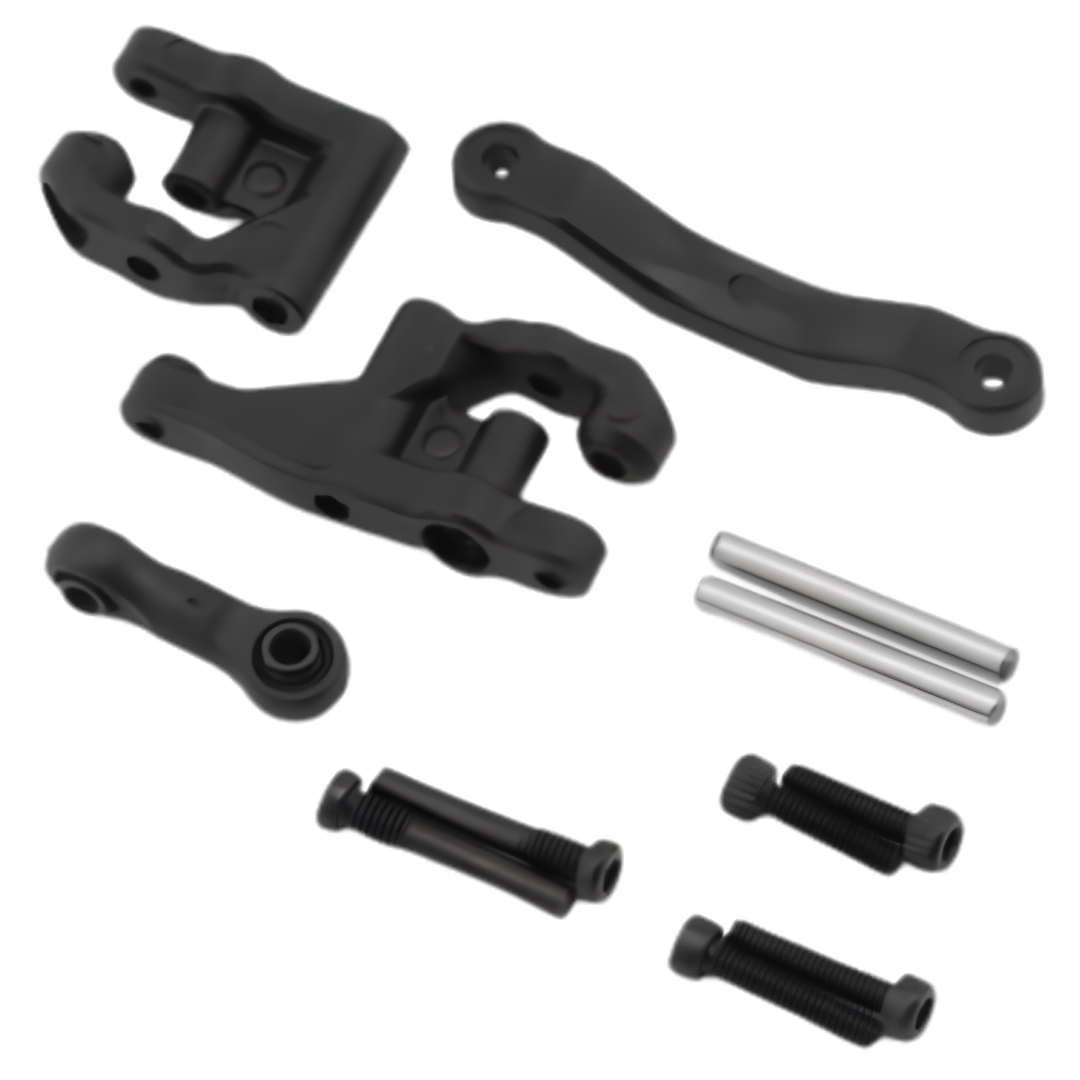

Includes

• 1 x Left bellcrank
• 1 x Right bellcrank
• 1 x Ackermann plate
• 1 x Steering servo link
• 2 x Ackermann plate screws
• 2 x 4.8 x 4.9 x 2.5mm pivot balls
• 2 x 2.5 x 22mm bellcrank pivot pins
• 2 x M2.5 x 12mm cap head screws
• 2 x M2.5 x 10mm cap head screws

FAQ

What does the ARRMA ARA-2708 Steering Parts Set fit? ARRMA officially lists ARA-2708 as a standard replacement part for the 1/16 Mini Kraton 3S DSC 4X4 RTR, including model numbers ARA2508 and ARA2508S.

Does ARA-2708 include both steering bellcranks? Yes. The ARA-2708 set includes both the left and right bellcranks along with the Ackermann plate, steering servo link, pivot balls, pivot pins and mounting screws.

Is the steering servo included with ARA-2708? No. The set includes the steering servo link but does not include the steering servo itself.

What material are the ARA-2708 steering parts made from? ARRMA specifies composite construction for the steering components, with the set also containing the required pivot hardware and screws.

Can ARA-2708 be used to repair steering play or damaged bellcranks? ARA-2708 provides the factory steering bellcranks and associated linkage components, making it suitable for replacing those parts when worn or damaged. Other steering components should also be inspected if excessive steering play remains.

Important Notes

• Designed for compatible 1/16 ARRMA Mini Kraton 3S models
• Steering servo is not included
• Confirm the vehicle model number before ordering replacement parts
