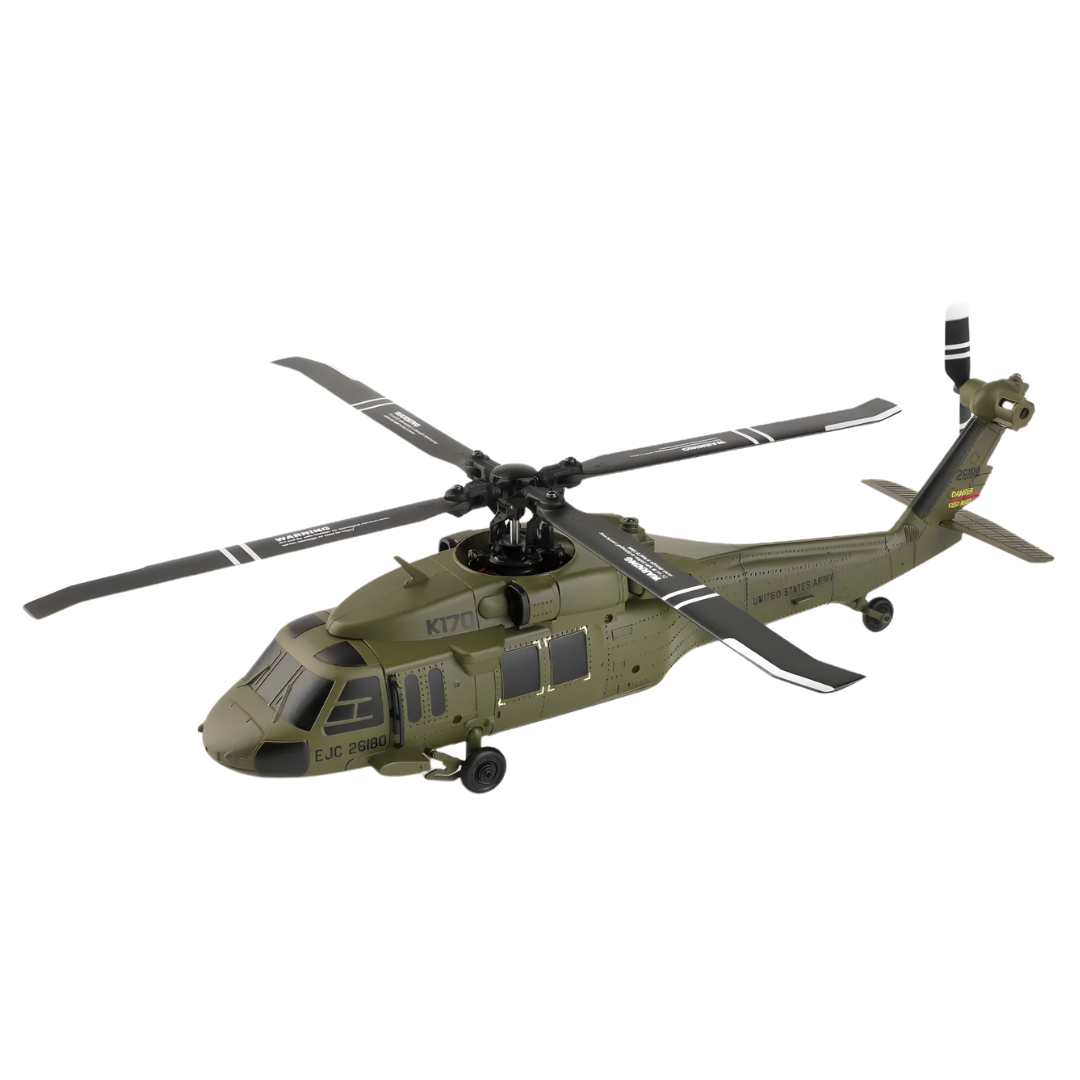

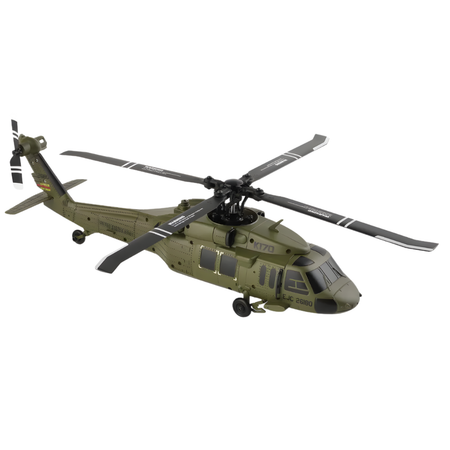

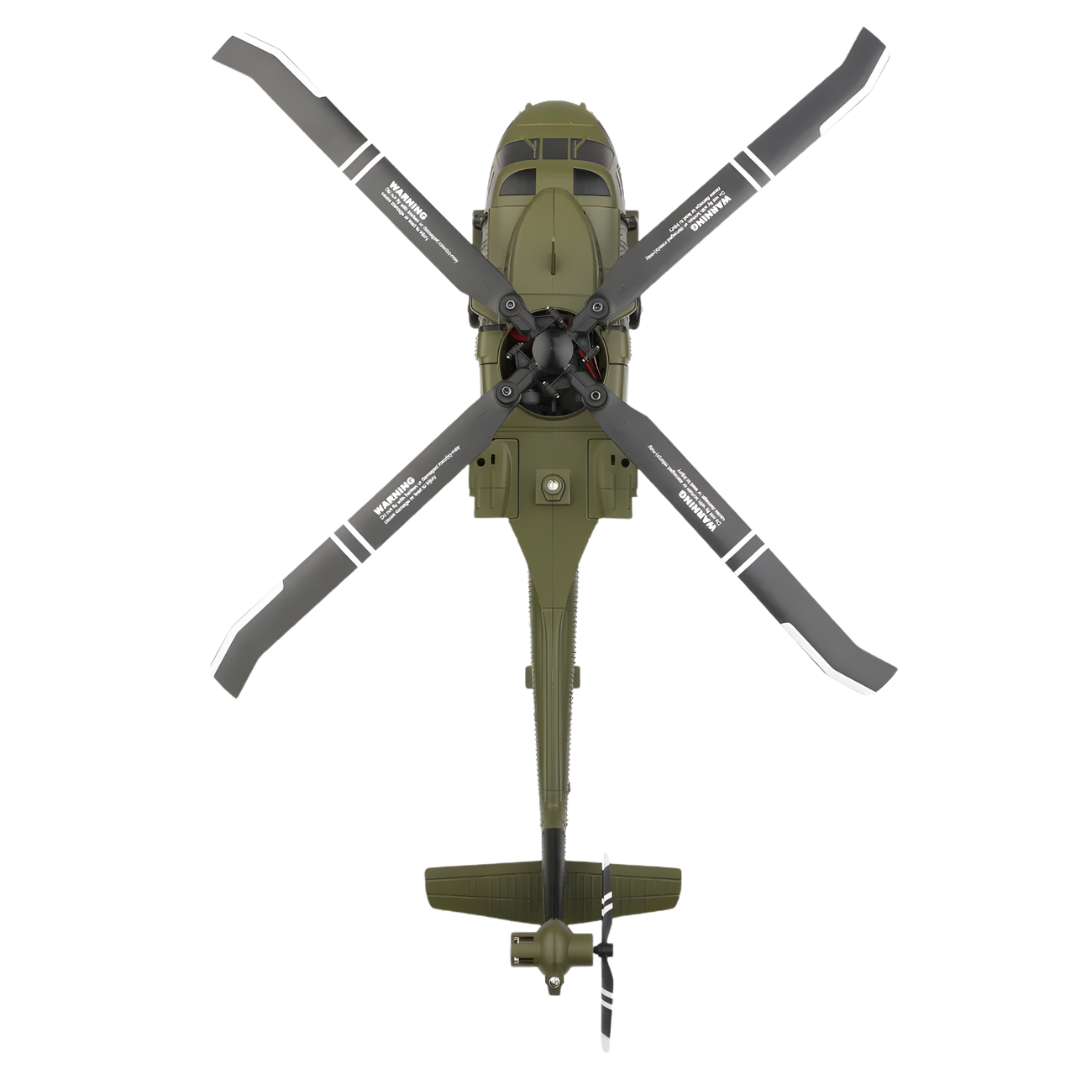

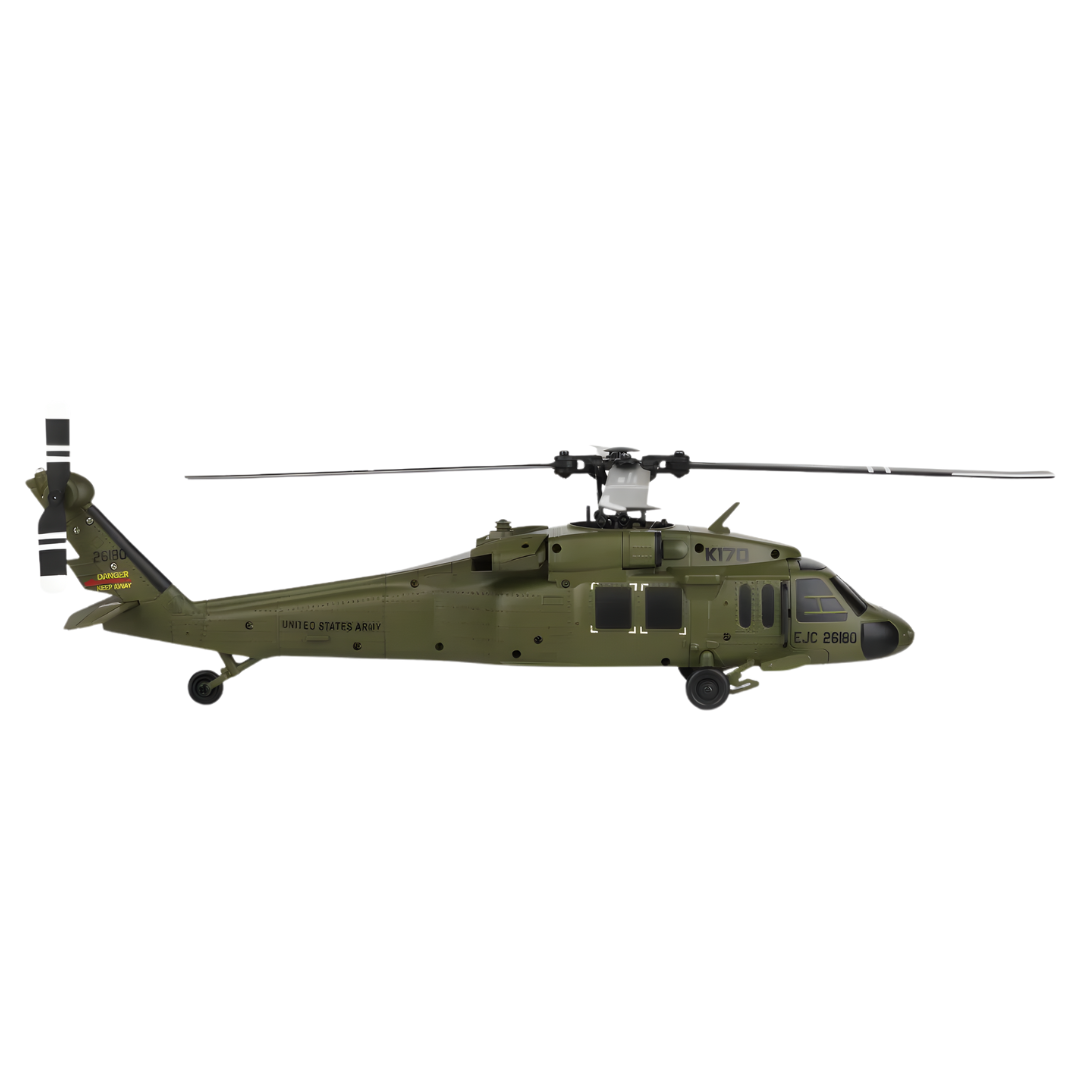

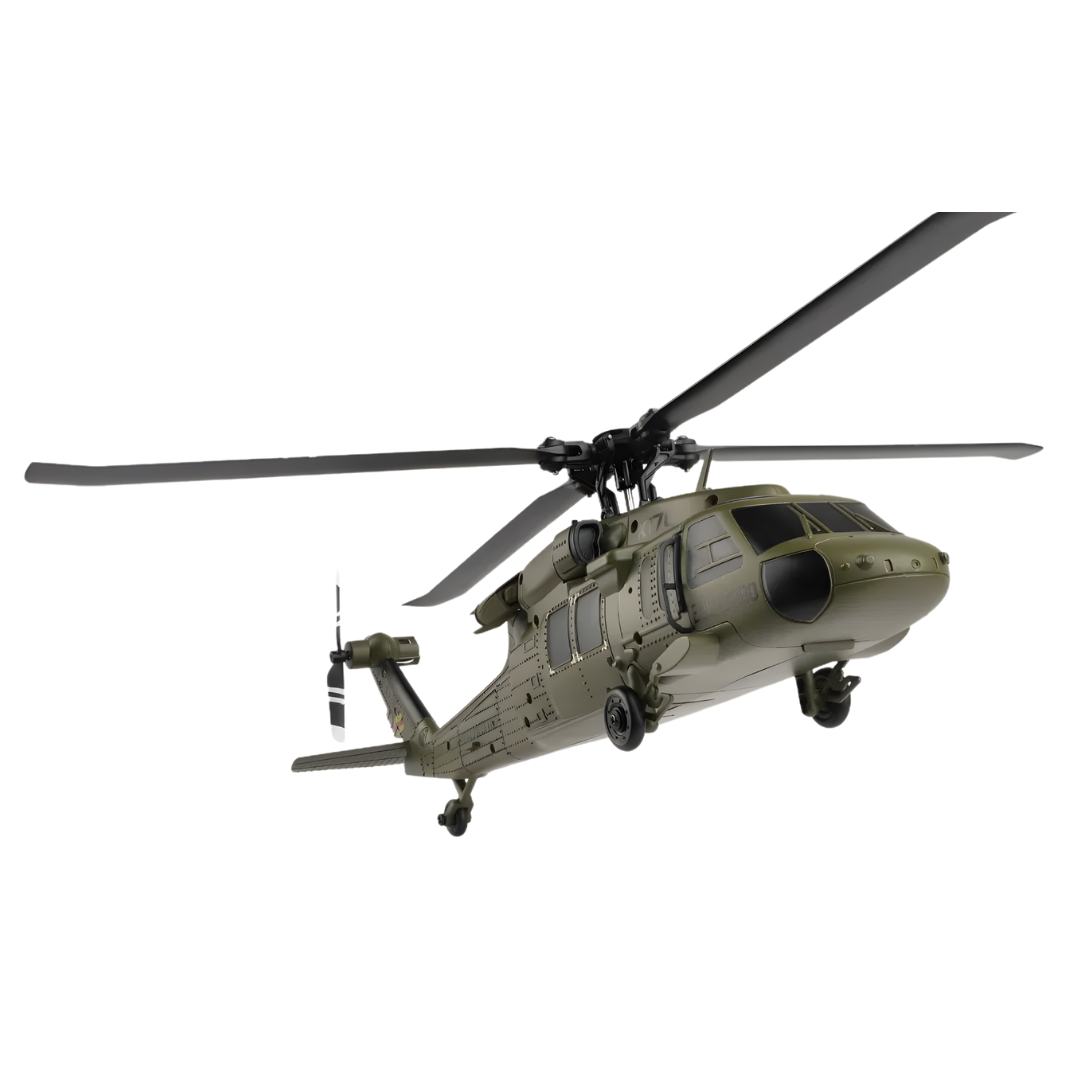

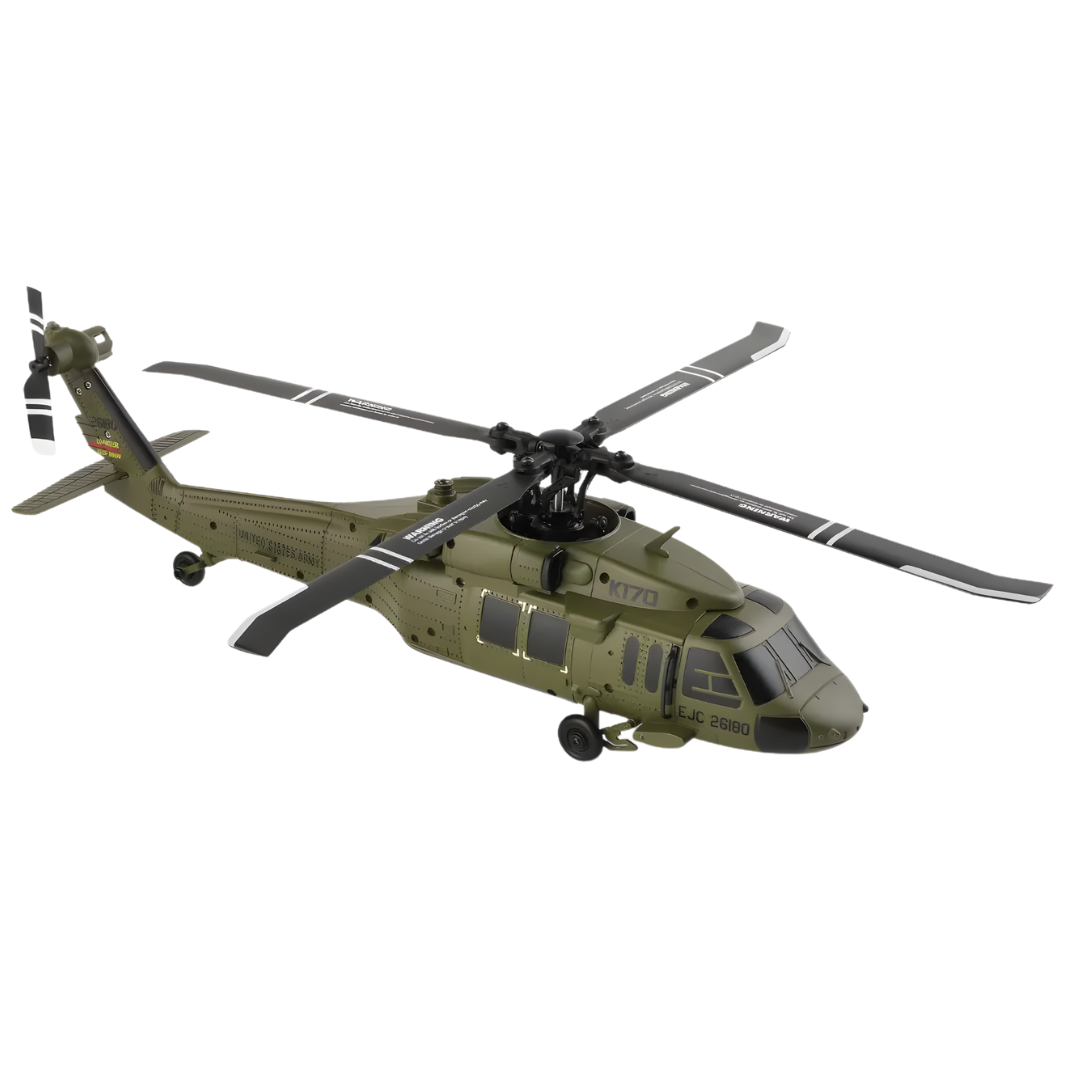

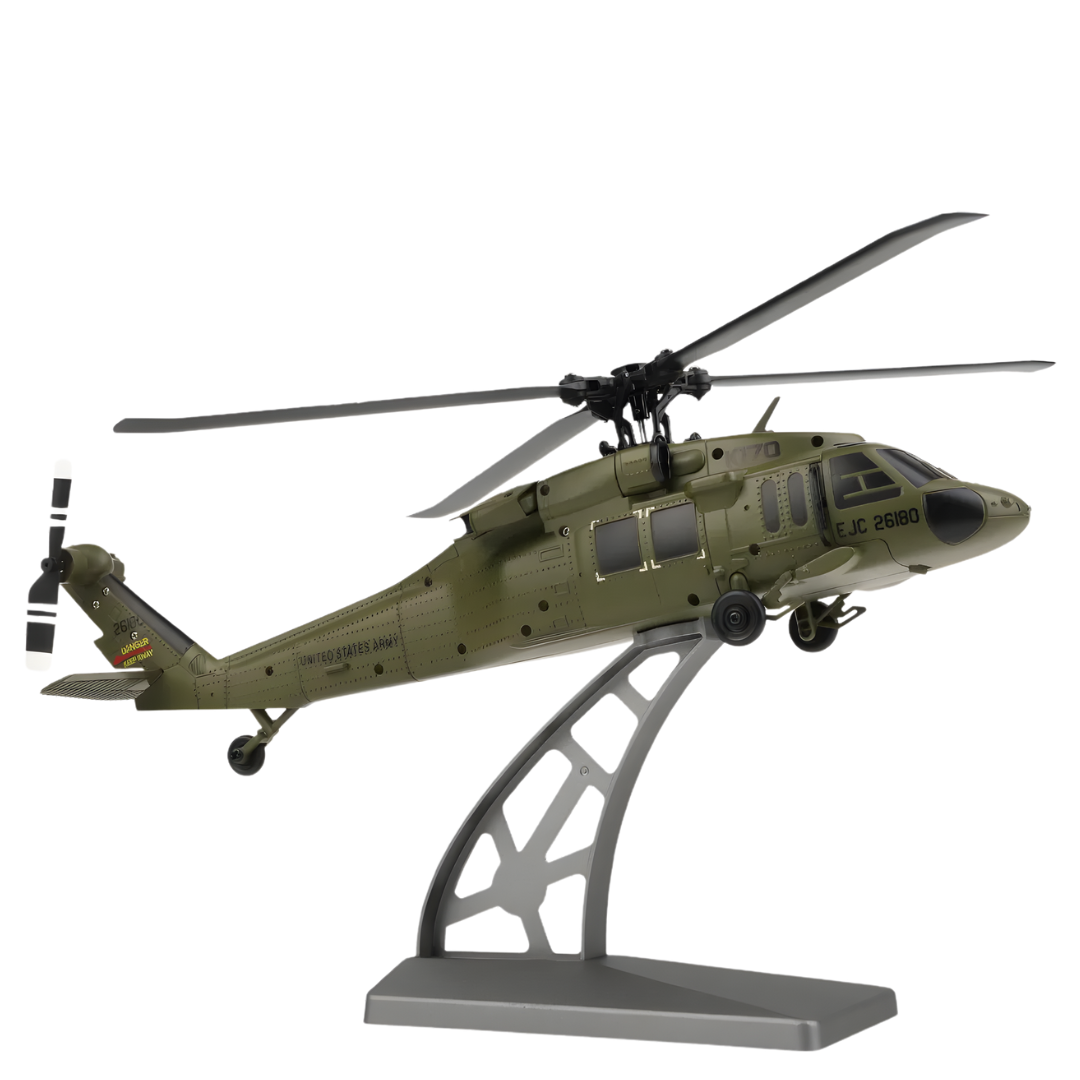

WL Toys K170 UH-60L Black Hawk RC Helicopter 4CH RTF WLK170

The WL Toys K170 UH-60L Black Hawk is a compact 4-channel ready-to-fly RC helicopter featuring a detailed four-blade scale design, 6-axis gyro stabilisation, altitude hold and a brushless main motor for accessible indoor and light-wind outdoor flying.

Features

• UH-60L Black Hawk Styling: Scale-inspired fuselage and four-blade rotor recreate the distinctive appearance of the full-size military helicopter
• Four-Blade Flybarless Design: Aerodynamically shaped rotor blades provide a realistic appearance while supporting stable flight
• 6-Axis Gyroscope: 6G stabilisation assists with self-levelling and makes the helicopter easier to control for less-experienced pilots
• Altitude Hold: Barometric pressure sensing helps maintain a consistent flying height with reduced throttle input
• One-Key Take-Off and Landing: Dedicated transmitter functions simplify launching and landing
• Full 4-Channel Control: Provides ascent, descent, forward, backward, left and right turning, plus left and right sideways flight
• 1106 Brushless Main Motor: External-rotor brushless motor provides efficient power for the lightweight scale airframe
• Digital Servos: Compact 2g digital servos provide fast response and accurate centring
• Signal-Loss Protection: If the control signal is lost, the helicopter is designed to hold altitude briefly before beginning a controlled descent
• Low-Voltage Alerts: Low-voltage warning functions help alert the pilot when aircraft or transmitter power is becoming depleted
• Adjustable Transmitter Layout: Transmitter supports switching between left-hand and right-hand throttle configurations
• USB Charging: Dedicated USB charger is supplied for the included flight battery

Specifications

• Brand: WL Toys / XK
• Model: K170 Black Hawk UH-60L
• Product Type: RC Helicopter
• Completion Level: Ready-To-Fly / RTF
• Channels: 4CH
• Radio System: 2.4GHz
• Stabilisation: 6-Axis Gyroscope / 6G Mode
• Altitude Hold: Barometric Pressure Assisted
• Main Rotor: 4-Blade Flybarless
• Main Rotor Diameter: Approximately 260mm
• Fuselage Length: Approximately 265mm
• Height: Approximately 72mm
• Weight Without Battery: Approximately 85g
• Main Motor: 1106 11200Kv Brushless
• Tail Motor: 720 Hollow-Cup Motor
• Flight Battery: 3.8V 800mAh 20C Lithium Battery
• Typical Flight Time: Approximately 8 Minutes
• Typical Charge Time: Approximately 120 Minutes
• Quoted Control Range: Approximately 80–100m
• Supplier SKU: WLK170

Includes

• 1 x WL Toys K170 UH-60L Black Hawk RC Helicopter
• 1 x 2.4GHz 4-Channel Transmitter
• 1 x 3.8V 800mAh 20C Flight Battery
• 1 x USB Battery Charger
• 1 x Main Rotor Blade Set
• 1 x Spare Main Gear
• 1 x Screwdriver
• 1 x Hex Wrench
• 1 x Instruction Manual

FAQ

Is the WL Toys K170 Black Hawk ready to fly? Yes. The K170 is supplied as an RTF helicopter with transmitter, flight battery and USB charger. Transmitter batteries may be required separately depending on the supplied package.

Is the K170 suitable for beginners? The 6-axis gyro, altitude hold and one-key take-off and landing functions make the K170 considerably easier to fly than a conventional collective-pitch helicopter. It still requires adequate open space and careful control practice.

Is the K170 brushless? The main drive motor is an 1106 11200Kv brushless motor. The tail uses a separate 720 hollow-cup motor.

How long does the K170 fly? Published specifications quote approximately 8 minutes from the included 800mAh battery. Actual flight time varies with flying style, battery condition and wind.

Can the WL Toys K170 be flown outdoors? Yes, but its approximately 85g airframe is lightweight. Owner feedback indicates that wind can noticeably affect its flight, so calm or light-wind conditions are preferable.

Does the K170 need calibration before flying? Yes. Current operating guidance recommends calibrating the gyroscope before each take-off after the transmitter and helicopter have linked. Follow the supplied manual for the correct stick procedure.

Important Notes

• Perform gyro calibration on a level, stationary surface before take-off as described in the instruction manual
• Fly in a clear area away from people, animals, vehicles and obstacles
• The lightweight airframe is best suited to indoor use or calm outdoor conditions
• The quoted 80–100m radio range is approximate and varies with interference and operating conditions
• Flight and charging times are approximate and vary with battery condition and use
• Allow the motor and electronics to cool between repeated flights
• Use the supplied or correctly specified charger for the flight battery
