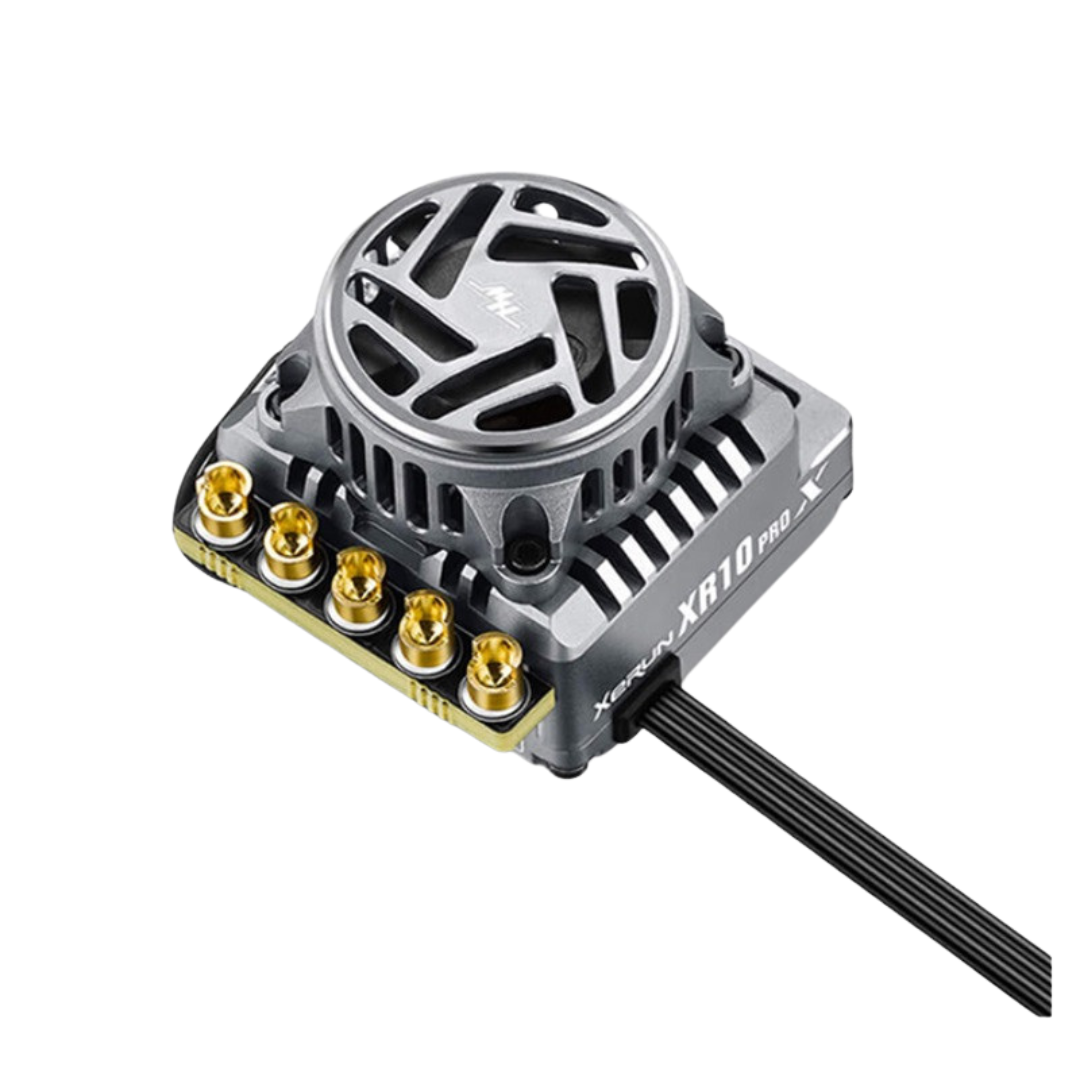

Hobbywing XeRun XR10 Pro G3X 160A 2S Brushless ESC Grey HW30112620

Hobbywing HW30112620 XeRun XR10 Pro G3X is a 160A competition brushless ESC for 1/10 scale 2S LiPo applications including touring cars, buggies, drift, F1 and rally. The titanium grey G3X combines sensored and sensorless brushless motor support with 12AWG wiring, an adjustable high-voltage BEC, advanced programmable driving and braking settings, data logging and firmware updates.

Features

• G3X Competition ESC: Titanium grey version of Hobbywing's XeRun XR10 Pro G3 platform
• 160A Output: Rated at 160A continuous and 1200A peak current
• 2S LiPo Operation: Designed specifically for 2S LiPo power systems
• Sensored and Sensorless: Supports compatible sensored and sensorless brushless motors
• 12AWG Wiring: G3X version uses heavier 12AWG power and motor wiring compared with the standard G3
• Adjustable HV BEC: Switch-mode BEC with adjustable 5.0V to 7.4V output
• Advanced Tuning: Adjustable drive and brake parameters including PWM frequency and Hobbywing Softening functions
• Disc Brake Mode: Additional braking mode designed to provide smooth, strong braking response
• Data Logging: Built-in recording allows operating data to be stored for later analysis
• Separate Programming Port: Supports compatible Hobbywing programming equipment and can also power an external fan
• Firmware Upgradeable: ESC firmware can be updated using compatible Hobbywing programming equipment
• Frameless Cooling Fan: Includes a 25 x 25 x 10mm BEC-powered cooling fan

Specifications

• Brand: Hobbywing
• Series: XeRun
• Model: XR10 Pro G3X
• Product Type: Brushless Electronic Speed Controller
• Colour: Titanium Grey
• Scale: 1/10
• Motor Support: Sensored and Sensorless Brushless
• Continuous Current: 160A
• Peak Current: 1200A
• Input Voltage: 2S LiPo
• BEC Type: Switch-Mode
• BEC Voltage: Adjustable 5.0V to 7.4V
• BEC Output: 6A per current Hobbywing global specification
• Input Wires: 12AWG Black Silicone Wire
• Motor Wires: 12AWG Black Silicone Wire
• Battery Connector: Not Fitted
• Motor Connectors: Not Fitted
• Cooling Fan: Frameless 25 x 25 x 10mm
• Fan Voltage: 5.0V to 7.4V via BEC
• Programming Port: Separate Programming Port
• LCD Program Box Pro Support: Yes
• OTA Programmer Support: Yes
• Firmware Upgrade: Supported
• Built-In Data Logging: Supported
• Waterproof: No
• Reverse Polarity Protection: No
• Overall Dimensions: 41.0 x 33.6 x 30.3mm including terminal-board extension
• Case and Fan Dimensions: 35.0 x 33.6 x 30.3mm excluding terminal-board extension
• Weight: 101.5g with Wires
• Manufacturer Part Number: 30112620
• Supplier SKU: HW30112620

Applications

• 1/10 Touring Car
• 1/10 Buggy Racing
• 1/10 Drift
• 1/10 F1
• 1/10 Rally

Includes

• 1 x Hobbywing XeRun XR10 Pro G3X ESC
• 1 x Set of U-Type Connectors
• 1 x Factory Decal and Accessory Set

FAQ

What is the difference between the XR10 Pro G3 and G3X? The standard G3 HW30112619 is black and uses 13AWG wiring, while the G3X HW30112620 is titanium grey and uses heavier 12AWG wiring. The G3X also does not include reverse-polarity protection.

Can the XR10 Pro G3X run a 3S LiPo? No. Hobbywing specifies HW30112620 for 2S LiPo operation.

Does the XR10 Pro G3X support sensored motors? Yes. The ESC supports compatible sensored and sensorless brushless motors.

Is the Hobbywing XR10 Pro G3X waterproof? No. Hobbywing specifically lists the XR10 Pro G3X as non-waterproof.

Does HW30112620 include battery and motor connectors? No. Hobbywing specifies both the battery input and motor output leads without pre-fitted connectors, allowing racers to install connectors suited to their particular setup.

How is the XR10 Pro G3X programmed? The ESC supports the Hobbywing LCD Program Box Pro and OTA Programmer through its separate programming interface. The basic LED Program Box and programming through a SET button on the ESC are not supported.

Does the XR10 Pro G3X have reverse-polarity protection? No. Hobbywing specifically states that the G3X version does not have reverse-polarity protection. Incorrect battery polarity can damage the ESC.

Why are two different dimensions published for this ESC? Hobbywing lists the case with fan and shroud at 35.0 x 33.6 x 30.3mm. The current global specification gives an overall length of 41.0mm because the terminal board extends approximately 6mm beyond the case.

Important Notes

• Designed for 2S LiPo operation only
• G3X version does not have reverse-polarity protection
• Always verify battery polarity before connecting power
• ESC is not waterproof
• Battery and motor connectors are not factory fitted
• Basic Hobbywing LED Program Box is not supported
• Motor, battery and programming equipment are not included
