Yokomo Super Drift SD3.0 RC Chassis Kit 1/10 RWD Black Y-SDR-030

The Yokomo Super Drift SD3.0 is a high-specification 1/10 RWD RC drift chassis kit developed for precise steering control, balanced front-to-rear grip and extensive setup tuning. The black SDR-030 combines a graphite double-deck chassis with a newly designed aluminium steering system, selectable 3/4-gear rear bulkhead, aluminium SLF big bore shocks and extensive aluminium chassis components for competitive and advanced drift builds.

Features

• Graphite Double-Deck Chassis: Lightweight chassis design balances rigidity and controlled flex for drift performance

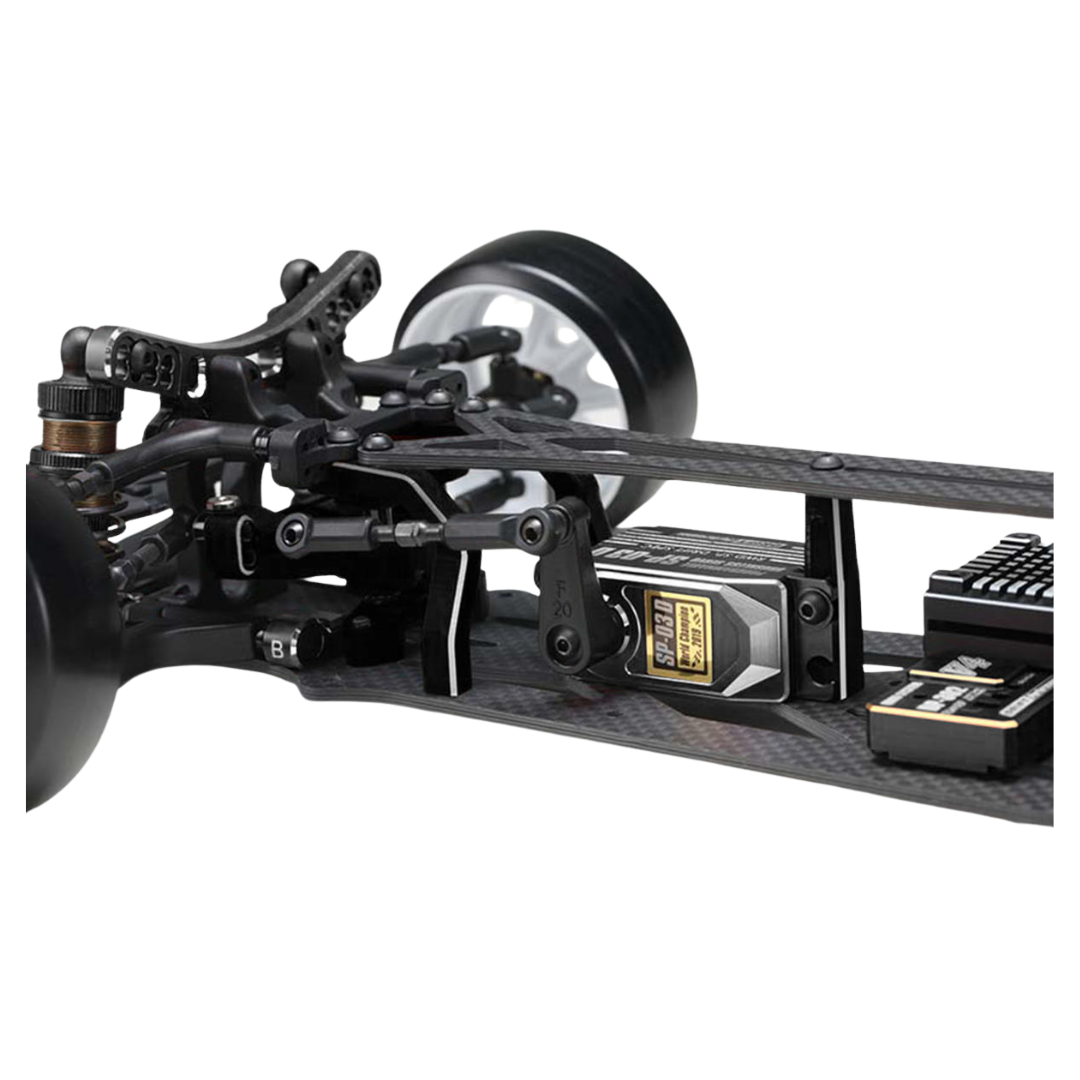

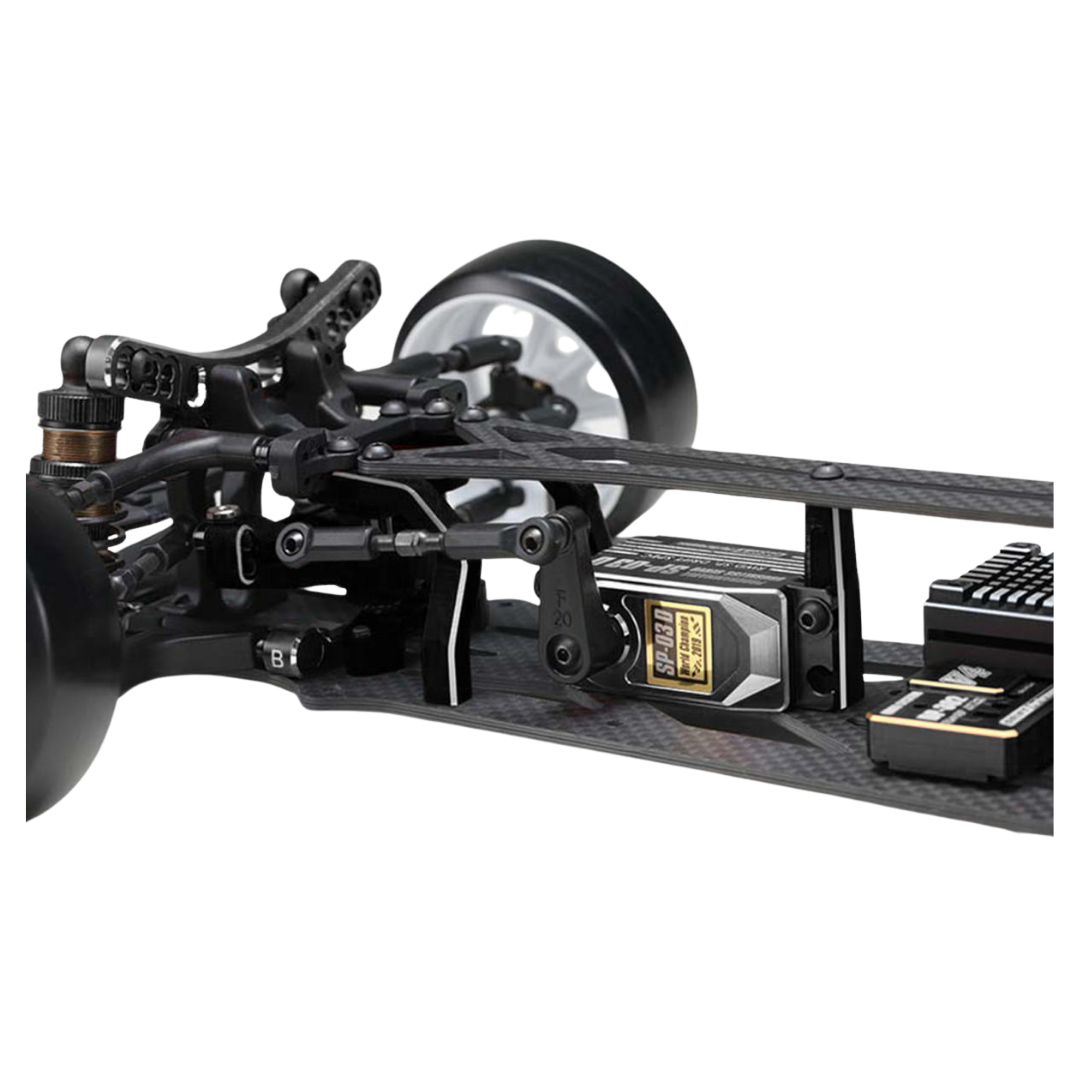

• New Aluminium Steering System: Revised steering layout is designed to provide precise control and stable road holding
• Forward-Tilted Steering Wipers: Geometry reduces tie-rod angle changes during steering movement to improve stability through corners
• Balanced Grip Design: Chassis development considers weight, rigidity and roll balance to maintain rear traction while improving front grip and tracking
• Aluminium Front Bulkhead Support: Adds rigidity to the front chassis structure
• Aluminium Servo Mount: Provides a rigid mounting point for the separately purchased steering servo
• Aluminium Upper Deck Post: Supports chassis rigidity and the double-deck structure

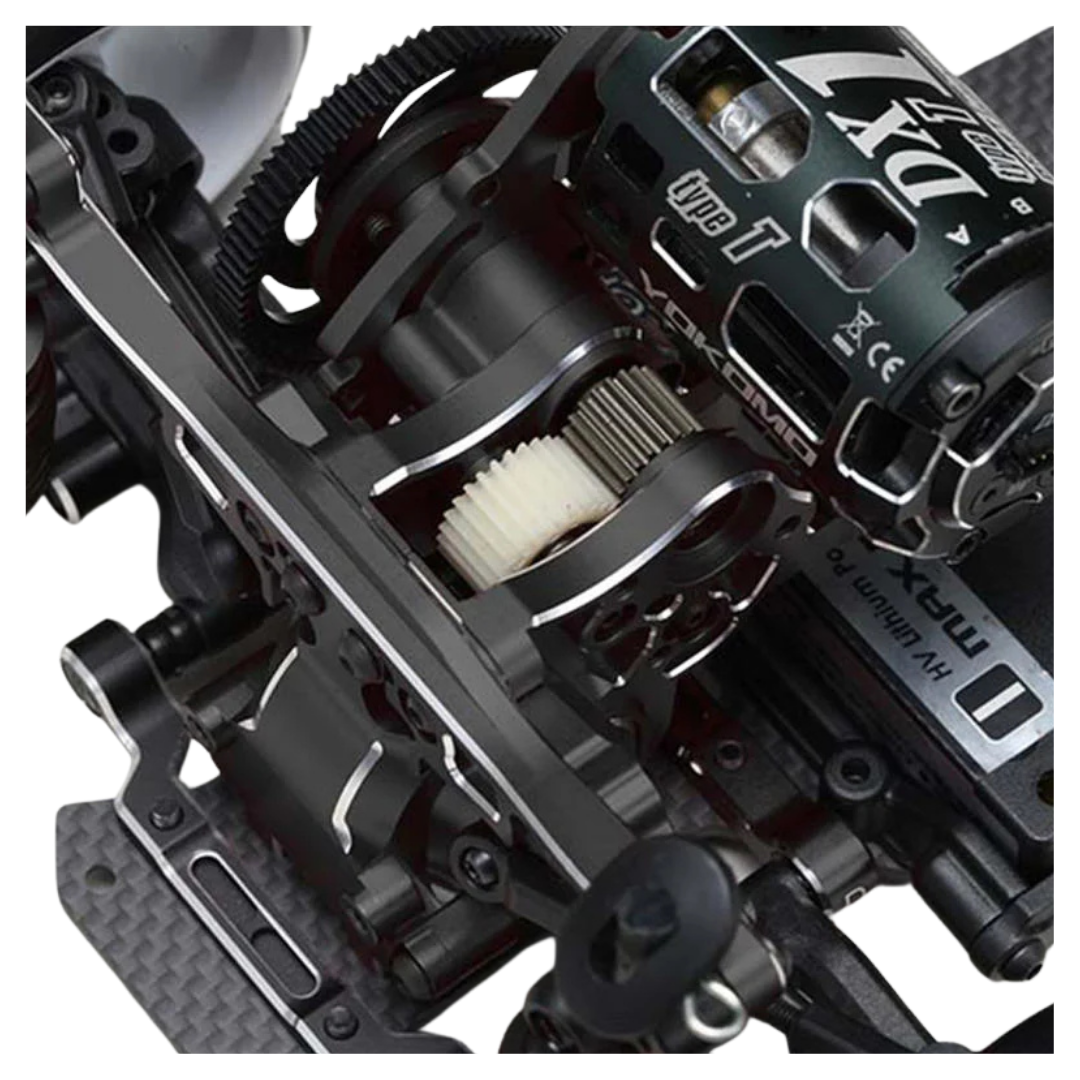

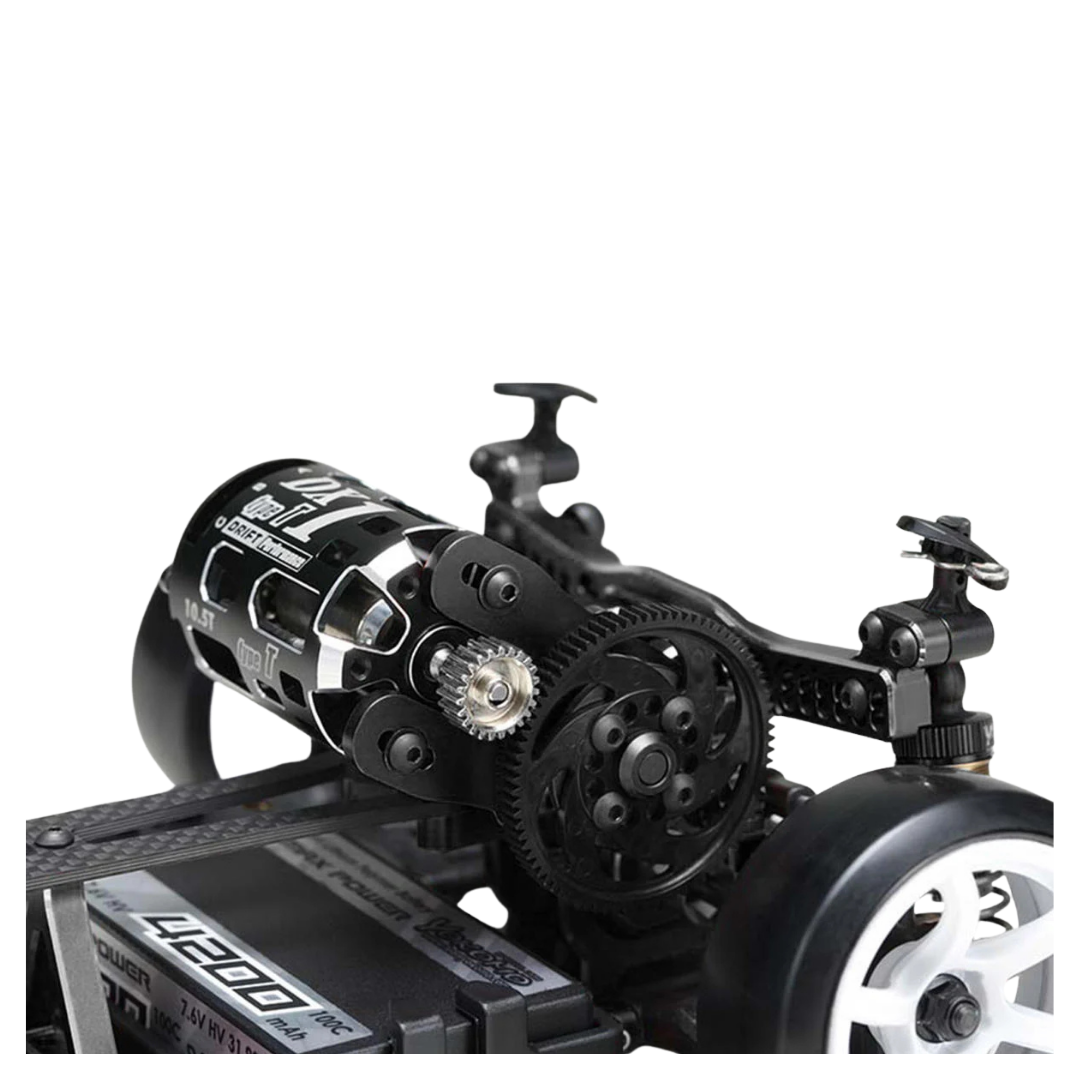

• Selectable 3/4-Gear Rear Bulkhead: Aluminium rear bulkhead allows either three-gear or four-gear drivetrain configuration
• Aluminium Shock Towers: Front and rear aluminium towers provide rigid suspension mounting points
• Aluminium Suspension Arm Mounts: Provide precise suspension mounting and alignment
• SLF Big Bore Shocks: Aluminium oil-filled shocks provide adjustable and consistent suspension damping
• Integrated Aluminium Front Axle: Included as part of the SD3.0 chassis specification
• Black Anodised Version: SDR-030 is the standard black version of the SD3.0 chassis kit

Specifications

• Brand: Yokomo
• Model: Super Drift SD3.0
• Product Type: RC Drift Chassis Kit
• Scale: 1/10
• Drive System: Rear-Wheel Drive RWD
• Completion Level: Assembly Kit
• Chassis: Graphite Double Deck
• Steering System: Aluminium Wiper System
• Rear Bulkhead: Aluminium Selectable 3/4-Gear Configuration
• Shock Type: Aluminium SLF Big Bore Oil Shocks
• Shock Towers: Aluminium Front and Rear
• Suspension Arm Mounts: Aluminium
• Front Axle: Integrated Aluminium
• Required Pinion Pitch: 48 Pitch
• Colour: Black
• Manufacturer Part Number: SDR-030
• Supplier SKU: Y-SDR-030
• GTIN / UPC: 0639342228096

Includes

• 1 x Yokomo Super Drift SD3.0 RWD Chassis Kit Black
• Graphite Chassis Components
• Drivetrain Components
• Suspension Components
• Aluminium SLF Big Bore Shocks
• Aluminium Chassis and Suspension Components
• Bearings
• Gears
• Screws and Assembly Hardware
• Decals
• Assembly Instructions

Required To Complete

• 2-Channel or Greater Transmitter and Compatible Receiver
• Drift Steering Gyro
• Steering Servo
• Electronic Speed Controller
• Suitable Motor
• 2S LiPo Drive Battery
• Compatible Battery Charger
• 48-Pitch Pinion Gear
• Drift Wheels
• Drift Tyres
• Compatible 1/10 Drift Body
• Polycarbonate Body Paint
• Required Assembly Tools

FAQ

Is the Yokomo SD3.0 SDR-030 ready to run? No. SDR-030 is an unassembled chassis kit. Motor, ESC, servo, radio equipment, gyro, battery, charger, pinion gear, wheels, tyres and body are required separately.

Is the Yokomo SD3.0 rear-wheel drive? Yes. The Super Drift SD3.0 is a rear-wheel-drive chassis developed specifically for modern 1/10 RC drifting.

What is different about the SD3.0 steering system? Yokomo developed a new aluminium steering system with forward-tilted steering wipers. The geometry reduces changes in tie-rod angle as the steering operates, helping provide more stable and precise control through corners.

Can the Yokomo SD3.0 use a three-gear or four-gear gearbox? Yes. The aluminium rear bulkhead provides selectable three-gear and four-gear drivetrain configurations, giving experienced drivers another way to tune drivetrain characteristics.

Does the Yokomo SD3.0 include aluminium shocks? Yes. The standard SDR-030 specification includes aluminium SLF big bore shocks together with aluminium front and rear shock towers.

Does the SD3.0 include a gyro? No. A suitable drift steering gyro is required separately. This allows the driver to select a gyro and steering electronics package to suit the intended setup.

What battery does the Yokomo SD3.0 require? Yokomo specifies a 2-cell LiPo battery for the SD3.0. The battery and compatible charger are sold separately.

What pinion gear does the SD3.0 require? A suitable 48-pitch pinion gear is required separately. The appropriate tooth count depends on the selected motor, spur gear, track conditions and desired final drive ratio.

Is SDR-030 the black SD3.0? Yes. SDR-030 is the standard black-anodised Super Drift SD3.0 chassis kit. Yokomo also released blue, purple and red anodised versions under separate part numbers.

Is the Yokomo SD3.0 intended for beginners? The SD3.0 is a highly adjustable assembly chassis aimed at drivers who want extensive drift setup and tuning capability. Beginners can build and use the platform, but assembly and chassis setup experience will help make the most of its adjustment options.

Important Notes

• This is an unassembled RC chassis kit and is not ready to run
• Motor, ESC, steering servo, gyro, transmitter and receiver are not included
• 2S LiPo battery and compatible charger are not included
• 48-pitch pinion gear is required separately
• Drift wheels, tyres and body are not included
• Polycarbonate paint and assembly tools are required separately
• SDR-030 identifies the standard black version; other anodised colours use separate Yokomo part numbers
