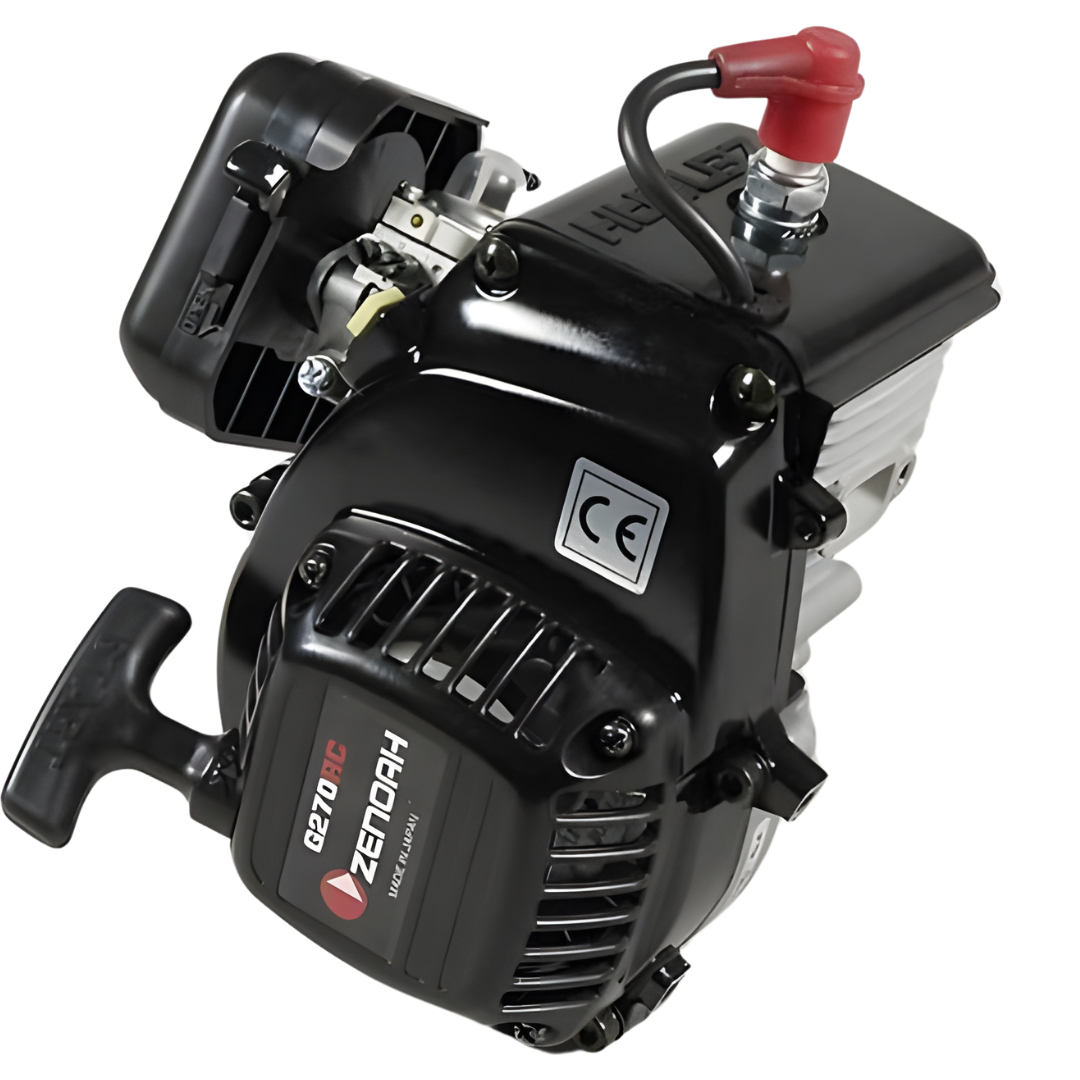

Zenoah G270RC 26cc 4-Bolt 2-Stroke RC Engine with Walbro WT-990 Carburettor X374326111

The Zenoah G270RC is a high-performance 25.4cc petrol engine designed for compatible 1/5 scale RC cars. Commonly referred to as a 26cc engine, it delivers up to 2.49hp while remaining within the displacement limits commonly used for 26cc large-scale RC racing classes.

Developed as an evolution of the popular G260RC, the G270RC features a reinforced four-bolt cylinder, improved crankcase strength and an additional crankshaft bearing on the clutch side. The included Walbro WT-990 carburettor provides responsive fuel delivery and adjustable high- and low-speed tuning for racing, bashing and performance builds.

Features

• High-performance petrol engine for compatible 1/5 scale RC vehicles
• 25.4cc displacement, commonly classified as a 26cc engine
• Produces up to 2.49hp
• Four-bolt cylinder design improves sealing and reduces the risk of cylinder gasket failure
• Reinforced crankcase provides increased strength and durability
• Additional bearing supports the clutch side of the crankshaft
• Redesigned cylinder cooling fins help manage engine temperature
• Walbro WT-990 carburettor provides responsive fuel delivery
• Independent high- and low-speed carburettor adjustment
• Recoil pull-start system
• Suitable for racing, bashing and large-scale performance builds

Specifications

• Brand: Zenoah
• Model: G270RC
• Manufacturer Part Number: X374326111
• Engine Type: Air-cooled two-stroke petrol engine
• Vehicle Scale: 1/5
• Displacement: 25.4cc
• Nominal Class: 26cc
• Bore: 34mm
• Stroke: 28mm
• Maximum Power: 2.49hp / 1.86kW
• Cylinder Design: Four-bolt
• Carburettor: Walbro WT-990
• Ignition System: Electronic
• Spark Plug: NGK CMR7H
• Starting System: Recoil pull starter
• Standard Clutch Engagement: Approximately 6000 RPM
• Recommended Petrol: Premium unleaded, 95 RON or higher
• Recommended Fuel-to-Oil Ratio: 25:1 to 40:1, subject to oil manufacturer and engine-running requirements
• Listed Dimensions: Approximately 166 × 205 × 196mm
• Listed Weight: Approximately 2.07kg

Compatibility

• Compatible large-scale RC vehicles designed for Zenoah-style petrol engines
• HPI Baja 5B
• HPI Baja 5T
• HPI Baja 5SC
• Losi 5IVE-T with applicable original clutch and flywheel-cover components
• Losi DBXL with applicable original clutch and flywheel-cover components
• TLR 5IVE-B with the appropriate short clutch mount and compatible flywheel cover

Includes

• 1 × Zenoah G270RC four-bolt petrol engine
• 1 × Walbro WT-990 carburettor
• 1 × Recoil pull-start assembly
• 1 × NGK CMR7H spark plug and cap

FAQ

Is the Zenoah G270RC a 25.4cc or 26cc engine? Its measured displacement is 25.4cc. It is commonly marketed and raced within the 26cc engine class.

What is the benefit of the four-bolt cylinder? The four-bolt design provides more even cylinder clamping than an older two-bolt arrangement, helping improve sealing and reduce the chance of cylinder-base gasket failure.

Does the Walbro WT-990 have a choke? No. The WT-990 is a performance carburettor without an internal choke plate. Removing the choke restriction improves airflow, although cold-starting may require priming and an appropriate starting technique.

Will this engine bolt directly into an HPI Baja? The engine suits compatible HPI Baja platforms, but some installations may require a shorter clutch spacer or associated mounting components. Compatible examples include HPI 102164, 87458 and 87571. Check the existing vehicle setup before installation.

What is required for installation in a Losi 5IVE-T or DBXL? These vehicles may require reuse of the original clutch mount and flywheel-cover components. Installation parts can vary by vehicle version, so compare the original engine hardware before ordering.

Are the air filter and exhaust included? An air filter and exhaust system are not listed as included and should be transferred from the vehicle or purchased separately as required.

Important Notes

• Use only correctly mixed two-stroke petrol fuel. Never operate the engine on unmixed petrol.
• Follow the oil manufacturer's ratio recommendations and any applicable engine break-in procedure.
• The WT-990 carburettor does not have an internal choke.
• HPI Baja installations may require a shorter clutch spacer depending on the existing clutch arrangement.
• Losi and TLR installations may require vehicle-specific clutch mounts, flywheel covers or reused original components.
• Confirm engine-mount, clutch, flywheel-cover, exhaust and air-filter compatibility before ordering.
• Final carburettor tuning must be completed after installation to suit the fuel, exhaust, air filter, weather and operating altitude.
• Do not run the engine with an excessively lean carburettor setting, as this may cause overheating and internal damage.
