Absima SR4S RC Car Electronics Radio Pack Starter Set Stick NiMH 7.2V AB2200013

Complete your next RC car kit with the Absima SR4S RC Starter Set Stick NiMH 2000. Designed for hobbyists building compatible 1/10 scale electric RC cars, this convenient electronics package combines a 4-channel 2.4GHz stick transmitter, matching receiver, 6kg steering servo, rechargeable 7.2V 2000mAh NiMH battery and USB charger in one starter set.

The Absima SR4S radio system provides reliable 2.4GHz control with steering and throttle trim, reversing functions and adjustable steering dual rate. A waterproof mini receiver and S60PH 6kg steering servo complete the radio and steering components, while the included NiMH stick battery supplies drive power to compatible electric vehicles.

Ideal for completing suitable Tamiya, Absima and other RC assembly kits that require separate electronics, the AB2200013 starter pack also includes four AA batteries for the transmitter. Simply add the vehicle components and any additional equipment required by your specific kit, then complete the installation and radio setup.

Features

• Complete RC Electronics Starter Pack: Combines radio control, steering servo, drive battery and charger in one convenient package.
• Absima SR4S Stick Transmitter: Four-channel 2.4GHz stick-style radio system designed for RC surface vehicles.
• Matching 2.4GHz Receiver: Includes a compatible waterproof mini receiver for installation in the vehicle.
• Four-Channel Control: Provides steering and throttle control with additional channels for compatible auxiliary functions.
• Steering and Throttle Trim: Adjust the neutral positions to help achieve accurate vehicle control.
• Servo Reversing Functions: Change steering or throttle control direction to suit vehicle installation.
• Adjustable Steering Dual Rate: Limit maximum steering travel to suit the driver and vehicle.
• S60PH Steering Servo: Includes a 6kg digital steering servo suitable for compatible RC car steering systems.
• 25T Servo Spline: Uses a standard 25-tooth output spline for compatible servo horns.
• 2000mAh NiMH Drive Battery: Rechargeable 7.2V stick battery for compatible electric RC vehicles.
• Standard Stick Battery Dimensions: Measures approximately 135 x 46 x 25mm for common 1/10 scale battery compartments.
• Tamiya-Style Battery Connector: Supplied with a suitable connector for compatible vehicles and chargers.
• USB-A Battery Charger: Includes a convenient NiMH charger with Tamiya-style charging connector.
• Charging Status LEDs: Red and green indicators provide visual charging status.
• Charger Protection Features: Includes protection functions and a charging timeout function.
• AA Transmitter Batteries Included: Supplied with four AA alkaline batteries for the SR4S radio.
• Ideal for RC Assembly Kits: Designed to help complete suitable electric RC kits supplied without all running electronics.
• Suitable for Beginners: Combines commonly required electronics in one package, reducing the need to select each component individually.

Specifications

• Brand: Absima
• Manufacturer Part Number: 2200013
• OZRC SKU: AB2200013
• EAN Barcode: 4250650964863
• Product Name: RC Starter Set Stick NiMH 2000
• Product Type: RC Radio, Steering Servo, Battery and Charger Starter Set
• Application: Compatible Electric RC Car Assembly Kits
• Typical Scale Application: 1/10
• Transmitter Model: Absima SR4S
• Transmitter Type: Stick-Style
• Radio Frequency: 2.4GHz
• Radio Channels: 4
• Receiver: Matching Waterproof Mini Receiver
• Steering and Throttle Reverse: Yes
• Steering and Throttle Trim: Yes
• Steering Dual Rate: Yes
• Steering Servo Model: Absima S60PH
• Servo Rated Torque: 6kg-cm
• Servo Operating Voltage: 4.8V to 6.0V
• Servo Gear Material: Plastic
• Servo Output Spline: 25T
• Drive Battery Chemistry: Nickel-Metal Hydride (NiMH)
• Drive Battery Voltage: 7.2V
• Drive Battery Capacity: 2000mAh
• Drive Battery Format: Stick Pack
• Drive Battery Dimensions: 135 x 46 x 25mm
• Drive Battery Cable: 12AWG Silicone Wire
• Drive Battery Connector: Tamiya-Style
• Charger Type: USB-A NiMH Charger
• Charger Maximum Input: 5V / 2A
• Recommended USB Power Supply: 5V / 2A, 10W
• Charger Status Indicators: Red and Green LEDs
• Charger Connection: Tamiya-Style
• Transmitter Batteries: 4 x AA LR06 Alkaline
• Motor Included: No
• Electronic Speed Controller Included: No
• RC Vehicle Included: No

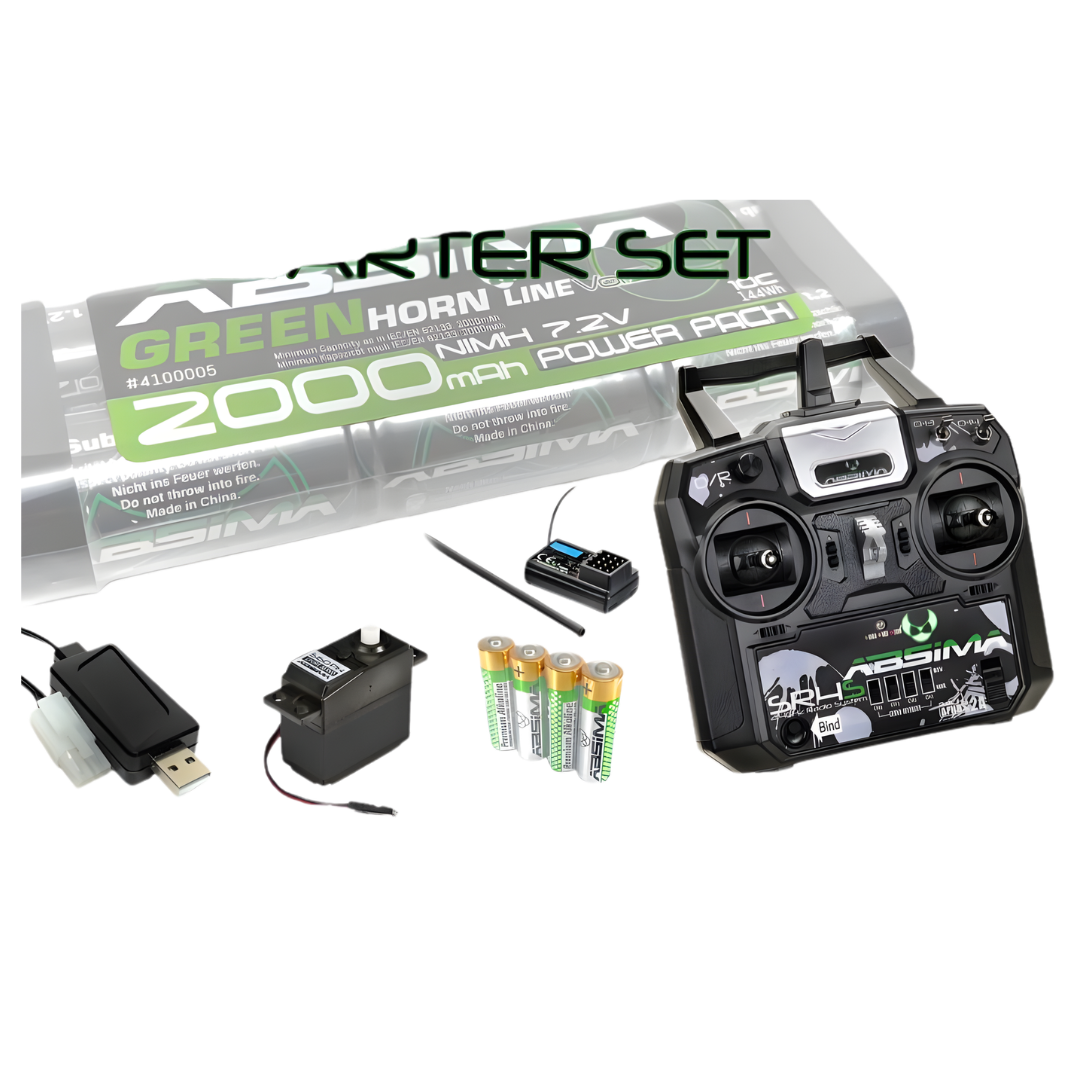

Includes

• 1 x Absima SR4S 4-Channel 2.4GHz Stick Transmitter
• 1 x Compatible 2.4GHz Mini Receiver
• 1 x Absima S60PH 6kg Steering Servo
• 1 x Absima 7.2V 2000mAh NiMH Stick Battery with Tamiya-Style Connector
• 1 x USB-A NiMH Battery Charger with Tamiya-Style Charging Connector
• 4 x AA LR06 Alkaline Transmitter Batteries

FAQ

What comes in the Absima AB2200013 starter set? The set includes an SR4S 2.4GHz stick transmitter, compatible receiver, S60PH 6kg steering servo, 7.2V 2000mAh NiMH stick battery, USB-A NiMH charger and four AA alkaline batteries.

Is this just a NiMH battery pack? No. AB2200013 is a complete RC electronics starter set. The NiMH battery is one component of the package, alongside the radio system, steering servo and charger.

Is the starter set suitable for a Tamiya RC kit? It is suitable for many compatible Tamiya and similar 1/10 scale electric assembly kits that need a radio, receiver, steering servo, battery and charger. Check your kit's battery compartment, connectors, servo mounting and electronic speed controller requirements before purchasing.

Does the set include a motor and ESC? No. A motor and electronic speed controller are not included. Your RC kit must already contain suitable components, or you will need to purchase them separately.

What type of transmitter is included? The set includes the Absima SR4S four-channel 2.4GHz stick transmitter. It uses two stick controls rather than a pistol-grip wheel and trigger arrangement.

Is the receiver waterproof? Absima specifies a waterproof mini receiver with the SR4S system. This does not make the entire electronics package waterproof; the steering servo, battery connections and other vehicle components must be protected according to their individual ratings.

What steering servo is supplied? The pack includes an Absima S60PH 6kg servo with plastic gears, a 25T output spline and a 4.8V to 6.0V operating range.

What battery comes with the starter set? A rechargeable 7.2V 2000mAh NiMH stick battery measuring approximately 135 x 46 x 25mm, fitted with a Tamiya-style connector.

Can I use the included charger with LiPo batteries? No. The supplied charger is intended for the included compatible NiMH battery. Do not use it to charge LiPo batteries.

Do I need to buy transmitter batteries separately? No. Four AA alkaline batteries are included for the SR4S transmitter.

Does the USB charger include a wall power adaptor? The supplied USB-A charger requires a suitable 5V USB power source. A mains USB adaptor is not confirmed as included, so allow for a separate 5V/2A power supply.

Will the NiMH battery fit every 1/10 scale RC car? No. Although the stick format is common, you should verify the 135 x 46 x 25mm battery dimensions, Tamiya-style connector and your vehicle's supported battery voltage before installation.

Important Notes

• This is the complete Absima RC Starter Set Stick NiMH 2000, not a battery-only product.
• Check the exact kit contents against your RC vehicle's assembly manual before purchasing.
• Motor and ESC are sold separately unless already supplied with your vehicle kit.
• The included drive battery is a 7.2V NiMH pack, not a LiPo battery.
• Charge the battery only with a suitable NiMH charger using the correct connector and charging procedure.
• Use a suitable 5V/2A USB power supply with the included charger.
• Do not connect the S60PH servo to a supply exceeding its 6.0V maximum operating rating.
• Confirm servo mounting dimensions, servo horn compatibility and steering linkage before fitting.
• Verify battery compartment dimensions and connector compatibility with your vehicle.
• Follow the transmitter and receiver binding instructions before driving.
• Set steering and throttle direction, trims, endpoints and failsafe where supported before operation.
• Do not leave charging batteries unattended.
• This starter set is not a complete ready-to-run RC car; the compatible vehicle kit and any missing running components must be supplied separately.
