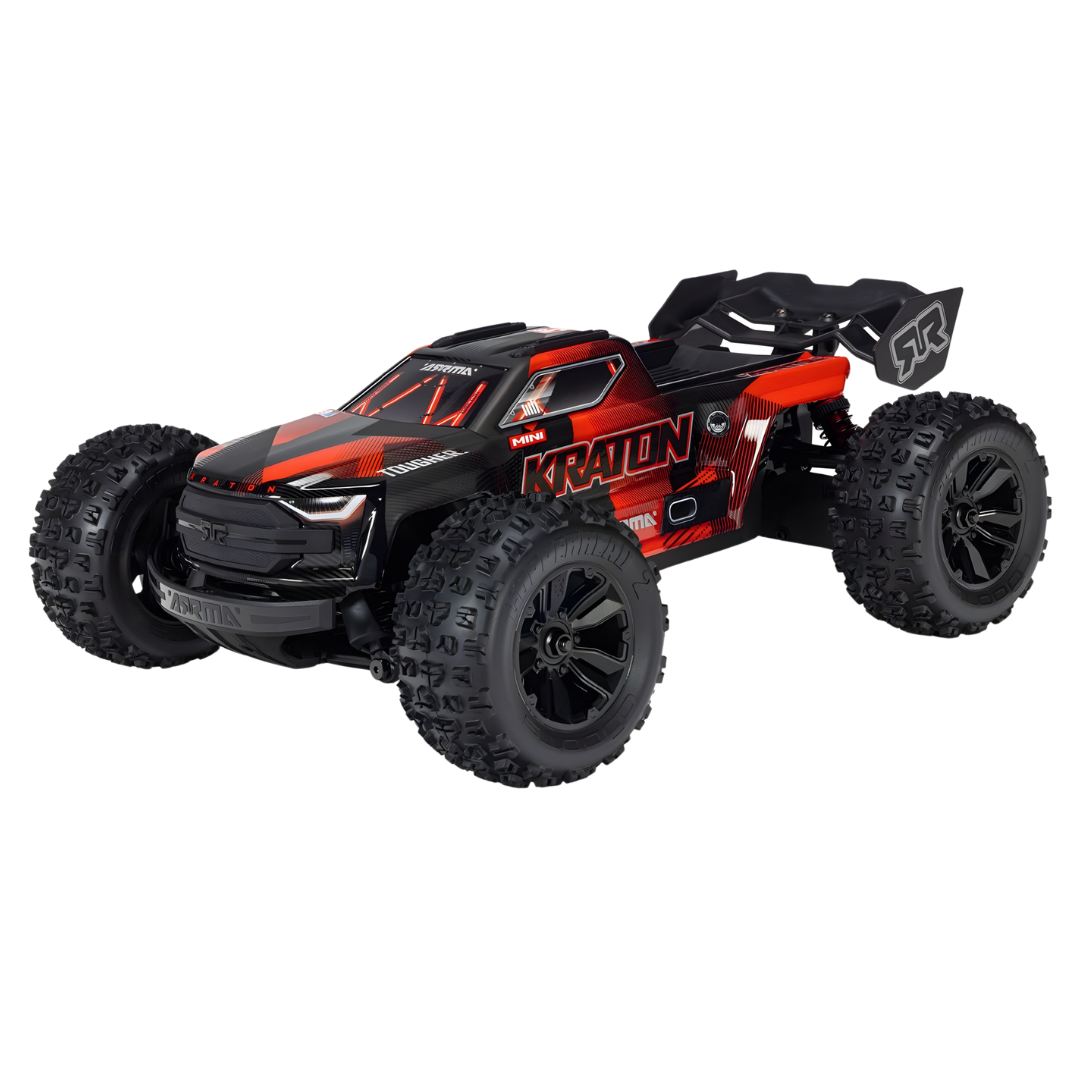

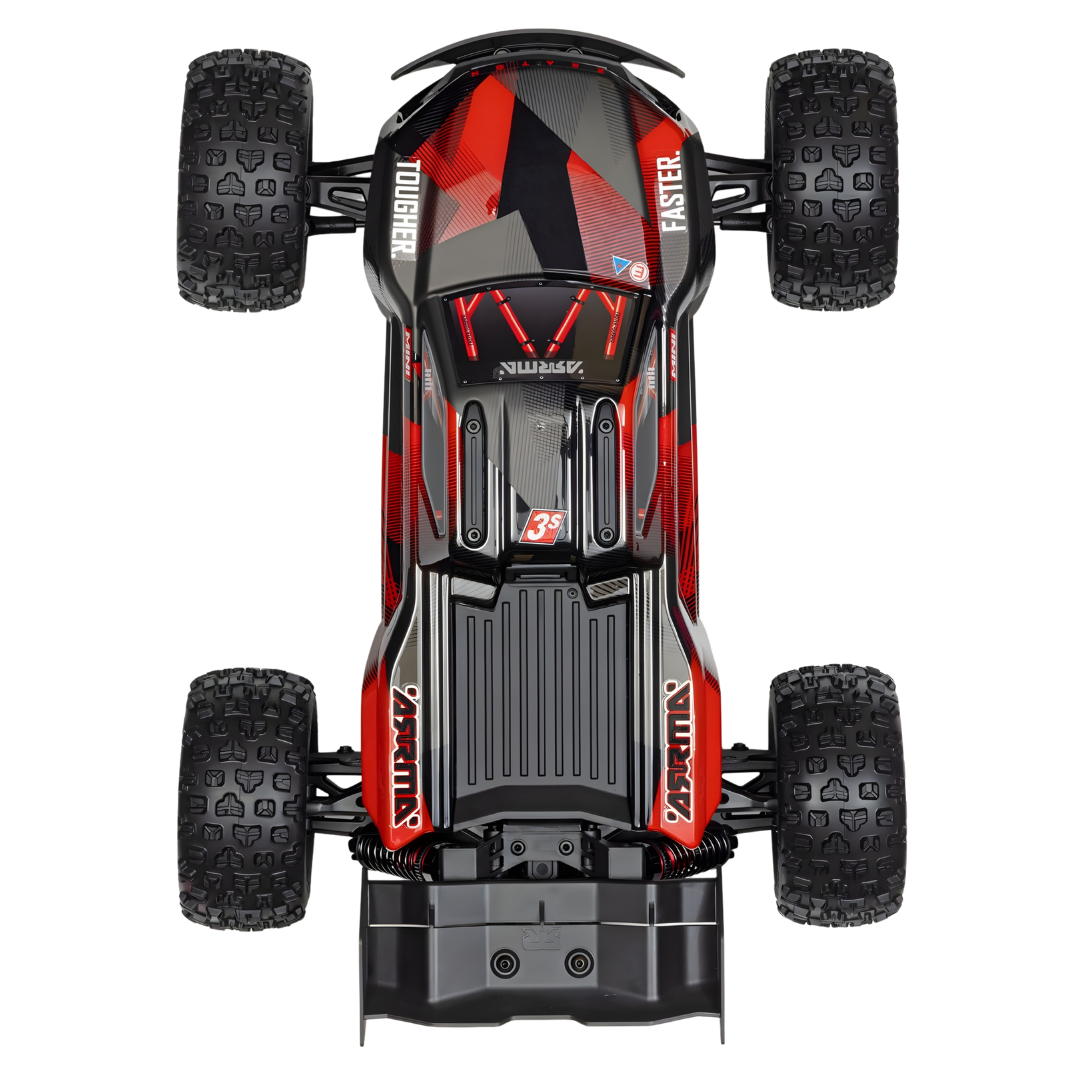

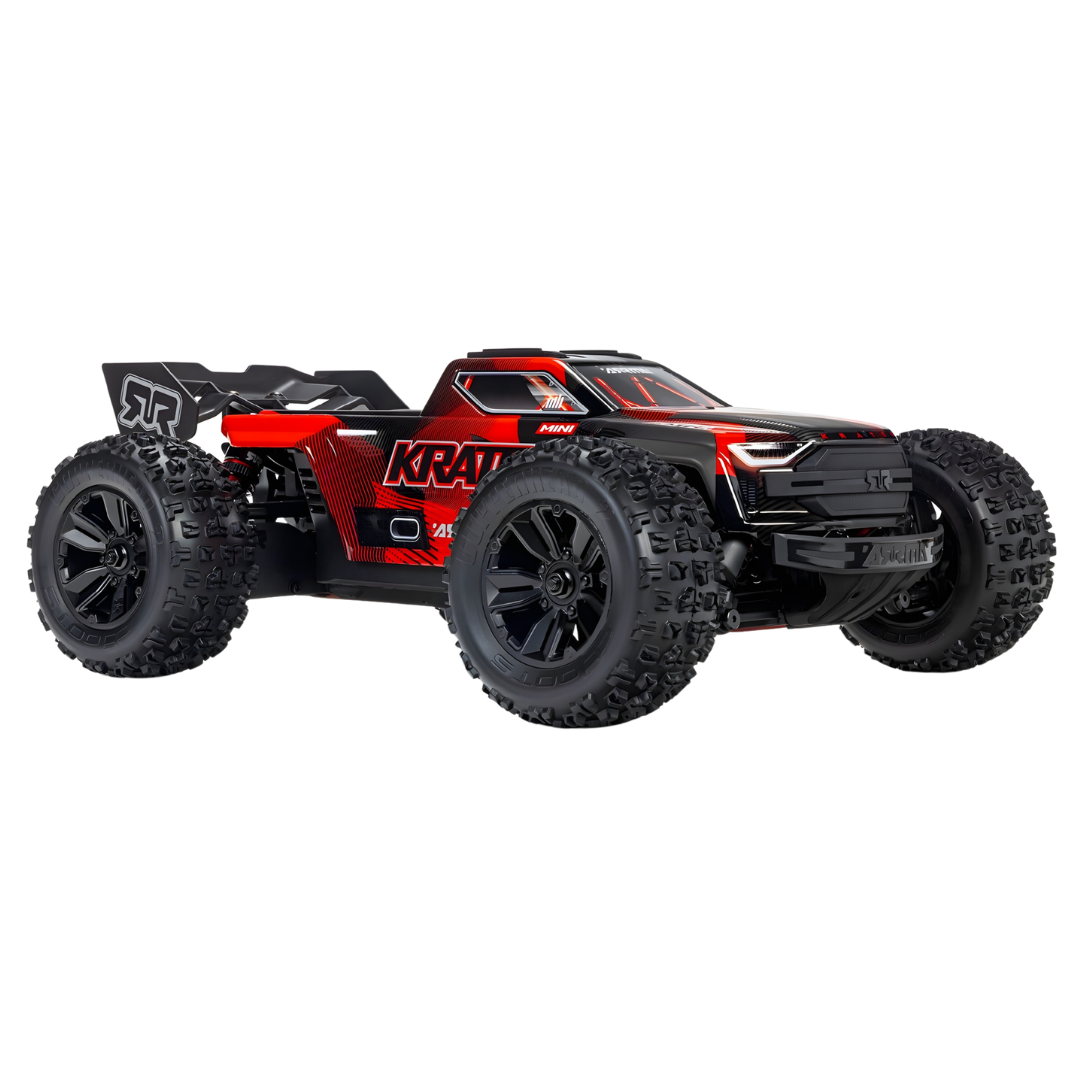

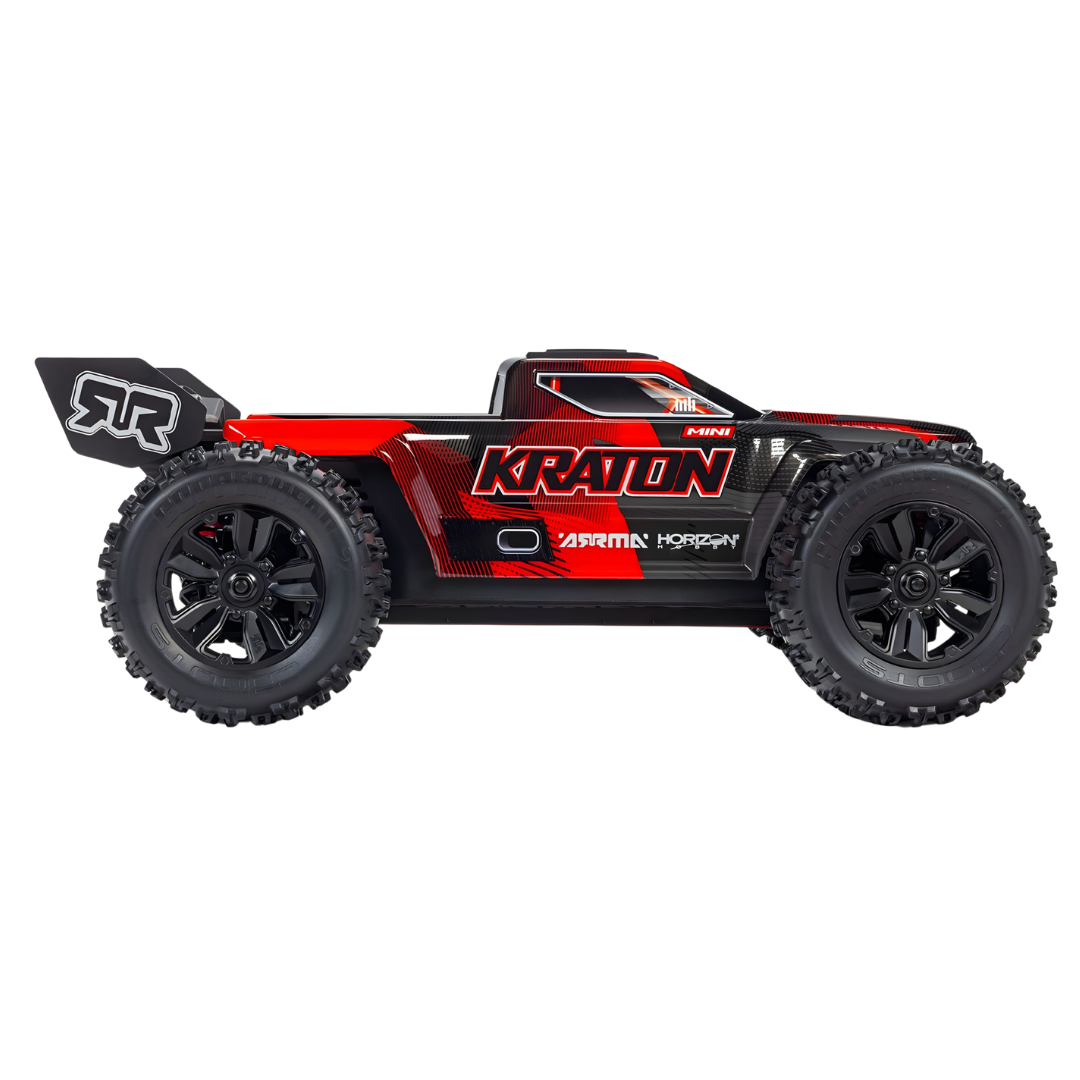

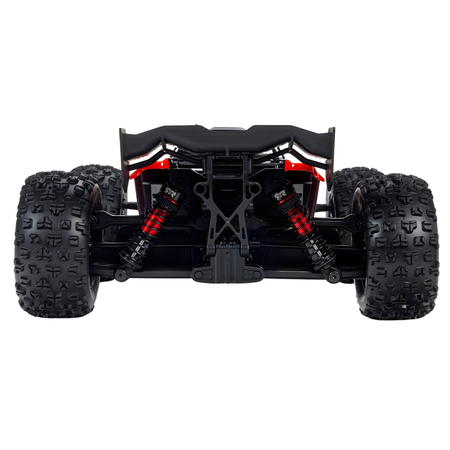

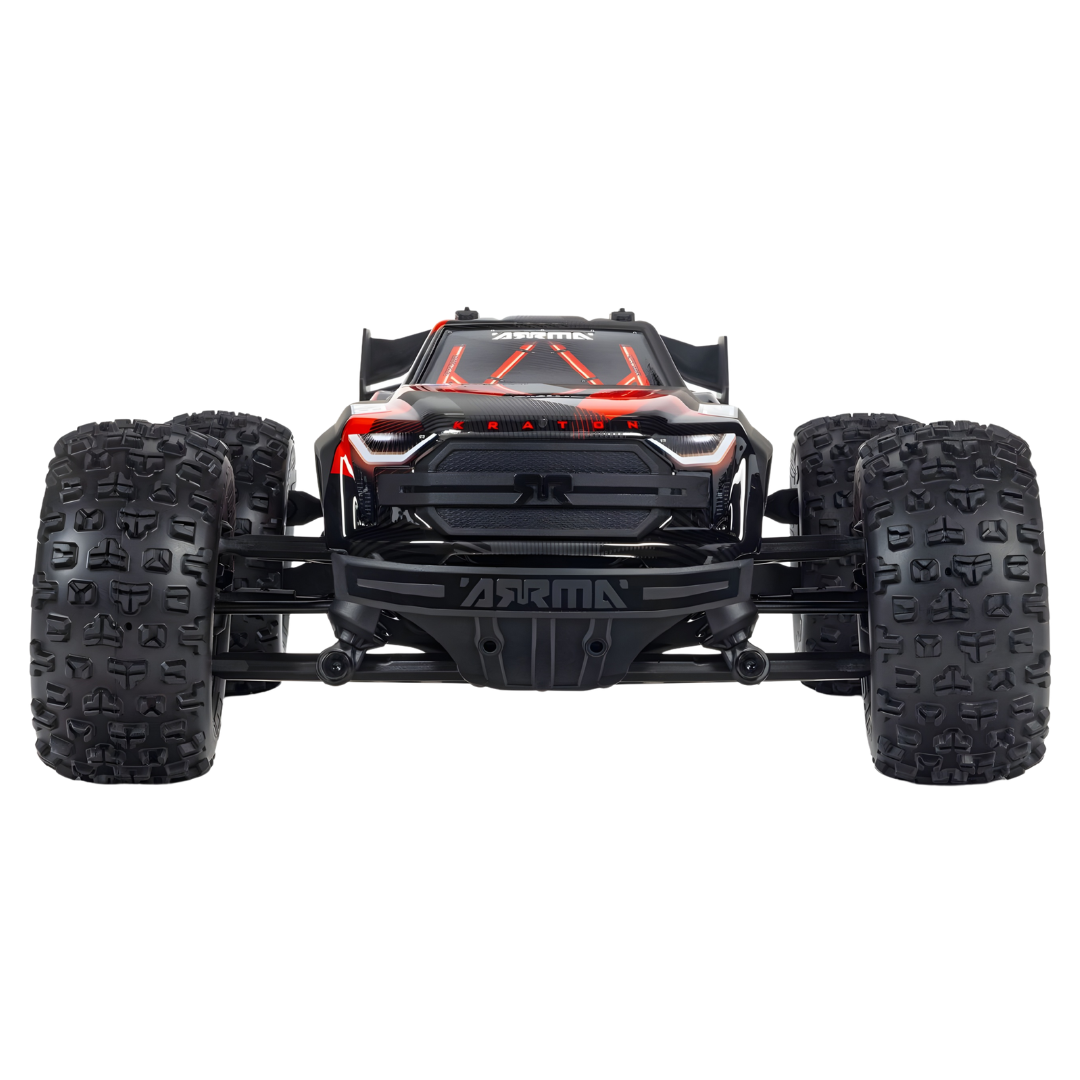

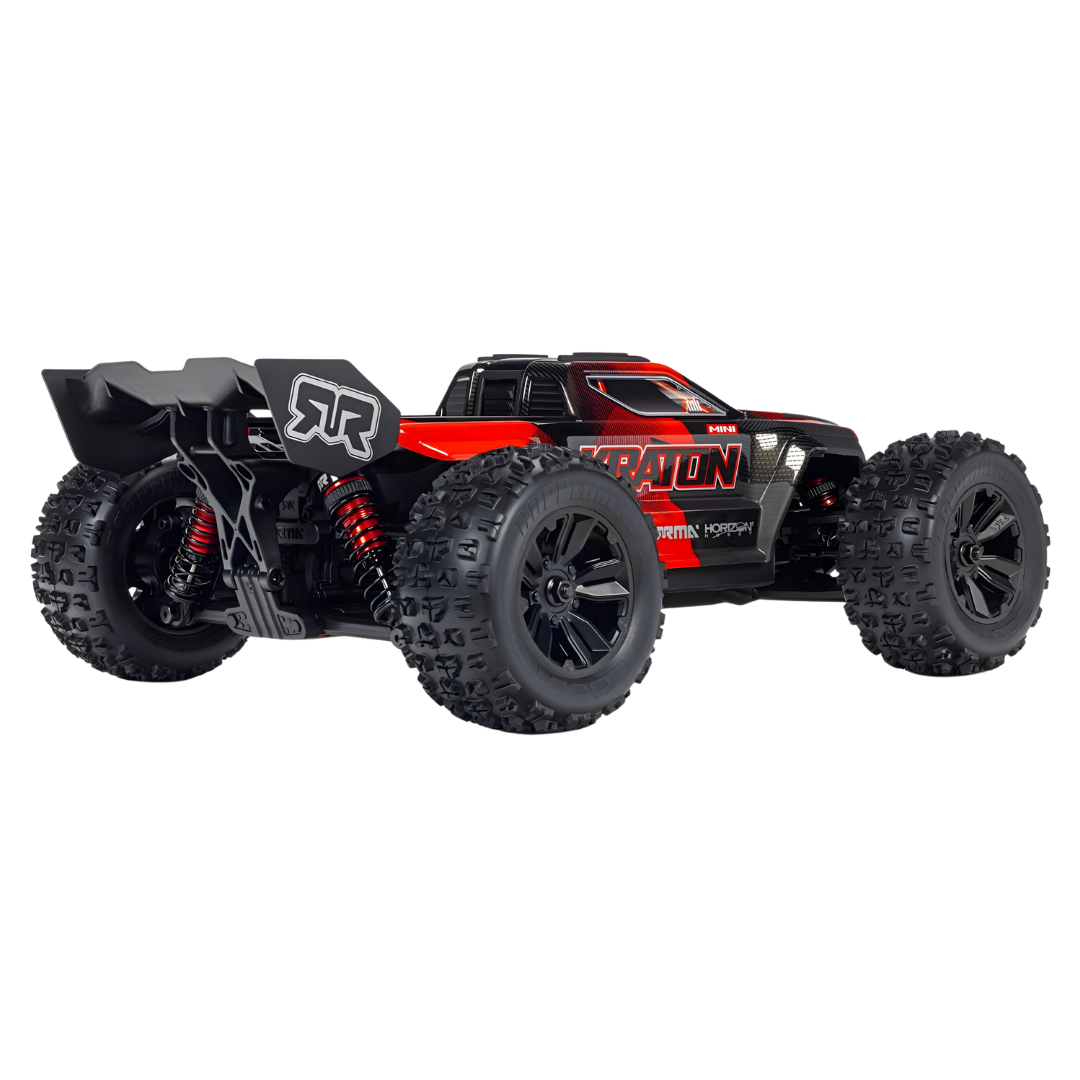

ARRMA Mini Kraton 3S BLX RC Monster Truck 1/16 4X4 RTR Black/Red ARA2508T1

The ARRMA Mini Kraton 3S BLX is a 1/16 scale 4X4 RTR brushless RC monster truck designed for compact high-performance bashing, combining PowerGuard selectable performance, Dynamic Stability Control and 50+ mph capability in a tough mini platform.

Features

• PowerGuard System: Uses a single 3S LiPo battery to provide selectable Adrenaline and Chaos driving modes without changing battery packs
• Adrenaline Mode: Provides smoother, more manageable power with extended runtime for learning, backyard driving and general bashing
• Chaos Mode: Installing the included PowerKey unlocks full 3S performance with 50+ mph capability
• Dynamic Stability Control: Four selectable DSC modes automatically apply steering corrections to help maintain control on different grip levels
• Brushless Power System: Spektrum Firma 2848 3000KV brushless motor provides the power for the compact 4X4 platform
• Waterproof ESC and Receiver: Spektrum SLT Brushless 40A 2-in-1 unit combines the ESC and receiver with DSC and PowerGuard technology
• Rugged 4WD Drivetrain: Enclosed metal-geared driveline transfers power to all four wheels while protecting drivetrain components from dirt and debris

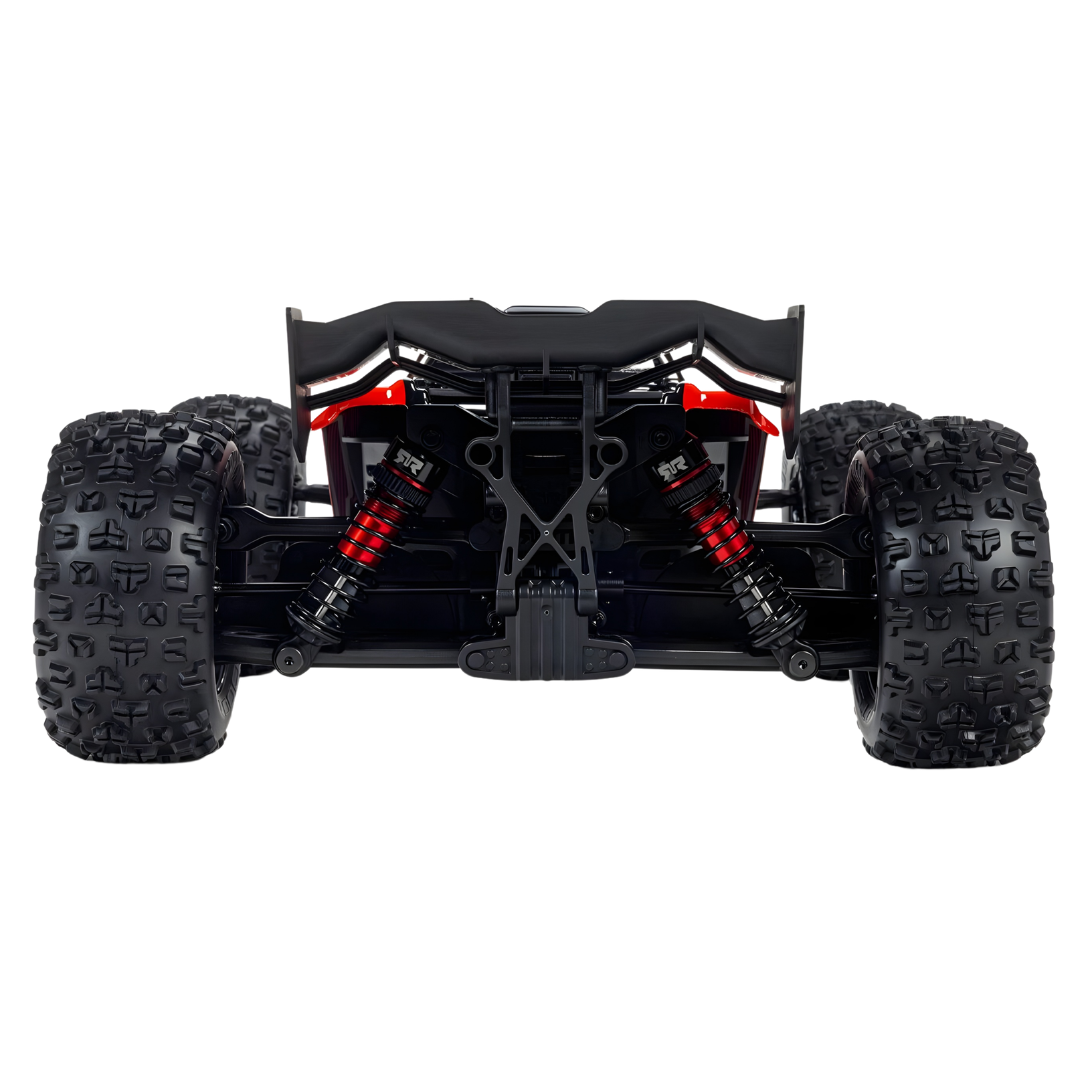

• Oil-Filled Aluminium Shocks: Threaded aluminium shock bodies provide controlled suspension damping for rough-surface driving
• Quick-Release Clipless Body: Press-and-release retention allows fast chassis access without conventional body clips
• Quick-Release Battery Mechanism: Provides convenient access when installing or changing the drive battery

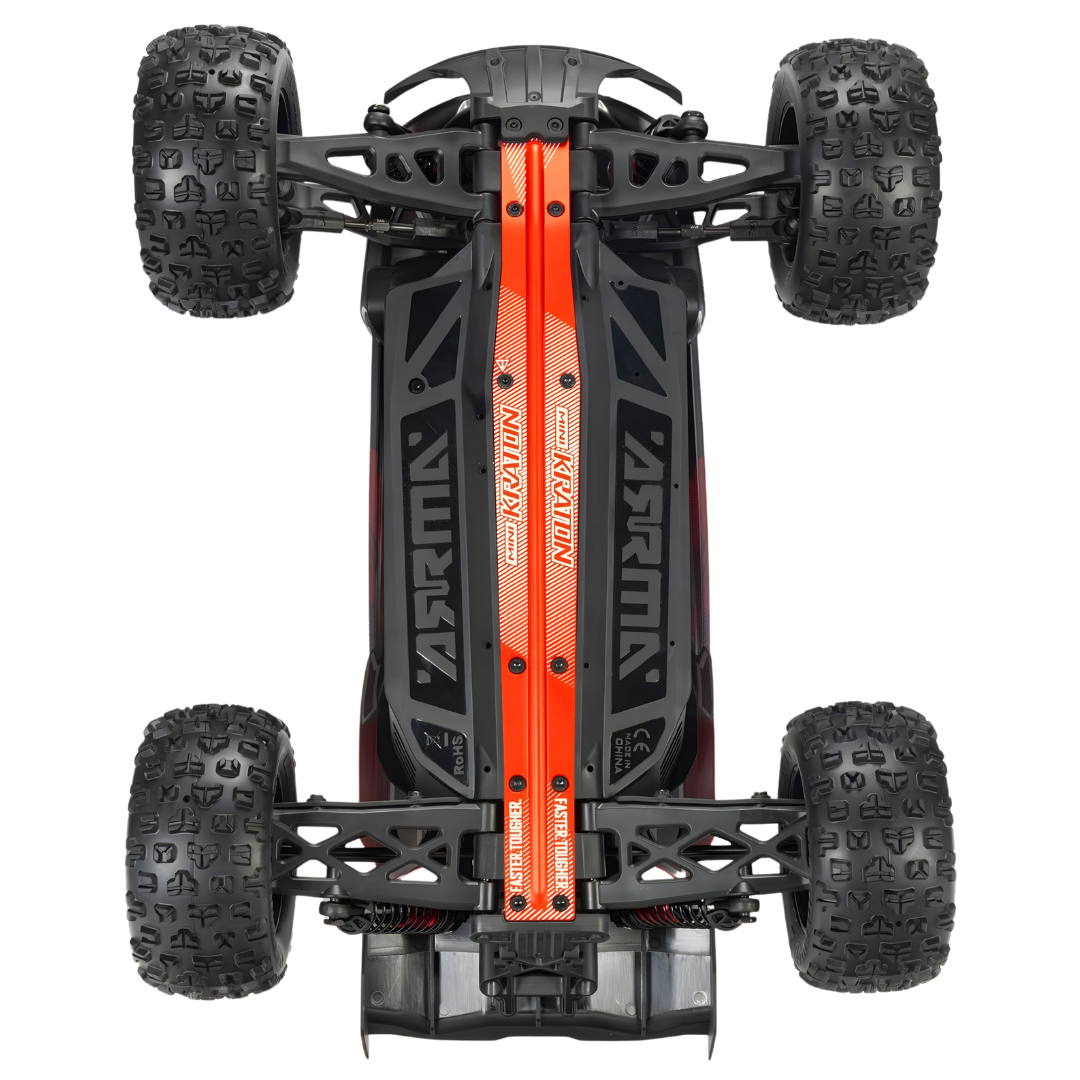

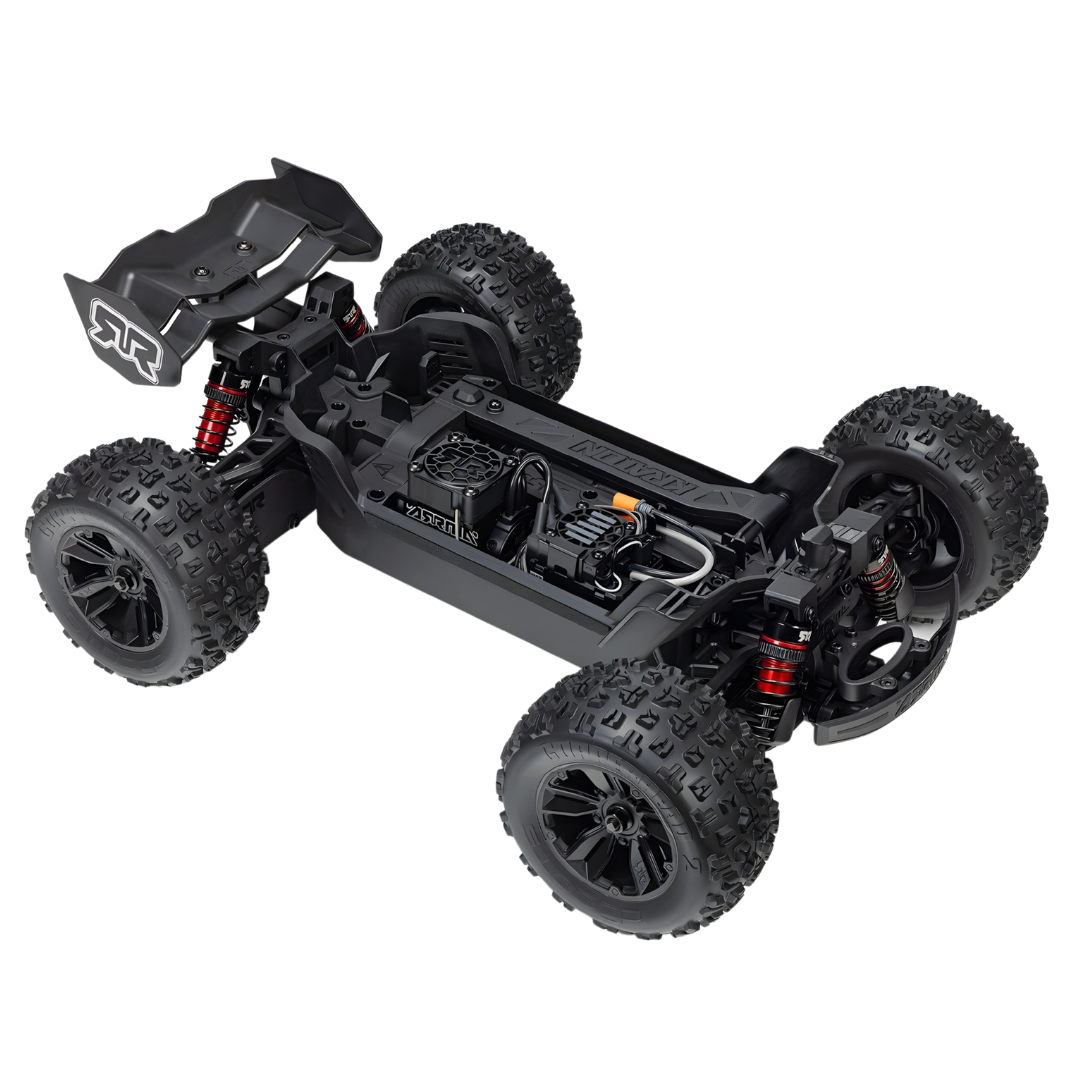

• Reinforced Composite Chassis: Strong vented composite chassis provides the foundation for the MINI platform
• Motor Cooling: Motor heatsink and 30mm cooling fan help manage motor temperature during demanding use
• Heavy-Duty Protection: Features a wide front bumper, large composite rear wing and heavy-duty servo saver
• Aluminium Components: Includes an anodised aluminium bash bar, aluminium shock bodies and 12mm aluminium wheel hexes
• Spektrum SLT2 Radio: Included 2.4GHz transmitter offers 50%, 75% and 100% throttle settings to help match performance to driver experience

Specifications

• Brand: ARRMA
• Model: Mini Kraton 3S BLX
• Vehicle Type: RC Monster Truck
• Scale: 1/16
• Drive: 4WD / 4X4
• Completion Level: Ready-To-Run
• Colour: Black/Red
• Power Type: Electric
• Power System: 3S
• LiPo Compatibility: 3S
• Battery Connector: IC2
• Maximum Battery Dimensions: 112 x 34 x 23mm
• Motor: Spektrum Firma 2848 3000KV Brushless
• ESC / Receiver: Spektrum SLT Brushless 2-in-1 40A with DSC and PowerGuard
• Radio: Spektrum SLT2 2.4GHz 2-Channel
• Top Speed: 50+ mph in Chaos Mode
• Gear Ratio: 6.56
• Internal Gear Ratio: 2.50
• Gear Pitch: Mod-0.5
• Spur Gear: 63T
• Pinion Gear: 24T
• Differential Type: Gear
• Wheel Hex: 12mm
• Wheelbase: 203mm
• Length: 321mm
• Width: 247mm
• Height: 115mm
• Weight: 1.48kg
• Chassis Material: Composite
• Shock Type: Oil-filled aluminium
• Body: Pre-painted
• Assembly: No assembly required
• Manufacturer Part Number: ARA2508T1

Includes

• 1 x ARRMA Mini Kraton 3S BLX 4X4 1/16 RTR RC Monster Truck Black/Red
• 1 x Spektrum SLT Brushless 2-in-1 40A ESC and Receiver with DSC and PowerGuard
• 1 x Spektrum BLX SPMXSM4900 Firma 2848 3000KV Brushless Motor
• 1 x Spektrum SLT2 2.4GHz 2-Channel Transmitter
• 1 x PowerKey for unlocking Chaos Mode
• 4 x AA Transmitter Batteries
• 1 x Instruction Manual

FAQ

Does the ARRMA Mini Kraton ARA2508T1 include a battery and charger? No. ARA2508T1 includes the assembled RTR truck, installed electronics, transmitter and transmitter batteries, but the 3S LiPo drive battery and compatible charger are sold separately.

What battery does the ARRMA Mini Kraton 3S BLX require? The Mini Kraton is designed for a 3S LiPo battery with an IC2 connection and a maximum battery size of 112 x 34 x 23mm. OZRC recommends checking both connector type and physical battery dimensions before purchasing a pack.

What does PowerGuard do on the Mini Kraton? PowerGuard allows one 3S battery to provide two performance levels. Adrenaline Mode delivers smoother power and longer runtime, while inserting the PowerKey activates Chaos Mode for full 3S acceleration and 50+ mph capability.

What does Dynamic Stability Control do? Dynamic Stability Control offers four selectable modes that automatically make steering corrections to help maintain control on different surfaces, and the system can be switched off as driver experience increases.

Important Notes

• 3S LiPo drive battery with an IC2 connection is required and sold separately
• Compatible LiPo battery charger is required and sold separately
• Maximum battery dimensions are 112 x 34 x 23mm
• A suitable USB power adapter and LiPo charging bag may also be required depending on the charging equipment used
• 50+ mph performance requires Chaos Mode with the PowerKey installed; actual speed varies with battery condition, surface and running conditions
• RTR refers to the assembled vehicle and installed electronics; the drive battery and charger are not included with ARA2508T1
