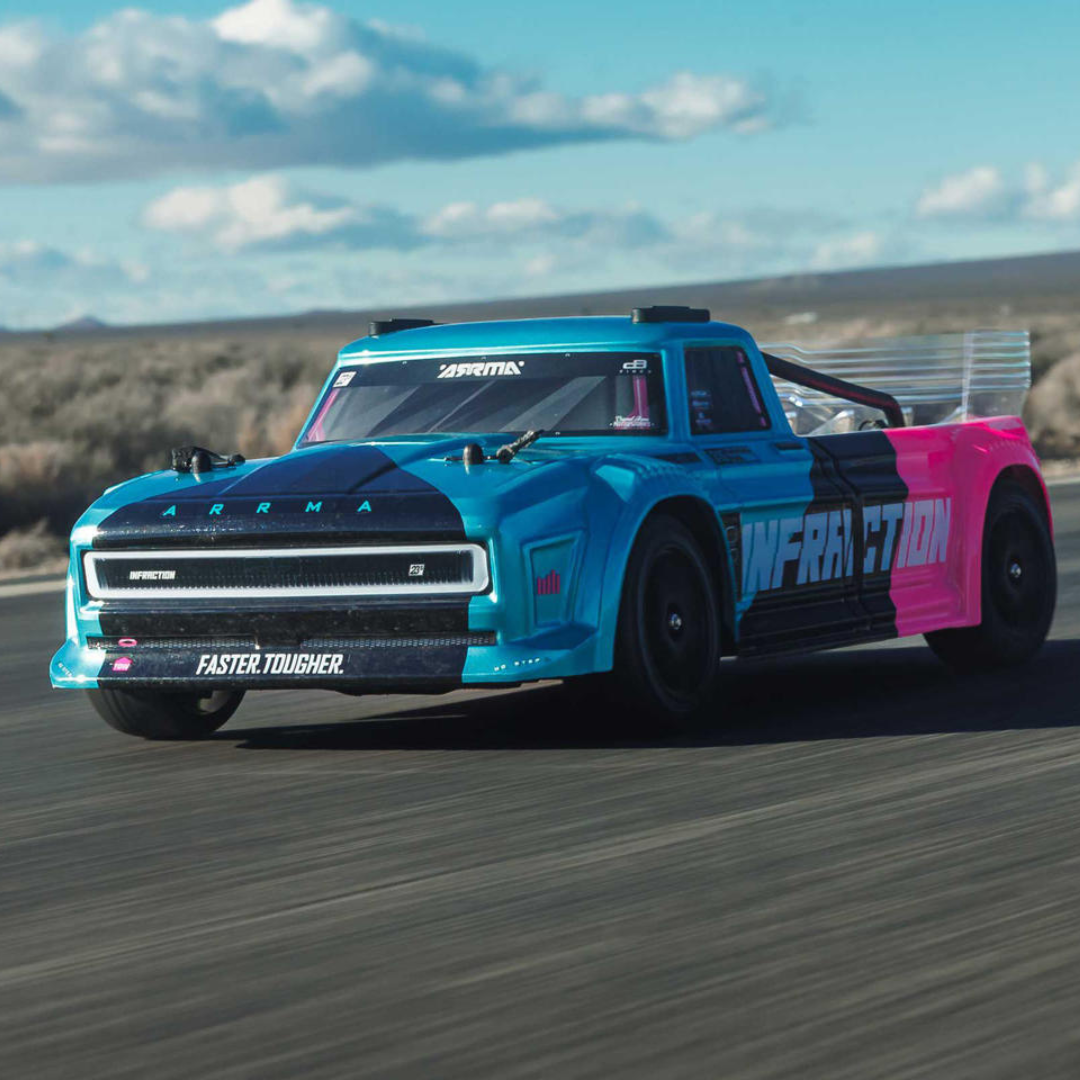

ARRMA INFRACTION 223S BLX RC 1/8 4X4 RTR Street Truck Teal Pink ARA4315V4T3

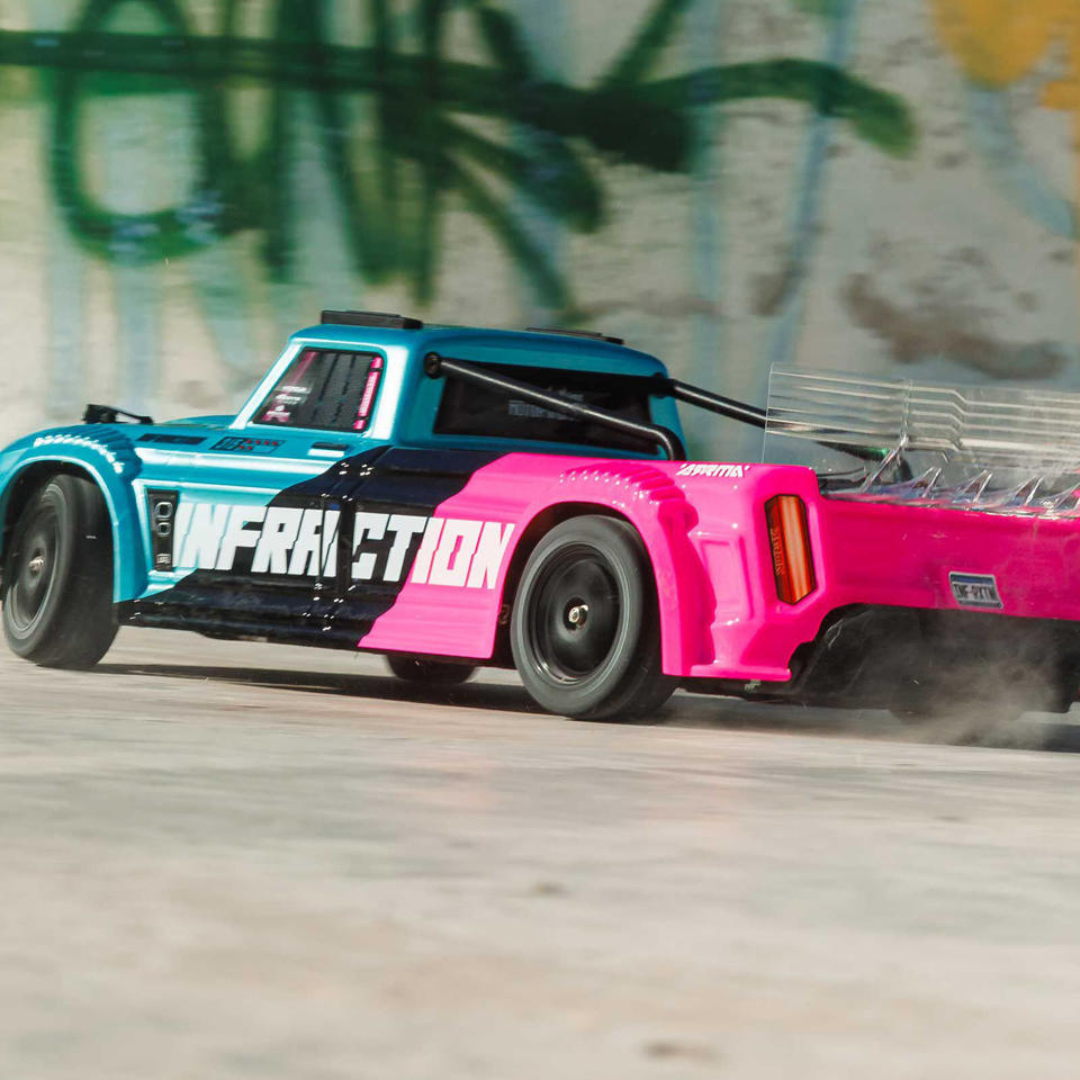

The ARRMA INFRACTION 223S BLX is a 1/8 scale 4X4 RTR brushless RC street truck designed for high-speed driving, controlled drifting and all-road bashing across asphalt, concrete and firm mixed surfaces.

The 223S power system allows drivers to begin with more manageable 2S LiPo performance before progressing to 3S power. Spektrum Dynamic Stability Control provides four selectable levels of steering assistance, while the transmitter throttle limiter offers 50%, 75% and 100% settings to suit different experience levels.

A Spektrum Firma 100A Smart ESC and 3400Kv brushless motor provide responsive acceleration, while the reinforced metal-geared drivetrain, transmission overload coupling and belted dBoots Hoons tyres are designed to handle repeated street-bashing use.

Features

• RTR Configuration: Factory assembled with the brushless motor, ESC, receiver and steering servo installed
• 2S and 3S Compatibility: Allows progressive performance without replacing the factory electronics
• High-Speed Capability: Capable of more than 65mph under suitable conditions using 3S power and the supplied speed pinion
• Dynamic Stability Control: Four selectable DSC modes provide adjustable steering correction
• Throttle Limiting: Selectable 50%, 75% and 100% throttle settings help drivers build confidence progressively
• Brushless Power System: Spektrum 3660 3400Kv motor paired with a Firma 100A Smart ESC
• Reinforced Drivetrain: Metal-geared 37T 1.35 MOD differentials with steel input gears
• Transmission Overload Coupling: Helps absorb sudden drivetrain loads without requiring slipper-clutch adjustment
• Belted Street Tyres: dBoots Hoons tyres resist expansion during high-speed driving

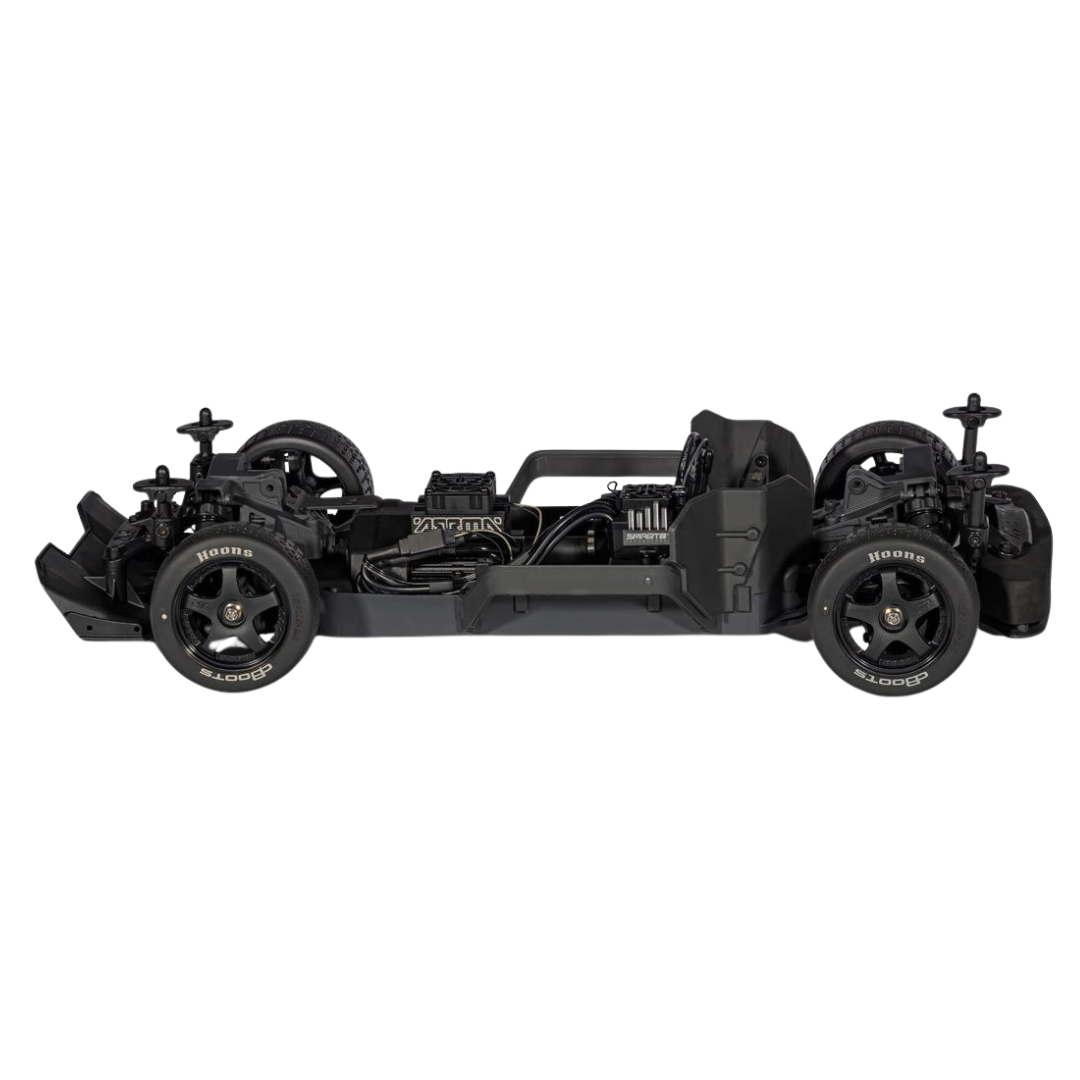

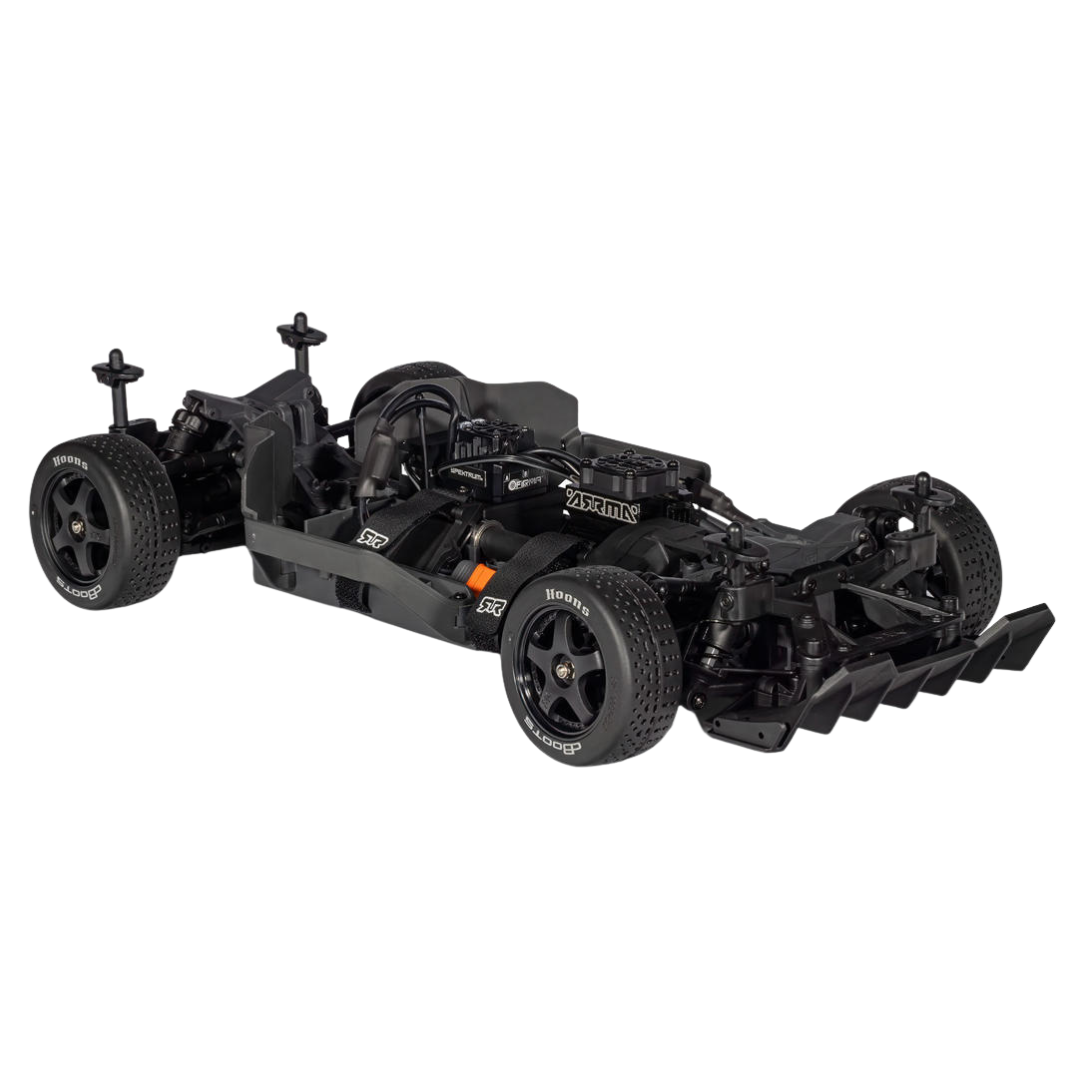

• Modular Chassis: Separate power, electronics and differential modules simplify servicing
• Oil-Filled Shocks: Adjustable coil-over dampers support predictable handling on uneven paved surfaces

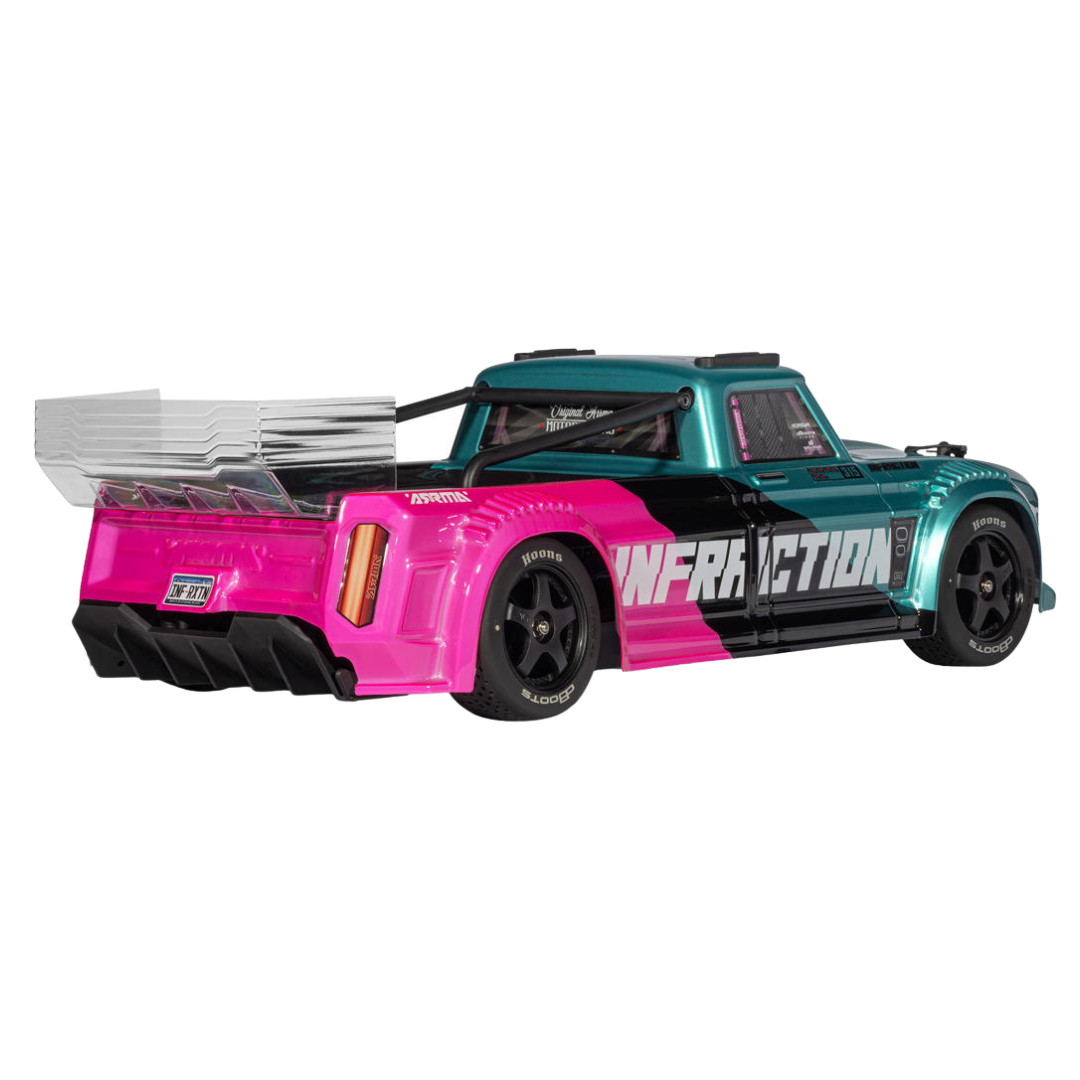

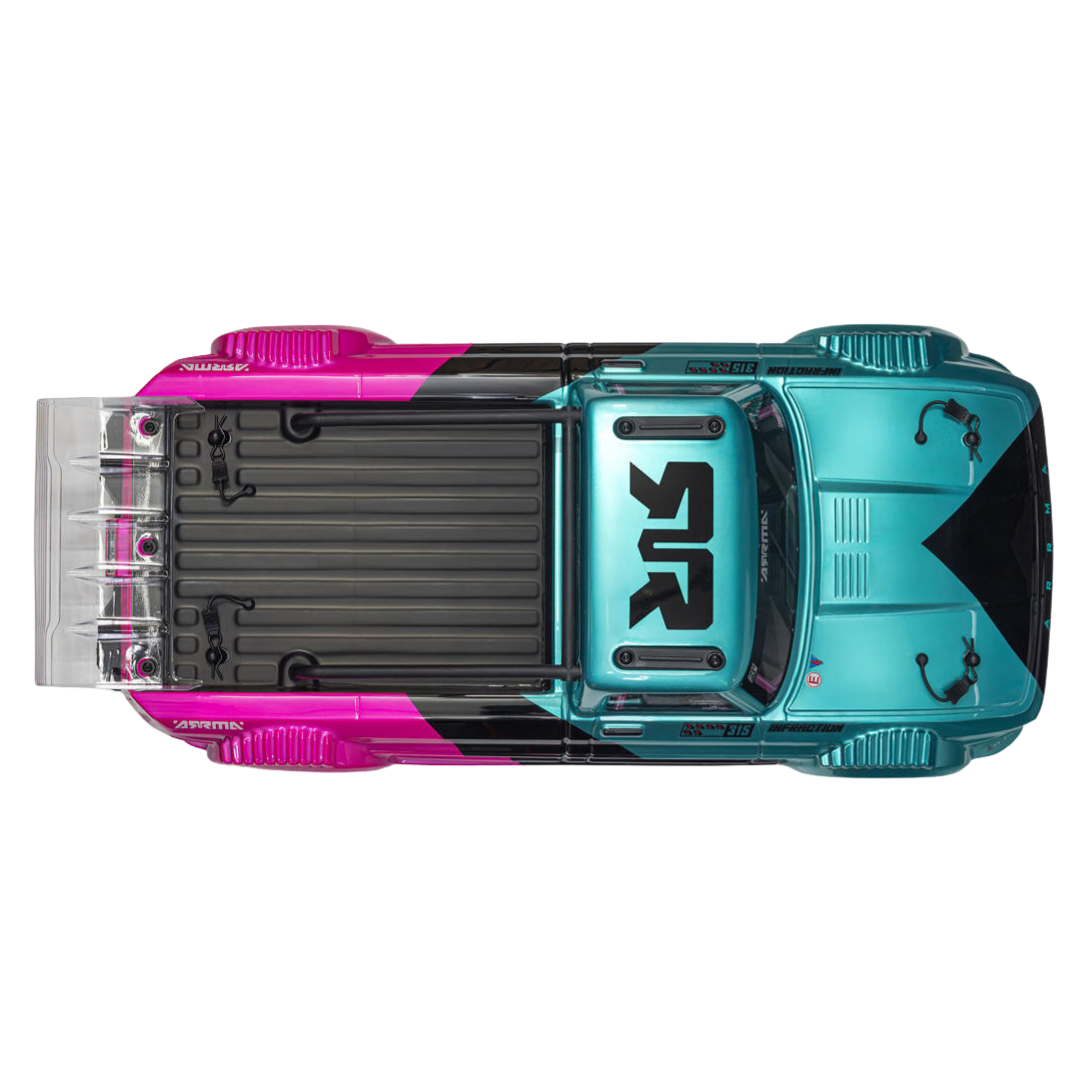

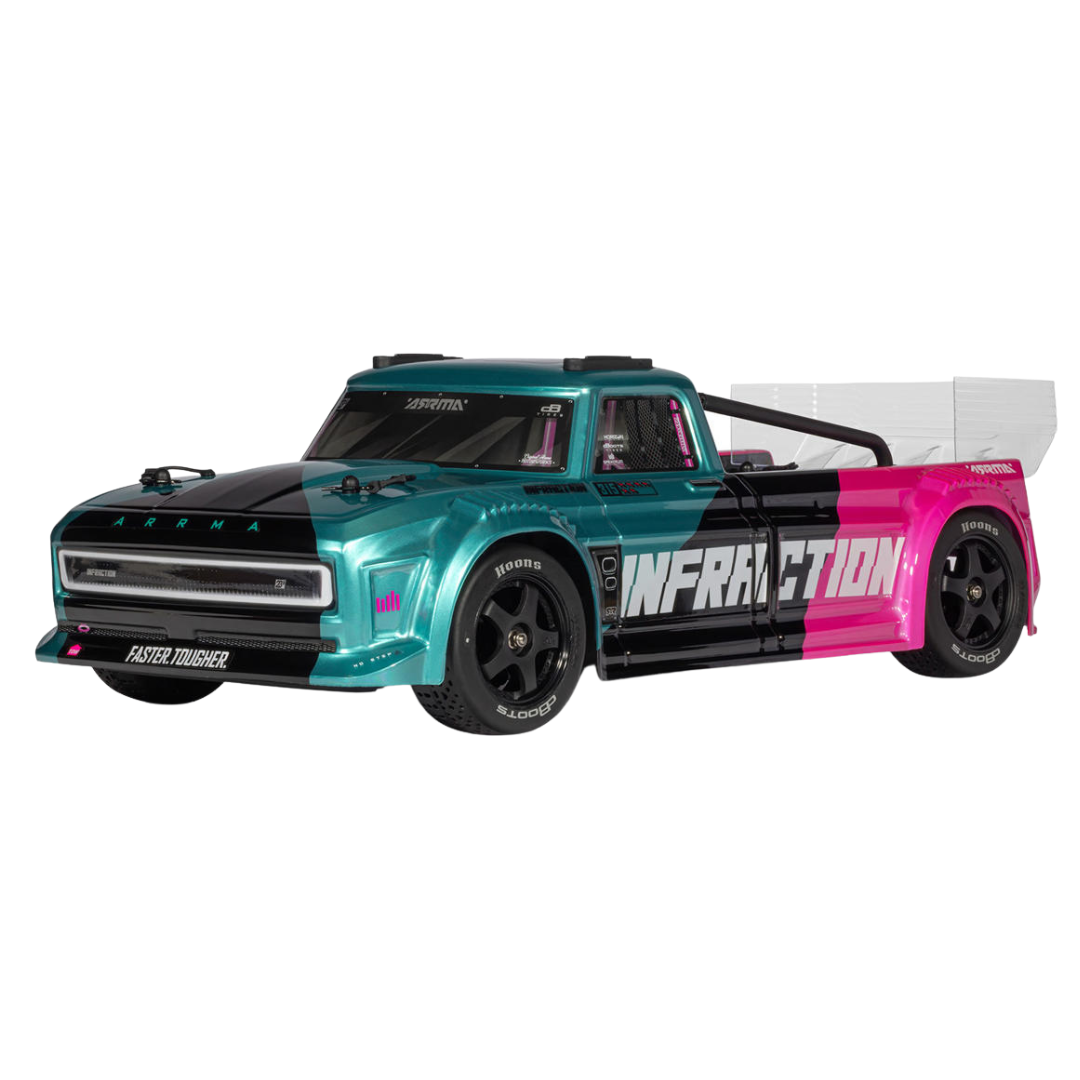

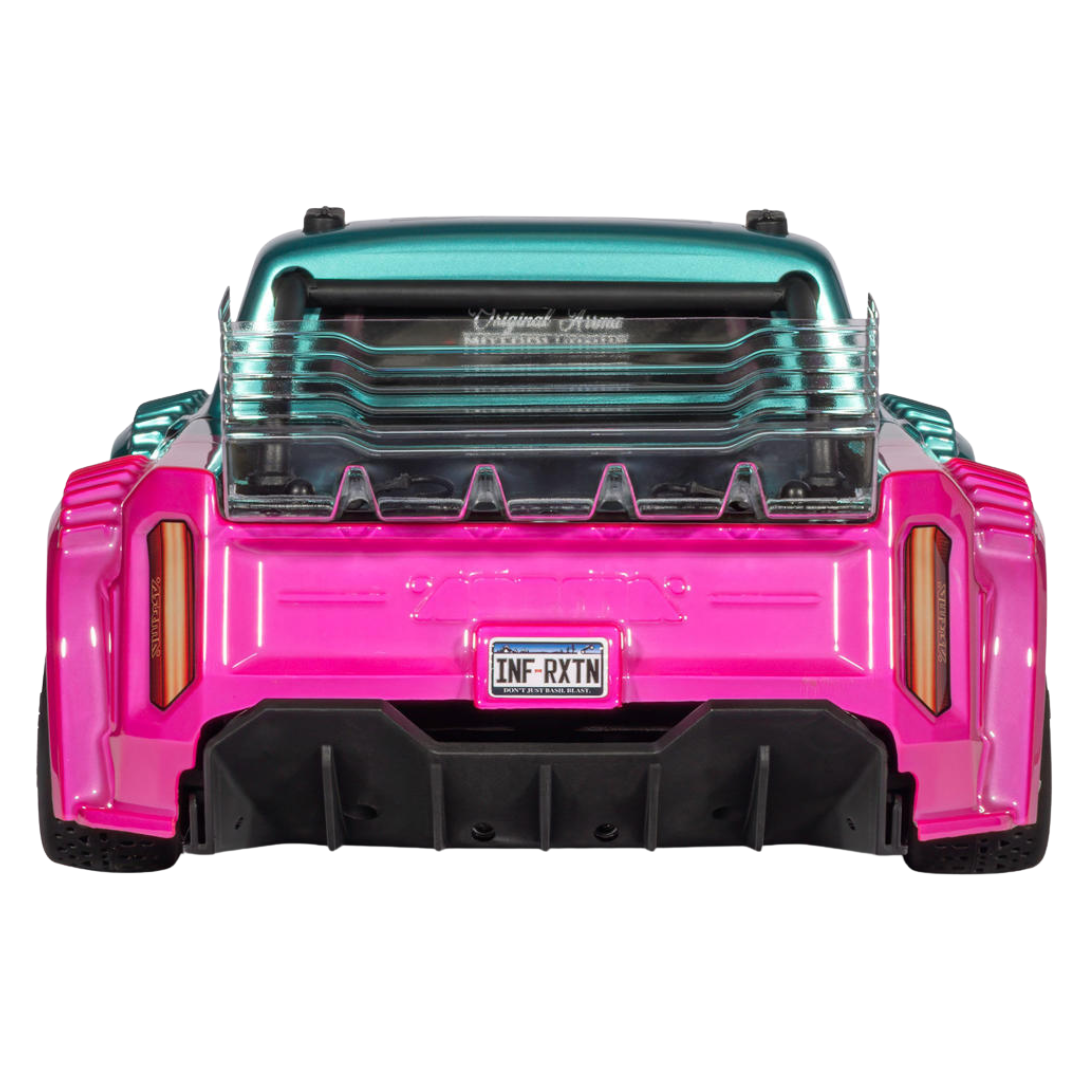

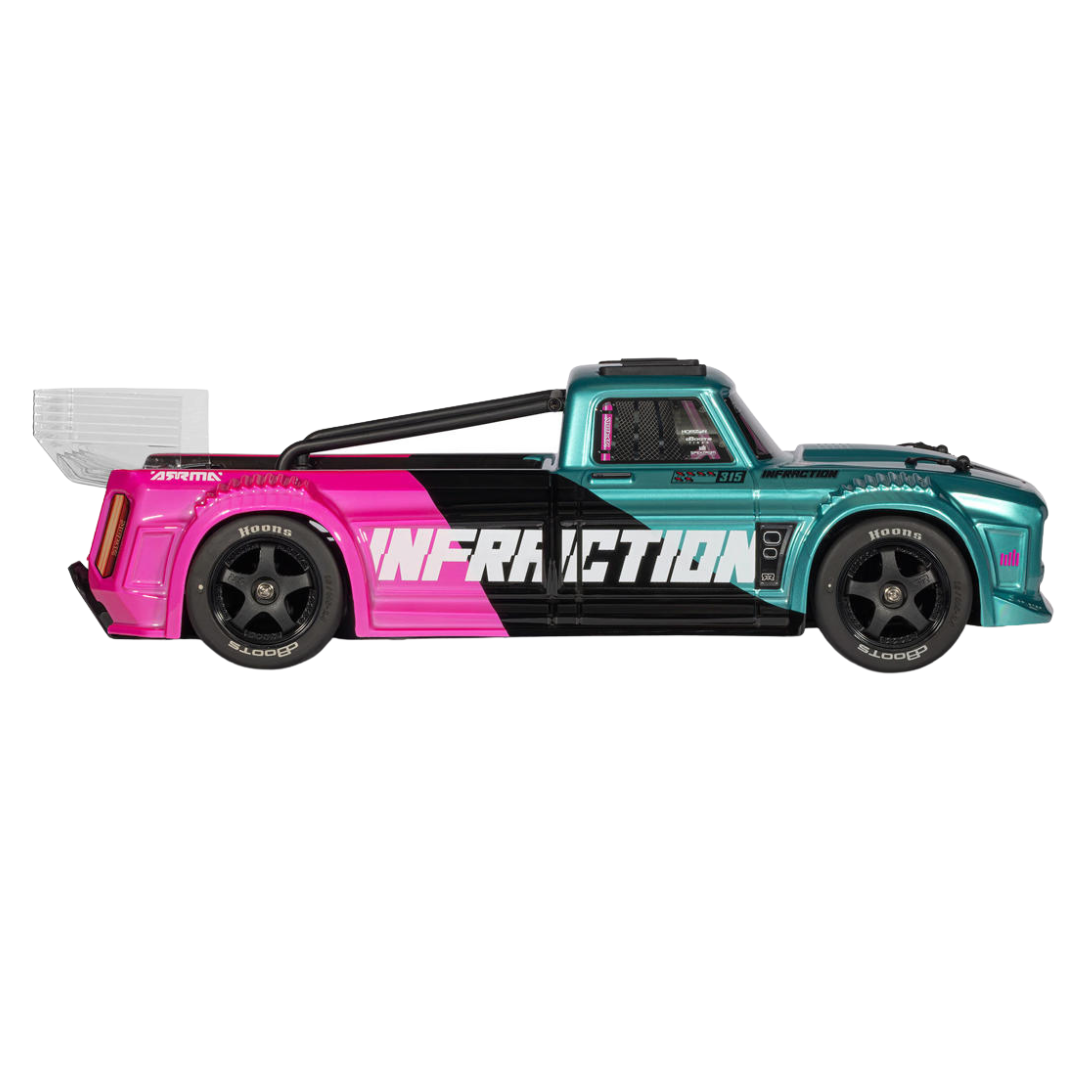

• Aerodynamic Body: Factory-finished teal and pink street truck body with rear wing
• Waterproof Electronics: ESC, receiver and steering servo are designed for use in damp conditions

Specifications

• Brand: ARRMA
• Model: INFRACTION 223S BLX V4
• Manufacturer Part Number: ARA4315V4T3
• Product Type: Brushless RC all-road street truck
• Scale: 1/8
• Completion Level: Ready to Run
• Colour: Teal and Pink
• Power Type: Electric brushless
• Drive Type: 4X4
• Battery Compatibility: 2S or 3S LiPo
• Battery Connector: IC5 compatible with EC5
• Motor: Spektrum 3660 3400Kv brushless motor
• Electronic Speed Controller: Spektrum Firma 100A Smart ESC
• Receiver: Spektrum SLR370 DSC SLT protocol receiver
• Radio System: Spektrum SLT3 2.4GHz three-channel transmitter
• Steering Servo: Spektrum S662 waterproof metal-geared digital servo
• Stability Control: Spektrum DSC with four selectable modes
• Differentials: Metal-geared 37T 1.35 MOD front and rear differentials
• Input Gears: Steel
• Drivetrain Protection: Transmission overload coupling
• Shock Type: Oil-filled coil-over
• Tyres: dBoots Hoons belted all-road tyres
• Wheel Diameter: 61mm front and rear
• Wheel Hex: 17mm
• Maximum Speed: More than 65mph under suitable 3S conditions with the speed pinion fitted
• Length: 562mm
• Width: 256mm
• Height: 161mm
• Wheelbase: 335mm
• Approximate Weight: 2.91kg without drive battery

Includes

• 1 x ARRMA INFRACTION 223S BLX 4X4 RTR Street Truck in Teal and Pink
• 1 x Spektrum SLT3 2.4GHz transmitter
• 1 x Spektrum Firma 100A Smart ESC
• 1 x Spektrum SLR370 DSC receiver
• 1 x Spektrum 3660 3400Kv brushless motor
• 1 x Spektrum S662 waterproof metal-geared steering servo
• 1 x Optional high-speed pinion
• 4 x AA transmitter batteries
• 1 x Instruction manual

FAQ

Does the ARRMA INFRACTION 223S include a battery and charger? No. A compatible 2S or 3S LiPo battery with an IC5 or compatible EC5 connection and a suitable LiPo balance charger are required separately.

How fast is the ARRMA INFRACTION 223S? The INFRACTION 223S can exceed 65mph under suitable conditions when powered by a compatible 3S LiPo battery and fitted with the supplied high-speed pinion.

Is the INFRACTION 223S suitable for a newer driver? Yes. The transmitter provides 50% and 75% throttle limits, while the four DSC modes provide adjustable steering assistance. OZRC recommends beginning with 2S power and the lower throttle setting.

Can the INFRACTION be driven off-road? The INFRACTION is intended mainly for asphalt, concrete, short gravel sections and firm all-road surfaces. Its low ride height and street tyres are not designed for deep grass, loose dirt or rough off-road terrain.

Important Notes

• A compatible 2S or 3S LiPo drive battery and LiPo balance charger are required separately
• The 65+mph claim requires suitable 3S power, the supplied speed pinion and appropriate driving conditions
• High-speed gearing increases motor and ESC temperatures and is intended for speed runs rather than continuous stop-start driving
• Allow the motor, ESC and battery to cool between high-speed runs
• Use a large clear driving area away from vehicles, pedestrians and public roads
• Waterproof electronics do not make the complete vehicle suitable for submersion
• dBoots Hoons tyres are consumable parts and may wear quickly during repeated drifting or aggressive acceleration
• Follow all LiPo battery charging, handling and storage instructions
