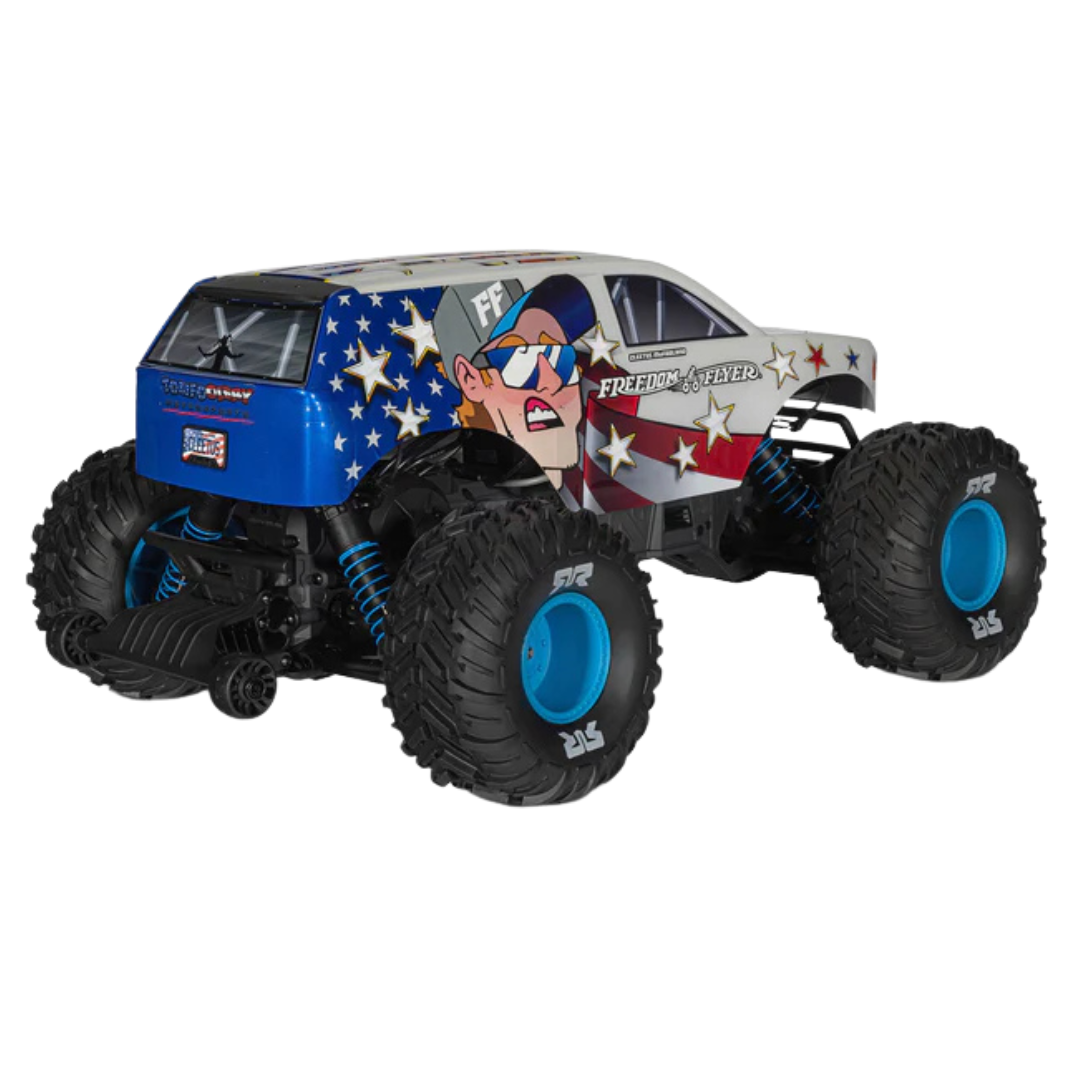

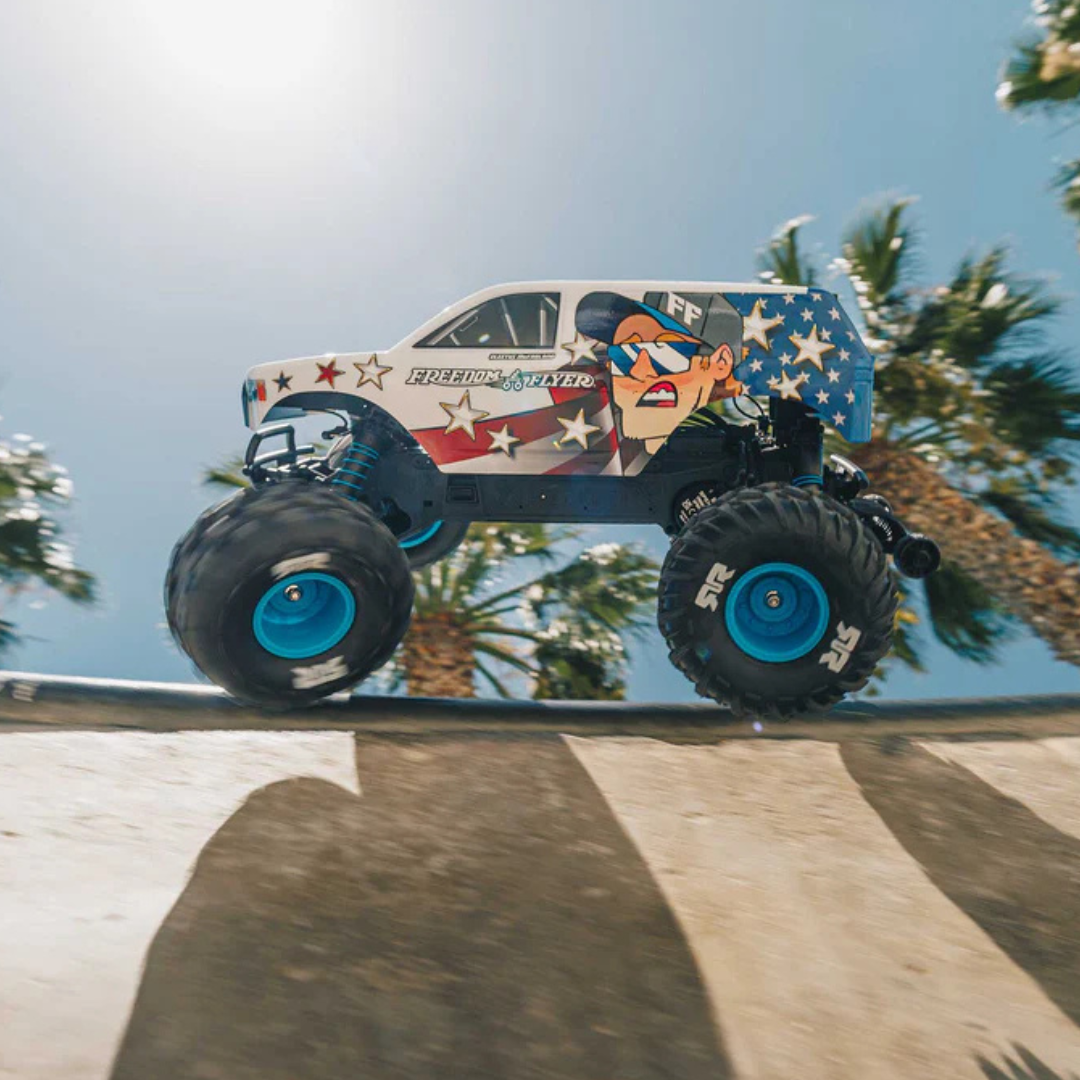

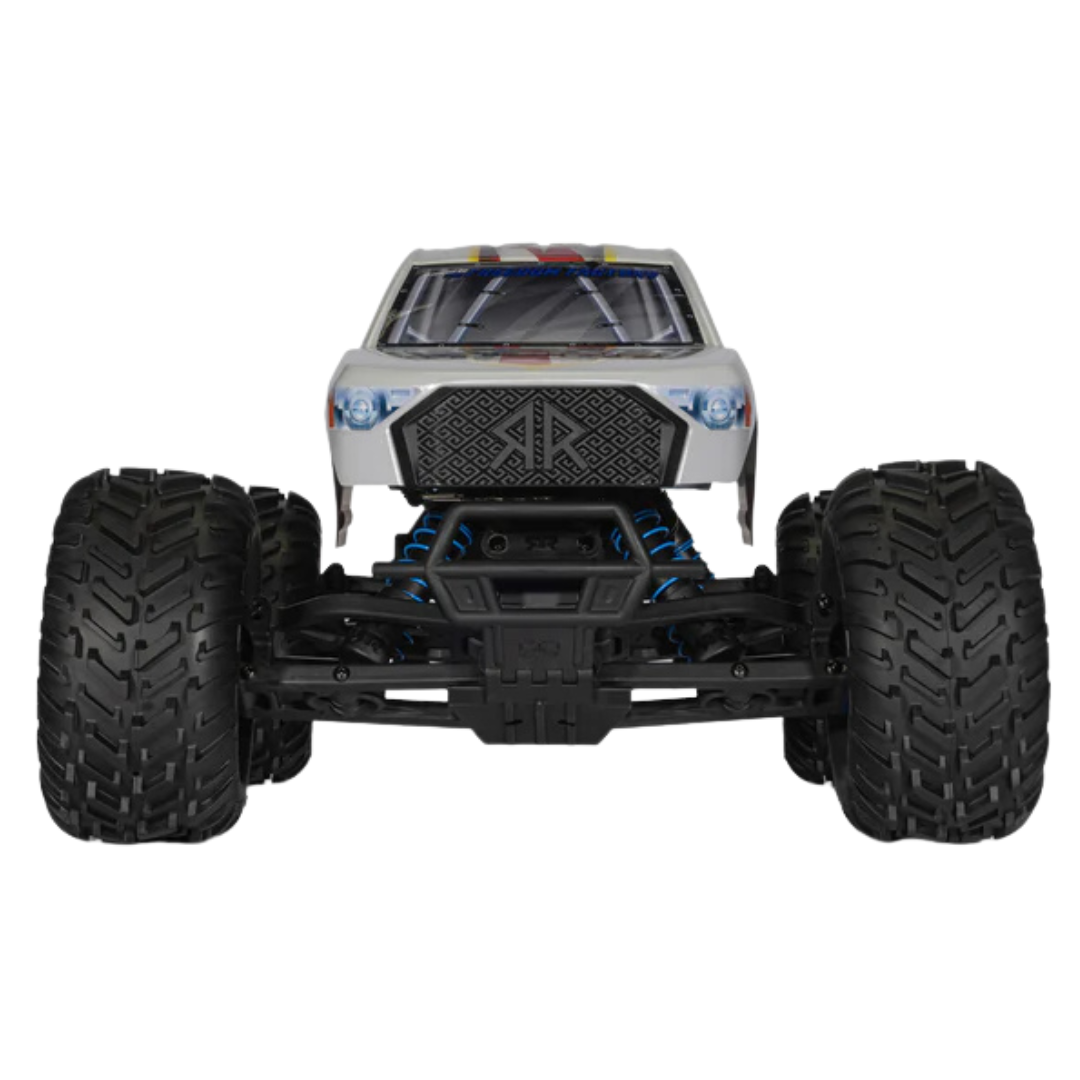

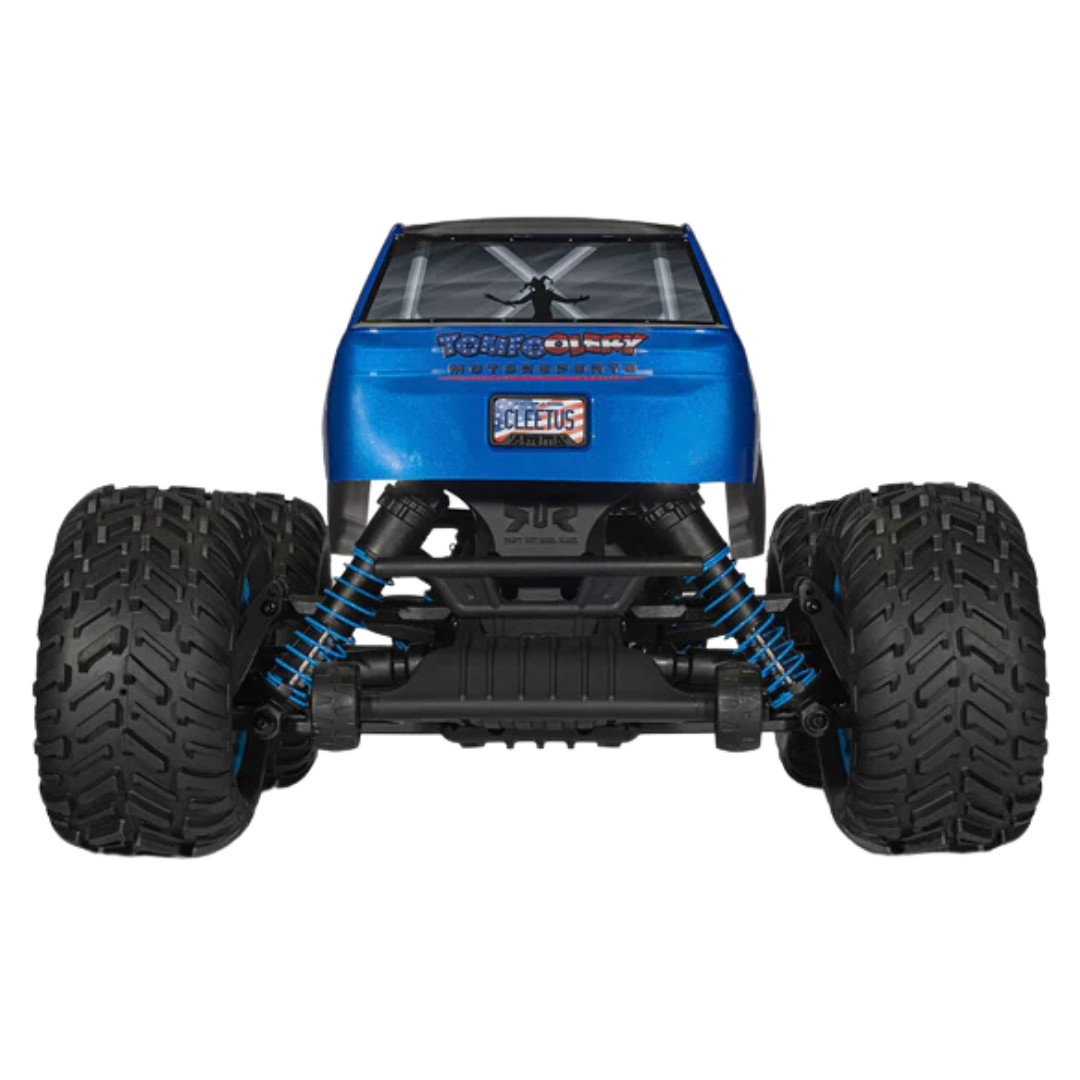

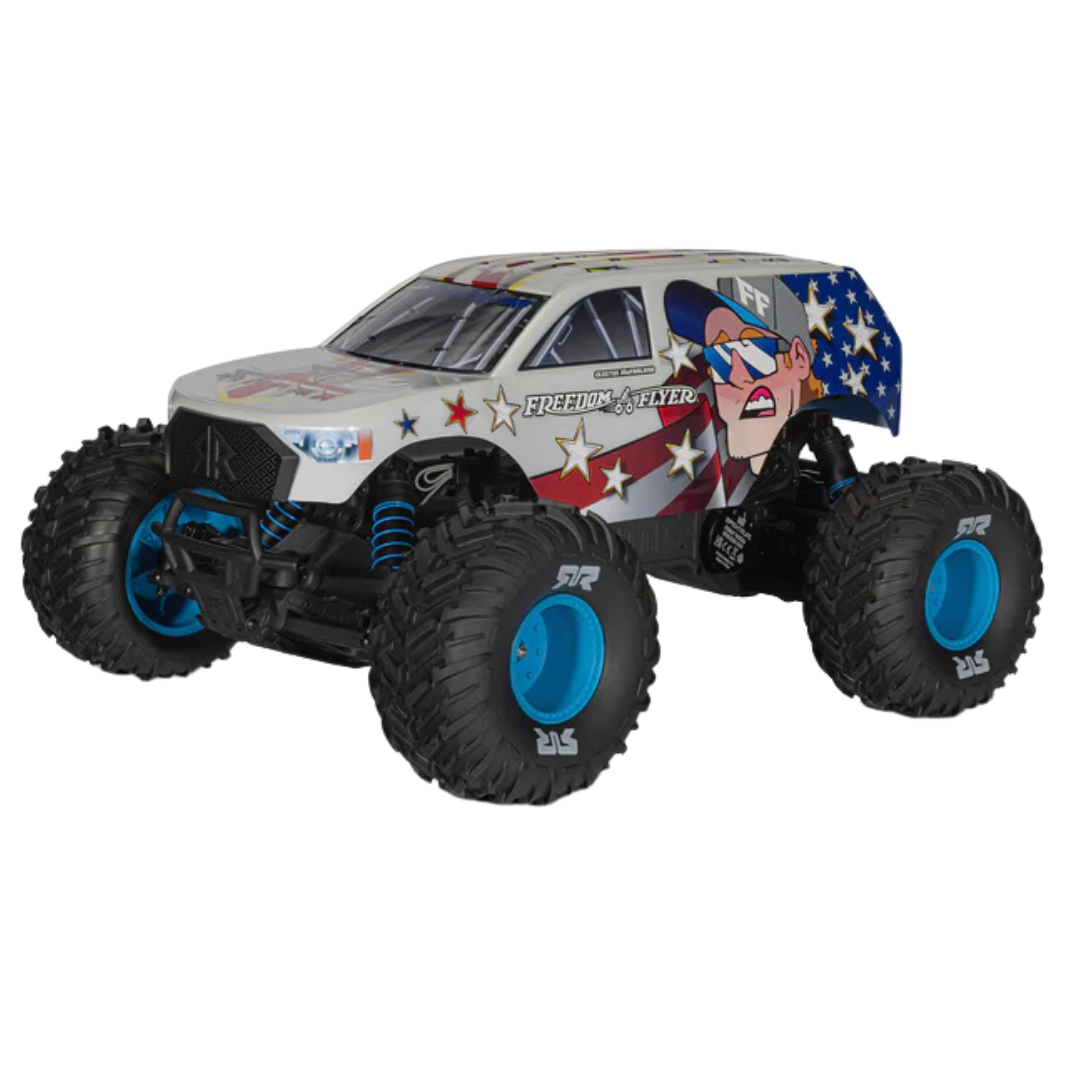

ARRMA Freedom Flyer 223S 1/10 2WD RTR RC Brushless Monster Truck ARA3530SFFT1

The ARRMA Freedom Flyer 223S is a 1/10 scale 2WD RTR brushless monster truck in white, suited to RC bashers wanting 2S to 3S power, Dynamic Stability Control and a complete battery-and-charger package.

Built on the 223S brushless platform, this Freedom Flyer monster truck combines patriotic body styling with a high-CG chassis, oil-filled shocks, metal gear drivetrain and dBoots Cut Chevron MT tyres. The included Spektrum SLT2 radio features Dynamic Stability Control to help keep slides and high-speed driving more manageable.

Features

• Ready-To-Run Package: Supplied fully assembled with transmitter, battery, charger and AA transmitter batteries included
• 223S Brushless Power: 2S and 3S compatible power system allows drivers to start on 2S and move up to 3S when ready
• 50+ MPH Capability: Manufacturer-listed top speed of 80+ km/h, 50+ mph, when using suitable setup conditions

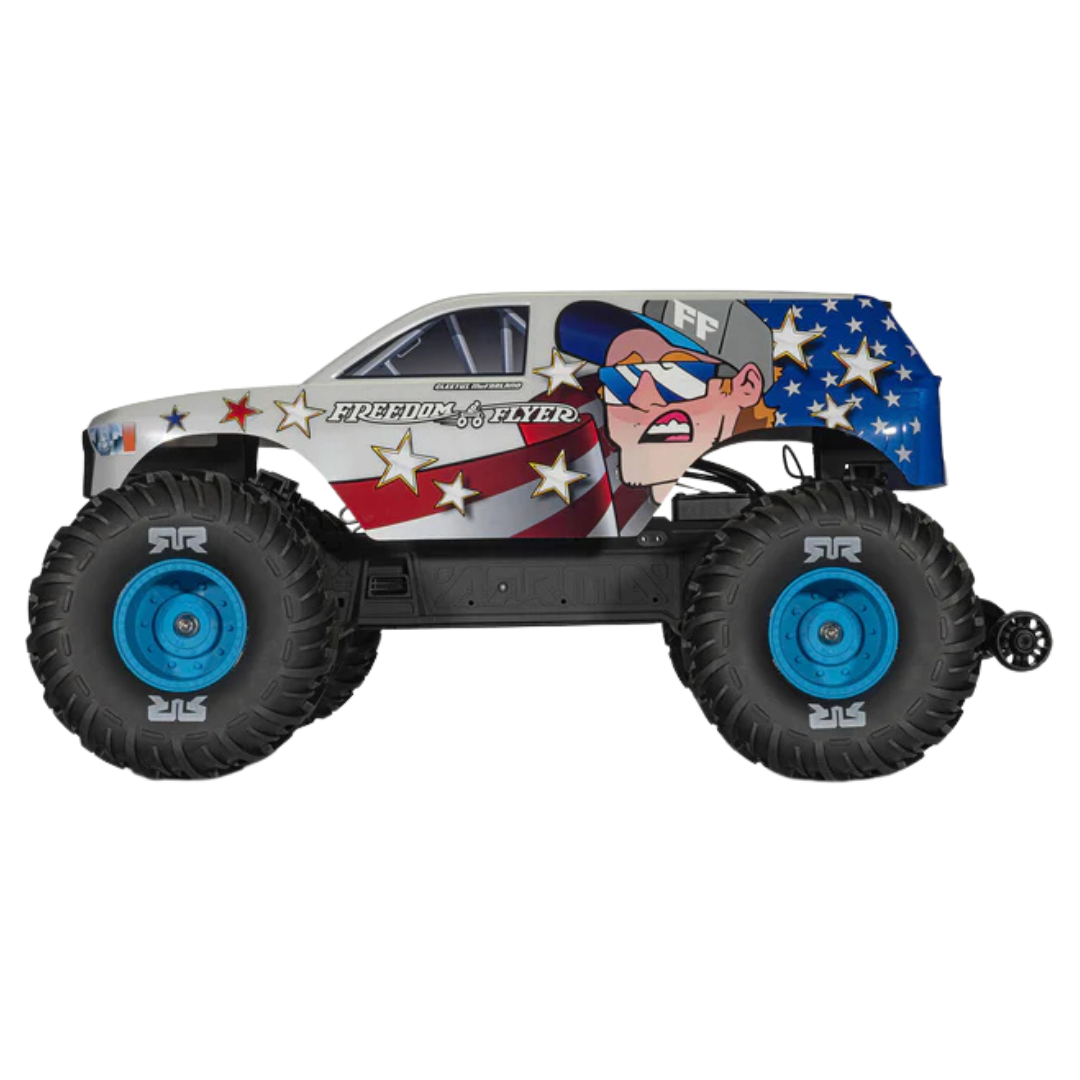

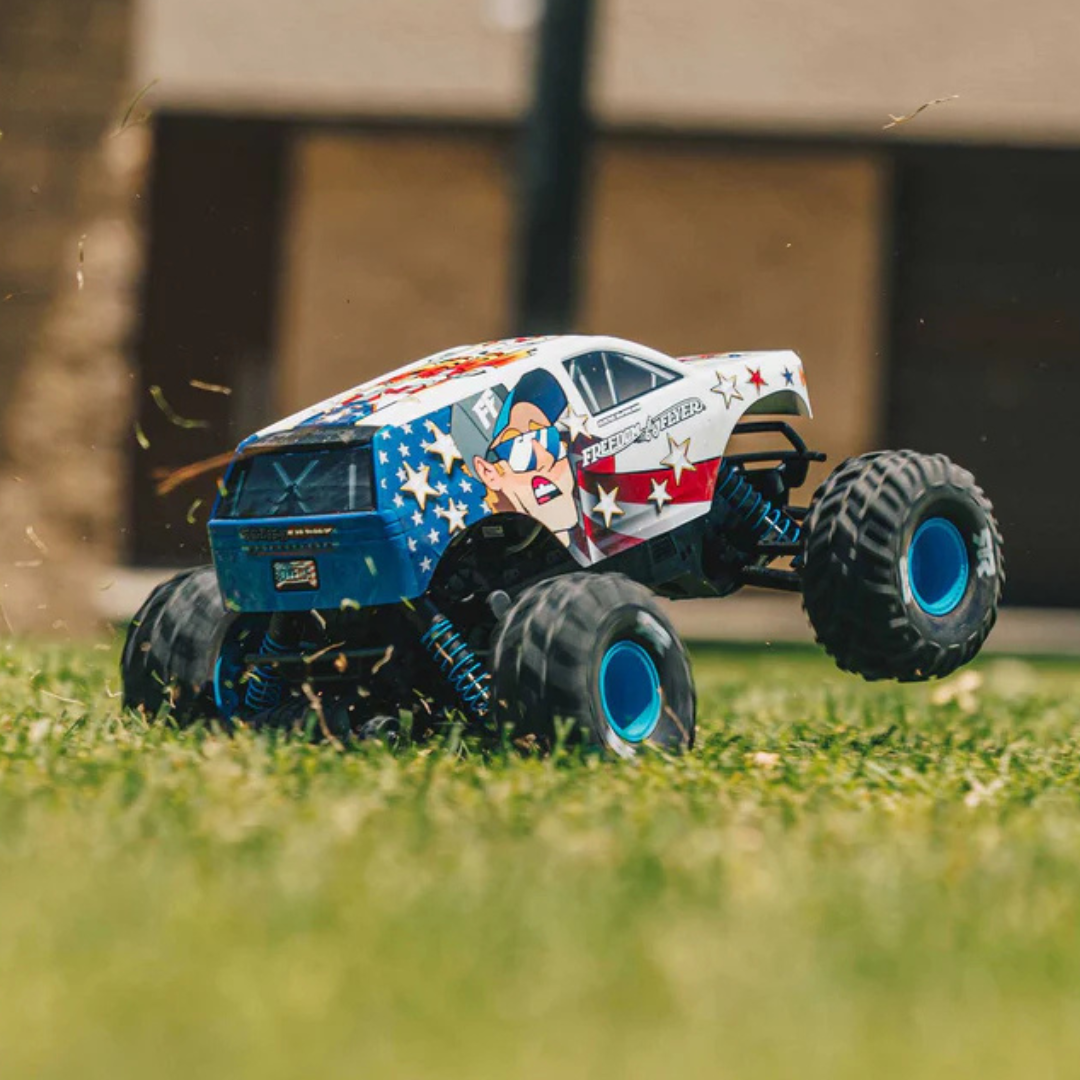

• Freedom Flyer Styling: White body with officially licensed Freedom Flyer graphics inspired by Tomfoolery Motorsports and Cleetus McFarland

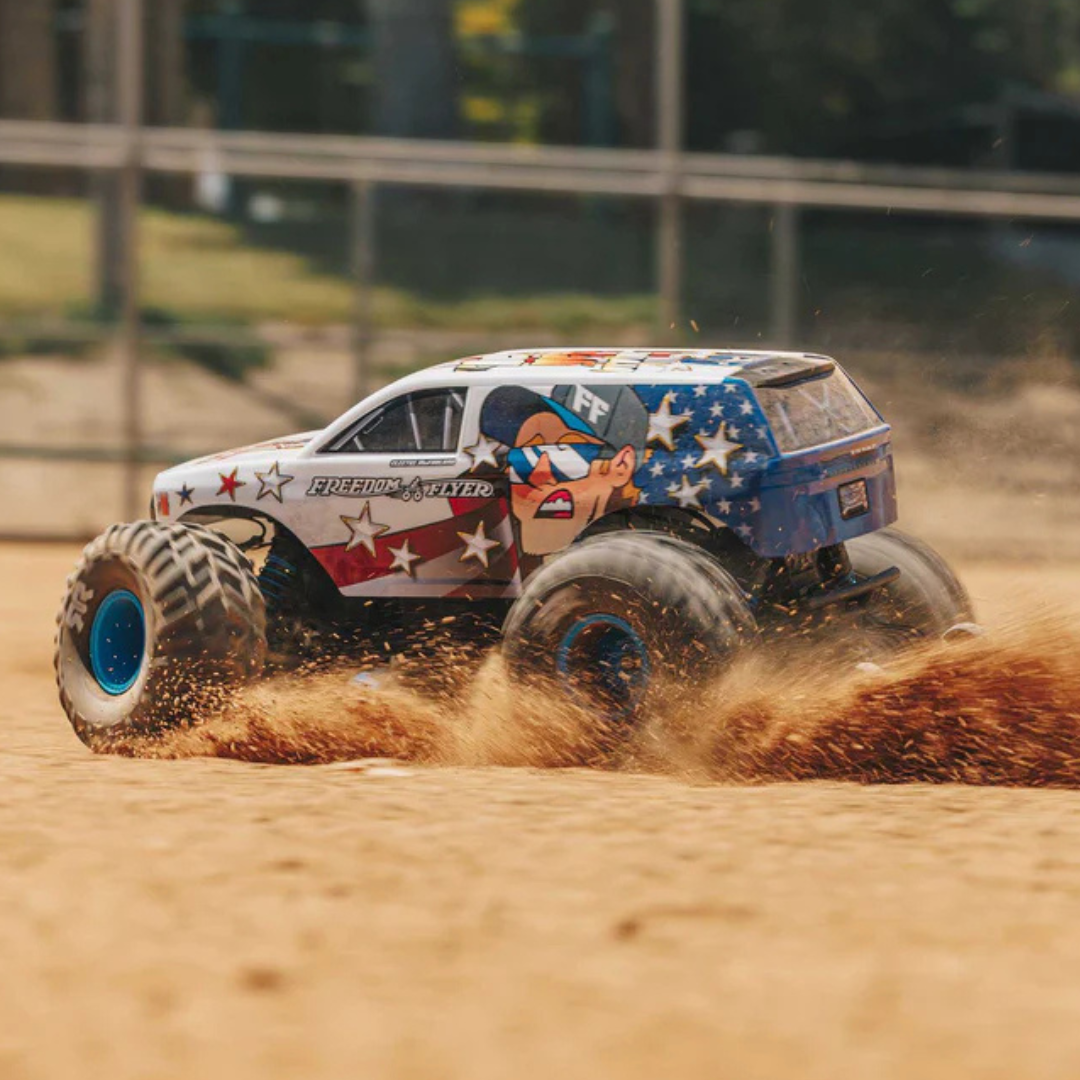

• Dynamic Stability Control: Spektrum DSC helps apply steering correction for more controlled slides and easier handling
• Spektrum 4000Kv Brushless Motor: Installed 3660-size brushless motor includes an ARRMA 40mm cooling fan
• Spektrum 45A ESC/Receiver Combo: Waterproof 2-in-1 brushless ESC and receiver with IC5 connector and DSC support
• Spektrum SLT2 Transmitter: 2.4GHz 2-channel radio system included for reliable surface control
• Metal-Geared Steering Servo: Spektrum S681 waterproof digital servo provides durable steering control
• Oil-Filled Shocks: Adjustable suspension helps absorb bumps, jumps and rough terrain
• High-CG Chassis: Provides extra ground clearance for monster truck bashing

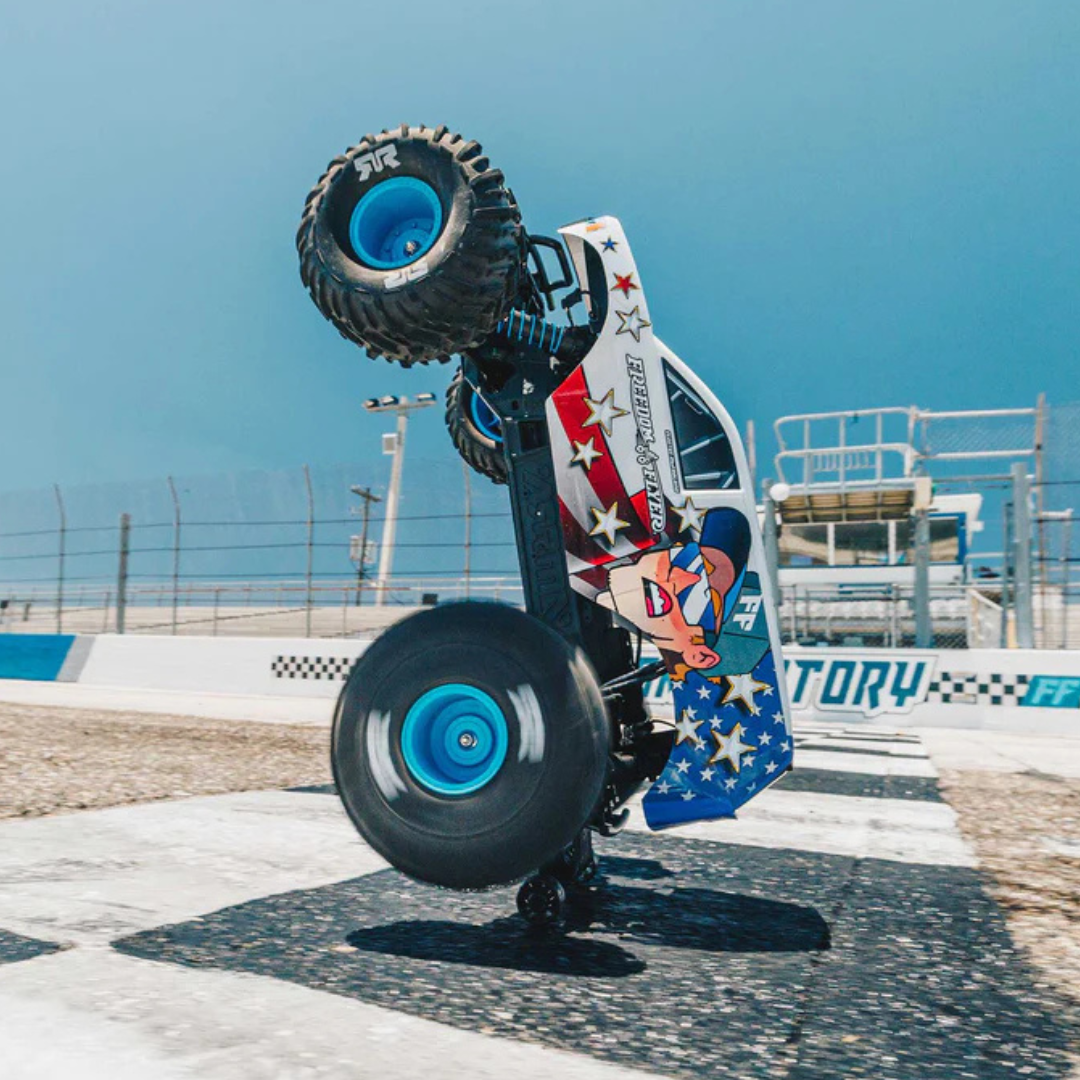

• Integrated Wheelie Bar: Helps support wheelies and protect the rear of the truck during hard launches
• Clipless Body Retention: Hidden body mounting system gives quick access for maintenance and battery changes

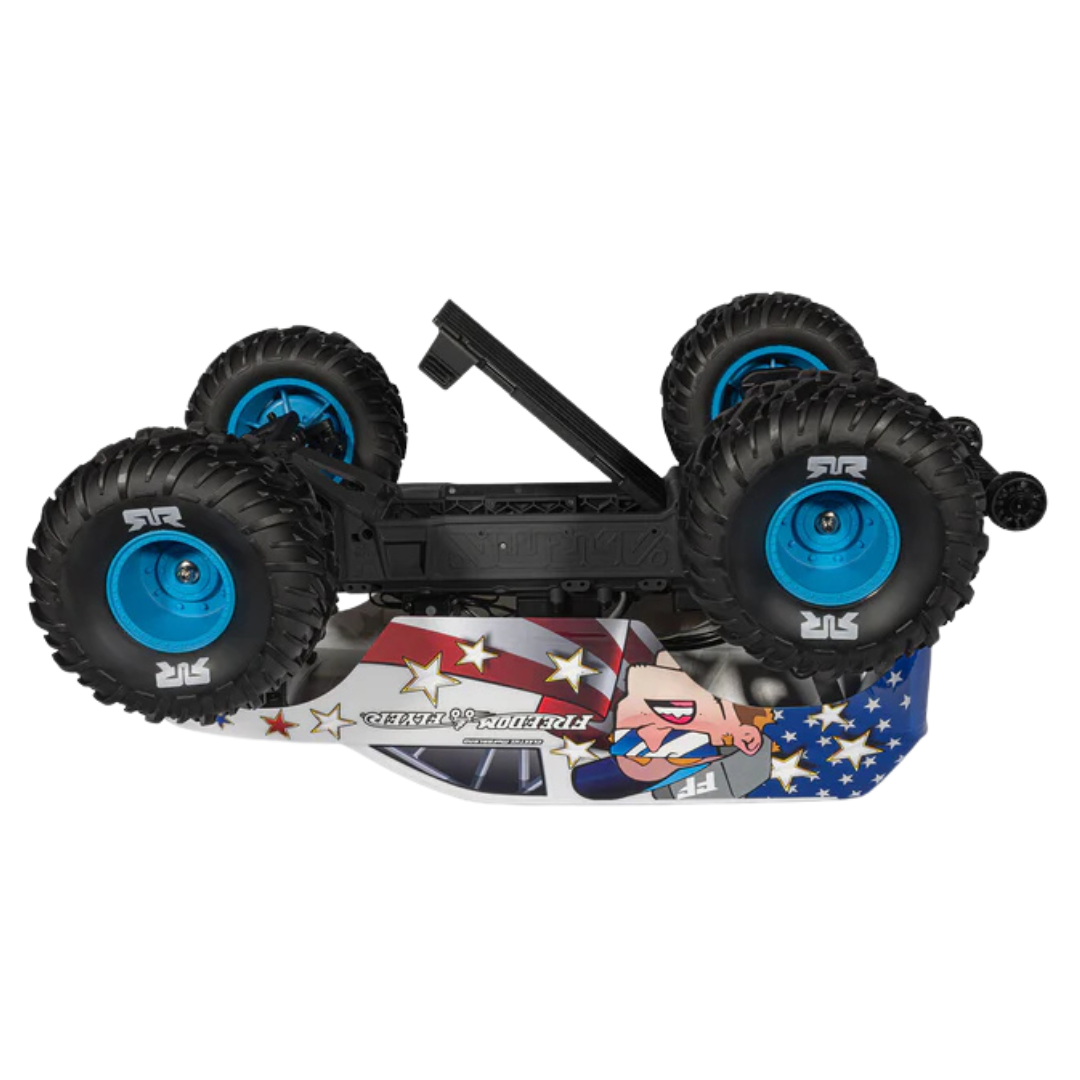

• Bottom-Loaded Battery Bay: Battery can be accessed quickly without removing the body
• dBoots Cut Chevron MT Tyres: Pre-mounted all-terrain monster truck tyres suit dirt, grass and general bashing surfaces

Specifications

• Brand: ARRMA
• Model: Freedom Flyer 223S
• SKU: ARA3530SFFT1
• Product Type: RC monster truck
• Scale: 1/10
• Completion Level: RTR
• Colour: White
• Drive Type: 2WD
• Power Type: Electric
• Motor Type: Brushless
• Motor: Spektrum Firma 3660 4000Kv brushless motor with ARRMA 40mm cooling fan
• ESC/Receiver: Spektrum SLT 45A 2-in-1 waterproof brushless ESC and receiver with DSC
• Servo: Spektrum S681 waterproof metal-geared digital servo
• Radio: Spektrum SLT2 2.4GHz 2-channel transmitter with DSC
• Battery: Spektrum 7.4V 4000mAh 2S 30C Smart G2 hardcase LiPo with IC5 connector
• Charger: Spektrum S100 1x100W USB-C Smart charger
• Connector Type: IC5, EC5 compatible
• LiPo Compatibility: 2S and 3S LiPo
• Maximum Battery Dimensions: 140 x 50 x 35mm

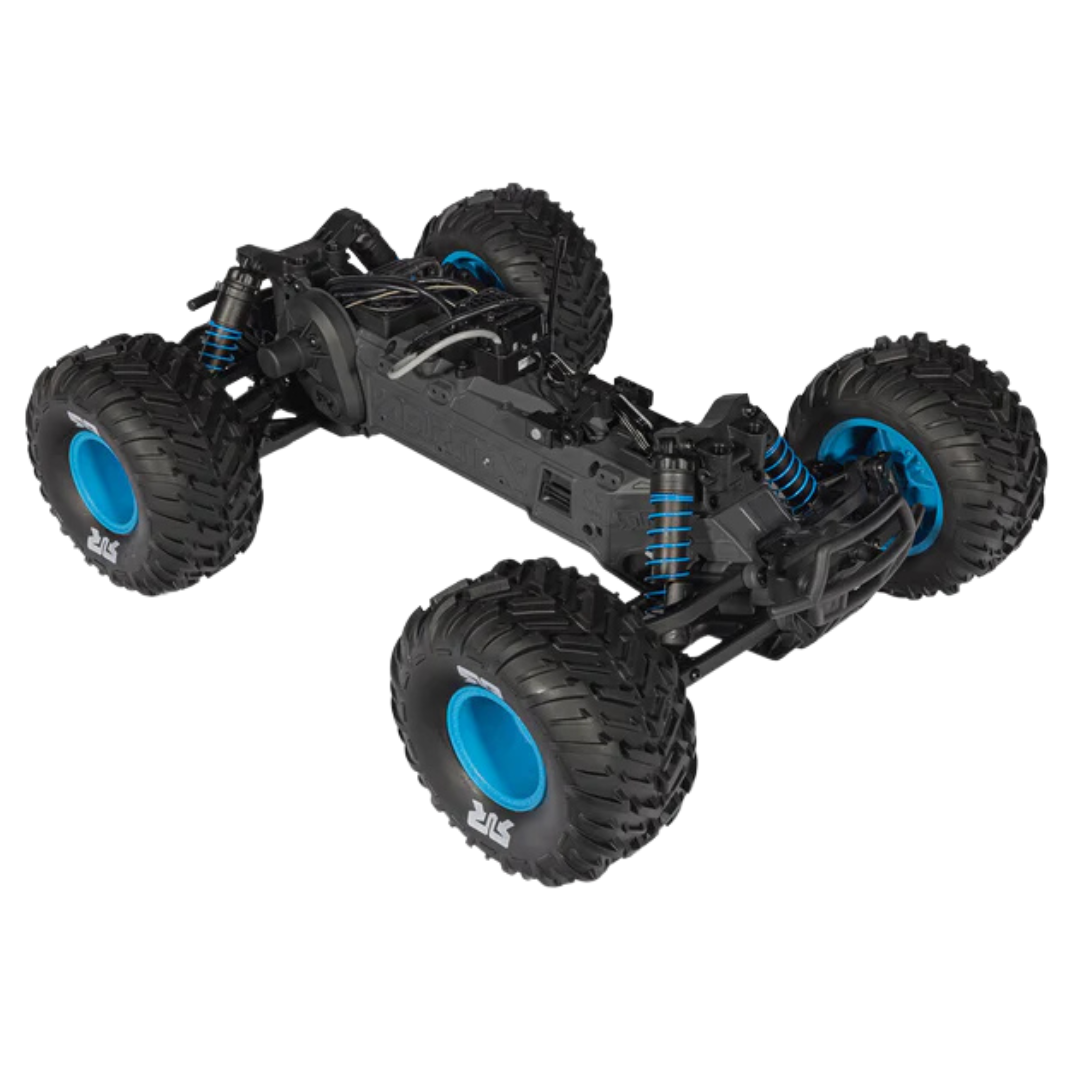

• Chassis: High CG moulded composite chassis
• Gear Pitch: 0.8 MOD
• Pinion Gear: 16T
• Spur Gear: 61T
• Final Drive Ratio: 11.93, manufacturer listed
• Shock Type: Oil-filled
• Tyre Tread: dBoots Cut Chevron MT
• Tyre Diameter: 127mm
• Wheel Hex Size: 14mm
• Wheel Colour: Blue
• Length: 465mm
• Width: 345mm
• Height: 230mm
• Wheelbase: 295mm
• Ride Height: 50mm
• Weight: 2.95kg including supplied battery, manufacturer listed
• Top Speed: 80+ km/h, 50+ mph, manufacturer listed
• Technology: DSC and SLT protocol

Includes

• 1 x ARRMA Freedom Flyer 223S 1/10 2WD RTR brushless monster truck in white
• 1 x Spektrum SLT2 2.4GHz 2-channel transmitter with DSC
• 1 x Spektrum SLT 45A 2-in-1 waterproof brushless ESC and receiver with DSC, installed
• 1 x Spektrum S681 waterproof metal-geared digital servo, installed
• 1 x Spektrum 4000Kv brushless motor with ARRMA 40mm cooling fan, installed
• 1 x Spektrum S100 1x100W USB-C Smart charger
• 1 x Spektrum 7.4V 4000mAh 2S 30C Smart G2 hardcase LiPo battery with IC5 connector
• 4 x AA transmitter batteries
• 1 x Product manual
• 1 x Multi-tool and hex wrench set, manufacturer listed

FAQ

Is the ARRMA Freedom Flyer 223S ready to run? Yes. The ARRMA ARA3530SFFT1 is supplied as an RTR model with the truck, transmitter, battery, charger and AA transmitter batteries included.

Can this truck run on 3S LiPo? Yes. The ARRMA Freedom Flyer 223S is 2S and 3S LiPo compatible, but the included battery is a 2S 4000mAh Smart G2 LiPo.

What connector does the truck use? The ARRMA Freedom Flyer 223S uses an IC5 connector, which is EC5 compatible.

Does it include Dynamic Stability Control? Yes. The included Spektrum SLT2 transmitter and 2-in-1 ESC/receiver system include DSC for steering correction support.

Important Notes

• Use only compatible 2S or 3S hardcase LiPo batteries within the listed 140 x 50 x 35mm maximum battery size.
• A suitable USB-C power source may be required for the included Spektrum S100 USB-C charger.
• A LiPo charging bag is recommended for safe battery charging and storage.
• Top speed claims depend on battery, gearing, surface, charge condition and driving setup.
• Waterproof electronics are intended for normal RC splash conditions; do not fully submerge the vehicle or electronics.
• Allow the motor, ESC and battery to cool between runs, especially when using 3S LiPo power.
• Check wheel nuts, suspension screws, drivetrain parts and tyres regularly after bashing.
• LiPo batteries must be charged, stored and transported using correct LiPo safety procedures.
