ARRMA INFRACTION 6S BLX RC All-Road Truck 1/7 4WD RTR Blue ARA7615V2T1

The ARRMA INFRACTION 6S BLX V2 is a 1/7 scale 4WD brushless RTR RC all-road truck designed for high-speed street bashing and drifting, featuring a Spektrum 2050Kv brushless motor, 150A Smart ESC, mechanical handbrake and AVC stability assistance for controlled driving on suitable paved and hard-packed surfaces.

Features

• 80+ MPH Potential: Capable of exceeding 80 mph (approximately 128km/h) in optimum conditions on 6S LiPo power using the included optional 25T speed pinion.
• 4WD All-Road Drivetrain: Four-wheel-drive system provides traction and control for street bashing, drifting and driving on suitable hard-packed surfaces.

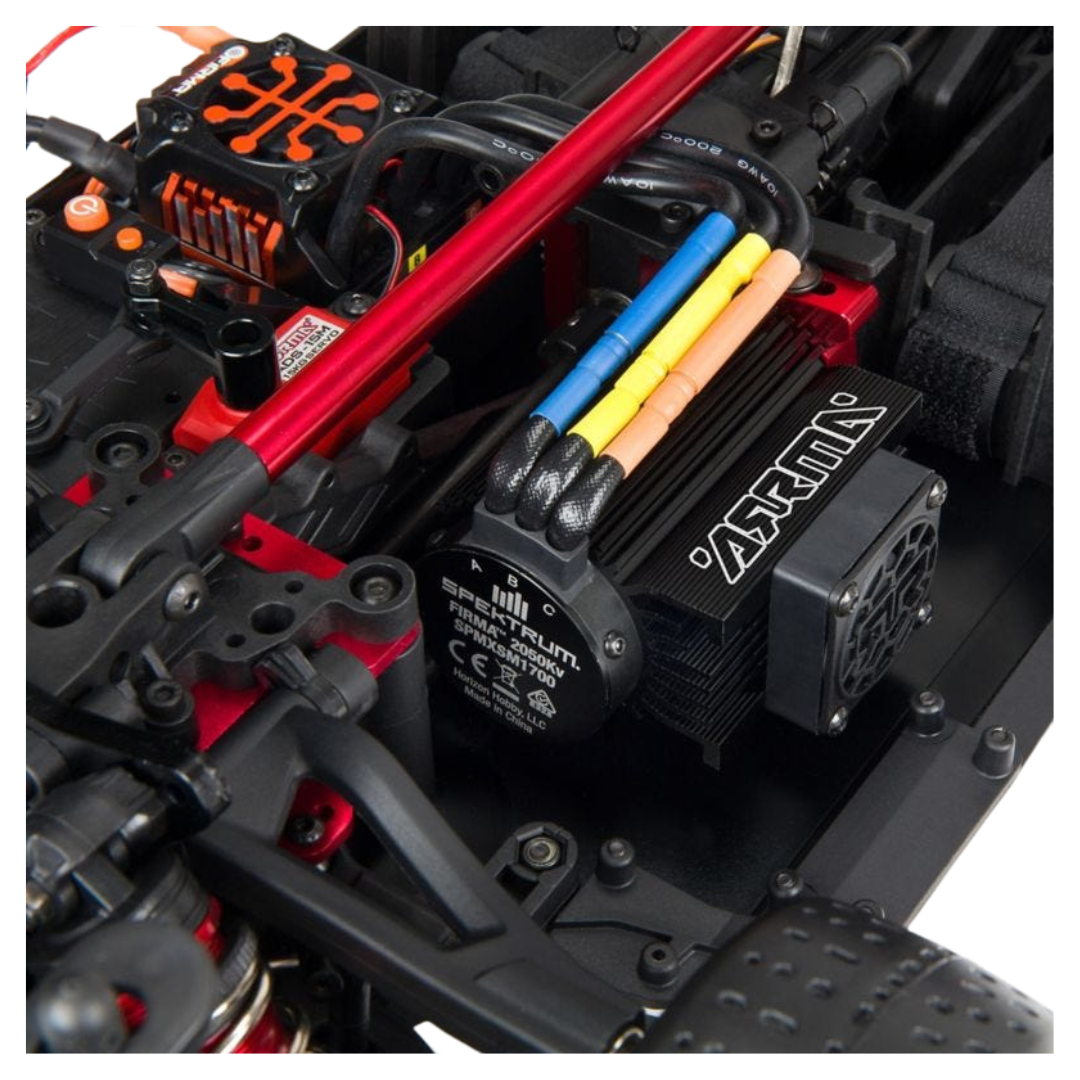

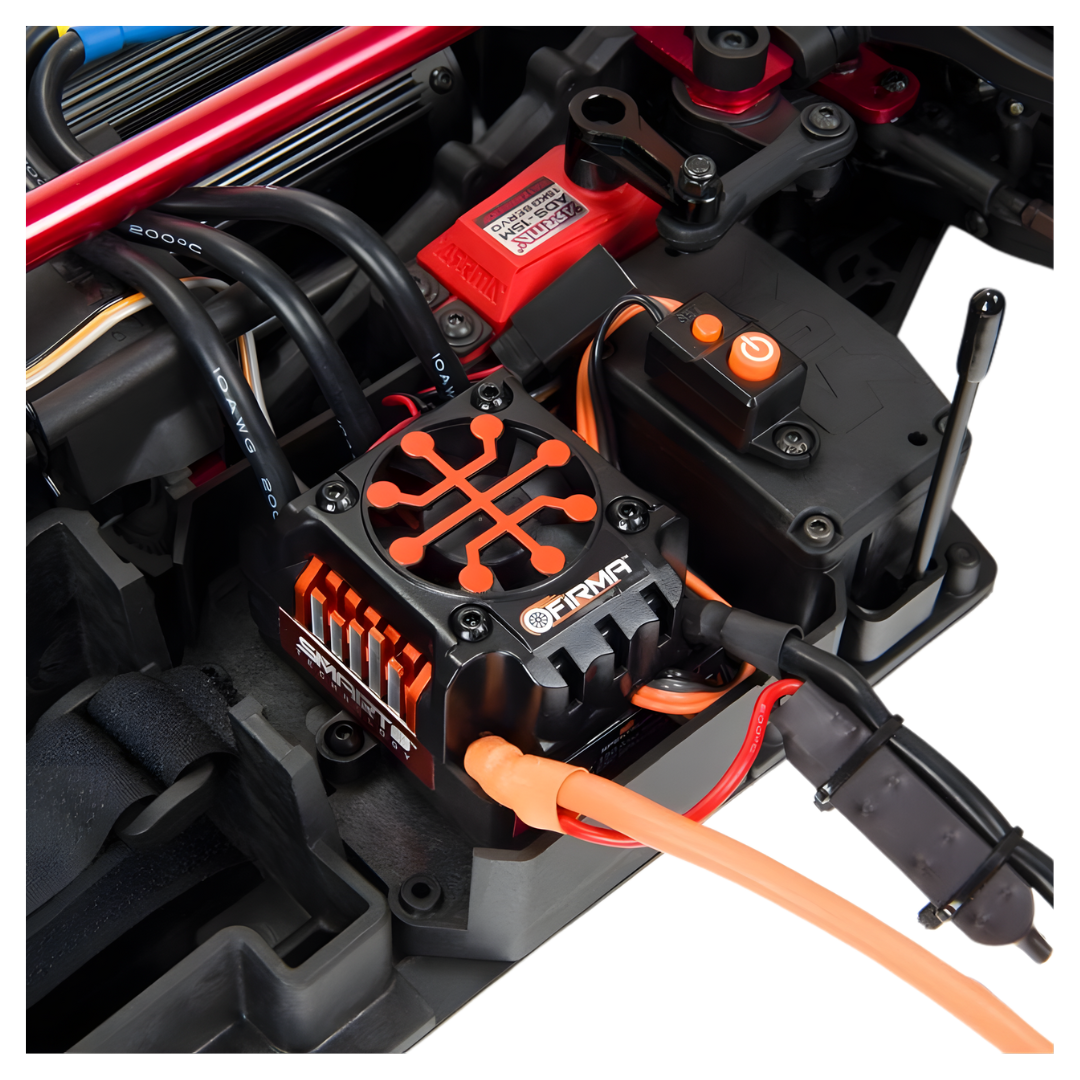

• Spektrum Firma Brushless Power: Factory-installed 4074 2050Kv brushless motor delivers responsive acceleration through a Spektrum Firma 150A Smart ESC.
• 4S and 6S LiPo Compatibility: Supports 4S power for a more manageable driving experience or 6S for higher performance.

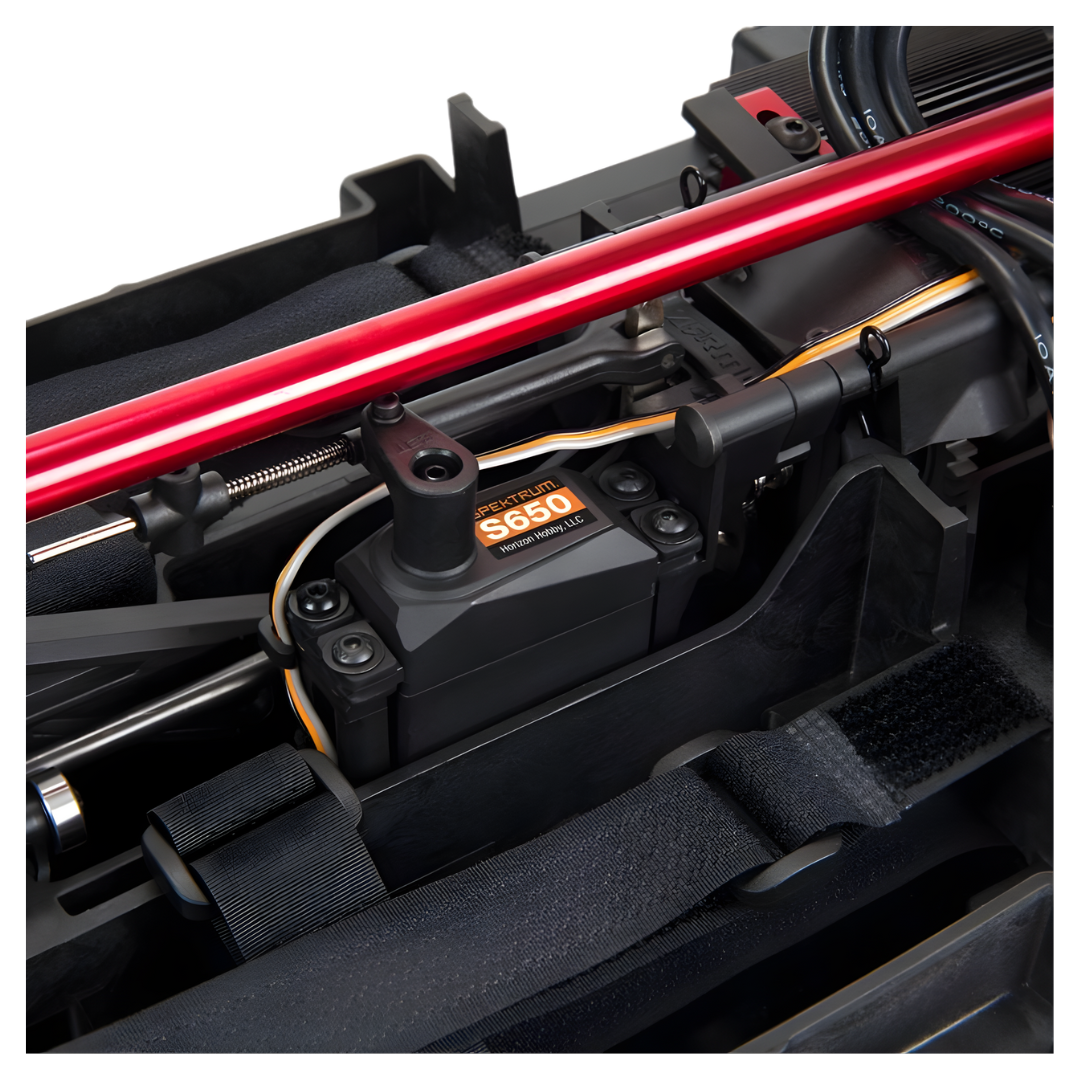

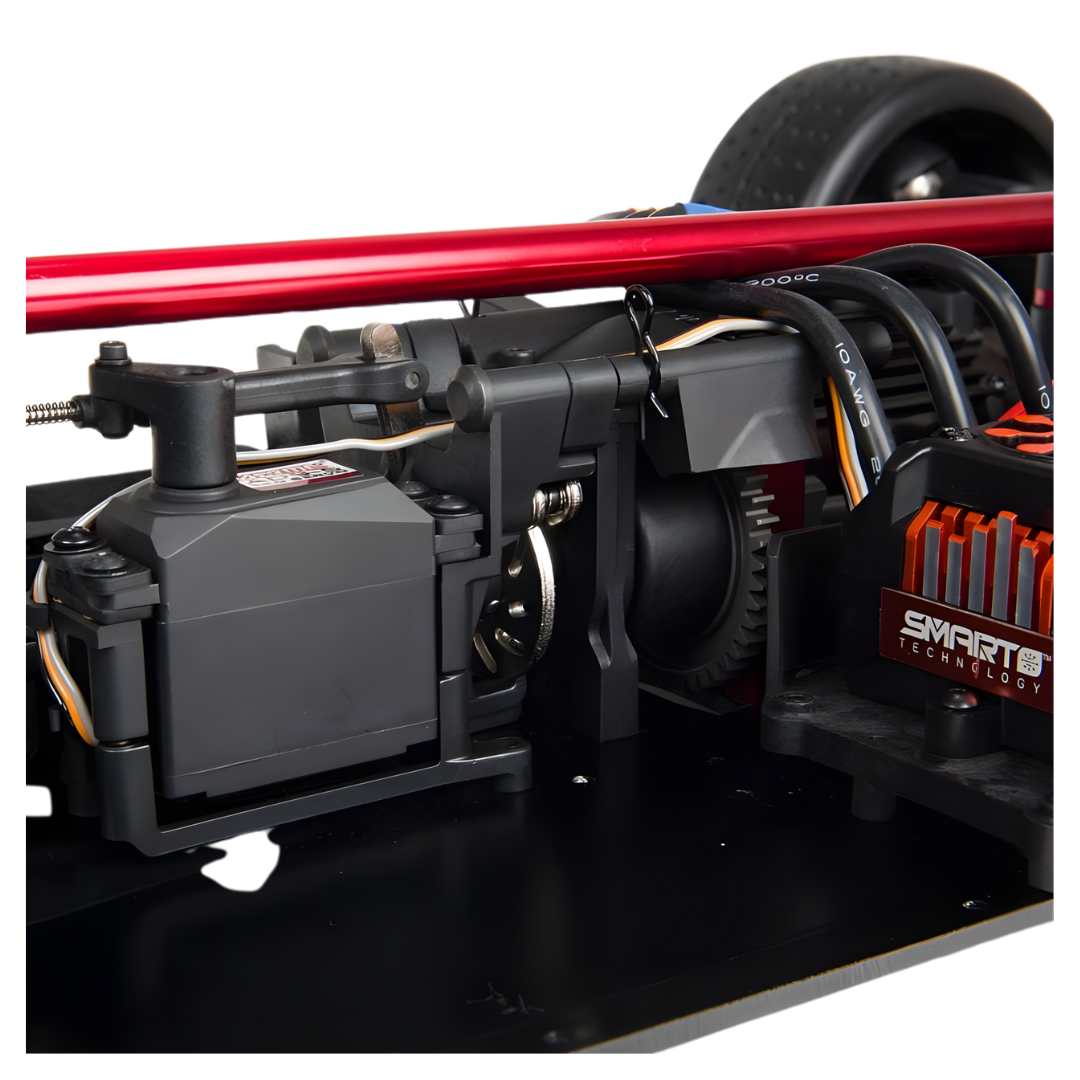

• Mechanical Rear Handbrake: Vented rear disc brake with a dedicated Spektrum SPMS650 brake servo enables controlled rear-wheel locking for drifting and stunts.
• Transmitter Handbrake Control: The included Spektrum DX3 transmitter provides convenient operation of the mechanical handbrake.
• Spektrum AVC Stability Assistance: SR6110AT receiver uses Active Vehicle Control technology to help manage steering and throttle stability on slippery surfaces.
• Adjustable AVC Gain: Driver-adjustable assistance allows the vehicle's handling response to be tailored to track conditions and driving preferences.
• Spektrum Smart Electronics: Compatible Smart battery and ESC information can be displayed through supported Spektrum equipment.
• Optional Smartphone Telemetry: Compatible with the Spektrum Dashboard system when fitted with the separately available SPM6741 Bluetooth module.

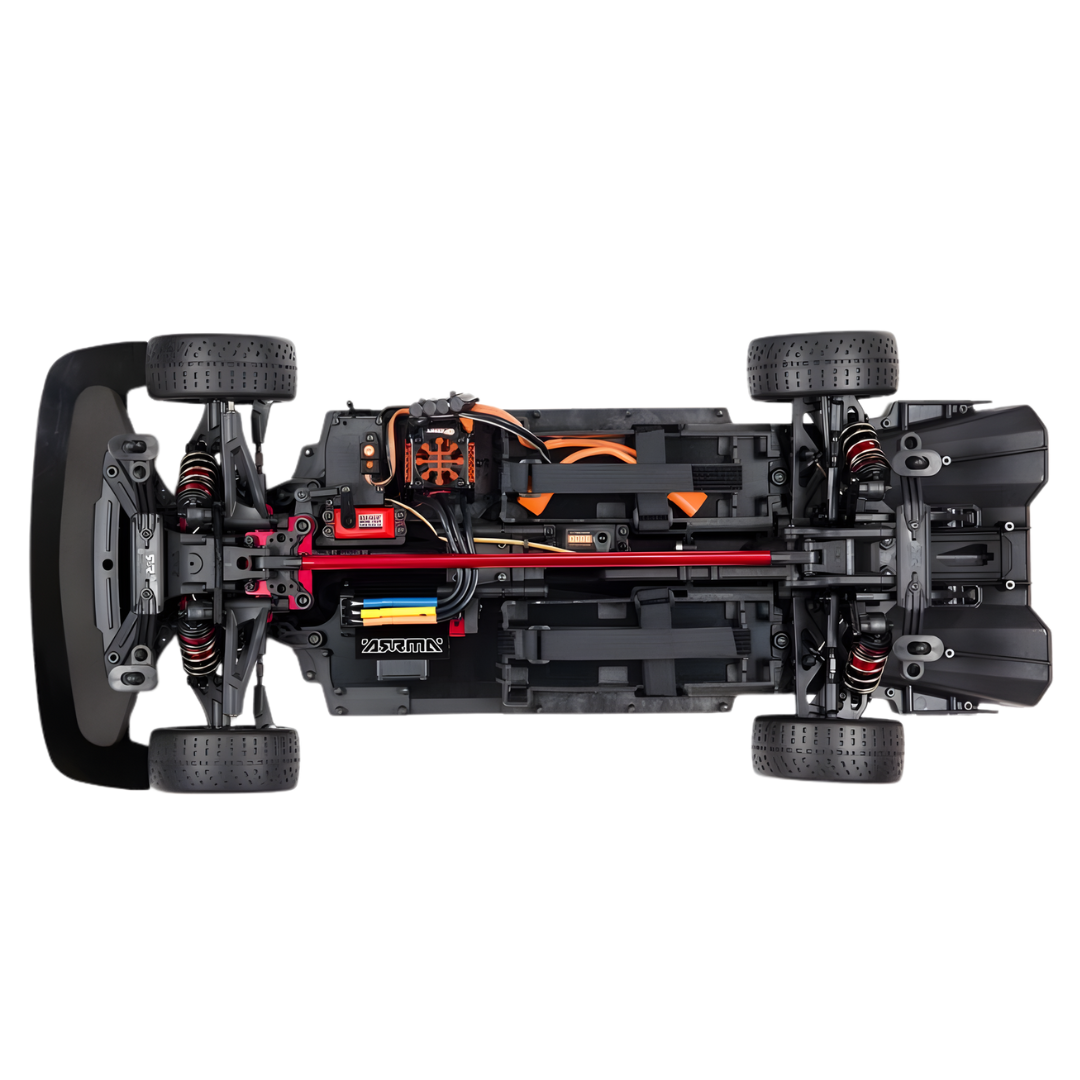

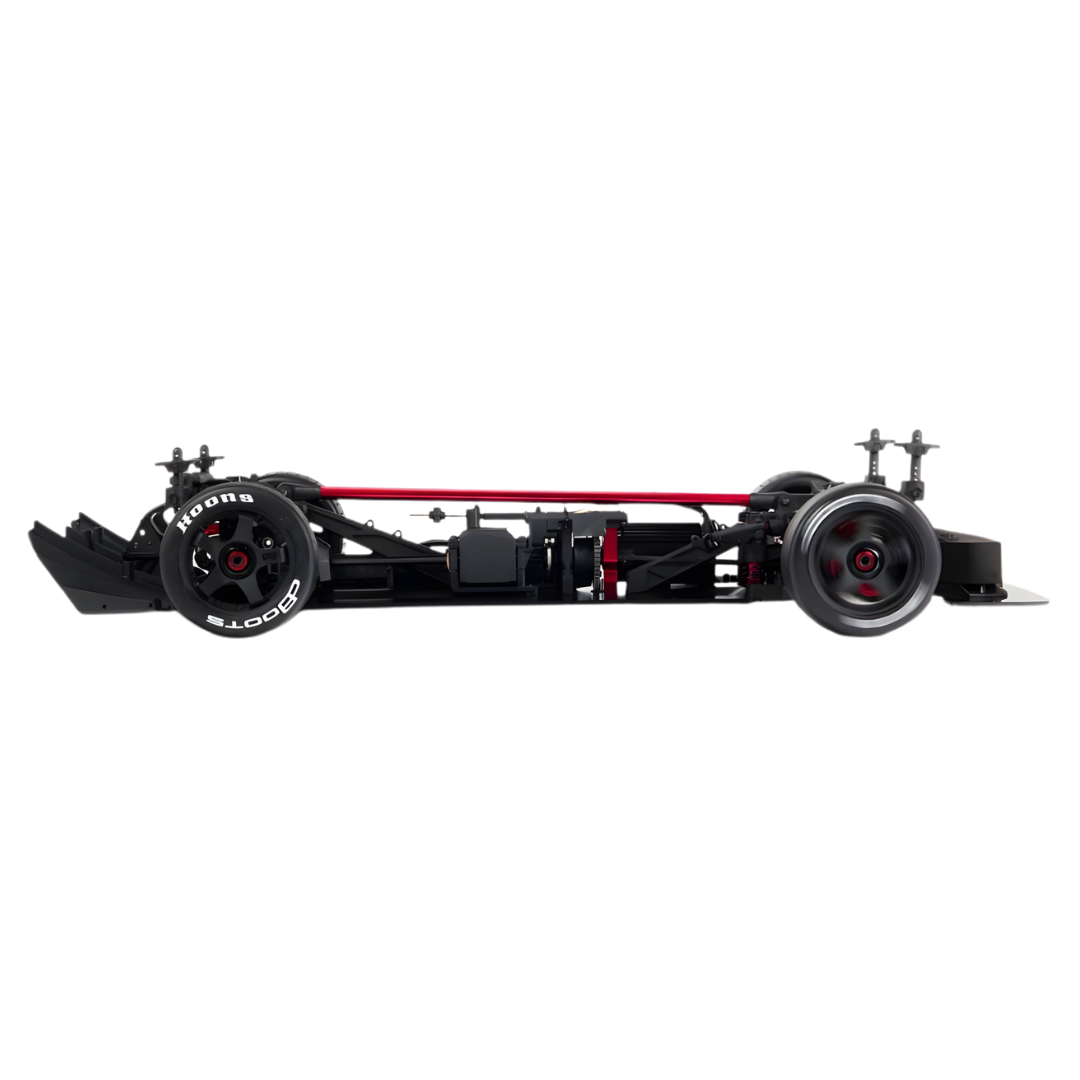

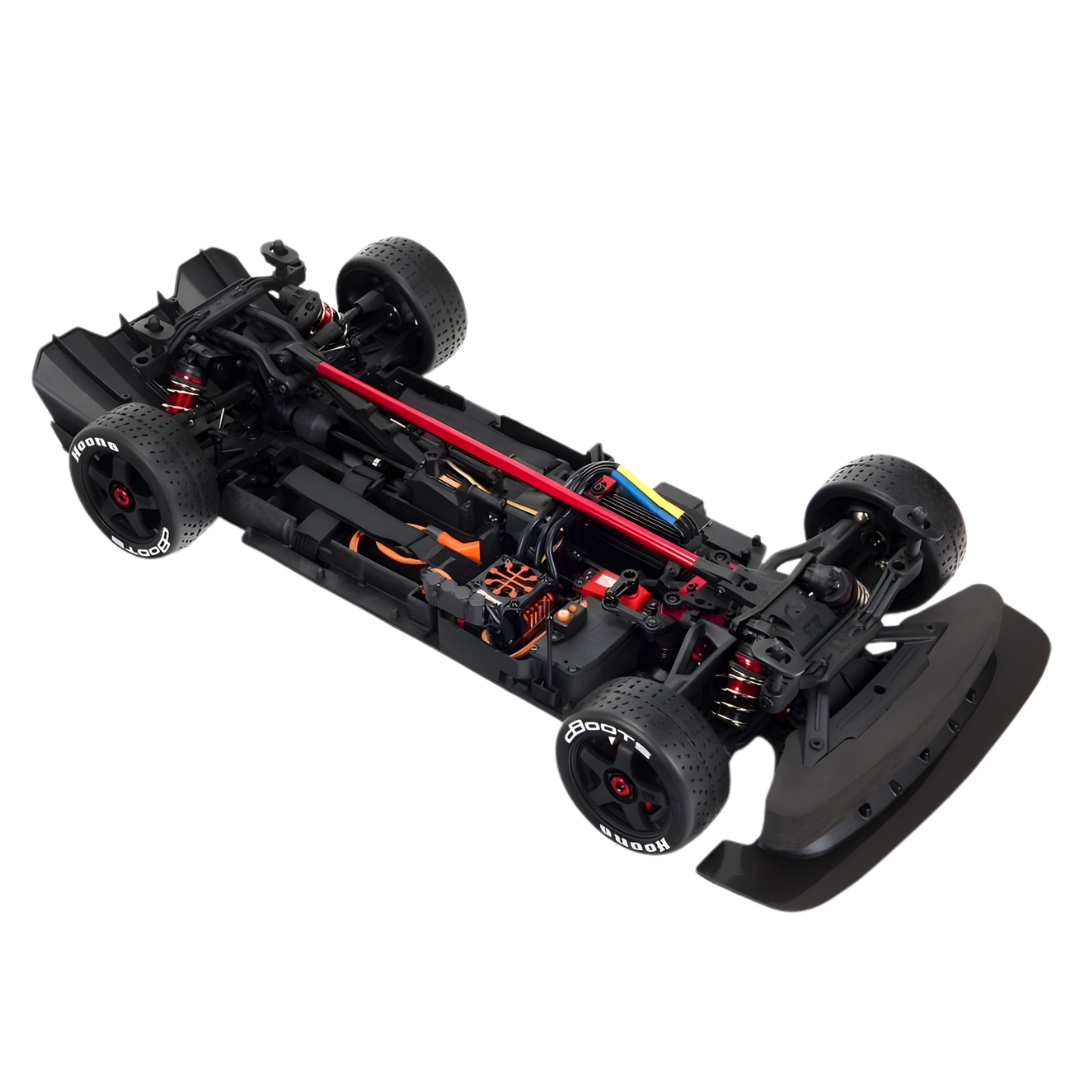

• Heavy-Duty Aluminium Chassis: 3mm 6061-T6 anodised aluminium chassis plate with centre bracing supports the high-powered drivetrain.
• Strengthened Drivetrain: Steel driveshafts, metal differential components and revised gear profiles improve durability under demanding loads.
• High-Speed Centre Driveshaft Support: Updated drivetrain layout helps reduce vibration and maintain reliable operation at high speeds.
• Three Oil-Filled Differentials: Front, centre and rear metal-gear differentials allow drivetrain tuning using suitable differential fluids.
• Oil-Filled Aluminium Shocks: Adjustable suspension with aluminium-bodied shocks helps maintain tyre contact over uneven surfaces.
• ADS-15M Metal-Geared Steering Servo: Waterproof-rated steering servo provides approximately 15kg-cm of torque at 6V.

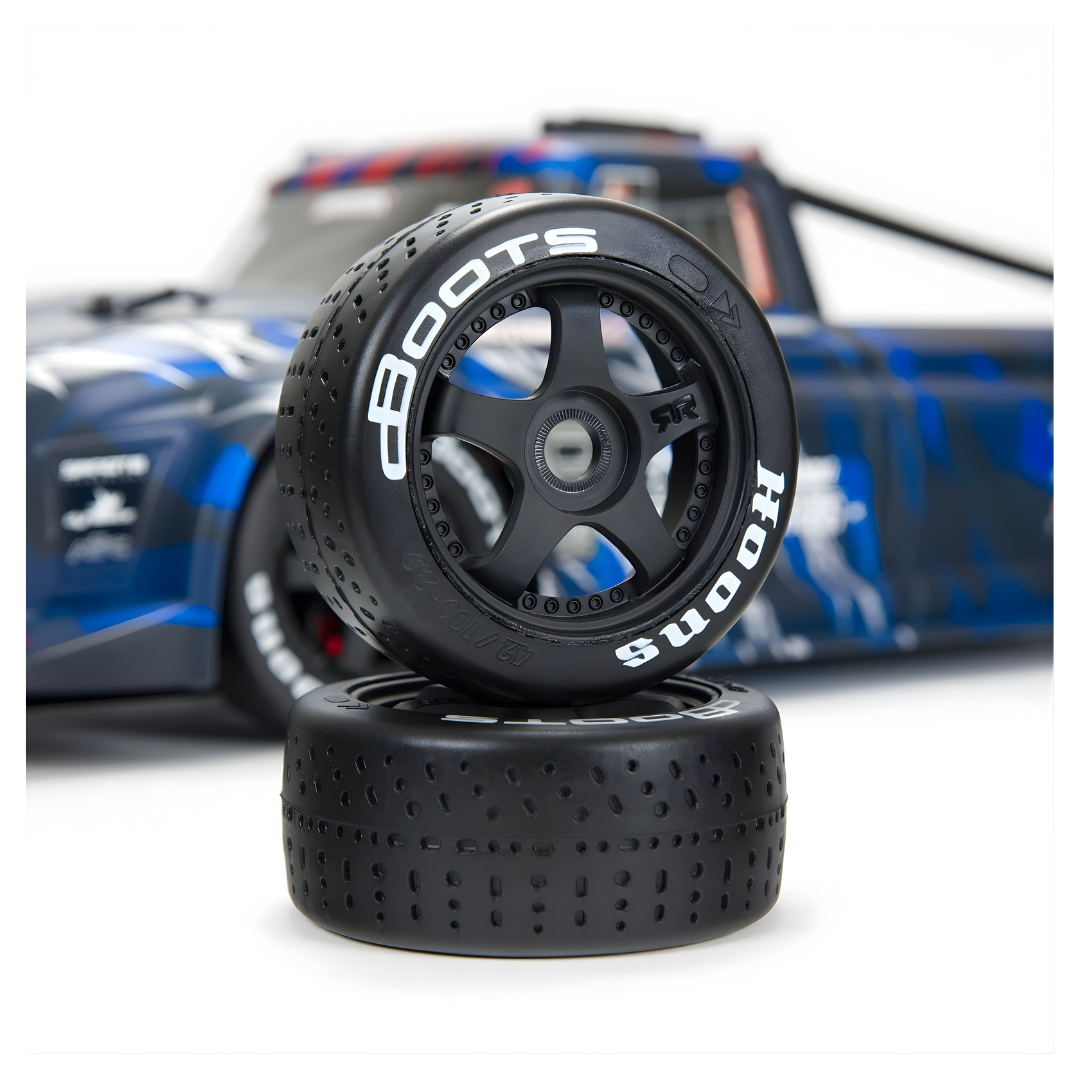

• dBoots Hoons All-Road Tyres: Road-focused tyres mounted on five-spoke wheels provide grip for high-speed driving and drifting.

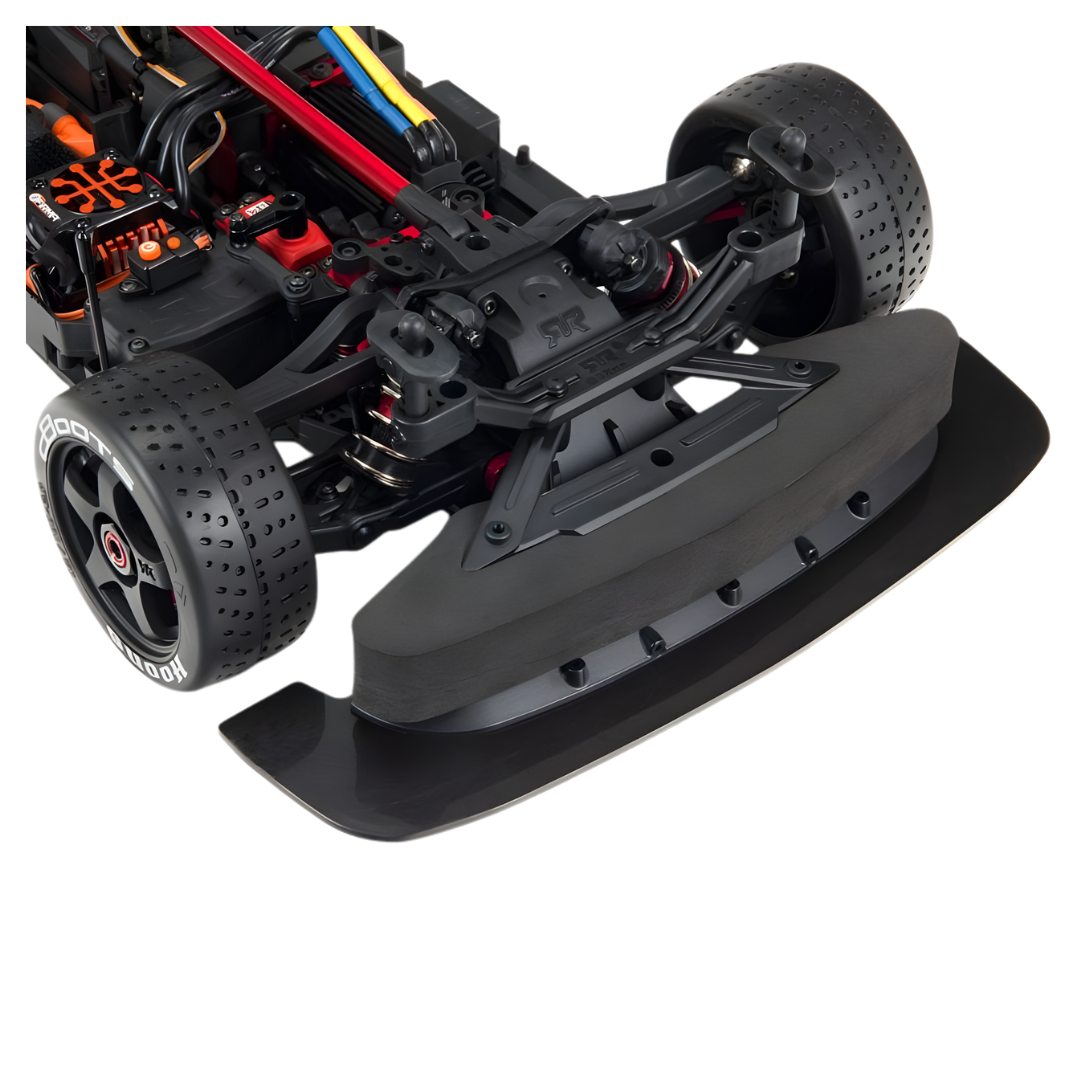

• Adjustable Aerodynamics: Tunable rear wing, front splitter and rear diffuser help manage airflow and downforce.

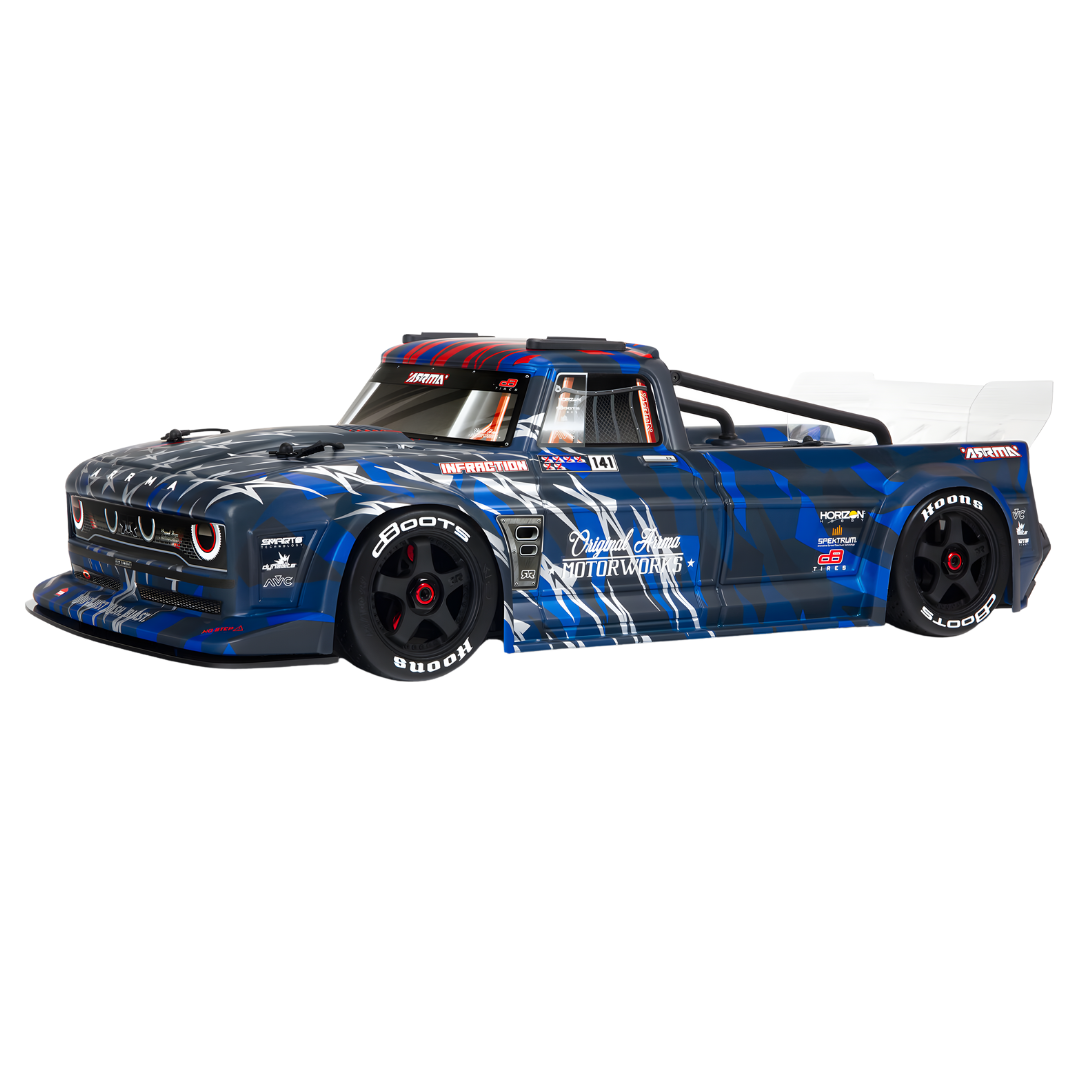

• Resto-Mod Street Truck Body: Factory-finished blue body with matte and gloss detailing provides a distinctive street racing appearance.
• Ready-to-Run Assembly: Arrives assembled with installed electronics, radio equipment and handbrake system.

Specifications

• Brand: ARRMA
• Product Range: INFRACTION 6S BLX V2
• Model: INFRACTION All-Road Street Bash Truck
• Manufacturer Part Number: ARA7615V2T1
• SKU: ARA7615V2T1
• Product Type: RC All-Road Truck
• Scale: 1/7
• Drive System: 4WD
• Build Type: Ready-to-Run (RTR)
• Power Type: Electric Brushless
• Colour: Blue
• Motor: Spektrum Firma 4074 2050Kv Brushless
• ESC: Spektrum Firma 150A Smart
• Battery Compatibility: 4S or 6S LiPo
• Battery Connectors: IC5 (EC5 Compatible)
• Manufacturer-Rated Maximum Speed: 80+ mph (128+ km/h) on 6S with Optional Speed Gearing
• Standard Pinion Gear: 15T
• Optional Included Speed Pinion: 25T
• Spur Gear: 46T
• Gear Pitch: 1.0 MOD
• Final Drive Ratio with Standard Gearing: 8.58:1
• Drivetrain: Four-Wheel Drive with Steel Driveshafts
• Differentials: 3 Oil-Filled Metal-Gear Differentials
• Chassis: 3mm 6061-T6 Anodised Aluminium
• Suspension: Independent Front and Rear
• Shock Type: Adjustable Oil-Filled Aluminium
• Front Shock Length: 77mm
• Rear Shock Length: 87mm
• Wheel Hex Size: 17mm
• Wheels: Five-Spoke
• Tyres: dBoots Hoons All-Road
• Radio Transmitter: Spektrum DX3 3-Channel 2.4GHz DSMR
• Receiver: Spektrum SR6110AT DSMR with AVC
• Steering Servo: ARRMA ADS-15M Metal-Geared
• Brake Servo: Spektrum SPMS650
• Braking System: Electronic Braking and Mechanical Rear Disc Handbrake
• Stability Assistance: Spektrum AVC
• Telemetry: Spektrum Smart Compatible
• Body: Factory-Finished Resto-Mod Street Truck
• Overall Length: 695mm
• Overall Width: 310mm
• Overall Height: 200mm
• Wheelbase: 406mm
• Ground Clearance: 15mm
• Front Track: 308mm
• Rear Track: 305mm
• Approximate Weight Without Batteries: 5kg
• Maximum Battery Dimensions: 140 x 47 x 38mm per Battery
• Vehicle Batteries: Required Separately
• Battery Charger: Required Separately
• Application: High-Speed Street Bashing, Drifting and All-Road Driving

Includes

• 1 x ARRMA INFRACTION 6S BLX V2 1/7 4WD RC All-Road Truck in Blue
• 1 x Spektrum Firma 4074 2050Kv Brushless Motor (Installed)
• 1 x Spektrum Firma 150A Smart ESC (Installed)
• 1 x ARRMA ADS-15M Steering Servo (Installed)
• 1 x Spektrum SPMS650 Mechanical Brake Servo (Installed)
• 1 x Spektrum SR6110AT AVC Receiver (Installed)
• 1 x Spektrum DX3 2.4GHz DSMR Transmitter
• 1 x Optional 25T Speed Pinion
• 1 x IC5 Loop Connector for Compatible Single-Battery Installations
• 1 x Set of Supplied Hex and Cross Wrenches
• 1 x Instruction Manual

FAQ

How fast is the ARRMA INFRACTION 6S BLX V2? ARRMA rates the INFRACTION 6S BLX V2 for speeds exceeding 80 mph (approximately 128km/h) in optimum conditions using 6S LiPo power and the included optional 25T speed pinion. The standard 15T pinion is fitted for normal running.

What batteries does the ARRMA INFRACTION require? The INFRACTION supports two 2S LiPo batteries for 4S operation or two 3S LiPo batteries for 6S operation, using compatible IC5 or EC5 connectors. ARRMA also provides an IC5 loop connector for a suitable single 4S or 6S battery. Batteries and charger are sold separately.

Does the INFRACTION have a working handbrake? Yes. The ARRMA INFRACTION 6S BLX V2 has a mechanical rear disc handbrake operated by a dedicated Spektrum SPMS650 servo and controlled through the DX3 transmitter. The handbrake allows rear-wheel locking for drifting and stunts.

Is the ARRMA INFRACTION suitable for beginners? The INFRACTION is a powerful 1/7 scale brushless truck intended for drivers with suitable RC experience. The DX3 transmitter and AVC stability assistance can help manage vehicle control, but OZRC recommends learning at reduced throttle settings in a large, clear driving area before attempting high-speed runs.

Important Notes

• Vehicle LiPo batteries, compatible charger, LiPo charging safety bag and four AA transmitter batteries are required separately.
• The 80+ mph speed claim requires 6S LiPo power, the supplied optional 25T speed pinion and suitable operating conditions. The optional speed pinion requires installation.
• For standard dual-battery operation, use two matching 2S or two matching 3S LiPo batteries with compatible connectors.
• For single-battery operation, use the supplied IC5 loop connector according to ARRMA's instructions and ensure the chosen battery is compatible with the ESC and battery tray.
• ARRMA specifies 35C 5000mAh as a minimum recommended battery discharge specification and recommends 100C 5000mAh for high-performance use.
• High-speed gearing increases drivetrain and motor loads. Follow the manufacturer's gearing recommendations and monitor operating temperatures.
• The Spektrum Dashboard Bluetooth module SPM6741 is not included and is required for supported smartphone telemetry functions.
• Water-resistant electronics do not make the entire vehicle waterproof. Follow ARRMA's cleaning and drying procedures after wet operation.
• High-speed driving and drifting can cause rapid tyre wear. Inspect tyres regularly for damage, separation and exposed belting.
• Use the vehicle only in a large, safe driving area away from people, animals and public traffic. Do not operate on public roads.
