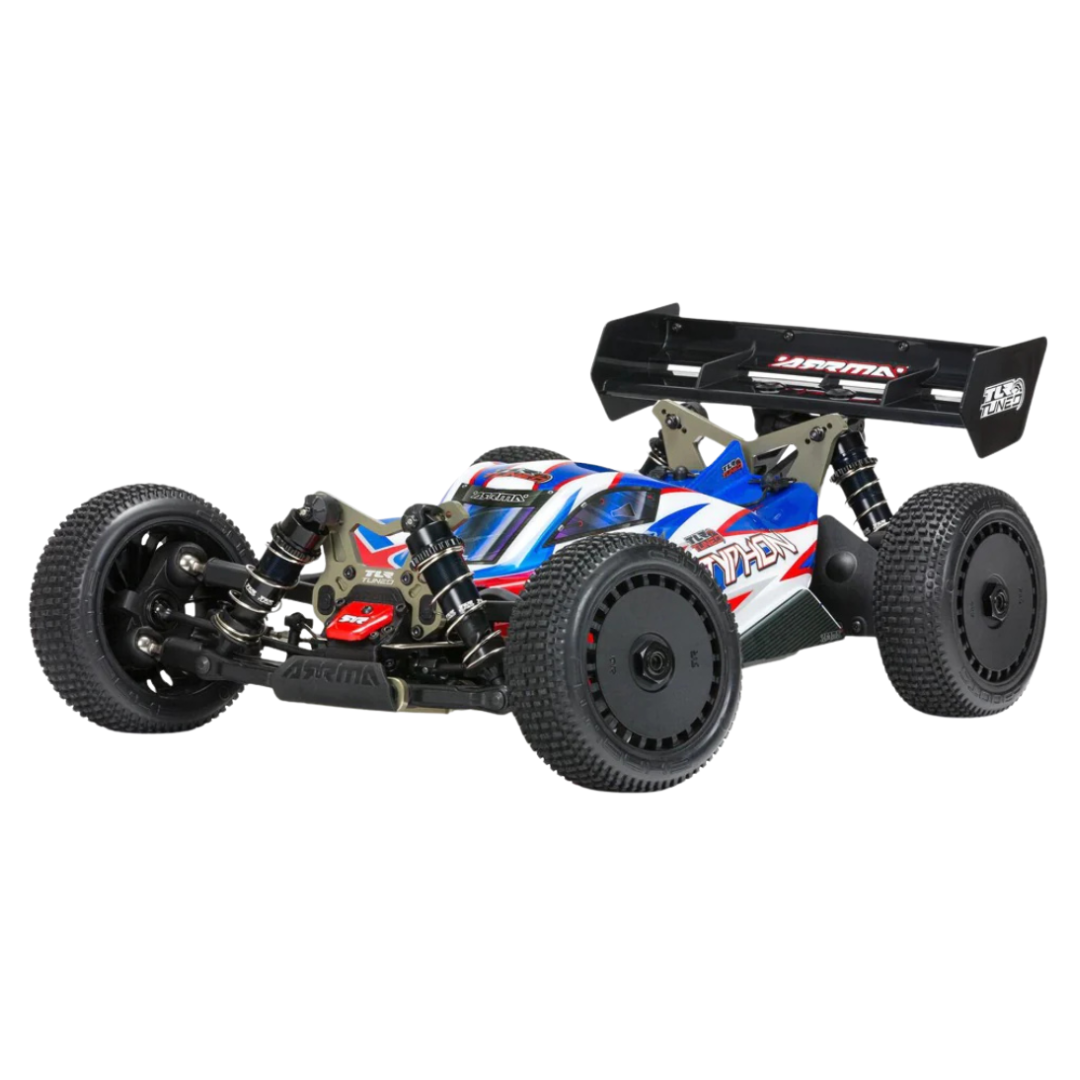

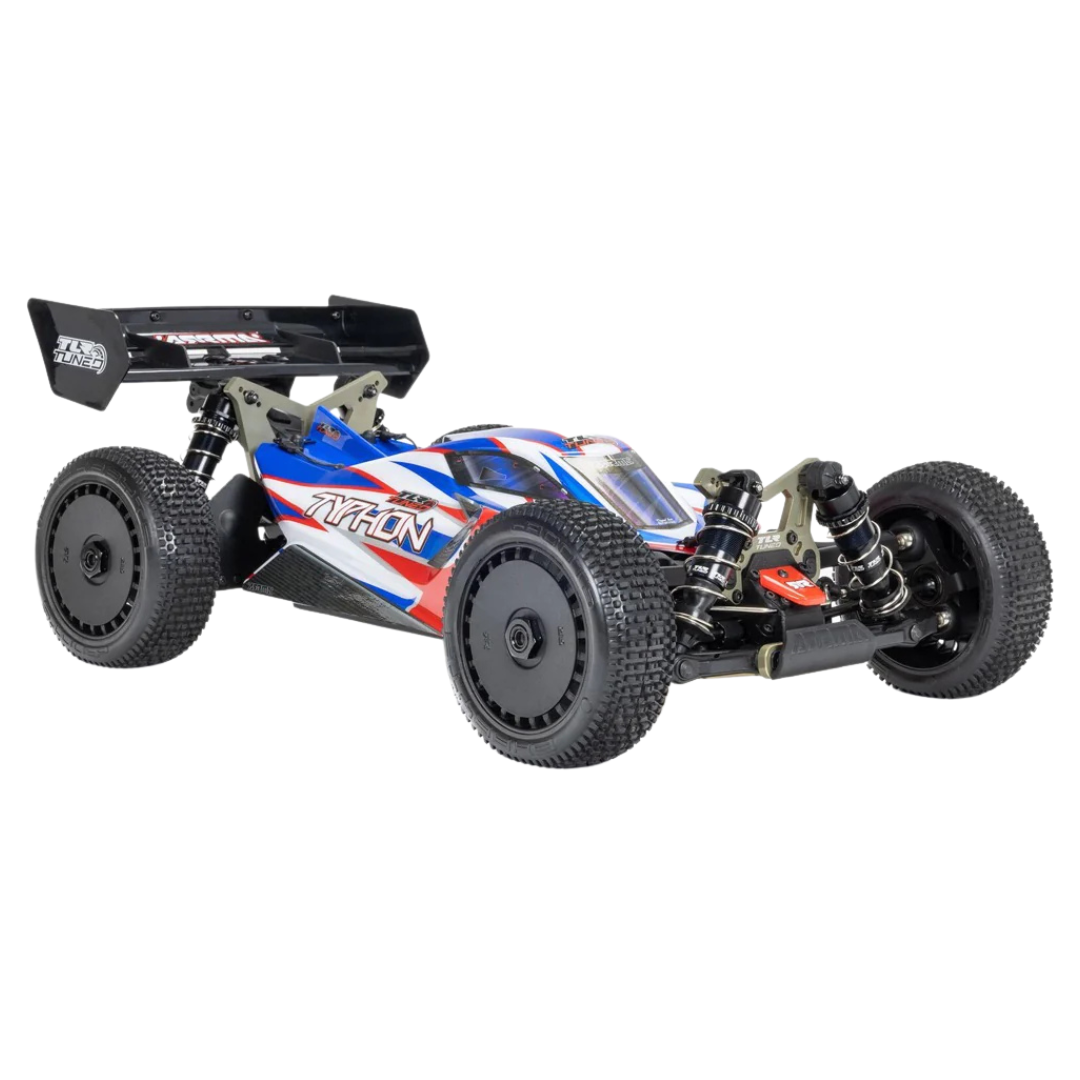

ARRMA TLR Tuned TYPHON 6S 4X4 1/8 Brushless Race Buggy RTR Red Blue ARA8406

The ARRMA TLR Tuned TYPHON 6S combines the convenience and durability of an ARRMA ready-to-run buggy with a wide selection of Team Losi Racing-inspired tuning components. Designed for drivers who want to explore club racing without giving up high-powered off-road bashing, this premium 1/8 scale platform arrives fully assembled with proven Spektrum brushless electronics installed.

Run a compatible 4S LiPo battery for more manageable track performance or install suitable 6S power for extreme acceleration, large jumps and high-speed bashing. The factory-fitted Spektrum Firma 150A Smart ESC and 4074 2050Kv brushless motor provide strong, responsive power, while the TLR Tuned 7075-T6 aluminium chassis and adjustable suspension components offer extensive setup potential.

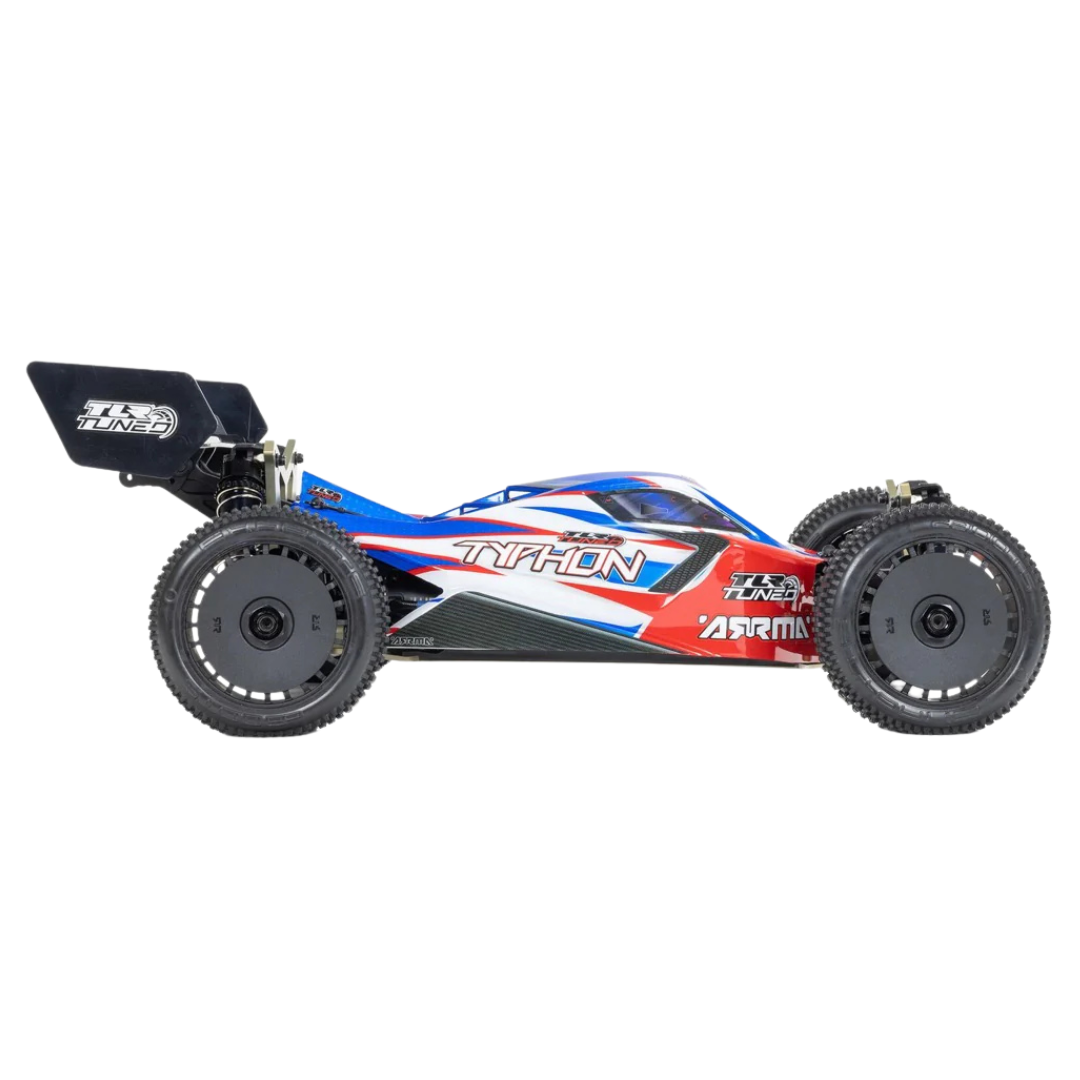

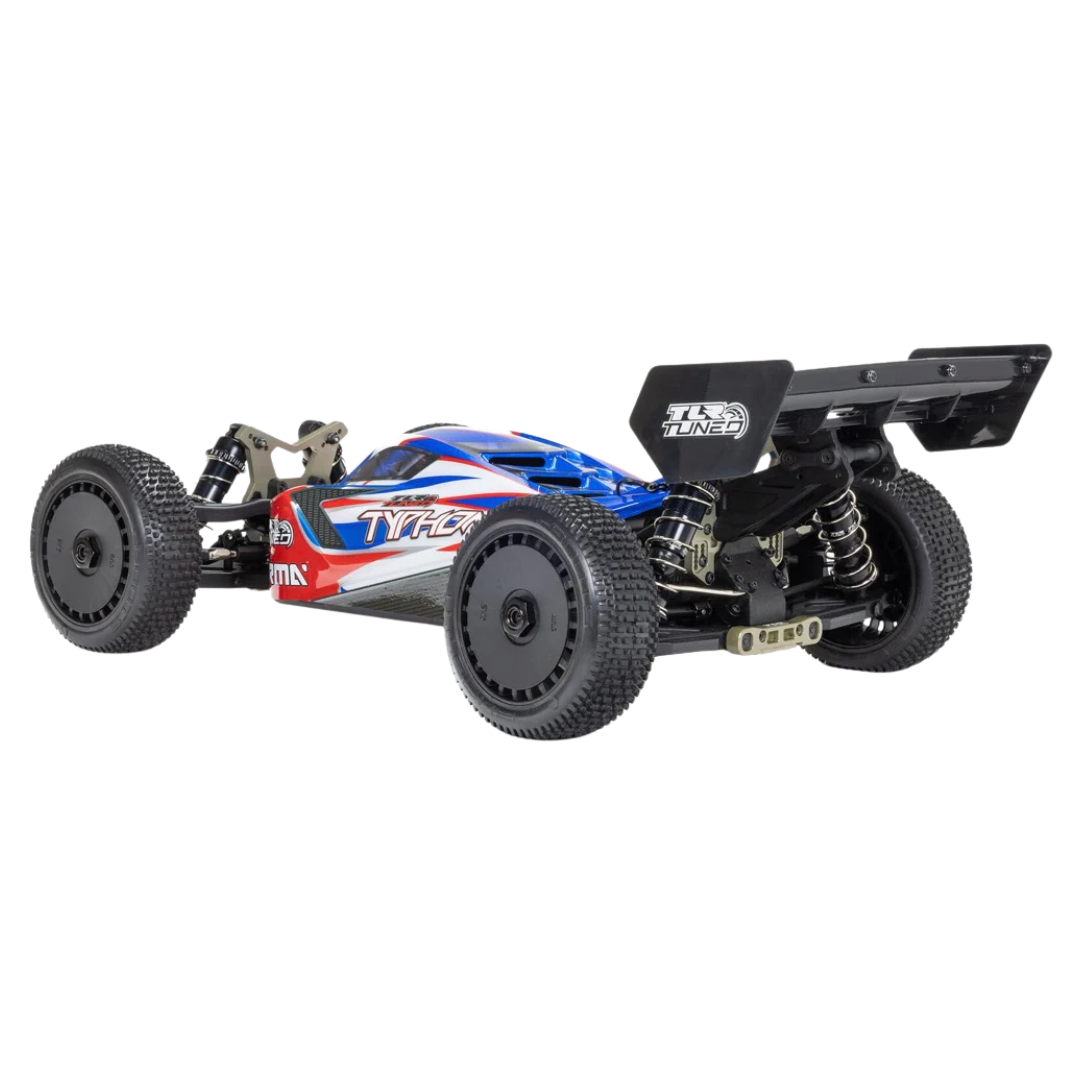

The race-inspired red and blue body, tuneable rear wing and dBoots EXABYTE race-compound tyres complete a versatile buggy that can be adapted to local track conditions or enjoyed at your favourite off-road bash location.

Features

• Premium 1/8 scale ready-to-run brushless race buggy
• Suitable for club racing and high-performance off-road bashing
• Compatible with 4S and 6S LiPo battery power
• Factory-installed Spektrum Firma brushless electronics

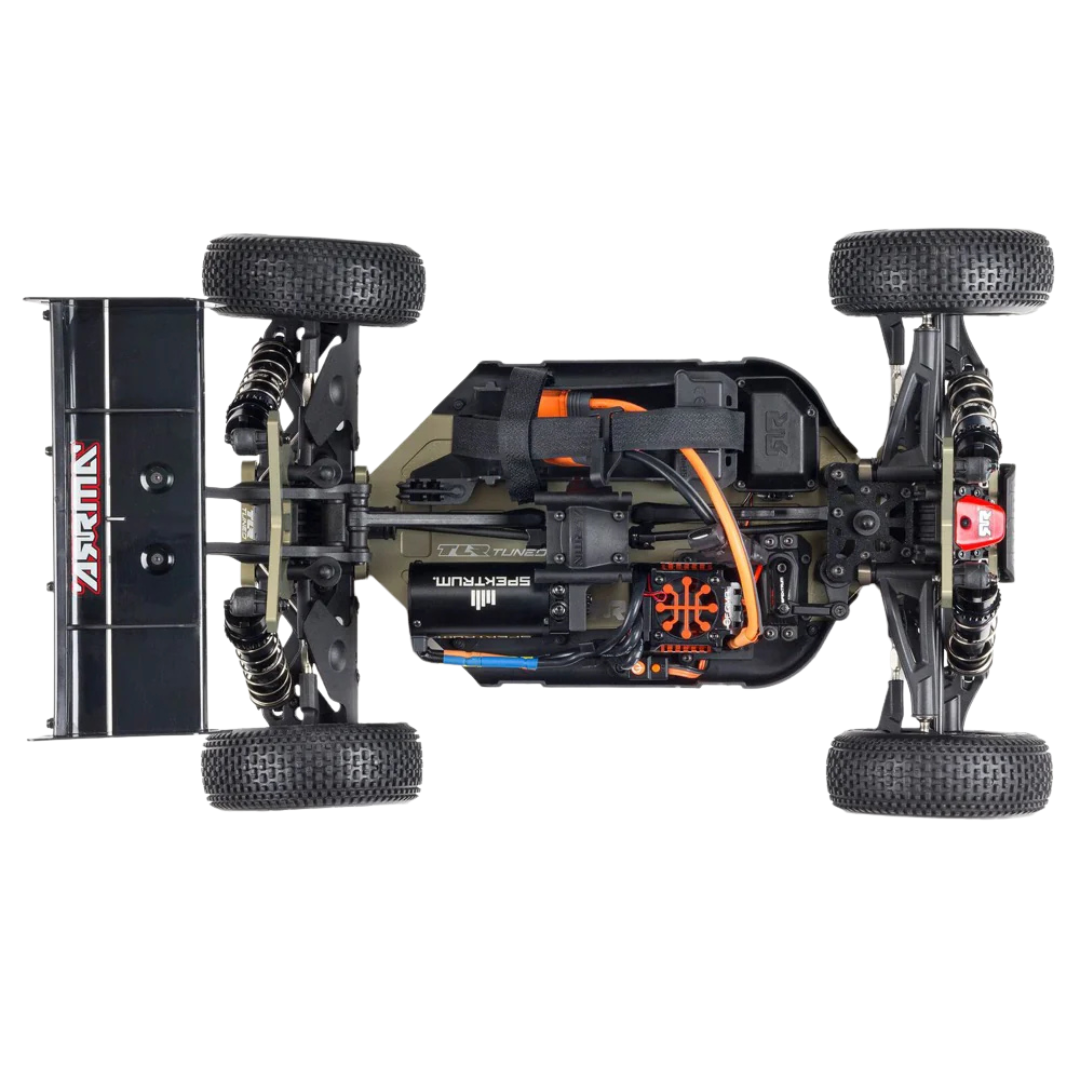

• TLR Tuned 3mm 7075-T6 aluminium chassis plate

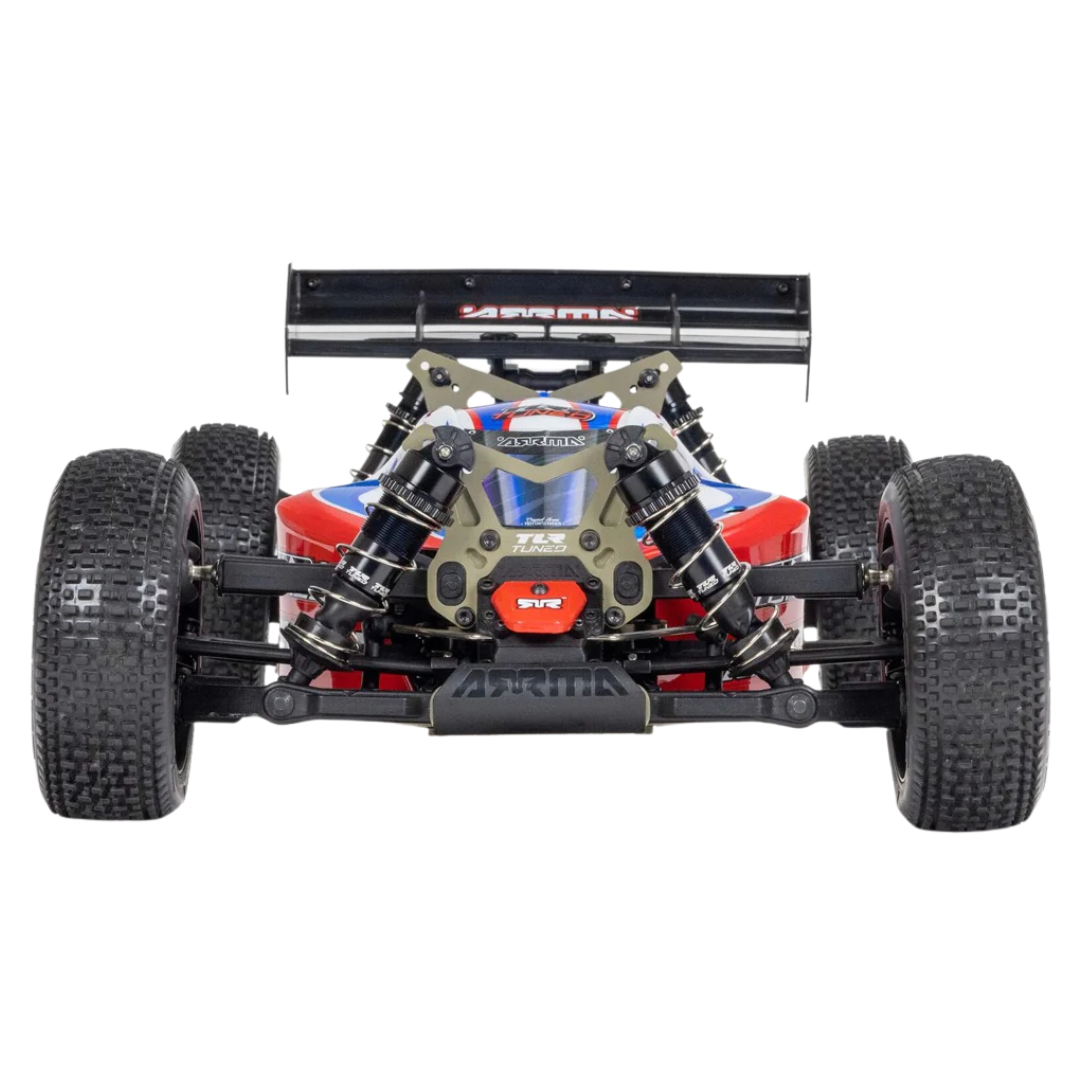

• TLR Tuned 7075-T6 aluminium front and rear shock towers
• TLR Tuned aluminium steering rack
• Adjustable TLR Tuned upper and lower suspension hangers
• Laser-etched TLR Tuned aluminium components
• TLR Tuned aluminium shock bodies
• Machined tapered shock pistons
• Machined shock guides and X-ring seals
• EXB shock stand-offs
• Adjustable oil-filled suspension
• Front, centre and rear gear differentials
• All-metal differential outdrives and gearbox internals
• Durable steel driveshafts throughout
• Heavy-duty bearing-supported drivetrain
• Black-anodised aluminium sliding motor mount
• Black-anodised aluminium servo mount
• Black-anodised 17mm aluminium wheel hexes
• Low-drag buggy wheels
• dBoots EXABYTE race-compound multi-terrain tyres

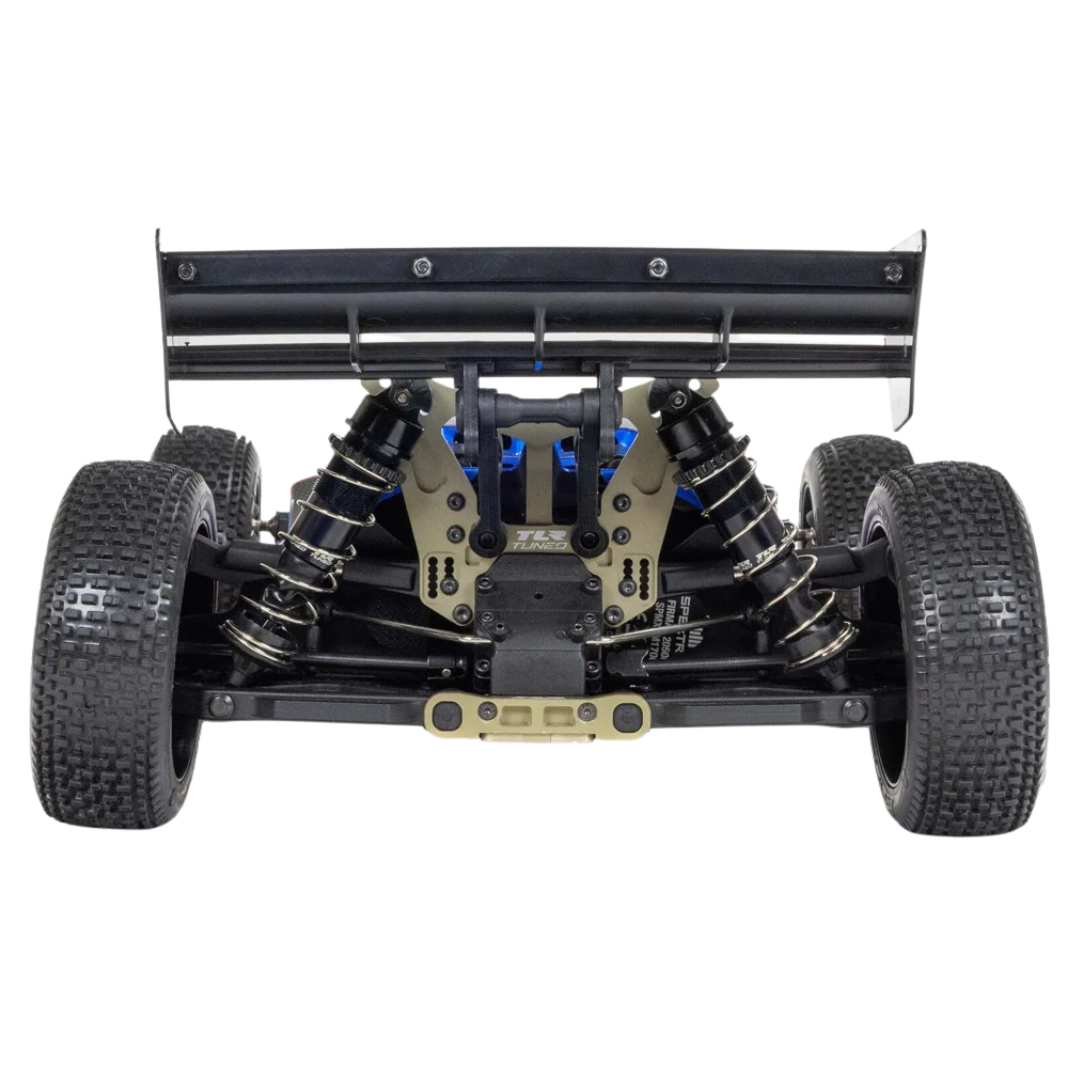

• Race Spec tuneable rear wing
• High rear wing mount
• Strong composite front and rear chassis braces

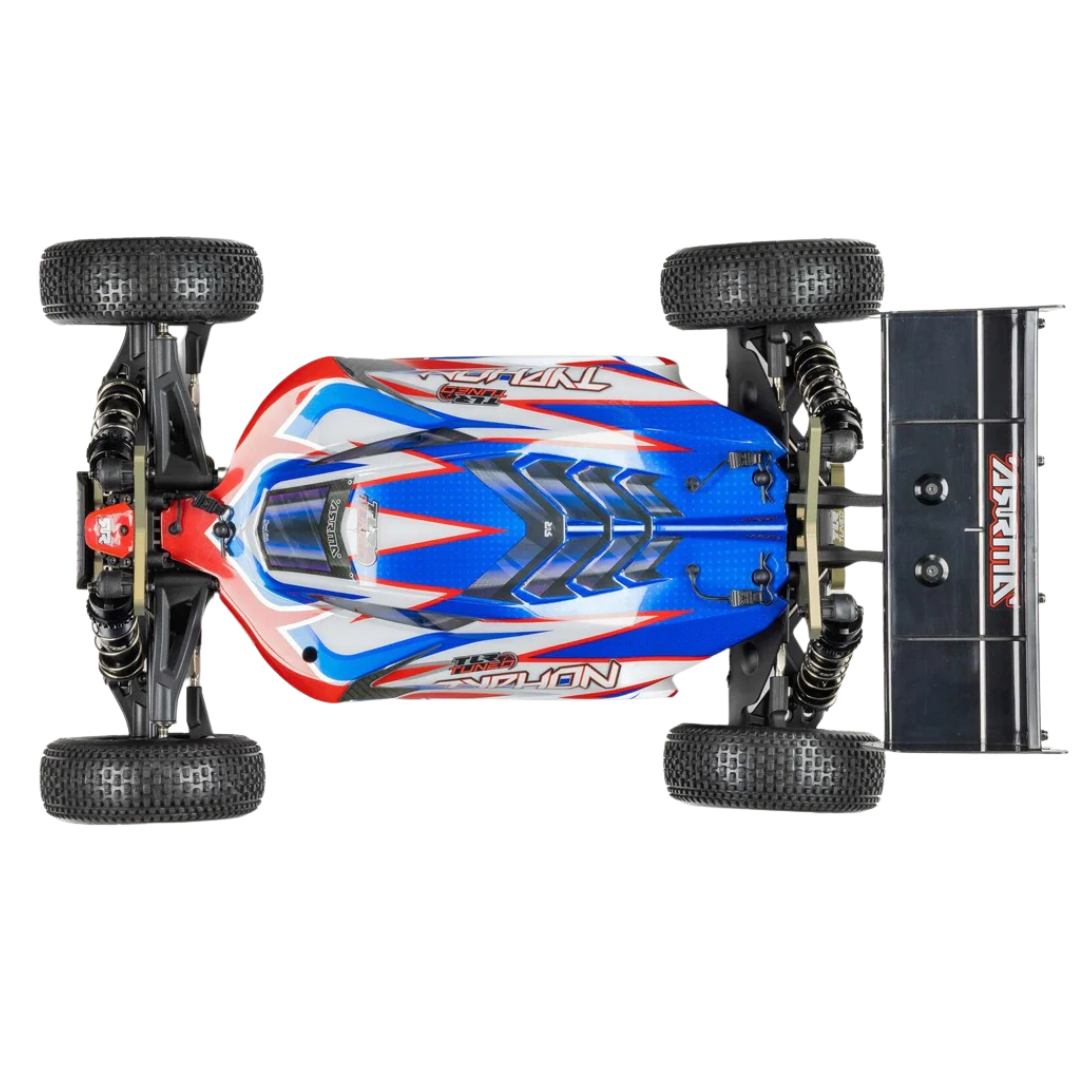

• Factory-finished red and blue race-inspired body
• Rubber-shielded ball bearings throughout
• Capable of more than 70mph under suitable conditions

Specifications

• Brand: ARRMA
• Model: TLR Tuned TYPHON 6S
• Manufacturer Part Number: ARA8406
• Product Type: Brushless RC race buggy
• Scale: 1/8
• Completion Level: Ready to Run
• Colour: Red and Blue
• Power Type: Electric brushless
• Drive Type: 4WD
• Drive Functions: Forward, brake and reverse
• Motor Position: Mid-mounted
• Motor: Spektrum Firma 4074 2050Kv brushless motor
• Electronic Speed Controller: Spektrum Firma 150A Smart waterproof ESC
• Battery Compatibility: 4S or 6S LiPo
• Battery Connector: IC5 compatible with EC5
• Radio System: Spektrum SLT3 2.4GHz three-channel transmitter
• Receiver: Spektrum SR315 dual-protocol three-channel receiver
• Steering Servo: Spektrum S652 waterproof metal-geared digital servo
• Servo Torque: Approximately 265oz-in at 7.4V

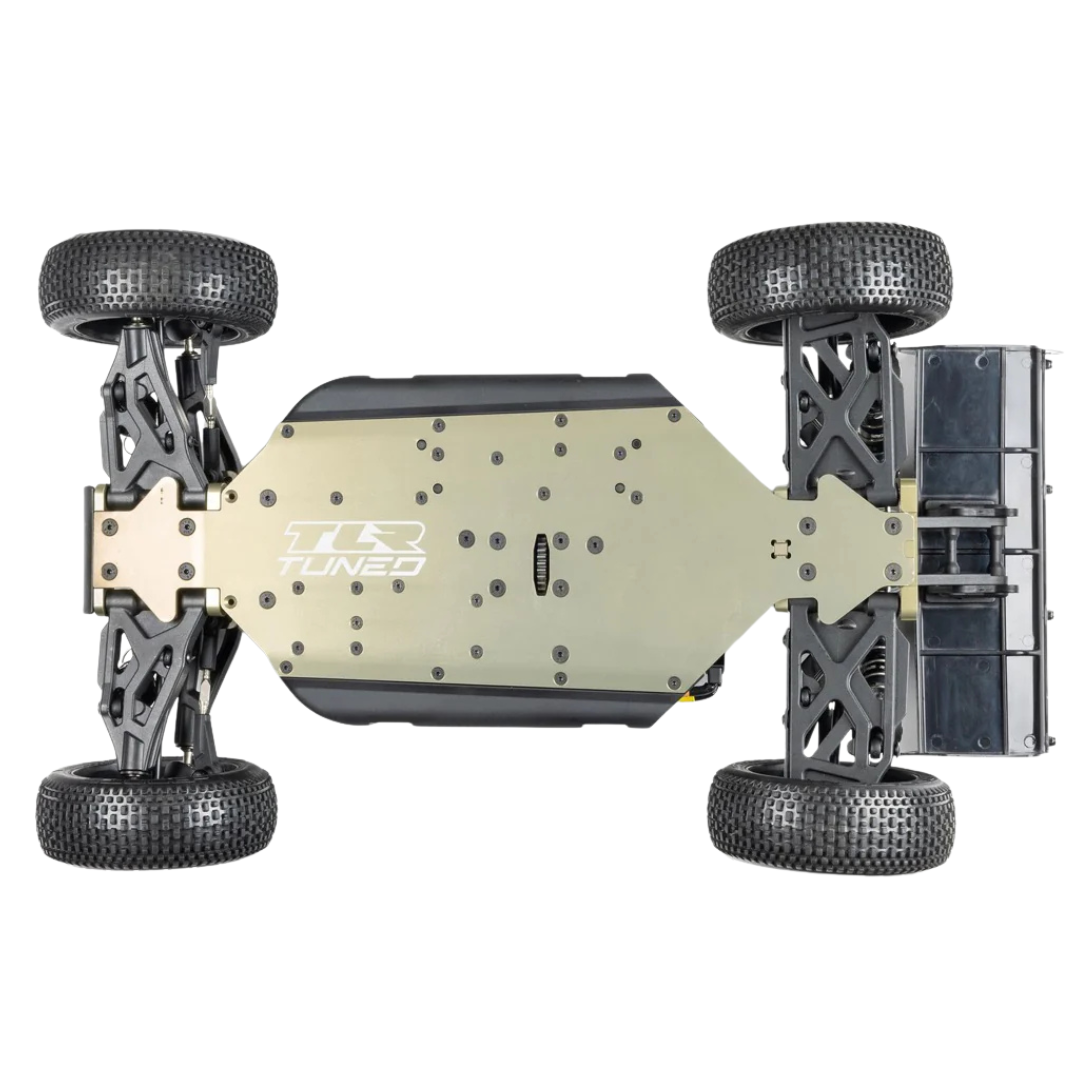

• Chassis: 3mm 7075-T6 aluminium plate
• Differentials: Three gear differentials
• Final Drive Ratio: 10.31:1
• Gear Pitch: 1.0 Mod
• Standard Pinion: 16T
• Shock Type: TLR Tuned adjustable oil-filled aluminium shocks
• Tyres: dBoots EXABYTE race-compound multi-terrain tyres
• Wheel Hex: 17mm
• Maximum Speed: More than 70mph or 112km/h under suitable conditions
• Length: 515mm
• Width: 312mm
• Height: 189mm
• Wheelbase: 328mm
• Ride Height: 27mm
• Approximate Weight: 3.63kg
• Recommended Surface: Off-road tracks, compact dirt and firm mixed terrain

Includes

• 1 × ARRMA TLR Tuned TYPHON 6S 4X4 RTR Buggy in Red and Blue
• 1 × Spektrum Firma 150A Smart waterproof ESC installed
• 1 × Spektrum Firma 4074 2050Kv brushless motor installed
• 1 × Spektrum SLT3 2.4GHz three-channel transmitter
• 1 × Spektrum SR315 dual-protocol three-channel receiver installed
• 1 × Spektrum S652 waterproof metal-geared digital steering servo installed
• 4 × AA transmitter batteries
• 1 × Product manual

Required to Complete

• 1 × Compatible 4S or 6S LiPo battery with IC5 or EC5 connector
• 1 × Compatible LiPo balance charger
• 1 × LiPo charging and storage bag

FAQ

Is the ARRMA TLR Tuned TYPHON fully ready to run? The buggy is factory assembled with its motor, ESC, receiver, steering servo and radio system installed. Four AA transmitter batteries are included, but a compatible 4S or 6S LiPo drive battery and charger are required separately.

Is this a dedicated competition race buggy? It is a race-capable RTR buggy with extensive TLR Tuned setup features, but serious competition use may require tyres, fluids, springs, gearing and suspension settings matched to your local track and class rules.

Should I use 4S or 6S for racing? A 4S LiPo is generally the more suitable starting point for track driving because it provides strong performance with more manageable acceleration. Confirm the permitted battery voltage with your local racing club before entering an event.

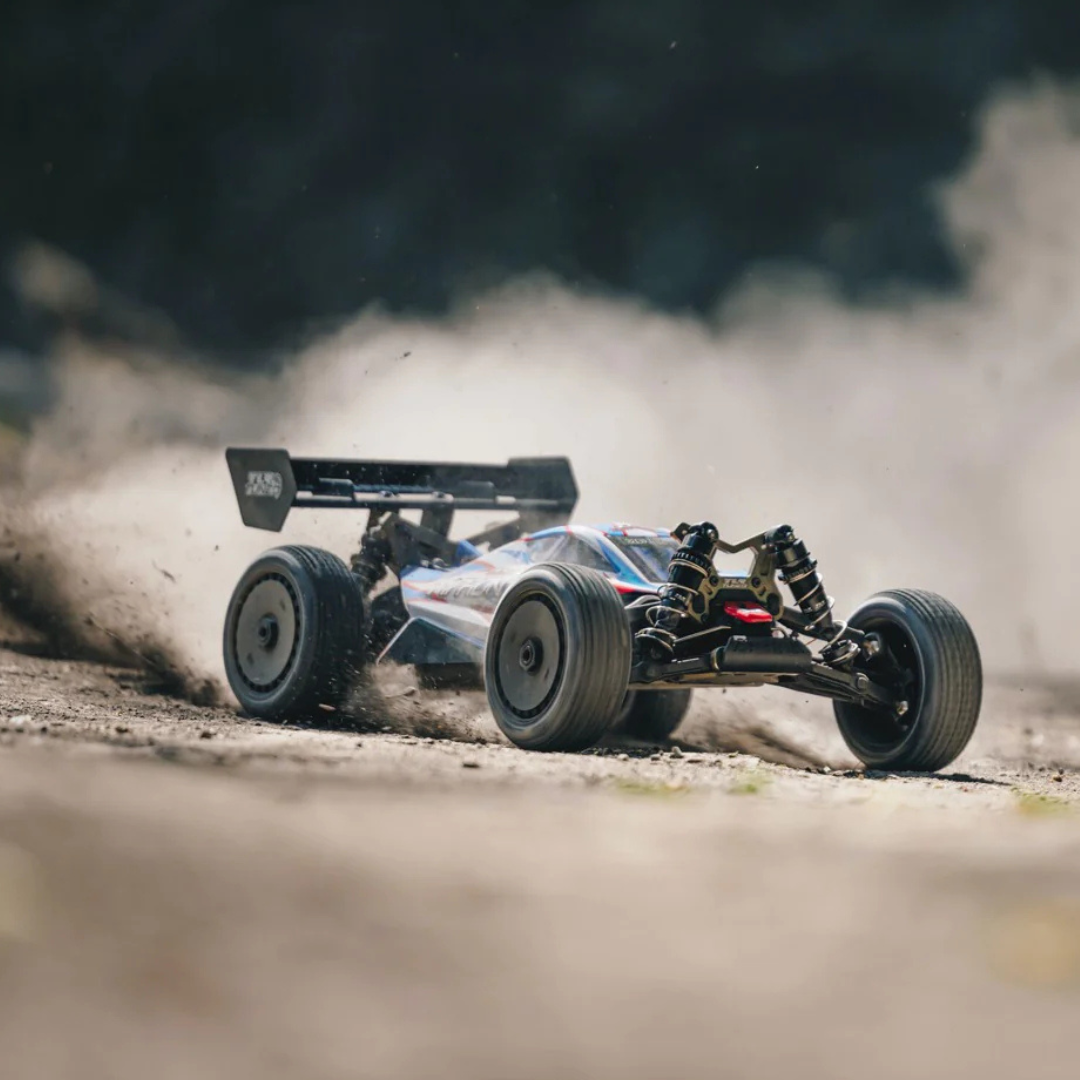

Can the TLR Tuned TYPHON be used for bashing? Yes. Its durable drivetrain, aluminium chassis and 6S-capable electronics make it suitable for high-performance off-road bashing as well as track use.

How fast can ARA8406 go? ARRMA rates the buggy for speeds above 70mph or 112km/h under optimum conditions. Actual speed depends on battery performance, gearing, surface, tyres and vehicle setup.

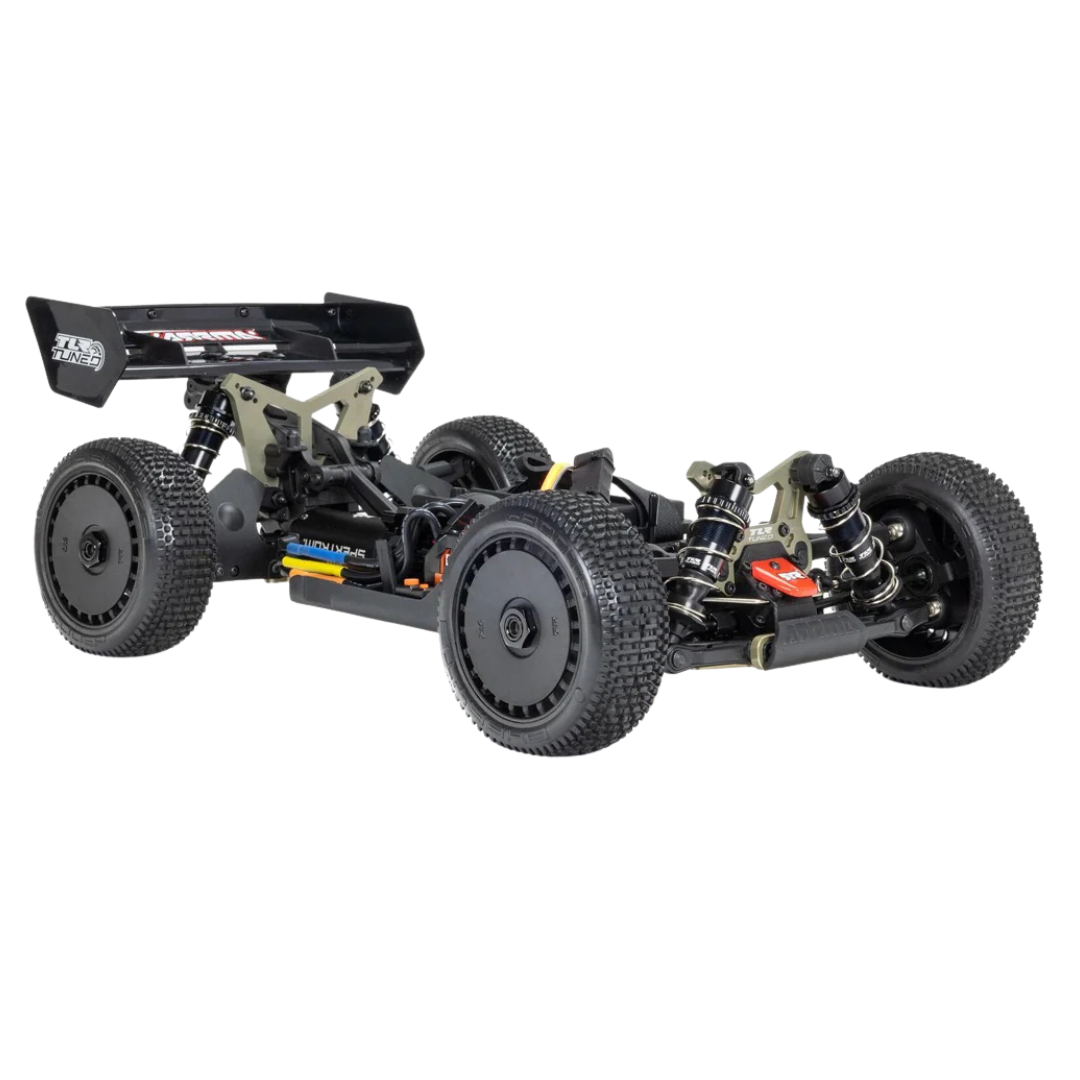

What TLR Tuned parts are included? TLR Tuned upgrades include the 7075-T6 chassis, shock towers, steering rack, adjustable suspension hangers and aluminium shock bodies, along with precision shock components and additional setup capability.

Are the shocks adjustable? Yes. The oil-filled TLR Tuned shocks use threaded aluminium bodies, machined tapered pistons, machined guides and X-ring seals. Spring preload, oil, pistons and mounting positions can be adjusted to suit the track or terrain.

Does it include Smart telemetry? The installed Firma 150A ESC supports Spektrum Smart technology. Displayed telemetry may require a compatible Smart battery and a telemetry-capable Spektrum transmitter.

What tyres are supplied? The buggy includes dBoots EXABYTE multi-terrain race-compound tyres. Dedicated track tyres may provide better performance depending on the track surface and preparation.

Are the electronics waterproof? The ESC and steering servo are designed for wet operating conditions. The complete vehicle is not waterproof and should not be submerged.

Is this suitable for a beginner? It is best suited to intermediate or experienced drivers due to its speed and extensive tuning options. Newer drivers should begin on 4S power in a large, clear area and use conservative throttle inputs.

Important Notes

• Drive battery, LiPo charger and charging bag are not included
• Confirm battery dimensions, voltage and connector compatibility before ordering
• Check local club rules before using the buggy in organised racing
• Track-specific tyres may be required for competitive grip and handling
• The 70+mph rating depends on suitable battery power, gearing and optimum conditions
• High-speed gearing can increase motor, ESC and battery temperatures
• Monitor component temperatures and allow the electronics to cool between demanding runs
• Inspect suspension fasteners, wheel nuts and drivetrain components after impacts
• Water-resistant electronics do not make the complete vehicle waterproof
• Follow all LiPo battery charging, handling and storage procedures
• Operate in a large, clear area away from roads, pedestrians, animals and parked vehicles
