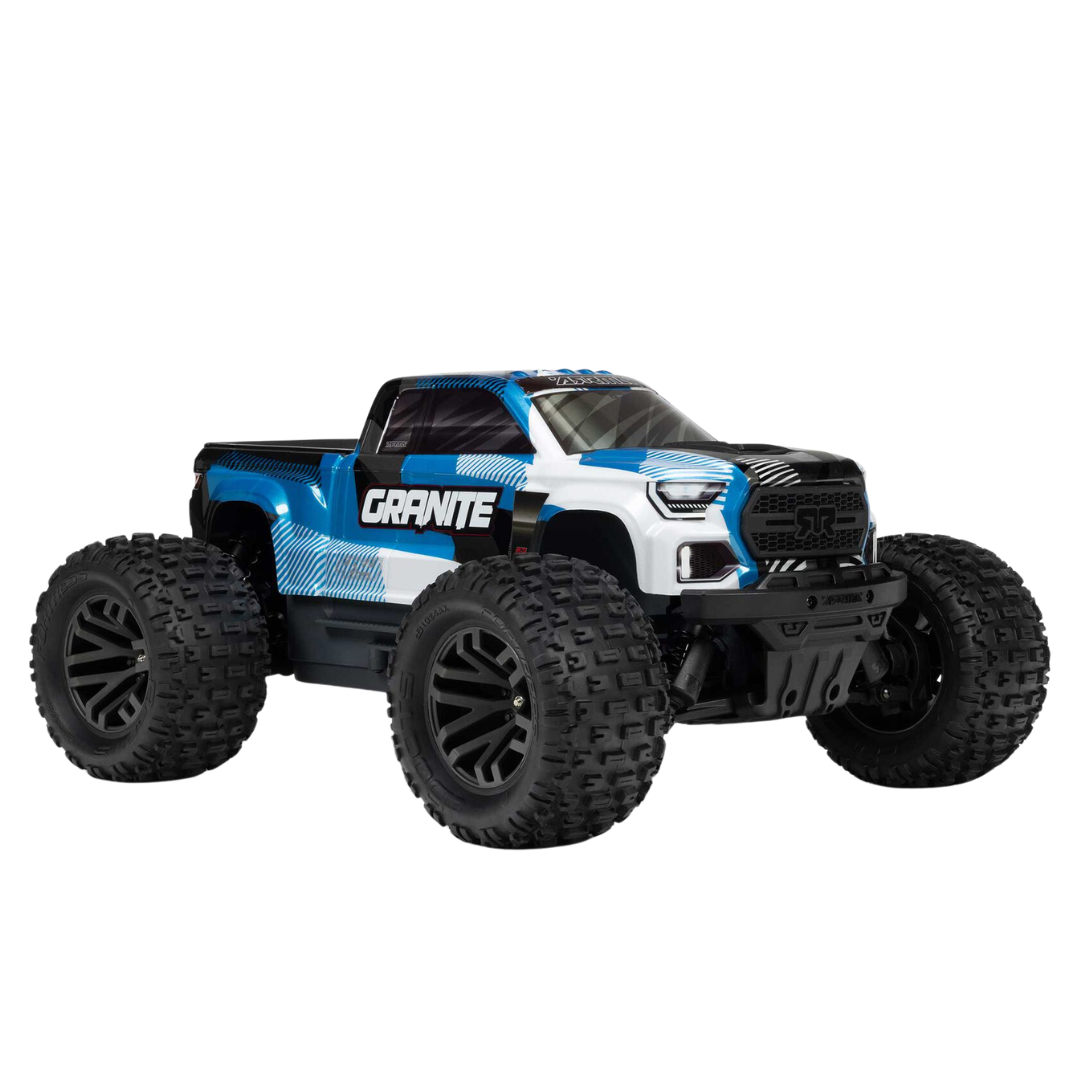

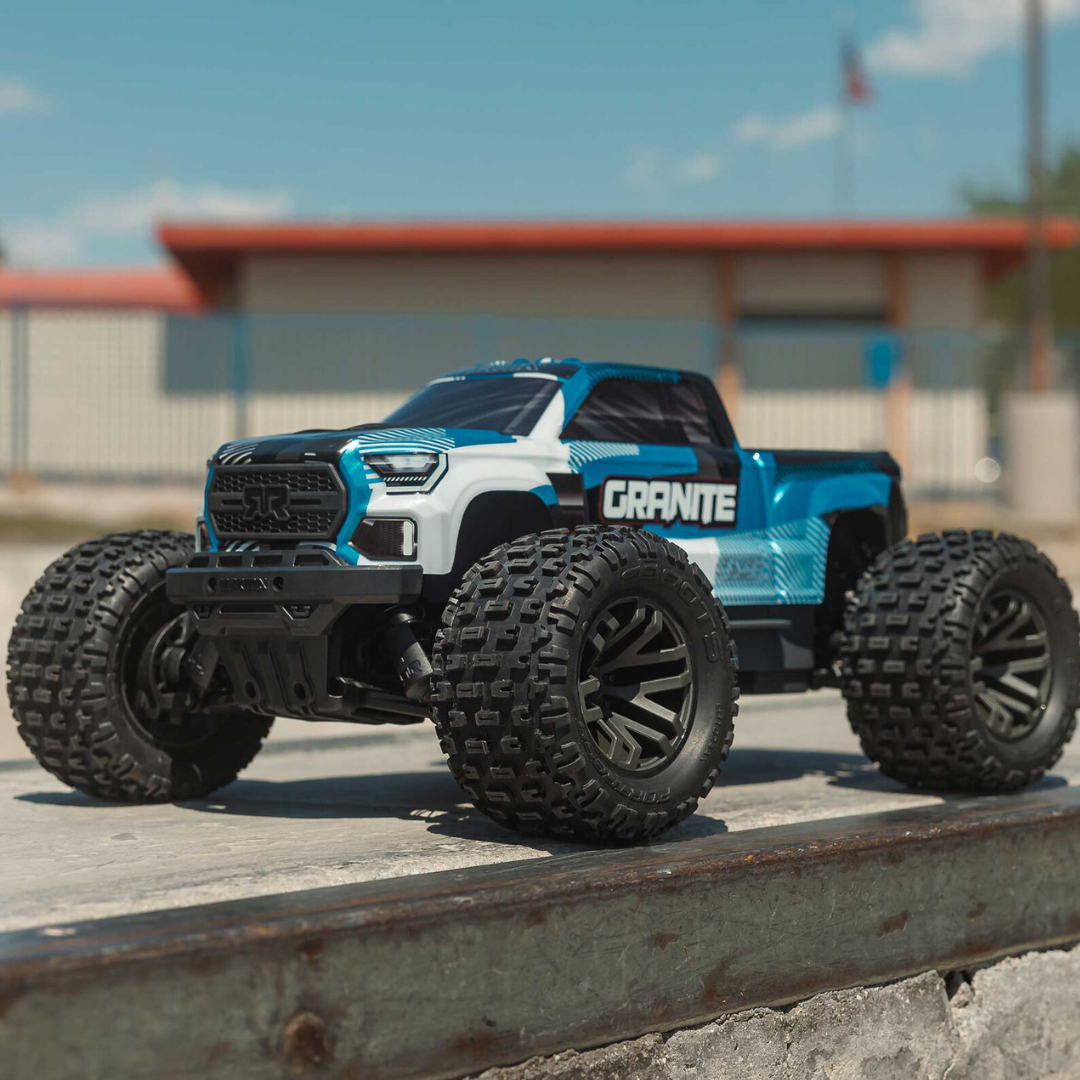

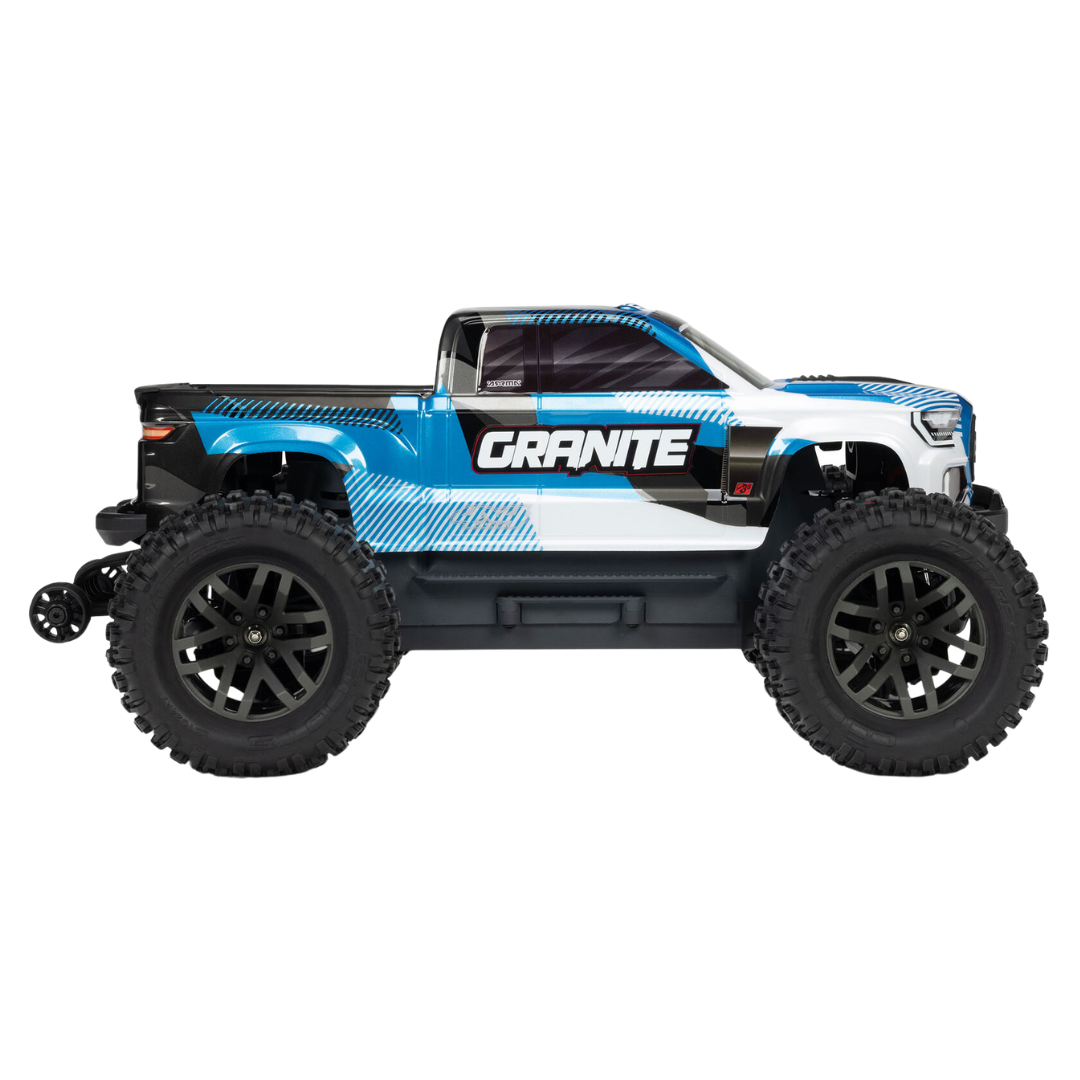

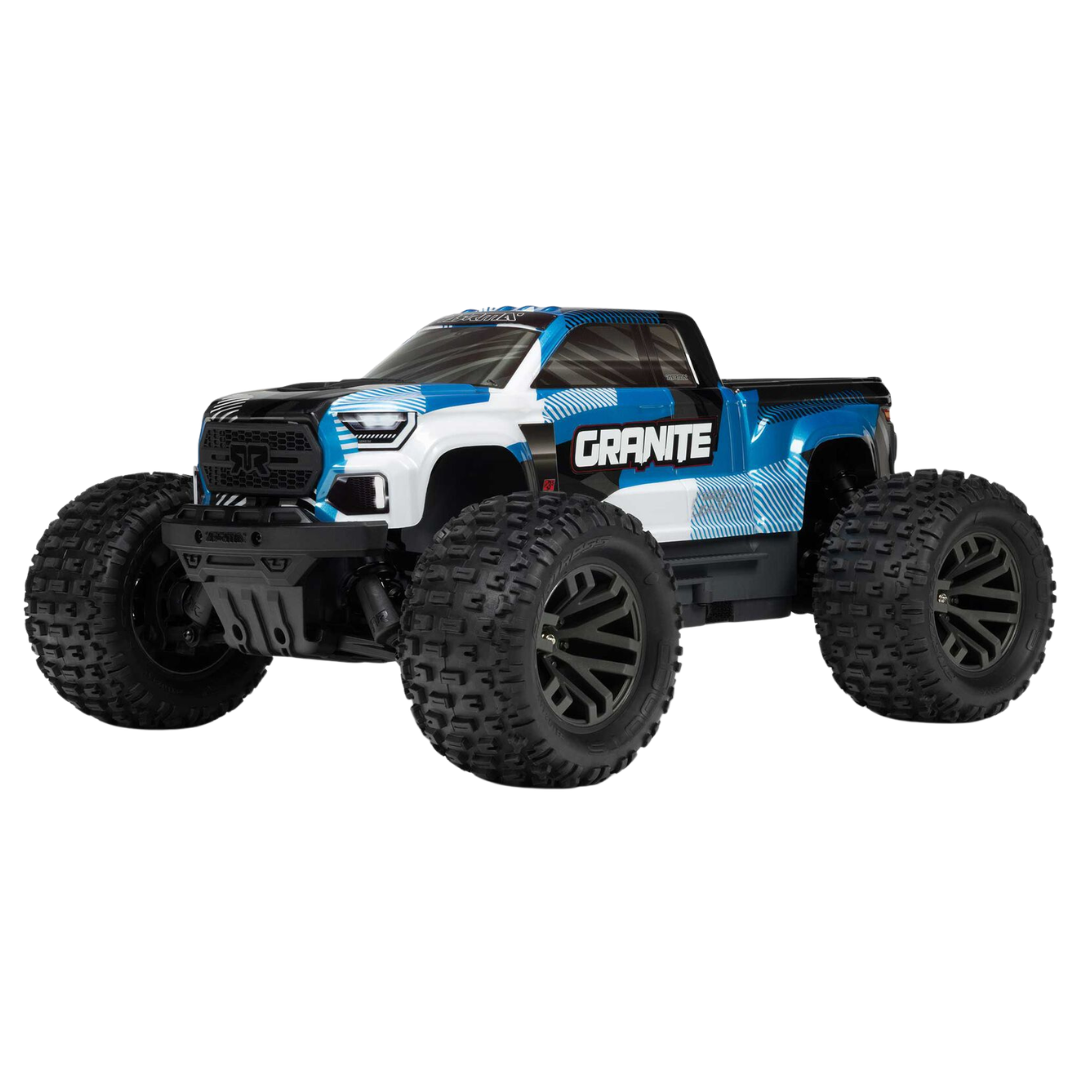

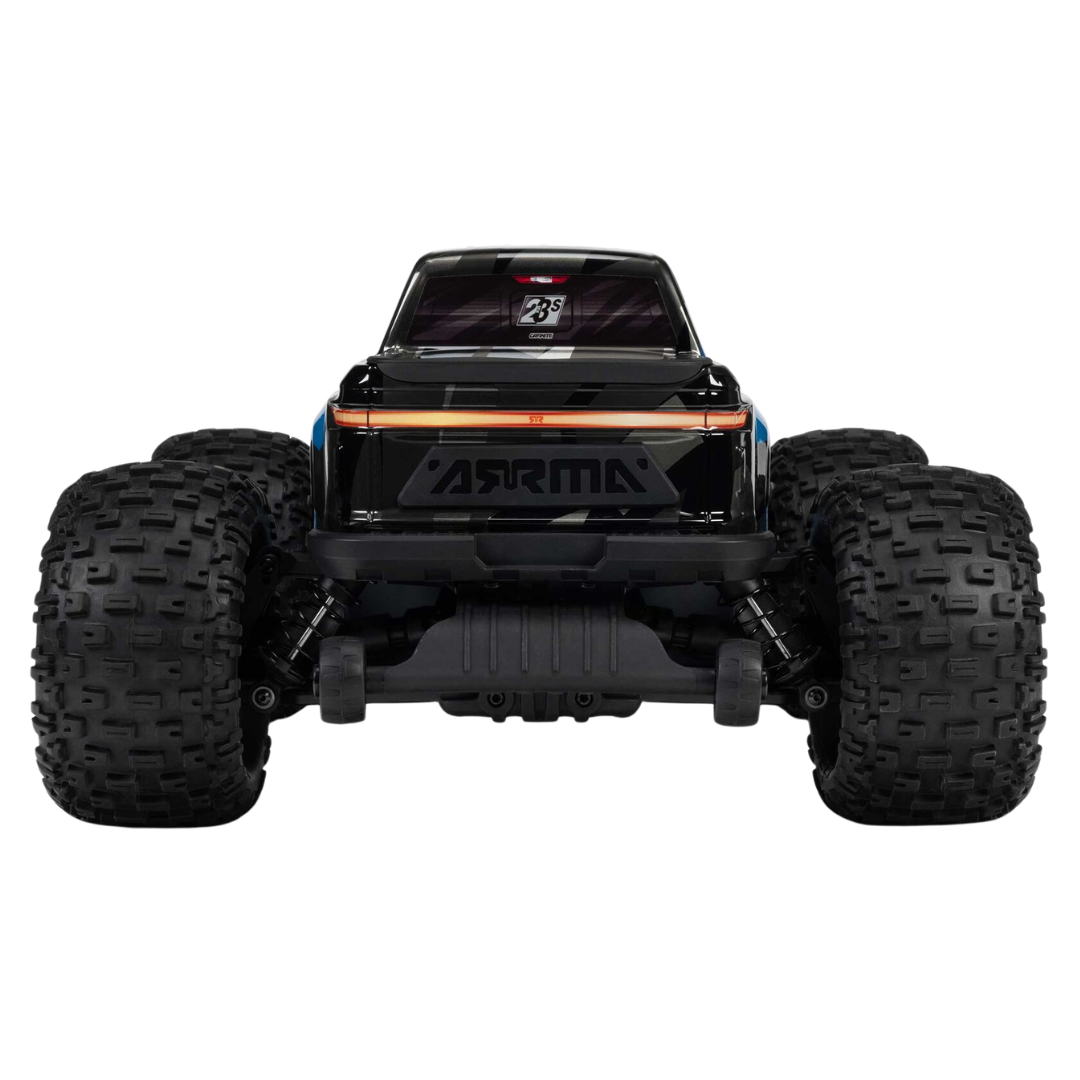

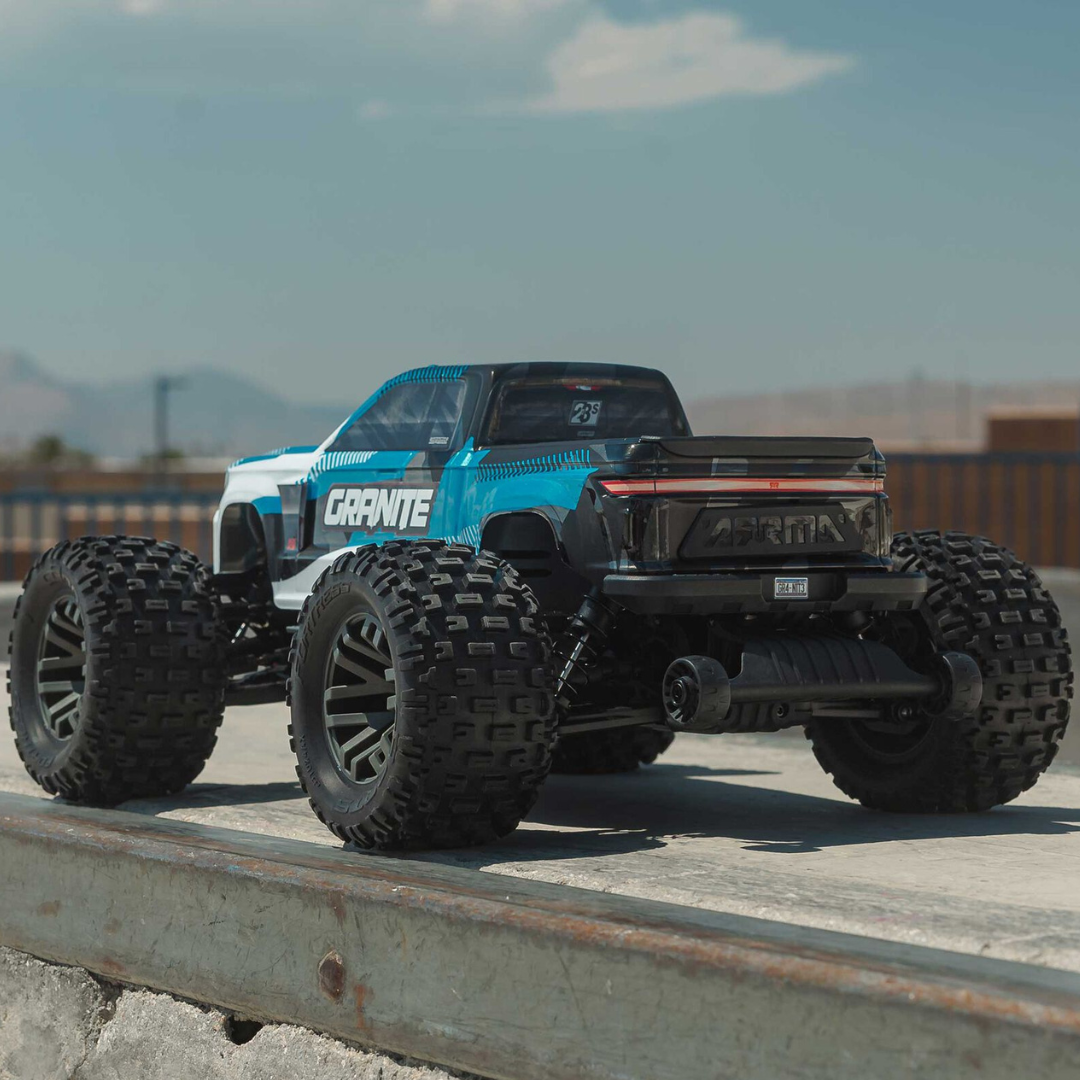

ARRMA GRANITE 223S BLX 1/10 4X4 Brushless RTR Monster Truck Blue ARA4302V4T1

The ARRMA GRANITE 223S BLX is a ready-to-run 1/10 scale 4X4 brushless monster truck that lets drivers progress from manageable 2S performance to extreme 3S speed without upgrading the power system.

Install a compatible 2S LiPo battery for speeds exceeding 56km/h, or move to a 3S LiPo battery to unlock its 80km/h-plus potential. The Spektrum SLT3 transmitter includes selectable 50%, 75% and 100% throttle limits, while Dynamic Stability Control provides four selectable assistance modes to help improve confidence on loose or slippery surfaces.

A stronger ventilated composite chassis, metal-gear centre differential and independent suspension give the GRANITE the durability required for dirt, gravel, short grass and jumping. Its aggressive blue body uses a hidden clipless retention system for quick chassis access, while dBoots Fortress MT tyres provide dependable all-terrain traction.

Features

• Progressive 2S and 3S Power: Begin with manageable 2S performance and move to 3S speed as experience grows
• 35+ MPH on 2S: Capable of speeds exceeding approximately 56km/h with a suitable 2S LiPo battery
• 50+ MPH on 3S: Unlocks more than approximately 80km/h with a suitable 3S LiPo battery
• Spektrum 3100kV Brushless Motor: Provides strong acceleration and high-speed performance
• 35mm Motor Cooling Fan: Helps control motor temperature during demanding operation
• Spektrum SLT 80A 2-in-1 Unit: Combines the waterproof ESC and receiver in a compact installation
• Dynamic Stability Control: Four selectable DSC modes provide steering assistance when required
• Adjustable Throttle Limiting: Selectable 50%, 75% and 100% settings help match performance to driver experience
• Spektrum SLT3 Radio: Included 2.4GHz three-channel transmitter provides precise control
• Spektrum S662 Steering Servo: Waterproof digital servo with metal gears and a 25-tooth output spline
• Full-Time 4X4 Drivetrain: Delivers brushless power to all four wheels
• Metal-Gear Centre Differential: Improves power distribution and drivetrain durability
• Modular Centre Differential: Designed for straightforward removal and servicing
• Heavy-Duty Transmission: Built to withstand both 2S and 3S brushless power

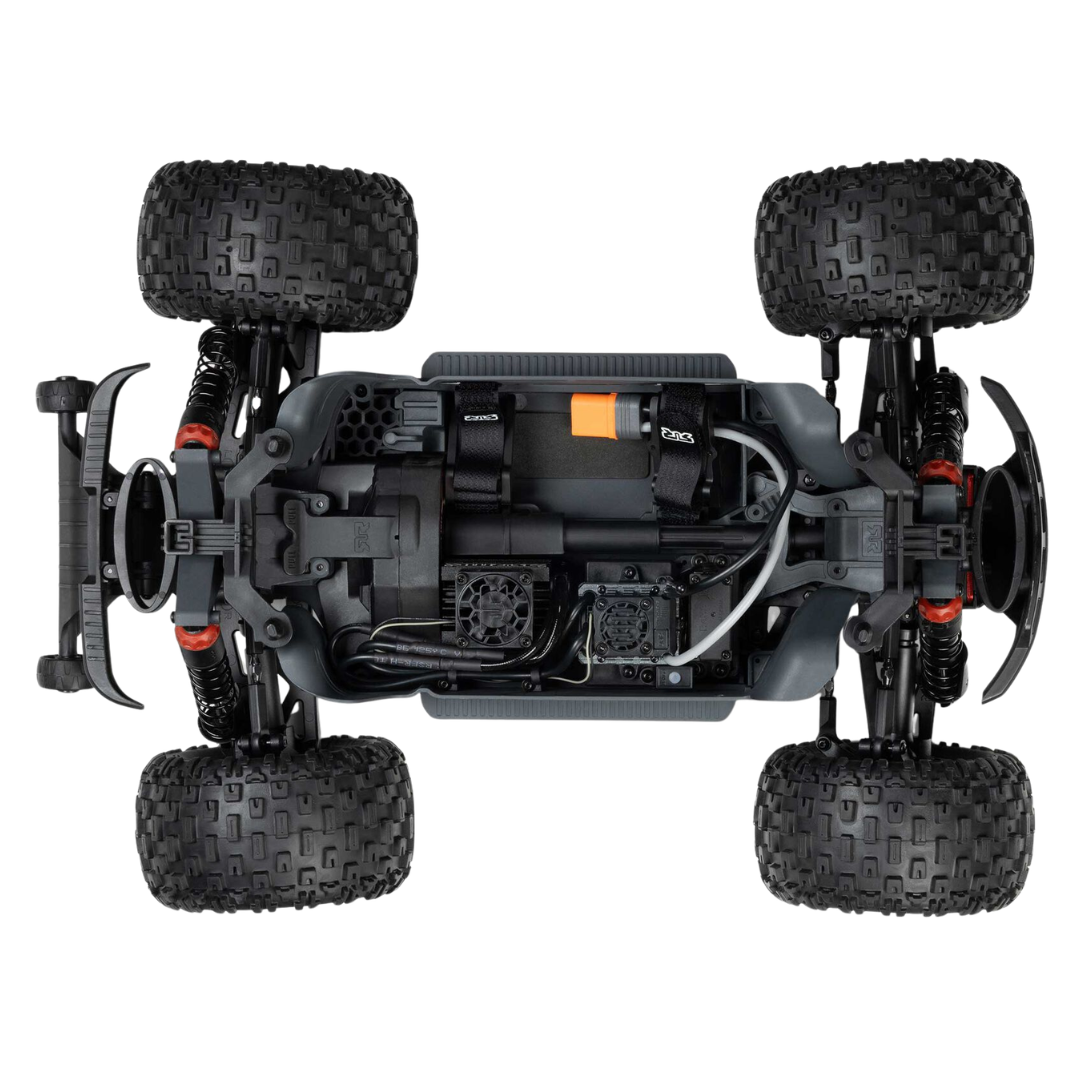

• Ventilated Composite Chassis: Increased airflow helps manage heat and accumulated debris
• Extended Chassis Side Guards: Reduce the amount of dirt entering the chassis tub
• Driveshaft Stone Guard: Helps prevent stones and debris from interfering with the centre driveline
• Independent Suspension: Allows each wheel to react separately across rough terrain
• Adjustable Oil-Filled Shocks: Provide controlled damping for bumps and landings
• Impact-Absorbing Bumpers: Protect the chassis during front and rear impacts
• Clipless Body Retention: Hidden mounting system allows quick body removal without exposed clips
• Painted and Decaled Body: Supplied trimmed and finished in the blue colour scheme
• dBoots Fortress MT Tyres: Aggressive all-terrain tread provides grip on mixed surfaces
• Multi-Spoke Wheels: Large monster truck wheels complement the wide off-road tyres
• Composite Wheelie Bar: Helps control wheelies under hard acceleration
• Sealed Electronics: Designed for operation in varied off-road conditions
• Ready-to-Run Assembly: Radio equipment, brushless system and steering servo are factory installed
• Four AA Transmitter Batteries Included: Only a suitable drive battery and charger are required

Specifications

• Brand: ARRMA
• Model: GRANITE 223S BLX 4X4
• Manufacturer Part Number: ARA4302V4T1
• Colour: Blue
• Product Type: Electric RC Monster Truck
• Scale: 1/10
• Completion Level: Ready to run
• Power System: ARRMA 223S
• Power Source: Electric brushless
• Drivetrain: Four-wheel drive
• Motor: Spektrum 3100kV brushless motor
• Motor Cooling: 35mm fan
• Electronic Speed Controller: Spektrum SLT 80A waterproof 2-in-1 ESC and receiver
• LiPo Compatibility: 2S or 3S
• Battery Connector: IC5
• Battery Tray Dimensions: 139mm × 51mm × 48mm
• Radio System: Spektrum SLT3 2.4GHz three-channel transmitter
• Throttle Limiting: 50%, 75% and 100%
• Stability Assistance: Spektrum Dynamic Stability Control
• DSC Modes: Four selectable modes including off
• Steering Servo: Spektrum S662 waterproof digital servo
• Servo Gearing: Metal
• Servo Output Spline: 25-tooth
• Differential Type: Metal-gear centre differential
• Suspension: Independent all-terrain suspension
• Shock Type: Adjustable oil-filled coilover
• Tyres: dBoots Fortress MT all-terrain tyres
• Body: Painted, decaled and trimmed
• Body Mounting: Hidden clipless retention system
• Length: 470mm
• Width: 340mm
• Height: 204mm
• Wheelbase: 284mm
• Product Weight: Approximately 3.47kg without drive battery
• Maximum Advertised Speed on 2S: Over 56km/h
• Maximum Advertised Speed on 3S: Over 80km/h
• Water Resistance: Yes, subject to the maintenance requirements in the instruction manual

Compatibility

• Compatible with one suitable 2S hardcase LiPo battery for reduced speed and easier control
• Compatible with one suitable 3S hardcase LiPo battery for maximum advertised performance
• Battery must fit within the 139mm × 51mm × 48mm battery tray
• Battery must use an IC5 connector or a correctly rated compatible connection system
• Compatible with Spektrum Smart LiPo batteries fitted with IC5 connectors
• Compatible with LiPo balance chargers rated for the selected 2S or 3S battery
• Compatible with genuine ARRMA GRANITE 223S V4 replacement parts
• Selected GRANITE 4X4 clipless replacement bodies are compatible
• Replacement wheels and tyres must have the correct mounting system, offset and chassis clearance

Includes

• 1 × ARRMA GRANITE 223S BLX 4X4 RTR monster truck in blue
• 1 × Installed Spektrum SLT 80A waterproof 2-in-1 ESC and receiver
• 1 × Installed Spektrum 3100kV brushless motor
• 1 × Installed 35mm motor cooling fan
• 1 × Installed Spektrum S662 waterproof metal-geared digital steering servo
• 1 × Spektrum SLT3 2.4GHz transmitter
• 4 × AA transmitter batteries
• 4 × Factory-mounted dBoots Fortress MT tyres and wheels
• 1 × Installed composite wheelie bar
• 1 × 2.0mm hex driver
• 1 × 2.5mm hex driver
• Instruction manual

Required to Complete

• 1 × Compatible 2S or 3S hardcase LiPo battery with IC5 connector
• 1 × Compatible LiPo balance charger

FAQ

Does the ARRMA GRANITE 223S include a battery and charger? No. The truck includes the radio system and four AA transmitter batteries, but the main 2S or 3S LiPo battery and compatible charger are sold separately.

What does 223S mean? The 223S system is designed to operate on either 2S or 3S LiPo power. It lets drivers begin at a lower performance level and move to full 3S speed without replacing the motor or ESC.

How fast is the GRANITE 223S? ARRMA advertises speeds exceeding 35mph, or approximately 56km/h, on 2S and more than 50mph, or approximately 80km/h, on 3S. Actual speed varies with battery performance, surface, temperature and vehicle condition.

Is 3S recommended for a new driver? A new driver will generally find a 2S battery and the 50% or 75% transmitter setting easier to control. Full 3S power should be introduced only after the driver is comfortable with the truck's handling and stopping distance.

What does the throttle limiter do? The SLT3 transmitter can limit maximum throttle to 50% or 75%. The 100% position provides full available throttle. This makes it easier to share the truck between drivers with different experience levels.

What is Dynamic Stability Control? DSC makes automatic steering corrections to help the truck maintain its intended direction on loose or slippery surfaces. Four modes are available, including an off setting for unassisted driving.

Does DSC drive the truck automatically? No. The driver remains responsible for steering and throttle. DSC only provides corrective steering assistance when the vehicle begins to slide or deviate from its path.

What battery will fit? Use a suitable hardcase 2S or 3S LiPo battery no larger than 139mm × 51mm × 48mm. Confirm the pack dimensions and connector before purchase.

Can a softcase LiPo battery be used? ARRMA specifies a hardcase LiPo battery. A hardcase pack provides additional physical protection during off-road use and should be used unless the manufacturer specifically approves another battery type.

Can a 2S battery reach 50mph? No. ARRMA rates the truck for over 35mph on 2S. The 50mph-plus claim applies to operation with a suitable 3S LiPo battery.

Does the truck have a centre slipper clutch? This version uses a removable metal-gear centre differential rather than a conventional slipper-clutch assembly.

Is the body secured with clips? No. The body uses a hidden clipless retention system, allowing quick removal while retaining a clean exterior appearance.

Is the GRANITE suitable for grass? It can be driven on short, dry grass. Long or thick grass creates significantly more resistance and can quickly increase motor, ESC and battery temperatures.

Are the electronics waterproof? The installed ESC and steering servo are described as waterproof. The truck must still be cleaned and dried after wet use, and it should not be submerged.

What maintenance is required? Check the wheel nuts, tyres, suspension, driveshafts and chassis after each session. Remove dirt and grass, inspect the drivetrain for trapped stones and allow the electronics and battery to cool before the next run.

Important Notes

• A drive battery and charger are not included.
• Four AA batteries for the SLT3 transmitter are included.
• Use one compatible 2S or 3S hardcase LiPo battery with an IC5 connector.
• Confirm that the battery fits within the 139mm × 51mm × 48mm tray before ordering.
• Do not use a 4S battery; the installed electronics are rated for a maximum of 3S LiPo power.
• The 35mph-plus claim applies to a suitable 2S LiPo battery.
• The 50mph-plus claim requires a suitable 3S LiPo battery and appropriate running conditions.
• Beginner drivers should start with 2S power and the 50% throttle setting.
• DSC improves stability but cannot prevent every rollover, collision or loss of control.
• Use a LiPo balance charger that supports the battery's cell count and connector system.
• Never charge a LiPo battery unattended.
• Charge batteries on a non-flammable surface or inside a suitable LiPo charging container.
• Do not use or charge a swollen, damaged, punctured or excessively hot LiPo battery.
• Allow the battery, motor and ESC to cool between demanding runs.
• Monitor temperatures when driving on grass, in hot weather or with repeated full-throttle acceleration.
• Inspect the tyres and wheel nuts before every high-speed run.
• Operate in a clear area away from people, animals, roads, vehicles and fragile property.
• Water-resistant construction does not make the truck suitable for submersion.
• Clean and dry the vehicle after wet, dusty or muddy operation.
• Avoid salt water because it can rapidly corrode bearings, hardware and electrical connections.
• Warranty coverage is subject to the manufacturer's regional terms and conditions.
