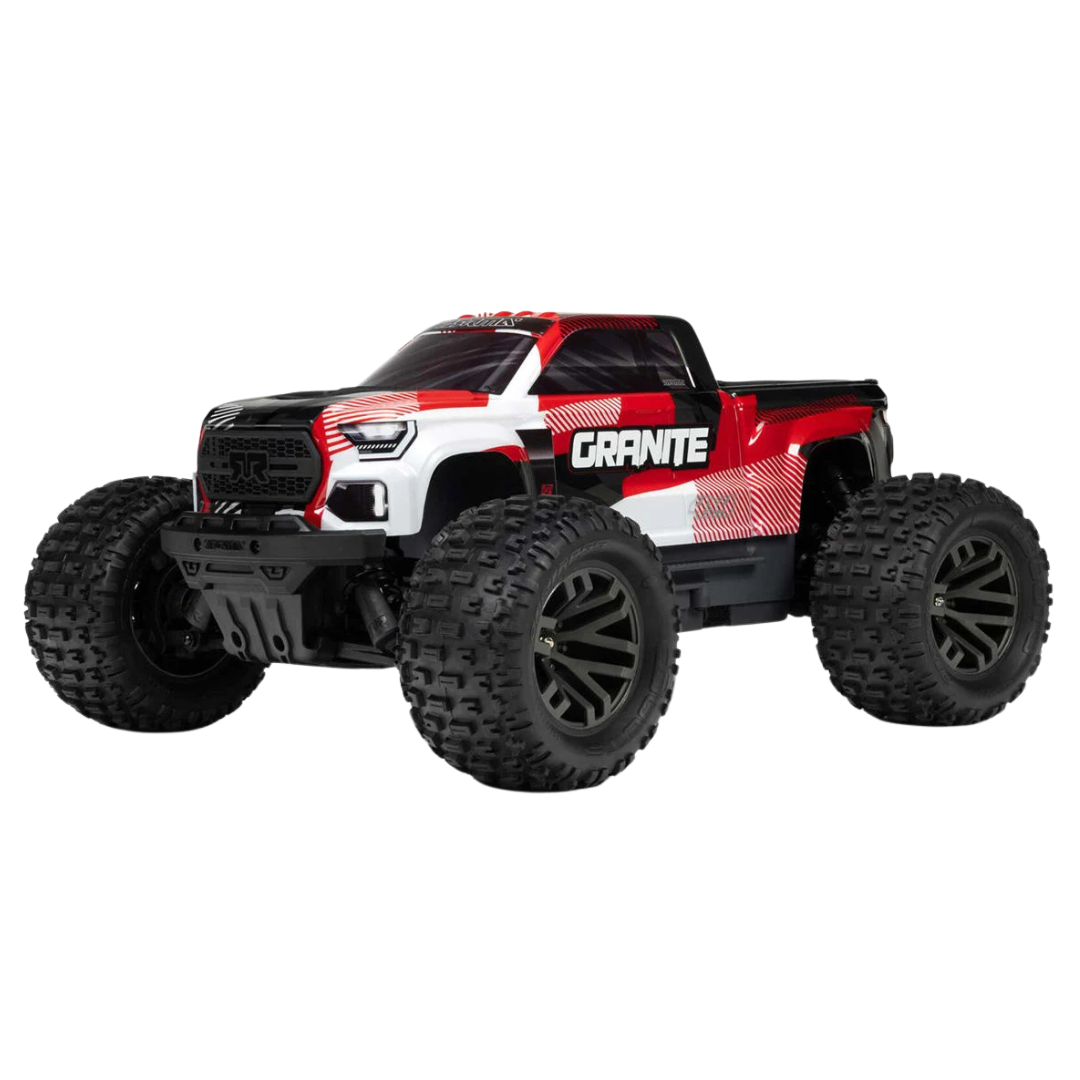

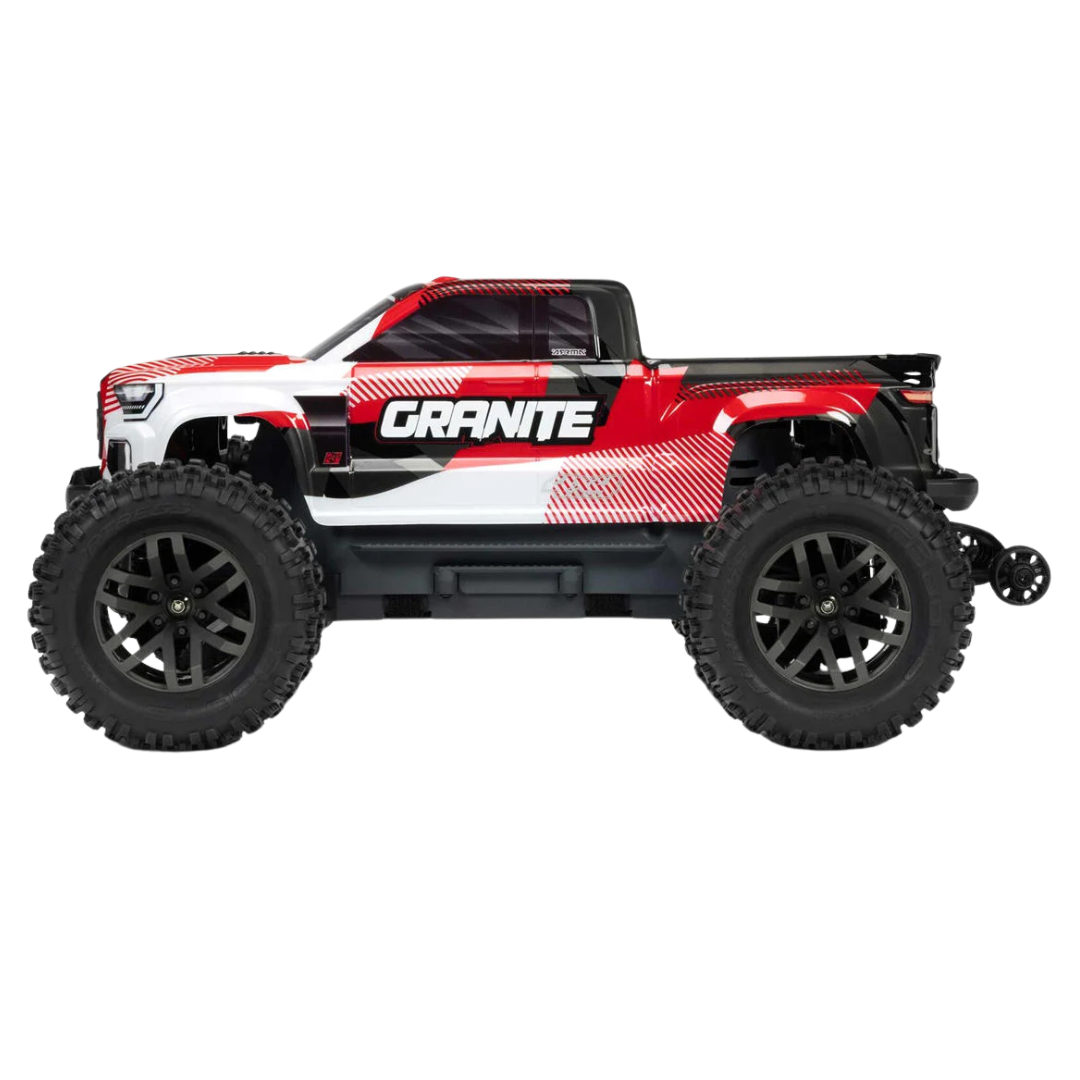

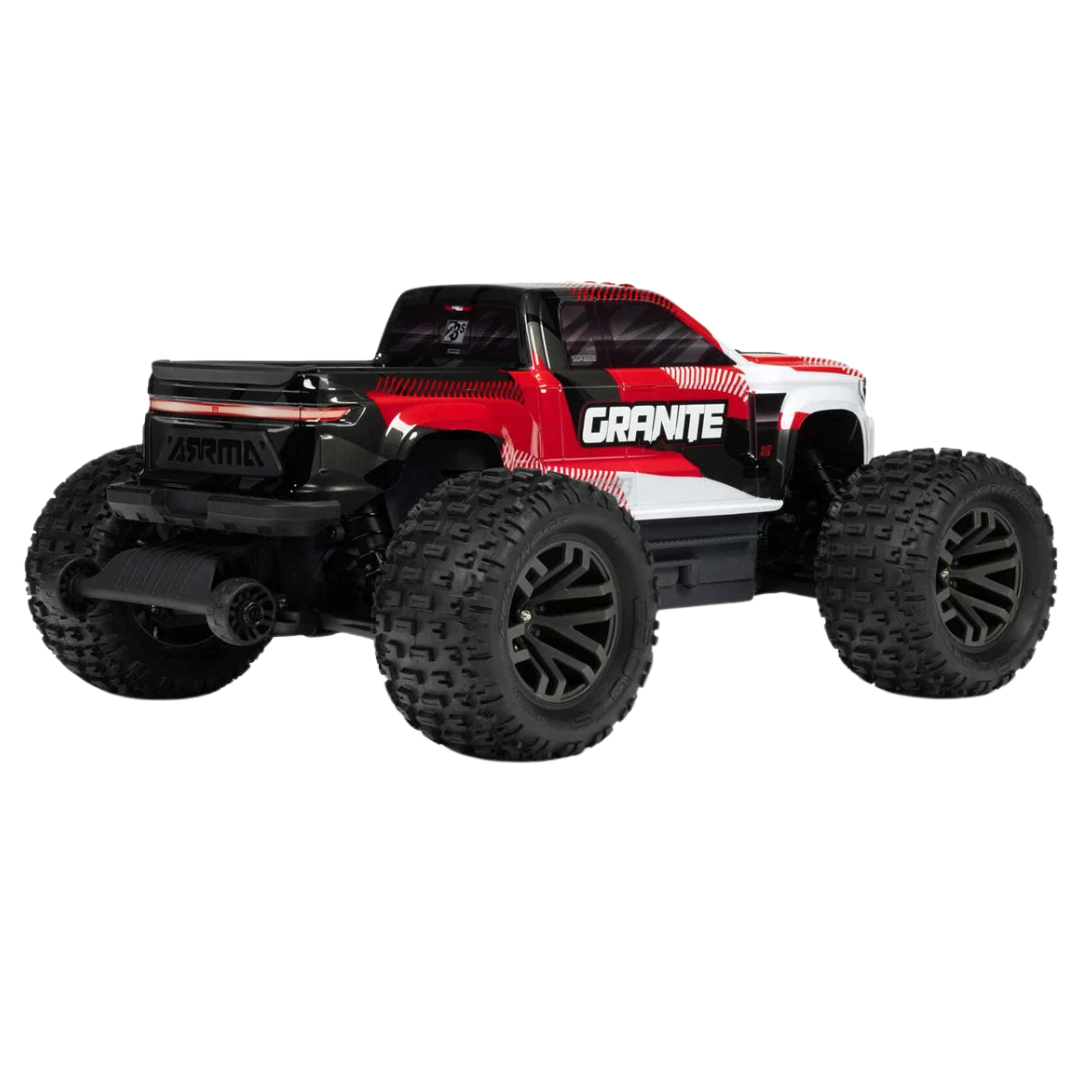

ARRMA GRANITE 223S BLX V4 1/10 4X4 Brushless RTR Monster Truck Red ARA4302V4T2

The ARRMA GRANITE 223S BLX V4 is a powerful yet beginner-friendly 1/10 scale 4X4 brushless monster truck that can grow with the driver's experience. Run it on a compatible 2S LiPo battery for manageable 56km/h-plus performance, then install a 3S LiPo battery to unlock its full 80km/h-plus speed potential without replacing the motor, ESC or drivetrain.

The included Spektrum SLT3 transmitter features selectable 50%, 75% and 100% throttle limits, making it easier to control the truck while developing driving skills. Spektrum Dynamic Stability Control provides four selectable assistance modes that can automatically correct steering input on loose or slippery surfaces.

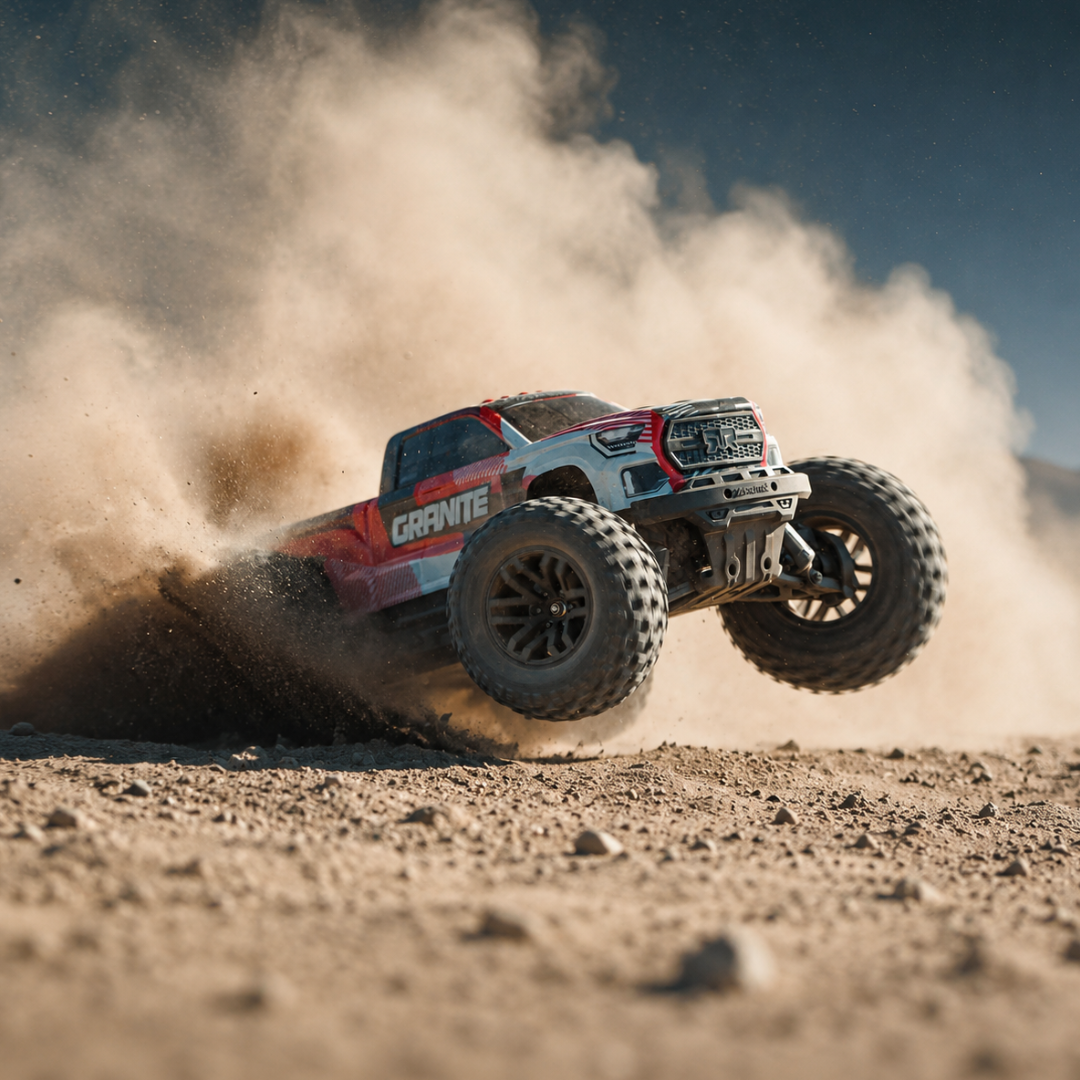

A durable ventilated composite chassis, all-metal centre differential, independent suspension and oil-filled shocks prepare the GRANITE for dirt, gravel, short grass and jumps. The aggressive red body uses a hidden clipless mounting system for fast chassis access, while dBoots Fortress MT tyres provide dependable all-terrain grip.

Features

• Progressive 2S and 3S Performance: Begin with manageable 2S power and progress to full 3S performance without changing the electronics
• 35+ MPH on 2S: Capable of speeds exceeding approximately 56km/h with a suitable 2S LiPo battery
• 50+ MPH on 3S: Capable of speeds exceeding approximately 80km/h with a suitable 3S LiPo battery
• Spektrum 3100kV Brushless Motor: Delivers strong acceleration and high-speed performance
• 35mm Motor Cooling Fan: Helps manage motor temperature during demanding operation
• Spektrum SLT 80A 2-in-1 Unit: Combines the waterproof ESC and receiver in a compact installation
• Dynamic Stability Control: Four selectable DSC modes provide steering assistance when required
• Selectable Throttle Limiting: Choose 50%, 75% or 100% maximum throttle from the transmitter
• Spektrum SLT3 Radio: Included 2.4GHz three-channel transmitter provides precise and reliable control
• Spektrum S662 Steering Servo: Waterproof digital servo with metal gears and a 25-tooth output spline
• Full-Time 4X4 Drivetrain: Delivers brushless power to all four wheels
• All-Metal Centre Differential: Improves power distribution and drivetrain durability
• Modular Centre Differential Assembly: Designed for straightforward removal and servicing
• Heavy-Duty Transmission: Engineered to withstand both 2S and 3S brushless power

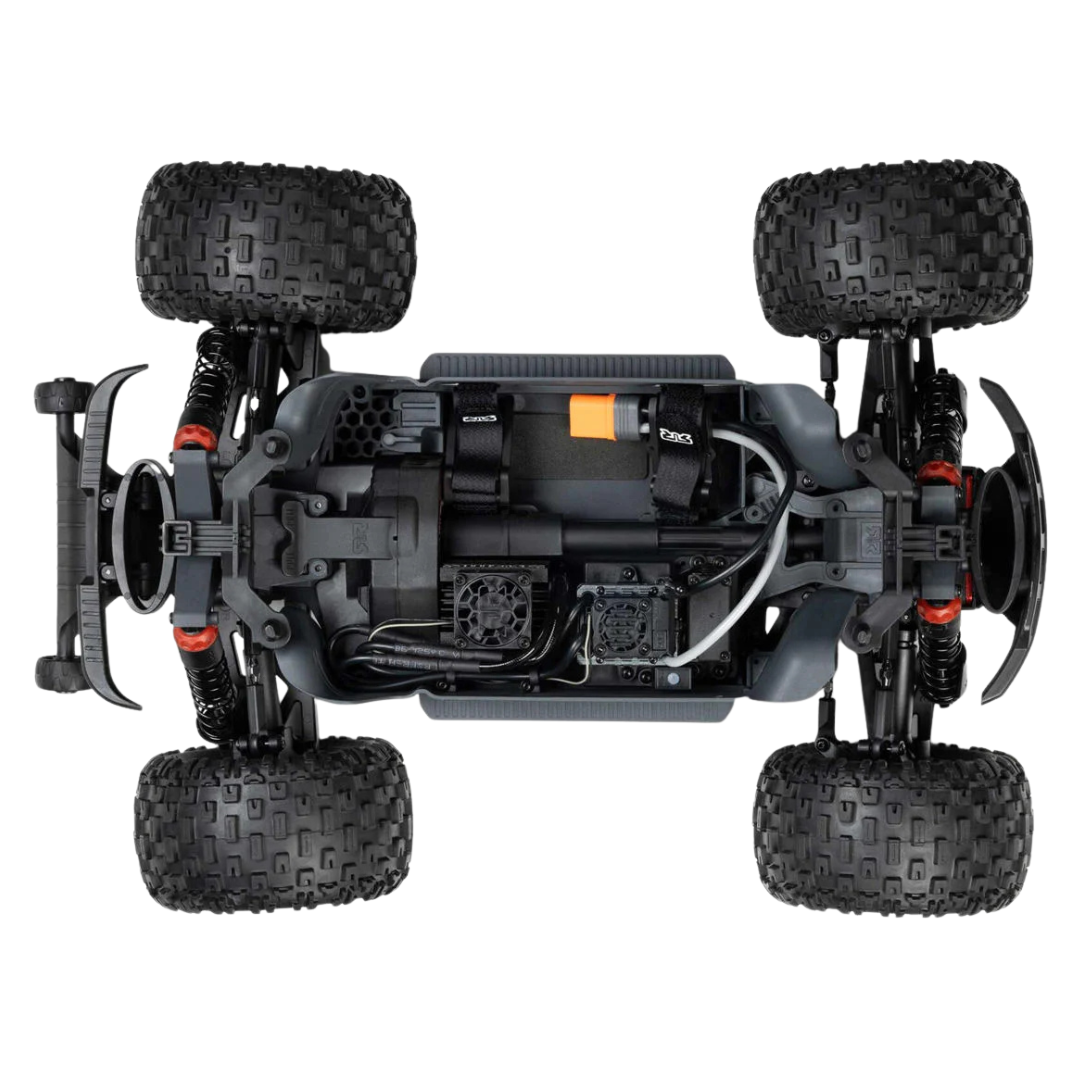

• Ventilated Composite Chassis: Provides strength while helping heat and debris escape
• Extended Chassis Side Guards: Help reduce dirt and stones entering the chassis tub
• Centre Driveshaft Stone Guard: Helps prevent debris from interfering with the driveline
• Independent All-Terrain Suspension: Allows each wheel to respond separately across rough surfaces
• Adjustable Oil-Filled Shocks: Provide controlled damping for bumps, jumps and landings
• Impact-Absorbing Bumpers: Protect the chassis during front and rear impacts
• Hidden Clipless Body Retention: Allows quick body removal without exposed body clips

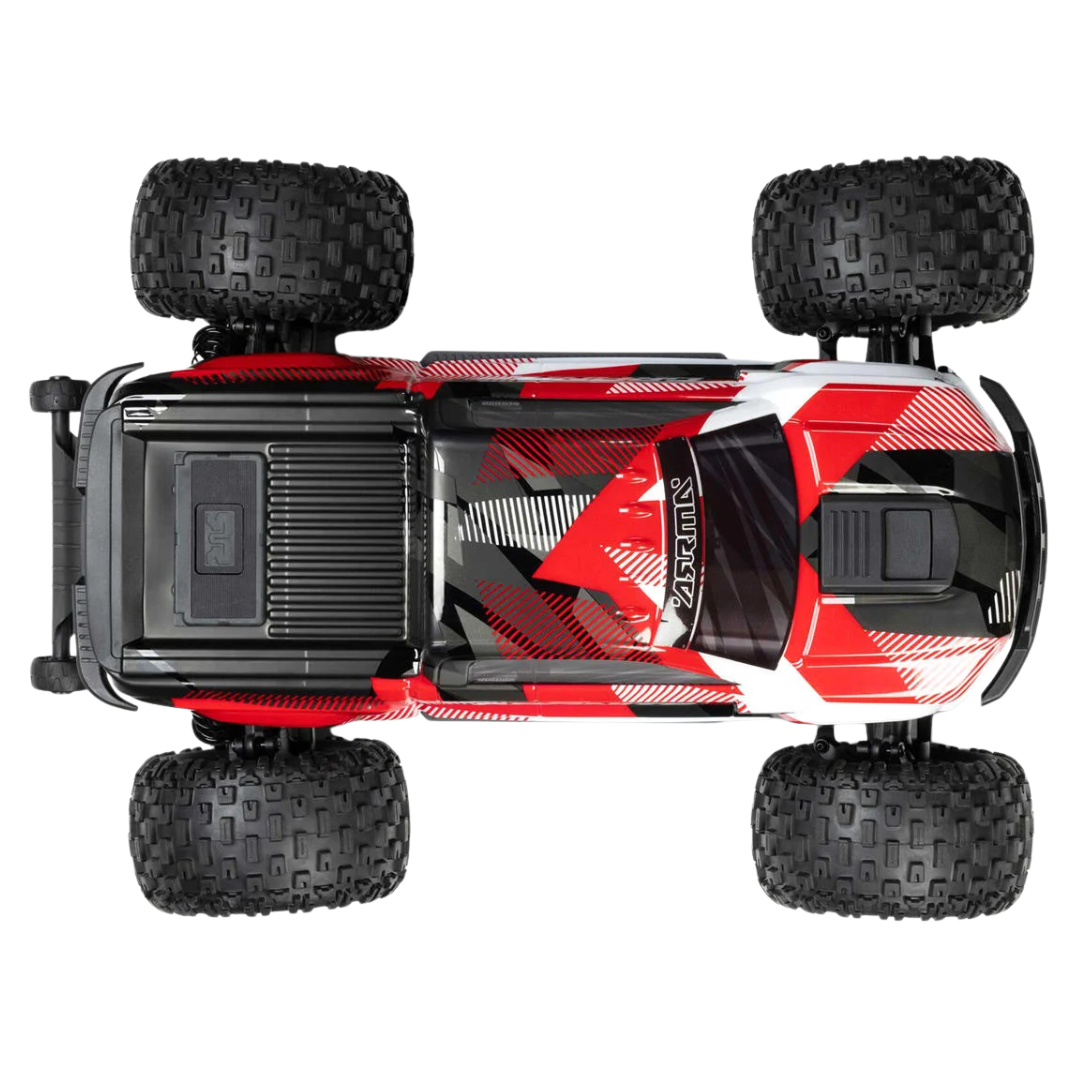

• Painted Red Body: Supplied trimmed, painted and factory decaled
• dBoots Fortress MT Tyres: Aggressive all-terrain tread provides traction on mixed surfaces
• Multi-Spoke Monster Truck Wheels: Wide wheels support the large off-road tyres
• Composite Wheelie Bar: Helps control wheelies during hard acceleration
• Water-Resistant Electronics: Designed for varied off-road driving conditions
• Ready-to-Run Assembly: Motor, ESC, receiver, radio system and steering servo are factory installed
• Four AA Transmitter Batteries Included: Only a suitable drive battery and charger are required

Specifications

• Brand: ARRMA
• Model: GRANITE 223S BLX V4
• Manufacturer Part Number: ARA4302V4T2
• Colour: Red
• Product Type: Electric RC Monster Truck
• Scale: 1/10
• Completion Level: Ready to run
• Power System: ARRMA 223S
• Power Source: Electric brushless
• Drivetrain: Shaft-driven four-wheel drive
• Motor: Spektrum 3100kV sensorless brushless motor
• Motor Cooling: 35mm fan
• Electronic Speed Controller: Spektrum SLT 80A waterproof 2-in-1 ESC and receiver
• LiPo Compatibility: 2S or 3S
• Maximum Battery Voltage: 3S LiPo, 11.1V nominal
• Battery Connector: IC5
• Battery Tray Dimensions: 139mm × 51mm × 48mm
• Radio System: Spektrum SLT3 2.4GHz three-channel transmitter
• Throttle Limiting: 50%, 75% and 100%
• Stability Assistance: Spektrum Dynamic Stability Control
• DSC Settings: Four selectable modes including off
• Steering Servo: Spektrum S662 waterproof digital servo
• Servo Gearing: Metal
• Servo Output Spline: 25-tooth
• Centre Differential: All-metal gear differential
• Suspension: Independent all-terrain suspension
• Shock Type: Adjustable oil-filled coilover
• Tyres: dBoots Fortress MT all-terrain tyres
• Wheel Hex: 12mm
• Body: Painted, decaled and trimmed
• Body Mounting: Hidden clipless retention system
• Length: 470mm
• Width: 340mm
• Height: 204mm
• Wheelbase: 284mm
• Approximate Product Weight: 3.47kg without drive battery
• Maximum Advertised Speed on 2S: Over 56km/h
• Maximum Advertised Speed on 3S: Over 80km/h
• Water Resistance: Yes, subject to the maintenance instructions in the product manual

Compatibility

• Compatible with one suitable 2S hardcase LiPo battery for reduced speed and easier control
• Compatible with one suitable 3S hardcase LiPo battery for maximum advertised performance
• Battery must fit within the 139mm × 51mm × 48mm battery tray
• Battery should use an IC5 connector or a correctly rated compatible connector system
• Compatible with selected Spektrum Smart LiPo batteries equipped with IC5 connectors
• Compatible with LiPo balance chargers rated for the selected 2S or 3S battery
• Compatible with genuine ARRMA GRANITE 223S V4 replacement and upgrade components
• Compatible with selected GRANITE 4X4 bodies designed for the hidden clipless mounting system
• Replacement wheels and tyres must use compatible 12mm hexes, offset and chassis clearance

Includes

• 1 × ARRMA GRANITE 223S BLX V4 4X4 RTR monster truck in red
• 1 × Installed Spektrum SLT 80A waterproof 2-in-1 ESC and receiver
• 1 × Installed Spektrum 3100kV brushless motor
• 1 × Installed 35mm motor cooling fan
• 1 × Installed Spektrum S662 waterproof metal-geared digital steering servo
• 1 × Spektrum SLT3 2.4GHz transmitter
• 4 × AA transmitter batteries
• 4 × Factory-mounted dBoots Fortress MT tyres and wheels
• 1 × Installed composite wheelie bar
• 1 × 2.0mm hex driver
• 1 × 2.5mm hex driver
• Instruction manual

Required to Complete

• 1 × Compatible 2S or 3S hardcase LiPo battery with IC5 connector
• 1 × Compatible LiPo balance charger

FAQ

Does the ARRMA GRANITE 223S include a battery and charger? No. The truck includes its radio equipment and four AA transmitter batteries, but the main 2S or 3S LiPo battery and charger are sold separately.

What does 223S mean? The 223S power system supports both 2S and 3S LiPo batteries. Drivers can begin with lower 2S performance and move to 3S without replacing the motor or speed controller.

How fast is the GRANITE 223S? ARRMA advertises speeds exceeding 35mph, or approximately 56km/h, on 2S and more than 50mph, or approximately 80km/h, on 3S. Actual speed depends on battery performance, surface, temperature and vehicle condition.

Is a 2S or 3S battery better for a beginner? A 2S battery is generally the better starting option. Combining 2S power with the transmitter's 50% or 75% throttle setting makes the truck easier to control while the driver develops steering and braking skills.

What does the throttle limiter do? The SLT3 transmitter can restrict maximum throttle to 50% or 75%. Selecting 100% provides the full available power from the installed battery.

What is Spektrum Dynamic Stability Control? DSC makes automatic steering corrections to help the truck maintain its intended direction on loose or slippery surfaces. The driver remains responsible for steering and throttle control.

Can DSC be switched off? Yes. Four selectable DSC modes are available, including an off setting for fully unassisted driving.

What size battery fits the GRANITE? Use a suitable hardcase 2S or 3S LiPo battery no larger than 139mm × 51mm × 48mm. Confirm both the battery dimensions and connector before ordering.

Can a softcase LiPo battery be used? ARRMA specifies a hardcase LiPo battery. The hard outer casing provides additional protection during impacts and off-road use.

Can the GRANITE use a 4S battery? No. The installed 223S electronics are rated for a maximum of 3S LiPo power.

Can it reach 50mph on a 2S battery? No. The 50mph-plus rating applies to a suitable 3S LiPo battery. ARRMA rates the truck for 35mph-plus performance on 2S.

Does this version use a slipper clutch? The GRANITE 223S V4 uses an easy-to-remove all-metal centre differential rather than a conventional centre slipper assembly.

Is the red body secured with clips? No. The body uses a hidden clipless retention system that provides quick chassis access without visible body clips.

Can the GRANITE be driven on grass? It is suitable for short grass. Long or thick grass places significantly more load on the drivetrain and can quickly increase motor, ESC and battery temperatures.

Are the electronics waterproof? The ESC and steering servo are described as waterproof, but the truck should not be submerged. Always clean and dry it after wet or muddy use.

What maintenance is required? Inspect the tyres, wheel nuts, driveshafts, suspension and chassis after each session. Remove grass, stones and dirt from the driveline and allow the electronics and battery to cool before another run.

Important Notes

• A main drive battery and charger are not included.
• Four AA batteries for the transmitter are included.
• Use one compatible 2S or 3S hardcase LiPo battery with an IC5 connector.
• Confirm that the battery fits within the 139mm × 51mm × 48mm tray before purchase.
• Do not install a 4S battery; the electronics are rated for a maximum of 3S LiPo power.
• The 35mph-plus speed claim applies to a suitable 2S LiPo battery.
• The 50mph-plus speed claim requires a suitable 3S LiPo battery and appropriate running conditions.
• Beginner drivers should start with 2S power and the 50% throttle setting.
• DSC can improve stability but cannot prevent every rollover, collision or loss of control.
• Use a LiPo balance charger suitable for the selected battery's cell count and connector.
• Never charge a LiPo battery unattended.
• Charge LiPo batteries on a non-flammable surface or inside a suitable LiPo charging container.
• Do not use or charge a swollen, damaged, punctured or excessively hot LiPo battery.
• Allow the motor, ESC and battery to cool between demanding runs.
• Monitor temperatures when driving through grass, in hot weather or during repeated full-throttle acceleration.
• Inspect the tyres and wheel nuts before every high-speed session.
• Operate in a clear area away from people, animals, roads, vehicles and fragile property.
• Water-resistant construction does not make the truck suitable for submersion.
• Clean and dry the truck after wet, dusty or muddy operation.
• Avoid salt water because it can rapidly corrode bearings, hardware and electrical connections.
• Manufacturer warranty coverage is subject to regional terms and conditions.
