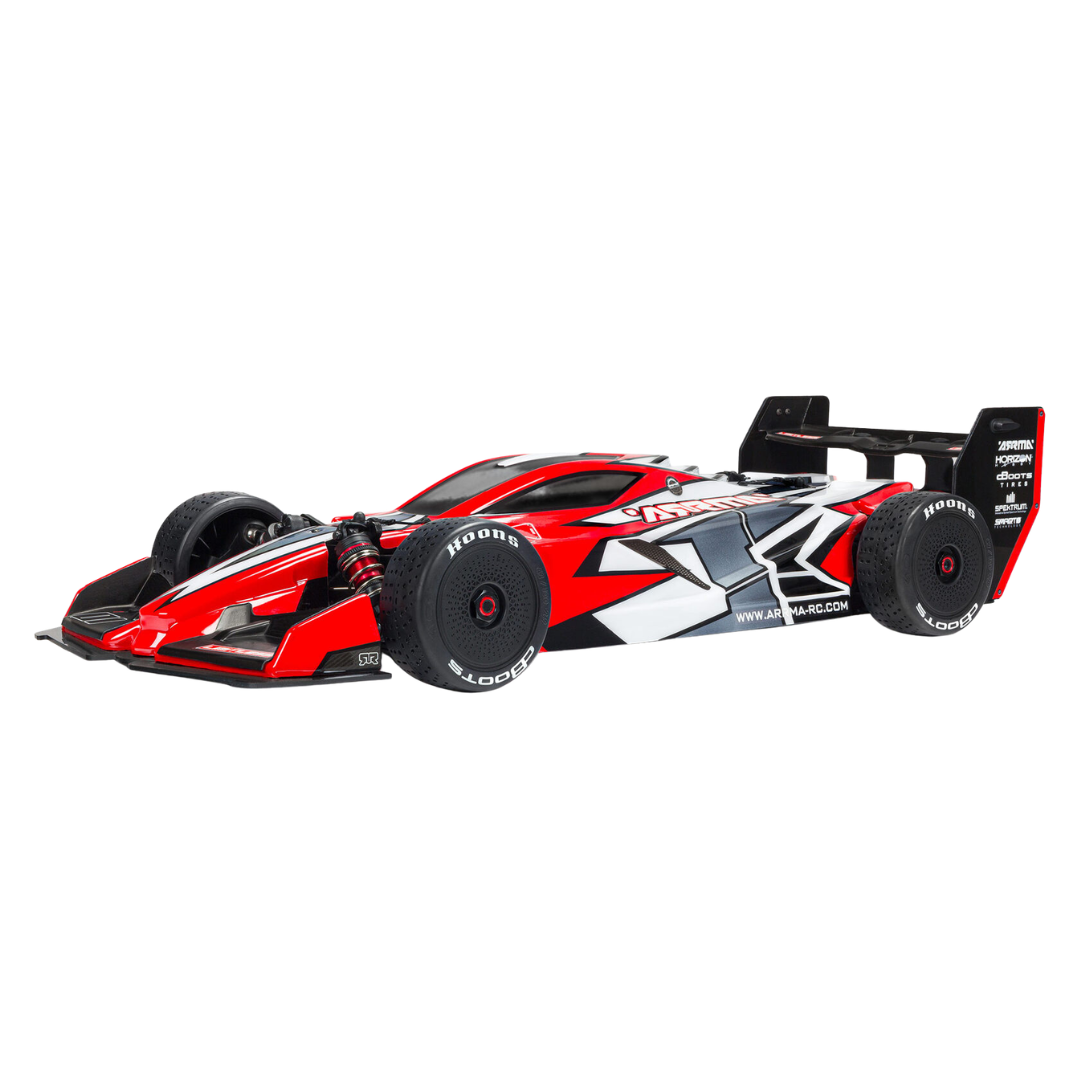

ARRMA Limitless 1/7 6S 4X4 Roller Brushless Street Speed Clear ARA7116V2

The ARRMA ARA7116V2 Limitless is a 1/7 scale 4X4 brushless-ready street speed roller designed for experienced RC drivers who want to build a custom high-speed on-road machine with their own electronics package.

Features

• High-Speed Roller Platform: Designed as a dedicated street speed bash chassis for intermediate to advanced RC drivers
• 8S Optimised Layout: Refined rolling chassis includes transmission and motor mount parts optimised for high-speed 8S power setups
• Custom Electronics Choice: Supplied as a roller so drivers can select their preferred ESC, motor, servo, receiver, transmitter, batteries, and gearing
• 110+ mph Potential: Capable of 110+ mph speeds in optimum conditions when built with recommended electronics and correct setup
• Clear Polycarbonate Body: Includes a clear body and nose cone for custom paint and personalised speed-run styling
• All-Road 4X4 Drivetrain: 4X4 layout helps provide stability and traction for high-speed street running
• Sliding Motor Mount: Easy-access motor mount is designed to accept larger diameter motors suitable for speed-run builds
• GP5 Drivetrain Gearing: GP5 gears help reduce centreline drivetrain speed and vibration for high-speed running
• Wider Rear Track: Wider rear stance improves stability during straight-line speed passes
• Tunable Aero Body: Front and rear wing trim lines allow downforce and drag adjustment during setup work

Specifications

• Brand: ARRMA
• Model: Limitless 1/7 6S 4X4 Roller Brushless Street Speed
• Part Number: ARA7116V2
• Scale: 1/7 scale
• Vehicle Type: Street speed bash roller
• Drivetrain: 4X4
• Completion Level: Roller
• Power System: Brushless-ready
• Power Compatibility: 4S, 6S, or 8S capable depending on selected electronics
• Recommended ESC: 8S capable electronic speed control
• Recommended Motor: 50 series motor with maximum dimensions of 4.33 inch length and 1.97 inch diameter
• Motor Screw Pitch: 0.98 inch, 25mm
• Required Pinion: Mod 1 pinion gear to suit selected motor
• Servo Requirement: Standard size metal gear high-torque steering servo with 23T spline
• Battery Requirement: 2 x 4S LiPo batteries for 8S setup
• Body: Clear polycarbonate body and nose cone
• Speed Potential: 110+ mph in optimum conditions with recommended electronics

Includes

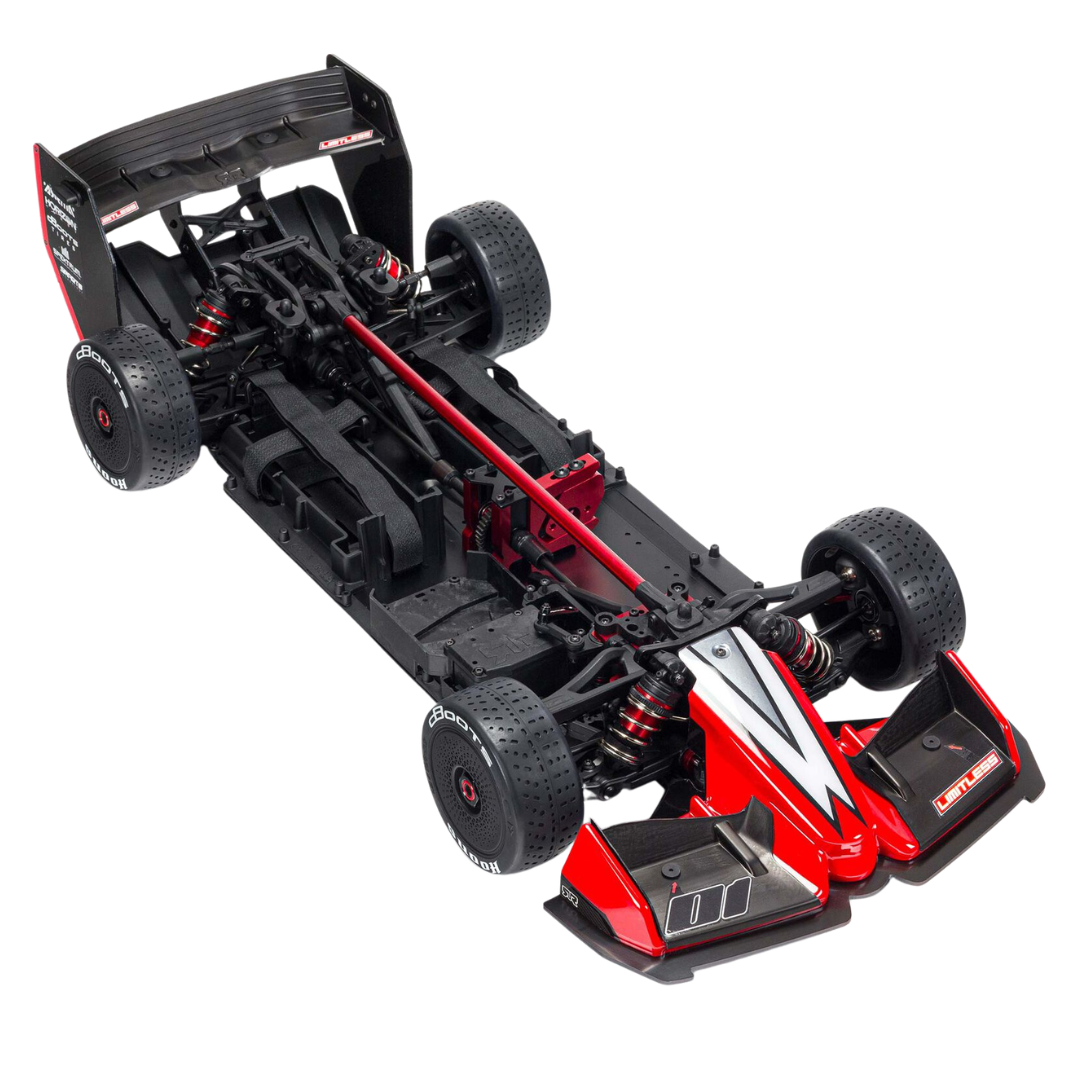

• 1 x ARRMA Limitless 1/7 scale all-road speed bash roller
• 1 x Customisable clear body and nose cone
• 1 x Decal sheet
• 1 x Window mask sheet
• 1 x Limitless V2 speed bash roller manual

Needed To Complete

• 2 or more channel transmitter and receiver
• Standard size metal gear high-torque steering servo with 23T spline
• Electronic speed control, 8S recommended
• 50 series brushless motor within maximum dimensions of 4.33 inch length and 1.97 inch diameter
• 2 x 4S LiPo batteries for 8S setup
• Compatible LiPo battery charger
• LiPo charging bag
• Mod 1 pinion gear to suit selected motor
• RC paint suitable for polycarbonate bodies

FAQ

Is the ARRMA ARA7116V2 Limitless ready to run? No. The ARRMA ARA7116V2 Limitless is supplied as a roller and requires electronics, radio gear, servo, batteries, charger, pinion gear, and body paint to complete.

Does the ARRMA Limitless V2 include a painted body? No. The ARRMA Limitless V2 includes a clear polycarbonate body and nose cone so the body can be custom painted.

How fast can the ARRMA Limitless V2 go? The ARRMA Limitless V2 is capable of 110+ mph in optimum conditions when built with the recommended electronics, suitable gearing, correct setup, and safe speed-run conditions.

What batteries are needed for an 8S Limitless setup? An 8S Limitless setup uses two suitable 4S LiPo batteries connected with compatible electronics and safe high-current wiring practices.

Who is the ARRMA Limitless V2 designed for? The ARRMA Limitless V2 is designed for intermediate to advanced RC drivers who understand high-speed setup, LiPo safety, gearing, tyres, radio range, and safe operating areas.

Important Notes

• This model is supplied as a roller and does not include motor, ESC, servo, transmitter, receiver, batteries, charger, pinion gear, or body paint.
• 110+ mph speed potential requires recommended electronics, suitable gearing, careful setup, optimum conditions, and safe operation in a controlled area.
• High-speed RC operation can be dangerous. Use a large open area away from people, traffic, animals, buildings, and obstacles.
• Always follow safe LiPo charging, storage, wiring, and operating procedures.
• Check manufacturer guidance before selecting electronics, motor dimensions, servo spline, battery fitment, gearing, and tyres.
